Understanding 2×2 Factorial Designs: A Step-by-Step Guide

The 2×2 factorial design represents a fundamental and highly efficient structure in experimental research, enabling scientists to systematically investigate the combined influence of multiple factors. This specific design is meticulously constructed to explore the simultaneous effects of two distinct factors, conventionally termed independent variables. Crucially, in a 2×2 setup, each variable is manipulated or observed at precisely two different states or conditions—known as levels—which are then measured for their cumulative impact upon a single outcome, the dependent variable.

This sophisticated methodology is essential when a researcher hypothesizes that two factors may not act in isolation but rather influence the outcome together, creating complex synergistic or antagonistic relationships. By testing all possible combinations of the factor levels, the 2×2 design ensures that researchers capture the full scope of how these variables interact in the experimental environment, thereby avoiding the oversimplification inherent in single-factor studies.

Illustrative Example: Plant Growth Experiment

To fully grasp the practical application and structural necessity of the 2×2 factorial design, consider a classic research scenario in environmental science. Suppose a botanist seeks to determine how two environmental factors—sunlight exposure and watering frequency—impact the measurable growth of a particular species of plant. This structure is perfectly suited for examining whether these factors act independently or if their combined presence dictates the plant’s success.

The scientist is interested in more than just the general effect of sunlight or water; they suspect that high sunlight may only be beneficial if the plant receives adequate, daily hydration, suggesting a potential interaction. The 2×2 design addresses this suspicion by requiring the scientist to manipulate two distinct variables, each set at two specific levels, resulting in four unique experimental conditions:

The design is categorized as 2×2 because we have two primary factors (independent variables), with each factor controlled across two specific conditions (levels). The resulting four combinations represent the four experimental cells that must be populated with research subjects (in this case, plants):

• Independent Variable #1: Sunlight Exposure
  • Levels: Low exposure, High exposure
• Independent Variable #2: Watering Frequency
  • Levels: Daily watering, Weekly watering

The quantifiable outcome being measured, which reflects the result of these manipulations, is the dependent variable: Plant growth (e.g., measured in inches, grams of biomass, or leaf count). By systematically controlling the assignment of subjects to these four conditions, the researcher ensures that any differences in mean plant growth can be statistically attributed to the factors under investigation.

The Core Advantages: Main Effects and Interaction Analysis

The inherent statistical power of employing a 2×2 factorial design stems from its robust capability to analytically separate and quantify the distinct influences contributing to the overall outcome variance. Unlike research limited to one factor, factorial studies allow for the simultaneous assessment of both individual factor impacts and the unique impact derived from their specific combination.

This dual analysis provides maximum explanatory power, ensuring that researchers do not overlook crucial relationships. Factorial designs enable the investigation of two specific, critical types of statistical relationships:

Main Effects: A main effect quantifies the overall, averaged impact of a single independent variable on the dependent variable, calculated by averaging the results across all levels of the other independent variable. This addresses the general question: Does Factor A, regardless of the setting of Factor B, produce a measurable difference in the outcome?

In our plant scenario, the analysis will generate two main effects that must be tested for statistical significance:

• Main effect of sunlight exposure on plant growth.
  • This comparison involves calculating the mean plant growth across all plants receiving low sunlight (irrespective of whether they were watered daily or weekly) and contrasting that mean with the mean growth of all plants receiving high sunlight.
• Main effect of watering frequency on plant growth.
  • This involves contrasting the average growth of all plants watered daily (pooling data from both low and high sunlight groups) against the average growth of all plants watered weekly.

Understanding Interaction Effects: The Key to Complexity

Interaction Effects represent the most sophisticated finding available through factorial research. An interaction is present when the influence or pattern of results for one independent variable changes depending on the specific level of the second independent variable. Detecting a significant interaction is essential because it reveals relationships that are non-additive, where the combined effect is greater or lesser than the simple sum of the individual main effects.

If an interaction is identified, it dramatically changes the way researchers interpret their results. A main effect may be misleading if it suggests a factor is generally beneficial, but the interaction shows that factor is actually harmful under certain conditions defined by the second variable. The presence of an interaction means the variables are interdependent.

In our botanical example, we analyze a single interaction effect:

• Is the positive or negative effect of high sunlight exposure on plant growth amplified, diminished, or reversed when the watering frequency is changed from daily to weekly?
• Or, conversely, does the difference between daily and weekly watering depend significantly on whether the plants are placed in low or high sunlight conditions?

When an interaction is statistically confirmed, the researcher must qualify all findings by referencing the specific combination of levels, moving the focus away from the general main effects and toward the unique characteristics of the four individual cells.

Visualizing Main Effects and Interaction Effects Through Plots

When analyzing data derived from a 2×2 factorial design, researchers invariably construct interaction plots of the cell means to gain an immediate, intuitive understanding of the relationships between the independent variables and the dependent variable. These plots map the average outcome for each of the four experimental conditions.

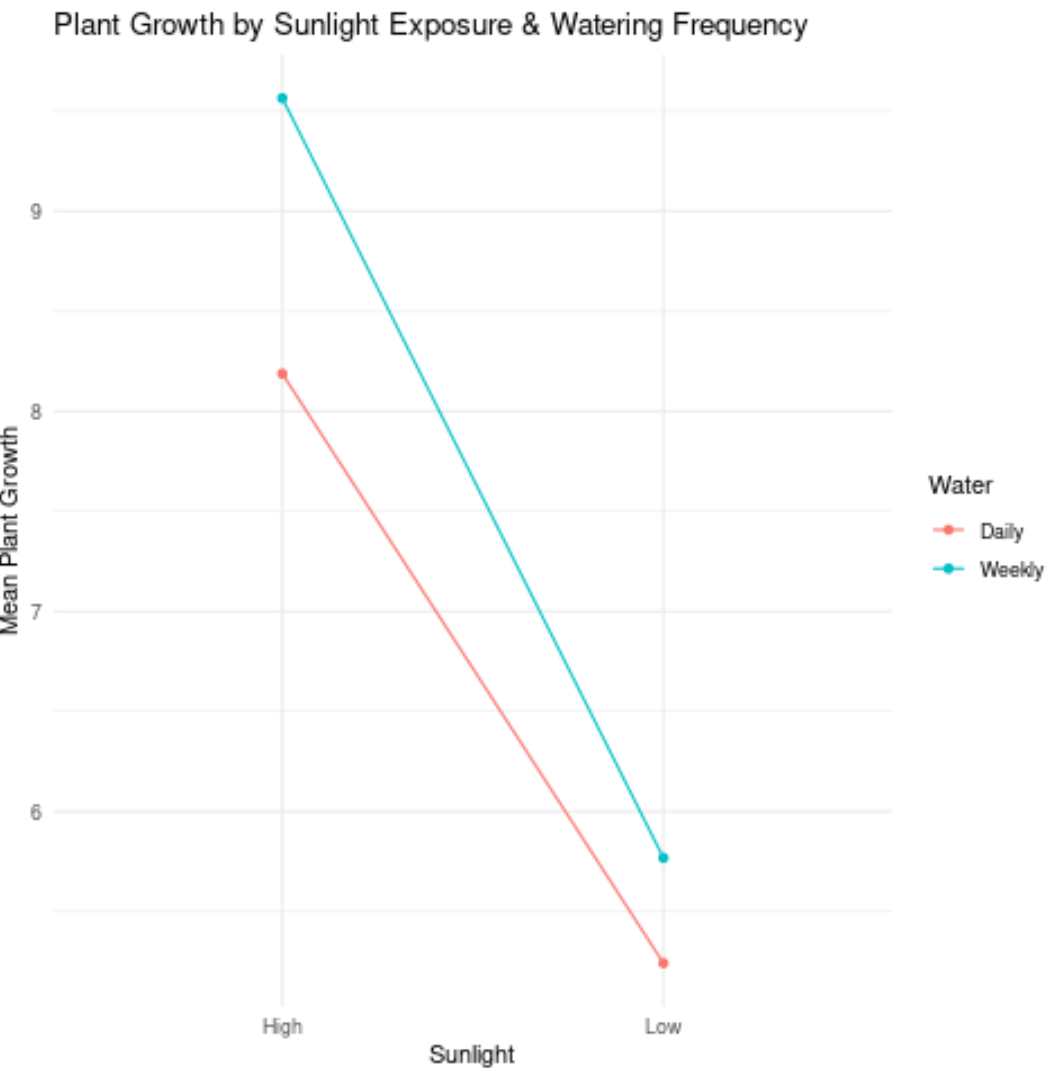

Consider the plot below, which illustrates the mean plant growth for each of the four experimental conditions based on hypothetical data:

Interpreting the data points on this plot reveals the precise average growth for each condition:

• The mean growth for plants that received high sunlight and daily watering was approximately 8.2 inches.
• The mean growth for plants that received high sunlight and weekly watering was approximately 9.6 inches.
• The mean growth for plants that received low sunlight and daily watering was approximately 5.3 inches.
• The mean growth for plants that received low sunlight and weekly watering was approximately 5.8 inches.

To quickly determine if there is a visual indication of an interaction effect, we must inspect the geometric relationship between the two lines:

• If the two lines representing the levels of one factor are approximately parallel across the levels of the second factor, there is generally no significant interaction effect suggested by the data.
• If the two lines are clearly not parallel (i.e., they converge, diverge, or cross), this strongly suggests the presence of an interaction effect that requires formal statistical testing.

In the first plot displayed above, the two lines representing the watering frequencies are relatively parallel. This suggests that the impact of sunlight on growth is consistent regardless of whether the plant is watered daily or weekly, indicating that there is likely no statistical interaction between the two factors.

Identifying a Significant Interaction Visually

Now, let us consider a second set of hypothetical results, which displays a substantially different outcome, depicted in the plot below:

In this visualization, the two lines are markedly non-parallel; they cross over each other dramatically. This strong visual pattern indicates the likely presence of a significant interaction effect between the two independent variables, meaning the factors are highly dependent on one another.

The interpretation derived from this crossing pattern is complex: the effect that sunlight has on plant growth depends heavily on the watering frequency. High sunlight is shown to be detrimental to growth when watering is weekly, potentially due to dehydration, but becomes highly beneficial when watering occurs daily. This confirms that sunlight and watering frequency do not affect plant growth independently; the effect of one must be qualified by the level of the other.

Formal Analysis: The Two-Way ANOVA

While visual plotting provides an essential initial method for inspecting potential Main Effects and Interaction Effects, we must utilize formal statistical methods to test whether these observed relationships are statistically significant—that is, whether they are likely to reflect a true effect rather than random variation.

The standard statistical procedure for conducting this analysis in a 2×2 factorial design is the Two-Way ANOVA (Analysis of Variance). This powerful test simultaneously assesses three hypotheses: the main effect of Factor A, the main effect of Factor B, and the interaction effect between A and B. It determines if the factors and their combination have a statistically significant relationship with the dependent variable.

The following R code demonstrates how to perform a two-way ANOVA using simulated data consistent with our hypothetical plant growth scenario:

#make this example reproducible
set.seed(0)

df <- data.frame(sunlight = rep(c('Low', 'High'), each = 30),
                 water = rep(c('Daily', 'Weekly'), each = 15, times = 2),
                 growth = c(rnorm(15, 6, 2), rnorm(15, 7, 3), rnorm(15, 7, 2),
                                   rnorm(15, 10, 3)))

#fit the two-way ANOVA model
model <- aov(growth ~ sunlight * water, data = df)

#view the model output
summary(model)

               Df Sum Sq Mean Sq F value  Pr(>F)
sunlight        1   52.5   52.48   8.440 0.00525 **
water           1   31.6   31.59   5.081 0.02813 *
sunlight:water  1   12.8   12.85   2.066 0.15620
Residuals      56  348.2    6.22
---
Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

The final interpretation of the ANOVA hinges on examining the p-value (Pr(>F)) associated with each term, relative to a predetermined significance level (typically α = .05):

• The p-value associated with the sunlight main effect is .00525. Since this value is less than .05, we conclude that sunlight exposure has a statistically significant overall main effect on plant growth.
• The p-value associated with the water main effect is .02813. As this is also less than .05, we conclude that watering frequency has a statistically significant overall main effect on plant growth.
• The p-value for the interaction term (sunlight:water) is .15620. Since this value is not less than the .05 threshold, we conclude that there is no statistically significant interaction effect between sunlight and watering frequency. This robust statistical finding confirms the initial visual interpretation of the parallel lines in the first plot, indicating that the two factors operate independently in this dataset.

Summary and Further Resources

The 2×2 factorial design remains an indispensable tool for researchers across scientific disciplines. It allows for the efficient testing of two factors simultaneously and, most importantly, provides the statistical rigor required to detect main effects and identify complex interaction effects. By mastering this design and utilizing appropriate inferential statistics like the Two-Way ANOVA, researchers can generate comprehensive and accurate conclusions regarding multivariate causal relationships.

To further explore experimental designs involving a greater number of levels or additional factors, researchers may consider more complex structures:
