Learning ggplot2 Themes: A Comprehensive Guide to Customizing Plot Appearance

This comprehensive guide explores the power of ggplot2 themes, which are essential tools for transforming raw data visualizations into polished, publication-ready graphics. Themes control the non-data elements of a plot—such as backgrounds, gridlines, fonts, and borders—allowing data analysts to standardize aesthetics and significantly enhance readability. By mastering the application and modification of themes, you ensure your visual communication is both professional and clear. This tutorial will cover the following key areas:

• Detailed instructions on how to modify the overall appearance of plots using the robust set of built-in ggplot2 themes provided directly within the package.
• Techniques for leveraging advanced, predefined themes available through the highly popular ggthemes library, offering styles inspired by professional publications and renowned data visualization experts.
• A granular guide to modifying specific components of the theme, including controlling the plot panel background, adjusting axis lines, and customizing gridlines using the powerful theme() function.

Exploring Built-in ggplot2 Themes for Standard Visualization

The ggplot2 package offers a robust set of default themes designed to handle common visualization requirements efficiently. These themes serve as excellent starting points, enabling users to quickly apply distinct aesthetic treatments without the need for writing extensive custom code. Developing a strong understanding of these defaults is the critical first step before moving toward more advanced, component-level customization.

For all practical examples presented throughout this guide, we will utilize the renowned built-in R dataset, iris. This dataset contains standardized measurements of sepal and petal dimensions for three distinct species of iris flowers, making it ideal for clearly demonstrating visual differences across categorical variables and showcasing how themes affect plot rendering.

# View first six rows of the built-in R dataset, iris
head(iris)

  Sepal.Length Sepal.Width Petal.Length Petal.Width Species
1          5.1         3.5          1.4         0.2  setosa
2          4.9         3.0          1.4         0.2  setosa
3          4.7         3.2          1.3         0.2  setosa
4          4.6         3.1          1.5         0.2  setosa
5          5.0         3.6          1.4         0.2  setosa
6          5.4         3.9          1.7         0.4  setosa

Before applying any specific theme, we must first load the necessary ggplot2 library and construct our base visualization object. We will begin by creating a standard scatter plot, mapping Sepal.Length to the x-axis and Sepal.Width to the y-axis, with the data points colored according to the Species variable. It is important to remember that this initial base plot automatically uses the default theme, theme_gray(), unless explicitly overridden.

# Load ggplot2 library
library(ggplot2)

# Create the base scatterplot
ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point()

The subsequent sections detail how each of the fundamental built-in ggplot2 themes alters the aesthetic appearance of this standard plot framework, moving beyond the default gray background.

theme_gray

This function applies the default theme used universally by ggplot2. It is instantly recognizable by its light gray background panel and contrasting white gridlines. This design choice is intentional, as the subtle gray panel helps the data points stand out effectively without being visually overwhelming. It strikes a good balance, providing sufficient contextual reference through the grid without dominating the visual field.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme_gray()

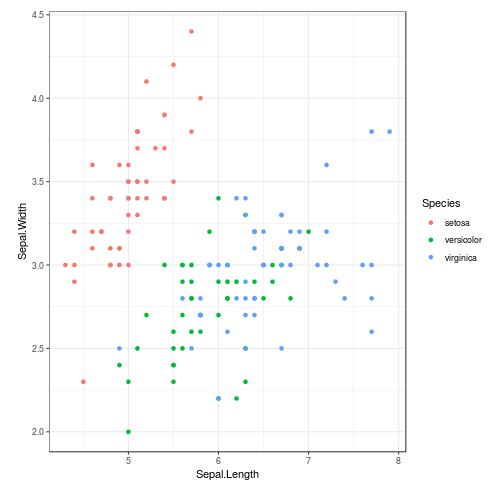

theme_bw

The theme_bw() function generates a stark “black on white” theme. This style is frequently preferred in environments requiring high formal quality, such as academic publications, scientific reports, or documents destined for printing. By eliminating the gray background, the plot appears noticeably cleaner. The background is rendered in pure white, and the gridlines are minimized to a very light, unobtrusive gray, ensuring the data remains the focus.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme_bw()

theme_linedraw

Opting for theme_linedraw() results in a highly minimalist aesthetic. This theme uses only black lines of varying thicknesses against a clean white background. Its primary effect is emphasizing the clear boundaries of the plot panel and the axes, providing a crisp, high-contrast appearance. By minimizing background shading and relying solely on lines, it achieves a focused and highly legible look.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme_linedraw()

theme_light

The theme_light() function shares the clean, white background philosophy of theme_linedraw(), but it introduces a softer touch. Instead of black, the lines, axes, and borders are rendered in a subtle gray. This design choice is intended to pull attention away from the frame elements and direct the viewer’s focus primarily toward the plotted data points themselves, resulting in a professional and aesthetically pleasing visualization.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme_light()

theme_dark

Operating as the aesthetic inverse of theme_light(), the theme_dark() function features a dark background panel. This high-contrast style is exceptionally useful when visualizations are intended for digital display, such as on screens or presentation slides. The dark background ensures that thin colored lines and points stand out dramatically, optimizing visibility and impact in a presentation setting.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme_dark()

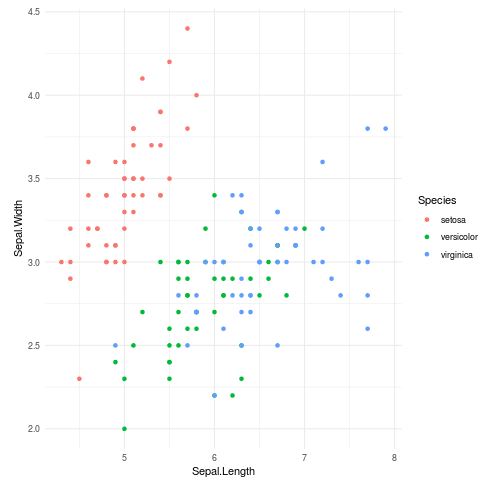

theme_minimal

The core principle of theme_minimal() is to strip away unnecessary visual elements, adhering closely to the ideal of minimizing “non-data ink.” It leaves a clean white background combined with extremely subtle, light gridlines, but crucially, it removes all panel borders. This approach maximizes the viewer’s focus on the geometric objects—the data points—promoting clarity and adhering to established principles of effective data visualization.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme_minimal()

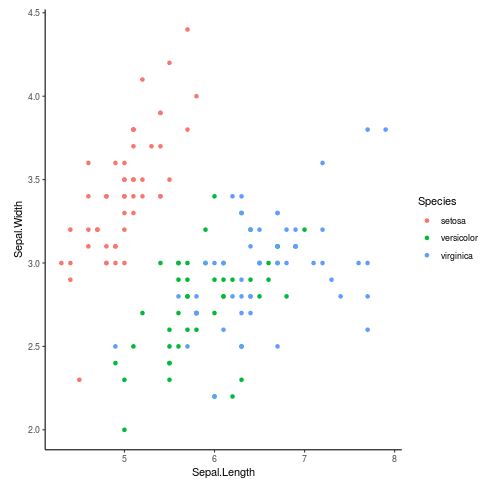

theme_classic

The theme_classic() style is designed to mimic the appearance of traditional scientific plots. It produces a visualization that retains the x and y axes, complete with ticks, but deliberately removes all internal gridlines. This style is often used when explicit grid references are considered visual clutter or unnecessary distractions. The result is a clean, highly effective, and open look, particularly suitable for simple scatter plots or line graphs.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme_classic()

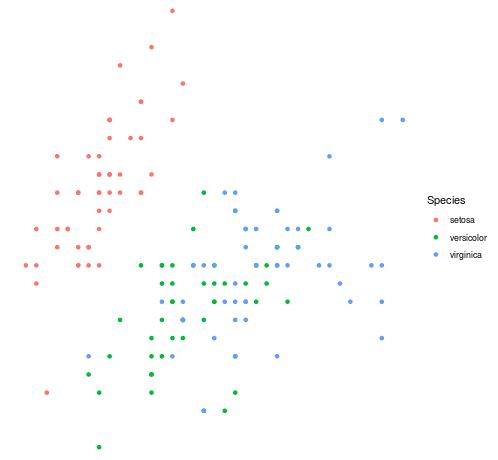

theme_void

As its name suggests, theme_void() creates a completely empty plot canvas. This function systematically removes the background, gridlines, axis lines, and all associated labels, leaving only the data elements (the points and legend). This theme is intended for highly specialized visualizations, such as geographical maps, network diagrams, or stylized artistic renderings, where the conventional Cartesian coordinate system framework is either irrelevant or actively distracting.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme_void()

Enhancing Visuals with the ggthemes Library

While the built-in ggplot2 themes provide excellent general-purpose styling, achieving a truly distinctive or professional publication look often requires external resources. The external ggthemes library offers a rich and diverse collection of predefined themes specifically modeled after influential publication styles, color palettes, and the works of famous visualization experts. These themes are invaluable for creating a highly professional aesthetic with minimal coding effort.

To access these specialized aesthetics and integrate them into our R session, we must first ensure the ggthemes library is installed and loaded. Once loaded, these functions can be seamlessly added to any existing ggplot object using the standard addition operator.

library(ggthemes)

The following examples demonstrate how easily the visual aesthetics of our base scatter plot can be fundamentally transformed using a curated selection of themes drawn from this powerful external library.

theme_wsj

The theme_wsj() function applies a styling directly inspired by the high-quality graphics found in the renowned Wall Street Journal. This theme is characterized by a clean white background, specific professional font choices, and distinctive horizontal gridlines. This style aligns perfectly with journalistic data presentation standards, prioritizing readability and immediate comprehension of trends.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme_wsj()

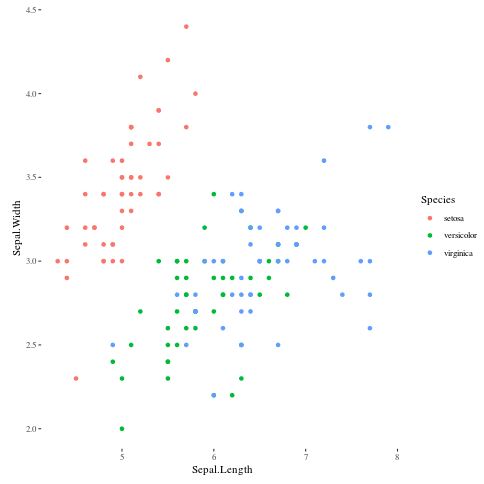

theme_tufte

Inspired by the seminal work of renowned statistician and visualization expert Edward Tufte, theme_tufte() is arguably the most minimalist theme available. Tufte’s core philosophy centers on maximizing the data-to-ink ratio while eliminating all forms of “chart junk.” Consequently, this theme removes almost all non-data elements, often relying only on subtle axis ticks (known as “rug plots”) and the data points themselves, thereby promoting exceptional clarity and intellectual integrity in visualization.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme_tufte()

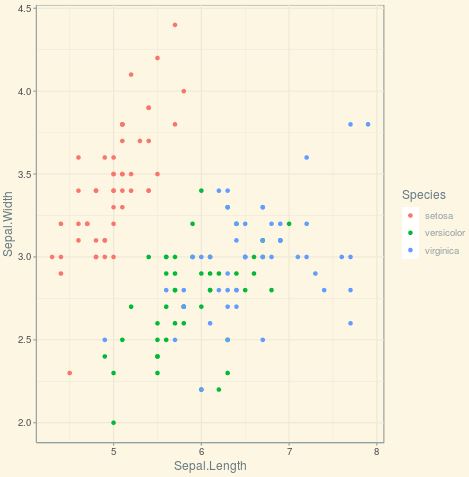

theme_solarized

The theme_solarized() option applies a color scheme based on the popular Solarized color palette. This palette was originally developed for terminal applications and code editors with the specific goal of reducing eye strain during long viewing sessions. By default, this theme utilizes a light background variation, offering a unique, muted, yet highly effective color scheme that is gentle on the eyes for data presentation.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme_solarized()

A significant advantage of the Solarized theme is its inherent flexibility. Users can easily switch to the high-contrast dark variation, which is perfect for presentations or low-light viewing environments, simply by setting the argument light = FALSE within the function call. This adaptability makes it a versatile tool for different display contexts.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme_solarized(light = FALSE)

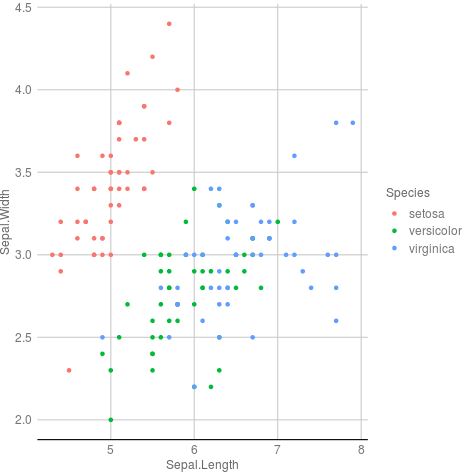

theme_gdocs

The theme_gdocs() function is designed to replicate the default aesthetic choices employed by Google Docs Charts. This theme is highly recognizable and features a clear, accessible, and modern design. It is particularly well-suited for collaborative documents, internal reporting, and web-based platforms where a familiar charting style is desired, ensuring consistency across various digital tools.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme_gdocs()

theme_fivethirtyeight

This theme is inspired by the distinctive and highly influential data journalism style utilized by FiveThirtyEight. Key characteristics include a light gray background, the use of large font sizes for greatly enhanced readability, and a pronounced focus on horizontal gridlines designed to aid comparison across the x-axis. This theme is optimized for maximum clarity and immediate impact, making it ideal for journalistic storytelling.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme_fivethirtyeight()

theme_economist

For visualizations requiring an aesthetic suitable for high-level business or policy analysis, theme_economist() applies the specific visual conventions of charts published by The Economist. This influential style often incorporates specific, recognizable color palettes, distinct font families, and a professional, uncluttered presentation designed explicitly for serious consumption and high-stakes reporting.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme_economist()

Advanced Customization: Modifying Theme Components

While utilizing predefined themes offers convenience, achieving true control and mastery of ggplot2 requires understanding how to customize individual plot elements manually. The core function governing this fine-tuning process is theme(), which allows the user to override or fine-tune virtually every specific visual property of the plot’s non-data components. This provides absolute control over the visualization’s final appearance.

To modify elements that are inherently rectangular in nature, such as the plot panel background (where the data resides) or the overall plot background, we utilize the element_rect() function within the parent theme() call. This powerful function accepts arguments that precisely define the appearance of the rectangular element:

theme(panel.background = element_rect(fill, color, size))

• fill: Defines the interior color used to fill the rectangle.
• color: Sets the color of the border surrounding the rectangle.
• size: Controls the thickness, or weight, of the border line.

In a parallel manner, modifications to linear elements—including gridlines (both major and minor) or axis lines—are handled by the element_line() function. This function enables precise control over all visual properties associated with linear components displayed on the plot panel.

theme(panel.grid.major = element_line(color, size, linetype),
      panel.grid.minor = element_line(color, size, linetype))

• color: Specifies the exact color of the line.
• size: Determines the thickness of the line.
• linetype: Allows selection of the line pattern (e.g., “blank”, “solid”, “dashed”, “dotted”, “dotdash”, “longdash”, “twodash”). Note that using element_blank() is the standard method for effectively removing the element entirely from the visualization.

A frequent customization requirement is creating an extremely clean visualization by removing all unnecessary framing elements and grid references. The following code demonstrates the methodology for achieving this by systematically eliminating both the plot panel borders and the major and minor gridlines using repeated applications of element_blank():

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme(panel.border = element_blank(),
  panel.grid.major = element_blank(),
  panel.grid.minor = element_blank())

Finally, these individual functions can be combined to construct a truly unique and highly customized aesthetic. The advanced example below modifies the plot panel background to a light blue and simultaneously sets the major and minor gridlines to solid white lines. This combination creates a distinct visual separation from all default settings, showcasing the flexibility of granular theme customization in ggplot2.

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_point() +
  theme(
    panel.background = element_rect(fill = "powderblue",
    color = "powderblue",
    size = 0.5, linetype = "solid"),
    panel.grid.major = element_line(size = 0.5, linetype = 'solid', color = "white"),
    panel.grid.minor = element_line(size = 0.25, linetype = 'solid', color = "white")
  )
