A Complete Guide to the mtcars Dataset in R

The mtcars dataset stands as a cornerstone in the world of statistical computing, particularly within the R programming language. Derived from a 1974 issue of Motor Trend magazine, this dataset offers a classic, yet exceptionally rich, collection of performance data for 32 distinct automobile models. It encapsulates not only fundamental characteristics like fuel efficiency but also crucial engineering specifications, making it an ideal starting point for introducing concepts in data analysis and statistical modeling.

For decades, `mtcars` has served as the default training ground for aspiring data scientists and statisticians due to its clean structure, manageable size, and the clear relationships exhibited between its 11 measured attributes. This comprehensive guide is designed to transform your interaction with this popular resource, moving beyond basic commands to achieve deep exploratory insights. We will meticulously navigate the process of loading, summarizing, and visualizing the data, providing the foundational expertise needed to tackle more complex analytical challenges using R.

Our goal is to provide a structured pathway to understanding how to extract meaningful information from tabular data effectively. Whether you are performing your first exploratory data analysis (EDA) or refining your techniques in preparation for advanced statistical modeling, the `mtcars` dataset remains an invaluable asset. By the conclusion of this tutorial, you will possess a robust framework for interpreting the interrelationships between vehicle characteristics, ultimately enhancing your fluency in R data manipulation.

Deconstructing the mtcars Dataset and Variables

To perform any meaningful data analysis, a thorough understanding of the dataset’s context and structure is paramount. The mtcars dataset organizes data around 32 automobiles, where each car model constitutes a unique observation, or row. These observations are meticulously detailed across 11 specific columns, or variables, which span performance metrics, design elements, and basic engineering specifications.

The 11 variables present in the mtcars dataset are crucial for interpreting analytical results and formulating valid conclusions about vehicle characteristics. These variables encompass a blend of continuous, discrete, and categorical data, providing a holistic view of each car’s profile:

• mpg: Miles per gallon (Continuous)
• cyl: Number of cylinders (Discrete)
• disp: Displacement (cu.in.) (Continuous)
• hp: Horsepower (Continuous)
• drat: Rear axle ratio (Continuous)
• wt: Weight (1000 lbs) (Continuous)
• qsec: 1/4 mile time (Time metric) (Continuous)
• vs: V/S engine (V-shape or straight engine) (Binary/Categorical)
• am: Automatic or manual transmission (Binary/Categorical)
• gear: Number of forward gears (Discrete)
• carb: Number of carburetors (Discrete)

The careful definition of these attributes allows analysts to explore complex questions, such as the relationship between engine type (‘vs’) and fuel efficiency (‘mpg’), or how the number of gears (‘gear’) relates to acceleration (‘qsec’). Because the dataset is clean, well-documented, and readily available, it remains the standard choice for demonstrating fundamental concepts in statistical modeling and introductory data science exercises.

Accessing Data: Loading and Inspecting in R

One of the principal advantages of working with the mtcars dataset is its seamless integration into the core R environment. Unlike datasets requiring complex imports from external files or separate package installations, `mtcars` is a built-in resource. This inherent accessibility significantly simplifies the initial steps of any data-centric project, allowing users to immediately proceed to exploration and analysis without setup hurdles.

To load the dataset into your current R session, you utilize the standard data() function. This command makes the dataset available in memory as a data frame—the fundamental tabular structure used for storing data in R. Executing this simple line of code is sufficient to prepare the data for subsequent operations.

# Load the mtcars dataset into the R environment
data(mtcars)

Following the load, the essential next step is data inspection. A quick peek at the structure confirms successful loading and provides immediate context regarding the data format, variable names, and initial values. The head() function is perfectly suited for this, displaying the first six rows (or observations) of the data frame by default, allowing for a rapid visual confirmation of the dataset’s integrity.

# View the first six rows of the mtcars dataset
head(mtcars)

                   mpg cyl disp  hp drat    wt  qsec vs am gear carb
Mazda RX4         21.0   6  160 110 3.90 2.620 16.46  0  1    4    4
Mazda RX4 Wag     21.0   6  160 110 3.90 2.875 17.02  0  1    4    4
Datsun 710        22.8   4  108  93 3.85 2.320 18.61  1  1    4    1
Hornet 4 Drive    21.4   6  258 110 3.08 3.215 19.44  1  0    3    1
Hornet Sportabout 18.7   8  360 175 3.15 3.440 17.02  0  0    3    2
Valiant           18.1   6  225 105 2.76 3.460 20.22  1  0    3    1

The output clearly shows the car models acting as row names (or indices), followed by the 11 columns representing the measured attributes. This initial view immediately highlights the numerical nature of most variables, alongside the binary indicators like ‘vs’ (engine type) and ‘am’ (transmission type), setting the stage for deeper quantitative analysis.

Generating Comprehensive Statistical Summaries

Once the data is loaded, the subsequent essential phase in any data analysis workflow is descriptive summarization. This process generates quantitative metrics that encapsulate the central tendency, dispersion, and range of each variable, offering a crucial statistical foundation before diving into modeling or complex comparisons. The native summary() function in R provides an efficient and comprehensive snapshot of the entire data frame.

When applied to the mtcars dataset, the summary() function automatically calculates a six-number summary for all numeric columns: minimum, first quartile, median, mean, third quartile, and maximum. These descriptive statistics are vital for assessing the distribution of data, identifying potential skewness, and locating extreme values or outliers across attributes like ‘mpg’, ‘hp’, and ‘wt’.

# Summarize the mtcars dataset to get key statistics for all variables
summary(mtcars)

      mpg             cyl             disp             hp
 Min.   :10.40   Min.   :4.000   Min.   : 71.1   Min.   : 52.0
 1st Qu.:15.43   1st Qu.:4.000   1st Qu.:120.8   1st Qu.: 96.5
 Median :19.20   Median :6.000   Median :196.3   Median :123.0
 Mean   :20.09   Mean   :6.188   Mean   :230.7   Mean   :146.7
 3rd Qu.:22.80   3rd Qu.:8.000   3rd Qu.:326.0   3rd Qu.:180.0
 Max.   :33.90   Max.   :8.000   Max.   :472.0   Max.   :335.0
      drat             wt             qsec             vs
 Min.   :2.760   Min.   :1.513   Min.   :14.50   Min.   :0.0000
 1st Qu.:3.080   1st Qu.:2.581   1st Qu.:16.89   1st Qu.:0.0000
 Median :3.695   Median :3.325   Median :17.71   Median :0.0000
 Mean   :3.597   Mean   :3.217   Mean   :17.85   Mean   :0.4375
 3rd Qu.:3.920   3rd Qu.:3.610   3rd Qu.:18.90   3rd Qu.:1.0000
 Max.   :4.930   Max.   :5.424   Max.   :22.90   Max.   :1.0000
       am              gear            carb
 Min.   :0.0000   Min.   :3.000   Min.   :1.000
 1st Qu.:0.0000   1st Qu.:3.000   1st Qu.:2.000
 Median :0.0000   Median :4.000   Median :2.000
 Mean   :0.4062   Mean   :3.688   Mean   :2.812
 3rd Qu.:1.0000   3rd Qu.:4.000   3rd Qu.:4.000
 Max.   :1.0000   Max.   :5.000   Max.   :8.000

Beyond the variable distributions, it is essential to confirm the dimensions and column nomenclature of the dataset. The dim() function quickly returns the number of rows and columns, confirming that we are working with 32 observations and 11 variables, as expected. Furthermore, the names() function provides an exact list of column names, which is critical for accurate referencing when subsetting data or specifying variables in statistical modeling formulas.

# Display the dimensions (number of rows and columns) of the dataset
dim(mtcars)

[1] 32 11

# Display the column names (variable names) of the data frame
names(mtcars)

 [1] "mpg"  "cyl"  "disp" "hp"   "drat" "wt"   "qsec" "vs"   "am"   "gear"
[11] "carb"

Uncovering Insights Through Data Visualization

Data visualization serves as the bridge between raw numerical data and intuitive human understanding. By transforming the summary statistics into graphical forms, we can swiftly identify underlying trends, assess data distributions, and detect anomalies that might be masked by tabular data. R’s base graphics package offers powerful tools to explore the mtcars dataset visually.

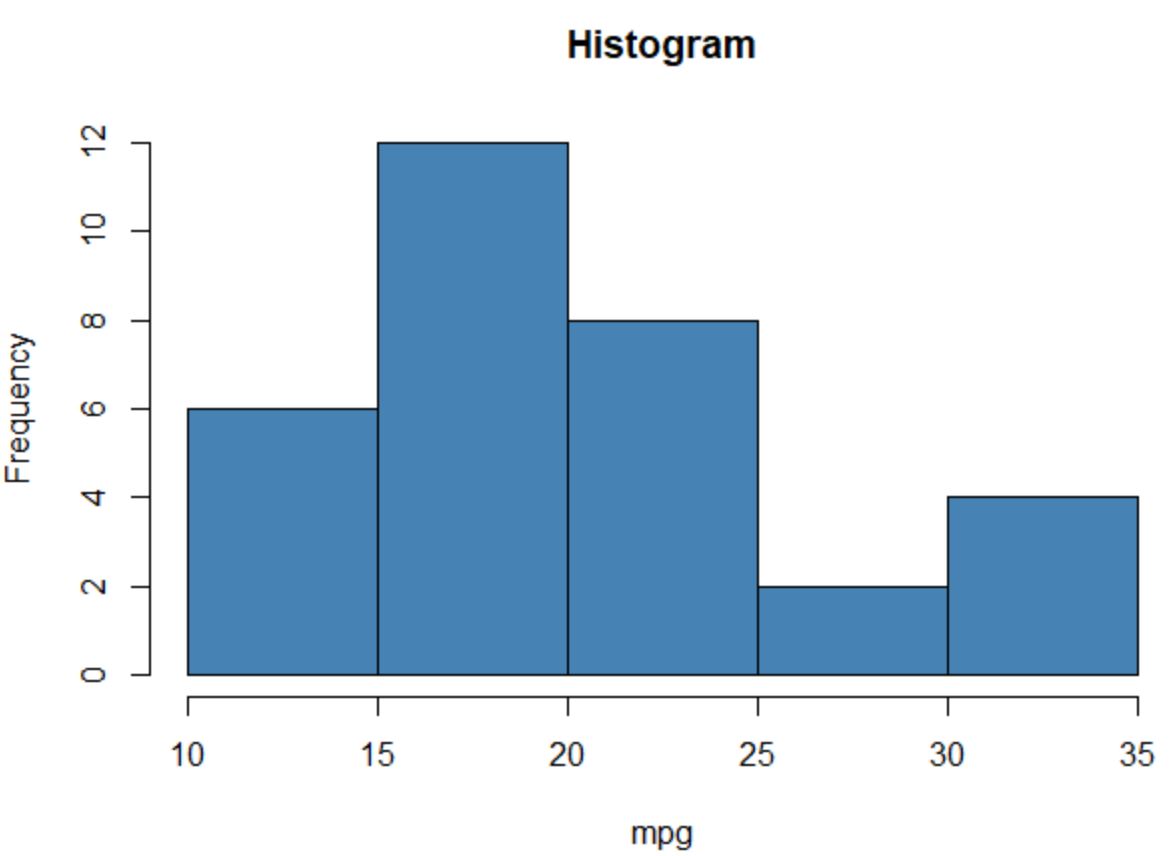

To analyze the distribution of a single continuous attribute, such as fuel efficiency (‘mpg’), the histogram is indispensable. The hist() function generates a frequency plot, grouping data into bins to illustrate where the majority of observations lie. This visualization instantly reveals the shape of the ‘mpg’ distribution, allowing us to see if the fuel efficiency of the 32 cars clusters around a central value or is skewed toward higher or lower ranges.

# Create a histogram of values for miles per gallon (mpg)
hist(mtcars$mpg,
     col='steelblue',
     main='Histogram of Miles Per Gallon',
     xlab='Miles Per Gallon (mpg)',
     ylab='Frequency')

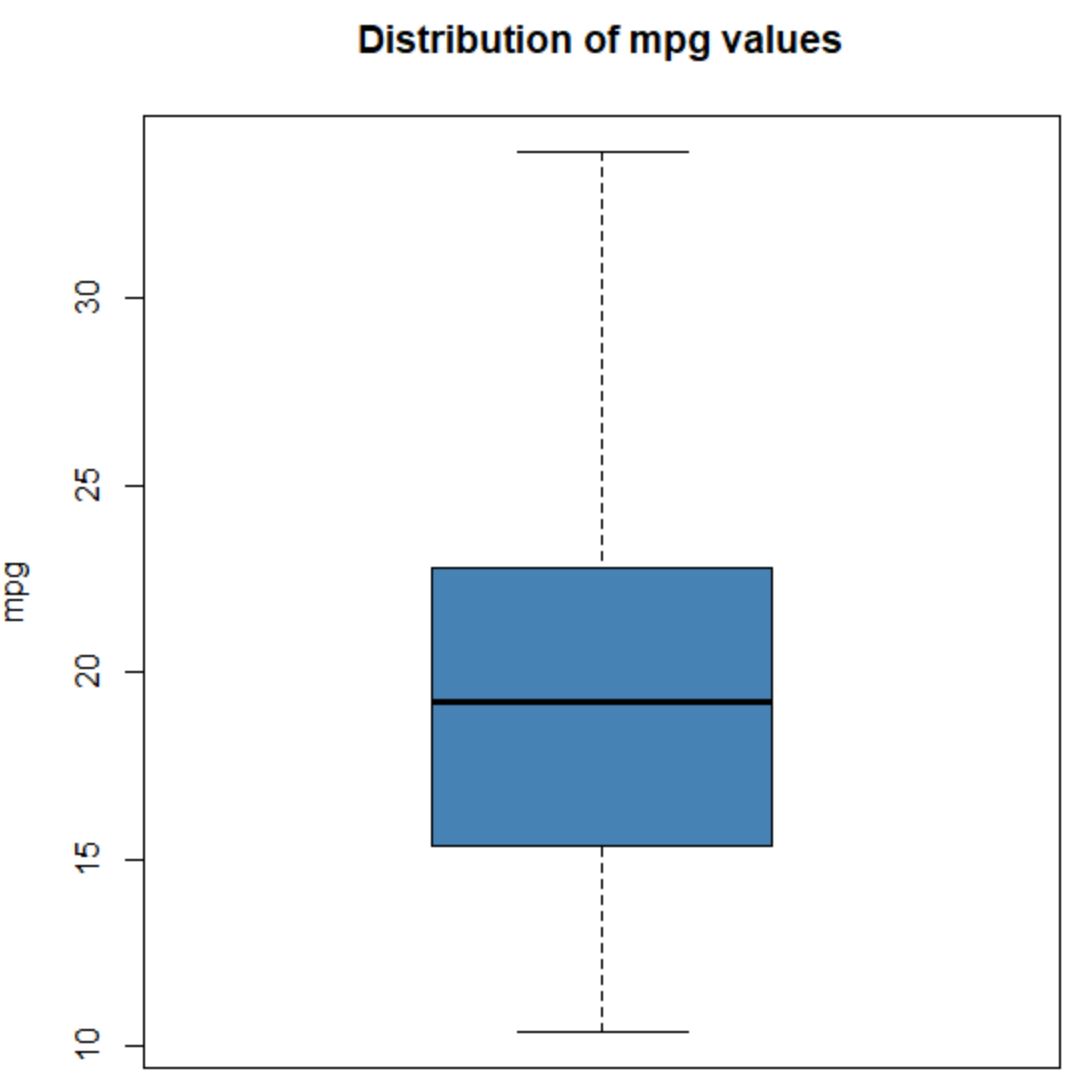

Complementing the histogram, the boxplot provides a standardized method for visually displaying the five-number summary. Using the boxplot() function, we can clearly delineate the median, the interquartile range (IQR, represented by the box), and the whiskers, which indicate the typical variability of the data. Points plotted outside the whiskers are flagged as potential outliers, which is crucial for data cleaning and understanding extreme vehicle performance values.

# Create a boxplot of values for miles per gallon (mpg) to visualize its distribution
boxplot(mtcars$mpg,
        main='Distribution of MPG Values',
        ylab='Miles Per Gallon (mpg)',
        col='steelblue',
        border='black')

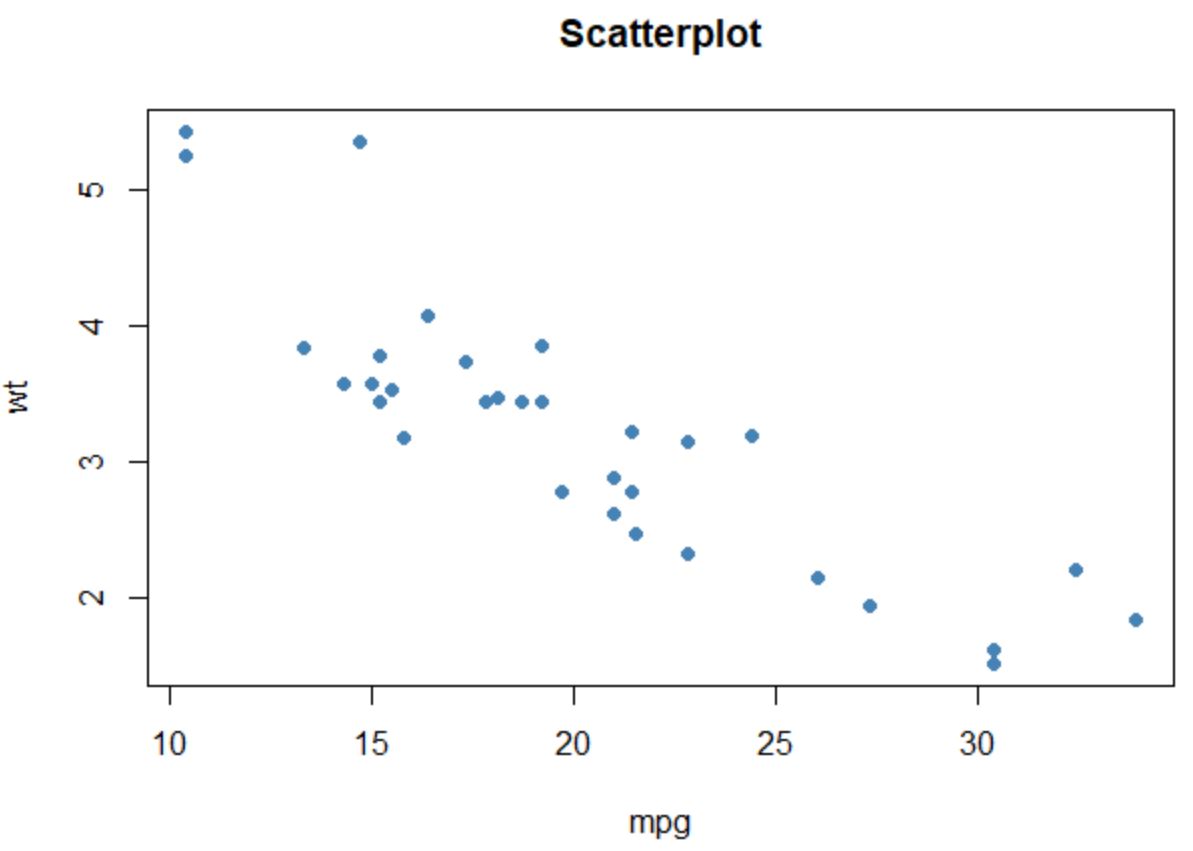

Finally, to examine the covariance and potential correlation between two continuous variables, the scatterplot is indispensable. By employing the generic plot() function, we can visualize the relationship between vehicle weight (‘wt’) and fuel efficiency (‘mpg’). The resulting scatterplot allows the analyst to immediately discern the direction (positive or negative) and strength of the correlation, which is fundamental for validating hypotheses about vehicle performance.

# Create a scatterplot to visualize the relationship between mpg and wt
plot(mtcars$mpg, mtcars$wt,
     col='steelblue',
     main='Scatterplot of MPG vs. Weight',
     xlab='Miles Per Gallon (mpg)',
     ylab='Weight (1000 lbs)',
     pch=19)

The visual evidence provided by this scatterplot strongly suggests a negative linear relationship: as vehicle weight increases, miles per gallon tend to decrease sharply. This insight provides empirical evidence suitable for guiding the construction of predictive statistical models, such as linear regression, where weight would be a highly significant predictor of fuel economy.

Advancing to Predictive and Inferential Analysis

Having successfully navigated the foundational steps of data loading, summarizing, and visualization using base R functions, we have developed a solid initial understanding of the mtcars dataset. This exploratory phase—identifying distributions, central tendencies, and correlations—is indispensable for ensuring the quality and appropriateness of subsequent advanced analytical techniques.

The true utility of the mtcars dataset shines in its application as a benchmark for advanced statistical modeling. Its variables are perfectly suited for demonstrating complex relationships. For instance, the observed strong correlation between ‘mpg’ and ‘wt’ makes it a prime candidate for illustrating linear regression, where analysts can build models to predict fuel efficiency based on car weight, engine power, and number of cylinders. Analysts often use this dataset to compare the performance of automatic versus manual transmissions on ‘mpg’, controlling for other factors.

Furthermore, because the dataset includes binary categorical variables like ‘am’ (transmission type) and ‘vs’ (engine type), it is also frequently used to introduce generalized linear models, such as logistic regression. This allows statisticians to model the probability of a car having an automatic transmission based on its performance characteristics. The manageable complexity and widespread familiarity of `mtcars` make it the ideal environment for practicing these complex inferential techniques before applying them to larger, more ambiguous real-world data.

Additional Resources for Continued Proficiency

Mastering the R programming language and sophisticated data analysis requires continuous practice and exposure to diverse techniques. While the base functions demonstrated here provide immediate and powerful results, we encourage you to explore specialized R packages, such as ggplot2 for advanced visualization or dplyr for enhanced data manipulation.

Expanding your toolkit beyond the built-in functions will enable you to handle larger datasets, perform more nuanced transformations, and create publication-quality graphics. By leveraging the comprehensive resources available in the R ecosystem and continuing to apply these techniques to benchmark datasets like `mtcars`, you will solidify your skills and prepare for any complex analytical challenge.
