Adding a Horizontal Threshold Line to Excel Line Graphs: A Step-by-Step Guide

When conducting rigorous performance analysis or tracking critical metrics across a defined timeline, analysts frequently encounter the need to establish a fixed reference point within a dynamic visual field. Specifically, the integration of a constant horizontal line into a standard line graph in Microsoft Excel serves as a powerful visual cue. This line is designed to represent a crucial benchmark, target goal, or statistical threshold, providing immediate clarity on whether performance meets or exceeds predefined expectations.

Unlike specialized business intelligence or statistical software packages, Excel does not include a dedicated function that allows users to plot an arbitrary, constant line based solely on a mathematical value. To overcome this limitation, a widely accepted and highly effective workaround must be employed: treating the required horizontal line not as a constant, but as its own dedicated **data series**. This methodological approach ensures that the line is rendered across the entire X-axis range alongside the primary data. This comprehensive tutorial provides a meticulous, step-by-step framework detailing how to seamlessly integrate a fixed horizontal reference line into virtually any standard line graph visualization using the robust functionality inherent in Microsoft Excel.

Step 1: Preparing the Primary Dataset and Time Series

The cornerstone of any effective data visualization effort is ensuring the integrity and proper structure of the source data. Before attempting to generate a chart, the primary data must be systematically organized into adjacent columns. Typically, the first column is designated for the independent variable, which commonly represents time (e.g., years, months, dates) or sequence numbers. Subsequent columns house the dependent variables—the measurable metrics whose fluctuations are being tracked.

For the purposes of this illustration, we will utilize a practical dataset tracking the total annual sales figures achieved by a hypothetical company over a span of 20 consecutive years. A systematic approach to data entry is paramount, as it guarantees that Excel accurately interprets the relationships between the variables. In this specific configuration, the “Year” column will function as the authoritative X-axis reference, defining the chronological spread of the chart. The “Sales” column, conversely, provides the fluctuating values that will constitute the primary line tracing performance over time. This foundational data setup is absolutely crucial before introducing any additional charting elements, such as the threshold line.

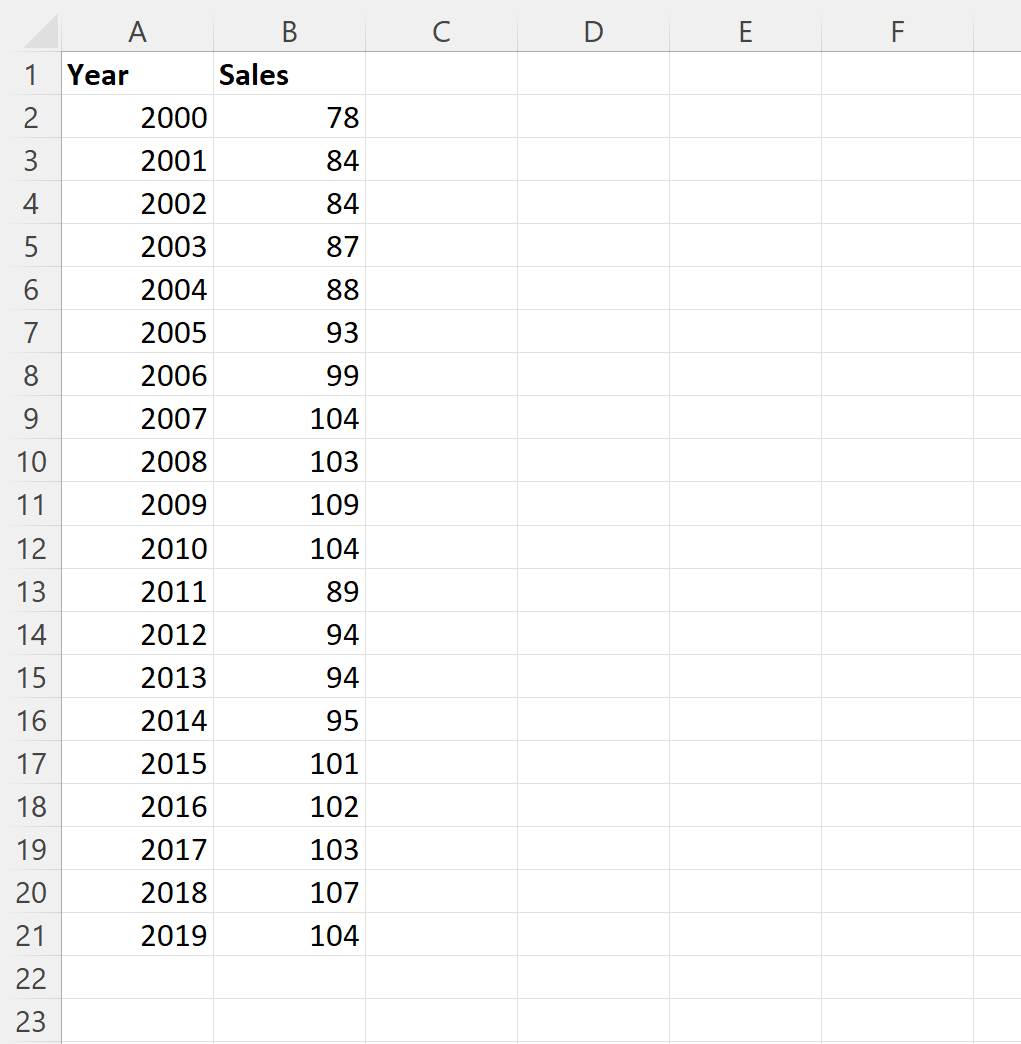

To commence the process, accurately enter the time series data as demonstrated below, utilizing clear and descriptive headers for easy identification and reference in later steps:

Step 2: Integrating the Constant Threshold Data Series

The key maneuver for plotting a static horizontal line involves cleverly manipulating Excel into interpreting a constant value as a set of repeated observations. This is achieved by introducing a new, dedicated column immediately adjacent to our existing dataset. This new column is designated solely to represent the horizontal threshold and must be populated with the exact same value—the desired threshold number—repeated for every single corresponding data point in the primary series. This meticulous consistency across all rows is essential, as it guarantees that the resulting plotted line remains perfectly flat and parallel to the X-axis across the entire temporal span of the graph.

Imagine a scenario where the company has established a fixed sales goal of **100** units to be met annually. Our objective is to visually represent this critical goal as a constant horizontal line positioned precisely at the Y-axis value of 100. To implement this, we must introduce a new column, which should be clearly titled “Goal,” “Target,” or “Threshold.” Every single cell within this new column must contain the value **100**, ensuring a flawless row-by-row alignment with all 20 years of existing sales data. The length of this new column must exactly match the length of the primary data series.

This strategic preparation effectively transforms what is inherently a single constant numerical value into a robust data series that Excel can readily plot and integrate into the visualization framework. To maintain efficiency and minimize the potential for manual transcription errors, especially when dealing with expansive datasets, utilizing Excel’s powerful autofill feature is strongly recommended for rapidly populating this constant column.

Review the expanded dataset below, which now includes the critical column detailing the constant threshold values alongside the primary metric:

Step 3: Generating the Combined Line Chart Visualization

With the data prepared—now encompassing both the fluctuating sales series and the static threshold series—the next logical step is to generate the composite graphical output. This stage is relatively uncomplicated because Excel is inherently designed to automatically plot all selected data series simultaneously when instructed to create a multi-line chart. The software treats the “Goal” series identically to the “Sales” series, ensuring both are mapped correctly.

To proceed with chart creation, you must first select the entire comprehensive range of relevant data. In the context of our running example, this range must encompass all three columns: Year, Sales, and Goal, including their headers. Highlight the cell range that spans from the beginning of the headers down to the end of the data points (e.g., **B1:C21**, assuming your data starts in B1). Once the data is securely selected, navigate to the **Insert** tab prominently located along the top ribbon interface of Excel.

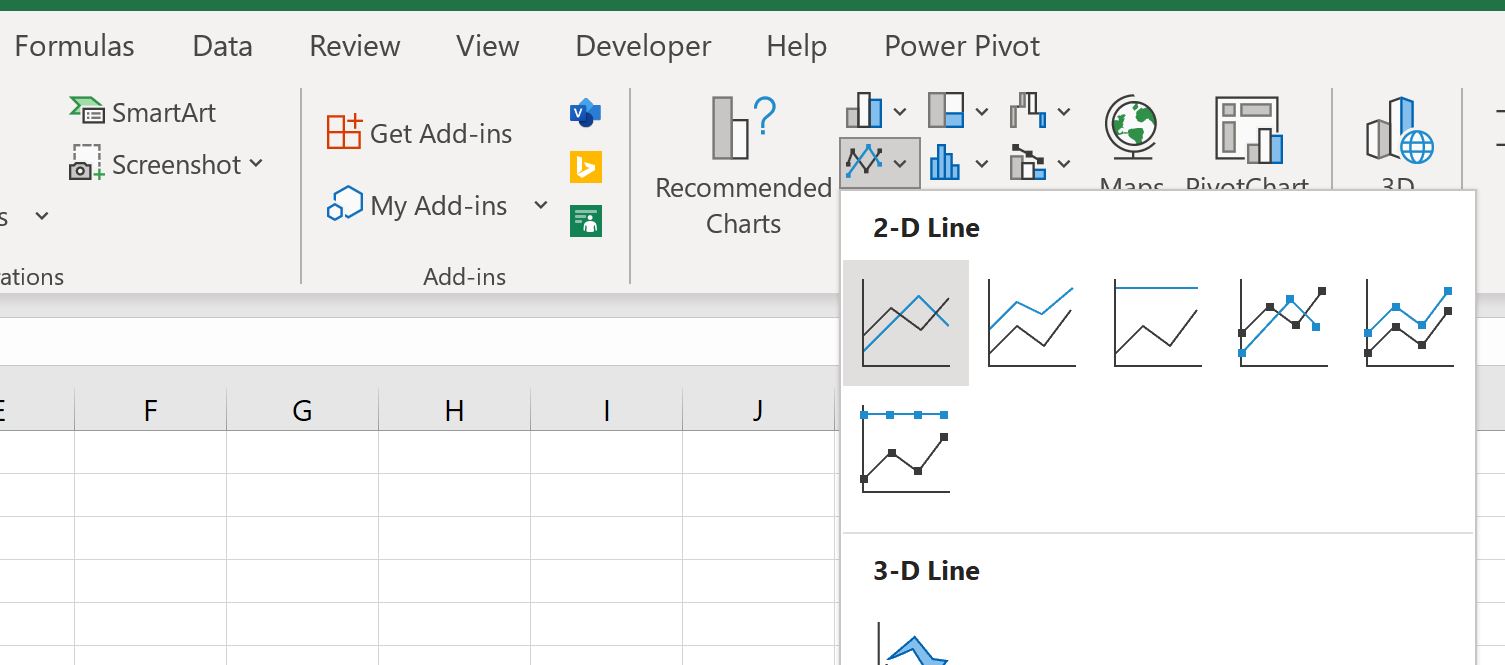

Within the dedicated **Charts** group, locate and click on the **Line** icon. While various line chart types are available (such as 2-D Line or Line with Markers), a basic 2-D Line chart is generally the most suitable choice for clearly visualizing overall trends and static thresholds. This decisive action instructs Excel to plot both the selected data series—Sales and Goal—against the identical X-axis (Year) and the shared Y-axis (Value).

Visualize the process for inserting the chart:

Upon successful execution of these steps, the resulting visualization will clearly present two distinct lines. The fluctuating line (typically rendered in blue) dynamically represents the actual annual sales performance, illustrating the trend over time. Conversely, the perfectly flat, horizontal line (often appearing in an alternate color like orange or red by default) indicates the fixed sales goal or **threshold**. This combined display allows for instantaneous comparison and assessment of performance relative to the target.

The generated line chart should visually resemble the following output:

Step 4: Advanced Refinement and Customization Techniques

Although the chart created in Step 3 is technically correct and functional, producing truly effective data visualization requires careful customization to maximize clarity, communicative power, and visual impact. The horizontal threshold line must be visually distinct from the primary data trend to fulfill its function as a fixed reference boundary. Customizing the line’s style, color, and thickness is an indispensable component of the final refinement process.

To initiate the customization of the horizontal line, simply click directly on the line itself within the chart area. This action will activate the threshold data series. Next, right-click and select the **Format Data Series** option, or utilize the dedicated formatting pane that automatically appears on the right side of your screen. Within the “Fill & Line” section, several strategic adjustments can be implemented:

• Color Choice: Change the line’s color to a highly contrasting hue—such as bright red to symbolize a limit, or dark grey to indicate a constant baseline. This high contrast immediately draws the viewer’s eye to the reference point.
• Dash Type: Convert the default solid line into a dashed or dotted line style. This subtle, yet powerful, visual modification instantly signals to the audience that this line represents a reference boundary, target, or limit, rather than actual, observed data points.
• Line Thickness (Width): Adjust the line weight to ensure the threshold is adequately visible without being so heavy that it visually dominates or overpowers the more important primary trend line.

Furthermore, always ensure that the chart title and axis labels are precise and descriptive. The legend, automatically generated by Excel, should clearly include the name of your threshold column (“Goal” in this example), thereby explicitly identifying the reference line for anyone interpreting the chart. Attention to these fine-grained details transforms a raw data plot into a polished, insightful analytical instrument.

Step 5: Applying the Method to Multiple Benchmarks

The methodology of defining a horizontal line as a constant data series is remarkably flexible and is not limited to displaying a single goal. When complex analysis demands the representation of multiple benchmarks simultaneously—for instance, tracking minimum acceptable performance, the target goal, and an aspirational stretch goal—this technique remains perfectly viable. Excel is fully capable of handling multiple constant lines within a single chart.

To incorporate additional reference points, you simply repeat the process outlined in Step 2 for every desired threshold. If you needed a minimum acceptable sales line at 80 units and a stretch goal at 120 units, each of these constant values would require its own dedicated, correctly titled column in the source data. The “Min Goal” column would be filled entirely with the value 80, and the “Stretch Goal” column would contain 120 throughout.

When proceeding to chart generation (Step 3), the key is to ensure that you select all these new columns alongside the primary sales data series. Excel will then accurately plot all fixed lines simultaneously, each line representing a distinct performance metric or operational limit. This powerful adaptability makes the constant data series method an essential tool for complex analytical requirements and dashboard creation, enabling comprehensive visualization of performance relative to various strategic objectives.

Step 6: Conclusion and Further Resources for Advanced Charting

Mastering the creation of custom charts within Excel hinges on understanding how to effectively manipulate data series inputs and strategically leverage the software’s comprehensive formatting options. The technique detailed here—adding a horizontal reference line by defining it as a constant data series—is a foundational skill that unlocks many other advanced charting possibilities. These include sophisticated applications such as creating dynamic moving averages, generating custom comparison lines between different groups, or plotting statistical control limits.

For users committed to expanding their analytical capabilities beyond simple line graphs and fixed thresholds, the following resources and tutorials explore related operations that can further enhance your capacity to perform robust data visualization within the spreadsheet environment:

• Detailed tutorials on creating combination charts, such as skillfully blending bar charts and line graphs onto a single visual plane.
• Comprehensive guides dedicated to applying conditional formatting rules based on calculated or fixed threshold values, automating visual alerts.
• Step-by-step instructions for utilizing dynamic named ranges to ensure that large charts update their data sources automatically as new information is added to the spreadsheet.
