Adding Polynomial Trendlines in Microsoft Excel: A Tutorial for Non-Linear Modeling

Introduction to Non-Linear Modeling

In the expansive field of data analysis, accurately modeling the relationship between variables is fundamental for generating reliable forecasts and making strategic decisions. While a simple linear relationship often suffices for straightforward correlations, a vast majority of real-world phenomena, ranging from population dynamics to complex economic cycles, exhibit intricate, non-linear relationships that a straight line cannot effectively capture. This analytical limitation is precisely why the concept of a polynomial trendline is an indispensable tool for advanced quantitative analysts.

A polynomial trendline significantly enhances the standard linear regression model by introducing a curve, enabling the fitted line to bend and dynamically adapt to the complex flow of the dataset. This flexibility is achieved through a polynomial equation, which incorporates terms of higher degrees, or "orders." Consequently, this method is highly effective for handling datasets where the rate of change between the dependent and independent variables is not constant—such as data exhibiting rapid initial growth followed by diminishing returns, or parabolic paths frequently observed in engineering and physics.

This comprehensive guide is designed to provide you with the precise steps required to generate, customize, and interpret a polynomial trendline within Microsoft Excel, the industry-standard spreadsheet software. We will utilize a practical, step-by-step example, covering everything from initial data preparation and visualization using a scatter plot, to fitting the polynomial curve and rigorously analyzing its predictive mathematical equation. Upon completion, you will possess the requisite knowledge to accurately model complex non-linear relationships, significantly elevating your quantitative analytical capabilities.

Setting Up Your Data in Excel

The foundation of any successful trendline analysis relies on meticulously prepared data. Before attempting to utilize the powerful analytical features of Microsoft Excel, you must ensure your data is structured correctly. For a bivariate analysis involving a trendline, you require two corresponding sets of values: the independent variable (conventionally plotted on the x-axis) and the dependent variable (plotted on the y-axis). The most straightforward and recommended methodology for arrangement involves organizing these two variables into adjacent columns within your Microsoft Excel spreadsheet, which critically streamlines the subsequent chart creation process.

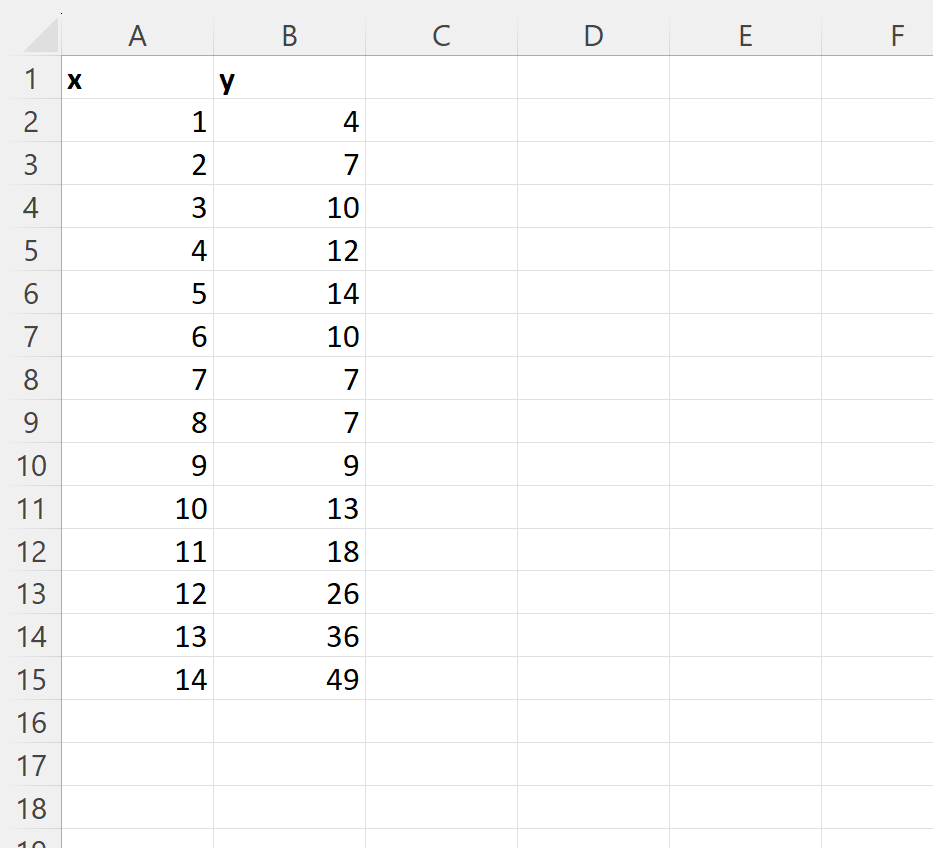

To provide a clear and effective demonstration, we will construct a simple but illustrative dataset that visually and mathematically exhibits a strong non-linear relationship. This specific dataset will serve as the benchmark for every subsequent step, allowing us to showcase the mechanics of adding and accurately interpreting the polynomial trendline with maximum clarity. Begin by opening a new Microsoft Excel worksheet and populating it with the following numerical pairs, which represent a hypothetical, curvilinear correlation:

It is absolutely essential to verify the accuracy of your data entry before proceeding. Ensure the independent variable values are placed consistently in the first column (e.g., Column A) and the dependent variable values in the second column (e.g., Column B). This precise bivariate arrangement is critical, as any misalignment will result in distorted visualizations and fundamentally flawed interpretations when fitting the polynomial trendline. Once your data reflects the structured matrix shown above, you are prepared to move on to the essential visualization phase of our analysis.

Visual Confirmation: Creating the Scatter Plot

Following the careful preparation of the data matrix, the next logical and highly essential phase in our data analysis workflow is to visually represent the relationship between the two variables. The scatter plot is the definitive chart type for this task, as it individually plots each data point, offering an immediate, unbiased view of correlations, groupings, and the overall trajectory of the data. This visualization is crucial for determining whether the underlying pattern is best described by a simple linear relationship or a more intricate non-linear relationship.

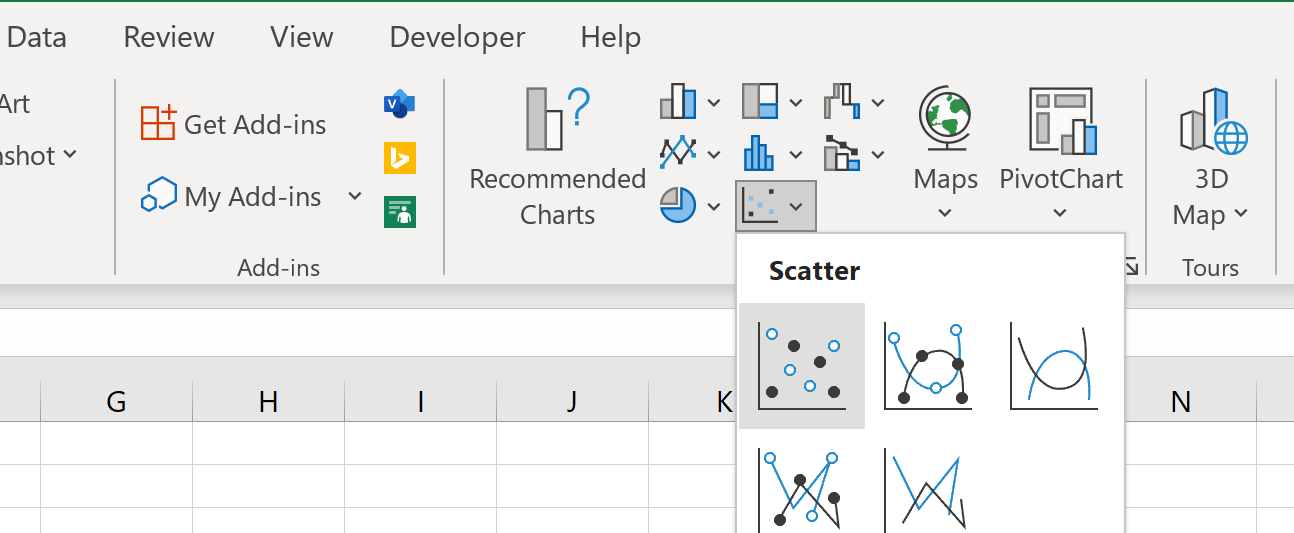

To generate the scatter plot in Microsoft Excel, start by highlighting the entire numerical range of your dataset, which, for our specific example, spans from cell A2 to B15. Once the data is selected, navigate to the Insert tab located on the primary ribbon interface. Within the Charts section, click on the Scatter chart icon—this icon is often represented by a cluster of distinct data points—and choose the plain scatter option to render your initial visualization.

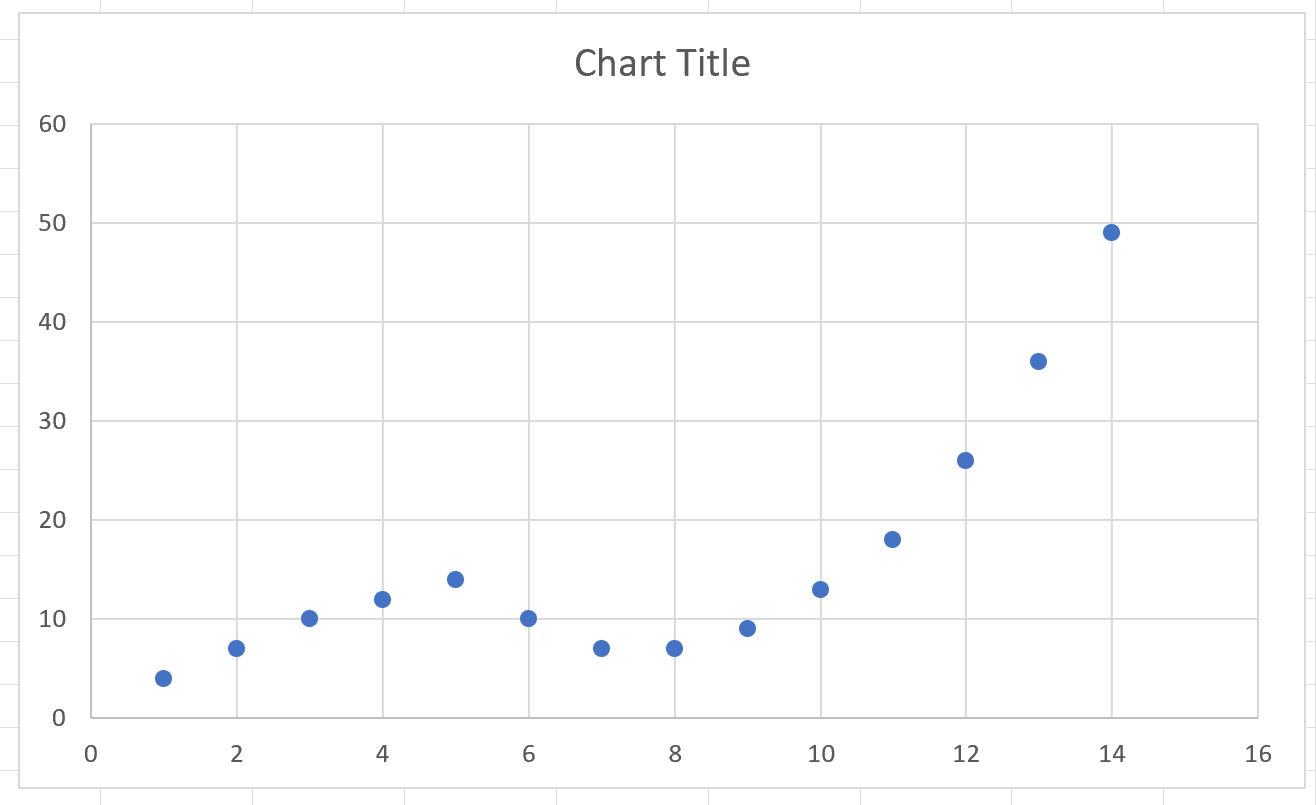

Upon selection, Microsoft Excel will instantly display the graphical representation of your data points. Take a moment to examine the distribution of these points closely. In our case, the resulting scatter plot distinctly shows a curvilinear, parabolic pattern, clearly diverging from any potential straight-line progression. This visual confirmation is paramount; it immediately provides evidence that a basic linear trendline would be entirely insufficient and highly misleading for accurately modeling the true dynamics of this paired data.

The pronounced curve in the data points unequivocally indicates the presence of a strong non-linear relationship. Attempting to force a straight line onto this data would not only result in a poor visual fit but would also inevitably lead to highly inaccurate predictive outcomes when extrapolating. Thus, this visual assessment reinforces our decision to employ a more robust analytical technique—the polynomial trendline—to accurately capture the nuances and dynamics within the dataset.

Understanding Polynomial Regression

In the expansive toolkit utilized for data analysis, a trendline serves as a powerful graphical abstract of the underlying patterns within a series of data points. Essentially, it is a mathematically derived curve or line superimposed onto the chart, designed to illustrate the general direction and behavior of the data, thereby simplifying the comprehension of complex data relationships and aiding in initial forecasting efforts.

While the most common variety is the linear trendline, which models a constant rate of change, its applicability is severely restricted when the relationship between variables is complex and dynamic. As our scatter plot demonstrated, many datasets exhibit varying slopes, including definitive curves, peaks, and troughs, signaling a truly non-linear progression. Applying a straight line to such data inherently introduces significant modeling error and fundamentally misrepresents the true behavior of the phenomenon being studied.

This challenge highlights the critical importance of polynomial trendlines. Unlike their linear counterparts, polynomial models possess the versatility to flex and curve, adjusting dynamically to the changing rates of change evident in real-world data. By incorporating terms that involve higher powers of the independent variable (e.g., x², x³, etc.), these trendlines can model highly intricate patterns, providing a superior and more accurate fit for a diverse range of analytical problems. The defining characteristic is the polynomial’s "order," which dictates the number of inflections or bends the curve can accommodate, ensuring maximum fidelity to the observed data trajectory.

Step-by-Step Guide to Adding the Trendline

Having established that a polynomial trendline is the appropriate analytical tool for our dataset, the next procedure is to integrate this sophisticated model into our Microsoft Excel chart. The process is initiated by ensuring that the scatter plot is actively selected within your worksheet. Simply click once on the chart border or background area—this action activates the Chart Design and Format contextual tabs in the Microsoft Excel ribbon, making the necessary modification tools readily available.

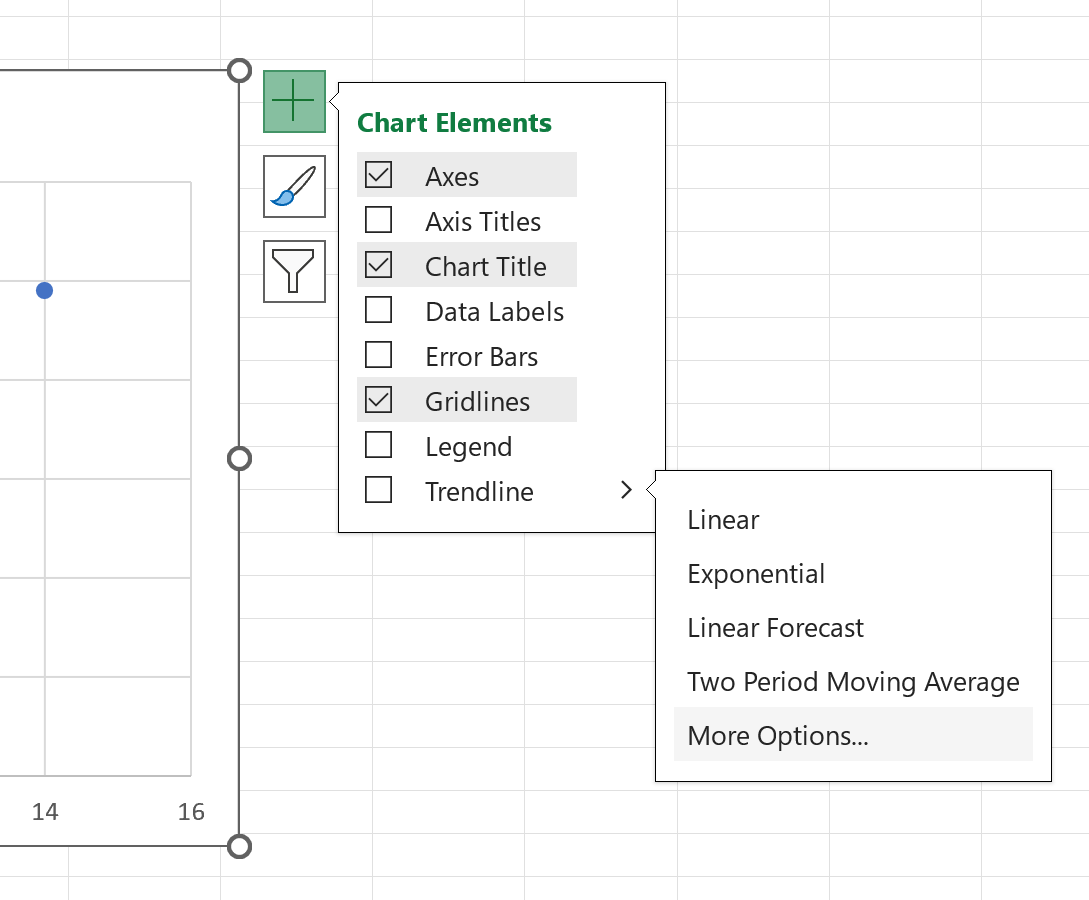

Once the chart is active, locate the small green plus icon (known as Chart Elements) situated near the top-right corner of the chart area. Click this icon to reveal a list of elements you can add or modify. Scroll down the list and hover your mouse over the Trendline option. A sub-menu will emerge; click the arrow next to "Trendline" and select More Options. This selection is crucial, as it opens the dedicated "Format Trendline" pane, typically located on the right side of the Excel window, which grants granular control over the curve fitting parameters.

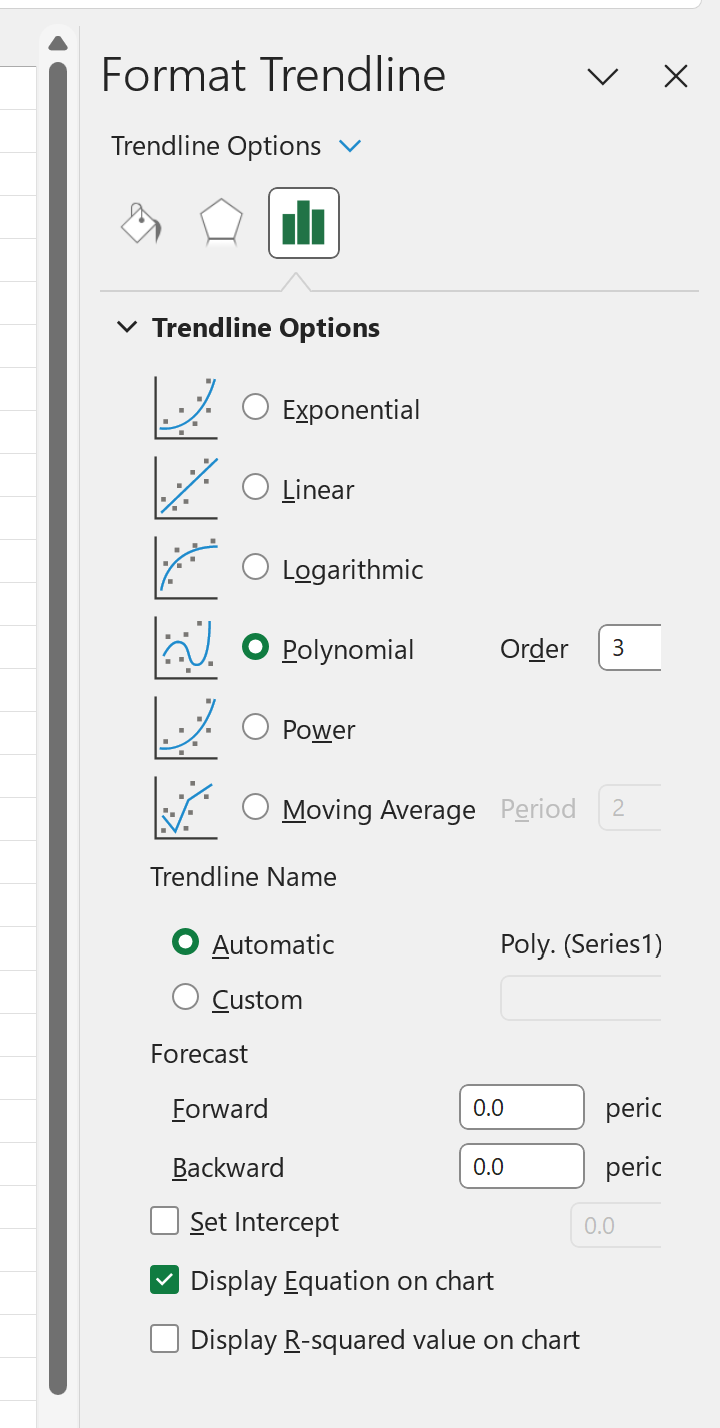

In the "Format Trendline" pane, you must first select the appropriate model type. Click the radio button corresponding to Polynomial. Immediately below this selection, you will see the critical parameter labeled Order. The order of the polynomial directly dictates the curve’s complexity: an order of 2 results in a parabola (one curve), while an order of 3 allows for two curves. For our specific dataset, an order of 3 visibly provides the best fit, so we will set it accordingly. Furthermore, ensure you check the boxes for Display Equation on chart and Display R-squared value on chart, as these numerical metrics are essential for rigorous interpretation.

Upon finalizing these settings, Microsoft Excel will instantly update the visualization. A smooth, curved polynomial trendline, specifically cubic in nature (order 3), will be superimposed over your data points. Accompanying this fitted curve will be its precise mathematical equation and the R-squared value, providing both visual confirmation and quantitative evidence of the model’s performance. This completes the essential step of modeling the underlying non-linear relationship.

Interpreting the Model: Equation and Prediction

Once the polynomial trendline is successfully integrated into the scatter plot, the next critical phase involves interpreting the analytical meaning of the generated curve and its corresponding formula. Visually, the trendline in our example follows the distinct curvature of the data points almost perfectly, indicating an excellent fit that accurately captures the complex relationship. This visual congruence confirms that the polynomial model is far superior to any simple linear trendline for this specific dataset.

The true predictive utility of the model is contained within its mathematical equation, which Microsoft Excel conveniently displays. For a polynomial of order 3 (a cubic function), the generic form is represented as: y = ax³ + bx² + cx + d. Here, ‘y’ is the dependent variable, ‘x’ is the independent variable, and ‘a’, ‘b’, ‘c’, and ‘d’ are the coefficients—the parameters calculated by the regression process that define the curve’s exact shape and position. Our example yielded the following specific equation:

y = .0904x³ – 1.6059x² + 8.5934x – 3.3237

This derived equation is a powerful predictive instrument that enables us to quantify the expected value of ‘y’ for any given value of ‘x’ within the observed data range (interpolation). To demonstrate its predictive capability, let us calculate the anticipated value of ‘y’ when the independent variable ‘x’ is precisely equal to 4. We substitute this value into the trendline equation:

y = .0904(4)³ – 1.6059(4)² + 8.5934(4) – 3.3237

The calculation proceeds as follows:

• .0904 multiplied by 4 cubed (64) yields 5.7856.
• -1.6059 multiplied by 4 squared (16) yields -25.6944.
• 8.5934 multiplied by 4 yields 34.3736.
• The constant term is -3.3237.

By summing these resulting values (5.7856 – 25.6944 + 34.3736 – 3.3237), we arrive at the predicted value of 11.1411. Consequently, when ‘x’ is 4, the polynomial trendline forecasts an expected value for ‘y’ of approximately 11.1411. This quantitative application underscores how the model moves beyond visual inspection, providing concrete, numerically-derived insights based on the established relationship.

Best Practices: Selecting the Optimal Order and Avoiding Error

The flexibility inherent in polynomial trendlines, while essential for modeling complex non-linear relationships, introduces a significant analytical challenge: selecting the correct polynomial order. This choice is absolutely critical to the success of the model. Choosing an order that is too low can result in underfitting, where the trendline is overly simplistic and fails to capture the essential characteristics of the data pattern. Conversely, selecting an order that is too high often leads to overfitting, causing the resulting curve to conform excessively to random noise and outliers rather than the legitimate underlying trend. Overfitted models are notoriously poor predictors when presented with new, unseen data.

To evaluate the quantitative quality of the fit, analysts frequently examine the R-squared value, a metric that Microsoft Excel can calculate and display alongside the trendline equation. The R-squared value measures the proportion of the dependent variable’s variance that is predictable from the independent variable. While a higher R-squared value (closer to 1) generally suggests a stronger fit, it should never be used in isolation. Analysts must combine this statistical measure with detailed visual inspection and relevant domain knowledge, as an elevated R-squared obtained from an overfitted model is often deceptive, merely reflecting noise capture rather than signal strength.

Finally, it is paramount to recognize the inherent limitations of polynomial trendlines, particularly concerning future forecasting. These models are generally optimized for interpolation—predicting values within the range of the current data—rather than extrapolation—forecasting far outside that range. Extrapolating with high-order polynomials is especially risky, as the curve can sharply diverge, leading to statistically improbable and highly inaccurate predictions. Effective data analysis requires thoughtful application, balancing statistical rigor with a pragmatic understanding of the data’s context, and ensuring that the polynomial model genuinely reflects the scientific or business phenomenon under investigation.

Conclusion: Mastering Non-Linear Analysis

The capacity to accurately model and interpret non-linear relationships is an indispensable asset in modern quantitative analysis. As demonstrated throughout this detailed tutorial, Microsoft Excel provides a robust and accessible platform for generating and analyzing polynomial trendlines. By systematically following the steps from data organization to final equation interpretation, you can successfully move past the restrictive assumptions of simple linear models and fully embrace the complexity inherent in real-world data.

Every step, from visualizing the relationship using a scatter plot to precisely fitting the polynomial curve and leveraging its mathematical equation for accurate forecasts, contributes to a more comprehensive understanding of your data’s dynamic behavior. Remember that the selection of the polynomial order is a decisive factor, demanding careful consideration to maintain the delicate balance between capturing genuine trends and avoiding the analytical pitfalls of overfitting or underfitting.

Ultimately, incorporating polynomial trendlines into your analytical toolkit empowers you to achieve a more nuanced and accurate interpretation of data where variables interact in complex and dynamic ways. This refined expertise is essential for extracting richer insights, making more informed decisions, and generating robust forecasts across various domains, including engineering, finance, and business intelligence.
