Learning How to Add a Regression Equation to a Plot in R

In the landscape of statistical analysis and professional data visualization, the capacity to seamlessly integrate the derived parameters of a regression equation directly onto a scatterplot is an indispensable skill. Data analysts and researchers frequently require a method to present the fitted linear model—specifically the slope and intercept—alongside the data points, offering immediate, unambiguous context for the relationship observed between predictor and outcome variables. This integration transforms a simple data plot into a comprehensive statistical summary.

Achieving this level of detailed, publication-ready annotation is highly efficient within the R statistical environment. This process is significantly streamlined through the combined use of two powerful and complementary packages: the highly acclaimed ggplot2 for core visualization and the utility-focused ggpubr package. Together, these tools automate the traditionally manual task of extracting and formatting statistical summaries, allowing for the rapid production of informative graphics.

The resulting graphical representation, which effectively overlays the mathematical model onto the empirical data, serves as a powerful communication tool. This tutorial provides a meticulous, step-by-step guide on how to leverage the capabilities of ggplot2 and ggpubr to successfully integrate the regression equation and other essential statistical metrics, such as the R-squared value, onto your scatterplots in R.

The Importance of Visualizing Regression Models in R

Data visualization forms the cornerstone of effective statistical communication, translating complex numerical outputs into intuitive visual patterns. While a standard linear regression model provides numerical coefficients (often presented in lengthy summary tables), a scatterplot augmented with the precise fitted line offers an immediate visual assessment of the model’s performance. This visual check allows analysts to quickly verify core assumptions, such as linearity, heteroscedasticity, and the presence of outliers, in a way that numerical summaries alone cannot convey.

By including the regression equation directly on the plot, we achieve a level of self-sufficiency in the visualization. This crucial annotation eliminates the need for the audience to cross-reference separate model summary tables, making the resulting graphic immediately actionable and highly informative. The equation itself—typically presented as $y = intercept + slope cdot x$—provides the exact mathematical relationship derived from the data.

The R programming language offers multiple paths for creating graphics, yet ggplot2 is widely favored due to its foundation in the Grammar of Graphics. This structured approach allows users to build plots layer by layer, ensuring flexibility and aesthetic control. However, using base ggplot2 to display statistical summaries requires tedious manual calculation and text placement using functions like annotate or geom_text, which can be prone to error and time-consuming for repetitive tasks.

This is precisely where the specialized ggpubr extension package demonstrates its value. It was specifically developed to bridge the gap between complex statistical analysis and elegant graphical presentation. ggpubr simplifies the integration of common statistical results, such as correlation coefficients, p-values, and the regression equation, directly into ggplot2 plots. By automating these annotation tasks, ggpubr allows analysts to allocate more time to model interpretation and less to intricate formatting details.

Prerequisites: Installing and Loading Essential R Packages

Before initiating the process of data generation and visualization, it is mandatory to ensure that the necessary R packages are correctly installed and loaded into your current session. The two principal packages required for this workflow are ggplot2, which provides the foundational plotting structure, and ggpubr, which supplies the specific functions needed to automatically extract and display statistical summaries.

If these packages are not yet available in your local R library, they must first be installed using the standard R command. Following installation, they must be loaded into the current environment using the library() function. This step is critical, as it makes all the package functions accessible for immediate use within your script.

The core functions upon which this tutorial relies are integral to the ggplot2 framework and its ggpubr extension. Specifically, we will utilize:

• ggplot(): Used for initializing the plot and defining the global data and aesthetic mappings.
• geom_point(): Responsible for drawing the individual data points on the plot area.
• geom_smooth(): Calculates and draws the fitted line (often using the linear model method, method="lm").
• stat_regline_equation(): The key function from ggpubr that automatically calculates and formats the regression equation text string.

While a foundational understanding of the ggplot2 layer-based structure is beneficial, the utility of ggpubr lies in its ability to abstract away much of the complexity typically associated with statistical annotation, providing a straightforward, single-function solution for displaying the regression results.

Step 1: Generating Reproducible Sample Data for Linear Regression

To provide a clear, practical demonstration of this visualization process, we must first establish a synthetic dataset suitable for linear regression. We will generate a data frame in R consisting of 100 observations designed to exhibit a strong, underlying linear relationship, augmented with a controlled amount of random noise to simulate the variability found in real-world empirical data.

A crucial best practice in statistical programming is the use of the set.seed() function. This ensures that any element of randomness introduced during the data generation process is reproducible. By setting a specific seed value (in this case, 1), anyone running the same code will generate the exact identical dataset, thereby guaranteeing the replication of the results shown in this tutorial.

The independent variable, x, is created as a simple sequence of integers from 1 to 100. The dependent variable, y, is then calculated based on a predetermined linear model: $y = 4x + epsilon$. Here, $epsilon$ represents the normally distributed random error term, added using rnorm(100, sd=20). This specific setup is engineered to guarantee a robust positive correlation, which in turn will produce a visually clear regression line and a high R-squared value, ideal for demonstration purposes.

The following R code executes the data creation and displays the initial structure of the resulting data frame, confirming the successful generation of the synthetic data:

#make this example reproducible
set.seed(1)

#create data frame
df <- data.frame(x = c(1:100))
df$y <- 4*df$x + rnorm(100, sd=20)

#view head of data frame
head(df)

  x         y
1 1 -8.529076
2 2 11.672866
3 3 -4.712572
4 4 47.905616
5 5 26.590155
6 6  7.590632

Step 2: Constructing the Scatterplot and Displaying the Regression Equation

Once the data is prepared, the next phase involves assembling the visualization using the layered approach of ggplot2. We begin by calling ggplot(), linking the data frame df and defining the aesthetic mappings (aes) for the x-axis (predictor) and the y-axis (outcome).

The construction proceeds by adding geometric layers. We first include geom_point() to render the empirical observations. Crucially, we add geom_smooth(method="lm"), which instructs ggplot2 to calculate and draw the fitted line based on a linear model. This smooth layer provides the visual representation of the model we are annotating.

The main task of this tutorial is accomplished using the stat_regline_equation() function, a specialized tool provided by the ggpubr package. This function operates by automatically executing a linear regression calculation on the mapped variables and formatting the result into a clean text string containing the derived regression equation. This string is then displayed directly on the plot area. Positioning the text is managed by the label.x and label.y arguments, which define the coordinates for the annotation.

The following syntax generates the scatterplot, complete with the fitted linear regression line and the calculated equation annotation:

#load necessary libraries
library(ggplot2)
library(ggpubr)

#create plot with regression line and regression equation
ggplot(data=df, aes(x=x, y=y)) +
        geom_smooth(method="lm") +
        geom_point() +
        stat_regline_equation(label.x=30, label.y=310)

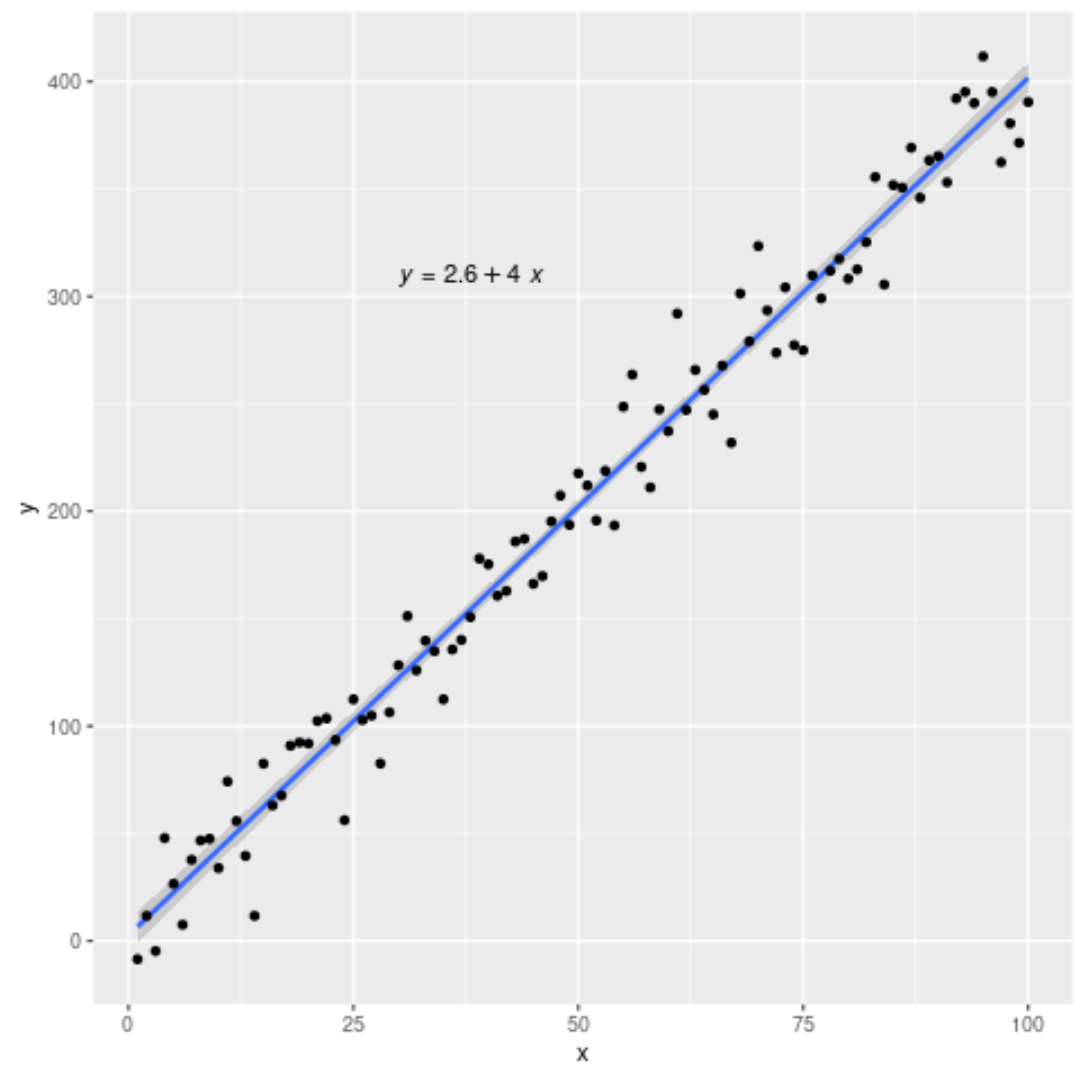

The successful inclusion of the regression line and its corresponding equation is confirmed by the resulting image:

Interpreting the output displayed on the graph, the fitted regression equation for our sample data is confirmed as: y = 2.6 + 4 * (x). This indicates that for every unit increase in x, the predicted value of y increases by 4 units, starting from an intercept of 2.6.

Customizing the Position for Optimal Equation Readability

The visual effectiveness of the plot hinges significantly on the correct and clear placement of the statistical annotation. If the equation overlaps with dense data points, it immediately compromises the interpretability of the graph. The positioning is managed entirely by the label.x and label.y arguments within the stat_regline_equation() function.

These parameters specify the exact coordinates where the regression equation text string will be anchored on the plot. It is vital that the values supplied correspond accurately to the scale limits and coordinate system defined by the axes of your plot. In our example, setting label.x=30 and label.y=310 strategically places the text in the upper-middle quadrant of the graph, ensuring it is clear of the clustered data points.

When applying this technique to different datasets, especially those with varying ranges or scales, these coordinates will require careful adjustment. Analysts should be prepared to iterate and experiment with different (x,y) pairs to find the optimal aesthetic position. This is particularly important when dealing with visualizations that involve facetting, multiple regression lines, or complex legends, all of which compete for limited visual space.

It must be noted that these coordinates define the starting point, or anchor, for the text string. If the resulting equation is unusually long or if the anchor point is placed too close to the plot boundary, the text may be truncated or extend beyond the visible plot area. Therefore, careful selection of coordinates is paramount to achieving maximum clarity and readability for the statistical summary.

Step 3: Including the R-Squared Value for Model Fit Assessment

While the regression equation describes the specific coefficients of the model, a comprehensive statistical visualization must also communicate the model’s goodness-of-fit. The R-squared ($R^2$) value, also known as the coefficient of determination, is the standard metric used for this purpose. It quantifies the proportion of the total variance in the dependent variable that is predictable from the independent variable(s). A value approaching 1.0 signifies an extremely strong fit.

The ggpubr package facilitates the inclusion of this metric through its complementary function, stat_cor(). Although primarily designed to display correlation coefficients, this function can be configured to display the $R^2$ value instead. By incorporating stat_cor() into our existing ggplot2 code, we can easily annotate the graph with this critical metric.

To specifically request the $R^2$ value, we utilize a specialized aesthetic mapping within stat_cor(): aes(label=..rr.label..). This mapping instructs ggpubr to extract and format the $R^2$ value (where ‘rr’ stands for R-squared). We then define its position using label.x and label.y, intentionally offsetting it slightly below the regression equation to ensure that both annotations are clearly visible and separated.

The enhanced code block below incorporates both the regression equation and the R-squared metric, creating a fully descriptive statistical plot:

#load necessary libraries
library(ggplot2)
library(ggpubr)

#create plot with regression line, regression equation, and R-squared
ggplot(data=df, aes(x=x, y=y)) +
        geom_smooth(method="lm") +
        geom_point() +
        stat_regline_equation(label.x=30, label.y=310) +
        stat_cor(aes(label=..rr.label..), label.x=30, label.y=290)

This final visualization provides a complete statistical summary, successfully integrating the visual representation of the line with the necessary numerical description of the model fit.

As expected from our data generation process, the R-squared value for this linear model turns out to be 0.98, strongly indicating that 98% of the variability observed in the dependent variable y can be accurately explained by the predictor variable x.

Conclusion and Resources for Advanced Customization

The effective integration of calculated statistical metrics directly onto data visualizations represents a significant advancement in the clarity and impact of statistical reporting. By expertly utilizing the robust capabilities of the ggplot2 and ggpubr packages in R, analysts can move beyond basic data plots to create highly detailed graphical summaries that include the calculated fitted regression equation and essential measures of model quality such as $R^2$.

The structured, functional approach provided by these packages, particularly the use of specialized stat_ functions, is invaluable because it automates complex annotation tasks that would otherwise demand manual calculation, string formatting, and coordinate management. This automation is paramount for maintaining workflow efficiency, ensuring consistency across multiple generated plots, and reducing the potential for human error in reporting statistical results.

For users who wish to explore further aesthetic customization—including altering the font size, color, mathematical precision, or overall layout of the displayed statistics—we strongly encourage consulting the official documentation. The comprehensive guides for ggplot2 and ggpubr offer detailed insights into aesthetic mappings, theme adjustments, and advanced layer functions, allowing for complete control over the final output.

By mastering this technique, you ensure that your visualizations are not only aesthetically compelling but also statistically rigorous and immediately interpretable by any professional or academic audience.

This method ensures that your visualizations are not only aesthetically pleasing but also statistically rigorous and immediately interpretable by any audience.
