Learning to Add a Regression Line to a Scatterplot in Excel

A regression line, frequently referred to as the line of best fit, is an indispensable element of statistical analysis. This visual tool accurately maps the probabilistic relationship between two variables within a given dataset. By calculating the path that mathematically minimizes the sum of squared distances to all data points—a process known as the method of Ordinary Least Squares (OLS)—the line allows analysts to effectively model existing trends and make informed predictions about future outcomes.

This detailed tutorial offers a precise, step-by-step guide for integrating a simple linear regression line onto a scatterplot using Microsoft Excel. Mastering this technique is fundamental for anyone looking to visualize potential correlations and deeply understand the predictive interdependence between different variables in their data.

Structuring and Preparing Your Raw Data

The foundation of any successful statistical visualization is correctly structured data. Before attempting to generate a scatterplot and subsequent linear regression model, you must ensure your data is organized into two corresponding numerical variables: the independent variable (X) and the dependent variable (Y). The independent variable typically drives the change, while the dependent variable is the outcome being measured or predicted.

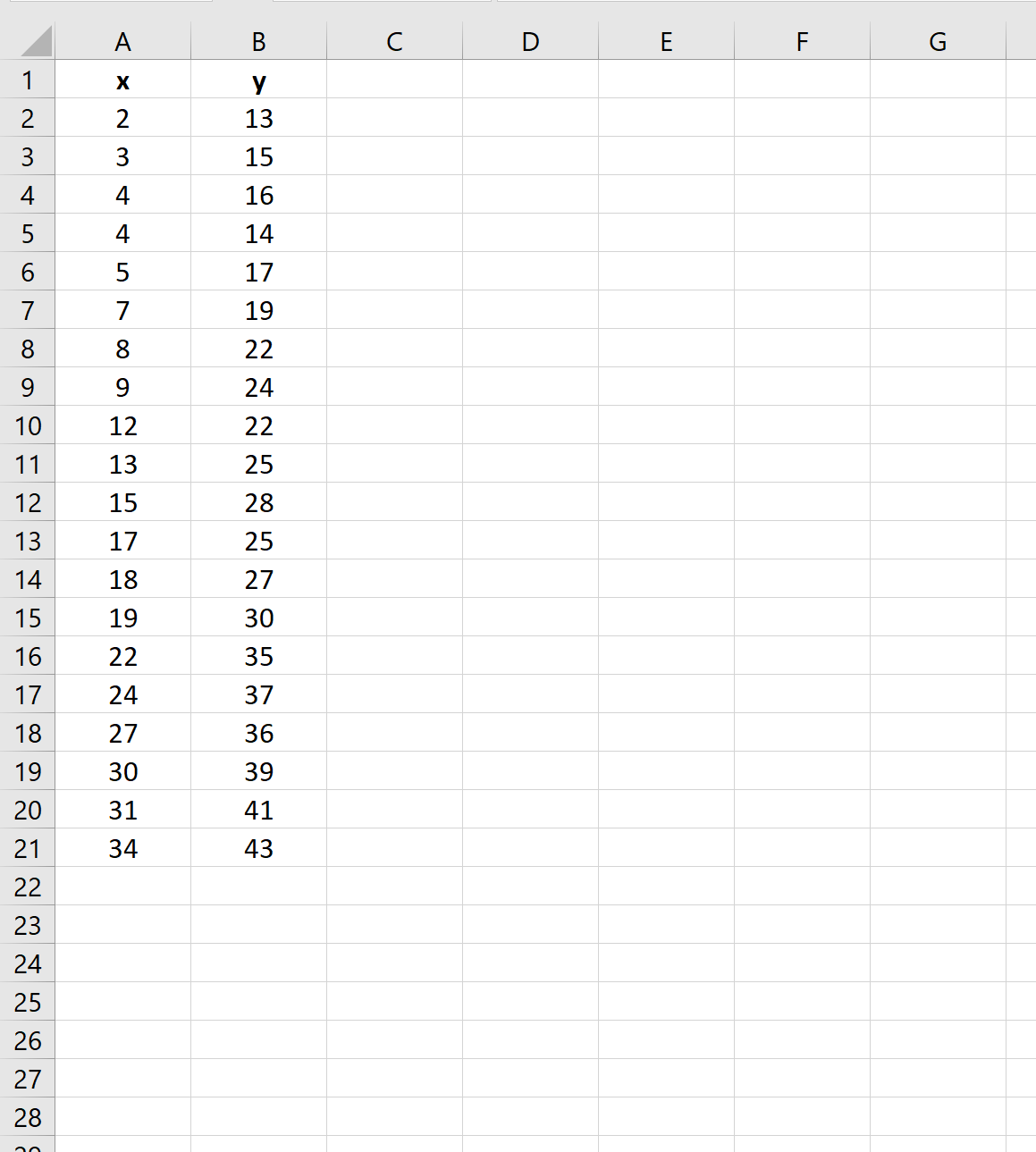

To clearly illustrate the procedure described in this guide, we will first construct a simple sample dataset that simulates a clear linear relationship between the X and Y variables. It is highly recommended that you assign clear, descriptive labels to your columns, as this practice significantly enhances readability and reduces the potential for analytical errors during the charting process in Excel.

A critical preparatory step involves reviewing your data range. It must be contiguous, meaning there are no empty rows or columns within the selected range, and crucially, it must be entirely free of non-numeric entries or text placeholders. Errors of this nature will prevent Microsoft Excel from properly recognizing the data structure necessary for generating an X-Y scatter chart.

Executing the Initial Scatterplot Visualization

With your data properly prepared and validated, the subsequent stage involves converting the raw numbers into a visual format—the scatterplot. This visualization is invaluable because it provides an immediate, intuitive assessment of the data. You can visually inspect key characteristics such as potential linearity, the presence of unusual observations (outliers), and whether the data points form distinct clusters before you commit to fitting any specific regression model.

To initiate the chart creation, begin by highlighting the entire cell range that contains your structured data. In our specific example, this range is designated as A2:B21. Once selected, navigate to the main application ribbon at the top of the Excel window and click on the INSERT tab.

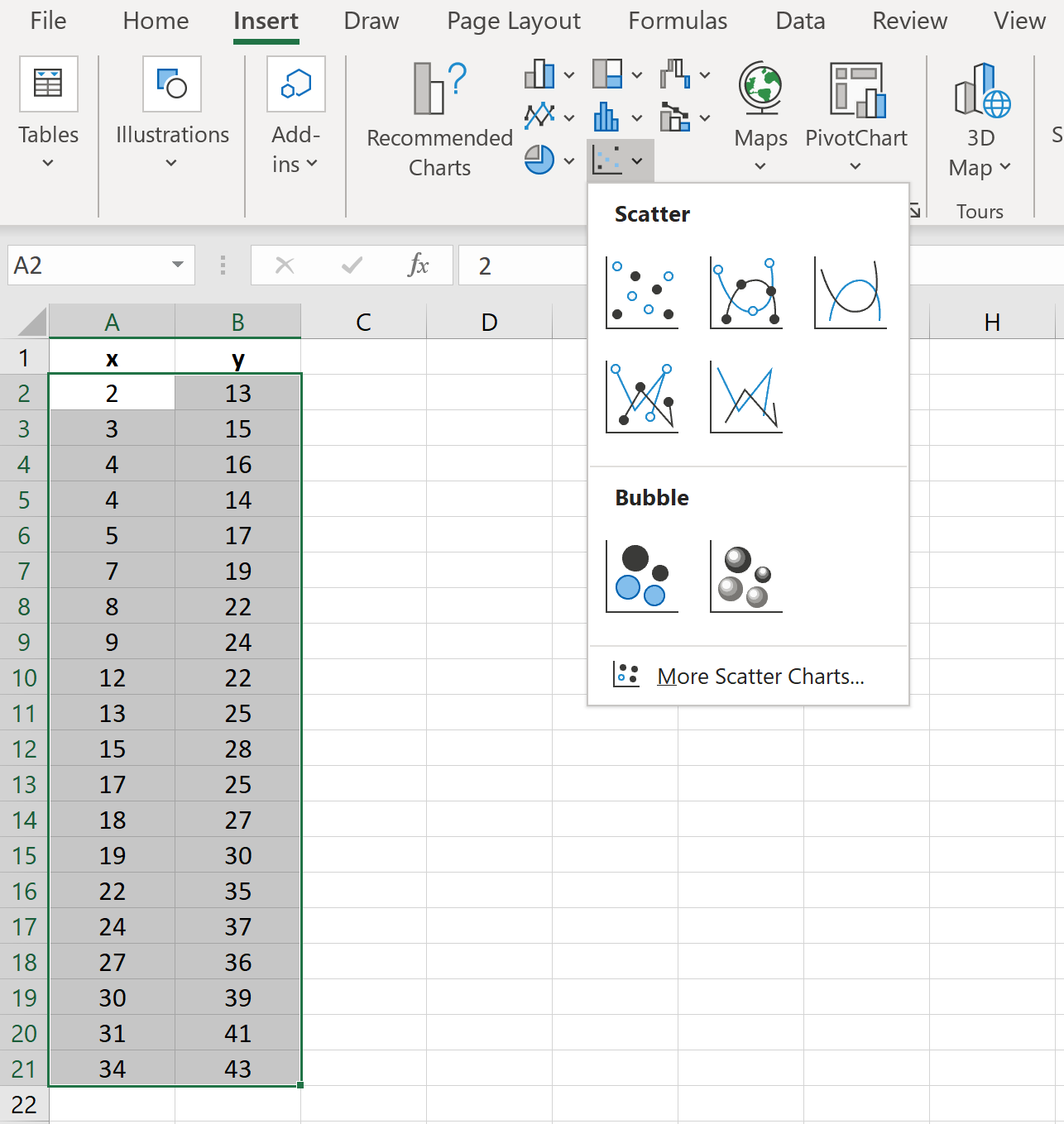

Look for the Charts group within the ribbon, and specifically locate the icon labeled INSERT Scatter (X, Y) or Bubble Chart. Click this icon, and then select the first option available, which typically displays only the markers (data points). This action will instantly generate the standard scatterplot, distributing the data across the chart area.

Upon execution, the initial scatterplot will materialize on your spreadsheet, providing a clear representation of how the dependent variable (Y) is distributed in relation to the independent variable (X) across all 20 data points. This base chart is the canvas upon which the predictive model will be overlaid:

Integrating the Linear Regression Trendline

The central objective of this procedure is to incorporate the mathematically derived line of best fit, which Excel officially labels as the Trendline. This line is meticulously calculated using the principles of Ordinary Least Squares (OLS), ensuring that it provides the most accurate and unbiased summary of the linear association observed between the X and Y variables in your dataset.

To access and activate this crucial feature, you must first select the newly generated scatterplot by clicking anywhere within its boundary. Selecting the chart activates the Chart Elements menu, indicated by a series of icons appearing around the chart area.

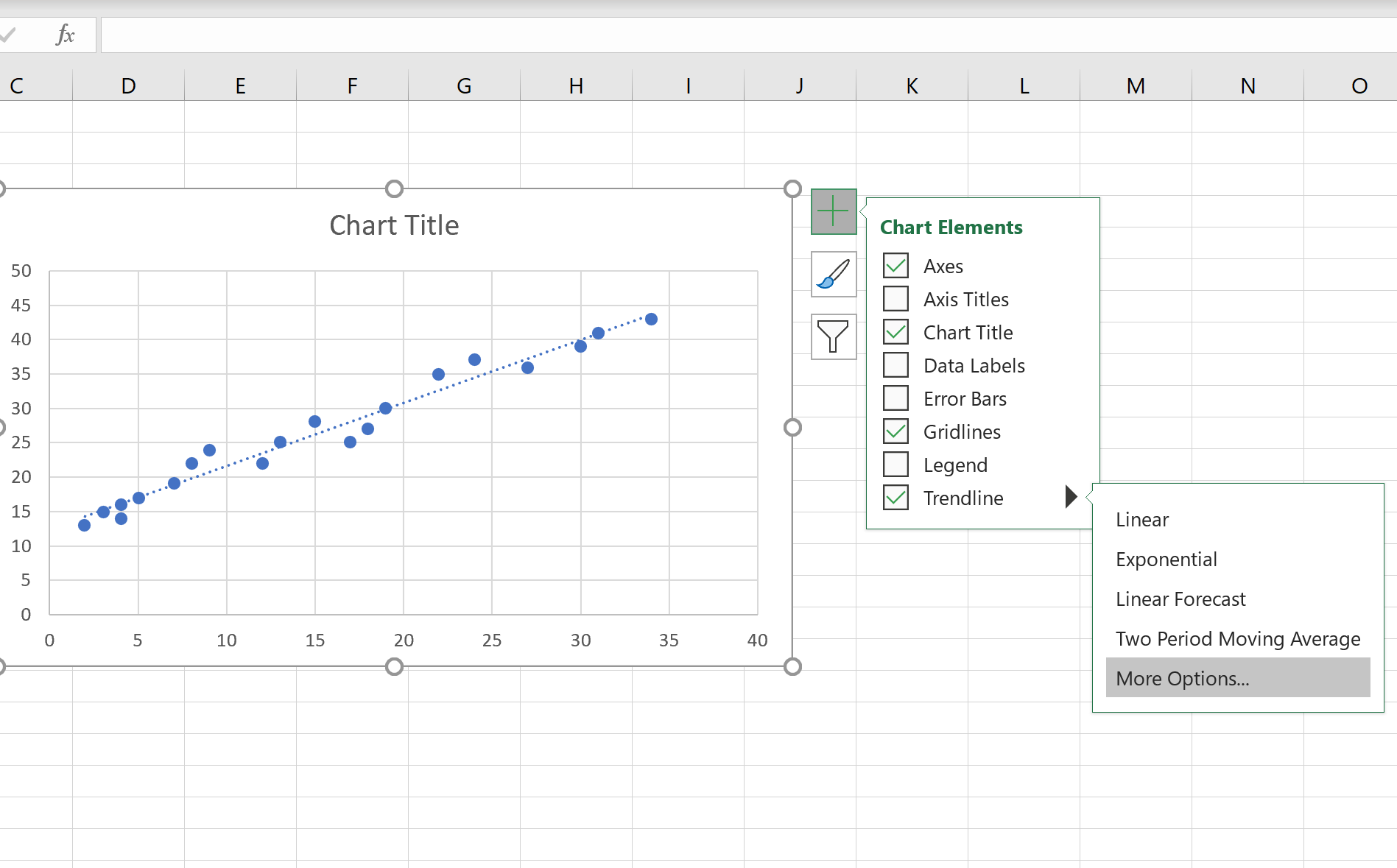

Locate and click the plus sign (+) icon, which is usually situated in the top right corner of the chart boundary. This action opens a comprehensive menu of chart elements you can add or modify. Within this menu, simply place a checkmark next to the option labeled Trendline.

Immediately, Excel processes the data and calculates the default simple linear regression model, displaying the resulting trendline directly over your plot. This visualization instantly provides the line representing the predicted average value of Y for any specific value of X, based on the statistical relationship established by your underlying data.

Displaying and Analyzing the Regression Equation

While the visual representation of the trendline is highly informative, the real analytical power of regression lies within the mathematical model it produces. This model, referred to as the regression equation, is essential for making precise predictions and for conducting a detailed, quantitative interpretation of the relationship between the variables.

To reveal this equation, first click on the scatterplot to select it. Click the plus sign (+) again, hover over the Trendline option, and then click the small arrow that appears next to it. From the resulting submenu, choose More Options.

A dedicated formatting pane will open on the right side of your screen. Scroll down through the formatting options until you locate and check the box labeled Display Equation on chart. Additionally, it is highly beneficial to check the box for Display R-squared value on chart, as this statistic provides a crucial measure of the model’s overall goodness of fit and explanatory power.

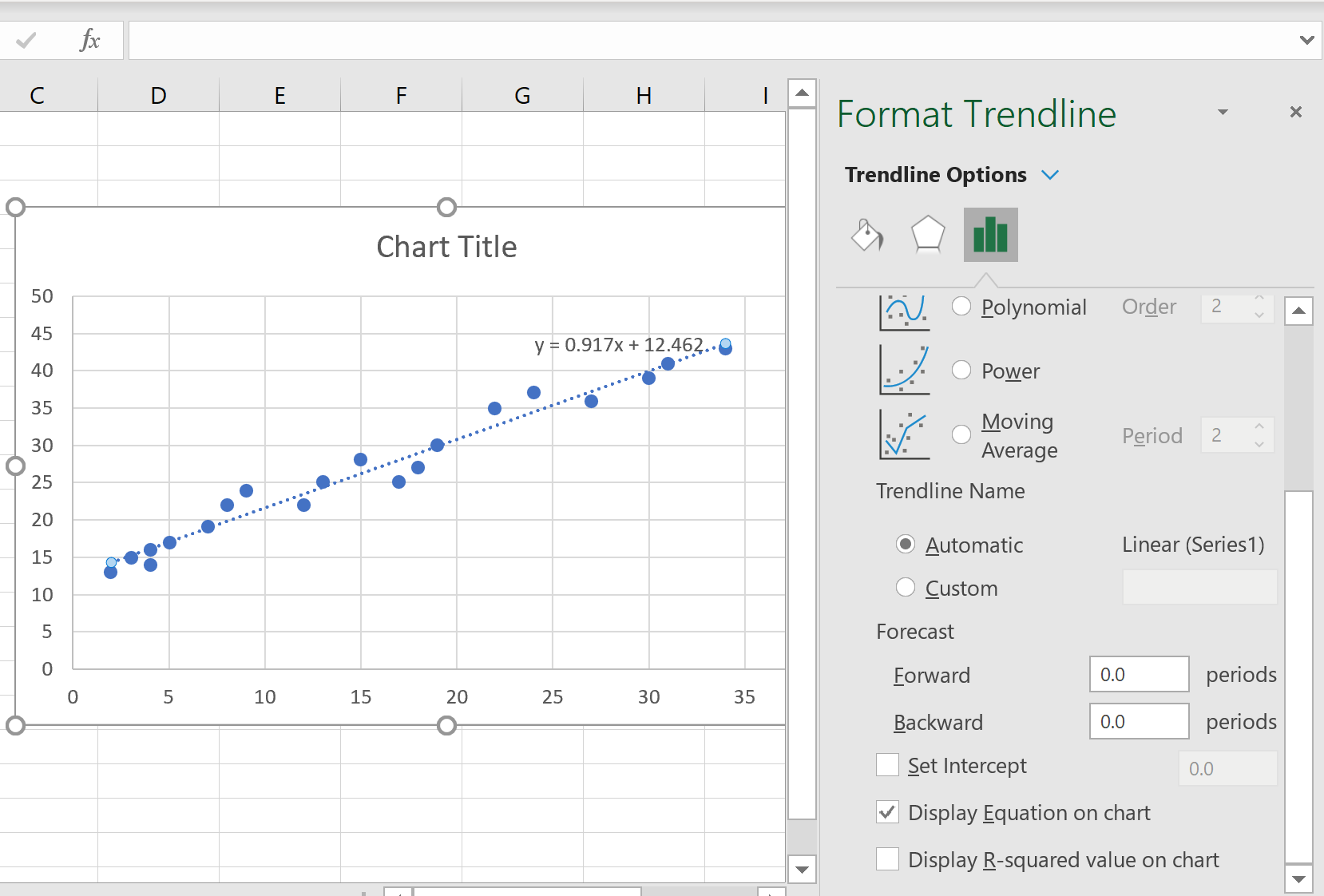

The complete simple linear regression equation, along with the coefficient of determination, will now automatically populate the chart area. This notation provides the rigorous mathematical definition of the fitted line, transforming the visual trend into an actionable formula:

Interpreting the Components of the Fitted Linear Model

For the specific sample data utilized in this tutorial, the regression line equation generated by Excel is clearly presented as: y = 0.917x + 12.462. This formula perfectly aligns with the standard linear model format, $Y = a + bX$, where ‘a’ represents the intercept and ‘b’ represents the slope, or regression coefficient. Understanding these two core components is absolutely essential for extracting meaningful, actionable insights from your statistical analysis.

Below is a breakdown of the interpretation for each derived component:

• The Slope (0.917): This coefficient quantifies the expected magnitude and direction of change in the dependent variable (Y) associated with every single one-unit increase in the independent variable (X). A positive slope, as seen here, indicates a positive correlation between the variables.
• The Y-Intercept (12.462): This value represents the predicted average value of Y at the specific point where the X variable is exactly zero. It establishes the theoretical baseline or starting point for the linear relationship being modeled.

Based on this precise mathematical interpretation, we can confidently state the following conclusions regarding the relationship identified within our sample dataset:

• For each additional one-unit increment in the x variable, the corresponding average increase in the y variable is consistently measured at 0.917 units.
• In the hypothetical scenario where the x variable is equal to zero, the predicted average value for the y variable is established at 12.462.

Leveraging the Equation for Predictive Modeling

One of the primary and most powerful applications of a derived regression equation is its capacity for prediction. Once the model has been established and analytically verified (though determining statistical significance requires further hypothesis tests beyond the scope of this visual guide), the equation becomes a tool for estimation. It can be utilized to estimate the expected value of y based on any given value of x. However, it is crucial that the chosen x value remains within the observed range of the original data, a practice known as interpolation.

To illustrate this predictive capability, let us calculate the expected value for y when the x variable is set equal to 15. We simply substitute 15 into our derived regression equation:

y = 0.917 * (15) + 12.462
y = 13.755 + 12.462

The resulting expected value for y when x = 15 is therefore calculated to be 26.217. This precise, quantifiable predictive capability is what solidifies linear regression as an indispensable instrument across various fields, including data science, business forecasting, and academic research.

Summary, Limitations, and Advanced Options

Adding a regression line in Excel is an intuitive and rapid process that fundamentally transforms a standard scatterplot into a highly effective analytical visualization. By diligently following the sequential steps outlined—preparing the data, generating the base plot, correctly inserting the trendline, and clearly displaying the equation—users can efficiently model the linear relationship between their variables.

For analysts requiring more sophisticated examinations of nonlinear relationships, it is important to note that Microsoft Excel offers flexibility beyond the simple linear model. Through the More Options formatting panel, you have the ability to modify the type of regression line fitted. Available alternatives include exponential, logarithmic, and polynomial models. This extensive functionality ensures that the chosen statistical model can be accurately matched to the underlying structure and curvature observed in your specific data.

Continue exploring our resources to find more Excel tutorials and comprehensive statistical guides designed to significantly enhance your overall data analysis skills and quantitative literacy.
