Revised Title: “Tutorial: How to Add a Secondary Y-Axis to Google Sheets Charts

This tutorial provides an exhaustive, expert-level guide dedicated to mastering the creation of sophisticated charts in Google Sheets that incorporate a critical feature: the secondary y-axis. By meticulously following these step-by-step instructions, users will gain the capability to effectively visualize two distinct data series on a single graphical representation. This technique is indispensable for dramatically enhancing the clarity and analytical impact of your data visualization efforts.

The implementation of a dual-axis chart becomes particularly relevant when comparing datasets that operate on fundamentally different scales or represent disparate types of metrics. This advanced methodology allows for a far more insightful analysis of the underlying relationships between variables that standard single-axis charts cannot adequately convey.

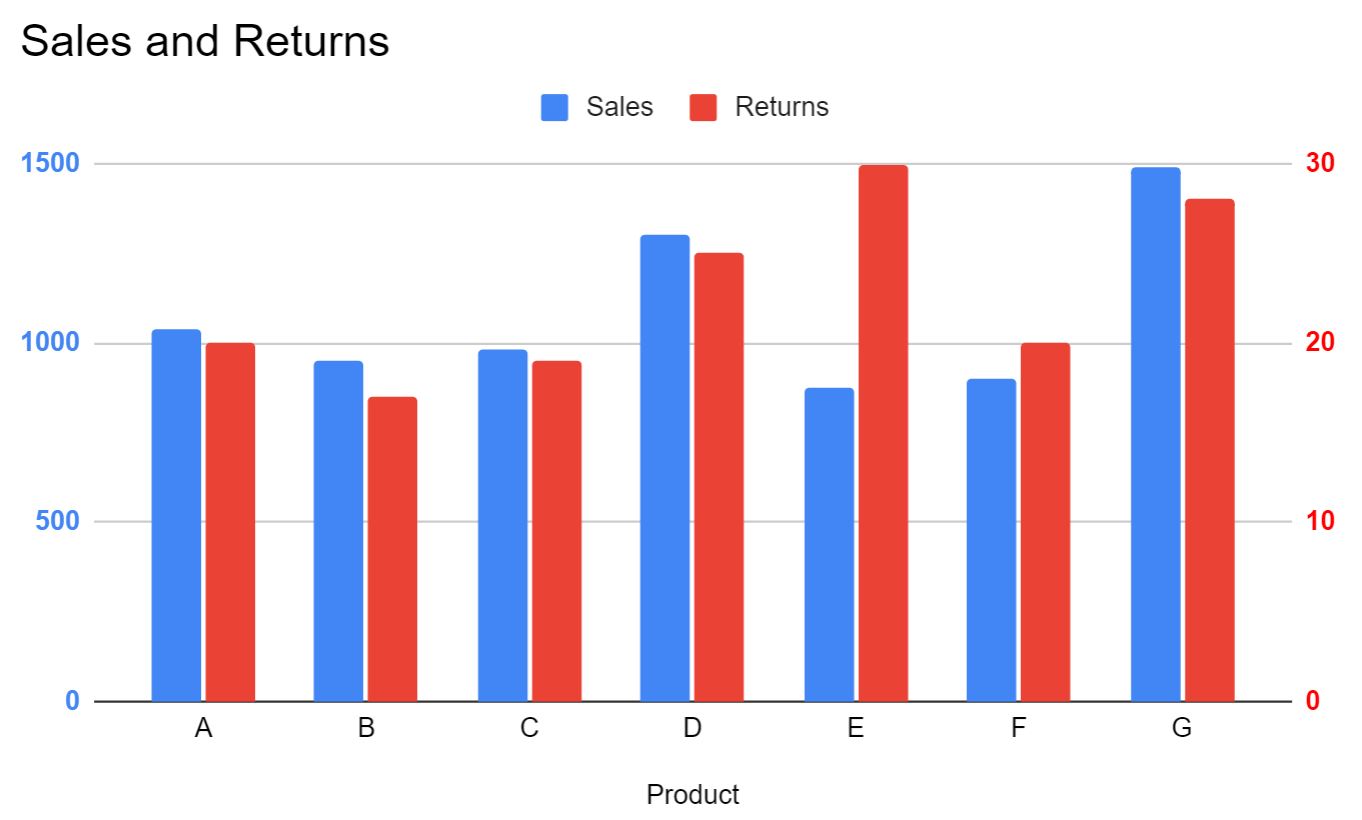

The chart displayed below serves as a clear visual objective for this tutorial. Note the immediate clarity achieved by presenting two highly dissimilar metrics on one integrated chart, each benefiting from its own optimized scaling axis. This structural choice simplifies comparisons and accelerates the identification of key trends and correlations.

Understanding the Strategic Value of Dual-Axis Charts

The strategic use of a secondary y-axis stands as a paramount technique in effective data visualization. It is a necessary solution when the objective is to illustrate the interplay between two distinct variables possessing vastly different numerical ranges or units of measurement. In the absence of a secondary axis, the data series with the smaller magnitude will inevitably be compressed near the baseline, appearing flat or statistically insignificant when plotted against the larger series, thereby obscuring vital analytical insights.

Consider, for example, the common business scenario of tracking monthly sales volume (often measured in thousands of dollars or units) alongside the corresponding product return rates (typically measured in single-digit percentages). Attempting to plot both of these metrics on a singular primary y-axis would render the return rates virtually invisible, making any correlation or inverse relationship impossible to discern quickly. The visual distortion caused by scale mismatch compromises the integrity of the analysis.

By employing a dual-axis structure, each quantitative data series is scaled independently, ensuring that both metrics receive appropriate visual weight and can be clearly represented and interpreted within the shared visual space. This not only dramatically improves the readability of complex financial or operational charts but also facilitates a deeper, more nuanced understanding of how these metrics interact over time. It empowers the audience to quickly pinpoint correlations, identify inverse trends, or observe divergent behaviors that would remain hidden in separate charts or poorly scaled single-axis visualizations.

This methodology is critically important across numerous professional domains, including sophisticated business analytics, rigorous scientific research, and comprehensive financial reporting, where multiple performance indicators must be presented concurrently. Mastery of this dual-axis charting technique within Google Sheets will substantially elevate your capacity to communicate intricate data narratives with unparalleled efficiency and persuasive effectiveness.

Preparing and Structuring Your Data for Dual-Axis Visualization

The successful execution of any sophisticated chart relies entirely upon a foundation of meticulously structured data. For the purposes of this specialized tutorial, we will utilize a straightforward yet highly illustrative dataset tracking hypothetical product sales and subsequent returns. This scenario serves as the perfect paradigm demonstrating why a secondary y-axis is essential: it allows for the meaningful comparison of a large volume metric (Sales) with a comparatively smaller, often percentage-based metric (Returns).

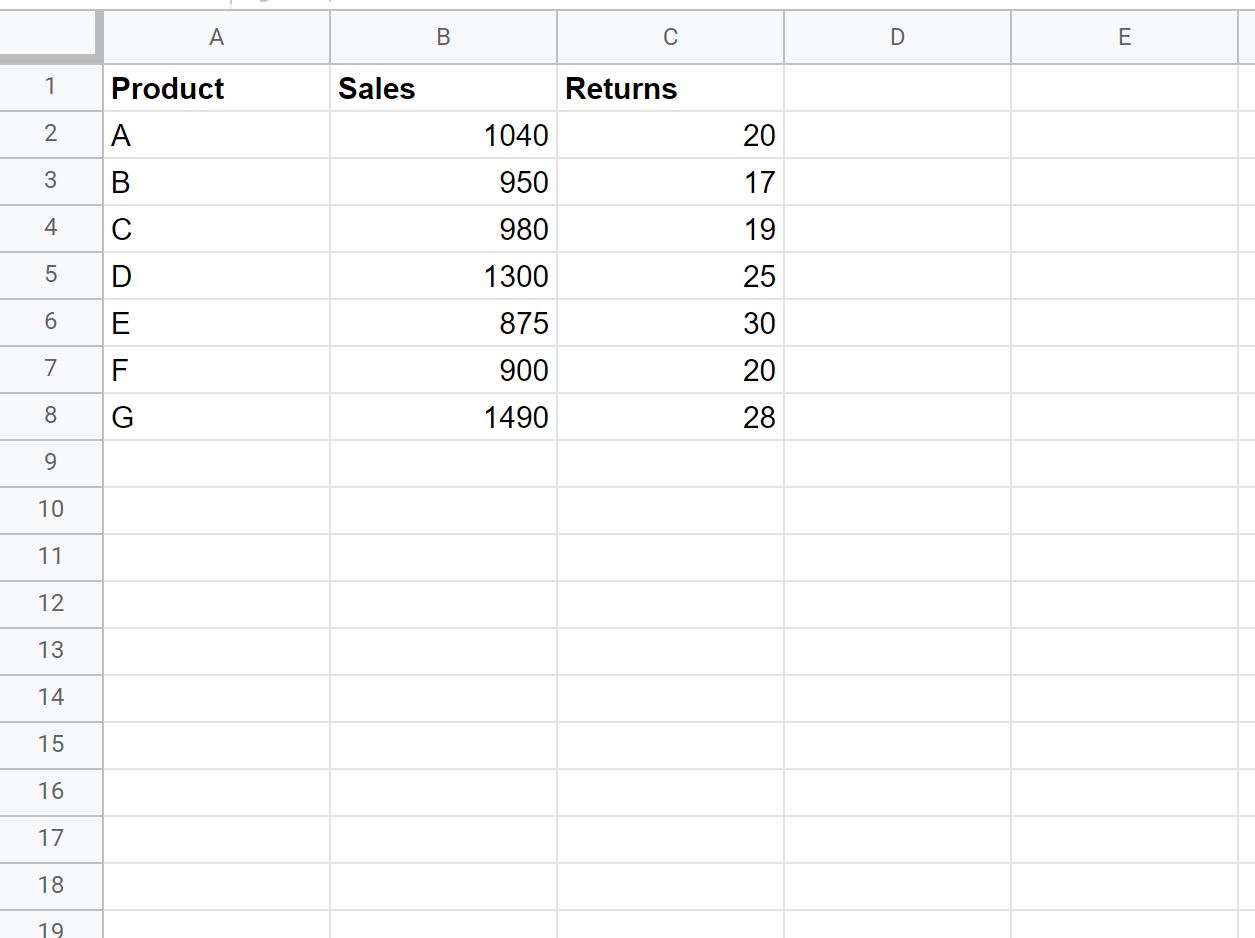

To commence the process, please accurately input the following sample data directly into your Google Sheets spreadsheet. It is imperative that all columns are clearly and accurately labeled, as these titles will be automatically integrated into your chart’s legend and axis descriptors, ensuring immediate clarity for any viewer. Maintaining consistency and precision during this initial data entry phase is crucial for the final visual accuracy.

In this well-defined dataset, Column A specifies the various products being tracked, Column B records the corresponding total sales figures for each product, and Column C reports the total returns associated with those sales. A key observation here is the significant disparity in the magnitude of values: the “Sales” figures are substantially higher than those recorded for “Returns.” This exact contrast in scale is the fundamental reason why a dual-axis approach is necessary, enabling us to accurately observe both the absolute sales performance and the relative impact of returns without one overshadowing the other in the resulting visualization.

Initiating Chart Generation and Identifying the Problem

With your data now meticulously entered and logically organized, the next phase involves instructing Google Sheets to translate this tabular information into a visual chart. This process is the core foundation of all data visualization within the platform, and we must ensure that the entire relevant data range is selected for the initial chart creation.

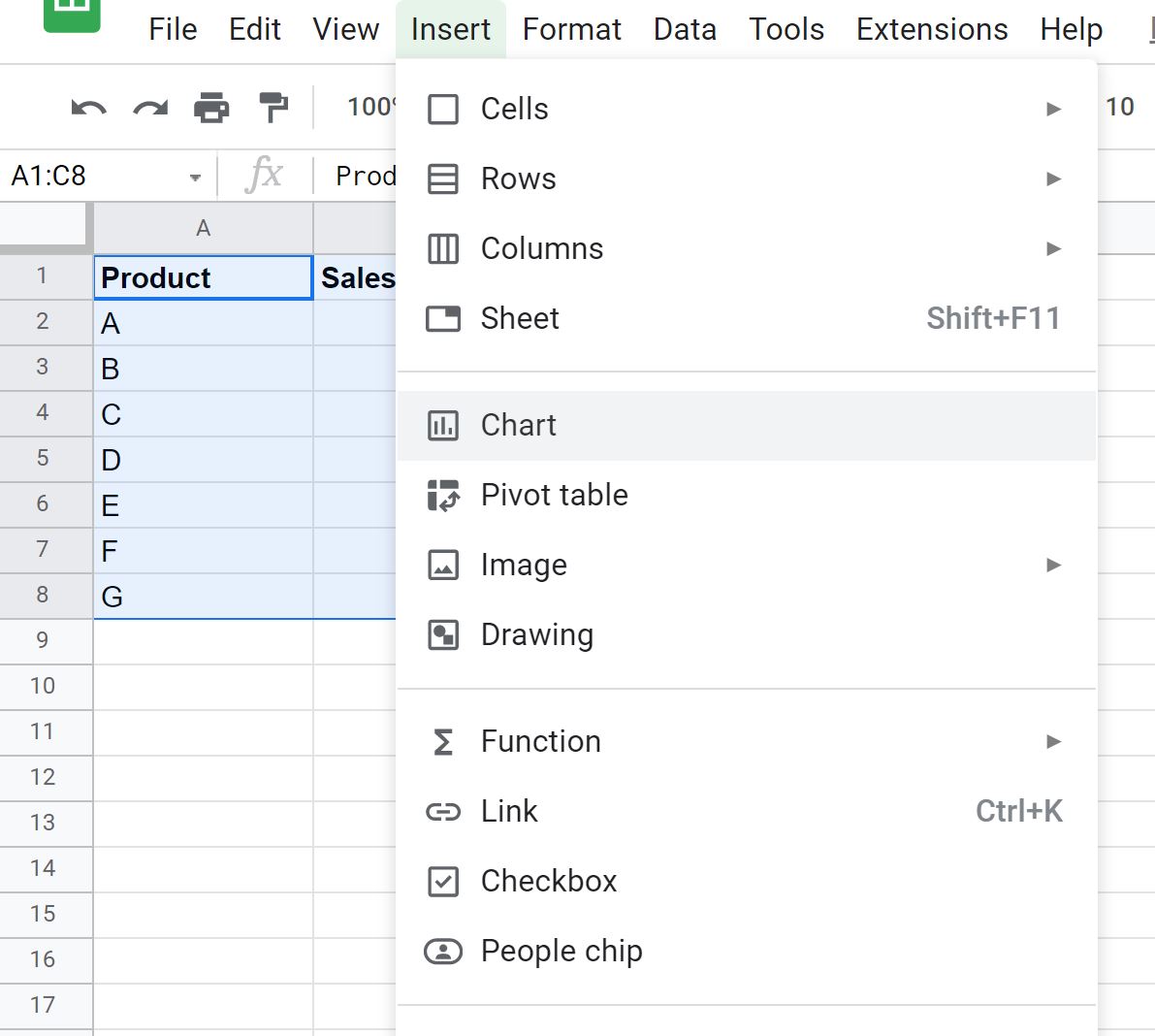

To proceed, you must first highlight the cells that encompass your complete dataset, including the header row. For our specific example, this range extends from cell A1 down to C8. Once the data selection is confirmed, navigate to the top menu bar, click on the Insert tab, and subsequently select the Chart option. This action prompts Google Sheets to begin visualizing the selected metrics.

Upon execution of the “Insert Chart” command, Google Sheets will automatically generate a chart based on its internal defaults, which commonly results in a standard bar chart or similar basic visualization type. While this initial output is necessary, it almost always requires immediate refinement, particularly when dealing with multiple data series that operate on drastically different scales, as is the case with our high-volume Sales data and low-volume Returns data.

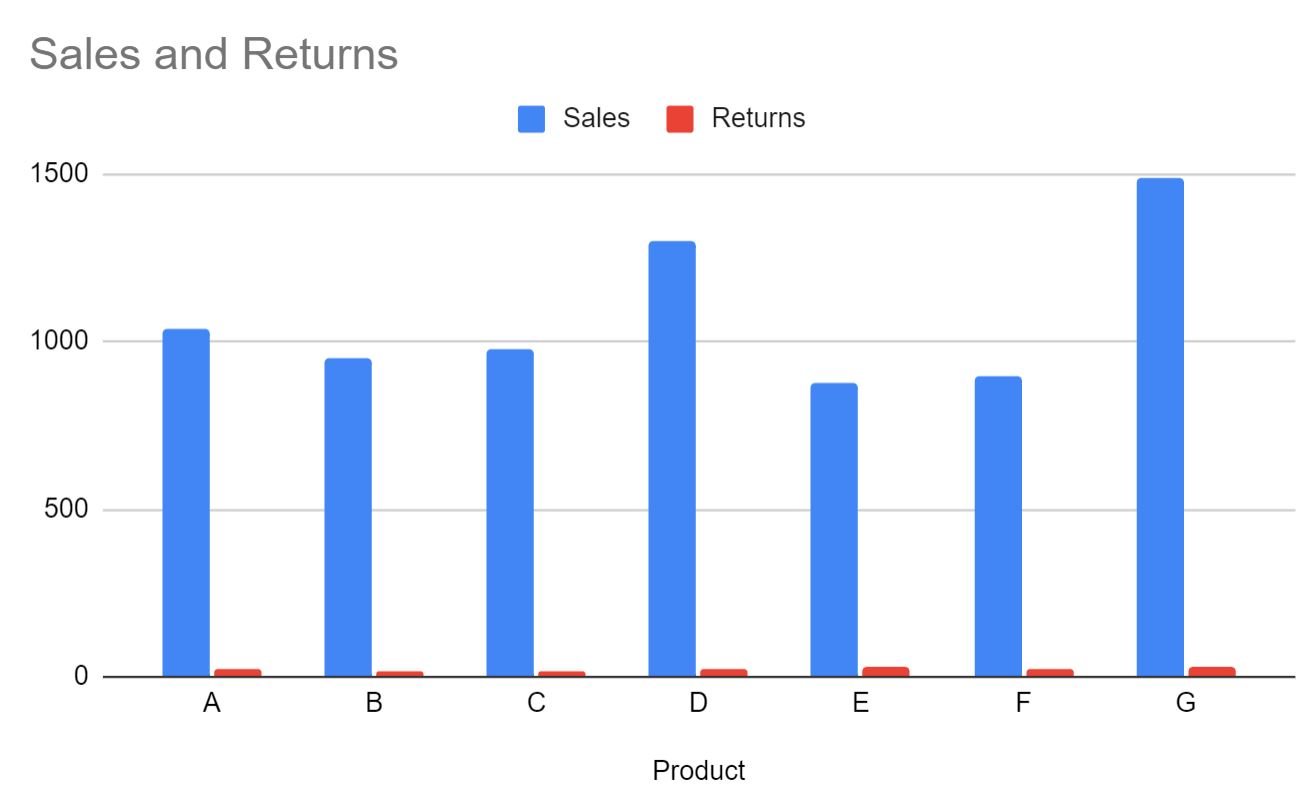

Take a moment to carefully observe the automatically inserted bar chart. The immediate visual flaw is evident: the bars representing the “Returns” figures are barely perceptible, dramatically dwarfed by the towering bars illustrating “Sales.” This visual anomaly starkly demonstrates the severe limitations of using a single y-axis for this specific dataset, underscoring the immediate and critical necessity for implementing a secondary y-axis to ensure both metrics are properly and accurately represented.

Configuring the Secondary Y-Axis via the Chart Editor

With the initial chart generated, the next and most pivotal phase involves the implementation of the secondary y-axis, utilizing the powerful options available within the Chart editor panel. This comprehensive tool provides granular control over nearly every element of the chart’s appearance and behavior. Our primary objective here is to specifically assign the “Returns” data series to a new, entirely independent axis located on the right side of the visualization.

To execute this critical configuration step, follow these precise instructions:

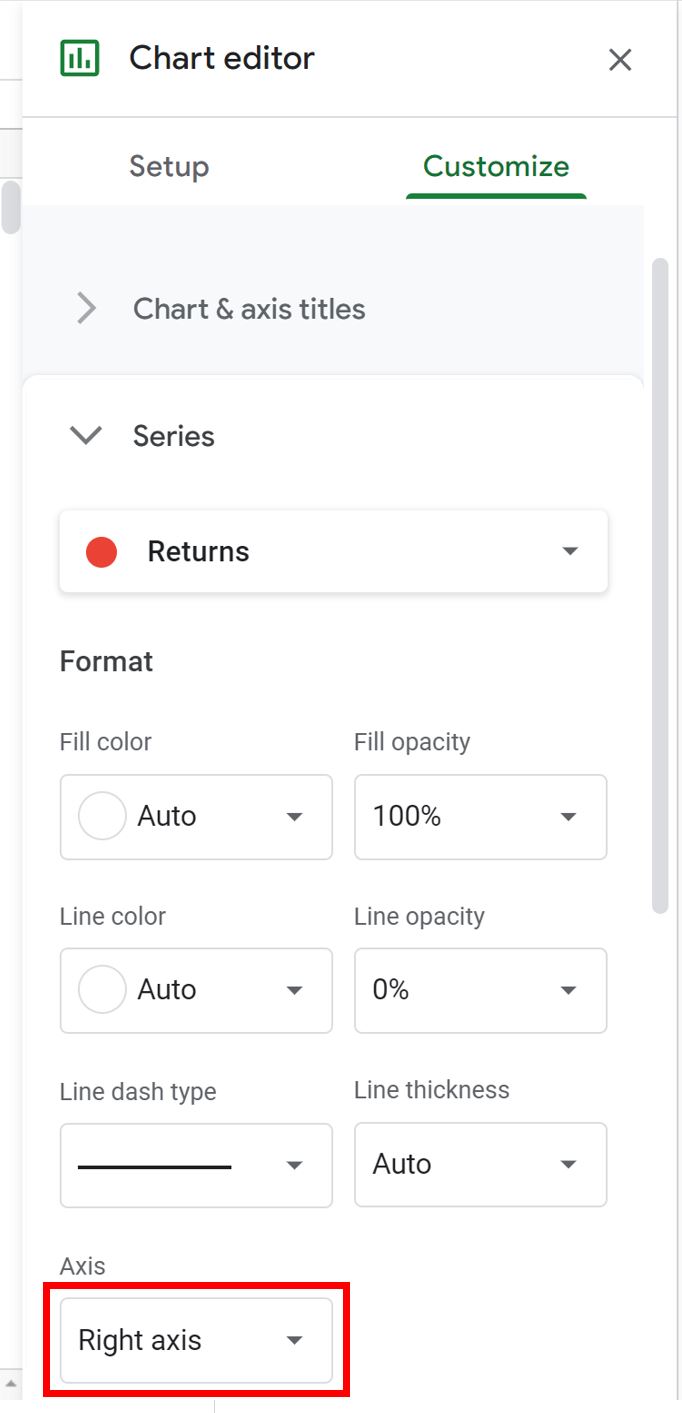

1. Locate the Chart editor panel. This panel typically opens automatically on the right side of your screen immediately following chart insertion. If it is not visible, simply double-click anywhere on the chart area to activate it.
2. Within the Chart editor interface, navigate away from the Setup tab and select the Customize tab. This section contains the extensive array of options necessary for adjusting the chart’s appearance, scales, and behavior.
3. Expand the Series dropdown menu. This critical section manages the individual formatting and axis assignment for every data series contained within your chart.
4. From the list of available series, explicitly choose the series labeled “Returns.” By selecting this element, you are instructing Google Sheets that all subsequent formatting and axis changes will apply exclusively to the returns data.
5. Scroll down beneath the selected series until you locate the option designated Axis. Click the dropdown arrow associated with this label and choose the option Right axis. This definitive action assigns the “Returns” data to a brand-new vertical axis positioned on the right boundary of your chart, ensuring it is scaled completely independently from the primary axis.

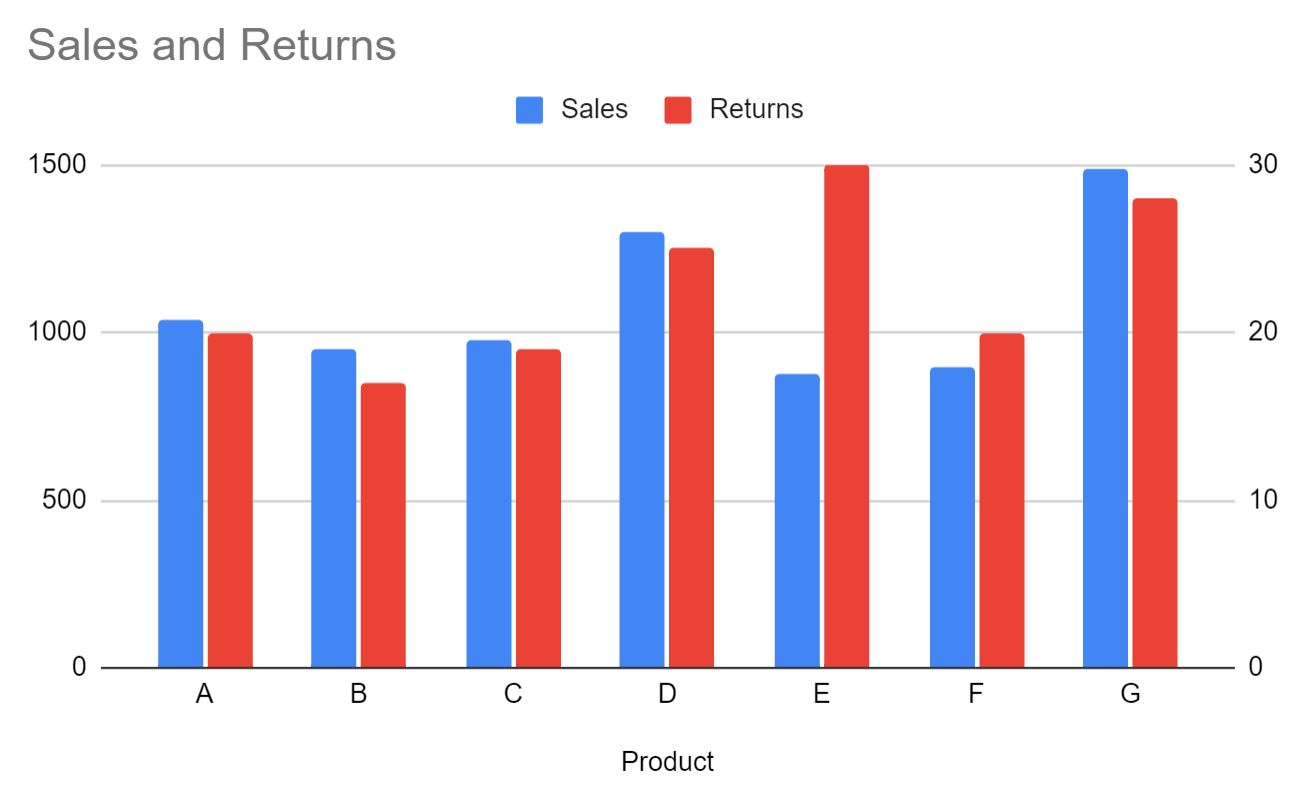

Upon selection of the “Right axis” option, Google Sheets will instantly update the visualization to incorporate a new vertical axis on the right-hand side. This newly added axis is specifically dedicated to accurately representing the magnitude and range of your “Returns” data series, providing it with its own necessary scale. This clear visual separation is paramount for conducting an accurate comparison between two disparate datasets within the same visual framework.

With this sophisticated configuration in place, the newly added axis on the right side distinctly displays the values corresponding to the Returns data, while the original, primary axis on the left continues to accurately show the values for Sales. This powerful dual representation facilitates a significantly clearer and more intuitive understanding of both complex metrics within a single, fully integrated data visualization.

Enhancing Readability Through Axis Formatting

Although the secondary y-axis is now fully functional, it is highly recommended to further optimize its readability through careful and distinct formatting. Applying unique colors and bolding to each axis helps viewers immediately and intuitively distinguish between the two separate sets of values and their corresponding scales, effectively eliminating any potential confusion or misinterpretation.

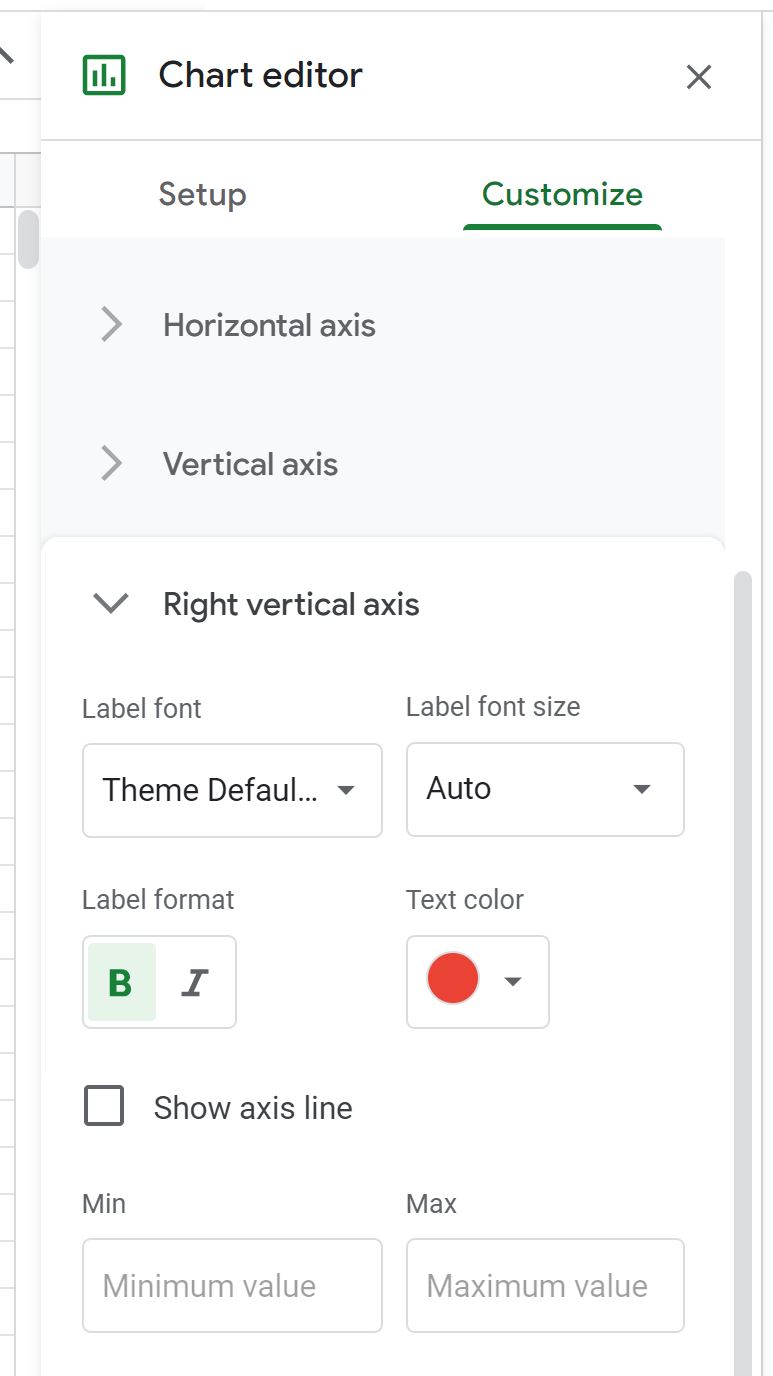

To make the “Returns” axis visually prominent and easily linkable to its respective data series, remain within the Customize section of the Chart editor panel. Ensure that “Returns” is still selected under the Series dropdown menu. Then, locate the Label format subsection. Click on the “B” icon to render the axis values in strong bold text. Crucially, choose a highly distinct, contrasting color, such as red, for the Text color setting. This immediate and powerful visual cue directly links the red axis values to the “Returns” data bars.

To maintain analytical consistency and further maximize clarity, you must repeat this formatting process for the primary “Sales” axis. You will need to switch the active series by selecting “Sales” from the Series dropdown menu in the Chart editor. Again, make its values bold, but this time, choose a different, equally contrasting color, such as a strong blue, for the Text color. This effective color-coding strategy rigorously segregates the two sets of information, making interpretation instantaneous.

As you apply these detailed formatting adjustments, the colors of the respective axes will dynamically update on your chart. The visual differentiation between the left (Sales) and right (Returns) axes will become immediately obvious, significantly elevating the overall comprehension and accessibility of your data visualization.

With both axes now meticulously color-coded and bolded, it is unequivocally clear that the axis positioned on the left side of the chart represents the values for Sales, while the axis on the right side distinctly and independently represents the values for Returns. This thoughtful and professional formatting guarantees that your final dual-axis chart is not only highly informative but also exceptionally intuitive and effortlessly interpretable for any level of audience.

Conclusion and Next Steps in Data Mastery

You have successfully navigated this complex process and created a powerful, analytically sound dual-axis chart within Google Sheets. By diligently following these advanced steps, you have acquired the fundamental skill required to effectively display and compare two disparate data series on a single visualization, greatly enhancing both the analytical depth and the aesthetic quality of your reports and presentations. The ability to deploy a secondary y-axis is an essential and versatile skill for any professional working with complex datasets, enabling clearer communication of relationships and trends that would otherwise be severely obscured.

This dual-axis technique is remarkably versatile and finds application across a wide spectrum of analytical scenarios. It can be used for tracking critical financial metrics such as revenue and corresponding profit margins, visualizing scientific data involving entirely different units of measurement (e.g., temperature and pressure), or comparing marketing campaign reach against conversion rates. Analysts must always consider the intrinsic nature of their data and the specific message they intend to convey when determining whether a dual-axis chart represents the most appropriate and honest data visualization methodology.

We strongly encourage you to continue experimenting with different types of data and to explore the vast array of further customization options available within the comprehensive Chart editor. Mastering these advanced charting capabilities in Google Sheets will undoubtedly provide a significant competitive advantage, profoundly elevating both your data analysis and presentation skills. Consistent practice and application of these techniques are the keys to unlocking deeper, more actionable insights from your organizational data.

For individuals seeking to expand their command of Google Sheets and data visualization principles, consider dedicating time to exploring tutorials on the following advanced topics:

• Creating dynamic, interactive dashboards for executive reporting.
• Utilizing pivot tables for robust data summarization and aggregation.
• Implementing conditional formatting rules for visual alerts and pattern recognition.
• Building highly interactive charts integrated with slicers for user control.
• Generating specialized chart types, such as scatter plots and effective pie charts.

The journey toward becoming a complete Google Sheets expert is an ongoing process of continuous learning, and every new technique you master adds an invaluable tool to your advanced data visualization toolkit.
