Add a Title to Matplotlib Legend (With Examples)

Introduction: Mastering Clarity in Data Visualizations

The ability to generate compelling and informative graphics is central to effective data analysis. The Matplotlib library, a foundational tool within the Python ecosystem, enables users to create highly customized static, animated, and interactive plots. For visualizations that incorporate multiple data series—such as comparative trends or grouped categories—the legend is not merely an optional addition; it is an essential guide for the viewer. A well-constructed legend ensures that observers can accurately associate visual elements (lines, colors, markers) with their corresponding data labels, thereby making the plot understandable.

However, by default, Matplotlib legends are often displayed without an overarching descriptive title. While the individual entries (labels) provide specific details, the lack of a comprehensive heading can occasionally introduce ambiguity. This is particularly true in complex scenarios where the entries themselves are technical or require context. Adding a title significantly enhances the overall quality of your data visualization by concisely communicating what the grouping represents, whether it be “Metrics,” “Categories,” or “Experimental Groups.”

This comprehensive guide will detail the exact process for incorporating a title into a Matplotlib legend. We will focus on the practical application using the popular pyplot interface, demonstrating the core syntax and moving into advanced customization options. By the end of this tutorial, you will possess the techniques necessary to create professional, unambiguous, and aesthetically balanced graphs.

Core Syntax: Utilizing the Title Argument in plt.legend()

The mechanism for assigning a title to a legend in Matplotlib is remarkably simple and relies on a dedicated keyword argument within the plt.legend() function call. When using the pyplot module, all legend customization is handled by passing relevant parameters to this function. The key parameter we utilize for adding a heading is the title argument.

The title argument accepts a standard Python string. Matplotlib then automatically formats and positions this string at the top center of the legend box, clearly separating it from the individual legend entries. This ensures the title acts as a clear header for the categories listed beneath it.

The fundamental syntax is shown below, where the string value enclosed in quotes represents your desired descriptive text. This small adjustment provides immediate contextual understanding for any viewer reviewing your graph:

plt.legend(title='this is my title')

In the subsequent sections, we will apply this syntax to a real-world data visualization scenario. We will systematically create a basic multi-series plot and then demonstrate the before-and-after effect of integrating the title argument, showcasing its impact on clarity and overall presentation.

Practical Implementation: Step-by-Step Guide to Adding a Legend Title

To fully grasp the utility of the title argument, let us walk through a complete coding example. We will first establish a standard multi-series plot using hypothetical performance data. This initial plot will feature a default legend (without a title). We will then introduce the title argument to transform the legend into a more descriptive element.

The chosen data represents two different metrics tracked over time. To structure this data efficiently, we leverage the Pandas library to generate a simple DataFrame. Our goal is to visualize ‘points’ versus ‘assists’ on a standard Cartesian coordinate system, requiring two distinct lines and corresponding legend entries.

Data Preparation and Initial Plotting

The code block below initializes the data and generates the plot. Notice the explicit use of the label argument within each plt.plot() call; these labels are automatically picked up by plt.legend() to populate the legend entries. Crucially, the initial plt.legend() call here is made without any arguments, resulting in the default, untitled legend behavior.

import pandas as pd
import matplotlib.pyplot as plt

#create data
df = pd.DataFrame({'points': [11, 17, 16, 18, 22, 25, 26, 24, 29],
                   'assists': [5, 7, 7, 9, 12, 9, 9, 4, 8]})

#add lines to plot
plt.plot(df['points'], label='Points')
plt.plot(df['assists'], label='Assists')

#add legend
plt.legend()

Upon executing this script, the resulting visualization clearly shows the two data lines and a basic legend containing “Points” and “Assists.” As anticipated, the legend box itself lacks any descriptive heading, relying entirely on the individual labels to convey the nature of the information. This image below confirms the default visual state:

Integrating the Descriptive Title

To rectify the lack of context, we now integrate the title argument. Since the entries “Points” and “Assists” are both forms of performance measurement, an appropriate title would be “Metric.” This simple string addition provides immediate context to the entire legend block. The critical modification occurs within the plt.legend() function call:

#add title to legend
plt.legend(title='Metric')

After applying this change, the Matplotlib plot is re-rendered. The resulting image immediately demonstrates the improvement in clarity. The title “Metric” now sits prominently above the labels, serving as a clear header for the categories listed beneath it. This transformation elevates the legend’s communicative effectiveness, making the visualization significantly easier to interpret for any audience.

Advanced Customization: Adjusting Legend Title Font Size

While adding a title resolves the issue of contextual clarity, professional data visualizations often require precise control over aesthetic elements. Matplotlib offers robust tools for this customization. If the default font size (typically 10 points) of the legend title is insufficient—perhaps too small for a high-resolution display or too subtle for a presentation—you can easily override it using the title_fontsize parameter within plt.legend(). This control allows you to establish a visual hierarchy that guides the viewer’s eye.

The title_fontsize argument accepts either a specific integer value (representing the point size) or a string alias (such as ‘small’, ‘medium’, or ‘large’). For maximum impact, especially when the legend title is a key descriptive element, increasing its size substantially can be beneficial. For example, setting title_fontsize to 25 points will make the title significantly more prominent than the default labels.

To apply this visual enhancement, we simply add the argument to our existing legend call. Consult the official Matplotlib documentation for a full list of accepted string aliases and further details on font properties:

#add title to legend with increased font size
plt.legend(title='Metric', title_fontsize=25)

The resulting graph, shown below, illustrates the clear difference made by adjusting the font size. The title “Metric” is now a dominant feature of the legend, ensuring that its purpose is immediately communicated to anyone viewing the plot, regardless of the viewing medium or distance.

Maintaining Balance: Customizing Individual Legend Label Font Size

While emphasizing the legend title is important, neglecting the readability of the individual legend labels (“Points,” “Assists”) can undermine the overall clarity of the plot. If the title font size is drastically increased, the smaller default label font size can make the legend appear unbalanced or cause the labels themselves to be difficult to read. To ensure visual harmony and optimal readability, Matplotlib provides the fontsize argument, which controls the size of all label entries within the legend box.

For effective information design, it is often prudent to increase the label size when the title size is also adjusted, maintaining a clear yet balanced ratio between the two textual elements. By using both title_fontsize and fontsize concurrently, we achieve granular control over the entire legend’s typography.

In the example below, we maintain the large title size (25) for prominence and increase the label font size to 15 points. This combination ensures that all text elements are highly visible and that the relationship between the title and its entries remains visually coherent:

#add title to legend with increased title and label font size
plt.legend(title='Metric', title_fontsize=25, fontsize=15)

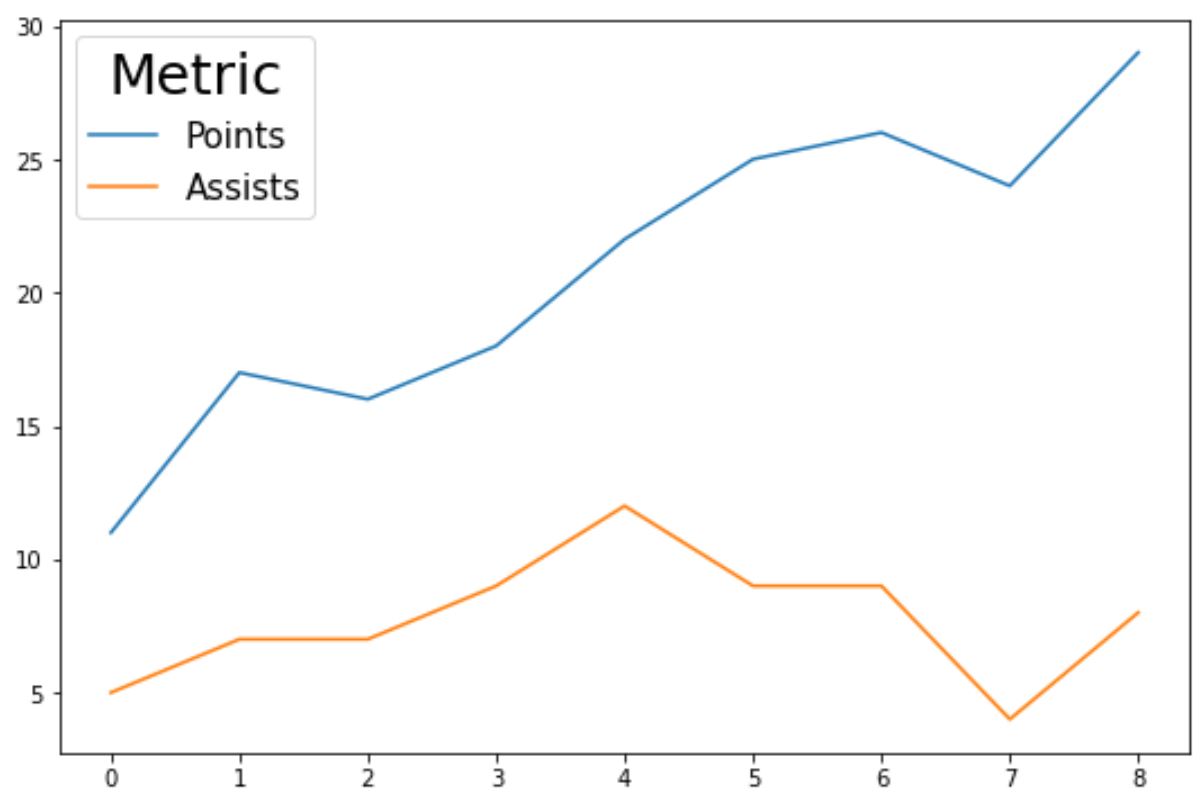

The final output, as displayed in the image below, showcases a fully customized legend. Both the descriptive title and the specific data labels are rendered in optimized font sizes, making the legend an easily digestible and aesthetically pleasing component of the larger plot. This level of detail is essential for creating high-quality scientific visualizations.

Summary of Techniques and Essential Best Practices

This tutorial has guided you through the transformation of a default Matplotlib legend into a highly informative element of a data plot. We established that the primary method for adding context is through the title argument within plt.legend(). Furthermore, we explored advanced styling capabilities by utilizing title_fontsize and fontsize to control the visual weight and readability of both the header and its entries.

Effective legend design goes beyond mere technical implementation; it requires strategic decisions about communication. By employing these customization techniques, you ensure that your Matplotlib plots are not only technically sound but also optimized for viewer comprehension.

To achieve mastery in generating professional visualizations, adhere to these key best practices:

• Descriptive Titles: The legend title must be concise and immediately apparent, accurately summarizing the category of the data presented (e.g., “Experiment Phase,” “Model Type,” “Region”). Avoid overly long or ambiguous titles.
• Visual Prioritization: Employ title_fontsize to make the title slightly more dominant than the labels, guiding the viewer to understand the legend’s purpose first. Consistency in font sizes across related plots is crucial for maintaining a cohesive visual portfolio.
• Strategic Placement: Always ensure that the legend placement (managed by the loc argument) does not overlap or obscure critical data points within the visualization.
• Clarity and Jargon: Strive for clarity in both the title and labels, minimizing jargon where possible to enhance accessibility for a broader audience.

By rigorously applying these methods, you significantly improve your data storytelling capabilities, ensuring that every component of your plot contributes effectively to the overall narrative.

Further Resources for Matplotlib Legend Mastery

Mastery of Matplotlib comes through continued practice and exploration of its extensive feature set. The official documentation remains the ultimate source for detailed information regarding advanced legend customization, including controlling font styles, background properties, and intricate placement strategies.

We encourage you to utilize the following authoritative resources to deepen your understanding and explore other common data visualization operations that build upon the techniques introduced here:

• Matplotlib Legend Guide (Official Documentation)
• Matplotlib Gallery (Extensive Code Examples)
• Real Python: Comprehensive Matplotlib Tutorial
