Learning to Add Vertical Lines to ggplot2 Plots in R

Introduction: Why Vertical Lines Matter in ggplot2

The ggplot2 package stands as the definitive standard for data visualization within the R programming language environment. As a foundational element of the tidyverse, it empowers analysts to transform complex datasets into insightful graphical representations. In specialized contexts like time series analysis, density plotting, or scatter plots, it is often critical to draw attention to specific values or thresholds along the X-axis. This is precisely the purpose served by the highly efficient function, geom_vline().

A vertical reference line is not merely an aesthetic addition; it is a vital visual cue. These markers guide the viewer’s interpretation, enabling immediate identification of significant metrics such as mean values, statistical cutoffs, critical dates, or predefined control limits. By integrating these visual references, you ensure that even intricate visualizations are clear, highly communicative, and effectively convey key analytical findings to any audience.

This guide provides an expert walkthrough of geom_vline(). We will cover the function’s core syntax, demonstrate how to implement single and multiple lines seamlessly, and detail advanced methods for applying custom aesthetic properties—such as color, size, and linetype—to significantly enhance the clarity of your plots.

The Mechanics of geom_vline(): Syntax and Arguments

Adding perpendicular lines to your visualization in ggplot2 is simplified through the use of the geom_vline() function. This geometry layer is specifically engineered to draw lines that span the entire vertical height of the plotting panel, based on a location defined on the horizontal (X) axis.

The fundamental structure for utilizing this layer is notably concise, offering powerful control through its primary arguments:

geom_vline(xintercept, linetype, color, size)

Each parameter plays a distinct role in determining the line’s placement and visual presentation:

• xintercept: This is the mandatory parameter that dictates the exact X-axis coordinate(s) where the line(s) must be drawn. It can accept a single numeric value for one line or a numerical vector of values when multiple lines are required.
• linetype: This argument governs the style of the line. Beyond the default ‘solid’ style, you can select from various options like ‘dashed’, ‘dotted’, ‘dotdash’, ‘longdash’, or ‘twodash’ to provide visual differentiation.
• color: Used to define the line’s hue, this parameter accepts standard R color names (e.g., ‘black’, ‘red’, ‘grey’) or precise hexadecimal color codes.
• size: Controls the thickness or weight of the line. Numeric values are used, where larger inputs result in a more prominent line.

A thorough understanding of these arguments allows for the precise strategic placement and styling of vertical markers, ensuring they effectively complement your dataset without causing visual distraction.

Implementation Strategy 1: Marking a Single Reference Point

The most straightforward and frequent application of geom_vline() involves highlighting a single, critical threshold, such as an average, a median, or a specific policy cutoff. To illustrate this process, we first initialize a sample data frame and then generate a base scatterplot.

In the following example, our goal is to mark the position X = 10. By adding a single vertical line here, we create an immediate visual division, allowing observers to quickly categorize data points that fall above or below this designated reference value. Note that the xintercept parameter is supplied with a single, unambiguous numeric value.

The code block below demonstrates the necessary R commands to prepare the data, initialize the plot, and integrate the single vertical reference line:

library(ggplot2)

#create data frame
df <- data.frame(x=c(1, 3, 3, 4, 5, 5, 6, 9, 12, 15),
                 y=c(13, 14, 14, 12, 17, 21, 22, 28, 30, 31))

#create scatterplot with vertical line at x=10
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_vline(xintercept=10)

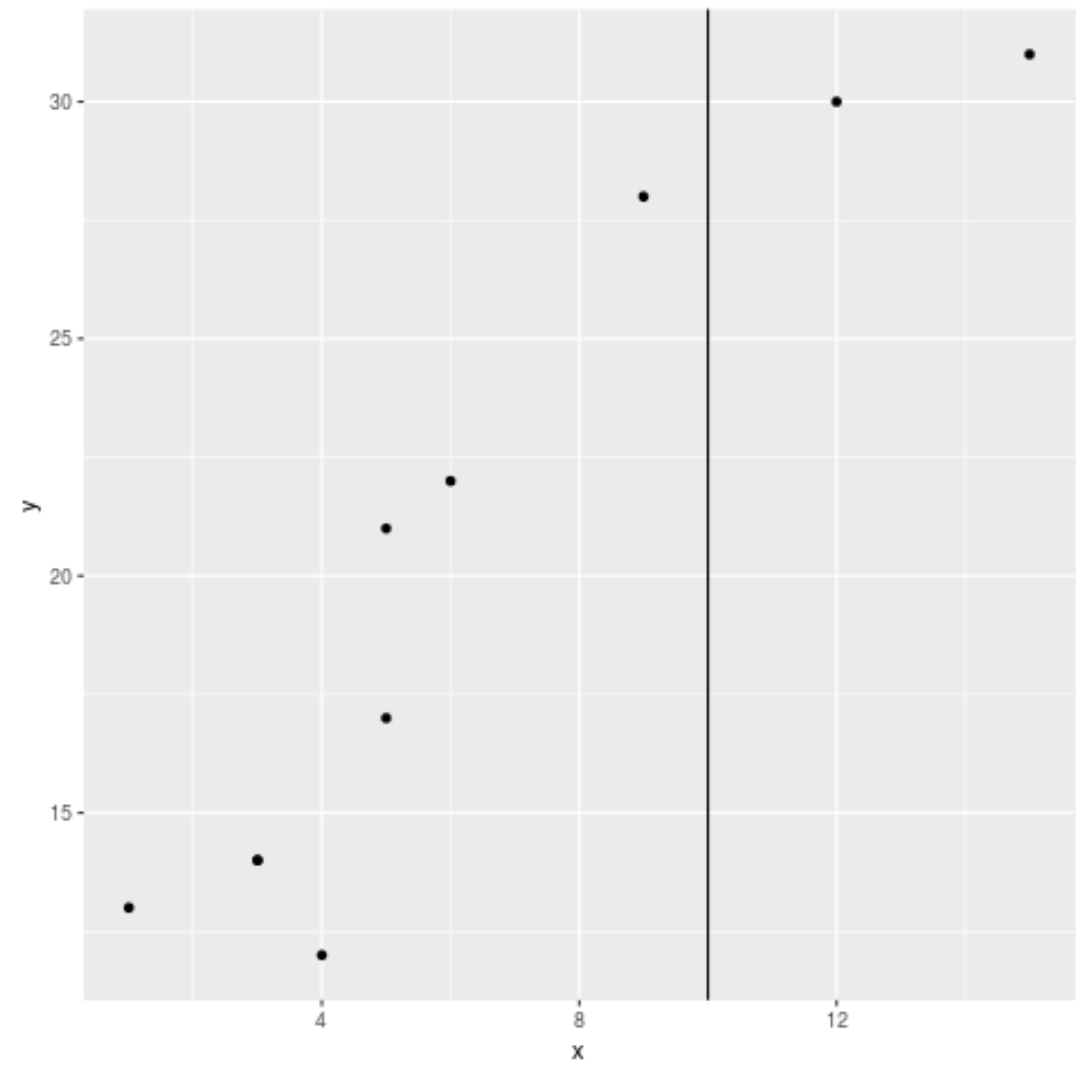

The resulting plot effectively partitions the visual space at X=10, thereby providing immediate contextual clarity regarding the distribution of the plotted data points relative to this critical value.

Implementation Strategy 2: Visualizing Multiple Thresholds

While a single reference line addresses many visualization needs, advanced analytical work often requires highlighting several critical points simultaneously. Examples include defining statistical confidence intervals, displaying upper and lower control limits in industrial data, or segmenting time series data by specific event dates. The geom_vline() function manages this requirement efficiently by accepting a numeric vector of values for the key xintercept parameter.

By passing a sequence of values using the R function c(), you instruct ggplot2 to automatically draw a distinct vertical line corresponding to every value enumerated within that vector. This powerful approach streamlines the code and avoids the inefficiency of calling geom_vline() multiple times for each individual marker.

In the subsequent demonstration, we simultaneously plot three separate vertical lines at X=6, X=10, and X=11. This technique is particularly valuable for visually partitioning data into defined ranges, facilitating deeper comparative analysis across specified intervals.

library(ggplot2)

#create data frame
df <- data.frame(x=c(1, 3, 3, 4, 5, 5, 6, 9, 12, 15),
                 y=c(13, 14, 14, 12, 17, 21, 22, 28, 30, 31))

#create scatterplot with vertical line at x=6, 10, and 11
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_vline(xintercept=c(6, 10, 11))

The resulting plot clearly displays the three vertical divisions, enabling immediate visual assessment and comparison of the data spread across the defined sections.

Advanced Aesthetics: Customizing Line Appearance

While a simple black, solid line is functional, effective data visualization often requires customizing the aesthetic properties of reference markers to ensure maximum clarity, especially when lines must stand out or when multiple lines represent different types of thresholds. The linetype, color, and size parameters within geom_vline() provide comprehensive control for visual enhancement.

For a single line, we can specify the exact appearance attributes directly within the function call. For instance, setting linetype to ‘dashed’, specifying color as ‘blue’, and increasing the size dramatically to 2 ensures the line is highly visible, contrasting sharply with the background grid and the primary data points.

Examine the following code snippet, which applies detailed customization to a vertical line positioned at X=5:

library(ggplot2)

#create data frame
df <- data.frame(x=c(1, 3, 3, 4, 5, 5, 6, 9, 12, 15),
                 y=c(13, 14, 14, 12, 17, 21, 22, 28, 30, 31))

#create scatterplot with customized vertical line
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_vline(xintercept=5, linetype='dashed', color='blue', size=2)

This customization successfully produces a thick, blue dashed line, effectively guiding the viewer’s focus to the X=5 mark.

Furthermore, when dealing with multiple vertical lines, it is possible to assign unique aesthetics to each line. This is achieved by ensuring that the aesthetic arguments (such as color or linetype) are provided as vectors that precisely match the length of the xintercept vector. This capability is essential for visually differentiating between various types of thresholds, such as warning limits versus strict action limits.

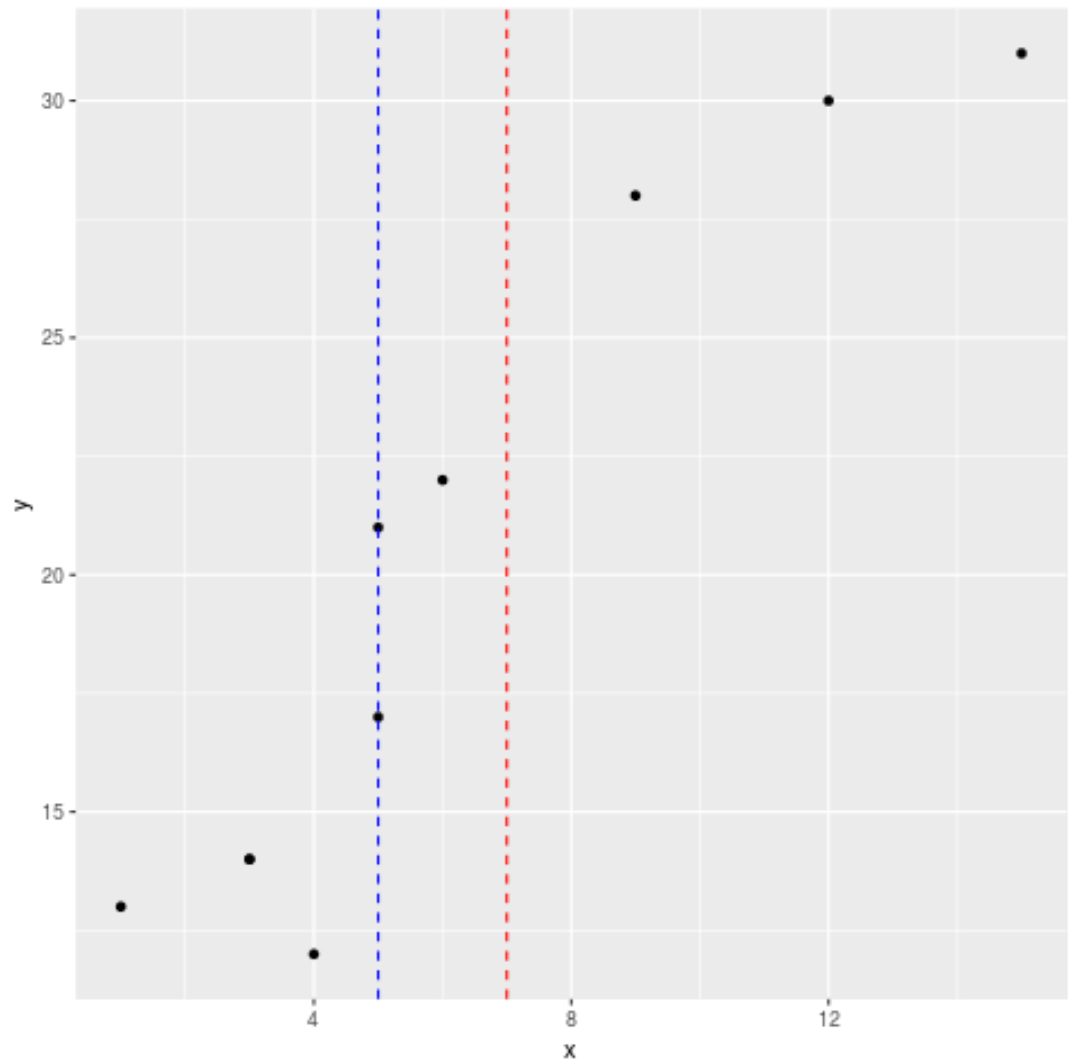

In our final example, we plot two vertical lines at X=5 and X=7. We maintain the ‘dashed’ linetype for both but assign them distinct colors (‘blue’ and ‘red’) by passing a corresponding vector to the color parameter.

library(ggplot2)

#create data frame
df <- data.frame(x=c(1, 3, 3, 4, 5, 5, 6, 9, 12, 15),
                 y=c(13, 14, 14, 12, 17, 21, 22, 28, 30, 31))

#create scatterplot with customized vertical lines
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_vline(xintercept=c(5, 7), linetype='dashed', color=c('blue', 'red'))

This technique showcases powerful customization, allowing each vertical marker to convey specific information through its unique visual attributes.

Summary: Best Practices for Effective Visualization

The geom_vline() function provides a fundamental, yet exceptionally effective, tool for enriching statistical visualizations created within the R programming language environment. By strategically leveraging the xintercept parameter—whether defining a single point or an array of thresholds—analysts can precisely place reference lines that significantly enhance data interpretation.

To ensure your graphics meet professional and academic standards, adhere to these key best practices when incorporating vertical lines:

1. Prioritize Purpose over Quantity: Only include vertical lines that fulfill a distinct analytical or communicative objective. Excessive lines introduce clutter and can confuse viewers, obscuring the underlying trends in the data.
2. Differentiate Linetypes: Reserve the ‘solid’ linetype for primary data elements or axes. Employ ‘dashed’ or ‘dotted’ lines specifically for reference markers (e.g., means, targets, or thresholds) to visually distinguish them from the main geometrical representations of the data.
3. Ensure Optimal Contrast: Always select colors for your lines that contrast sufficiently with both the plot background and the primary data points. If using multiple lines, assign distinctly different colors to prevent any ambiguity regarding which threshold each line represents.
4. Utilize Annotations for Context: While geom_vline() itself does not include labels, consider pairing it with the annotate() function to add descriptive text adjacent to the lines, clearly explaining what the reference marker signifies (e.g., “Industry Standard” or “Q3 Median”).

Mastering the application and customization of geom_vline() is an essential step toward producing high-quality, professional-grade statistical graphics using ggplot2.
