Learn How to Add Vertical Lines to Excel Charts for Enhanced Data Analysis

Introduction: Enhancing Data Visualization with Critical Markers

In the realm of data visualization, the judicious use of graphical elements can dramatically improve the clarity and interpretability of complex information. When analyzing trends or performance metrics, it is often essential to highlight a specific point in time or a predefined threshold. This marker allows viewers to instantly compare current data against a target, milestone, or significant historical event. Such visual cues are indispensable for effective communication of analytical results, ensuring that the key message of the chart is immediately apparent.

A frequent requirement in professional reporting, particularly when using Microsoft Excel, is the integration of a distinct vertical line. This line typically corresponds to a crucial x-axis value, serving as a boundary, a goal post, or a marker of intervention. While many advanced charting packages offer a native option for adding reference lines, Excel, surprisingly, does not provide a direct “add vertical line” tool, especially for standard line charts. This absence necessitates a resourceful approach to achieve the desired effect without resorting to external software.

Fortunately, we can bypass this limitation through a clever and universally applicable workaround. This technique involves transforming a standard line chart into an X-Y scatter plot hybrid, allowing us to introduce an auxiliary data series that defines the precise coordinates of our vertical marker. This tutorial is designed to provide a comprehensive, step-by-step methodology for seamlessly integrating such a reference line into any existing chart, thereby enhancing its analytical power and transforming it into a more informative visual tool. We will guide you through preparing the source data, constructing the specialized chart type, and refining the appearance for maximum impact.

By mastering this technique, you will be able to replicate sophisticated visualizations, such as the dynamic chart example shown below, featuring a precisely placed vertical line that anchors your analysis to a specific point in the data progression:

Step 1: Preparing Your Core Dataset for Visualization

The effectiveness of any visual analysis begins with a meticulously organized dataset. Before we introduce the required elements for our reference line, we must first establish the foundational data that will constitute the primary visualization—typically a trend line or progression over time. It is crucial that this initial data is structured appropriately, generally consisting of two contiguous columns: the independent variable (often time, index, or iteration, forming the X-values) and the dependent variable (the measured value, forming the Y-values).

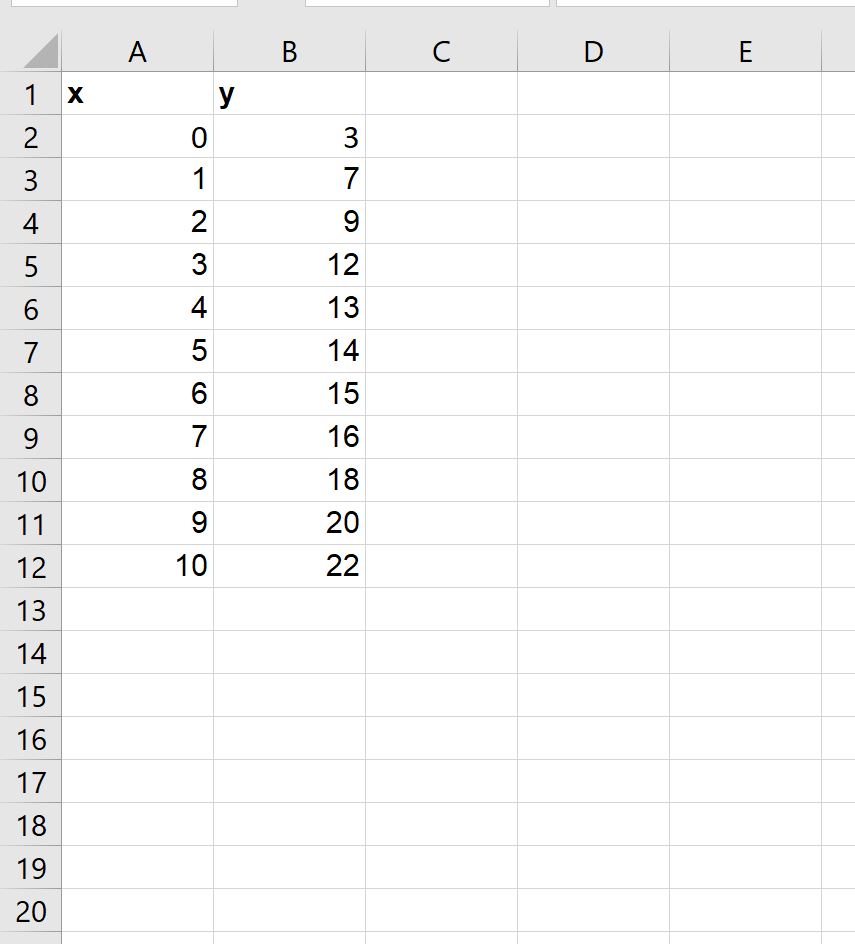

For the purpose of this demonstration, we will utilize a simple, yet representative, sample dataset. This data should be entered directly into your Excel spreadsheet, ensuring that each column is clearly labeled with descriptive headers. A clear and robust starting structure prevents potential errors when instructing Excel to plot multiple, distinct data series simultaneously. Note that the X-values must be consistent and ordered for the primary series to display correctly as a trend.

It is essential to verify that your primary data is arranged in contiguous columns, typically starting in column A and B. This standard columnar structure allows Excel’s charting engine to effortlessly interpret the relationship between the X and Y coordinates. While subsequent steps will introduce complexity, maintaining the integrity and clarity of the base data is the most important prerequisite for successful chart construction. Once this foundation is solid, we can proceed to integrate the specialized data required for the vertical line marker.

Step 2: Defining the Coordinates for the Vertical Line Series

The core of this technique lies in treating the vertical line not as an axis feature, but as a separate, minimal data series. To draw a straight vertical path, we only require two data points. The fundamental mathematical principle is that these two points must share an identical x-coordinate but possess maximally different y-coordinates. This configuration guarantees the creation of a perfectly vertical segment within the charting plane.

To implement this, you must introduce a new, artificial set of columns into your existing dataset. For instance, if you decide that your significant event occurs at x = 6, you will establish a new column (Column C in our example) dedicated to the X-values of the vertical line series, and an adjacent column (Column D, though not strictly necessary if integrated carefully, we will use C for X and D for Y if needed, but following the original structure, we use C for the new X and Y values in the same column structure). Let’s stick to the original structure where the new X and Y values are added below the primary data, in the same columns, then highlighted. However, the original image shows two new columns (C and D) defined as “Vertical Line X” and “Vertical Line Y” at the bottom. We must follow this structure exactly. We will add two new rows containing the vertical line data, assuming we want the line at x = 6.

The crucial step is defining the vertical extent. You will add two new rows to your data table:

1. The first point: X-coordinate = 6, Y-coordinate = 0 (or the minimum Y-axis value).
2. The second point: X-coordinate = 6, Y-coordinate = 10 (or the maximum Y-axis value).

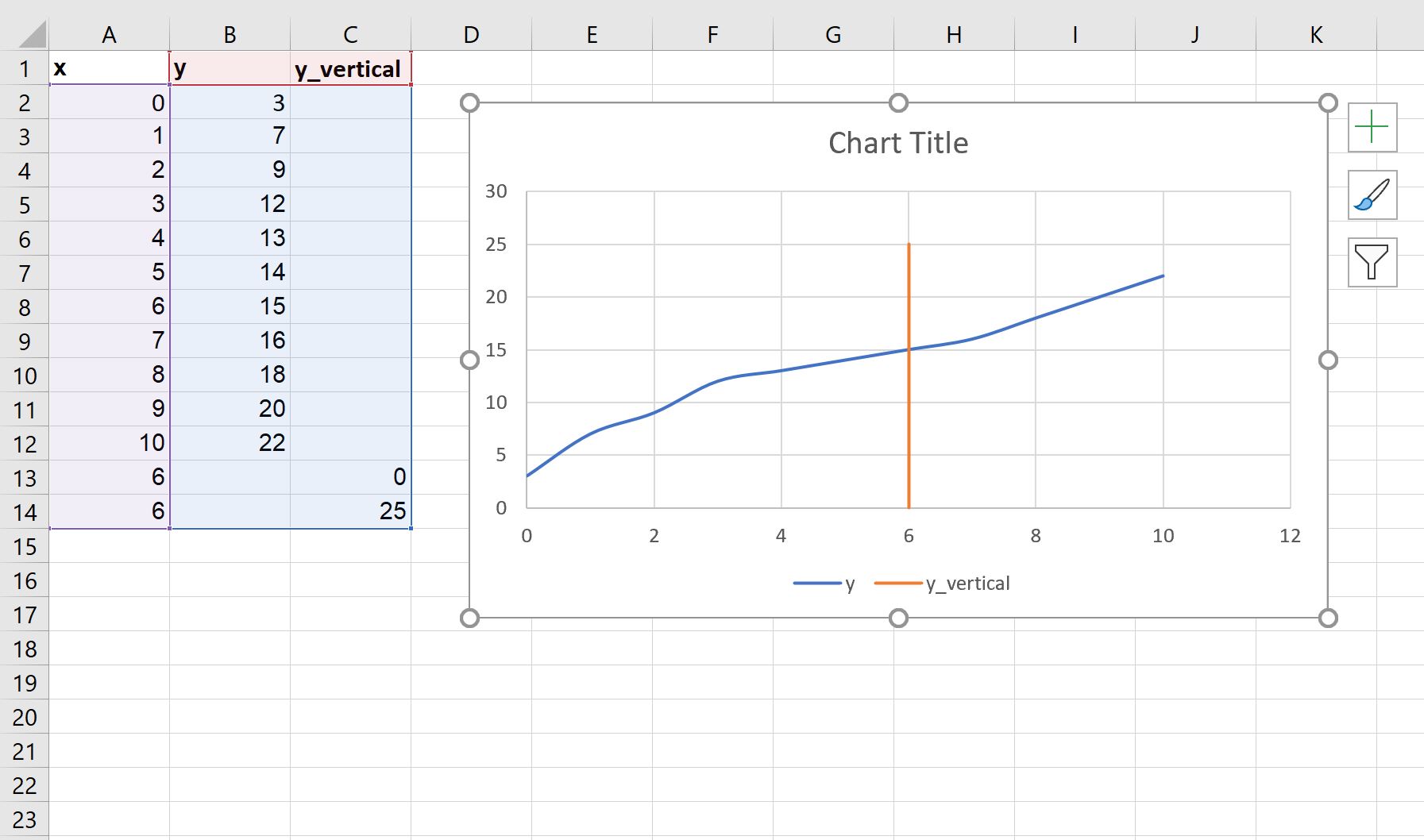

These Y-values should be chosen carefully to span the entire visible range of your primary Y-axis, ensuring the reference line extends fully from the bottom to the top of the plot area. This dedicated column structure, as illustrated below, ensures Excel correctly identifies this marker as a separate, two-point series.

It is important to note the difference in structure required for this step. Instead of appending the vertical line data to the existing primary series, we are defining a completely separate set of coordinates. In the provided example image, the existing X and Y data is extended with two new rows specifically defining the X and Y coordinates for the marker. This allows us to select a single, contiguous range that contains all the necessary input for both the primary trend and the vertical marker.

Step 3: Constructing the Chart using the Scatter Plot Type

Although our goal is to create a refined line chart, the critical requirement for defining precise X and Y coordinates for our auxiliary series demands a specific chart type: the Scatter chart. Standard Excel line charts plot Y-values against an arbitrary index rather than true X-values, which would prevent the accurate placement of our vertical marker based on its X-coordinate (e.g., x=6). The Scatter type, however, treats both X and Y inputs as numerical coordinates, granting us the necessary control.

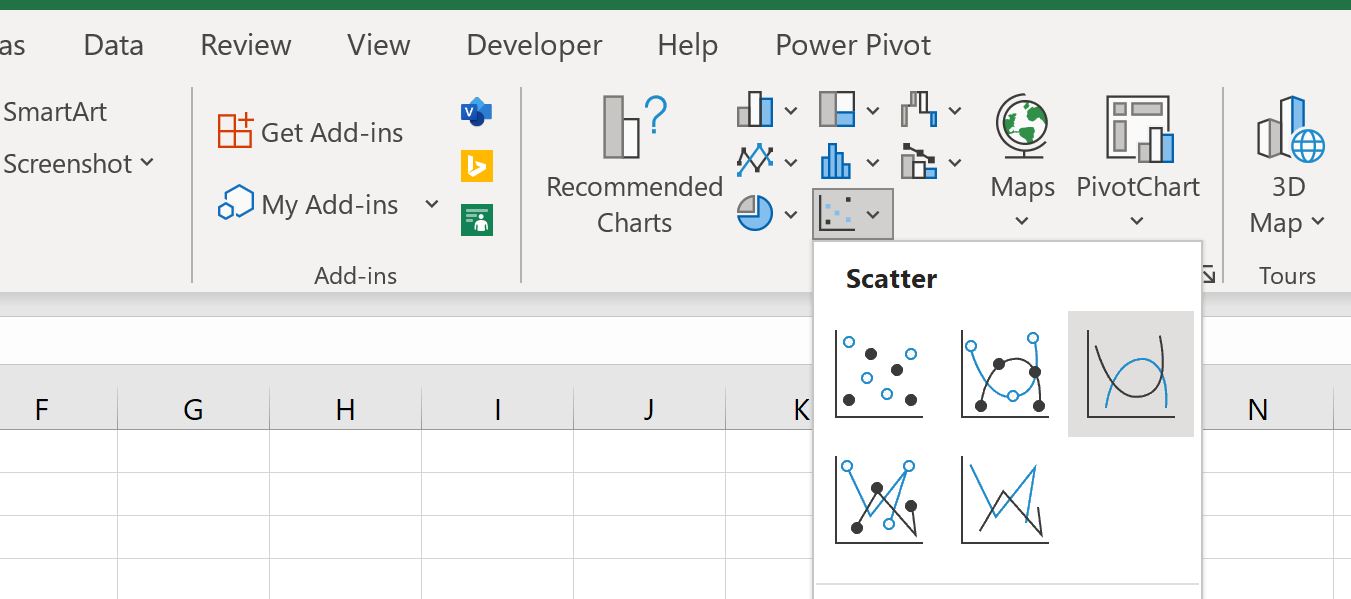

To initiate the chart creation, begin by highlighting the entire expanded dataset. In our example, this would typically involve selecting the range that encompasses all primary data rows and the two new rows defining the vertical line (e.g., cells A2:C14 if we assume the structure where the vertical line data is appended to the original columns). Next, navigate to the Insert tab located on the top Ribbon. Within the Charts group, select the option for Scatter with Smooth Lines. Selecting this option ensures that both the primary data and the two points defining the vertical marker are treated as distinct data series, plotted according to their exact coordinate pairs.

Upon execution, Excel will generate the chart. Crucially, you will observe two distinct elements: the main trend line based on your primary data, and the precisely positioned vertical segment. Because we assigned the same X-coordinate (x=6) to the two endpoints of this segment, the resulting line is perfectly vertical. If the line does not span the entire height of the chart, return to Step 2 and adjust the Y-values (0 and 10 in our example) to better encompass the range of your Y-axis scale. This dynamic linking ensures that any future modifications to the underlying source data will instantly update the chart visualization.

Step 4: Refining the Chart’s Appearance and Styling

With the structural challenge resolved, the focus shifts to aesthetics and readability. A key component of powerful data visualization is ensuring that the visual emphasis guides the viewer’s attention to the most important features. This involves carefully styling both the primary data series and, more importantly, the newly added vertical line marker. The goal is to make the reference line stand out without becoming visually dominating.

Customization options in Excel are extensive. To refine the appearance of the vertical marker, select the line segment directly within the chart area and open the Format Data Series pane. Here, you can modify several key attributes:

• Line Color: Choose a contrasting color (e.g., bright red or deep grey) to differentiate it clearly from the main trend line.
• Line Thickness (Weight): Increase the line weight slightly to give it visual prominence.
• Dash Type: Consider applying a dashed or dotted pattern. Reference lines are often represented using dashed lines to indicate they are secondary markers rather than primary data.
• Markers: Crucially, ensure that the markers (the actual points plotted at Y=0 and Y=10) are set to “None” to maintain a clean, continuous line segment without distracting dots at the ends.

These subtle adjustments ensure the vertical line fulfills its analytical purpose effectively.

Beyond the line itself, you may also need to refine the axis scales. If the addition of the vertical line points (e.g., Y=0 and Y=10) forces the Y-axis range to expand unnecessarily, manually adjust the minimum and maximum bounds of the axis range to focus only on the relevant data spread. Additionally, adding a clear chart title, axis labels, and a legend (if necessary, though the vertical line should often be explained via annotation rather than the legend) will complete the transformation into a professional-grade visualization.

Conclusion and Practical Applications

While Microsoft Excel may lack a dedicated button for adding vertical reference lines, the methodology of leveraging the Scatter with Smooth Lines chart type, coupled with an auxiliary two-point data series, provides a robust and elegant solution. This technique grants the analyst precise control over the placement of the marker along the X-axis, enabling the creation of highly informative and actionable data visualizations. This approach transcends simple presentation, turning raw data into compelling narrative.

This flexibility extends beyond simple reference marking. The same principle can be adapted to create other visual aids, such as horizontal reference lines (by setting the same Y-coordinate for two points across the X-range) or even shaded areas (using stacked area charts in combination with this method). We encourage users to experiment with line styles, colors, and positioning to best suit their specific analytical requirements, whether they are marking statistical significance, regulatory targets, or critical performance milestones.

Mastery of this workaround significantly expands your Excel charting toolkit, allowing you to move beyond basic graphing capabilities to produce professional-quality reports and analytical graphics that immediately draw attention to the most important aspects of your dataset. This simple modification can elevate the impact of any data presentation.

Additional Resources for Advanced Charting

To further enhance your proficiency in generating sophisticated graphics within Excel, we recommend exploring tutorials focused on the following advanced topics:

• Creating dynamic charts that update automatically based on user inputs.
• Implementing conditional formatting within chart elements.
• Mastering combo charts for displaying different data series types simultaneously.
