Learning to Add an Average Line to Matplotlib Plots

Visualizing data often involves more than just plotting points; it frequently requires adding contextual elements to aid interpretation. One common and highly effective technique is to overlay an average line onto your plots. This simple addition can immediately highlight the central tendency of your data, making it easier to identify outliers, trends, and the overall distribution relative to the mean.

This tutorial will guide you through the precise process of adding such a line to your Matplotlib plots. We will explore the fundamental syntax required and demonstrate how to customize the appearance of this line to suit your specific visualization needs. By the end, you will be proficient in enhancing your graphical representations with clear and highly informative average lines.

Understanding the Core Syntax for Reference Lines

To incorporate an average line into a plot using Matplotlib, we primarily rely on the pyplot module, complemented by essential functions from NumPy for reliable numerical operations. The core principle involves two steps: first, calculating the average value of the target data series, and second, drawing a horizontal reference line precisely at that calculated value.

The following code snippet illustrates the foundational syntax necessary for adding a horizontal average line to a typical scatter plot. This example uses hypothetical DataFrame columns df.x and df.y to represent the dataset you wish to visualize.

import matplotlib.pyplot as plt
import numpy as np

#create scatter plot
plt.scatter(df.x, df.y)

#add horizontal line at mean value of y
plt.axhline(y=np.nanmean(df.y))

In this crucial syntax, plt.axhline() is the designated function for drawing a horizontal line across the plot area. The key parameter, y, determines the exact vertical position of this line. We supply this parameter with the calculated mean value of our data, specifically utilizing np.nanmean(). This specialized NumPy function is essential because it accurately computes the arithmetic mean of an array while effectively ignoring any NaN (Not a Number) values, thus preventing skewed calculations or runtime errors due to missing data.

Practical Implementation: Adding the Average Line to a Scatter Plot

To solidify this concept, let us proceed through a concrete example demonstrating how to apply this syntax in a realistic data visualization context. We must first establish a sample dataset in the form of a pandas DataFrame, which is the standard tabular data structure employed across the Python data science ecosystem for manipulation and analysis.

We define a pandas DataFrame named df, containing two columns, ‘x’ and ‘y’, representing distinct data series. This structure could represent various forms of data, such as longitudinal measurements taken across time or the observed relationship between two critical variables.

import pandas as pd

#create DataFrame
df = pd.DataFrame({'x': [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12],
                   'y':[2, 5, 6, 5, 7, 8, 10, 12, 10, 9, 11, 15]})

#view first five rows of DataFrame
df.head()

	x	y
0	1	2
1	2	5
2	3	6
3	4	5
4	5	7

With our foundational DataFrame successfully created, we can now proceed to visualize its content. The primary objective is to generate a scatter plot mapping the ‘x’ versus ‘y’ values, and crucially, to superimpose a distinct horizontal line that precisely indicates the average of all ‘y’ values. This reference line will immediately provide a visual anchor for the dataset’s central tendency.

import matplotlib.pyplot as plt
import numpy as np

#create scatter plot
plt.scatter(df.x, df.y)

#add horizontal line at mean value of y
plt.axhline(y=np.nanmean(df.y))

Following the execution of the plotting code, the resulting visualization clearly displays the individual data points scattered across the coordinate plane, accompanied by a distinct horizontal line. This line is accurately positioned at the calculated mean value of the ‘y’ data series, successfully providing an immediate visual reference point. As we can observe, the average line has been correctly incorporated into the plot, appearing just above the y-value of 8.

To ensure the analytical accuracy of our visual representation, it is beneficial to explicitly calculate the numerical average ‘y’ value from our DataFrame. This step serves to reinforce the understanding of how np.nanmean() operates internally and verifies that the line’s placement is mathematically correct relative to the data.

#calculate average y-value
np.nanmean(df.y)

8.333333333

As confirmed by the numerical calculation, the average ‘y’ value for our established dataset is approximately 8.333. This precise result perfectly corresponds to the position of the horizontal line on the plot, thereby validating its accuracy and demonstrating how the average line functions as a reliable visual indicator of the data’s central point.

Customizing the Average Line’s Appearance and Style

While a basic average line is inherently informative, Matplotlib provides an extensive array of customization options designed to significantly enhance its visual appeal and ensure it is clearly differentiated from other plot elements. Developers can easily modify the line’s color, linestyle, and linewidth, among other properties, to ensure maximum prominence and effective information conveyance. These stylistic adjustments are implemented directly within the plt.axhline() function by utilizing specific keyword arguments.

The following code demonstrates the methodology for applying several key stylistic modifications to the average line. By specifying parameters such as color, linestyle, and linewidth, we gain granular control over the line’s visual presentation. Furthermore, incorporating a label parameter is crucial for integrating the average line into a plot legend, thereby substantially improving overall plot readability and clarity.

import matplotlib.pyplot as plt
import numpy as np

#create scatter plot
plt.scatter(df.x, df.y)

#add horizontal line at mean value of y
plt.axhline(y=np.nanmean(df.y), color='red', linestyle='--', linewidth=3, label='Avg')

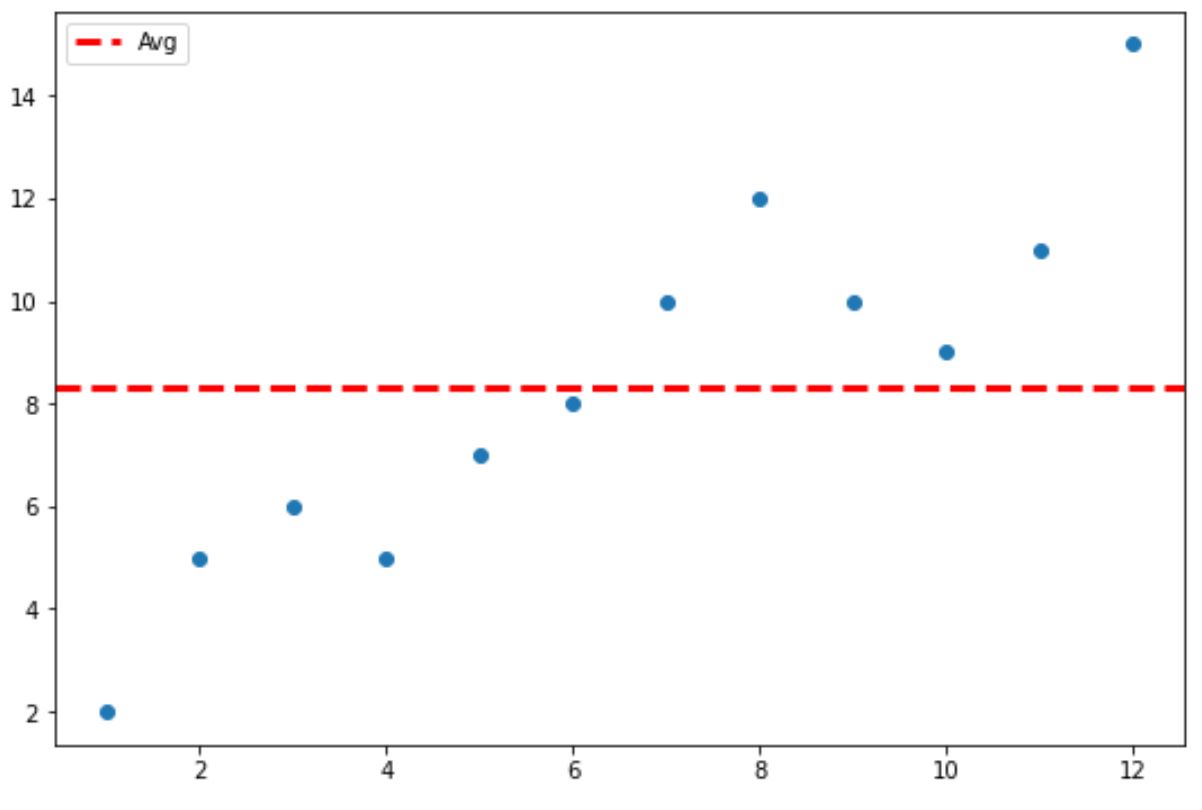

In this enhanced visualization, the average line is now prominently rendered in red, utilizes a clearly visible dashed linestyle (--), and possesses a significantly thicker linewidth of 3 pixels. These deliberate modifications ensure the line is highly prominent and visually distinct, separating it effectively from the original data points. The inclusion of label='Avg' also prepares the element for standard integration into a legend, which can be explicitly displayed using plt.legend() to further explain the plot’s various components.

Analytical Applications and Best Practices

The inclusion of an average line transcends mere visualization; it functions as a potent analytical tool across various disciplines. In formal data analysis, it establishes an immediate baseline for comparison, facilitating the rapid identification of values that significantly deviate from the central tendency. For example, in industrial performance monitoring, an average line can instantly highlight periods where a system’s output consistently operates above or below its typical operational standards. In scientific and academic research, it is invaluable for visualizing experimental results against a predicted or previously established mean.

When integrating average lines into your professional visualizations, adherence to best practices is essential for maximizing their informational impact.

• Ensure that the line’s color and linestyle offer sufficient contrast against your primary data points and any other plot elements to prevent visual clutter.
• If the plot requires multiple reference lines (e.g., representing different groups, thresholds, or means), utilize distinct and easily discernible styles for each.
• Always include a clear legend if the plot contains complex elements or multiple lines, explicitly defining what each line represents to the viewer.
• For maximum precision, consider augmenting the plot by adding direct text annotations to explicitly state the numerical average value, enhancing both clarity and quantitative informational value.

Conclusion

Adding an average line to your Matplotlib plots represents a straightforward yet profoundly effective method for enhancing data visualization and interpretation. By establishing a clear visual reference for the central tendency of your data, these lines significantly assist in the rapid identification of underlying patterns, critical deviations, and the overall data distribution characteristics. We have successfully explored the basic syntax utilizing plt.axhline() and np.nanmean(), and meticulously demonstrated the necessary steps to customize their appearance for optimal clarity.

Whether your goal is complex trend analysis, comparative data point evaluation, or simply making your visualizations more immediately informative, mastering the technique of adding average lines is an invaluable competency within your data visualization toolkit. We encourage you to experiment rigorously with different styles, colors, and application scenarios to discover how this simple addition can substantially elevate the quality and depth of insights derived from your graphical data representations.
