Learning to Add Axis Labels to Pandas Plots: A Step-by-Step Guide

Introduction: Enhancing Data Visualizations with Axis Labels

The successful translation of complex datasets into actionable insights relies heavily on effective data visualization. A plot or chart serves as the final output of extensive data processing, but its true value is realized only when it is immediately and universally understandable. Crucially, a visualization that lacks proper context forces the viewer to infer meaning, a process that introduces friction and potential misinterpretation. This highlights the indispensable role of clear, descriptive axis labels in bridging the gap between raw data and audience comprehension, transforming a simple graphic into a powerful communication tool.

In the modern data science workflow, the Pandas library for Python is foundational. It provides robust structures like the DataFrame for efficient data handling. Furthermore, Pandas integrates powerful plotting capabilities, primarily leveraging the underlying infrastructure of the widely used Matplotlib library. This seamless integration allows data analysts to rapidly generate visualizations directly from their structured data, making Pandas a central component of any exploratory analysis or reporting pipeline.

Despite the sophistication of Pandas’ plotting functions, the default settings often prioritize speed over exhaustive clarity. Generating a plot without explicitly defining labels leaves the visual output incomplete, diminishing its professional utility and communicative power. This article serves as an expert guide, detailing the straightforward methodology for incorporating precise X and Y axis labels into your plots using the Pandas framework. By mastering this simple technique, you ensure your visualizations maintain peak clarity, professionalism, and interpretability for any audience.

Understanding the Basic Syntax for Axis Labeling

The mechanism for controlling plot aesthetics in Pandas revolves around the integral .plot() method. This method is an attribute of the DataFrame and Series objects, making it incredibly convenient to transition directly from data preparation to visualization. The power of this function lies in its comprehensive set of optional arguments, which allow users to fine-tune nearly every visual component of the resulting graph, including the critical task of assigning descriptive axis titles.

For explicitly defining the labels, the .plot() function utilizes two primary parameters: xlabel for the horizontal dimension and ylabel for the vertical dimension. Both parameters expect a standard Python string input, which serves as the literal text displayed on the corresponding axis. The selection of these string values is not merely a technical step but a critical design decision; effective labels should be concise, unambiguous, and accurately reflect the units or categories being represented.

Integrating these labeling parameters into your code is exceptionally straightforward, requiring only that the arguments be passed during the function call. This simplicity ensures that customizing your visualizations does not complicate the core data analysis workflow. The fundamental syntax shown below illustrates the direct application of these arguments, demonstrating how effortlessly you can elevate the communicative quality of your plots:

df.plot(xlabel='X-Axis Label', ylabel='Y-Axis Label')

This structure ensures that when the plot() method executes, it automatically leverages the underlying Matplotlib functionality to render the specified text precisely where the user expects the context to reside, making the resulting visualization immediately self-explanatory.

Step-by-Step Example: Applying Axis Labels in Pandas

To move from theoretical understanding to practical mastery, we will implement a hands-on example that showcases the labeling process. Our scenario involves simulating daily sales metrics, a highly relevant use case in business analytics. We will construct a sample Pandas DataFrame containing ten data points, representing ten consecutive days of sales tracking across three fictional retail outlets. This structure provides rich, time-series-like data, making it an excellent candidate for line plotting.

The resulting DataFrame, which we name df, will be structured with three distinct columns: store1_sales, store2_sales, and store3_sales. Each column holds the aggregate sales figures for that particular store. Crucially, the index of the DataFrame, which runs numerically from 0 to 9, inherently represents the progression of days. Visualizing this data will allow us to compare performance trends and identify anomalies across the different stores over time, laying the groundwork for meaningful visualization enhancements.

Before plotting, the necessary setup involves importing the Pandas library and initializing the data structure. The code block provided below executes the creation of this simulated sales data and subsequently displays the resulting DataFrame. Inspecting the output ensures the data is correctly loaded and structured, confirming our foundation is solid before proceeding to the visualization phase where we will apply our custom axis labels.

import pandas as pd

#create DataFrame
df = pd.DataFrame({'store1_sales': [4, 7, 9, 12, 10, 14, 16, 19, 22, 25],
                   'store2_sales': [3, 3, 4, 6, 7, 6, 8, 10, 14, 19],
                   'store3_sales': [2, 2, 4, 2, 5, 5, 6, 8, 8, 11]})

#view DataFrame
print(df)

   store1_sales  store2_sales  store3_sales
0             4             3             2
1             7             3             2
2             9             4             4
3            12             6             2
4            10             7             5
5            14             6             5
6            16             8             6
7            19            10             8
8            22            14             8
9            25            19            11

The displayed output confirms the readiness of the data. Notice that the index column (0-9) serves as the implicit time variable, which will default to the X-axis when the plot() method is invoked without explicit customization.

Visualizing Data Without Axis Labels (Default Behavior)

When initially performing data visualization using the Pandas plot() function, many users rely on the default settings for quick exploratory analysis. While this is efficient for rapid iteration, the resulting plots often suffer from a critical lack of descriptive context. Pandas automatically assigns plot elements based on the DataFrame structure: column headers become legend entries, and the index is mapped to the horizontal axis. However, it intentionally omits explicit axis titles unless instructed otherwise, assuming the user will supply them for finalized reports.

Applying this default behavior to our simulated sales data illustrates the inherent ambiguity. When we call df.plot(), Pandas generates a line chart where the different sales columns are plotted against the DataFrame index. The X-axis shows the numerical index values (0 through 9), implying time or sequence, but without a clear ‘Day’ label. Similarly, the Y-axis displays the magnitude of the sales figures, but the viewer is left to deduce that these numbers represent ‘Sales’ rather than, say, ‘Profit’ or ‘Volume’.

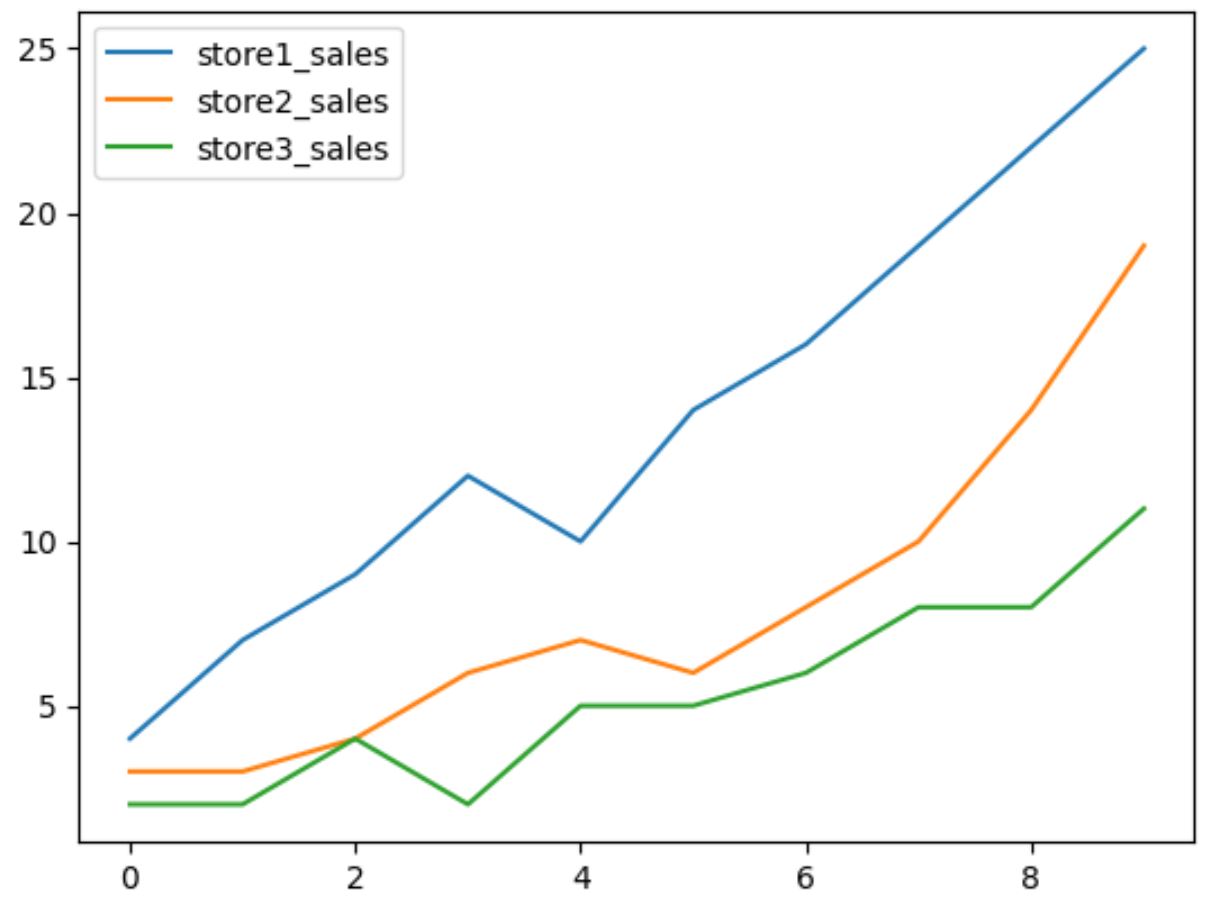

The code snippet and resulting image below demonstrate this baseline visualization. While the general trends are visible, the ambiguity significantly hinders clarity. A professional visualization demands that all components, especially the axes, are clearly defined, eliminating the cognitive burden placed on the audience to interpret the underlying data structure.

#plot sales by store
df.plot()

The visual evidence confirms that without explicit instructions, the plot provides raw data trajectory without the necessary textual context. This observation reinforces the fundamental principle that descriptive labeling is not merely optional styling, but a mandatory requirement for effective data visualization.

Implementing Comprehensive X and Y Axis Labels

The definitive solution to the ambiguity of default plots is the simultaneous application of descriptive labels to both the X and Y axes. This process is executed by supplying the necessary string arguments to the xlabel and ylabel parameters within the plot() method. Utilizing both arguments ensures a holistic context, solidifying the professional quality and immediate interpretability of the generated chart.

For our time-series sales example, the selection of appropriate labels is governed by the data’s inherent structure. Since the horizontal dimension corresponds directly to the DataFrame index representing the passage of time, ‘Day’ is the precise and meaningful label for the X-axis. Conversely, the vertical axis plots the quantitative measurements we are tracking, making ‘Sales’ the unambiguous choice for the Y-axis. These precise labels eliminate guesswork, immediately informing the viewer of the variables under observation.

The resulting code snippet below integrates these labels, demonstrating the minimal effort required to achieve maximum clarity. Compare the visual output to the previous default plot; the transformation showcases how simple textual additions fundamentally alter the viewer’s engagement and understanding. This step is crucial for any chart intended for reporting or external communication.

#plot sales by store, add axis labels
df.plot(xlabel='Day', ylabel='Sales')

With ‘Day’ clearly marking the X-axis and ‘Sales’ defining the Y-axis, the chart is now fully contextualized. This simple, declarative approach using the Pandas plot() method exemplifies best practices in data communication, ensuring that the visual findings are communicated efficiently and without error.

Flexible Labeling: Customizing Specific Axes

While the goal is typically to provide full context, the Pandas plotting interface offers inherent flexibility, allowing analysts to selectively label only one axis if the visualization requirements dictate it. This capability is particularly useful in environments where space is constrained, such as interactive dashboards or sequential reporting, where the context of the horizontal axis might be implicitly understood from surrounding graphics or explicit titles.

The .plot() method handles the omission of one parameter gracefully. If, for example, the plot is known to depict time series data where the index always represents sequential periods, one might choose to only emphasize the unit of measurement on the vertical axis. This strategic decision minimizes visual clutter while ensuring that the most critical quantitative information is clearly defined. This approach maintains professional standards by focusing the audience’s attention on the magnitude of change.

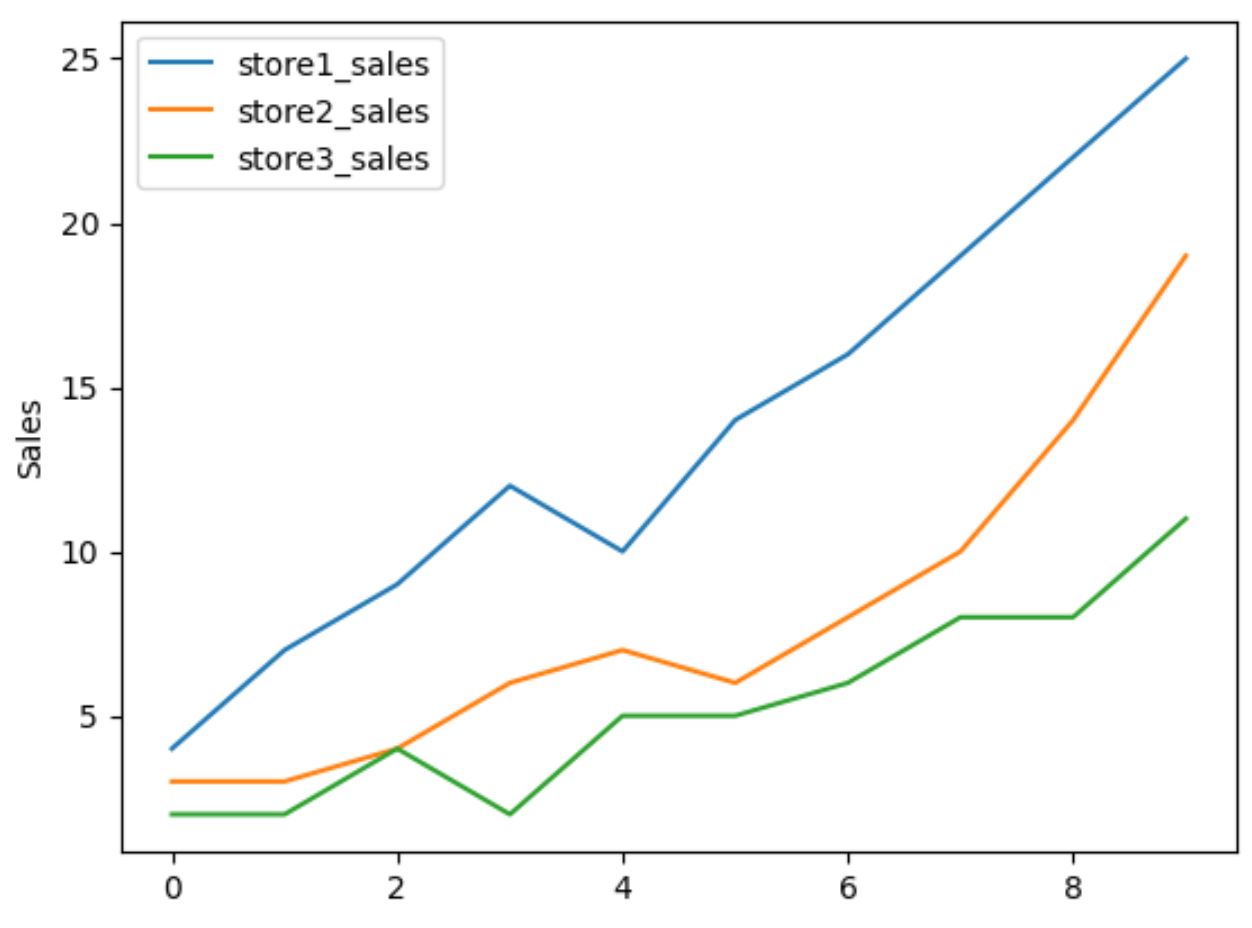

To demonstrate this selective labeling, we modify our previous code to utilize only the ylabel argument, setting it to ‘Sales’, while intentionally omitting xlabel. Notice how the X-axis reverts to its default, unlabeled index state, yet the plot still provides sufficient information regarding the measured variable. This proves that users are not constrained to labeling both axes if their visualization strategy benefits from a more minimalist presentation.

#plot sales by store, add label to y-axis only
df.plot(ylabel='Sales')

The resulting chart confirms that the Y-axis now bears a label, clearly indicating ‘Sales’. This adaptability ensures that Pandas plots can be successfully integrated into diverse reporting formats, always prioritizing clarity and relevance according to the specific needs of the analytical task at hand.

Conclusion and Further Exploration

Mastering the incorporation of descriptive axis labels is essential for any professional leveraging the powerful visualization capabilities embedded within the Pandas library. Through the simple yet effective use of the xlabel and ylabel arguments in the .plot() method, data analysts can quickly transition their charts from raw graphical output to fully contextualized, insightful data visualizations. This technique is foundational for ensuring that the hard work of data analysis translates into clear, unambiguous communication.

The core takeaway is that a plot’s utility is directly proportional to its clarity. Labels are the linguistic anchors that define the numerical values, preventing misinterpretation and boosting confidence in the data presented. Whether dealing with complex multivariate analyses or simple trend tracking, prioritizing clear labeling—for both the X and Y-axis—is a hallmark of high-quality data reporting. Remember to always consider your audience and the specific context of the visualization when selecting your label text.

We strongly recommend moving beyond basic labeling to explore the full spectrum of customization offered by the Pandas plotting API, particularly those features inherited from Matplotlib. Continuous learning in visualization techniques will significantly enhance the impact of your data storytelling. For ongoing development and advanced control over your plots, we provide the following authoritative resources:

• Official Pandas Documentation: The definitive source for exploring all methods and parameters, including advanced plotting configurations.
• Matplotlib Tutorials: Since Pandas relies on Matplotlib for rendering, understanding its object-oriented interface is key to achieving granular control over plot elements like ticks, fonts, and legend placement.
• Data Visualization Best Practices: Resources focusing on graphic design principles applied to data, ensuring your charts are not only accurate but aesthetically effective and persuasive.
