Learning ggplot2: Adding Captions to Enhance Your Data Visualizations

Enhancing Data Visualizations with Contextual Captions in ggplot2

In the world of data analysis, effective data visualization serves as the bridge between complex datasets and actionable insights. While a stunning visual is essential, its true value is unlocked through proper context and annotation. This is precisely where the caption comes into play, acting as vital supplementary text that clarifies the plot’s content, cites data sources, or draws attention to specific observations. Within the ecosystem of R, the ggplot2 package—based on the foundational Grammar of Graphics—is the gold standard for creating professional plots. Fortunately, adding and customizing these crucial textual elements in ggplot2 is an intuitive process that dramatically boosts the interpretability and polish of your results.

This comprehensive guide is designed to equip you with the expertise needed to integrate captions seamlessly into your ggplot2 visualizations. We will methodically cover three increasingly advanced techniques: establishing the default caption, adjusting its horizontal placement, and applying detailed aesthetic customizations such as size, color, and font style. By mastering these methods, you will ensure that your visualizations are not only visually compelling but also fully self-contained, capable of communicating complex data narratives clearly and effectively to any technical or non-technical audience.

We will utilize the robust structure of ggplot2, which separates data mapping (aesthetics) from non-data elements (themes), allowing for precise control over every aspect of the plot, including the humble but powerful caption.

Fundamental Methods for Adding and Styling Captions

The flexibility of ggplot2 relies on two primary functions for manipulating plot labels and visual non-data elements. The labs() function is fundamental for assigning text strings to various plot components, including the main title, subtitle, axis labels, and, most importantly here, the caption. Once the caption text is defined, the theme() function takes over, providing granular control over the aesthetic properties and placement of that text.

Understanding the interplay between these two functions is crucial for advanced customization. labs() defines what the caption says, while theme() defines how and where the caption appears. The methods detailed below are structured hierarchically, starting with the simplest addition and progressing to complete stylistic control, leveraging the robust R environment.

• Method 1: Add Caption in Default Location: This is the most straightforward method. By passing a text string to the caption argument within labs(), the caption is automatically rendered in the standard bottom-right position of the plot area, ensuring a clean, unobtrusive presentation.

p +
  labs(caption = "This is my caption")

• Method 2: Add Caption in Custom Location: To override the default placement, we extend the code by piping the output to the theme() function. We specifically target the plot.caption element and use element_text() along with the hjust parameter to modify the caption’s horizontal justification, allowing left (hjust=0), center (hjust=0.5), or right (hjust=1) alignment.

p +
  labs(caption = "This is my caption") +
  theme(plot.caption = element_text(hjust=0))

• Method 3: Add Caption & Customize Text: For full aesthetic control, element_text() offers parameters like size, color, and face. This allows the user to align the caption’s visual identity (including font attributes and emphasis) precisely with the overall design and branding requirements of the visualization.

p +
  labs(caption = "This is my caption") +
  theme(plot.caption = element_text(size=16, color="red", face="italic"))

The subsequent sections will provide practical, step-by-step implementations of these three methods, using a consistent scatter plot built from a simple data frame in R.

Preparing Your Data for Visualization

Before any visualization can be constructed, the data must be organized in a suitable format. In the R environment, the standard structure for working with tabular data is the data frame, which functions much like a spreadsheet or SQL table. Each column represents a distinct variable, and each row holds an observation.

For our practical demonstration, we will generate a small, fictional data frame named df. This dataset simulates basketball statistics, focusing on the relationship between player assists and points scored. The simplicity of this artificial dataset is intentional, as it allows us to focus entirely on the mechanics of caption manipulation without getting distracted by complex data preprocessing steps. The code below initializes this foundational structure and displays the contents we will be plotting.

#create data frame
df <- data.frame(assists=c(1, 2, 2, 3, 5, 6, 7, 8, 8),
                 points=c(3, 6, 9, 14, 20, 23, 16, 19, 26))

#view data frame
df

  assists points
1       1      3
2       2      6
3       2      9
4       3     14
5       5     20
6       6     23
7       7     16
8       8     19
9       8     26

The resulting df data frame contains the two variables, assists and points, which we will map to the x and y axes, respectively, in our upcoming scatter plots. This preparation ensures consistency across all three examples, allowing us to isolate the impact of different captioning techniques.

Example 1: Adding a Caption in the Default Position

The most straightforward method for incorporating contextual information into your plot is by leveraging the labs() function, specifically using the caption argument. This function streamlines the process of adding descriptive text without requiring any advanced knowledge of aesthetic adjustments or layout management. By default, ggplot2 places this caption text neatly in the bottom-right corner of the visualization area, situated just beneath the x-axis.

This default position is often the best choice for providing essential metadata, such as the data source, the date of data extraction, or a brief copyright notice. Its placement ensures the information is present and accessible without interfering with the primary visual encoding of the data points. The following R code initializes our scatter plot using the df data frame and applies a descriptive caption detailing the data’s temporal context.

library(ggplot2)

#create scatter plot with caption in bottom right corner
ggplot(df, aes(x=assists, y=points)) +
  geom_point(size=3) +
  labs(caption = "Based on 2022 Basketball Data")

As illustrated by the resulting visualization, the caption is clearly visible in its default location. This method is highly recommended for users who need to add context quickly and efficiently without engaging in detailed layout configuration.

Example 2: Customizing Caption Position

While the default placement works well for many scenarios, professional reports or complex dashboard layouts often require precise control over text positioning. The theme() function provides this necessary flexibility. By targeting the plot.caption element within theme(), we can override the default horizontal alignment set by ggplot2.

This customization is achieved using the element_text() helper function, specifically its hjust parameter. The hjust (horizontal justification) value ranges from 0 (left-justified) to 1 (right-justified). Setting hjust = 0 forces the caption to align with the left edge of the plot area, while hjust = 0.5 perfectly centers the text beneath the visualization. This level of control is vital for achieving optimal visual hierarchy and balance, especially when the caption text is lengthy or needs to be placed symmetrically.

The following example demonstrates how to maintain the caption text defined in labs(), but then uses theme() to explicitly move it to the bottom-left corner of the plot area, aligning it perfectly with the y-axis.

library(ggplot2)

#create scatter plot with caption in bottom left corner
ggplot(df, aes(x=assists, y=points)) +
  geom_point(size=3) +
  labs(caption = "Based on 2022 Basketball Data") +
  theme(plot.caption = element_text(hjust=0))

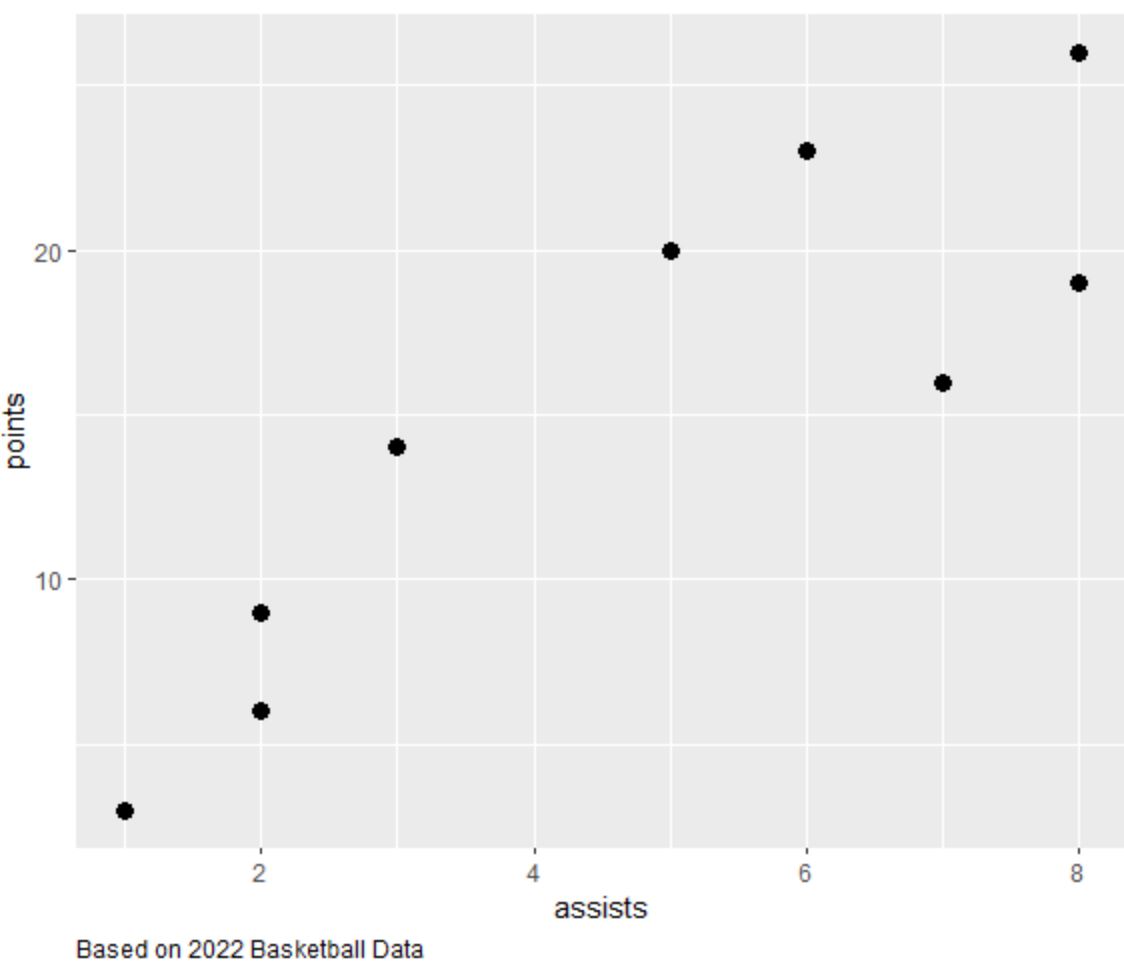

The resulting image clearly shows the caption successfully relocated to the bottom-left. Adjusting hjust is a powerful, yet simple, technique within the theme system, providing fine-tuning capabilities for layout that are essential for high-quality data presentation.

Example 3: Advanced Caption Text Customization

For maximum impact and adherence to stylistic requirements, we must move beyond simple positioning and adjust the visual characteristics of the caption text itself. The element_text() function, nested within theme(), offers extensive parameters for styling text elements, enabling changes to font size, color, and emphasis.

Three key parameters drive this advanced customization: size, which controls the relative font size (useful for ensuring readability or subtlety); color, which allows the use of hex codes or named colors for integration into a specific palette; and face, which dictates the font style (e.g., "plain", "italic", or "bold"). Using these parameters, analysts can create visual interest, highlight the caption as a critical piece of information, or ensure the text matches corporate branding standards.

In this final example, we apply several stylistic changes simultaneously. We define the caption text using labs() and then use theme() to make the caption significantly larger (size=16), change its color to red (color="red"), and apply an italic style (face="italic"). This demonstrates the comprehensive control available through the theme system.

library(ggplot2)

#create scatter plot with custom caption in bottom right corner
ggplot(df, aes(x=assists, y=points)) +
  geom_point(size=3) +
  labs(caption = "Based on 2022 Basketball Data") +
  theme(plot.caption = element_text(size=16, color="red", face="italic"))

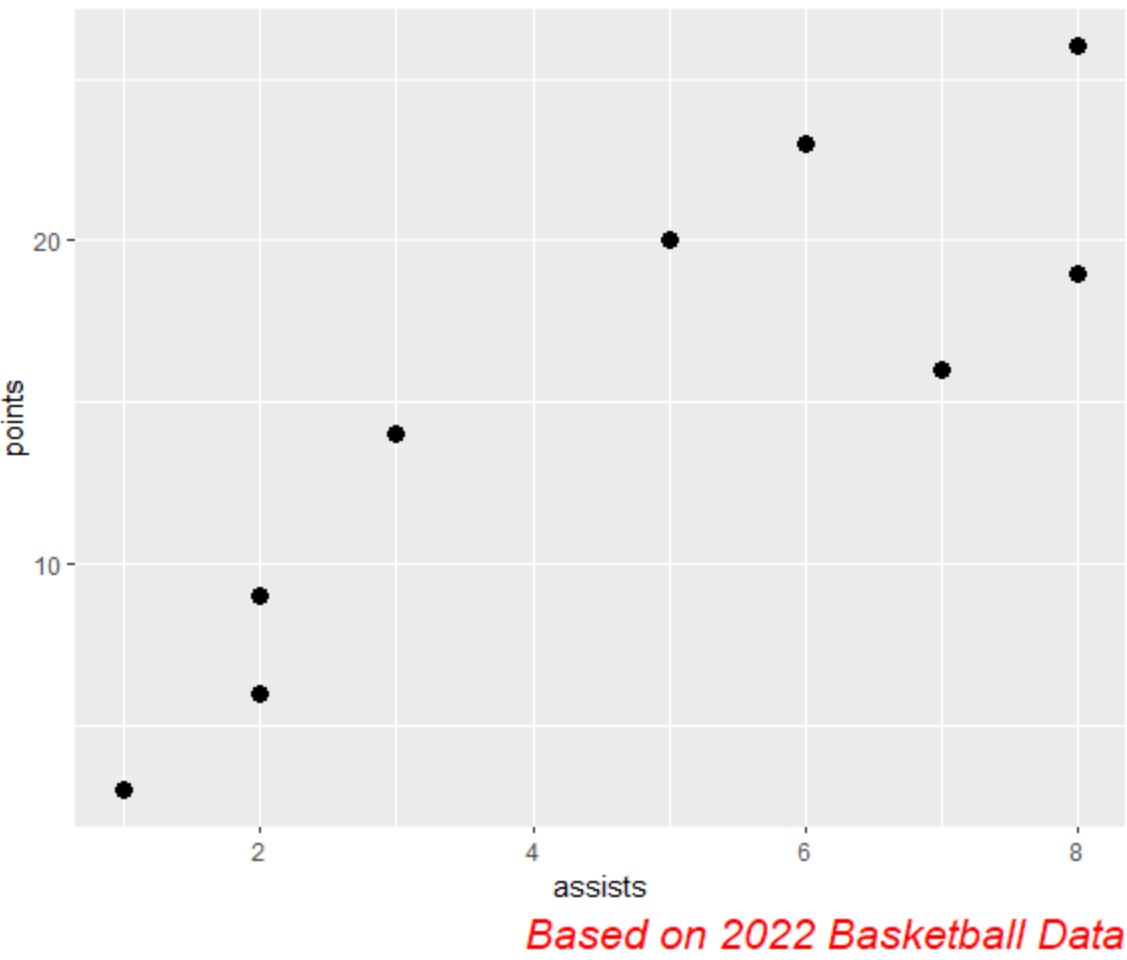

The final visual result demonstrates how effective these aesthetic adjustments can be, transforming a standard footnote into a highlighted piece of textual commentary. This ability to manipulate text properties is a cornerstone of creating highly professional and publication-ready data output in R.

Best Practices and Considerations for Effective Captioning

Creating effective visualizations involves more than simply writing code; it demands thoughtful application of design principles. When integrating captions into ggplot2 plots, adherence to certain best practices will maximize their effectiveness and professional appeal.

Firstly, the clarity of purpose is paramount. Every caption should serve a clear function—whether it’s providing a formal citation for the data source, explaining a non-intuitive scaling factor, or summarizing the main takeaway message. Avoid using captions for information that is already clearly visible in the title or axis labels. A strong caption is concise and adds value by addressing context or methodology that the visual elements cannot convey alone. For instance, stating “Source: Official NBA Statistics, 2022 Season” is far more useful than repeating the plot’s title.

Secondly, prioritize readability and accessibility in your customization. While dramatic styling is possible, ensure that the chosen font size, color contrast, and font face maintain high legibility. If the caption is critical for interpretation, it should be visually prominent (e.g., using size and face="bold"). If it is purely supplementary metadata (like a source note), it might be intentionally subtle. Always verify that the text color provides sufficient contrast against the plot background, especially when dealing with complex color schemes or high-density visualizations. Remember that the data frame used for the plot should be accurately described.

Finally, ensure consistency across multiple plots. If you are generating a series of visualizations for a single report or presentation, maintain uniform placement and styling for all captions. If one plot uses a left-justified, italicized caption, all other related plots should follow suit. Consistency reinforces professional quality and reduces cognitive load for the viewer, allowing them to focus on the data insights rather than adjusting to varying text layouts. Experimenting with different hjust values and text styles early in the drafting process helps establish this cohesive visual standard.

Conclusion and Further Exploration

The ability to effectively add and customize captions in ggplot2 is an essential skill for creating informative and professional data visualizations. We’ve explored three key methods: placing captions in their default position, adjusting their horizontal alignment, and fully customizing their appearance through font size, color, and style. These techniques, leveraging the powerful labs() and theme() functions with element_text(), provide a robust toolkit for enhancing your plots.

Effective captions go beyond mere labels; they are integral components that guide your audience’s interpretation and understanding of the data. By providing context, citing sources, or highlighting critical insights, captions transform a static image into a comprehensive analytical statement. We encourage you to experiment with these methods and explore the full range of customization options available in ggplot2 to make your data visualizations as impactful and informative as possible.

Additional Resources

To further advance your proficiency in ggplot2 and the broader field of data visualization in R, we recommend engaging with authoritative resources. These materials offer deeper dives into the functions and advanced plotting techniques beyond basic labeling and styling.

We highly recommend consulting the official ggplot2 documentation for detailed parameter references and examples of non-data element manipulation. Additionally, participating in online communities, such as Stack Overflow or R-focused forums, can provide valuable troubleshooting support and exposure to innovative visualization solutions used by other professionals. Continuous learning and iterative refinement of your plotting skills are fundamental to becoming a truly proficient data communicator.
