Learning to Add Custom Data Labels to Google Sheets Charts

When building sophisticated charts and visualizations within Google Sheets, analysts frequently encounter the need to add granular context to individual data points. While the default data labels are excellent for displaying raw numerical values, many reporting scenarios demand more descriptive information. This is where the power of custom data labels becomes essential for achieving true clarity and facilitating deeper data analysis.

Fortunately, the platform offers a robust and user-friendly feature that allows you to integrate personalized text directly onto your chart elements. This functionality seamlessly associates descriptive text from one column of your spreadsheet with the numerical data points plotted from another, dramatically enhancing the interpretability of even the most complex visualizations.

This comprehensive tutorial will guide you through the precise steps required to implement custom data labels in Google Sheets. We will utilize a practical, real-world example to illustrate the technique, ensuring that by the conclusion of this guide, you will be proficient in creating highly informative and narrative-driven charts.

The Strategic Value of Custom Data Labels

Data labels serve as critical components in any visualization, providing immediate, quantified information about the coordinates or magnitude of the represented data. Standard labels typically display the quantitative series values—for example, the exact sales figure or the height of a bar. However, without additional context, these numbers often force the viewer to cross-reference the chart back to the source data to understand what that number truly represents.

Custom data labels are designed to eliminate this cognitive gap. By pulling descriptive text from an alternative column—such as a product name, a geographic location, or an event date—you transform a numerical point into a meaningful entity. Consider a financial chart: instead of simply showing a peak value, a custom label can identify the specific market event that caused that peak. This personalization greatly enhances intuition and reduces the friction involved in interpreting large or complex datasets.

This technique is especially potent when applied to visualizations where unique entities are represented, such as scatter plots. In a scatter plot, each point is an individual observation, and identifying that observation with a name rather than just coordinates provides immediate, actionable insight. Similarly, in a bar chart, replacing standard numerical height labels with specific textual descriptors can reinforce the categorical differences being visualized. Ultimately, implementing custom labels transforms a static display of metrics into a dynamic, narrative-supported visualization.

Structuring Your Dataset for Label Integration

To effectively demonstrate the implementation of custom data labels, we will use a practical scenario focusing on athlete performance statistics. Our hypothetical dataset contains information regarding basketball team performance, specifically tracking the average points scored and assists made per game, alongside the respective names of the teams.

The fundamental requirement for utilizing custom labels is ensuring that the descriptive text intended for labeling exists as a distinct, separate column within your source data range. In this example, the team names themselves will serve as our custom data labels, providing immediate identification for each plotted data point.

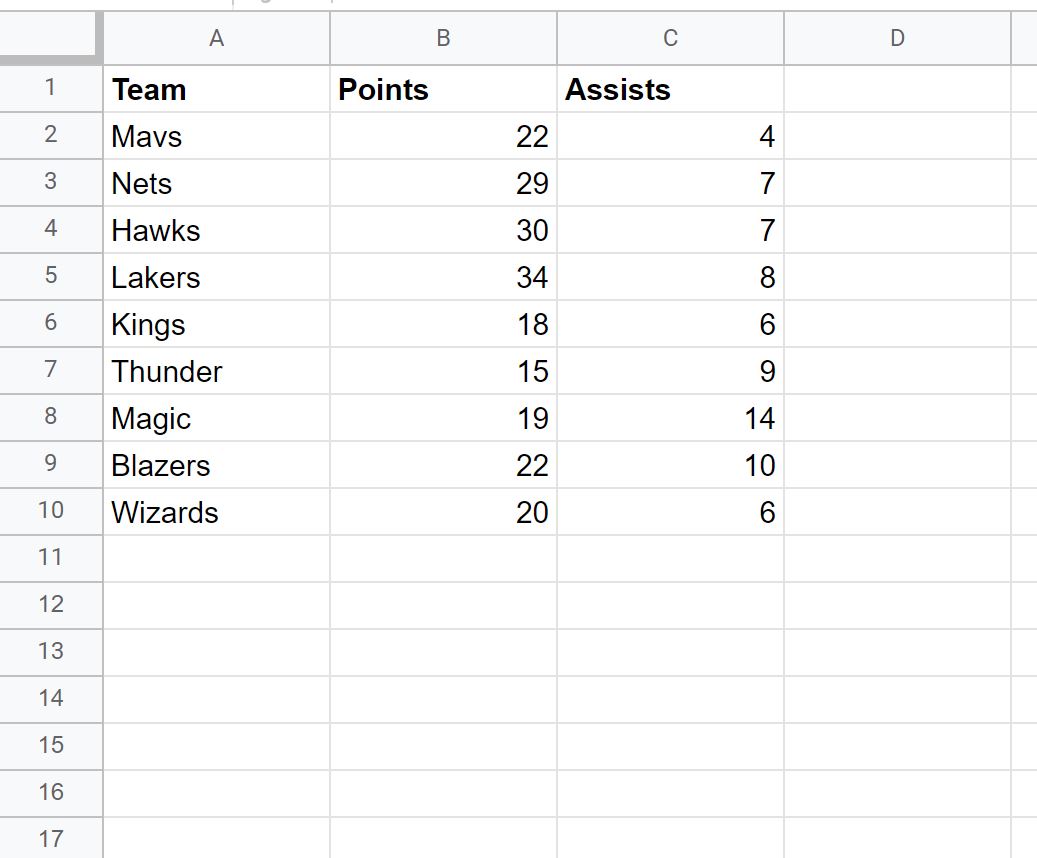

The structure shown below illustrates the organization necessary in Google Sheets. Column A holds the descriptive “Team” names, Column B contains the numerical “Points” data, and Column C provides the “Assists” figures. Our goal is straightforward: to create a visualization plotting Points against Assists, and then accurately label each corresponding point with the Team name from Column A.

Initial Chart Creation and Type Configuration

The initial phase involves constructing the base chart that will host our new labels. Given our objective to analyze the relationship between points and assists, a scatter plot is the most appropriate visualization type. We must begin by selecting only the quantitative variables we intend to plot.

Highlight the cells encompassing the numerical data for both “Points” and “Assists.” Based on our example spreadsheet, this corresponds to the data range B2:C10. Once this range is selected, navigate to the top menu ribbon, select the Insert tab, and then choose the Chart option from the resulting dropdown menu.

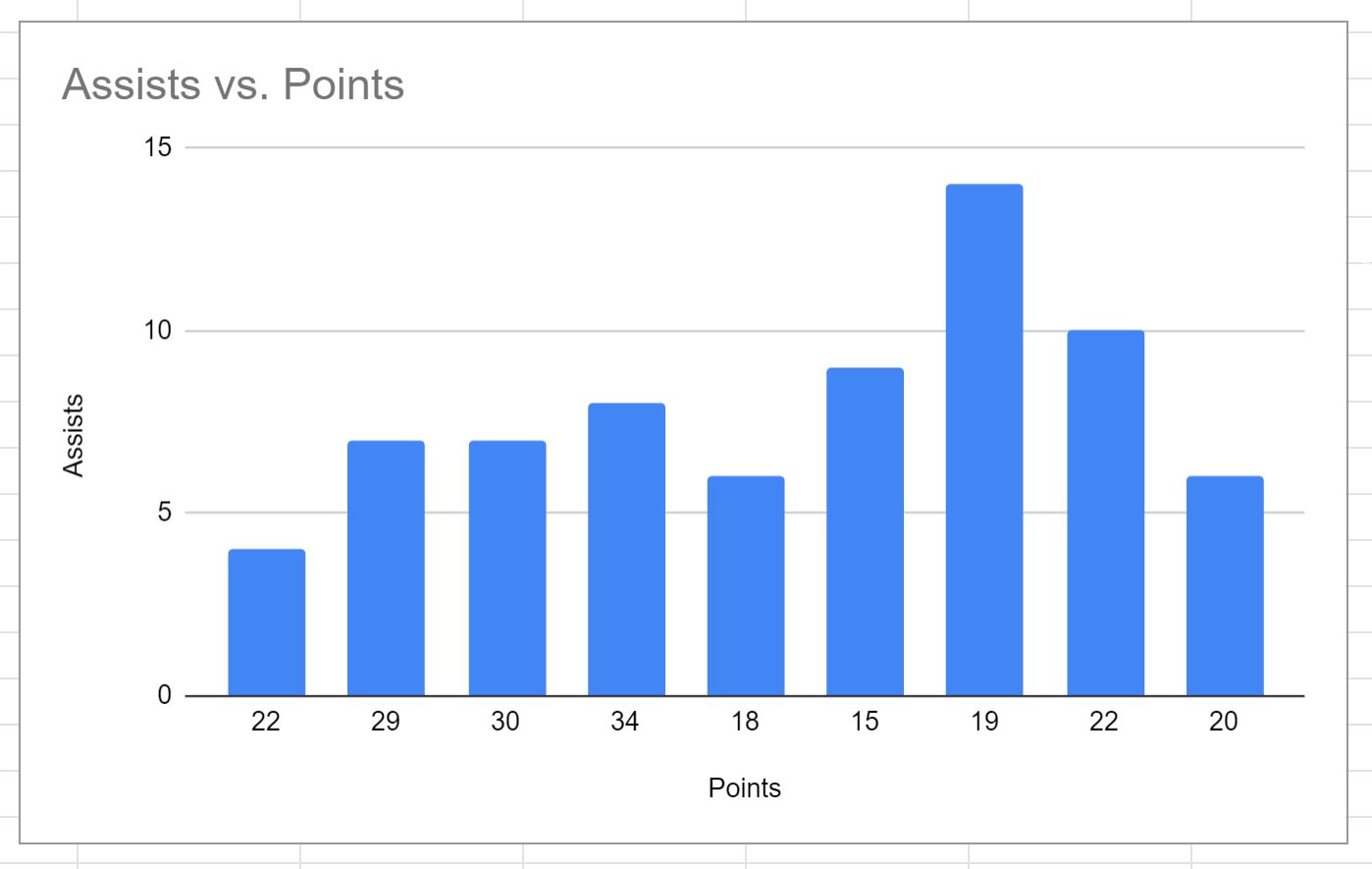

Google Sheets uses intelligent algorithms to predict the most suitable chart type based on the input data. In many cases involving this type of data layout, the system may initially generate a different default visualization, such as a bar chart, as illustrated below.

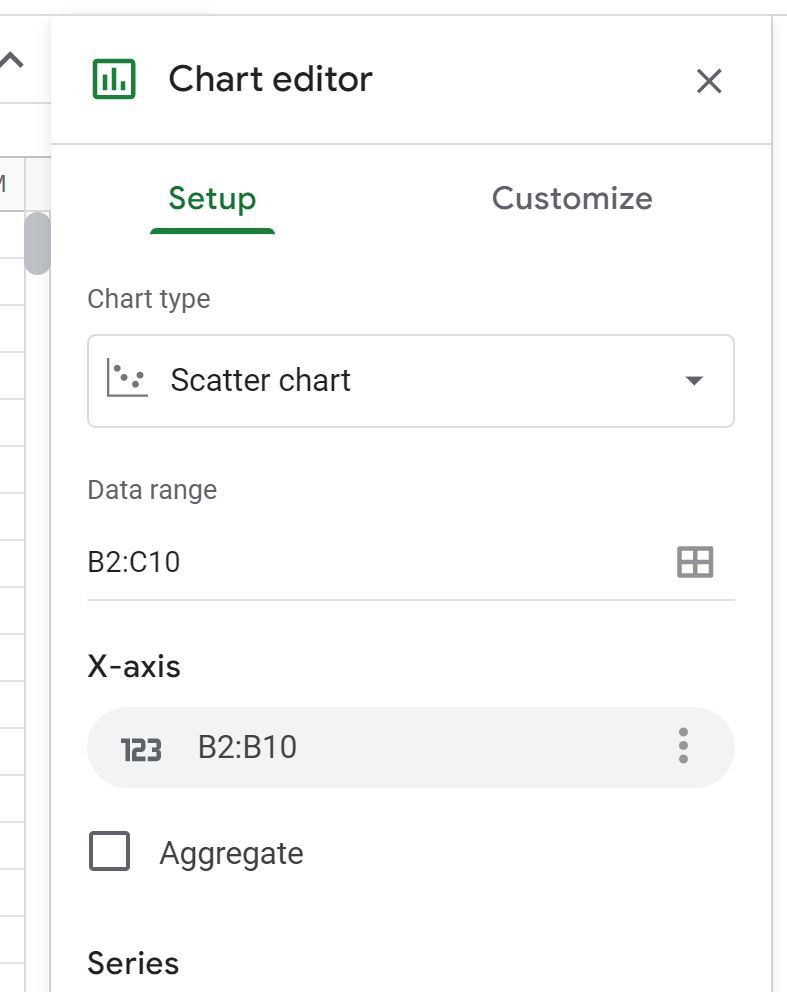

To correct the chart type, you must access the dedicated configuration panel, known as the Chart editor. Double-click anywhere on the newly generated visualization to open this panel, which is typically docked on the right side of the screen. Within the editor, proceed to the Setup tab. Locate the “Chart type” setting, click the dropdown menu, and explicitly select the Scatter chart option. This immediate transformation prepares your visualization for the final step of adding custom labels.

After successfully converting the chart type, the resulting scatter plot will accurately display the relationship between Points and Assists, with each data point represented as a distinct marker, as seen here:

The Step-by-Step Implementation of Custom Labels

With the scatter plot correctly configured, the next critical phase involves integrating the custom data labels. This process establishes the dynamic link between the descriptive team names in Column A and the numerical data points within the visualization.

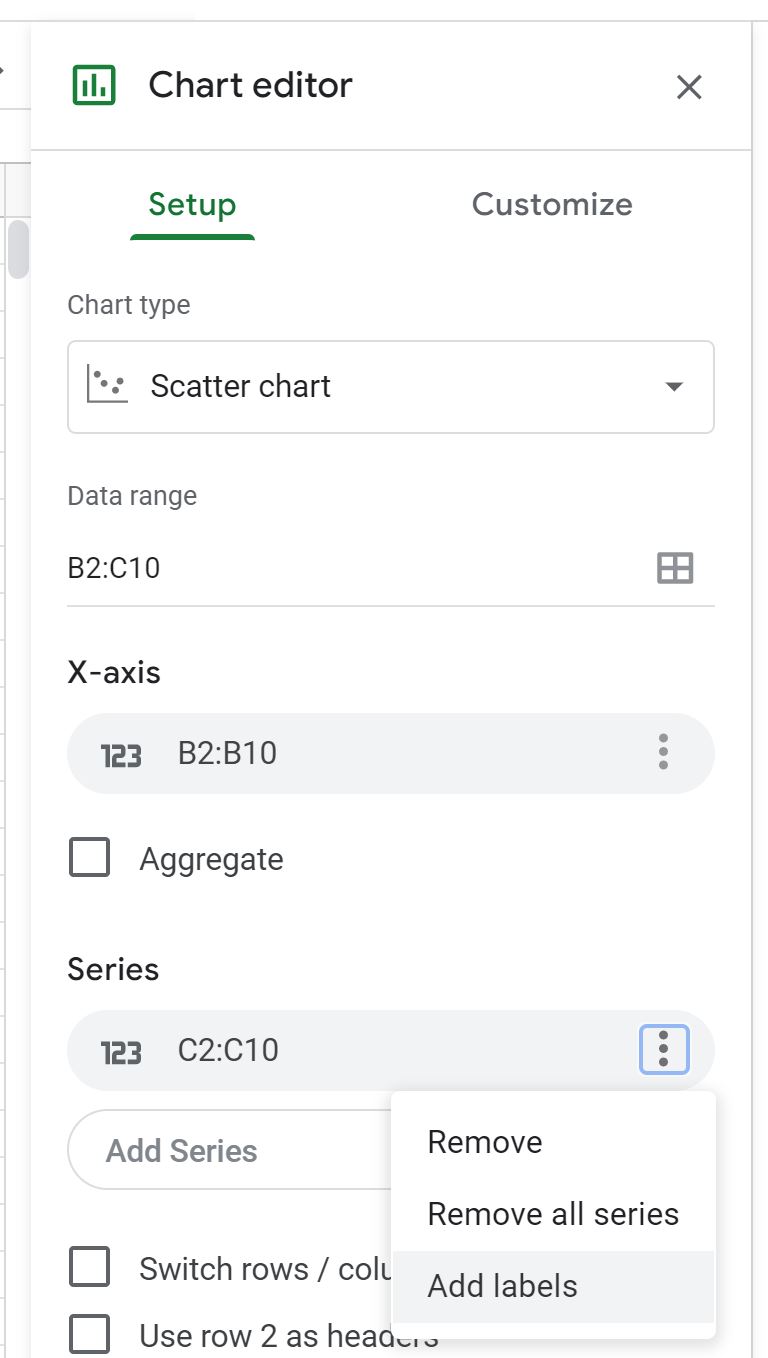

Ensure the Chart editor is still open and that you are focused on the Setup tab. Scroll down until you locate the “Series” section. If your chart contains only one series (Points vs. Assists), select that series. Click the menu icon (three vertical dots, ⋮) associated with the series to reveal extended configuration options.

From the revealed dropdown menu, select the option labeled Add labels. This prompts the editor to request the specific data range that contains the text you wish to use as identifiers for the series data points.

When prompted, specify the range that holds the descriptive text. For our basketball statistics example, this is the “Team” column, corresponding to the range A2:A10. Carefully highlight these cells and then confirm the selection by clicking OK. This action establishes the necessary link between the numerical series and the textual identifiers.

Reviewing the Results and Dynamic Data Linking

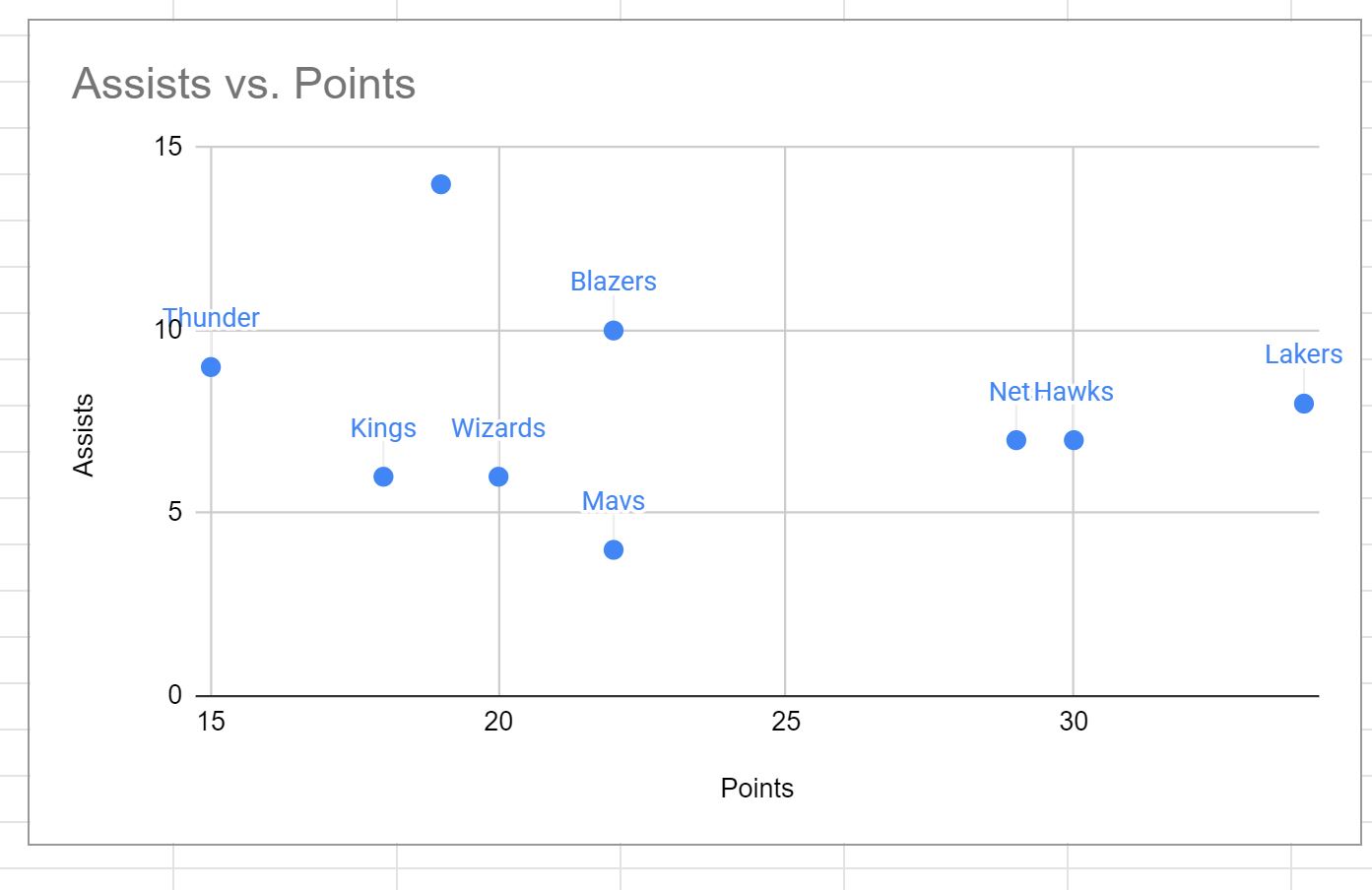

The moment you confirm the label range, your visualization will undergo an immediate and significant transformation. The team names sourced from A2:A10 will instantly appear as custom data labels, positioned adjacent to their corresponding points on the chart. This clarity dramatically increases the informational density of the plot, allowing viewers to identify specific data points without consulting a separate legend or table.

A key advantage of working within Google Sheets is the inherent dynamic nature of its charts. Should you need to modify or update the values within the label source range (A2:A10), the data labels on the visualization will automatically and instantaneously adjust to reflect these changes. This ensures that your chart remains perfectly synchronized with the underlying dataset.

This dynamic linking capability is indispensable for creating automated dashboards or reports that rely on frequently refreshed data. It completely removes the necessity for manual regeneration or repeated label adjustments, saving significant time and reducing the risk of data entry errors.

Conclusion and Advanced Customization Best Practices

The ability to incorporate custom data labels in Google Sheets is a powerful yet straightforward technique that significantly enhances the communicative potential of your visualizations. By providing immediate, textual context alongside numerical values, you empower your audience to quickly grasp the narrative embedded within the data, moving beyond simple numbers to meaningful insights.

When selecting text for custom labels, adherence to best practices is crucial. Always prioritize conciseness and relevance; overly lengthy labels can lead to visual clutter, making the plot difficult to interpret. Aim for clear, impactful identifiers that are easily read at a glance. Furthermore, Google Sheets provides extensive formatting controls. Under the “Customize” tab of the Chart editor, within the “Series” and then “Data labels” subsections, you can fine-tune the appearance, adjusting font size, color, and label position to optimize readability and visual appeal.

Mastering this level of visualization customization is key to transforming raw data analysis into sophisticated, user-friendly reports that deliver actionable intelligence.
