Learning to Add Labels to abline() in R: A Tutorial with Examples

The Necessity of Annotation: Why Label Lines in R Plots?

Effective data visualization stands as a cornerstone of rigorous statistical analysis and clear scientific communication. While a simple scatterplot successfully reveals the relationship between two variables, raw visual data often benefits significantly from contextual annotations. In the widely used R programming language, it is common practice to overlay reference lines—such as critical significance thresholds, calculated mean values, or results from a regression model—to provide immediate context to the viewer. The primary function for inserting these straight reference lines into R’s native plotting environment is the highly versatile abline() function.

However, merely drawing a line, regardless of its importance, often falls short of achieving truly effective communication. A line without a corresponding label leaves the interpretation ambiguous, forcing the reader to guess the line’s significance or consult external documentation. To transform a visualization from merely descriptive to definitively instructive, these lines must be clearly annotated with descriptive text. This comprehensive guide details the precise methodology for utilizing R’s text() function to accurately and aesthetically position labels onto reference lines drawn by abline(). Mastering this combination ensures your graphical outputs are both precise in their measurement and unambiguous in their message, significantly enhancing the clarity of your statistical reports.

The Core Mechanism: Orchestrating abline() and text()

The power of the abline() function lies in its simplicity; it can draw lines based on an intercept (a) and slope (b), or, more commonly for reference lines, based on a constant horizontal coordinate (h) or a constant vertical coordinate (v). To successfully integrate a descriptive label with these lines, we must invoke the complementary text() function. The text() function is specifically engineered to insert custom text strings at any location within the currently active plotting area, making it the essential tool for annotation within R’s base graphics system.

Crucially, the text() function demands precise location data in the form of Cartesian coordinates to render the specified string. The fundamental syntax required for plotting a label using R’s base graphics framework is deceptively simple:

text(x, y, ‘my label’, …)

Understanding the roles of the core arguments is paramount for accurate placement:

• x, y Coordinates: These are the defining (x, y) coordinates that specify the exact position where the text string should be placed, usually marking the center or start point of the label. When dealing with a horizontal line (constant y-value), the chosen x-coordinate dictates the label’s horizontal position along that line. Conversely, for a vertical line (constant x-value), the y-coordinate determines the label’s vertical placement.
• ‘my label’: This argument accepts the actual character string you intend to display on the plot. It must be provided enclosed in quotation marks, making it a literal piece of text for the plotting device to render.

The selection of coordinates is arguably the most critical step in this process. A common pitfall is placing the label directly on the line. For instance, if you define a horizontal line using abline()(h=20), you must intentionally select a y-coordinate that is slightly offset from 20 (e.g., 20.5 for placement above, or 19.5 for placement below). This minute offset is essential for visual clarity, ensuring the text does not overlap with the line itself or obscure the underlying data points, thereby maintaining optimal readability and professionalism in your visualization.

Case Study 1: Labeling a Horizontal Reference Line

Horizontal reference lines are indispensable tools, frequently used to delineate critical performance thresholds, statistical averages, or specific target metrics. In this initial case study, we will construct a foundational scatterplot and overlay a horizontal reference line using the abline()(h=...) syntax. Subsequently, we will leverage the text() function to strategically position a descriptive label slightly above this line, ensuring the reference point is immediately and unambiguously communicated to the viewer.

Our procedure begins with the creation of a sample data frame and the generation of the primary plot using the plot() function. Once the initial data is visualized, we introduce the horizontal line at the value y=20. The subsequent decision involves determining the ideal coordinates for the label. Observe the specific coordinate choices in the code: the y-coordinate for the text (20.5) is deliberately chosen to create a clear buffer of 0.5 units above the actual line (y=20), preventing visual interference. Simultaneously, the x-coordinate (2) positions the label early in the plot’s horizontal range, ensuring it is visible without crowding the data points on the right side of the graph.

#create data frame
df <- data.frame(x=c(1, 1, 2, 3, 4, 4, 7, 7, 8, 9),
                 y=c(13, 14, 17, 12, 23, 24, 25, 28, 32, 33))

#create scatterplot of x vs. y
plot(df$x, df$y, pch=19)

#add horizontal line at y=20
abline(h=20)

#add label to horizontal line
text(x=2, y=20.5, 'This is a label')

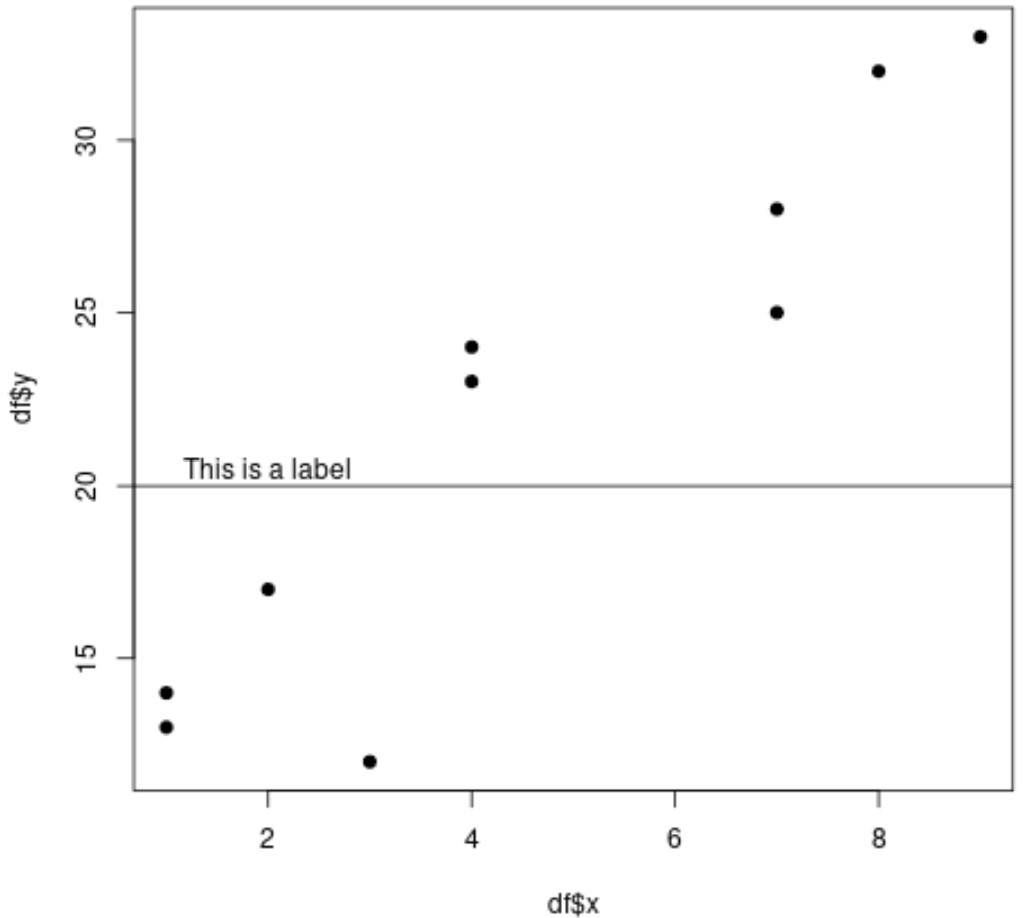

The visual output confirms the success of this coordinate-based approach. The label is clearly situated just above the horizontal reference line established by abline(). Through meticulous selection of the (x, y) coordinates, we have achieved an annotation that is unambiguously associated with the line while successfully avoiding any overlap with the line itself or the underlying scattered data points, ensuring maximum visual fidelity.

Advanced Customization: Enhancing Label Aesthetics (Color and Size)

While accurate placement is crucial, the overall impact and immediate interpretability of an annotation are often dictated by its aesthetic qualities. To maximize the effectiveness of the label, it is frequently necessary to modify its appearance, making it stand out or align visually with other plot elements. The text() function provides a robust suite of graphical parameters that allow precise control over font style, color, and size. Specifically, the col and cex arguments are essential for controlling these primary aesthetic features.

The col argument manages the color of the text. It accepts standard color keywords (e.g., ‘red’, ‘black’, ‘blue’) or precise hexadecimal color codes, offering flexibility to either match the line’s color for consistency or select a contrasting hue for striking emphasis. The cex argument, which stands for Character EXpansion factor, controls the relative size of the font. By default, cex=1 represents the standard font size. If you set cex=1.5, the font size increases by 50 percent; setting cex=2 will double the font size, which is highly effective when the annotation needs to be particularly prominent, such as when labeling a crucial statistical threshold for a presentation.

The following revised code block demonstrates the practical application of these aesthetic controls. We shift the label horizontally to x=3 and increase the vertical offset slightly to y=20.7 for better separation. Most importantly, we introduce col='blue' to change the text color and specify cex=2 to dramatically increase the text size. This modification ensures the label receives appropriate visual weight within the plot.

#create data frame
df <- data.frame(x=c(1, 1, 2, 3, 4, 4, 7, 7, 8, 9),
                 y=c(13, 14, 17, 12, 23, 24, 25, 28, 32, 33))

#create scatterplot of x vs. y
plot(df$x, df$y, pch=19)

#add horizontal line at y=20
abline(h=20)

#add label to horizontal line (with blue color and double the font size)
text(x=3, y=20.7, 'This is a label', col='blue', cex=2)

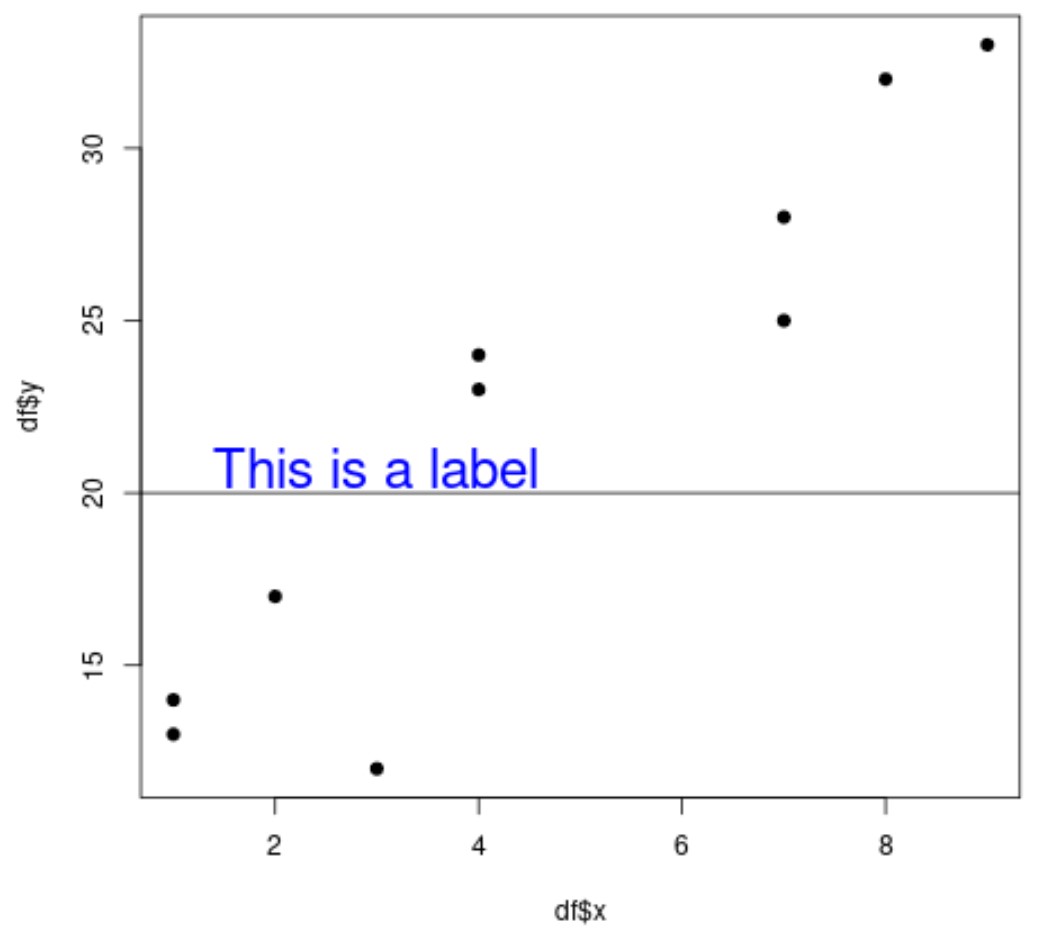

As demonstrated by the resulting image, the label is now vividly blue and significantly larger than in the previous iteration. This change effectively showcases how the strategic use of graphical parameters can transform a subtle annotation into a dominant visual cue. When preparing figures for academic publication or professional presentations, choosing appropriate colors and expansion factors is paramount for directing the audience’s attention and conveying the plot’s narrative efficiently.

Case Study 2: Labeling a Vertical Reference Line with Rotation

The process of annotating vertical reference lines, which are typically generated using abline()(v=...), introduces a unique layout challenge. Placing standard horizontal text next to a vertical line is often visually clumsy, consuming unnecessary horizontal space and potentially clashing with the y-axis labels or plot margin. The professional solution is to rotate the text so that it runs parallel to the line, maximizing spatial efficiency and improving readability.

The rotation requirement is handled elegantly by the srt (string rotation) argument within the text() function. By specifying srt=90, we instruct the plotting device to rotate the text 90 degrees clockwise, causing it to read vertically up the plot area. When labeling a vertical line, the horizontal position (x-coordinate) must be slightly offset from the line’s fixed position (the vertical buffer), while the y-coordinate determines the vertical alignment, typically centering the label along the line.

In this specific example, we introduce a vertical reference line at x=6. We position the text label slightly to the left at x=5.8 (a small offset for visual separation) and vertically center it at y=20. Crucially, we include the argument srt=90 to ensure the text is correctly oriented vertically, aligning perfectly with the reference line.

#create data frame
df <- data.frame(x=c(1, 1, 2, 3, 4, 4, 7, 7, 8, 9),
                 y=c(13, 14, 17, 12, 23, 24, 25, 28, 32, 33))

#create scatterplot of x vs. y
plot(df$x, df$y, pch=19)

#add vertical line at x=6
abline(v=6)

#add label to vertical line
text(x=5.8, y=20, srt=90, 'This is a label')

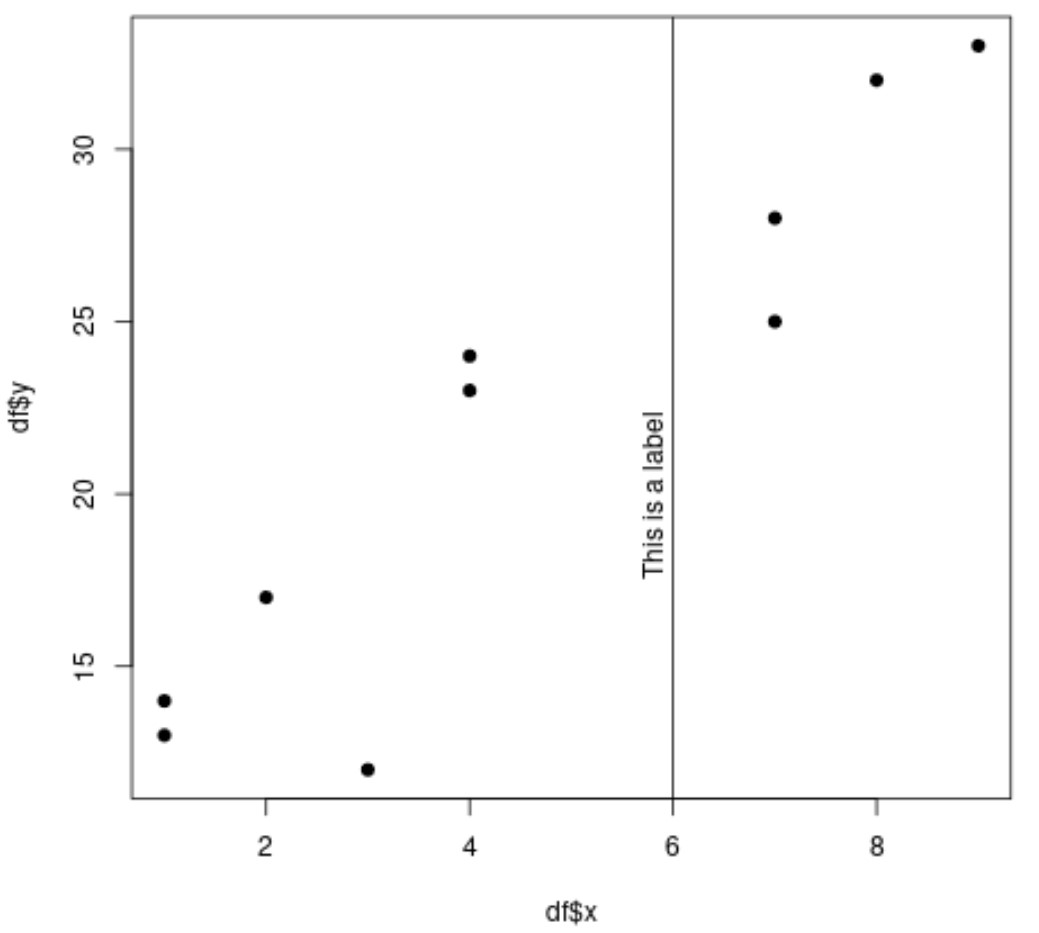

The resulting plot confirms that the label is positioned just to the left of the vertical reference line. This vertical orientation significantly elevates the aesthetic quality and professionalism of the visualization, especially in scenarios where the plot area is densely populated with data points or other graphical elements. If we had omitted the srt=90 argument, the label would have been rendered horizontally, potentially obstructing the data or appearing disengaged from the vertical line it is meant to annotate.

Conclusion: Best Practices for Professional Annotation

Generating clear and informative visualizations in R requires more than just plotting data; it demands a strategic approach to annotation that expertly merges the capabilities of the abline() and text() functions. Effective labeling hinges on two critical factors: precise coordinate selection and thoughtful aesthetic customization. Adhering to established best practices will ensure your R plots transition from functional graphs to polished, professional statistical reports ready for presentation or publication.

When determining label placement, always prioritize the principle of minimal overlap. This means consistently using small coordinate offsets—typically ranging from 0.1 to 0.5 units, depending on the scale of the axes—to create a distinct visual separation between the text and the line itself. This offset ensures that the reference line remains visible and the text is maximally readable. Furthermore, for all vertical lines, the use of the rotation parameter srt=90 is considered mandatory for maintaining a professional appearance and utilizing the plot space efficiently.

Finally, consider the rhetorical purpose of the reference line. If the line signifies a crucial statistical threshold or a primary finding, employ the aesthetic controls provided by text()—such as the col and cex arguments—to give the associated label the visual prominence it deserves. By meticulously mastering these functions and applying these best practices, you gain the ability to transform standard R plots into powerful, self-explanatory statistical visualizations that effectively communicate complex data insights to any audience.
