Learning to Add Labels to Vertical Lines in ggplot2 Charts

In the realm of modern data visualization, ggplot2 stands out as an exceptionally powerful and versatile component of the R programming language ecosystem. This package is meticulously constructed upon the principles of the Grammar of Graphics, enabling users to build complex and customized plots incrementally, layer by layer, thus providing unparalleled control over every visual attribute. A frequent requirement in advanced data analysis involves highlighting specific thresholds, statistical summaries (such as means or medians), or key events within a dataset. This is typically achieved through the strategic placement of vertical or horizontal reference lines on the visualization.

While implementing a vertical line using the dedicated function, geom_vline, is straightforward, the subsequent step of clearly and effectively labeling these lines for enhanced interpretability often presents a hurdle. A thoughtfully positioned label can significantly transform a simple reference line into a compelling annotation, effectively directing the viewer’s attention and reinforcing the analytical narrative embedded within the data. This comprehensive guide will detail the precise methodology for adding and customizing text labels for vertical lines within your ggplot2 visualizations, ensuring your resulting plots are not only visually appealing but also maximally informative.

To successfully integrate a text label with a vertical line, the most critical function available is annotate(). This highly adaptable function facilitates the direct addition of various static graphical elements and annotations to your plot, entirely independent of the underlying dataset aesthetics. For text annotations, it necessitates the specification of precise coordinates for the label’s placement, alongside the actual textual content and any desired aesthetic properties such as color or rotation.

+ annotate("text", x=9, y=20, label="Here is my text", angle=90)

The code snippet above provides the foundational syntax for adding a text label. Here, the argument "text" explicitly defines the type of annotation being used, while x and y determine the label’s precise position on the plot coordinate system. The label argument contains the specific text string intended for display, and angle controls the rotational orientation of the text. The subsequent sections of this article will explore the practical implementation of this syntax, offering detailed examples that cover basic labeling techniques, aesthetic customization, and the complex challenge of adding multiple contextual labels.

Understanding Vertical Lines with geom_vline

Before we proceed to the intricacies of labeling, it is fundamentally important to establish a solid understanding of how vertical reference lines are incorporated into your ggplot2 plots using the geom_vline() function. This geometric object is purpose-built for rendering vertical lines at fixed intercepts along the x-axis, making it the perfect tool for designating specific critical values or boundaries within a data visualization. It represents an essential, yet simple, layer for embedding contextual information.

The core parameter required by geom_vline() is xintercept, which specifies the exact x-coordinate where the vertical line must be drawn. Unlike many other geoms in the package that map aesthetic properties to columns within a data frame, geom_vline() typically relies on a fixed, scalar value for xintercept. This characteristic signifies that the line’s position is constant and independent of any variable in your main dataset, making it uniquely suited for illustrating a fixed threshold or global reference point across all observed data points.

For instance, when visualizing time-series data or sales performance, geom_vline() allows you to precisely mark a specific target goal, a regulatory limit, or a significant historical date by placing a vertical line at that exact x-axis location. Furthermore, you retain the ability to fully customize the visual appearance of these lines using standard arguments such as color, linetype (e.g., solid, dashed, dotted), and size (for thickness). This customization helps ensure the line’s aesthetic aligns with the overall plot design and effectively communicates its intended meaning. However, geom_vline() lacks built-in functionality for adding accompanying text labels, which is precisely why the versatile annotate() function becomes a necessary addition.

Mastering the annotate() Function for Text Labels

The annotate() function is a cornerstone of the ggplot2 package, specifically engineered for injecting static graphical or textual elements into a plot space. Its key differentiator is that it operates by accepting fixed values for its aesthetic arguments, rather than mapping variables from a data frame, as is typical for geoms. This design makes it the perfect mechanism for placing labels, geometric shapes, or lines at precise, predetermined coordinates on your plot without requiring these elements to be included in your primary data structure.

When utilizing annotate() to generate text labels, the user must specify "text" as the first argument, thereby declaring the desired type of annotation. Subsequently, the essential aesthetic arguments are provided: the x and y coordinates, which govern the label’s precise placement, and the label argument, which holds the actual textual content. Crucially, these coordinates are interpreted using the same data units as the plot’s primary axes, enabling precise relative positioning against your visualized data and any existing reference lines, such as those created by geom_vline.

Beyond basic placement and content, annotate("text", ...) provides extensive customization capabilities. You can meticulously control the label’s appearance through arguments such as angle (for rotation, essential for vertical lines), size (to adjust font scale), color (to define text hue), fontface (e.g., “bold”, “italic”), family (to specify the font type), and alpha (to manage transparency). These robust parameters empower the user to style labels for optimal readability and seamless integration with the plot’s overall design. For instance, you might intentionally offset the label’s x-coordinate slightly from the vertical line’s xintercept to prevent visual overlap, or employ a 90-degree angle to orient the text vertically, thus maximizing legibility alongside the reference line.

Practical Application: Basic Labeling of a Vertical Line

We begin with a fundamental, working example designed to clearly illustrate the process of attaching a simple text label to a vertical line in ggplot2. This practical demonstration will encompass the three critical steps: generating a foundational scatterplot, adding the necessary vertical line using geom_vline(), and finally, attaching the label using the powerful annotate() function.

The initial requirement is to load the ggplot2 R package and construct a sample data frame. This data structure will serve as the canvas for our scatterplot, allowing us to visualize data points before integrating any reference lines or annotations. Utilizing simple numeric vectors for the x and y coordinates ensures a clear and unambiguous focus on the core labeling mechanics.

library(ggplot2)

# Create sample data frame
df <- data.frame(x=c(1, 3, 3, 4, 5, 5, 6, 9, 12, 15),
                 y=c(13, 14, 14, 12, 17, 21, 22, 28, 30, 31))

# Create scatterplot with vertical line at x=10 and add label
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_vline(xintercept=10) +

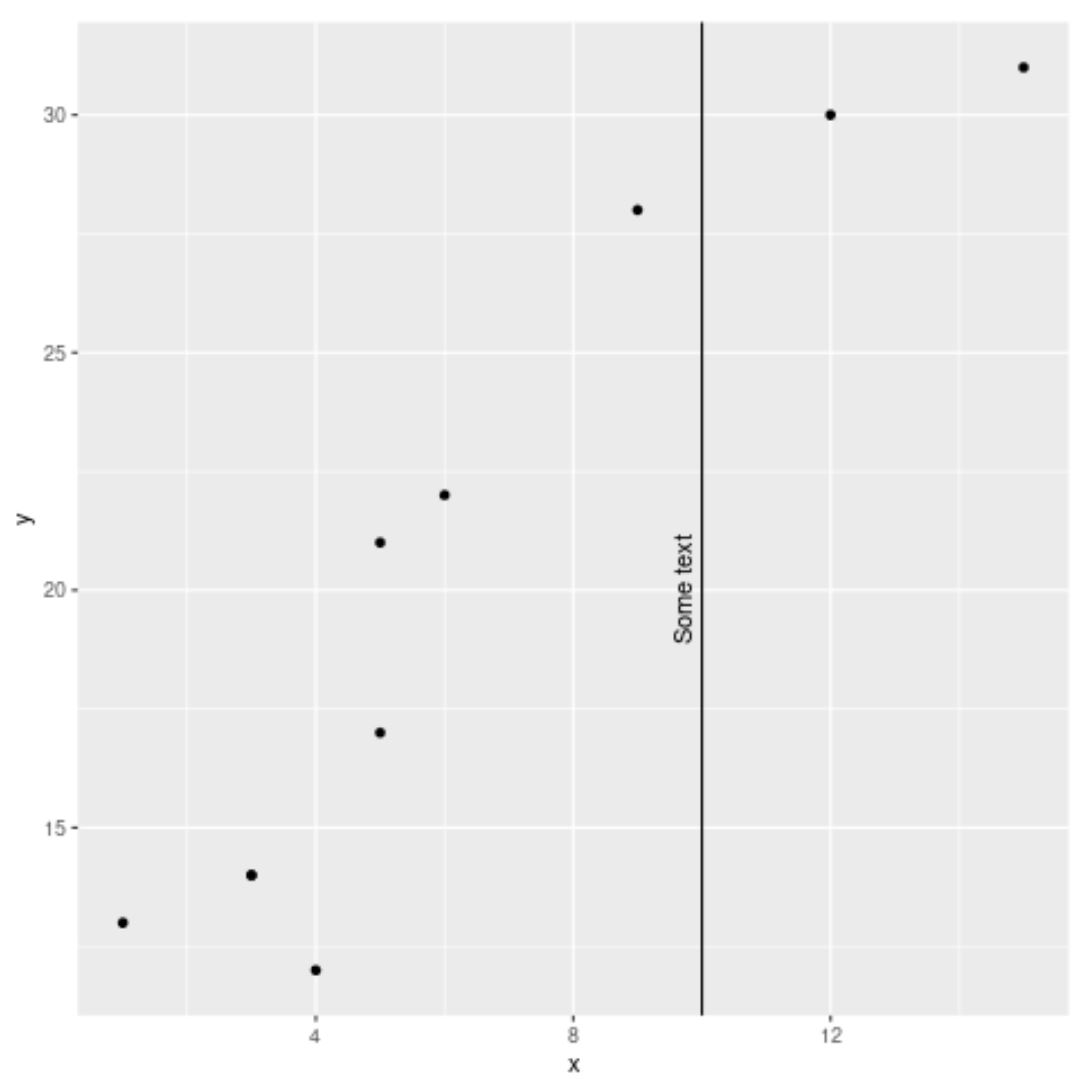

  annotate("text", x=9.7, y=20, label="Some text", angle=90)

In the execution of this code block, the plot is first initialized with ggplot(df, aes(x=x, y=y)), establishing the fundamental aesthetic mapping required for the scatterplot. Data points are subsequently rendered via geom_point(). The pivotal command for the reference line is geom_vline(xintercept=10), which draws the vertical line exactly at the x-coordinate of 10. The final line, annotate("text", x=9.7, y=20, label="Some text", angle=90), is responsible for placing the label. Observe the subtle yet critical detail: the x coordinate for the label (9.7) is slightly offset from the line’s xintercept (10). This intentional displacement is vital for preventing the text from directly overlapping the line, which greatly enhances readability. The y coordinate (20) centers the label vertically, and angle=90 rotates the text vertically, ensuring a clean and professional alignment with the geom_vline.

Customizing Label Aesthetics for Enhanced Clarity

While a basic, functional label transmits essential information, the strategic customization of its visual aesthetics can dramatically elevate both the clarity and the overall visual impact of your ggplot2 visualizations. The annotate() function, when used for text, provides a rich set of aesthetic arguments that grant granular control over font size, color, style, and more. Thoughtfully tailoring these properties is crucial to ensure that your labels are not only easily visible but also appropriately emphasize key information and integrate harmoniously with the visualization’s design structure.

Consider a common analytical requirement where a specific label must command attention due to the critical nature of the threshold it represents, or perhaps needs to adhere to an established color scheme within the report. The size and color arguments within annotate("text", ...) are the primary levers for achieving these goals. By adjusting the size argument, you can increase or decrease the font scale, thereby modulating the label’s prominence. Similarly, modifying the color allows for the creation of distinct visual cues, such as utilizing a high-contrast color for a primary critical threshold or employing a softer, more muted tone for secondary contextual annotations.

library(ggplot2)

# Create sample data frame
df <- data.frame(x=c(1, 3, 3, 4, 5, 5, 6, 9, 12, 15),
                 y=c(13, 14, 14, 12, 17, 21, 22, 28, 30, 31))

# Create scatterplot with vertical line at x=10
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_vline(xintercept=10) +

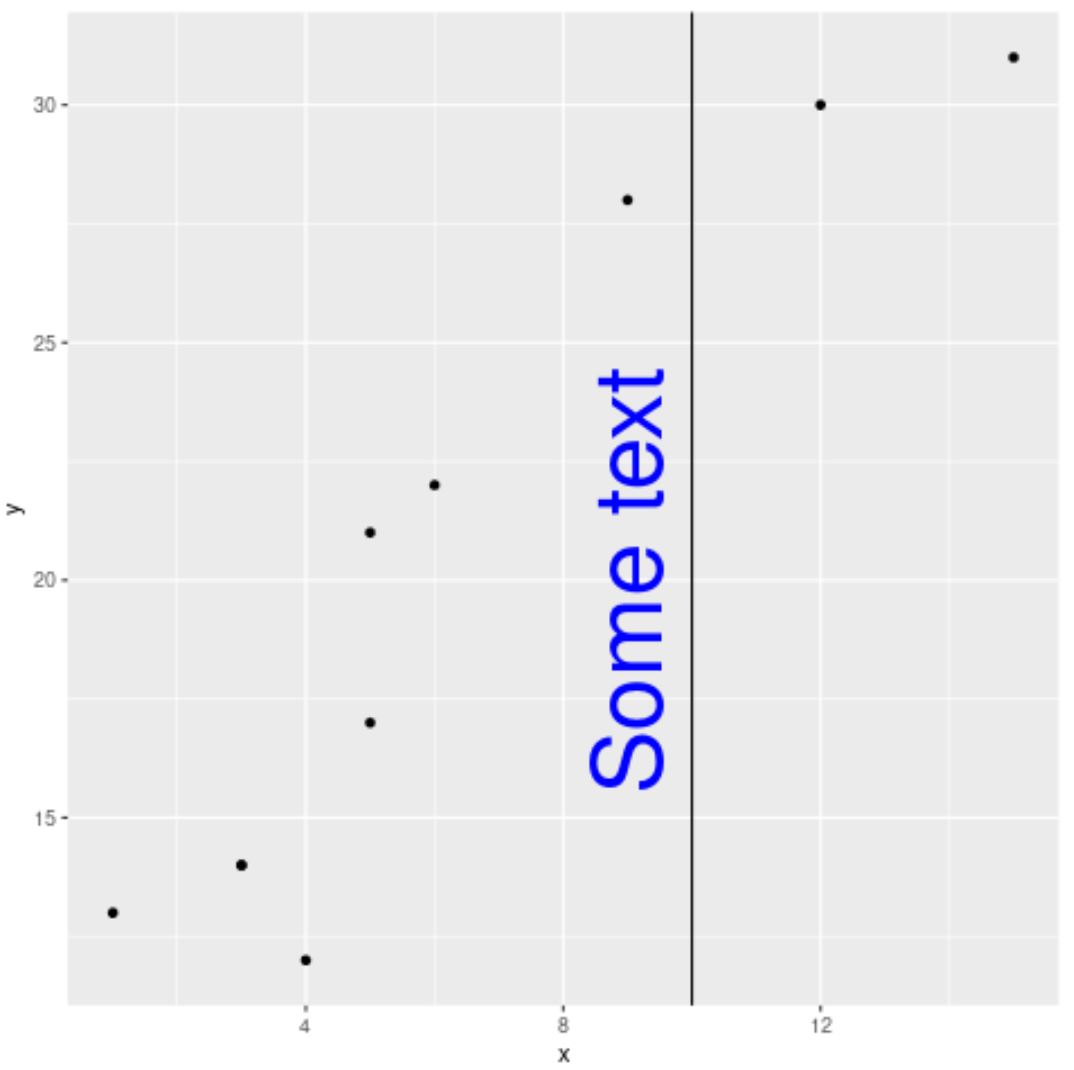

  annotate("text", x=9, y=20, label="Some text", angle=90, size=15, color="blue")

In this enhanced example, we refine the previous code by incorporating size=15 and color="blue" within the annotate() function call. The size argument, set to a value of 15, markedly increases the label’s font size, resulting in a much more prominent visual element on the plot. Concurrently, color="blue" changes the text color, providing a distinct visual separation. By judiciously leveraging these aesthetic arguments, you gain comprehensive control over the presentation of your labels, ensuring they effectively transmit their message without either being overlooked or overpowering other essential plot elements. It is highly recommended to experiment with various parameter values to locate the optimal visual balance necessary for your specific visualization objectives.

Adding Multiple Contextual Labels

In complex analytical contexts, a single label is often insufficient to fully convey all the necessary contextual information or highlight several points of interest related to a specific vertical reference line. You may need to denote multiple distinct thresholds, provide separate descriptive notes, or add context on both sides of a significant marker. Thanks to ggplot2‘s flexible, layered architecture, particularly through the repeated, sequential use of the annotate() function, the process of adding multiple labels to your plot is exceptionally straightforward and intuitive.

The fundamental technique for implementing multiple labels is to simply invoke the annotate() function as many times as required. With each call, you must specify the unique positioning coordinates (x, y), the specific content (label), and any desired aesthetic properties (such as size, color, or angle) for that individual label instance. This iterative approach permits the placement of distinct text blocks at various locations proximal to your geom_vline, thereby constructing a richer, more finely detailed layer of annotation for your visualization.

library(ggplot2)

# Create sample data frame
df <- data.frame(x=c(1, 3, 3, 4, 5, 5, 6, 9, 12, 15),
                 y=c(13, 14, 14, 12, 17, 21, 22, 28, 30, 31))

# Create scatterplot with vertical line at x=10
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_vline(xintercept=10) +
  annotate("text", x=9, y=20, label="Some text", angle=90, size=15, color="blue") +

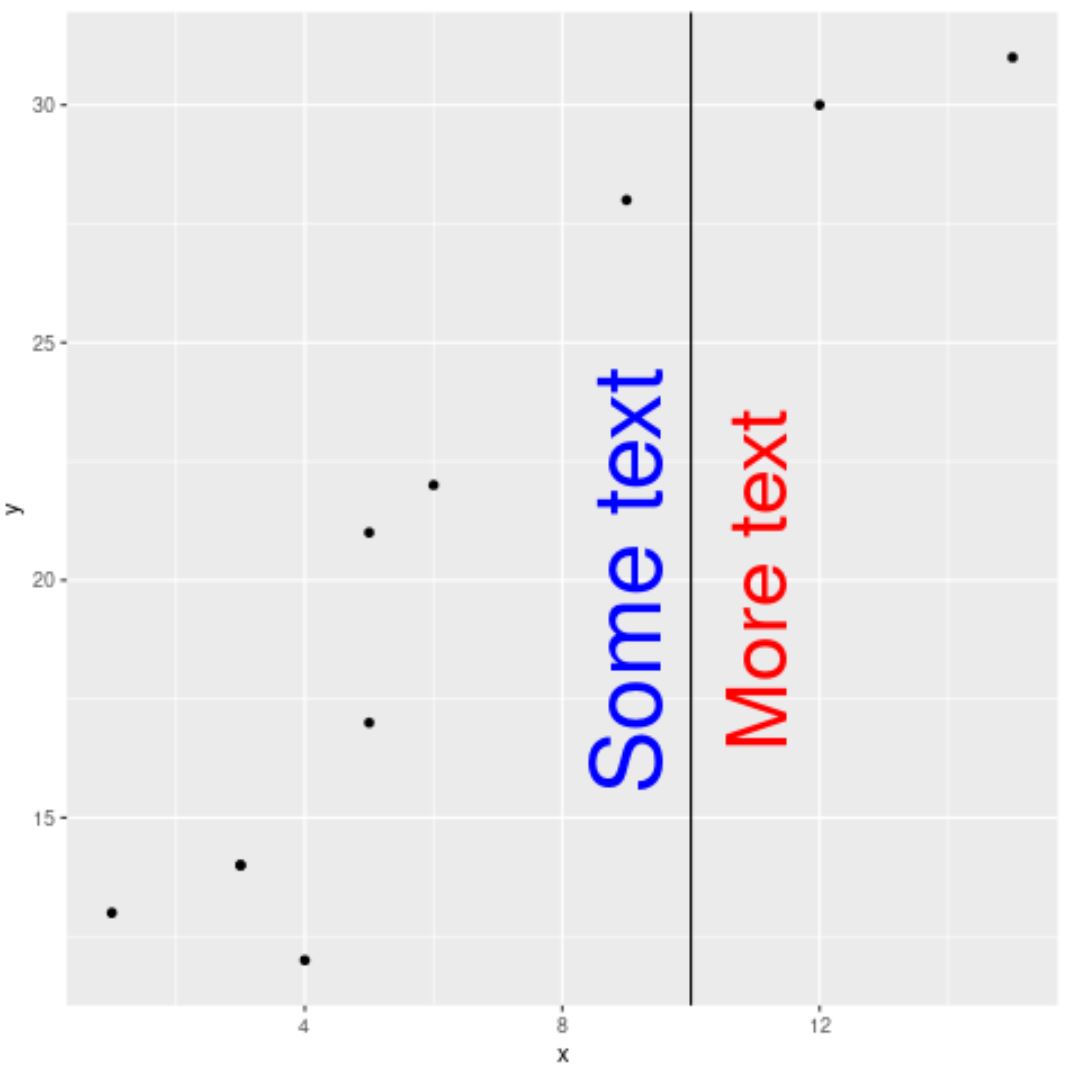

  annotate("text", x=11, y=20, label="More text", angle=90, size=13, color="red")

In the above code, we expand upon our previous example by introducing a second, chained call to annotate(). The first label remains positioned at x=9, rendered in blue with a size of 15. The second label is deliberately placed at x=11, situated on the opposite side of the xintercept=10 vertical line. This new label features differentiated aesthetic properties, including a slightly smaller size=13 and a distinct color="red", to clearly separate it visually and contextually from the first annotation. By placing labels strategically on both sides of the vertical marker, you can effectively define segments within your plot and provide separate contextual insights for distinct data regions, which significantly improves the interpretability of your final visualization.

This powerful method of chaining multiple annotate() calls affords users immense flexibility. You are free to add as many labels as the complexity of your visualization demands, positioning each one precisely and styling them individually to effectively communicate detailed information. However, it is essential to always prioritize clarity: consider the density of your labels and their potential to obscure the underlying data points or other crucial plot elements. Careful placement, appropriate sizing, and high-contrast colors are key to ensuring your plot remains clean, readable, and highly informative.

Conclusion and Advanced Customization

The ability to effectively label vertical reference lines in ggplot2 is an indispensable skill for constructing clear, engaging, and highly informative data visualizations. As clearly demonstrated throughout the examples in this guide, the synergistic combination of geom_vline() for drawing the reference lines and the highly versatile annotate() function for adding custom text labels establishes a robust framework for significantly enhancing your plots. By mastering the control over label position, specific content, and aesthetic presentation, you possess the tools to transform a mere line into a powerful visual annotation that expertly guides your audience through the critical insights embedded within your data.

Beyond the primary arguments—x, y, label, angle, size, and color—explored in detail here, the annotate("text", ...) function provides numerous additional options for customization. For instance, the hjust and vjust arguments allow for precise fine-tuning of the horizontal and vertical justification of the text relative to its specified x and y coordinates, enabling pixel-perfect placement. The fontface argument can be utilized to apply styles such as “bold,” “italic,” or “plain,” while the family argument allows you to specify a different font family. Experimentation with these advanced parameters is strongly encouraged to achieve the exact visual effect required for your specific analytical context and design needs.

Always maintain readability and clarity as your highest priorities when integrating annotations. Although the temptation exists to include extensive details, an overcrowded or visually dense plot can quickly become counterproductive and confusing. Strive diligently for a functional balance where labels provide essential context without overwhelming the primary data visualization. Thoughtful and precise placement, coupled with appropriate sizing and contrasting colors, will ensure your labels fulfill their purpose effectively, making your final ggplot2 creations not just displays of data, but compelling and easy-to-understand visual stories.
