Learning to Label Scatterplot Points Effectively in Excel

Introduction: Enhancing Analytical Depth with Labeled Scatterplots

In the realm of data visualization, the scatterplot remains an indispensable tool for illustrating the relationship between two numerical variables. However, a basic plot often lacks the contextual depth required for comprehensive analysis. While the arrangement of points successfully reveals correlation or clustering, standard markers typically fail to identify which specific observation corresponds to which plotted point. This ambiguity limits the ability to draw precise conclusions about individual data entries.

This analytical deficiency becomes critically apparent when dealing with complex datasets or when the focus shifts specifically to identifying outliers or distinct categories that require individual recognition. Adding custom labels directly to the points transforms the chart from a purely statistical representation into an explanatory narrative. This feature allows analysts and stakeholders to immediately identify specific observations, such as a particular product line, geographical region, or experimental group, thereby bridging the gap between numerical plotting and effective communication.

For instance, consider the visualization below, where standard points have been replaced by descriptive labels identifying the underlying entity. This transformation significantly enhances the chart’s readability and analytical power, moving beyond simple numerical visualization to provide immediate, actionable insight.

You will often find yourself needing to add these descriptive labels to scatterplot points in Excel, such as the comprehensive example demonstrated below:

Fortunately, this advanced customization feature is surprisingly accessible and built directly into the software. The following step-by-step guide details the precise methodology required to assign custom text labels sourced from a non-plotted column directly to your scatterplot points, ensuring clarity and precision in your statistical reports using Microsoft_Excel.

Preparing Your Source Data for Custom Labeling

The foundation of any effective scatterplot lies in the integrity and structure of the underlying data. To successfully implement custom point labeling, your dataset must contain at least three distinct components: the X-variable values, the Y-variable values, and the categorical or descriptive labels themselves. These labels, which will ultimately replace or supplement the numerical values displayed on the chart, must reside in their own dedicated column.

In statistical plotting, the X and Y columns provide the numerical coordinates that determine the precise placement of each point on the visualization plane. The critical third column, the label column, typically contains text identifiers (such as “Group A,” “Site 3,” or “Observation Z”) that correspond directly, row-by-row, to the X and Y pairs. Maintaining this essential parallel structure across the dataset is paramount for accurate assignment during the subsequent labeling process in Excel.

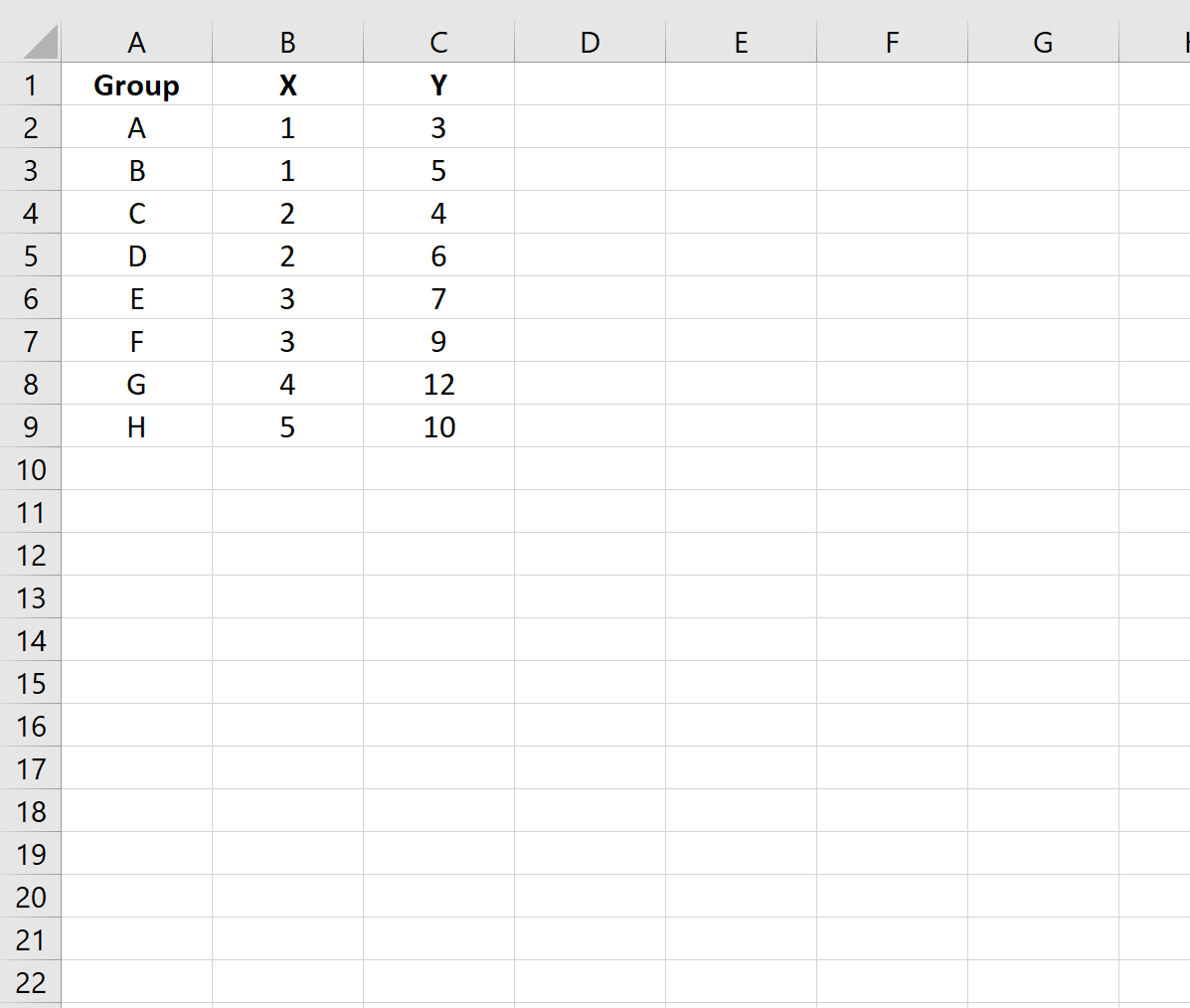

For this tutorial, we will utilize a small, representative dataset showing the (X, Y) coordinates for eight distinct entities, labeled Group A through Group H. Notice how the label column (A) is structured adjacently to the numerical plotting columns (B and C).

First, let’s create the following dataset that clearly defines the numerical relationships and the corresponding categorical identifiers:

Ensure your data is properly formatted with numerical entries in columns B and C, and text or identifier entries in column A. This preparatory step is vital before proceeding to the chart creation phase, as Excel relies on this structural consistency for accurately mapping the labels to the correct points later on.

Generating the Initial Scatterplot Foundation

Once the data is correctly structured, the next logical step is to generate the initial scatterplot. Crucially, during this initial stage, you should only select the numerical data that defines the X and Y axes. The label column (Column A in our example) must be excluded from the initial selection, as Excel is not designed to automatically recognize a separate non-numerical label column during basic chart insertion.

To begin the plotting process, highlight the cells containing the numerical coordinates, which in this case span the range B2:C9. This selection clearly defines the values that constitute the plotted series. After selecting the required range, navigate to the Insert tab located along the top ribbon interface of the program.

Within the Charts group on the Insert ribbon, locate and click the option designated as Insert Scatter (X,Y). This action instructs Excel to convert the selected numerical pairs into a graphical representation, placing each point according to its corresponding X and Y values on the Cartesian plane.

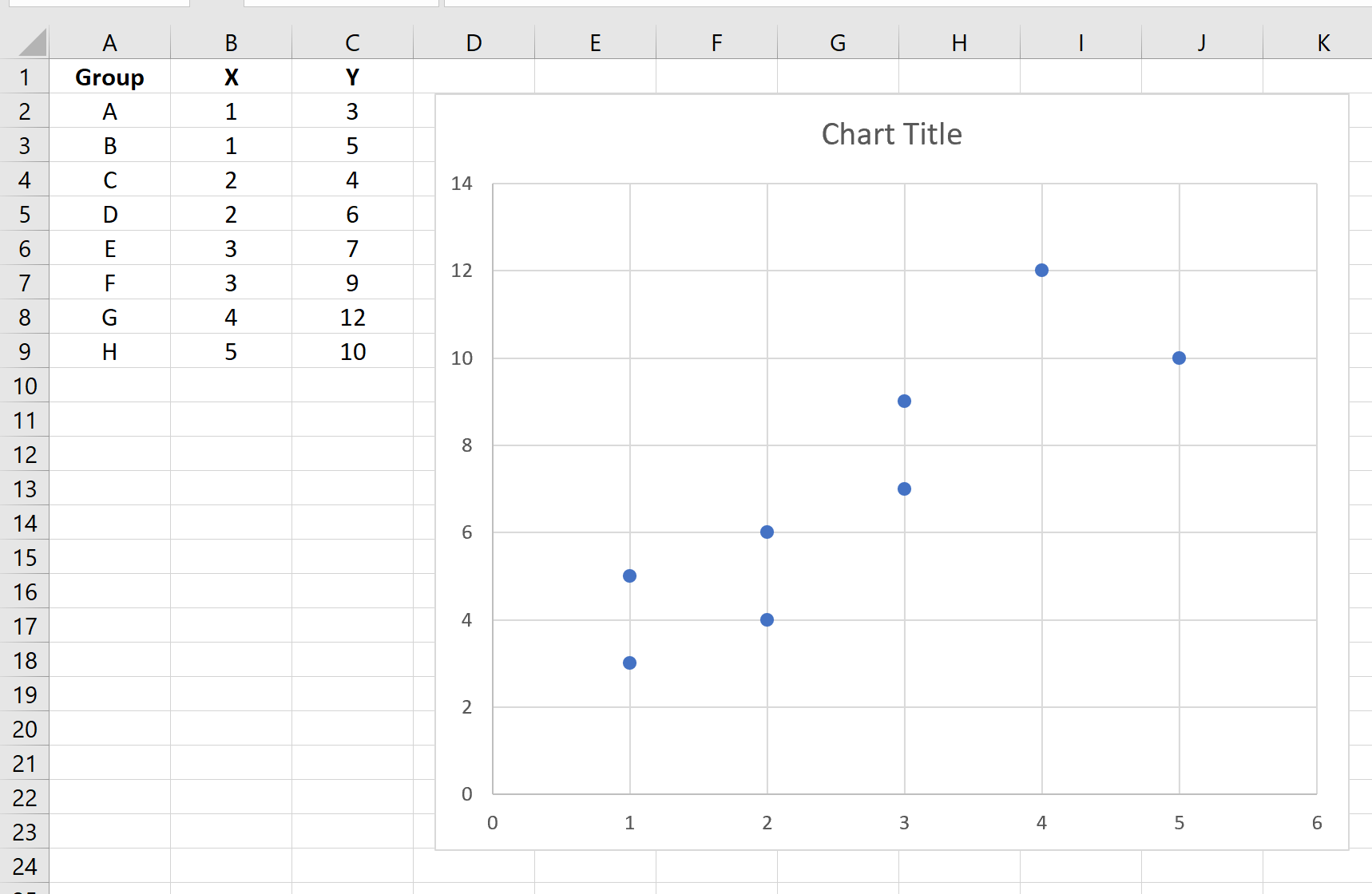

Upon executing this command, the following default scatterplot will instantaneously appear. It displays the eight data points accurately based on their coordinates but fundamentally lacks any immediate textual identification. This chart represents the necessary unrefined foundation upon which we will soon build the custom labeling structure.

Accessing the Advanced Data Label Feature

The primary mechanism for customizing elements within an Excel chart is the set of tools that appears when the chart object is actively selected. The most critical of these tools for labeling is the Chart Elements icon, typically represented by a green plus sign (+), which surfaces in the top right corner of the chart area upon clicking it once.

The Data Labels option within the Chart Elements menu provides the initial gateway to adding textual information adjacent to your plotted data points. By default, Excel often attempts to display numerical information, such as the Y-value or the X-value, when this option is activated. However, our precise objective requires replacing these default numerical displays with custom text sourced specifically from our dedicated label column (Column A).

To begin the customization process, first ensure the chart is selected. Click anywhere on the chart until the green plus (+) sign appears. Click the Chart Elements icon, and then hover over or click the Data Labels option. Instead of simply checking the box, which would apply default settings, we must access the advanced configuration options. This is achieved by clicking the small arrow next to Data Labels, and subsequently selecting More Options…

Choosing More Options… opens the detailed Format Data Labels pane, which usually docks itself on the right side of the spreadsheet window. This pane is where the powerful ability to assign custom labels using data derived from external cells is unlocked, providing unparalleled flexibility beyond standard axis plotting.

Executing the Custom Label Assignment via Cells

The Format Data Labels pane provides extensive control over exactly what information is displayed next to each point. Since our goal is only to show our custom group names (Group A, B, etc.) and not the default numerical Y-values, we must first disable any pre-selected content settings. Locate the section controlling Label Options within the pane. You will observe several checkboxes determining the label content, such as Series Name, X Value, Y Value, or Bubble Size. Locate the box labeled Y Value and ensure it is explicitly unchecked. This crucial step prevents the numerical Y-coordinate from cluttering the final data visualization.

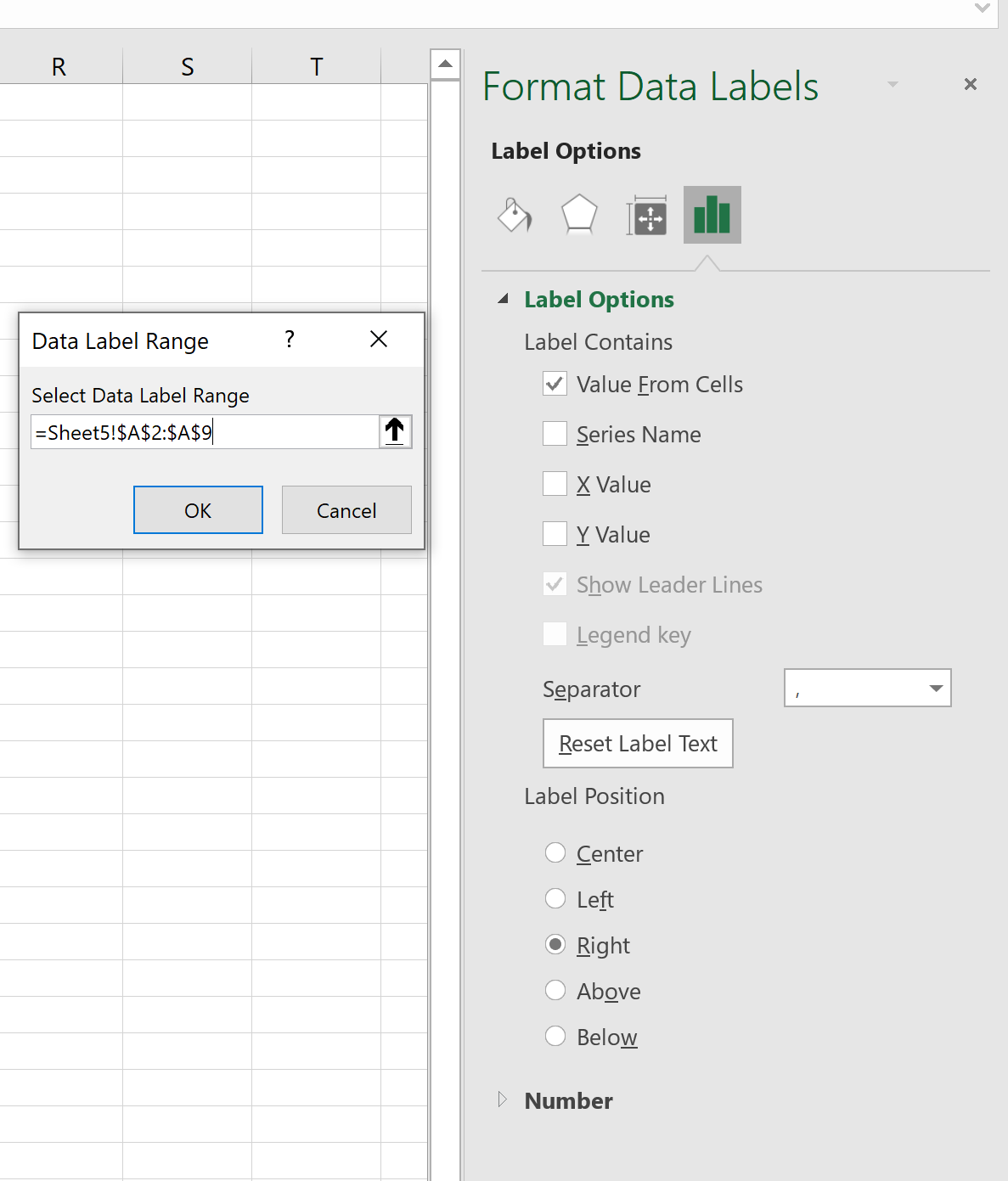

The most important step for custom labeling is activating the custom source feature. Check the box labeled Value From Cells. This action prompts a new dialogue box to appear, requesting the specific range containing the desired textual labels. This feature is the mechanism that links the non-plotted column (Column A) directly to the plotted numerical series.

In the subsequent dialogue box, you must input or select the entire range of cells containing your identifiers—in this specific example, A2:A9. This range selection tells Excel precisely which text belongs to which point, based on the strict row alignment of the original dataset. Once this range is confirmed and you click OK, the custom text labels immediately replace any previous numerical labels on the scatterplot.

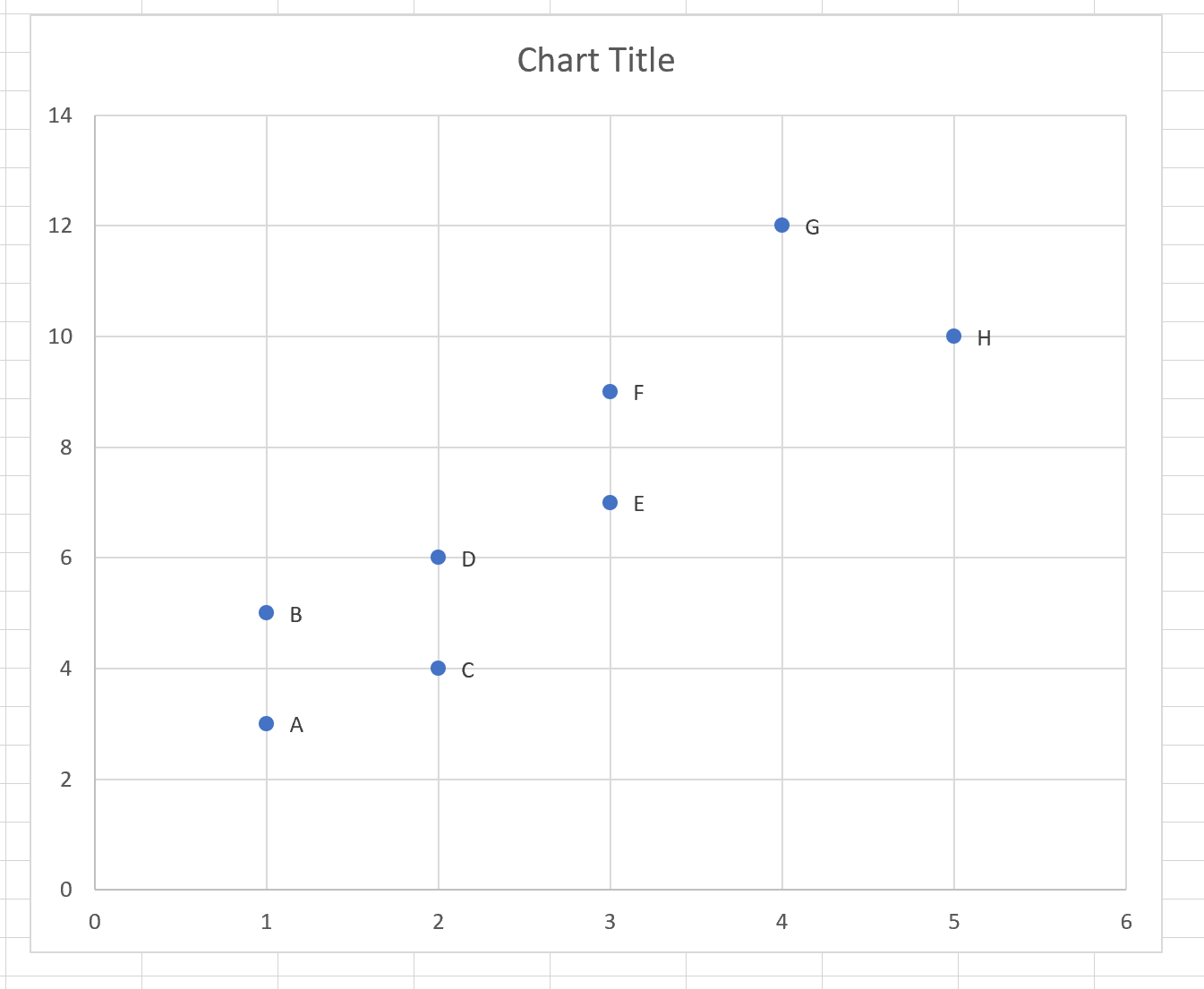

Once you click OK, the following descriptive labels will automatically appear next to the scatterplot points, successfully transforming the chart and significantly enhancing its analytical depth:

Refining Placement and Styling for Optimal Clarity

Although the custom labels are now correctly assigned to the data points, the initial default placement and styling may not be optimal for a professional presentation. Effective data visualization often requires careful aesthetic refinement to ensure that labels do not overlap or obscure the data points themselves—a common challenge often referred to as “label collision.”

Fortunately, Excel provides granular control over the appearance and position of these new text elements. To access these detailed formatting options, simply click directly on any of the newly added labels. This action selects the entire set of labels and reactivates the Format Data Labels pane on the right side of your screen.

Within the pane, you can adjust several key attributes to improve clarity and appearance:

• Label Position: Options like Center, Left, Right, Above, or Below allow you to strategically place the text relative to its corresponding point marker. For scatterplots with dense data points, external placements (such as Right or Above) often maximize visual clarity and minimize overlap.
• Text Options: Access the font formatting tools (under the Text Options tab in the pane) to modify the font size, color, and style, ensuring the labels contrast effectively with the background colors and are easily readable.
• Manual Adjustment: For complex charts where points are clustered closely together, Excel allows individual labels to be clicked and dragged manually to a better, clearer position. This provides indispensable flexibility for fine-tuning the visual output and resolving complex labeling conflicts.

Feel free to click on the labels to modify their style or increase their font size to achieve the desired visual impact. The final, refined scatterplot should clearly display the relationships while unambiguously identifying each data point, as demonstrated below:

Conclusion and Recommended Resources

Labeling individual points on a scatterplot is a powerful, yet straightforward, technique in Excel for elevating simple correlation plots into highly informative analytical diagrams. By utilizing the Value From Cells functionality within the Format Data Labels menu, analysts can bypass default numerical labeling and integrate descriptive text directly into their visualizations. This method is essential for highlighting specific observations, whether they are critical outliers or key performance indicators driving business decisions.

Mastering this technique contributes significantly to producing clearer, more professional reports that communicate complex findings efficiently and without ambiguity. Always remember to maintain strict row-by-row alignment between your label column and your coordinate columns to ensure accurate assignment of data labels.

For those seeking to further expand their proficiency in chart creation and customization within Excel, the following resources offer additional tutorials explaining how to perform other common functions related to advanced statistical charting:
