Understanding and Analyzing Multiple Trendlines in Excel: A Step-by-Step Guide

In the critical domain of data analysis, the clear visualization of underlying patterns and trajectories is absolutely fundamental for extracting actionable insights. Complex datasets frequently contain multiple comparable variables tracked over identical time periods. Relying solely on a single summary metric often proves insufficient, failing to capture the unique, nuanced behaviors of individual components. To achieve a comprehensive understanding of how different elements interact and evolve, it is essential to observe the distinct path of each component separately. This necessity is precisely why the capability of adding multiple trendlines to a single chart in Microsoft Excel is so powerful, offering a sophisticated method to summarize and rigorously compare the underlying trends across several data series within one cohesive visualization.

Consider the practical example of monitoring the sales performance of two distinct product lines, Product A and Product B, spanning a decade. Plotting the raw sales figures provides basic visibility, but applying dedicated trendlines mathematically models their growth, decline, or stabilization. These analytical lines move beyond mere raw figures to deliver a clear, mathematically supported perspective on long-term movement. By overlaying these models, analysts can rapidly determine which product exhibits faster growth, whether their market trajectories are converging or diverging, and if any significant, unexpected shifts have occurred over the observation period. This comparative modeling approach transforms simple data plots into rigorous analytical tools.

Our primary objective is to construct a powerful visual representation, mirroring the image presented below, that features multiple trendlines. This visualization format concisely illustrates the distinct sales trajectories for two separate products over a defined timeframe, thereby enabling immediate, side-by-side comparative analysis. Such clarity is paramount for facilitating more robust and informed strategic decision-making throughout an organization. The following comprehensive, step-by-step guide is designed to walk you through the precise mechanics of creating this exemplary plot in Excel, ensuring that you can replicate this highly effective visualization technique using your own operational data and advanced analytical requirements.

The Strategic Value of Multi-Series Trend Analysis

The implementation of multiple trendlines on a single chart extends far beyond simple cosmetic enhancement; it functions as a fundamental analytical requirement when dealing with complex datasets. In scenarios involving comparative time-series data or performance comparisons between different categories—such as product lines, geographic regions, or experimental groups—isolating the unique underlying pattern for each component is absolutely critical for unbiased assessment. For instance, a financial analyst might need to compare the stock performance of Company X and Company Y relative to an industry benchmark, or a scientist might track the differential growth rates of three distinct microbial cultures. Relying on a single generalized trendline in these scenarios would misleadingly homogenize these distinct patterns, effectively obscuring valuable individual insights and unique performance drivers across the entities being studied.

By deploying multiple, meticulously fitted trendlines, each corresponding to a specific data series, you enable a direct and sophisticated visual and analytical comparison. This methodology instantly highlights key divergences, moments of convergence, and differing rates of change—critical details that are often impossible to extract from a raw data plot alone. It provides stakeholders with the ability to simultaneously comprehend the individual performance dynamics of each entity while maintaining a clear view of the broader competitive landscape or systemic behavior. This enhanced clarity is essential for accurate forecasting, robust strategic planning, and comprehensive performance evaluation, successfully transforming raw statistical observations into compelling narratives of change and trajectory in data analysis.

A significant analytical advantage of this technique is the ability to display the individual regression analysis equations associated with each fitted line. These equations, typically derived from a model such as linear regression, provide the precise mathematical model that best summarizes the relationship within that specific data series. This moves the analysis beyond visual estimation; the viewer is presented with a precise mathematical formula that describes the relationship between the plotted variables. This powerful integration of visual intuition and mathematical precision establishes multiple trendlines as an indispensable tool for comprehensive data visualization and detailed interpretation.

Data Architecture: Structuring Comparative Time-Series Data

The cornerstone of generating any effective and accurate chart in Excel is the meticulous organization of the source data. Before commencing the visualization process, it is critical to structure the dataset in a format that Excel can seamlessly interpret and plot. To successfully add multiple trendlines, your data must adhere to a specific layout: the independent variable—typically a continuous scale such as time (e.g., years, months) or dosage—must occupy the first column. Subsequent columns should contain the dependent variables (the specific metrics you wish to compare, such as product sales or experimental outcomes). Each of these dependent variable columns will be recognized by Excel as a unique data series on the final chart.

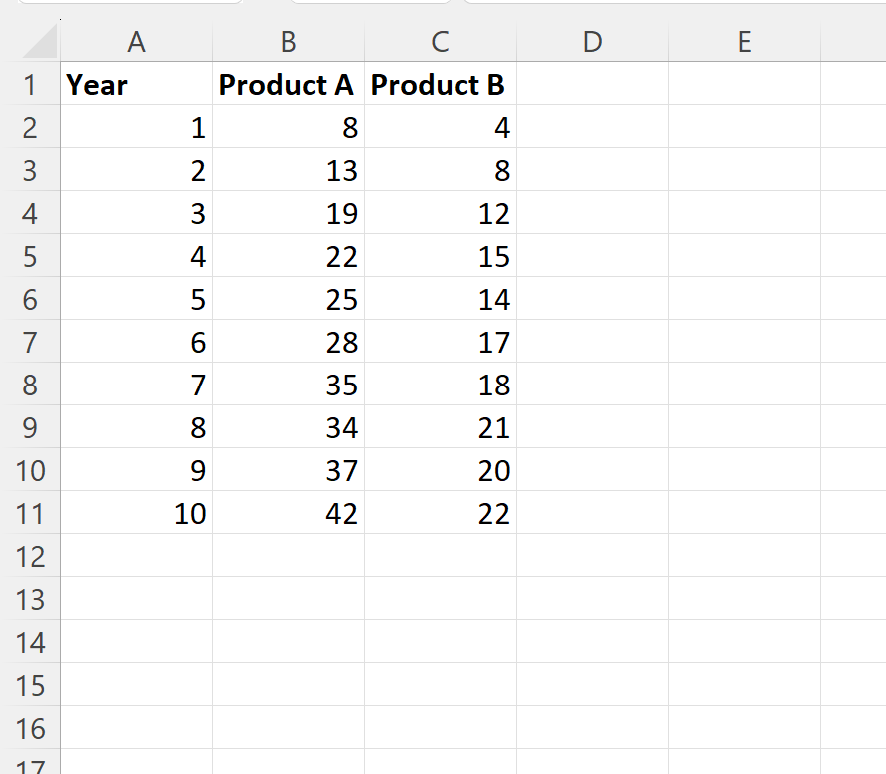

To illustrate this process, we will establish a straightforward yet highly effective dataset tracking the total sales figures for two distinct entities, Product A and Product B, spanning a duration of ten consecutive years. This specific structure ensures that the sales data for each product is perfectly aligned with its corresponding year, which is essential for the subsequent charting process. When inputting your own operational data, absolute consistency in measurement units and data formats across all columns is mandatory to prevent any skewing or misrepresentation in the final graphical output. The time variable serves as the foundation upon which all comparative trends are measured.

The required dataset architecture strictly mandates the independent variable “Year” occupying the first column, followed by “Product A Sales” in the second column, and “Product B Sales” in the third. This clear and sequential arrangement is vital because it instructs Excel on how to correctly identify the X-axis (independent variable) and the individual data series (dependent variables). Accuracy during this data entry phase is paramount, as even minor errors can significantly distort the observed trends. It is highly recommended to double-check all values to ensure they accurately reflect the intended information before moving forward to the chart creation stage, guaranteeing the integrity of the eventual analysis.

Selecting the Right Visualization: The Scatter Plot

Once your data is meticulously prepared and organized according to the required structure, the next crucial decision involves selecting the appropriate chart type for effective visualization. For the purpose of observing quantitative relationships between two numerical variables, particularly when analyzing trends over time or across continuous scales, the scatter plot is considered the gold standard. Unlike standard line charts, which often imply a continuous flow between points, or bar charts, which emphasize discrete categories, a scatter plot displays individual data points. This makes it uniquely suited for revealing correlation, detecting clusters, and, most importantly, accurately fitting mathematical trendlines that summarize the data’s movement in data analysis.

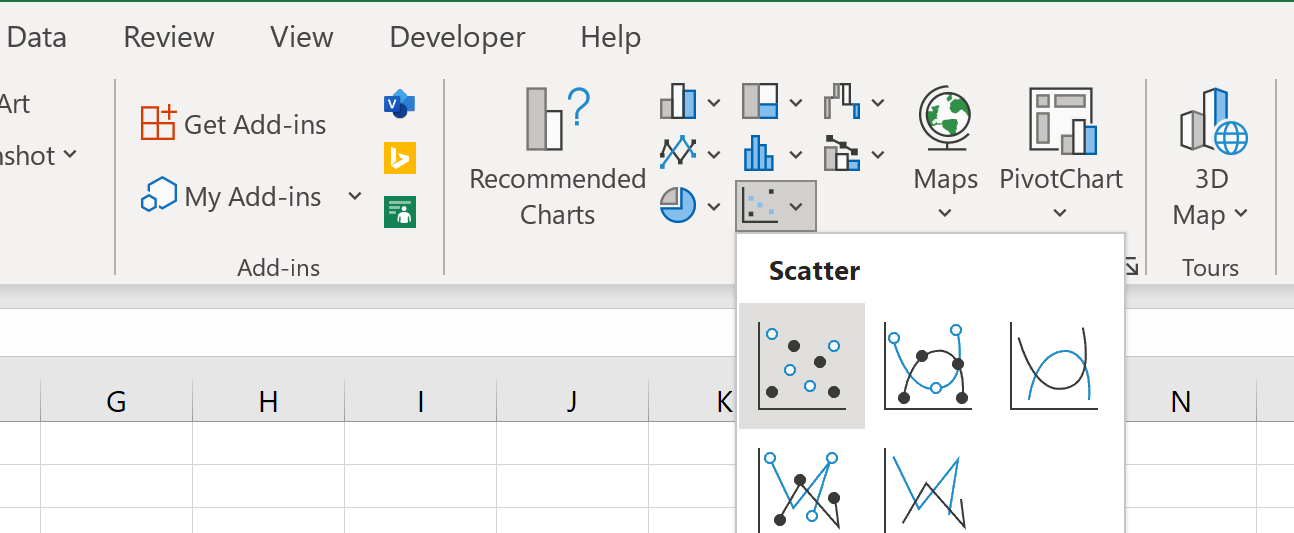

To initiate the insertion of the scatter plot, you must first select the entire range of your prepared dataset, including the meaningful column headers. In the context of our example, this selection encompasses the cell range A1:C11. After the data is selected, navigate to the Insert tab, prominently located on the main Excel ribbon. Within this tab, locate the “Charts group” and click on the Scatter icon. Among the various scatter plot options presented, select the basic “Scatter” chart type, which displays only markers for each data point. This immediate action will generate a preliminary scatter plot object directly onto your worksheet, ready for refinement and the introduction of analytical models.

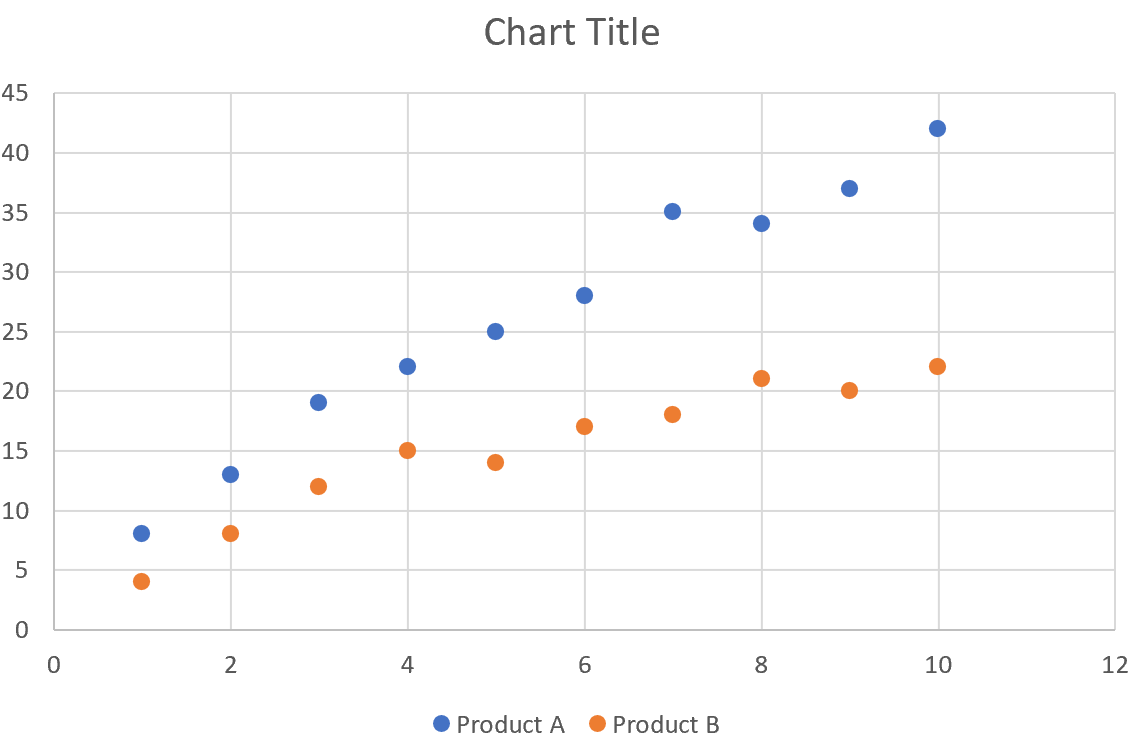

Following insertion, the scatter plot provides an immediate, visual representation of your underlying data structure. In our case study, you will clearly observe two distinct groups of colored markers: the blue markers representing the annual sales figures for Product A, and the orange markers corresponding to the annual sales of Product B. This initial visualization presents a raw, unfiltered perspective of the data, enabling the observation of immediate patterns, anomalies, or outliers before the mathematical precision of the trendlines is overlaid. This foundational step is critical as it successfully sets the stage for the sophisticated comparative analysis that will follow.

Executing Regression Analysis and Trendline Implementation

Once the scatter plot has been successfully generated, the next vital stage is the introduction of the trendlines. These lines serve as mathematical summaries of the behavior exhibited by each data series. Conceptually, a trendline is the visual embodiment of a statistical model, which is instrumental in identifying underlying long-term patterns and providing a basis for predicting future values based on historical observations. For this comparative analysis, we will focus on adding a linear regression model, as it is the most commonly used and easily interpretable type for demonstrating a constant, steady rate of change over time.

To add the first trendline, carefully follow these steps:

1. Click on any of the data points belonging to the first series (e.g., the blue markers for Product A sales). This action selects the entire data series.

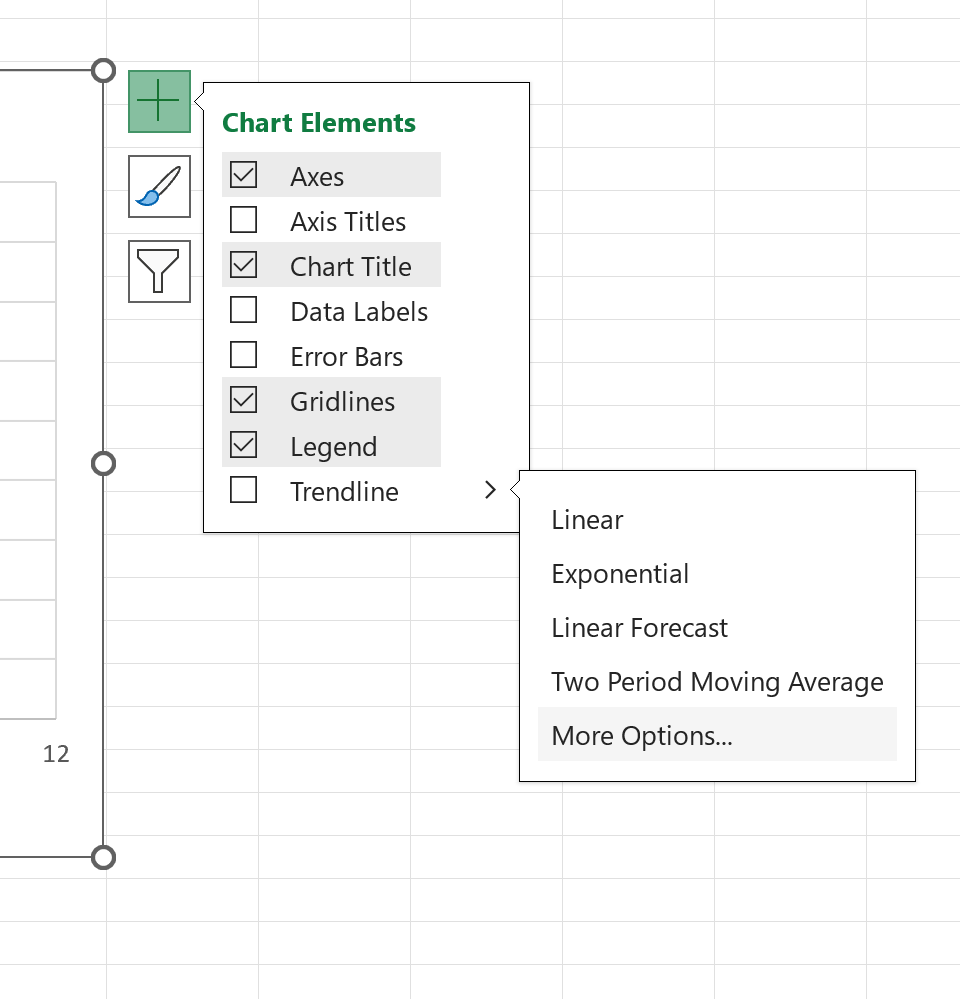

2. A small green Chart Elements button (represented by a plus sign icon) will appear near the top-right corner of your chart area. Click this button to access the chart options menu.
3. Hover your cursor over the Trendline option in the resulting list, and then click the small dropdown arrow that appears adjacent to it.
4. From the expanded submenu, select More Options. This action will open the dedicated “Format Trendline” pane on the right side of your Excel interface, granting access to comprehensive customization and analytical features.

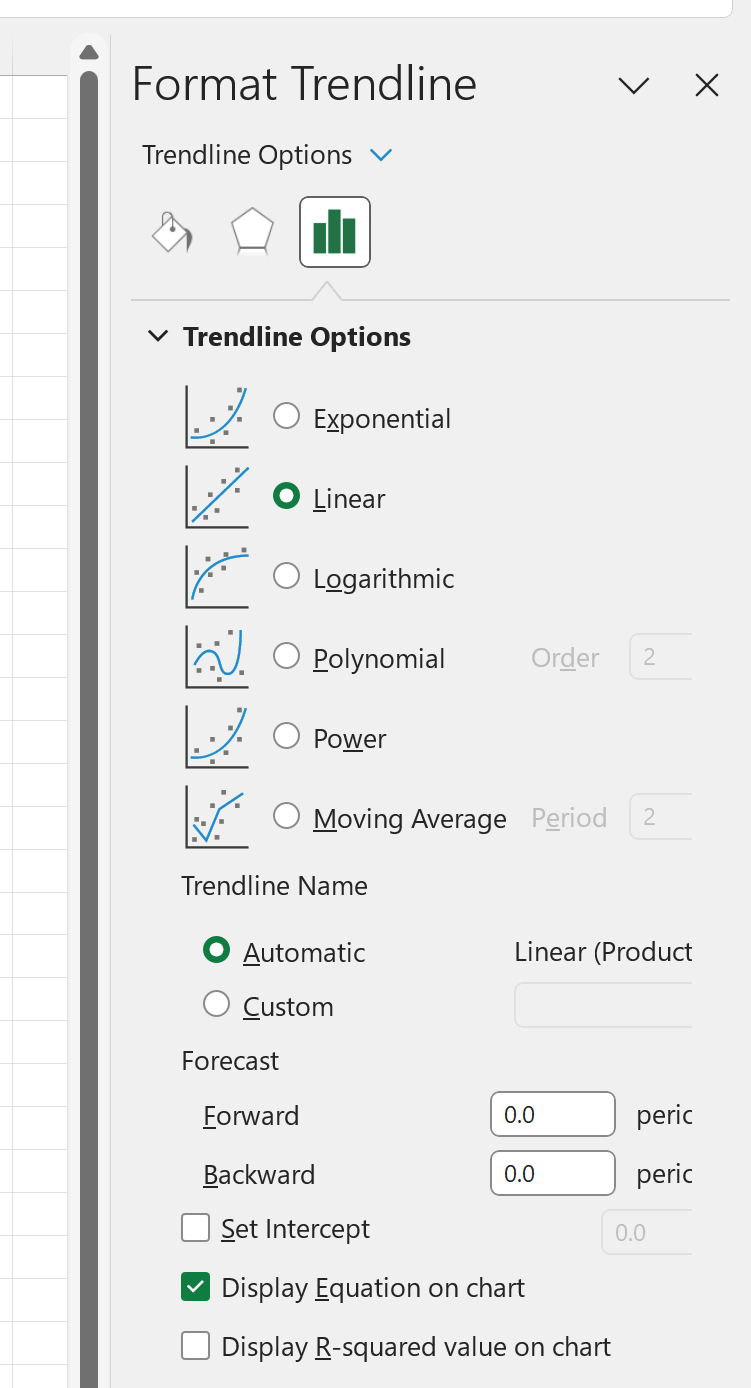

Inside the “Format Trendline” pane, ensure that the “Linear” option is selected under the trendline type section. Crucially, activate the checkboxes labeled “Display Equation on chart” and “Display R-squared value on chart”. Displaying the equation provides the exact mathematical formula of the linear regression model, while the R-squared value quantifies the goodness of fit, indicating how closely the trendline adheres to the actual data. After setting these parameters, you must repeat this precise procedure for the second data series (the orange markers for Product B sales). Once both series have their specific linear regression trendlines applied, each complete with its unique equation and R-squared value, your chart will instantly showcase two distinct analytical trajectories.

Interpreting Results and Advanced Trendline Customization

The immediate visual impact of the newly incorporated trendlines is transformative. You will clearly see two dedicated lines, each succinctly representing the general direction and calculated rate of change for Product A and Product B sales, respectively. Each of these lines is supported by its corresponding linear regression equation, typically formatted as “y = mx + b.” Here, ‘m’ signifies the slope, which is the calculated rate of change per unit (in our case, per year), and ‘b’ represents the y-intercept. These equations, along with the displayed R-squared value, provide robust quantitative support for the visual trends, enabling a significantly deeper understanding of the data’s historical behavior and facilitating more precise forecasting and comparative analysis. This powerful blend of visual intuition and mathematical rigor transforms a basic scatter plot into a sophisticated analytical instrument for data visualization.

Beyond simply adding the analytical lines, Excel offers robust features to customize their appearance and predictive behavior, allowing you to fine-tune your visualization for maximum clarity and professional impact. The “Format Trendline” pane, used earlier, is the central control panel for these advanced settings. Within the “Trendline Options,” you can explore alternative mathematical models beyond linear, such as Exponential, Logarithmic, Polynomial, Power, and Moving Average. Selecting the most accurate trendline type is crucial for ensuring the visualization accurately reflects the true underlying pattern of the data. For instance, a parabolic pattern would necessitate a Polynomial model rather than a simple Linear one.

The “Fill & Line” section provides extensive aesthetic customization capabilities. You can modify the trendline‘s color to align with your corporate branding or to clearly differentiate between the multiple series being compared. Adjusting the line’s weight (thickness) can enhance its prominence, and changing the dash type (e.g., solid, dashed, or dotted) adds another crucial layer of visual differentiation, especially when multiple lines are densely packed on a single chart. Moreover, within the “Trendline Options,” you can adjust the “Forecast” periods (using the “Forward” or “Backward” boxes). By setting a specific number of periods, you can visually extend the trend beyond your existing data points, thereby offering an estimated future or past trajectory. While incredibly useful for predictive analysis, analysts must exercise caution, as these extrapolations rely heavily on the assumption that the established trend will continue unchanged.

Refinement: Maximizing Readability and Professional Impact

The process of chart creation is only complete after a critical phase of refinement aimed at maximizing readability and professional presentation. A truly well-designed chart must be capable of communicating complex insights instantly and without ambiguity. A primary step in this refinement involves streamlining the chart legend. Excel often automatically generates redundant entries for trendlines (e.g., “Linear (Product A)”), which are usually unnecessary since the lines visually correspond to their respective data series. To declutter the chart legend, simply click on these specific redundant labels and press the Delete key. This action removes the excess entries, resulting in a cleaner, more focused legend that draws attention only to the primary data series.

Following the legend cleanup, the addition of a custom, descriptive chart title and meaningful axis labels is non-negotiable. A strong chart title immediately communicates the chart’s content and purpose to the viewer. Similarly, explicitly labeling the axes (e.g., “Year” for the X-axis and “Total Sales in Millions” for the Y-axis) eliminates any potential ambiguity, ensuring that the quantitative scales are interpreted correctly. To efficiently add these elements, utilize the Chart Elements button once more, checking the boxes for “Chart Title” and “Axis Titles.” Then, click on the placeholder text for each element to input your specific, clarifying descriptions. This thoughtful labeling process significantly elevates the overall interpretability of your data visualization.

Finally, to ensure that the critical mathematical insights provided by the linear regression equations are easily accessible, you must format their appearance directly on the chart. By default, the font size and color for these equations can often be too subtle, rendering them difficult to decipher quickly. To improve visibility, click directly on each equation text box located on the chart. Utilize the formatting options available in the “Home” tab of the Excel ribbon to increase the font size, alter the color for contrast, and most importantly, make the font bold. These precise visual adjustments dramatically improve the readability of the equations, allowing your audience to rapidly absorb the underlying mathematical models that govern the observed trends. The successful culmination of these customization steps results in a final chart that is professional, crystal clear, and highly informative, ready for any presentation or detailed analysis.

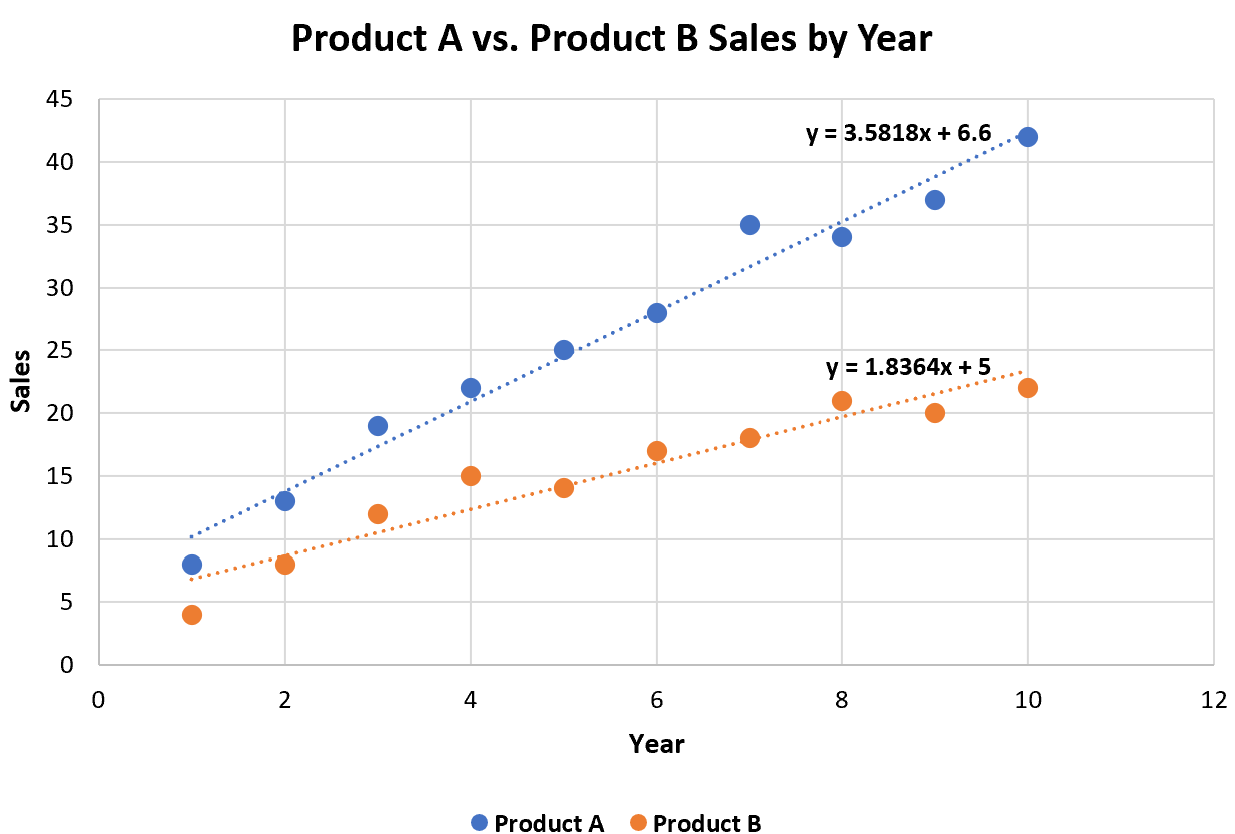

The final chart, meticulously refined with distinct trendlines, appropriate titles, and enhanced readability, will look like this:

Conclusion: Mastering Comparative Data Visualization

The mastery of adding multiple trendlines within Excel represents a significant advancement for anyone involved in professional data analysis and sophisticated data visualization. This technique provides the means to move beyond the limitations of simply plotting raw data, enabling a deeper, more rigorous quantitative comprehension of the patterns and inherent relationships within complex, comparative datasets. By precisely executing the structured steps detailed in this guide—from data preparation to visualization refinement—you gain the ability to effectively compare the distinct trajectories of multiple data series, whether these variables represent sales performance, scientific measurements, or complex, time-dependent metrics. The integrated display of individual regression analysis equations and R-squared values further validates your analysis, providing mathematical certainty for observed trends and significantly boosting the predictive capabilities of your charts.

We strongly encourage you to apply these newly acquired principles to your own organizational data. Experiment actively with different trendline types and explore all available customization options to discover the most compelling and accurate way to articulate your data’s unique narrative. It is vital to remember that highly effective data visualization involves more than just presenting numbers; it is fundamentally about conveying critical insights clearly, concisely, and persuasively to influence decision-making. Through the meticulous preparation of data, the judicious selection of the appropriate chart, and the professional refinement of its visual appearance, you successfully transform raw information into an indispensable tool for strategic communication.

For individuals dedicated to advancing their expertise in Excel, and eager to explore additional advanced charting and data analysis features, a vast array of high-quality resources is readily available. Continuously expanding your practical knowledge of advanced Excel functionalities will undeniably enhance your capability to extract maximum analytical value from even the largest and most complex datasets. We recommend investigating tutorials focused on the following topics to further elevate your analytical prowess and data storytelling abilities:
