Learning to Add Data Points to Existing Plots in R

In the context of statistical computing and analysis, the ability to layer multiple datasets onto a single graphical display is indispensable for effective data visualization. This comprehensive tutorial will guide users of the R programming environment on the precise method for adding new data points to a plot that has already been generated. This technique is frequently required when analysts need to compare the relationship between two different variables or highlight specific observations within a broader context. We achieve this essential functionality by utilizing the highly versatile points() function, a core component of R’s base graphics system. Mastering this function significantly enhances the clarity and interpretability of your statistical graphics, transforming raw data into insightful visual narratives.

The Purpose and Mechanics of the points() Function

The points() function occupies a specialized and critical niche within R‘s graphical toolkit. It is fundamentally different from the plot() function: while plot() is responsible for initiating a new graphical device and drawing the first set of data, points() is strictly designed to augment an existing plot. This distinction allows users to build complex visualizations iteratively, ensuring that all data series sharing the same coordinate system can be displayed concurrently for direct, side-by-side comparison.

The core mechanism of points() involves drawing graphical symbols at precise X and Y coordinates provided by the user. This dynamic capability means visualizations can be updated without the need to entirely regenerate the plot canvas. This not only streamlines the development process for multi-layered plots but also offers efficiency in scripting and computational resource management. Furthermore, the function’s inherent flexibility allows for extensive customization of the appearance of these newly added points, ensuring they are visually distinct and clearly separable from the initial dataset.

Basic Syntax and Essential Graphical Arguments

The syntax required for invoking the points() function is exceptionally concise, requiring only the vectors defining the horizontal (x) and vertical (y) coordinates of the data to be added. In typical R workflows, these coordinates are often extracted directly from columns within a data frame, which is the foundational structure in R used for storing tabular data. Understanding and manipulating these core arguments is key to effective plot customization.

The fundamental structure of the command is as follows:

points(x_coordinates, y_coordinates, col='color_name', pch=symbol_code, ...)

Beyond the mandatory coordinate vectors, two of the most critical graphical parameters are col argument and pch argument. The col argument dictates the color of the plotting symbols, accepting standard color names (like "green" or "black") or precise hexadecimal color codes. Conversely, the pch argument (short for plotting character) controls the symbol shape used for the points, utilizing numerical codes—for example, 16 yields a solid circle, 1 an empty circle, and 4 a cross. Precise control over these elements ensures maximum visual contrast and clarity.

For practical illustration, executing points(df2$x, df2$y, col='red', pch=17) instructs R to add points derived from the x and y columns of the df2 data frame to the current plot, rendering them as red, solid symbols. This immediate application showcases the efficiency and power of the function for overlaying information onto an existing scatter plot.

Step-by-Step Implementation: Establishing the Base Plot

Before we can utilize points() to add data, we must first establish the graphical canvas using the plot() function. This initial step involves creating our primary dataset, df1, structured as a data frame containing the x and y coordinates. This data will form the foundation of our scatter plot.

The plot() command below initializes a new graphical window, defining the axis ranges and labels. We explicitly set parameters like the point color and symbol type to ensure the initial data is clearly presented. Pay close attention to the arguments used for labeling the axes and providing a descriptive title, which are crucial components of informative visualizations.

# Create the first data frame
df1 <- data.frame(x=c(1, 2, 3, 4, 5, 6, 7, 8, 9, 10),
                  y=c(4, 5, 5, 4, 6, 8, 12, 15, 19, 22))

# Generate the initial scatter plot using df1
plot(df1$x, df1$y, col='blue', pch=16,
     xlab="X-axis Label", ylab="Y-axis Label", main="Initial Scatter Plot")

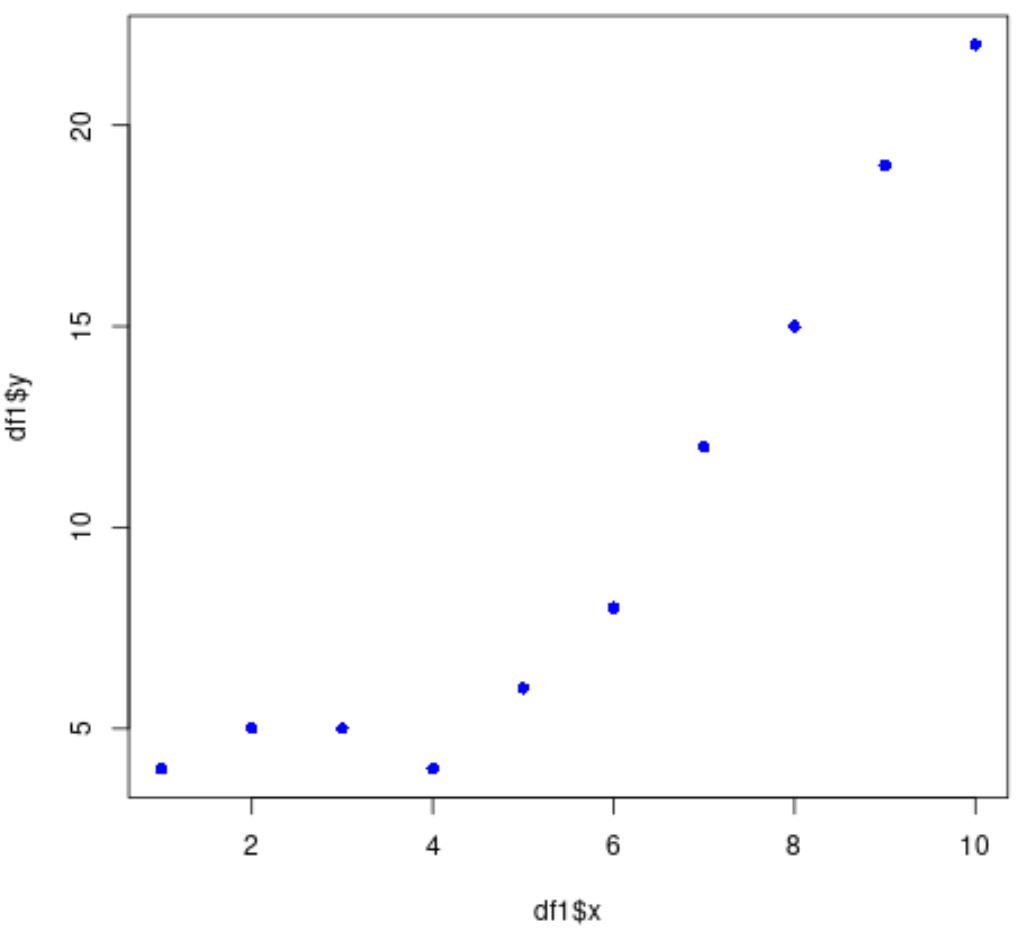

In this setup, df1$x and df1$y provide the necessary coordinates. The col argument assigns a distinct blue color to the points, and the pch argument of 16 ensures that the symbols are solid, filled circles. The inclusion of xlab, ylab, and main transforms the basic visualization into an articulate statistical graphic, clearly illustrating the relationship defined by the df1 dataset.

It is important to note the standard codes for plotting characters (pch). While 16 provides a high-visibility filled circle, other common options include 1 (open circle), 2 (open triangle), and 4 (cross). Choosing an appropriate symbol, alongside a distinct color specified by the col argument, is essential for maximizing the clarity of the resulting scatter plot.

Layering Data: Utilizing points() to Add a Second Series

Once the initial plot is established, the next crucial step is integrating the second series of observations. This process is central to comparative analysis, allowing us to visualize how two separate conditions or variables interact within the same coordinate space. To execute this, we introduce df2, a new data frame holding the coordinates for our second set of points.

The points() function is now called to overlay this new data directly onto the active plot. Critically, because points() does not reset the graphical device, the blue points from df1 remain visible beneath the new layer. To ensure immediate differentiation and prevent visual confusion, it is imperative to assign distinct visual properties—specifically, a unique color and potentially a different symbol—to the points sourced from df2.

# Create the second data frame
df2 <- data.frame(x=c(1, 2, 3, 4, 5, 6, 7, 8, 9, 10),
                  y=c(14, 12, 9, 9, 8, 5, 4, 5, 3, 2))

# Add points from df2 to the existing scatter plot
points(df2$x, df2$y, col='red', pch=16)

Upon execution of this code snippet, the points corresponding to df2 are drawn in red on the same graph as df1‘s blue points. By assigning 'red' to the col argument, we create a strong visual contrast, which is essential for comparative data visualization. This layered display instantly allows viewers to observe the distinct trends and relationships within both datasets simultaneously.

The updated visualization clearly illustrates the successful integration of the second data series. The contrasting red and blue points effectively highlight the differing trajectories of df1 and df2. While distinct colors provide immediate aesthetic separation, ensuring the plot’s analytical value requires a formal mechanism for identification, which brings us to the importance of legends.

Ensuring Interpretability with the Legend Function

Although visual differences in color and shape are helpful, a legend() function is crucial for transforming visual distinction into formal, self-explanatory information. A thoughtfully constructed legend is non-negotiable for any scientific or professional graphic that presents multiple data series, as it eliminates all guesswork regarding which visual component represents which underlying dataset.

The legend() function requires several key inputs: the desired position of the legend on the plot, the textual labels corresponding to each series, and the graphical attributes (such as colors and symbols) that match the plotted data. This integration ensures the entire visualization is robust and interpretable, regardless of the viewer’s familiarity with the source code or data structure.

# Add a legend to the plot for clarity
legend(x=1, y=22, legend=c('df1', 'df2'), fill=c('blue', 'red'),
       title="Data Series", cex=0.8)

In the example above, the coordinates x=1 and y=22 define the placement of the legend in the top-left area of the plot. The legend argument provides the descriptive labels "df1" and "df2", while the fill argument links these labels to the corresponding colors (blue and red). By adding a title and adjusting the text size using cex, we finalize the plot preparation, making it a professional-grade statistical graphic ready for presentation or publication.

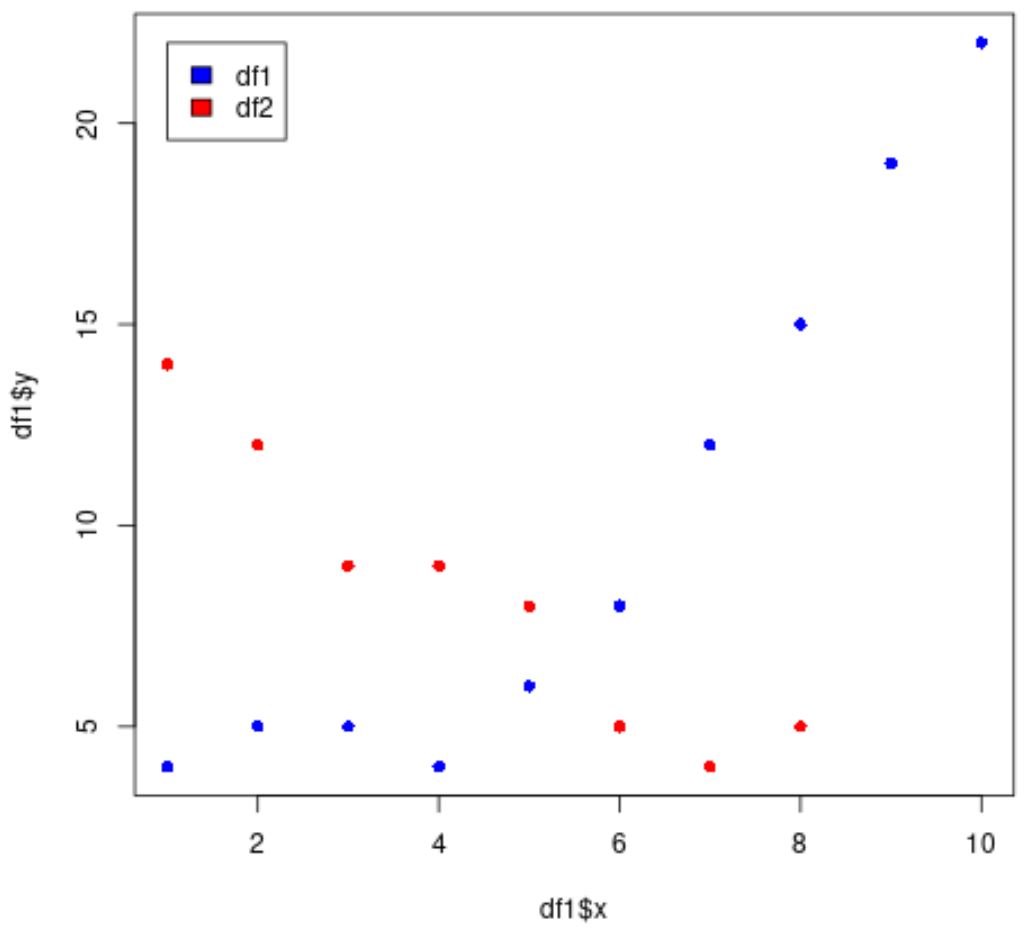

The final visualization, complete with the integrated legend, is now entirely self-contained and descriptive. Viewers can instantaneously correlate the visual elements—the blue and red points—with their respective data sources, df1 and df2. This practice of ensuring every element is clearly labeled is paramount for high-quality data visualization and prevents potential misinterpretation of the analytical results.

Summary and Recommendations for Advanced Plotting

The points() function stands out as an exceptionally powerful and adaptable utility within R‘s base graphics system. It provides analysts with the essential capability to dynamically add new datasets to existing plots, facilitating the creation of complex, multi-layered visualizations that communicate intricate relationships effectively. The true strength of this approach is realized when points() is paired with thoughtful parameter choices—specifically concerning color and symbol—and the mandatory inclusion of the legend() function.

One significant advantage of points() is its iterative nature: the function can be called repeatedly to layer points from numerous vectors or data frames onto the same graph. This allows for a modular approach to plot construction, enabling users to build intricate visualizations gradually, perfectly tailored to specific analytical requirements. When designing these layered plots, always prioritize visual hierarchy by selecting highly distinct colors and point characters for each new dataset to maintain absolute visual clarity.

Ultimately, effective data visualization goes beyond merely displaying numbers; it is about crafting a clear and compelling narrative for your audience. The techniques demonstrated in this guide—from initializing the plot to carefully layering and labeling data—provide a robust methodology for generating professional-quality plots in R that are both aesthetically appealing and profoundly informative.
