Add Superscripts & Subscripts to Plots in R

Mastering Text Formatting in R Plots: An Overview

Creating high-quality data visualization is essential for effective scientific communication. While R excels at generating powerful graphs, standard text labels often fall short when dealing with mathematical notation, chemical formulas, or statistical terms. To accurately represent variables like $x^3$ or $y_i$, we require specific formatting capabilities, namely superscripts and subscripts.

Fortunately, the base graphics system in R provides robust tools for handling complex text elements. The key to unlocking this advanced formatting lies in the use of the special function expression(). This function allows us to interpret strings as mathematical expressions rather than simple text literals, enabling the use of symbols like ^ for superscripts and square brackets [] for subscripts.

Understanding how to correctly implement these text enhancements is crucial for generating publication-ready figures. This guide will walk through the fundamental syntax required to integrate superscripts and subscripts into various parts of your plots, including axis labels and internal annotations. We will begin by examining the core syntax structure before moving into practical, illustrative examples.

The Power of the expression() Function

The expression() function in R is specifically designed to handle mathematical annotations within plots. Unlike regular character strings, arguments passed to expression() are parsed by the R interpreter specifically for graphical rendering, allowing access to a wide range of mathematical symbols and specialized text formatting commands.

To define an axis label or plot annotation that includes superscripts and subscripts, we must wrap the entire label definition within the expression() call. Within this structure, the caret symbol (^) signifies a superscript, while square brackets ([]) denote a subscript. The tilde symbol (~) is used to introduce a small space, separating parts of the expression that might otherwise run together.

The following basic syntax demonstrates how to define expressions incorporating both types of formatting. This technique applies universally whether you are labeling an axis, adding a title, or annotating a specific point on your graph.

# Define expression with superscript (x cubed)
x_expression <- expression(x^3 ~ variable ~ label)

# Define expression with subscript (y sub 3)
y_expression <- expression(y[3] ~ variable ~ label)

# Add these expressions to axis labels during plotting
plot(x, y, xlab = x_expression, ylab = y_expression)

The ability to use the expression() function is fundamental to achieving a professional standard in graphical output within the base R graphics environment. The examples below illustrate how these principles translate into actionable code for common data visualization tasks.

Example 1: Implementing Superscripts in Axis Labels (and Solving Truncation Issues)

One of the most frequent requirements is adding exponents or units (like $m^2$ or $R^2$) to axis titles. This example demonstrates how to define and apply a superscript to both the x-axis and y-axis labels. We start by generating simple sample data and then defining our custom labels using the expression() structure.

The following code block defines a simple dataset and then utilizes the caret symbol (^) within the expression() function to create labels where the number ‘3’ is rendered as a superscript.

# Define sample data for plotting
x <- c(1, 2, 3, 4, 5, 6, 7, 8)
y <- c(9, 12, 14, 16, 15, 19, 26, 29)

# Define x and y-axis labels with superscripts (using ^)
x_expression <- expression(x^3 ~ variable ~ label)
y_expression <- expression(y^3 ~ variable ~ label)

# Create the initial plot
plot(x, y, xlab = x_expression, ylab = y_expression)

Upon reviewing the generated plot, a potential issue arises: the y-axis label, particularly the superscript, may appear slightly truncated or cut off by the default plot margins. This commonly occurs when special characters or large text elements push the boundaries of the standard plotting region. To resolve this, we must adjust the graphical parameters that control margin spacing.

The par() function is the standard mechanism in R for modifying graphical settings. Specifically, the mgp parameter controls the distance between the axis line and the axis labels, tick marks, and axis line text. It takes a vector of three values: c(label_distance, tick_mark_distance, axis_line_distance). By reducing the distance of the label from the axis, we can often pull the label entirely into the visible plotting area, preventing truncation.

# Adjust par values for label distance. The default setting is typically c(3, 1, 0).
par(mgp=c(2.5, 1, 0))

# Re-create plot with adjusted margins
plot(x, y, xlab = x_expression, ylab = y_expression)

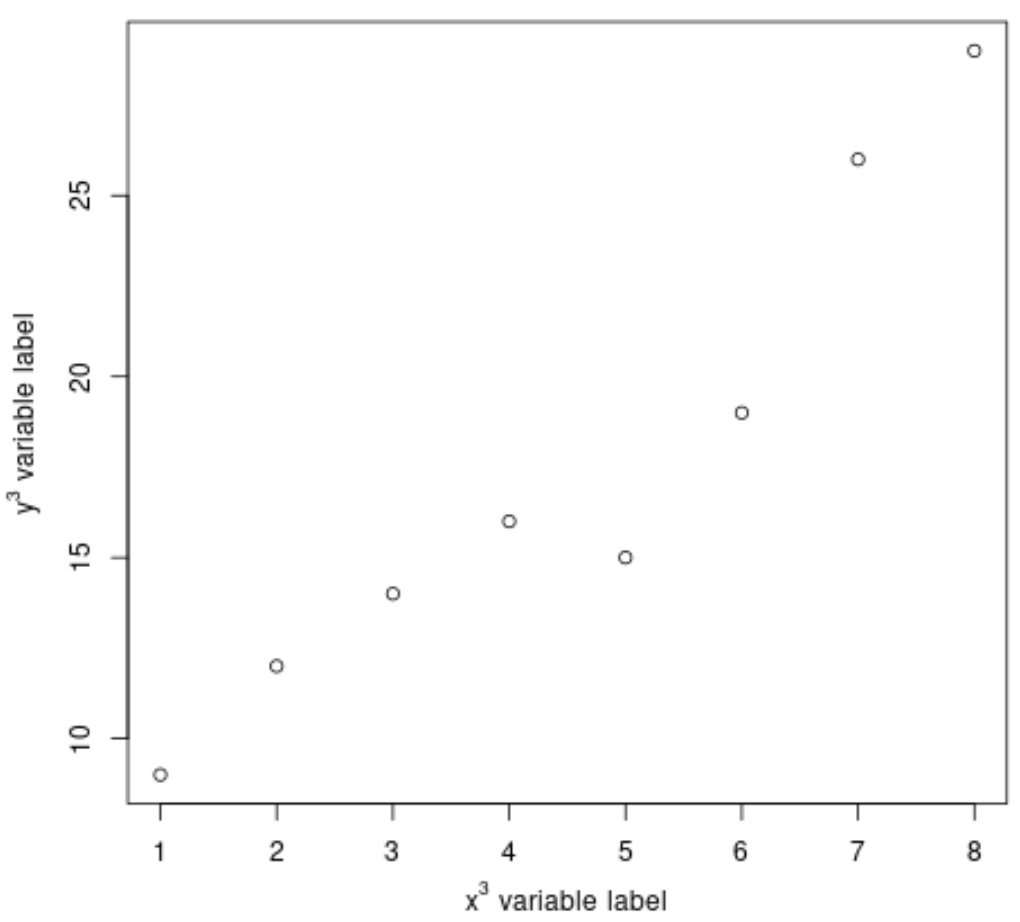

By modifying the mgp parameter using par(), the y-axis label is now properly contained within the plot boundaries. It is important to remember that the value chosen for the superscript (in this case, ‘3’) is arbitrary. Feel free to use any numeric value, character, or even another expression element depending on the scientific context of your data visualization.

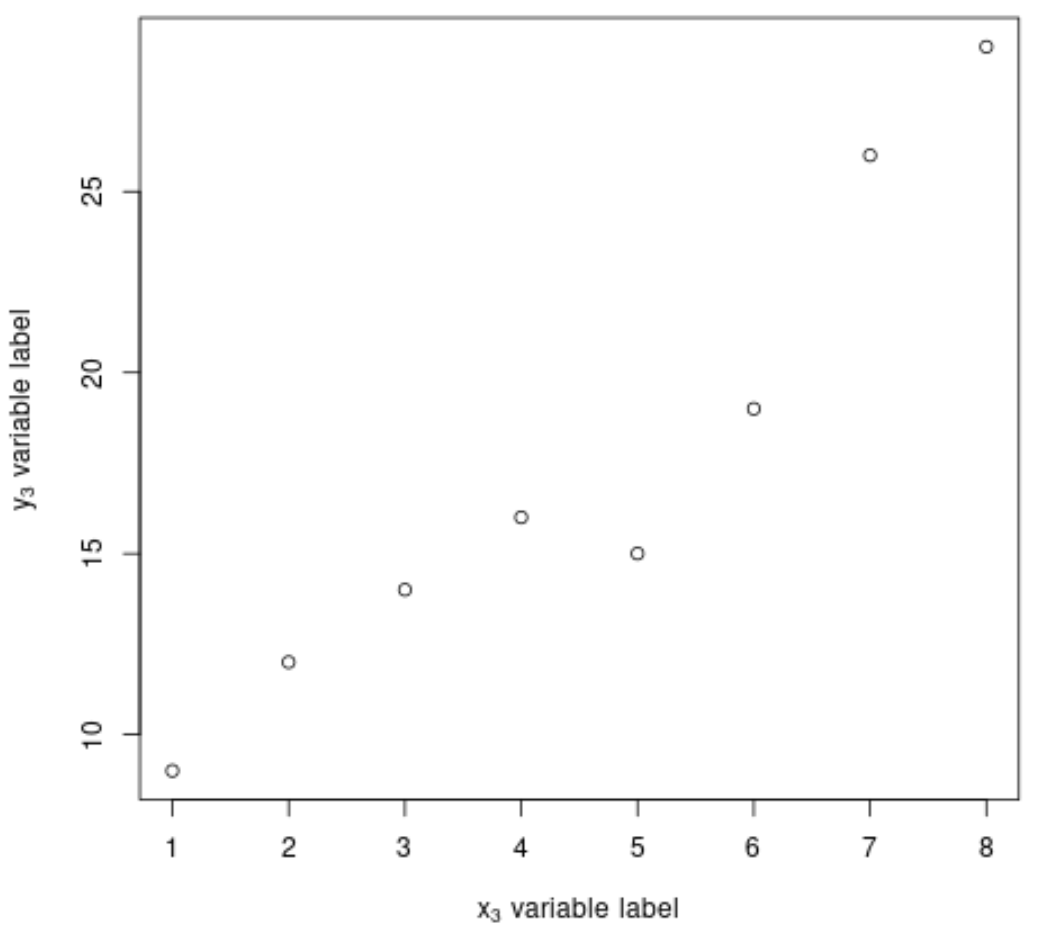

Example 2: Utilizing Subscripts for Clearer Labeling

Subscripts are commonly used in fields such as chemistry (e.g., $H_2O$), physics (e.g., $V_{max}$), and statistics (e.g., $x_i$). In the R plotting environment, subscripts are achieved by enclosing the desired text or number within square brackets ([]) inside the expression() function.

This example demonstrates the creation of axis labels that utilize subscripts. Notice the structural similarity to the superscript example; only the operator changes from ^ to []. This consistency simplifies the process of formatting complex mathematical text.

We will reuse the sample dataset from Example 1 and define new expressions where the index ‘3’ is rendered as a subscript for both the x and y variables.

# Define data (reused from Example 1)
x <- c(1, 2, 3, 4, 5, 6, 7, 8)
y <- c(9, 12, 14, 16, 15, 19, 26, 29)

# Define x and y-axis labels with subscripts (using [])
x_expression <- expression(x[3] ~ variable ~ label)
y_expression <- expression(y[3] ~ variable ~ label)

# Create plot using the subscripted labels
plot(x, y, xlab = x_expression, ylab = y_expression)

Using subscripts effectively ensures that statistical models, variable indices, or chemical compositions are communicated precisely to the audience. This is particularly important when documenting model parameters, such as representing RMSE_j (Root Mean Square Error for model $j$) or T_crit (Critical Temperature). The flexibility of the expression() function allows for complex combinations of text and formatted elements.

Example 3: Placing Formatted Text (Superscripts & Subscripts) Inside the Plot Area

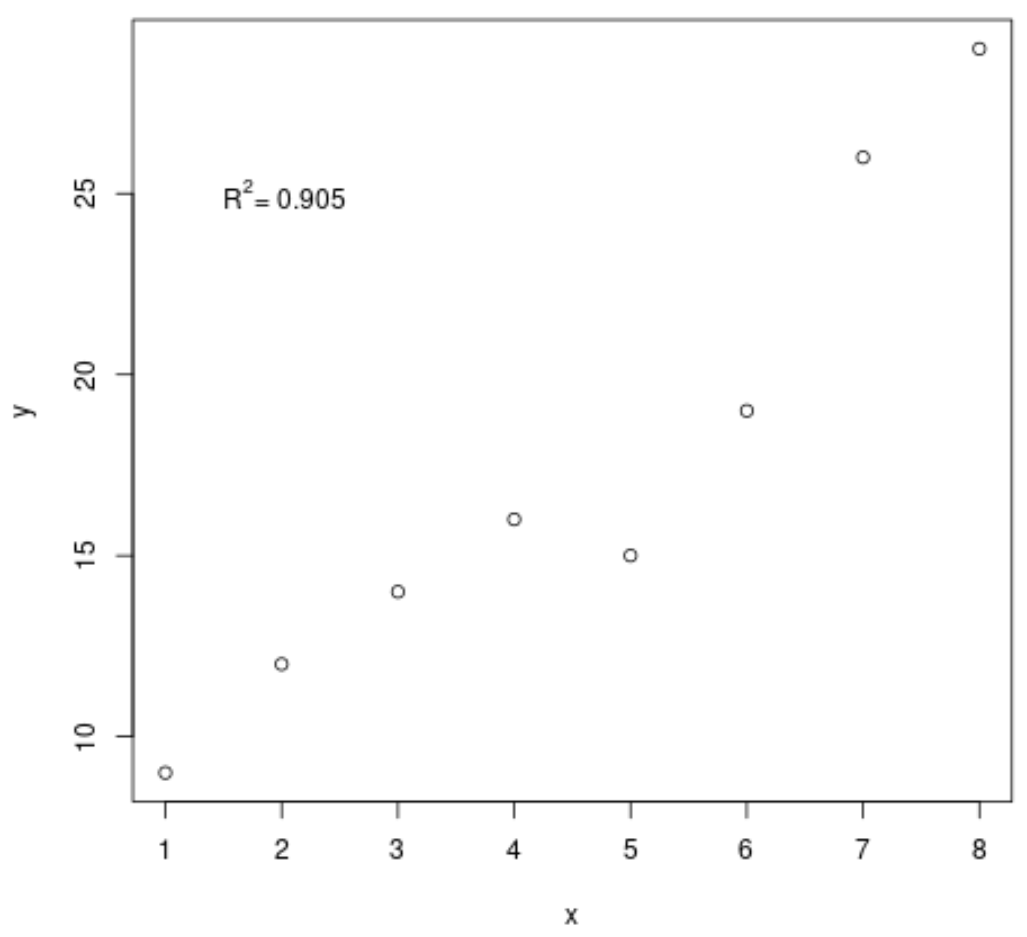

Beyond axis labels, it is often necessary to annotate the plot area itself with formatted text, such as displaying the coefficient of determination ($R^2$) or regression equations. To place text directly onto the plot, we use the text() function. When combining standard text strings with special mathematical formatting required by expression(), we must utilize the paste() function within the expression to concatenate these elements seamlessly.

The paste() function allows us to glue together different types of elements (text strings and formatted expressions) into a single, cohesive label. This is essential because standard text strings (enclosed in quotes) are treated literally, while expressions are interpreted mathematically.

In this example, we calculate an arbitrary $R^2$ value and display it prominently on the graph using a superscript. We first define the $R^2$ expression using paste() to combine the literal text “R”, the superscript ‘2’, the literal text “= “, and the numerical value.

# Define data (reused for continuity)
x <- c(1, 2, 3, 4, 5, 6, 7, 8)
y <- c(9, 12, 14, 16, 15, 19, 26, 29)

# Create base plot
plot(x, y)

# Define label with superscript using paste() to combine strings and math notation
R2_expression <- expression(paste(" ", R^2 , "= ", .905))

# Add the formatted text to the plot at coordinates (x=2, y=25)
text(x = 2, y = 25, label = R2_expression)

When using the text() function, it is crucial to specify the coordinates (x and y) where the label should be placed. Furthermore, the use of paste() within the expression is mandatory when mixing quoted text (like ” = “) with unquoted mathematical symbols (like R^2). This ensures that the R parser correctly identifies which components are literal strings and which need special rendering as superscripts and subscripts.

Advanced Formatting Techniques and Best Practices

While the examples above cover the fundamentals, R‘s expression() capabilities extend much further. Users can combine multiple formatting elements, Greek letters, and complex layout commands. For instance, you can stack a superscript on top of a subscript, or display Greek symbols like $alpha$ and $beta$.

To achieve more complex structures, remember these key syntactic points:

• Use the asterisk (*) for multiplication or concatenation without a space (e.g., expression(x*y^2)).

• Use the tilde (~) for concatenation with a space (e.g., expression(x[i] ~ text)).

• Greek letters are invoked by name (e.g., expression(alpha)).

• Fractions are handled using the frac() command (e.g., expression(frac(numerator, denominator))).

Proper adjustment of graphical parameters using par(), as shown in Example 1, is often necessary when incorporating complex or large text elements. Parameters such as cex (character expansion factor) and mar (margin size) can also be tweaked to ensure optimal appearance and prevent text overlap or truncation, especially when preparing figures for journals with strict formatting requirements.

Conclusion: Enhancing Data Visualization in R

The ability to accurately and aesthetically incorporate superscripts and subscripts is a vital skill for anyone creating statistical or scientific graphics in R. By leveraging the power of the expression() function and mastering the correct syntax for mathematical notation, users can transform basic plots into informative, professional-grade data visualization.

Whether annotating axis labels, displaying statistical results ($R^2$), or documenting complex physical variables, the techniques demonstrated here provide a solid foundation. Remember to always check your graphical parameters using par() if large characters or specialized formatting leads to clipping or poor layout.

By integrating these formatting methods, you ensure that your statistical output is not only accurate in computation but also impeccable in presentation, drastically improving the clarity and impact of your research findings.

Additional Resources for R Graphics

For further reading on advanced R plotting techniques and mathematical annotations, consult the official documentation for the graphics package and related functions.

• ?plotmath documentation provides a comprehensive list of all mathematical symbols and text formatting commands available within expressions.

• The R Graphics Manual offers deep insight into the structure of base R graphics, including detailed descriptions of the par() function and its numerous parameters.
