Adding Titles to Tables Created from Pandas DataFrames Using Matplotlib

Bridging Data Management and Visualization: Pandas and Matplotlib

The ability to transform raw data into comprehensible visual representations is fundamental in modern data visualization and analysis. When working within the Python ecosystem, the two pillars supporting this process are typically the Pandas DataFrame library for data manipulation and storage, and the Matplotlib library for plotting and rendering graphical output. While Pandas excels at structuring complex datasets, Matplotlib provides the essential tools for presenting these structures visually, even when the desired output is a simple text-based table rather than a complex chart. This integration allows analysts to seamlessly move from data processing to polished presentation, ensuring that the visual output accurately reflects the underlying data integrity established by the DataFrame.

A crucial step in creating professional data outputs is providing context, and for tables, this context is usually delivered via a descriptive title. Unlike native spreadsheet software, adding a title to a table generated from a Pandas DataFrame within a Python environment requires leveraging plotting functionalities. Specifically, we utilize the Matplotlib Axes object, which governs the placement and styling of elements within a plot. The primary function used to achieve the desired outcome—labeling the table—is the powerful ax.set_title() method. This method, applied directly to the Axes object where the table resides, allows for precise textual labeling and contextualization of the data being presented.

Understanding how Matplotlib manages figures and axes is key to effective control. Every visualization in Matplotlib exists within a Figure (the overall container) and contains one or more Axes (the specific plotting area). When rendering a static table using ax.table(), we are essentially plotting a graphical element onto an Axes object. Therefore, to title this element, we must use the standard method designed for titling any plot or subplot associated with that specific Axes. The basic syntax for implementing this is straightforward, requiring only the desired string as an argument, as demonstrated in the snippet below, which sets the foundation for our tutorial.

ax.set_title('Some Title')

Preparing the Dataset: Creating the Sample Pandas DataFrame

To illustrate the process of adding a title effectively, we must first establish a representative dataset. For this comprehensive example, we will construct a simple Pandas DataFrame containing typical quantitative data, suitable for tabular display. This process begins by importing the Pandas library, conventionally aliased as pd, which grants access to the necessary data structure creation methods. We will define a dictionary structure where keys represent column headers (e.g., ‘team’, ‘points’, ‘assists’) and values are lists holding the corresponding data points for several basketball teams, thereby ensuring a robust and structured data source for visualization.

The dataset selected for this demonstration tracks performance metrics—specifically points scored and assists recorded—for eight distinct basketball teams labeled A through H. This structure allows us to visualize how specific numerical values correlate with categorical identifiers (the team names). Generating the DataFrame from the dictionary ensures that the data is correctly indexed and aligned, providing the solid foundation necessary before proceeding to the visualization stage using Matplotlib. This preparatory step is vital because the integrity of the input data directly affects the clarity and accuracy of the resulting visual table.

The following Python code initializes the environment and creates the sample DataFrame, providing a clear visual representation of the data structure we intend to present as a titled table. Pay close attention to the consistent use of the pd.DataFrame() constructor, which is central to this preparatory step, followed by the print command which confirms the structure of the data that will be fed into the Matplotlib rendering engine.

import pandas as pd

#create DataFrame
df = pd.DataFrame({'team': ['A', 'B', 'C', 'D', 'E', 'F', 'G', 'H'],
                   'points': [18, 22, 19, 14, 14, 11, 20, 28],
                   'assists': [5, 7, 7, 9, 12, 9, 9, 4]})

#view DataFrame
print(df)

  team  points  assists
0    A      18        5
1    B      22        7
2    C      19        7
3    D      14        9
4    E      14       12
5    F      11        9
6    G      20        9
7    H      28        4

Generating the Matplotlib Table from DataFrame Content

With the data prepared in the Pandas DataFrame (df), the next logical step is to render this information visually using Matplotlib. Since we are creating a static, non-graphical table, we need to utilize the table() function available within the Axes object. This function is specifically designed to display tabular data within a Matplotlib figure environment, leveraging the structured data format provided by the DataFrame. Before calling the table() function, we must initialize the figure and axes, which is standard practice in all Matplotlib workflows.

The initialization phase involves importing matplotlib.pyplot and creating a figure (fig) and a single Axes object (ax) using fig.add_subplot(111). Importantly, because our goal is only to display the table and not a chart, we often use a very narrow figure size (e.g., figsize = (8, .2)) to minimize visual clutter and prevent excessive whitespace, although the final rendering size can be adjusted dynamically. The ax.table() call requires several key arguments to correctly map the DataFrame contents into the visual table structure, ensuring that the rows, columns, and cell data are correctly interpreted by the plotting engine.

The essential arguments passed to the table() function include cellText, which takes the raw data values (df.values); rowLabels, which uses the DataFrame’s index to label the rows; and colLabels, which utilizes the DataFrame’s column names (df.columns) for the header row. Additionally, setting cellLoc='center' ensures that the data within each cell is neatly centered for improved readability. After successfully plotting the table onto the Axes, we must also address the visual clutter inherent in plotting environments. Since tables typically do not require standard coordinate axes, the command ax.axis('off') is employed to hide the x and y axes, leaving only the clean, labeled table structure ready for the crucial title addition.

Applying the Descriptive Title Using set_title()

Once the table has been successfully rendered onto the Matplotlib Axes object, it is ready to receive its descriptive title. As established, the set_title() method is the primary mechanism by which we attach descriptive text to the visualization. This method is exceptionally versatile, designed not just for complex charts and graphs, but also for static elements like tables, providing necessary context for the displayed data. In this specific scenario, given the data pertains to performance statistics, a suitable title like ‘Points and Assists by Team’ immediately informs the viewer about the table’s content and purpose, enhancing its standalone interpretability.

Implementation is straightforward: the method is called directly on the Axes object (ax) and accepts the desired title string as its main argument. This action positions the text above the table, usually centered by default, thereby completing the basic visualization requirement. It is crucial to ensure that the set_title() command is executed after the Axes object has been initialized and the table has been drawn, ensuring the title is correctly associated with the visual element. This structured approach guarantees that all components are correctly placed within the figure hierarchy before the final output is generated and displayed.

The code below integrates the figure initialization, table creation using the DataFrame data, and the application of the title, culminating in a complete, titled tabular visualization ready for export. Notice how ax.set_title() seamlessly integrates into the visualization pipeline, providing the necessary header information before the axes are deliberately turned off for a clean, report-ready display.

import matplotlib.pyplot as plt

#initialize figure
fig = plt.figure(figsize = (8, .2))
ax = fig.add_subplot(111)

#create table
ax.table(cellText = df.values, rowLabels = df.index,
         colLabels = df.columns, cellLoc='center')

#add title to table
ax.set_title('Points and Assists by Team')

#turn axes off
ax.axis('off')

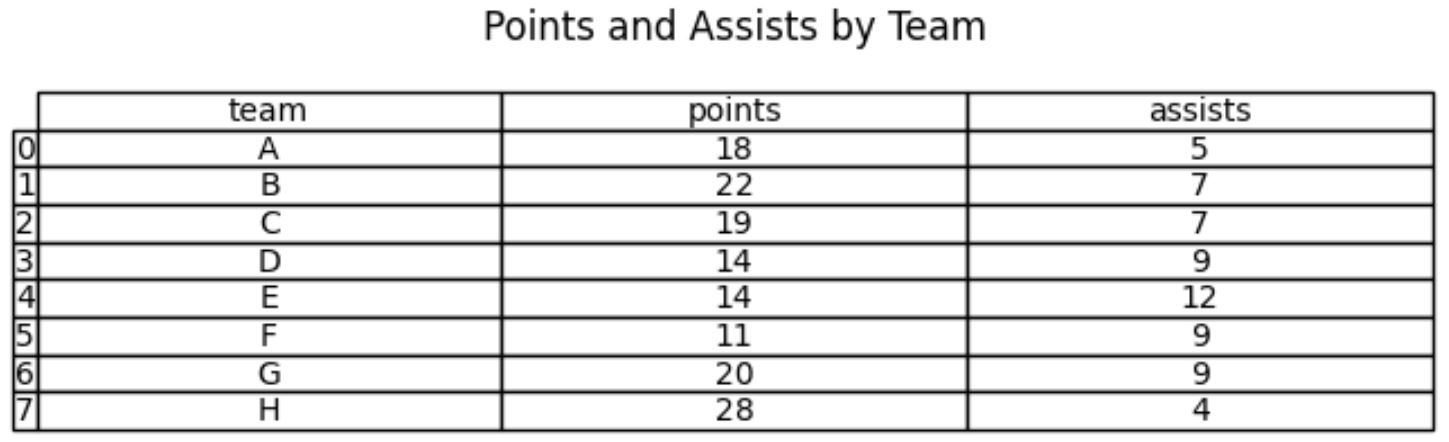

As demonstrated by the output image, the specified title, ‘Points and Assists by Team,’ is now clearly positioned above the generated table. This integration confirms the successful application of the set_title() method to a non-standard Matplotlib element. For users interested in exploring the full capabilities and parameters associated with table creation, comprehensive details regarding cell formatting, column widths, and drawing styles can be found in the official documentation for the table() function in Matplotlib.

Advanced Customization: Modifying Title Appearance and Placement

While the default title appearance serves basic needs, Matplotlib provides extensive customization options to ensure the title aligns with specific formatting or publication standards. The set_title() method supports two crucial optional arguments for advanced styling: fontdict and loc. The fontdict argument accepts a Python dictionary that allows granular control over font properties, including size, weight, and color. This is essential for emphasizing the title or matching the overall aesthetic of a larger report or presentation where visual consistency is mandatory.

The fontdict parameters—such as 'fontsize', 'fontweight', and 'color'—provide the flexibility to drastically alter the visual impact of the title. For instance, increasing the font size ensures the title stands out, while setting the weight to ‘bold’ improves prominence. Furthermore, the loc argument dictates the horizontal alignment of the title relative to the Axes. By default, titles are centered; however, specifying loc='left' or loc='right' shifts the title accordingly, a common requirement in certain editorial styles or when integrating the table into a multi-panel figure where space optimization is necessary.

Implementing these advanced controls requires passing the dictionary of font properties and the desired location string directly into the set_title() call. The example below demonstrates how to modify the title to be significantly larger (size 20), bolded, colored a specific shade of blue (‘steelblue’), and repositioned to be left-aligned above the table. These adjustments transform a standard header into a highly visible, stylistically integrated component of the data presentation, showcasing Matplotlib’s powerful styling capabilities.

import matplotlib.pyplot as plt

#initialize figure
fig = plt.figure(figsize = (8, .2))
ax = fig.add_subplot(111)

#create table
ax.table(cellText = df.values, rowLabels = df.index,
         colLabels = df.columns, cellLoc='center')

#add title to table
ax.set_title('Points and Assists by Team',
              fontdict={'fontsize': 20,
                        'fontweight': 'bold',
                        'color': 'steelblue'},
              loc='left')

#turn axes off
ax.axis('off')

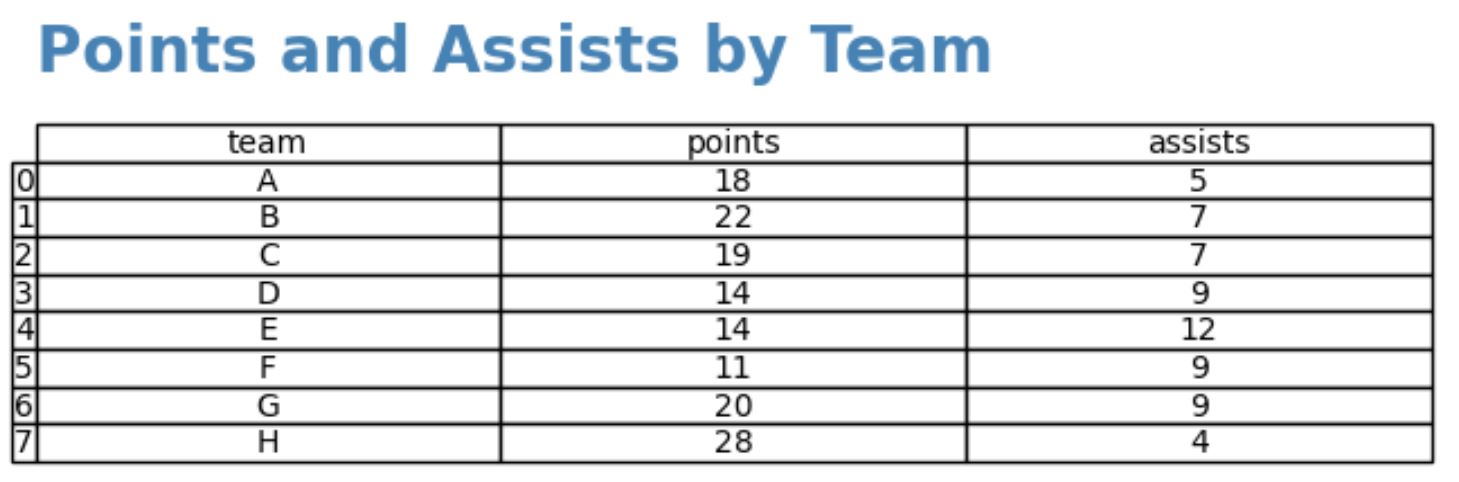

The resulting image clearly illustrates the effectiveness of these modifications: the title is now notably larger, rendered in a distinct blue color, and aligns with the left edge of the table area, fulfilling the requirements specified by the fontdict and loc parameters. Leveraging these options allows for professional-grade formatting when exporting Matplotlib visualizations. To fully harness the power of title modification, including all available font properties and positioning controls, users should refer to the official Matplotlib documentation regarding text properties and set_title() parameters.

Summary and Expanding Visualization Capabilities

In summary, successfully adding a title to a table generated from a Pandas DataFrame is achieved through the powerful visualization capabilities provided by Matplotlib. This process necessitates treating the table as a graphical element plotted onto an Axes object, thereby making it susceptible to standard Matplotlib titling methods. The core function, ax.set_title(), ensures that context is provided cleanly and effectively above the tabular data, drastically improving the accessibility of the visual output.

We have established a robust pipeline: initialize the Pandas DataFrame, set up the Matplotlib Figure and Axes, plot the data using ax.table(), apply the title using ax.set_title(), and finally, clean the output by turning the axes off. Furthermore, the flexibility offered by arguments like fontdict and loc ensures that the title’s aesthetics can be finely tuned to meet any stylistic requirement, moving beyond mere functionality toward sophisticated data presentation. Mastering this technique is a vital step for any analyst aiming to create professional and self-explanatory data reports directly from Python scripts.

For those seeking to expand their knowledge beyond simple titling, the Matplotlib library offers a vast array of tools for annotating, styling, and integrating data elements. Further exploration into the official Matplotlib documentation is highly recommended to discover advanced features such as adding footnotes, controlling table cell colors, and integrating dynamic text fields that react to data changes, fully leveraging the synergy between data manipulation and visualization tools.

Additional Resources

The following resources provide comprehensive documentation for the libraries and functions discussed in this guide, enabling deeper technical understanding and troubleshooting.

• Matplotlib Text Properties Documentation
• Pandas DataFrame API Reference
• Matplotlib Tutorials and Examples
