Learning to Add Tables to ggplot2 Plots: A Step-by-Step Guide

Enhancing Data Visualization with Embedded Tables in ggplot2

In the crucial discipline of data analysis and reporting, the effective communication of findings is paramount. While graphical representations, such as barplots and scatterplots, are exceptional at highlighting macro-level trends and detecting patterns, there are numerous scenarios where providing the underlying numerical data alongside the visualization becomes indispensable. This dual approach allows stakeholders to delve deeper into the specifics, verify points of interest, or gain a comprehensive and nuanced understanding that goes beyond abstract visual summaries.

The integration of tabular data directly into a plot significantly enhances the clarity and completeness of your visualizations. This technique effectively bridges the gap between the general graphical depiction of trends and the concrete numerical values that drive those trends. By empowering your audience with richer context, you facilitate more confident interpretation and decision-making, especially when presenting detailed figures are required for high-stakes analysis or when demonstrating the precise contribution of individual data points to a larger visual pattern.

For professionals utilizing the statistical programming language R, the ggplot2 package remains the industry standard for creating sophisticated and publication-quality graphics. While ggplot2 offers immense flexibility for plotting, natively embedding complex tables can be a challenging and nuanced task. Fortunately, the extensible nature of the R ecosystem means that specialized third-party packages are available to streamline this integration, making the inclusion of tables both straightforward and highly efficient.

Getting Started: Setting Up Your Environment

To seamlessly incorporate tabular data into your ggplot2 visualizations, we will utilize the specialized capabilities provided by the ggpmisc package. This package is explicitly designed to extend ggplot2 functionality, offering a suite of tools that includes methods for generating statistical annotations and, most importantly for this guide, embedding dynamic tables directly onto the plot canvas.

Before proceeding with the practical examples, it is essential to ensure that the ggpmisc package is properly installed and loaded within your R environment. If you have not yet added this package to your library, you can easily install it using the standard `install.packages()` function. Once installed, invoking the `library()` function makes all its enhanced functionalities readily available for use in your scripting sessions.

install.packages('ggpmisc')
library(ggpmisc)

With the necessary prerequisites met, we can now proceed to prepare the foundational dataset for our demonstrations. The following section introduces a concise data frame that will serve as the core input for both our barplot and scatterplot examples, allowing us to showcase how this raw numerical information can be effectively displayed directly inside the resulting plots.

Understanding the Sample Data

To clearly illustrate the process of adding tables to ggplot2 visualizations, we have constructed a small, representative data frame. This data frame, conventionally named `df`, contains hypothetical sports performance metrics, which are ideally suited for creating visualizations that compare categorical variables (teams and positions) while examining numerical outcomes (points scored).

The structure of the `df` data frame is defined by three variables:

• team: A categorical variable distinguishing between different competitive groups (e.g., ‘A’ and ‘B’).
• position: A categorical variable specifying player roles within a team (e.g., ‘G’ for Guard, ‘F’ for Forward).
• points: A numerical variable indicating the total points scored.

This organization enables us to generate meaningful visual comparisons across teams and positions. The code block below provides the syntax necessary to create this sample data frame in R and displays its contents, offering a precise view of the numerical foundation upon which our subsequent examples will be built.

# Create the sample data frame
df <- data.frame(team=c('A', 'A', 'A', 'A', 'B', 'B', 'B', 'B'),
                 position=c('G', 'G', 'F', 'F', 'G', 'G', 'F', 'F'),
                 points=c(13, 23, 24, 20, 19, 14, 29, 31))

# View the data frame to inspect its structure and values
df

  team position points
1    A        G     13
2    A        G     23
3    A        F     24
4    A        F     20
5    B        G     19
6    B        G     14
7    B        F     29
8    B        F     31

Example 1: Integrating Tables into Barplots

Barplots are foundational tools in data visualization, typically employed to compare quantitative measurements across distinct categories. In this initial demonstration, we construct a grouped barplot using our `df` data, illustrating the points scored segmented by player position within each team. Crucially, we then proceed to embed the complete raw dataset directly into the plot area, harnessing the power of the ggpmisc extension.

The core mechanism for integrating a table into a ggplot2 object via ggpmisc relies on the versatile annotate() function. By setting the `geom` argument to the literal string 'table', we instruct ggplot2 to render a table element instead of a standard geometric shape. The `label` argument is then supplied with a list containing the data frame object itself. The ggpmisc package handles the conversion of this data structure into an aesthetically pleasing and properly formatted table positioned according to the plot’s coordinates.

Review the R code provided below. It first generates the grouped barplot utilizing ggplot2‘s `geom_bar()` function, ensuring bars are grouped side-by-side using `position=’dodge’` and that the height corresponds to the actual `points` values using `stat=’identity’`. Subsequently, the annotate() function is called. We position the entire `df` data frame as a table in the bottom-right quadrant of the visualization by specifying the appropriate numerical values for the `x` and `y` coordinates.

library(ggplot2)
library(ggpmisc)

# Create a grouped barplot with the raw data table
ggplot(df, aes(x=team, y=points, fill=position)) +
    geom_bar(position='dodge', stat='identity') +
    annotate(geom = 'table',
           x=4,
           y=0,
           label=list(df))

Handling Large Datasets: Summarizing Data for Tables

While the technique of displaying the entire data frame directly within a plot is highly effective for smaller, manageable datasets, this approach rapidly becomes visually overwhelming and impractical when dealing with a large number of observations. A table spanning dozens or hundreds of rows will likely obscure the plot itself or render the text illegible due to scaling issues, thereby defeating the primary objective of enhancing visual clarity.

In situations involving extensive data, the superior strategy is to present a summarized version of the data within the embedded table. This summarization allows you to focus on crucial statistics, such as aggregated values, frequencies, means, or key descriptive metrics that are most relevant to the visual trends shown in the plot. By avoiding the clutter of every single observation, you maintain a clean visualization while still providing numerical verification. For this purpose, the base table() function in R is an excellent, straightforward tool for creating frequency counts and cross-tabulations.

In the code below, we adapt our previous barplot example to incorporate data summarization. Instead of passing the full `df` data frame to the plotting function, we first use the table() function to compute the frequencies of `team` and `points`. The output of table() is then explicitly converted into a new data frame called `my_table` using the `as.data.frame()` function. This concise, aggregated data frame is subsequently passed to the annotate() function, resulting in a much more digestible and informative table embedded within the graphic.

library(ggplot2)
library(ggpmisc)

# Summarize frequencies of team and points into a new table
my_table <- as.data.frame(table(df[ , c(1, 3)]))

# Create the barplot, now with the summarized table
ggplot(df, aes(x=team, y=points, fill=position)) +
    geom_bar(position='dodge', stat='identity') +
    annotate(geom = 'table',
           x=4,
           y=0,
           label=list(my_table))

Example 2: Adding Tables to Scatterplots

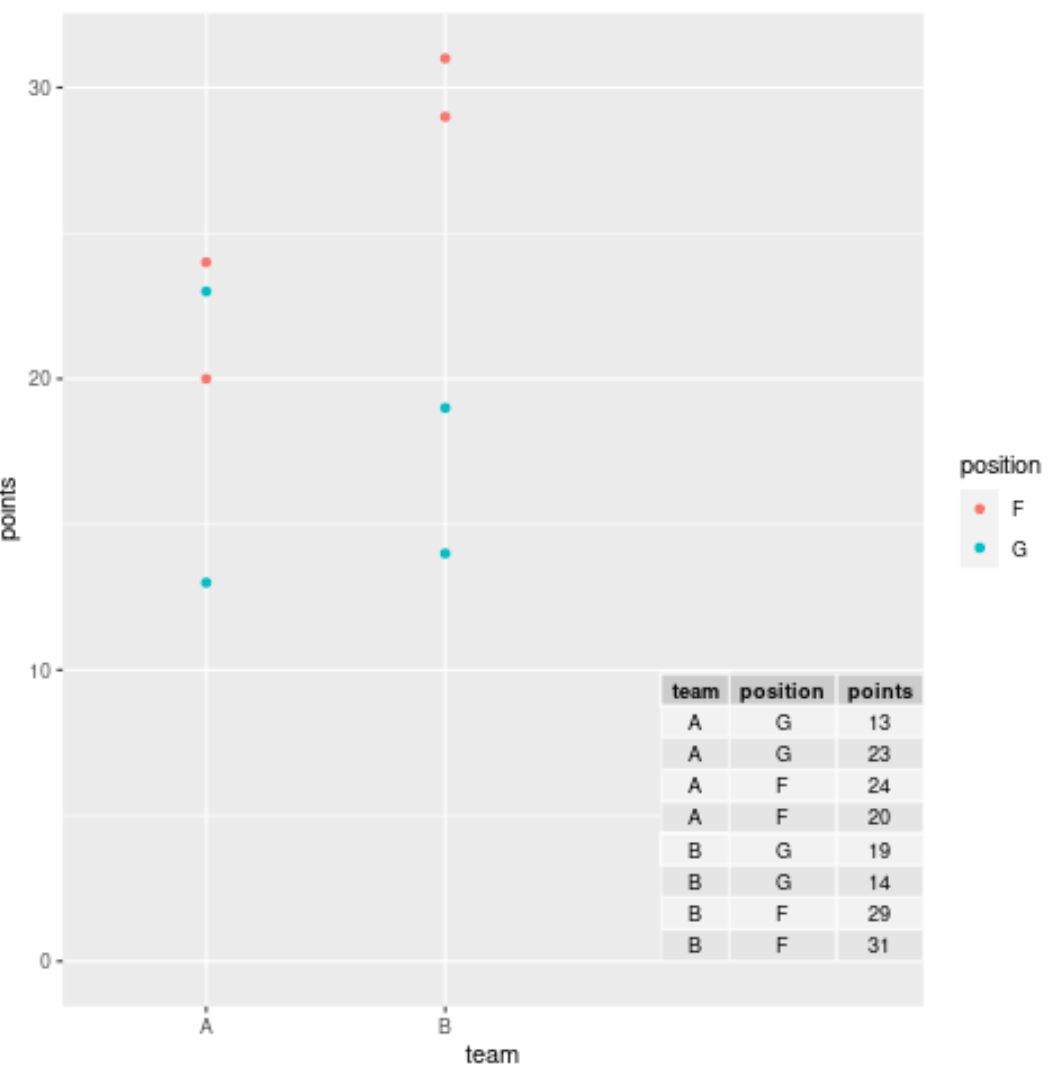

Moving beyond categorical comparisons, scatterplots are essential for visualizing the correlation and distribution between two continuous variables. This second example serves to showcase the remarkable versatility of the ggpmisc package, confirming that its table embedding capabilities are not limited to barplots but extend gracefully across diverse plot types within the ggplot2 framework.

We will create a scatterplot using the same `df` data frame. In this visualization, the team (a categorical variable) is mapped to the x-axis, the points scored (numerical) are mapped to the y-axis, and the player position is utilized to color-code the individual data points. This configuration allows us to observe the specific distribution of scores for each position across the two opposing teams.

The implementation remains consistent with our previous examples. The annotate() function, coupled with `geom = ‘table’`, is employed to overlay the raw `df` data frame directly onto the scatterplot. This provides immediate numerical verification for every plotted point, offering instant context to the visual patterns observed. The code below constructs the scatterplot and embeds the raw data table, positioned once again in the bottom-right corner for consistent presentation.

library(ggplot2)
library(ggpmisc)

# Create a scatterplot with the raw data table
ggplot(df, aes(x=team, y=points)) +
    geom_point(aes(color=position)) +
    annotate(geom='table',
           x=4,
           y=0,
           label=list(df))

Customizing Table Placement and Appearance

A critical advantage of utilizing the annotate() function in ggplot2, particularly when setting `geom = ‘table’`, is the profound flexibility it grants regarding table placement. The `x` and `y` parameters within annotate() are instrumental for precisely controlling the table’s position. These values correspond directly to the coordinates established by your plot’s aesthetic mappings, enabling you to position the table anywhere along the defined axes.

For example, if your visualization features an x-axis ranging from 0 to 5 and a y-axis from 0 to 100, specifying coordinates such as `x=2.5` and `y=50` would place the table near the plot’s center. Adjusting these values allows for strategic placement in corners (top-left, bottom-right) or along edges, ensuring that the table complements the visualization without obstructing critical data points or visual trends. Experimentation with these coordinates is highly recommended to achieve the optimal placement that ensures both clarity and aesthetic balance for your specific data story.

While the ggpmisc package provides a polished and readable default appearance for embedded tables, advanced users may eventually seek further customization options related to table aesthetics, such as fine-tuning font sizes, cell padding, or border presentation. For achieving such intricate styling, one might explore other specialized R packages or methods that facilitate converting data frames into grid objects. These alternative methods offer granular control over virtually every visual aspect of the table before it is rendered; however, for the vast majority of common data analysis and reporting scenarios, the default presentation offered by ggpmisc proves to be more than adequate.

Note: Feel free to play around with the x and y values within the annotate() function to place the table in the exact location that you’d like.

Conclusion and Further Exploration

In this comprehensive tutorial, we have successfully explored and implemented the valuable technique of integrating data tables directly into ggplot2 plots using the powerful ggpmisc package. We established the fundamental rationale for combining raw data with visual representations, underscoring how this approach dramatically enhances data clarity and provides essential context for any audience.

Through detailed, practical examples, we demonstrated the necessary steps to set up the R environment, prepare sample data, and apply the annotate() function with `geom = ‘table’`. This method was shown to be effective for embedding both the full data frame and summarized versions—which were generated using the table() function—into both barplots and scatterplots.

The ability to display precise numerical values immediately alongside graphical trends is a powerful capability for any data analyst or presenter seeking to maximize the trustworthiness and impact of their visualizations. The ggpmisc package streamlines this complex process, making it readily accessible even for intricate visualization designs. We strongly encourage further experimentation with various datasets, plot configurations, and table placements to fully harness this functionality and significantly elevate the quality of your data storytelling.
