Learning to Add Plot Titles in Matplotlib for Clear Data Visualization

The foundation of effective data visualization is clear communication. Within any statistical chart or graphical output, the title serves as the essential navigational anchor, immediately informing the viewer of the plot’s objective, scope, and core contents. When utilizing the industry-standard Matplotlib library within Python, the process of assigning descriptive titles is not only simple but also offers profound levels of customization to meet stringent presentation requirements.

This comprehensive guide is structured to assist both novice programmers and seasoned data scientists in mastering the art of labeling Matplotlib figures accurately. We will meticulously explore the dual methodologies available: the quick, state-based functional approach epitomized by the plt.title() function, and the robust, object-oriented framework essential for managing intricate figure structures, particularly those involving multiple subplots.

Achieving professionalism in visualization hinges on correctly labeling elements. Matplotlib provides the user with meticulous control over every aspect of title rendering. This includes adjusting critical text attributes such as position, relative size (font size), aesthetic appearance (color), and emphasis (weight), ensuring the title reinforces the data narrative without competing against the visual components of the chart.

Implementing Titles with the State-Based Pyplot Interface

For visualizations that involve a single set of axes and leverage Matplotlib’s convenient state-based programming model, the primary tool is the matplotlib.pyplot module. Specifically, the plt.title() function is used to assign the title. This function requires a single mandatory argument: a string containing the desired title text. This interface is ideal for rapid prototyping and generating standard, uncomplicated graphs.

The utilization of plt.title() is elegantly simple and seamlessly integrated into the plotting sequence. Conventionally, this function is invoked after all data elements (such as lines, bars, or scatter points) have been defined, but prior to the final rendering call, such as plt.show() (for interactive display) or plt.savefig() (for file output). By default, Matplotlib intelligently positions the title, centering it automatically above the currently active Axes object, ensuring immediate visual linkage between the title and the chart it describes.

The core structural command to apply a title using this functional approach is highly intuitive, requiring only the function call and the title string enclosed in quotes. Observe the fundamental syntax below, which defines the text that will appear above the plot:

plt.title('My Title')

To demonstrate this integration in practice, the following comprehensive script illustrates how to generate a basic line plot and subsequently apply a meaningful title using the pyplot method. This approach ensures descriptive labeling is a quick step in the workflow:

import matplotlib.pyplot as plt

#define x and y data points
x = [1, 4, 10]
y = [5, 11, 27]

#create plot of x and y
plt.plot(x, y)

#add title using the pyplot interface
plt.title('My Title')

As visualized below, the output confirms the successful application of the title, which immediately contextualizes the relationship between the plotted variables:

Granular Control Over Title Aesthetics and Positioning

Beyond simple text labeling, Matplotlib empowers users with extensive control to fine-tune the title’s visual presence. This crucial layer of customization is achieved by passing various optional keyword arguments (kwargs) directly into the plt.title() function. Leveraging these arguments is essential for adhering to organizational style guides, enhancing the visual hierarchy of the figure, and maximizing the communicative impact of the plot.

Key parameters predominantly focus on controlling the physical appearance and spatial arrangement of the text. These include fontsize, which dictates the size of the title text; color, which sets the text hue; fontweight, which controls the boldness; and loc, which determines the horizontal alignment. The loc parameter is particularly valuable, offering three distinct options: left, right, or the standard center (the default setting). Utilizing these options allows the developer to strategically place the title to best suit the surrounding graphic elements.

By thoughtfully applying these stylistic arguments, a standard text label can be transformed into an integrated, high-impact component of the chart. For instance, deliberately increasing the font size and shifting the horizontal alignment away from the center can immediately draw the reader’s eye to the key contextual information, thereby optimizing the flow of visual analysis.

The following coding snippet illustrates a significant stylistic adjustment: we set the title text size to a large 30 points and explicitly align the text to the left margin of the plot area:

plt.title('My Title', fontsize=30, loc='left')

This execution results in a title that is visually distinct and positioned non-centrally, clearly demonstrating the flexibility afforded by Matplotlib’s styling parameters to override default settings and achieve a desired visual outcome:

The Object-Oriented Approach for Complex Subplot Layouts

When scaling up visualization efforts to include intricate compositions—such as multiple charts arranged within a single figure—the limitations of the state-based plt.title() function become apparent. For professional and complex scripting, Matplotlib strongly advocates for the object-oriented (OO) interface. In this paradigm, titles are not applied globally or to a ‘current’ axis, but rather are specifically assigned to individual Axes objects, providing necessary precision.

The standard OO workflow begins with the creation of the Figure object (the overall container or canvas) and one or more Axes objects (the distinct plots) using the plt.subplots() function. To correctly label a specific plot within this grid, one must invoke the dedicated set_title() method directly on the targeted Axes object. This method ensures that labeling is managed independently for each graph, preventing unintended overlap or mislabeling in dense layouts.

It is vital to understand the functional difference: plt.title() relies on Matplotlib’s internal state machine to locate the currently active axis, whereas ax.set_title() explicitly targets the axis referenced by the variable ax. This explicit targeting is crucial for maintaining code clarity and preventing execution conflicts, especially when iterating over or managing arrays of axes in a multi-plot figure.

The following script provides a detailed demonstration of how to construct a 2×2 grid of subplots and assign a unique, descriptive title to each quadrant using the set_title() method. Note the critical inclusion of fig.tight_layout(), a function that automatically optimizes spacing between subplots, which is frequently necessary to accommodate potentially long or customized titles without clipping or overlapping elements.

import matplotlib.pyplot as plt

#define subplots: 2 rows, 2 columns
fig, ax = plt.subplots(2, 2)
fig.tight_layout()

#define subplot titles using the object-oriented method
ax[0, 0].set_title('First Subplot')
ax[0, 1].set_title('Second Subplot')
ax[1, 0].set_title('Third Subplot')
ax[1, 1].set_title('Fourth Subplot')

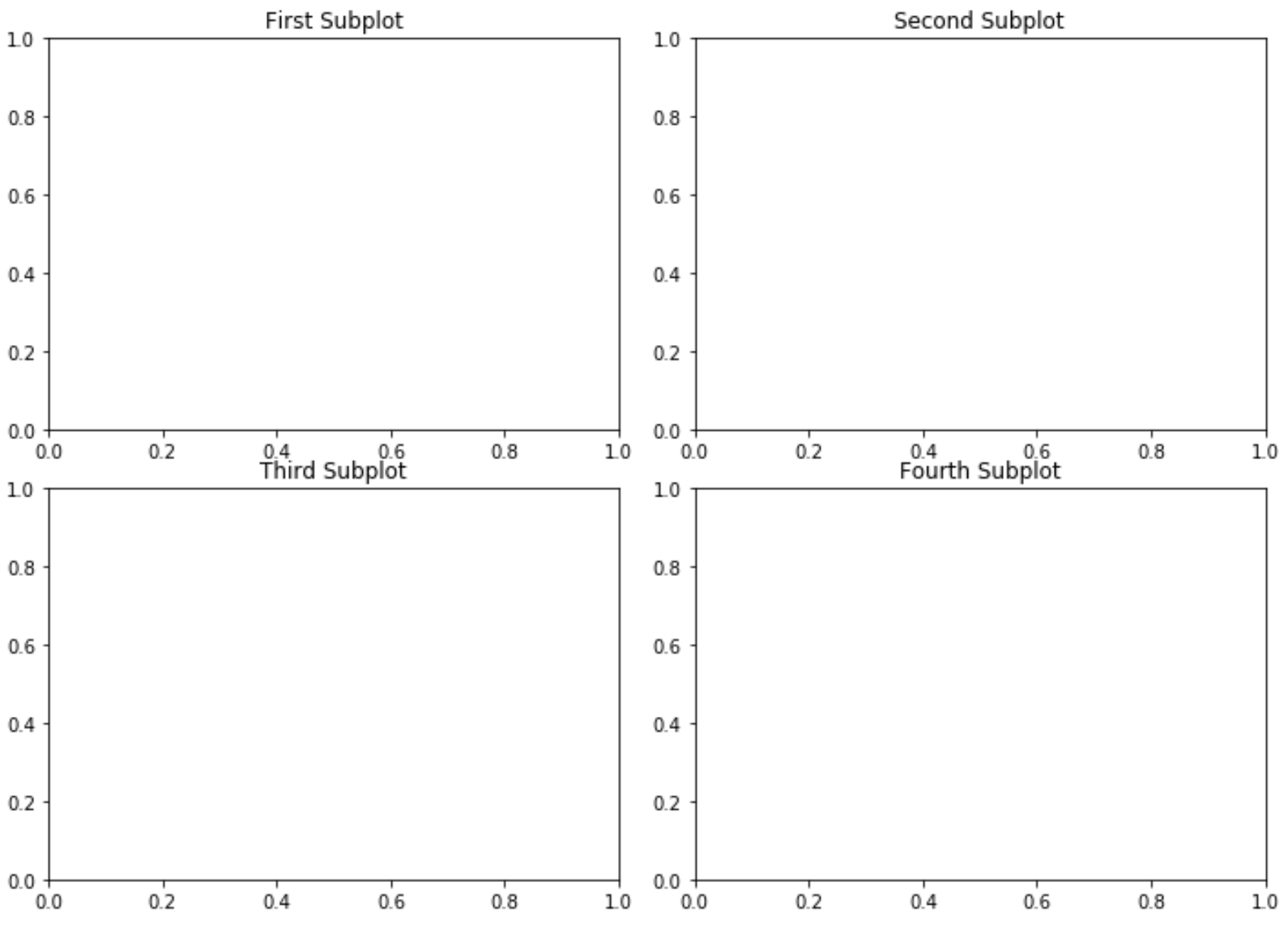

The resulting visualization effectively partitions the figure into four distinct plot areas, each accurately labeled via the specific set_title() calls targeted at the corresponding Axes objects:

Fine-Tuning Vertical Spacing Using Padding and Position

While default title positioning is generally adequate, scenarios often arise where precise vertical adjustment is necessary. This is particularly true if the title text risks overlapping with auxiliary plot elements, such as annotations, legends, or specific data markers placed near the top boundary of the Axes. Matplotlib provides two powerful parameters—y and pad—to manage this vertical separation with granular control.

The y parameter offers coordinate-based control, accepting a floating-point value to define the vertical placement of the title relative to the Axes boundaries. A value of 1.0 corresponds to the top edge of the axes. Crucially, specifying a value greater than 1.0, such as 1.05 or 1.1, will systematically push the title further outside the plot boundary and into the margin space. This precise control is useful for sophisticated placement requirements.

However, for most practical applications requiring simple vertical separation, the pad argument is the preferred and simpler mechanism. The pad argument defines the margin size in display points (typically pixels) separating the title text from the top edge of the Axes object. Increasing the padding value is the cleanest method to grant the title sufficient “breathing room,” thereby enhancing the overall professional appearance and readability of the visualization, especially when preparing high-resolution outputs for formal documentation or academic publication.

For instance, to elevate a title by an additional 20 points above its default placement, the syntax is straightforward: plt.title('Custom Title', pad=20). Implementing this level of precise spacing control is key to achieving a polished, publication-ready figure where no element feels cramped or visually conflicted.

Stylistic Guidelines and Best Practices for Effective Titles

While mastering the technical execution of title placement is necessary, the actual content and linguistic quality of the title are what ultimately determine its communicative efficacy. An optimal title must be immediately informative, highly concise, and fully understandable, allowing the viewer to grasp the chart’s core message without requiring external documentation or lengthy explanations. A poorly written title undermines even the most sophisticated data visualization.

To maximize the impact of your visualizations, adhere to the following stylistic and content guidelines when formulating plot titles:

• Prioritize Specificity and Clarity: Generic titles such as “Summary Results” or “Analysis” should be avoided entirely. A strong title explicitly names the variables being compared, the relationship being shown, and provides necessary context, such as the relevant time period or data source (e.g., “Correlation between Rainfall and Crop Yield in the Midwest, 2018–2022”).

• Strive for Conciseness: Titles should be short enough to be absorbed quickly. If the title becomes verbose, ancillary details—such as units of measurement, detailed methodology, or specific data caveats—should be relegated to accompanying figure captions or axis labels.

• Leverage Dynamic Variables: When generating reports or multiple plots programmatically, utilizing advanced string formatting (such as Python’s f-strings) within your plt.title() or ax.set_title() calls is highly recommended. This practice ensures that parameters used in the visualization (like filtered dates or model coefficients) are dynamically and consistently reflected in the title.

• Establish Visual Hierarchy: The title must visually stand out as the primary textual element. This is typically accomplished by specifying a fontsize that is noticeably larger than the axis labels and ticks, yet carefully chosen so that it does not visually overpower or distract from the data itself.

By integrating these technical skills with robust stylistic principles, developers can elevate a simple plot into a compelling, professional-grade visualization. Matplotlib offers all the mechanisms necessary to achieve this level of refinement, regardless of whether the project involves a single chart or a complex report composed of many subplots.

Summary of Matplotlib Titling Methodologies

In conclusion, the decision regarding which titling function to employ in Matplotlib is fundamentally driven by the architectural structure of your visualization script—specifically, whether you are relying on the procedural state-based model or the explicit object-oriented framework.

A concise overview of the core functions and their intended use cases is provided below:

1. plt.title(text, **kwargs): This function is exclusive to the state-based programming model, applying a title to the currently active Axes object managed by the pyplot interface. This is suitable for simple, single-plot scripts.

2. ax.set_title(text, **kwargs): This method is integral to the object-oriented approach. It is used to assign a title when the Axes objects (referenced here as ax) are explicitly generated and manipulated, typically following a call to plt.subplots(). This methodology is strongly recommended for complex layouts and professional scripting.

Both methods support the same extensive customization options, including control over position (loc, y), size (fontsize), and styling (color, fontweight), providing full control over the final visual output.
