Add Trendline to Chart in Google Sheets (Step-by-Step)

Understanding the underlying patterns within any complex dataset is fundamental to effective forecasting and insightful data analysis. A trendline, often referred to as the line of best fit, serves as a crucial visual and statistical tool designed to illustrate the general direction and correlation among the data points displayed in a chart. This statistical representation is invaluable for analysts seeking to predict future values or precisely define the relationship between various variables within their collected information.

This comprehensive, highly detailed tutorial provides a precise, step-by-step methodology for successfully adding, customizing, and interpreting a trendline within the powerful cloud environment of Google Sheets. We will guide you through the entire process, starting with meticulous data preparation and concluding with advanced customization options, thereby ensuring your final data visualizations are both statistically accurate and highly insightful for any audience.

The Significance of Trendlines in Data Modeling and Visualization

Trendlines are indispensable components of statistical charts, particularly when analysts are examining time-series data or analyzing correlational relationships. They immediately provide a concise visual summary, clearly indicating whether the relationship between two variables is positive (an upward slope), negative (a downward slope), or statistically insignificant (a flat line). However, the analytical power of a trendline is directly dependent upon selecting the correct model type. Different mathematical models—such as linear, exponential, or polynomial—are required to accurately reflect distinct patterns of data behavior.

By effectively applying a trendline, the analyst moves beyond mere observation of raw data and initiates the process of formal statistical modeling. This critical step enables simple extrapolation—predicting values outside the observed range—and facilitates the identification of statistical outliers, which are data points that deviate significantly from the calculated predicted trajectory. A properly selected and well-fitted trendline significantly enhances the narrative power of your data, transforming complex relationships into easily digestible visual insights for stakeholders.

Step 1: Preparing and Structuring Your Dataset

Before any visualization process can begin in Google Sheets, it is absolutely essential to ensure that your raw data is structured correctly for statistical analysis. To perform a standard trendline analysis, you must have two distinct columns of numerical data that represent paired observations. Typically, this pairing consists of an independent variable (often plotted on the X-axis, such as Time or Input) against a dependent variable (plotted on the Y-axis, such as Sales or Output). Conventionally, the independent variable should be listed in the first column.

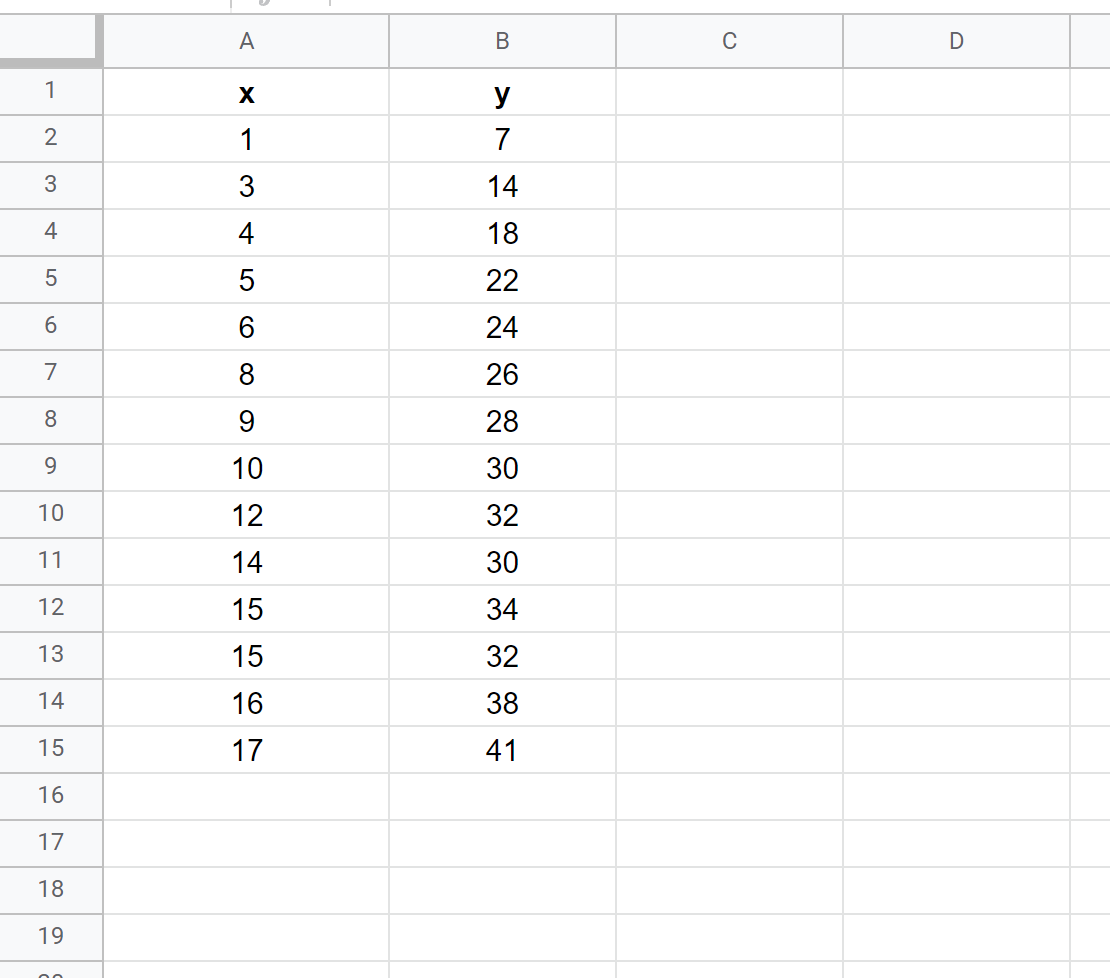

For the purposes of this guiding example, we will utilize a simple, small dataset consisting of 15 paired observations. It is paramount that consistency and accuracy are maintained during this initial data entry phase, as any errors introduced here will inevitably propagate through the statistical calculations and compromise the validity of the final model.

A crucial data hygiene checkpoint is verifying that all corresponding cells contain purely numerical values. The inclusion of text strings, dates formatted as text, or mixed data formats will prevent the Chart editor from successfully calculating the necessary statistical parameters required for generating the trendline. Adhering to proper data hygiene standards is the foundational requirement for creating accurate and reliable data visualizations within Google Sheets.

Step 2: Generating the Optimal Chart Type

For the accurate display of correlational data and the subsequent application of statistical models like trendlines, the standard and most mathematically appropriate chart type is the Scatter chart (also known as a scatterplot). This visualization method is uniquely suited because it treats both the X and Y axes as numerical scales, which is a prerequisite for fitting statistical models such as linear regression.

To begin the process of chart creation, follow this precise sequence:

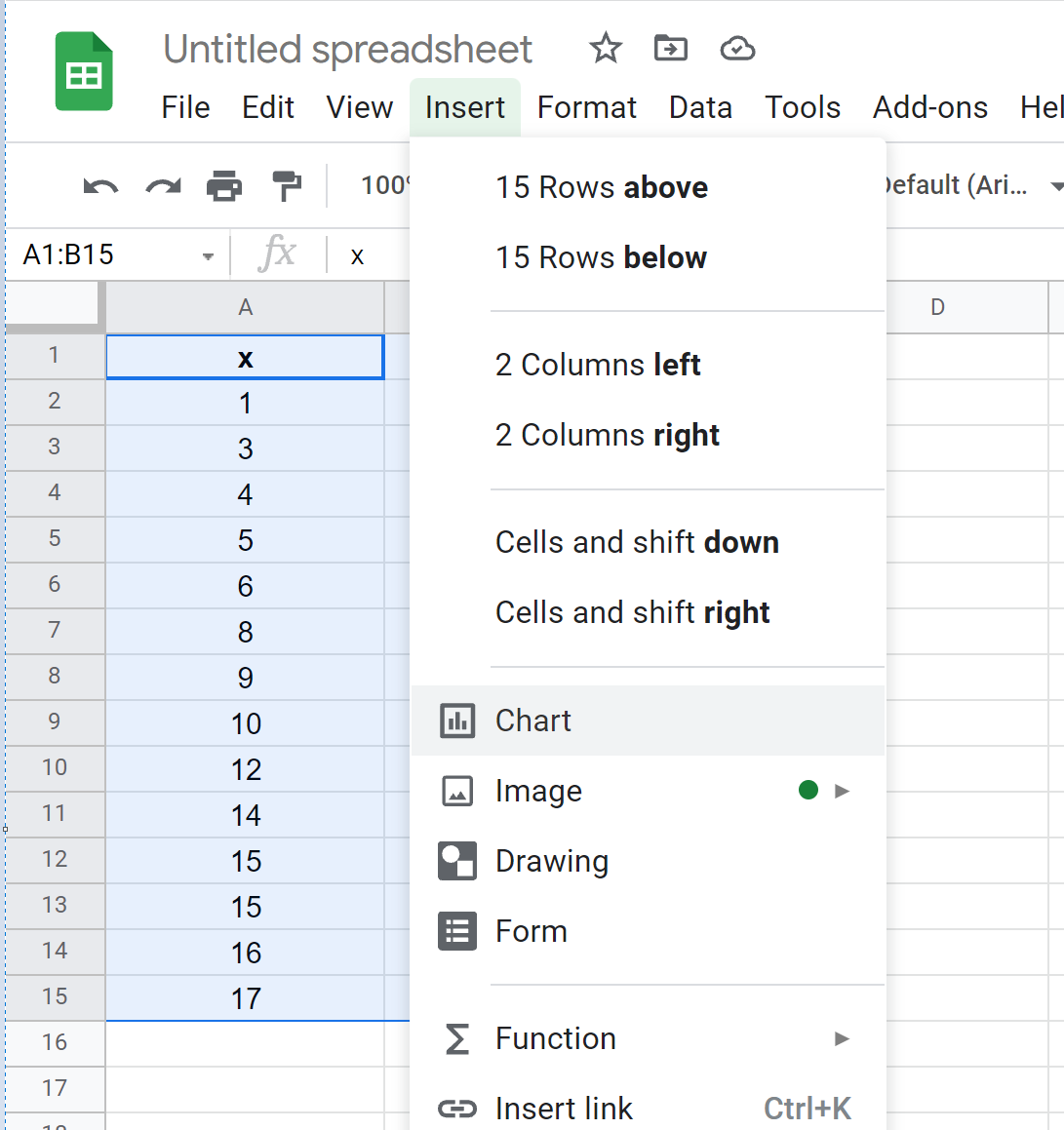

1. Start by highlighting the entire relevant dataset, which, in our example, corresponds to the cell range A1:B15.
2. Navigate your mouse cursor to the top menu bar interface and click on the Insert tab.
3. From the resultant dropdown menu, select the Chart option to initialize the charting interface.

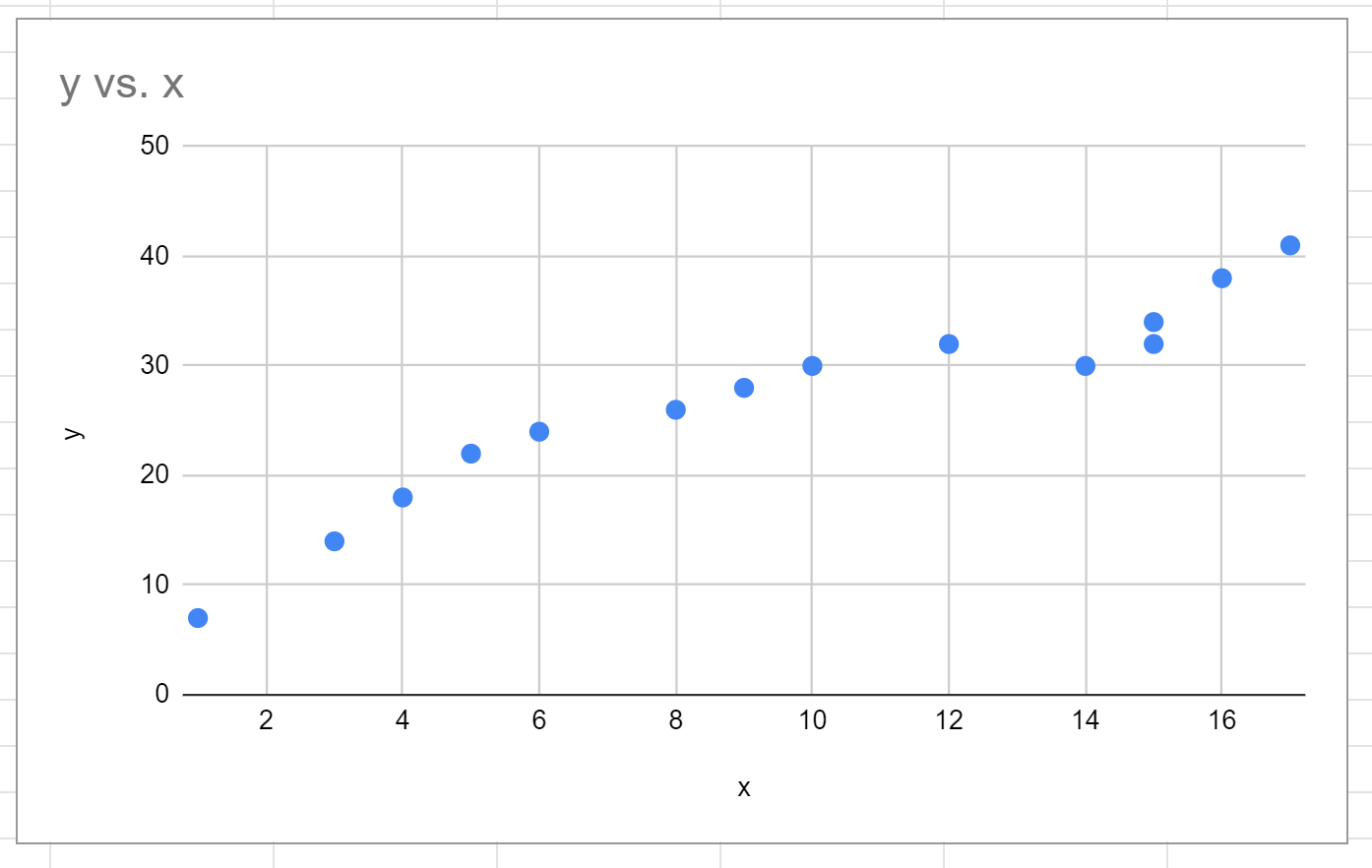

The Chart editor panel will automatically appear docked on the right side of your screen. If Google Sheets does not default the visualization type to a Scatter chart, you must navigate immediately to the Setup tab within the editor. Explicitly select the Scatter chart as the desired Chart type. This confirmation is vital, as it ensures the correct numerical treatment of both axes, which is fundamental for the successful calculation of the line of best fit. Once generated, the initial raw scatterplot will be displayed, providing the first visual cues regarding the distribution and general relationship (positive, negative, or curved) within your data points.

Step 3: Implementing the Trendline Calculation

With the scatterplot successfully established and the data visualization prepared, the subsequent step involves instructing Google Sheets to mathematically calculate and visually overlay the line of best fit onto the existing plot. This critical process of statistical modeling is managed exclusively through the robust customization options available within the Chart editor panel.

To successfully add the trendline, execute the following actions within the editor:

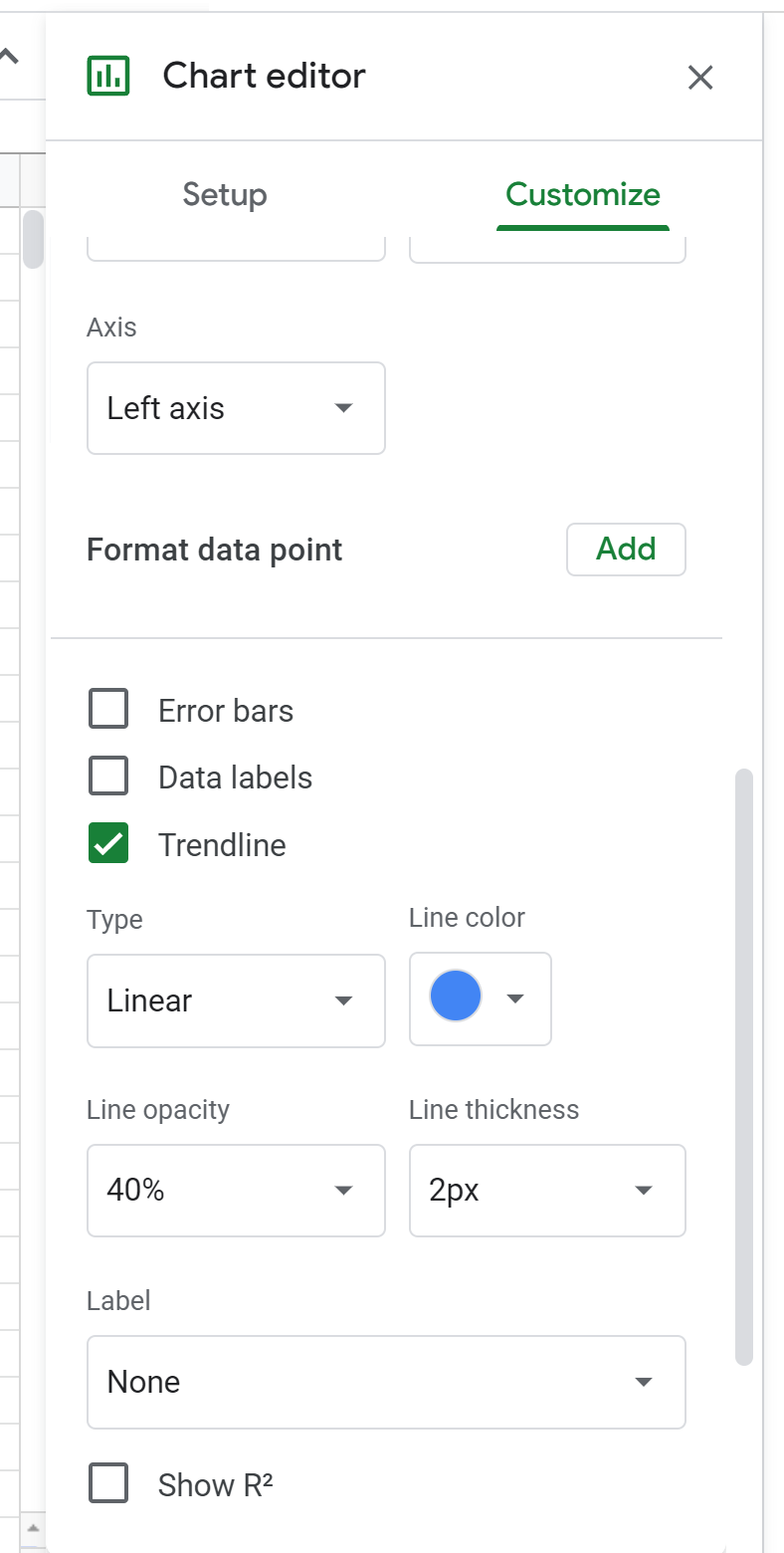

• Click on the Customize tab, which controls all visual and functional elements of the chart.
• Locate and expand the Series section. This panel governs the appearance and statistical attributes of the individual data series, including the application of descriptive statistical lines.
• Scroll down methodically within the Series menu until you locate the specific Trendline option checkbox.
• Click the checkbox adjacent to Trendline to activate the calculation and display of the line.

By default, Google Sheets typically initializes a Linear trendline calculation. This model operates based on the foundational principles of simple linear regression. This powerful method identifies the straight line that minimizes the sum of the total squared distances between the line and every observed data point, thus providing the most statistically probable straight-line representation of the relationship.

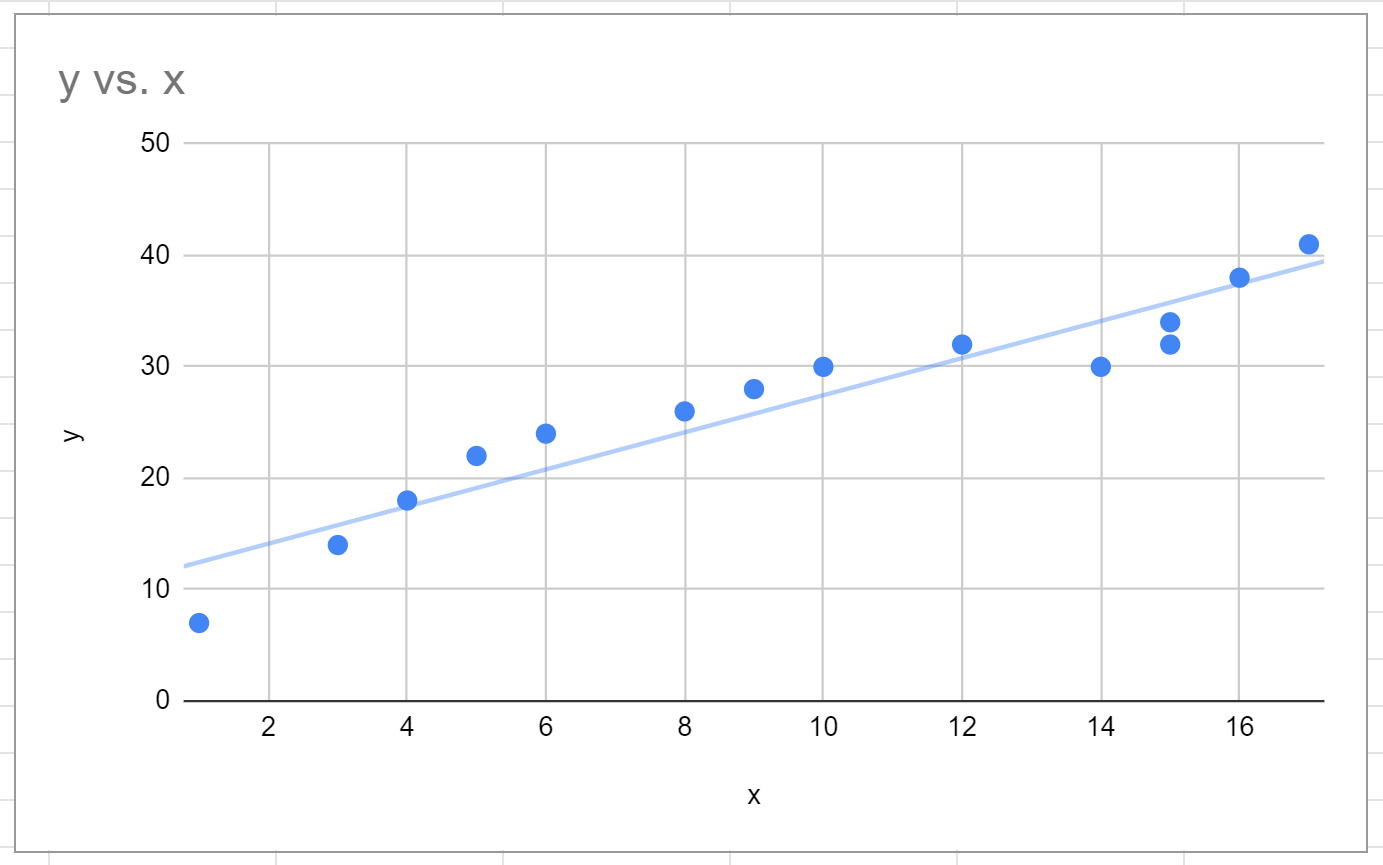

Upon activation, the chart will instantly update, displaying the calculated linear trendline clearly overlaid onto the existing scatterplot, offering an immediate visual summary of the data’s general trajectory:

Step 4: Customizing the Model and Interpreting Statistical Fit

While the linear model is frequently the appropriate starting point, real-world data often exhibits complex, non-linear patterns, such as periods of rapid exponential growth or oscillating decay. Google Sheets provides several robust options that allow the user to modify both the functional type and the visual appearance of the trendline, ensuring you can select the mathematical model that offers the absolute best statistical fit for the unique behavior of your specific dataset.

Selecting the Optimal Trendline Type and Visual Adjustments

The Type dropdown menu within the Series customization section is the most critical feature for advanced modeling. It enables you to choose the precise mathematical relationship the line should embody:

• Linear: Assumes a constant, additive rate of change across the dataset.
• Exponential: Best suited for data that increases or decreases at an increasingly accelerating rate (multiplicative growth).
• Polynomial: Highly useful for datasets exhibiting pronounced curves, peaks, or troughs. This option requires selecting the regression degree (e.g., Degree 2 generates a simple parabolic curve).
• Logarithmic: Ideal for situations where the rate of change is initially sharp but quickly decelerates and levels off over time.

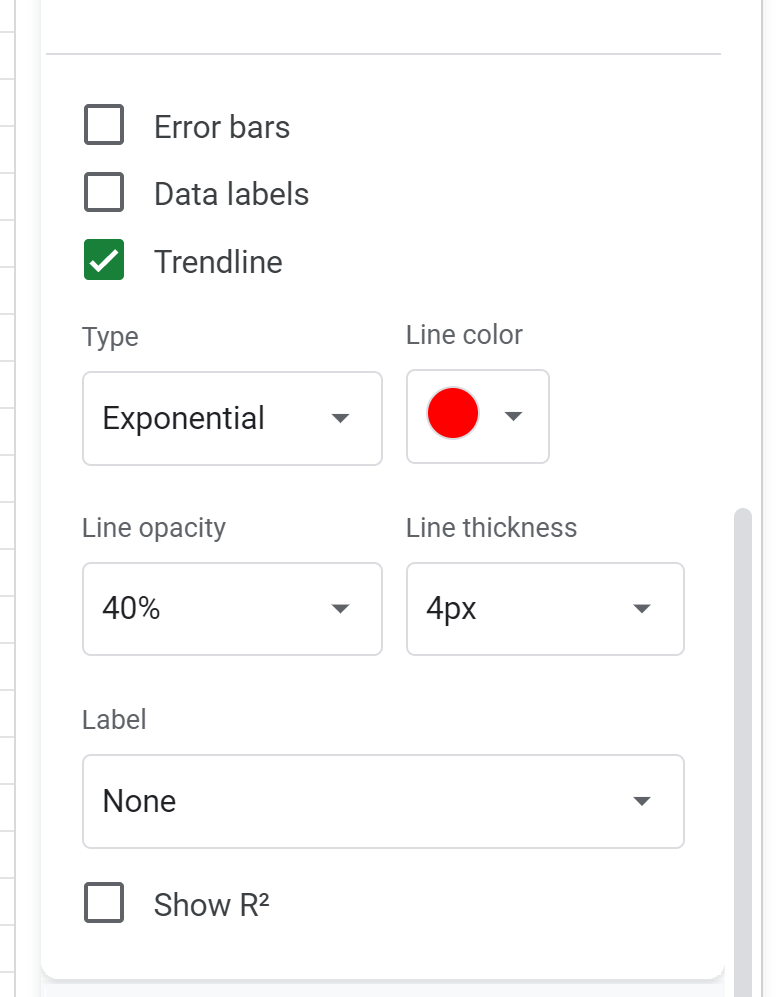

For our running example, if visual inspection suggests a curve rather than a straight line, we might choose to change the Type of trendline to Exponential, indicating a multiplicative relationship between the variables X and Y. Furthermore, we can refine the visual elements for enhanced chart readability by adjusting the Line color (e.g., to a distinct red) and increasing the Line thickness (e.g., to 4px).

Interpreting Key Statistical Metrics

To scientifically validate whether your selected trendline model is statistically sound and reliable, you must enable the display of key statistical metrics, which are also found conveniently within the Series customization menu:

• Show R-squared: The R² value (Coefficient of Determination) quantifies the goodness of fit, ranging from 0 (no fit) to 1 (perfect fit). A value exceptionally close to 1 signifies that the selected model explains a high percentage of the variance observed in the dependent variable, confirming a robust and strong predictive relationship.
• Show label: Selecting the “Use Equation” option causes Google Sheets to display the exact mathematical formula (e.g., $y = 5e^{0.2x}$) that was used to generate the displayed line. This explicit equation is powerful, as it can be extracted and utilized for precise, manual forecasting calculations outside of the visual chart environment.

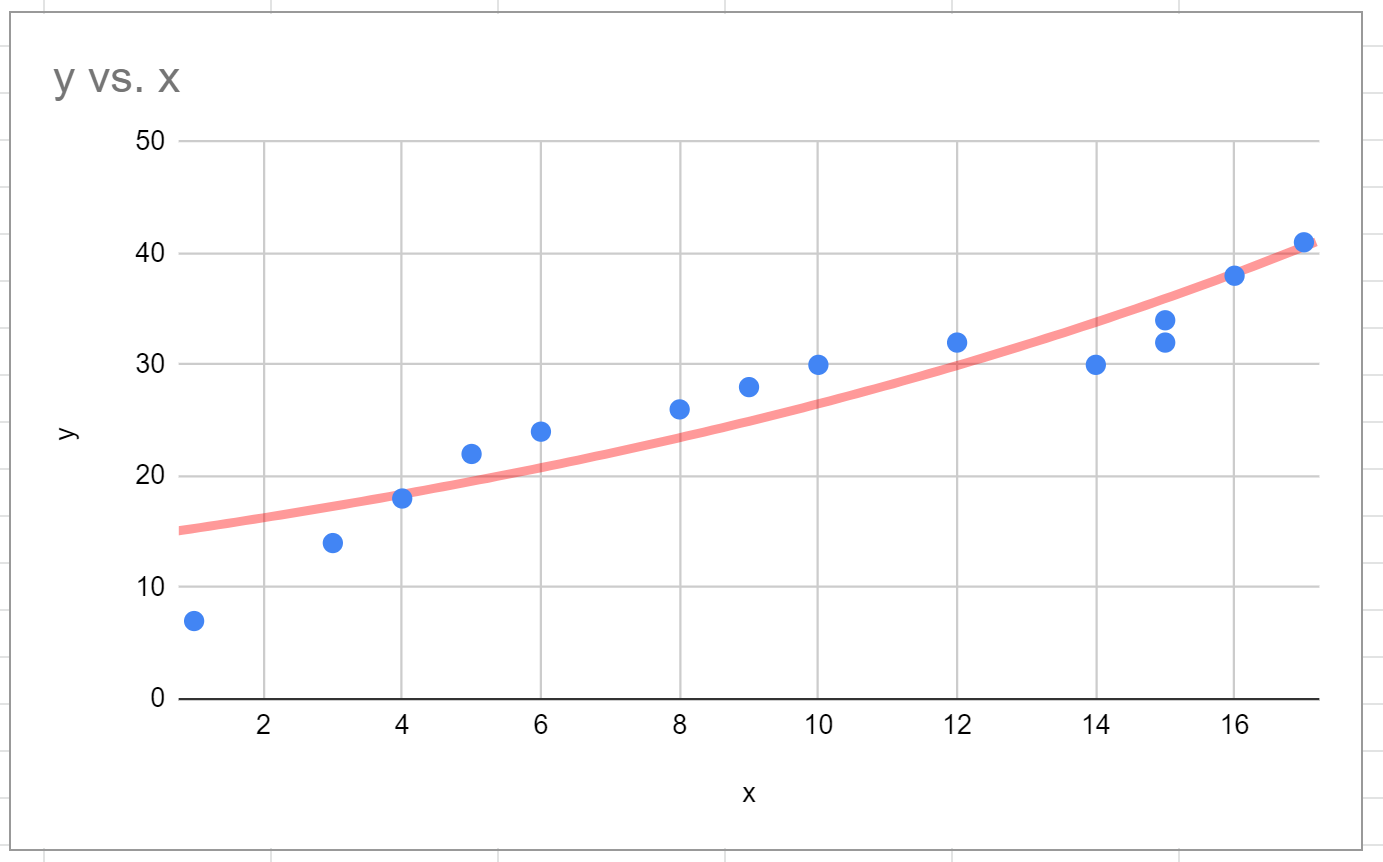

Here is the final visual output showing the customized trendline after applying the Exponential model and incorporating the necessary visual and statistical adjustments:

In practice, analysts should always prioritize achieving the strongest statistical fit (indicated by the highest possible R-squared value) over mere visual appeal. Continue to modify the type of trendline and the regression parameters until you have identified the model that accurately reflects the data points and offers the maximum explanatory power for the relationship you are attempting to model.

Conclusion: Enhancing Predictive Analysis

Mastering the implementation and interpretation of trendlines in Google Sheets is a fundamental skill that transitions standard data visualization into advanced predictive analysis. By following these steps, you can move beyond simple data plotting and begin to construct powerful statistical models that reveal underlying truths and enable reliable forecasting.

The ability to select, customize, and validate different statistical models—from linear regression to polynomial curves—empowers you to present data narratives that are not only visually compelling but also mathematically sound. Always remember that the quality of your trendline analysis depends entirely on the cleanliness of your initial data and the appropriateness of the chosen statistical model.
