Learning to Reposition Axis Labels in Matplotlib for Clearer Visualizations

Achieving highly polished data visualization requires meticulous attention to every graphic element on the plot canvas. Even minor misalignments, such as overlapping labels or labels placed too close to the figure boundary, can significantly detract from the professional quality and readability of the final image. When working with the powerful Matplotlib library in Python, developers frequently encounter situations where the default axis label placement proves suboptimal, particularly in complex multi-panel figures or when dealing with unconventional layouts. Fortunately, Matplotlib offers a specialized and precise mechanism for repositioning these essential labels using the set_label_coords method, providing the fine-grained control necessary for publication-ready graphics.

The set_label_coords method is specifically designed to grant users authority over the spatial positioning of axis labels. It allows users to specify the exact coordinates for the center point of the axis label text, relative entirely to the axes boundary, rather than the data points themselves. Understanding this foundational syntax—which operates within a unique normalized coordinate system—is absolutely the first step toward customizing your visualizations to meet stringent aesthetic or submission requirements. Mastering this technique ensures that your axis labels provide context clearly without obstructing other crucial elements of the plot.

# Example 1: Adjusting the Y-axis label position to move it outward and center it vertically
ax.yaxis.set_label_coords(-.1, .5)

# Example 2: Adjusting the X-axis label position to move it downward and center it horizontally
ax.xaxis.set_label_coords(.5, -.1)

The subsequent detailed examples will systematically illustrate how to implement this syntax across various scenarios. We will move beyond the default settings, providing practical, actionable code snippets that offer comprehensive control over label placement for both single-axis adjustments and scenarios demanding simultaneous repositioning of the X and Y labels. This precise manipulation is crucial for generating visually appealing and clutter-free scientific plots.

Introduction to Axis Label Customization in Matplotlib

As the cornerstone of plotting within the Python data science ecosystem, Matplotlib is renowned for its depth of flexibility and extensive customization capabilities. While the library generally manages sensible default placements for plot elements, specialized scenarios frequently arise that necessitate manual intervention for optimal label positioning. These scenarios include plots integrated into tight document layouts, figures utilizing complex legends, or multi-panel visualizations where plot boundaries are highly constrained. In these situations, relying solely on default settings can result in aesthetically poor or outright confusing figures.

The X and Y axis labels are perhaps the most critical textual components of a plot, tasked with providing the necessary quantitative context required for accurate data interpretation. When these labels are positioned too close to the tick marks, overlap with neighboring plot titles, or conflict with surrounding text elements, the overall readability and informational value of the visualization suffer significantly. Achieving clarity often means moving the label entirely outside the standard plot boundaries. Utilizing specialized methods like set_label_coords ensures that your final graphical output remains both highly informative and visually appealing, meeting the high standards required for publication.

Matplotlib’s default behavior typically places the X-axis label centered directly below the axis line and the Y-axis label centered vertically and offset slightly to the left of the axis line. To override this behavior and implement precision control, we must interact directly with the underlying axis objects. This is achieved by accessing the ax.xaxis and ax.yaxis properties of the main Axes object (ax). These properties expose all necessary configuration methods, including the core set_label_coords function, allowing for fine-tuning that standard methods like set_xlabel cannot provide.

Understanding the set_label_coords Method

The foundational tool for achieving precise label placement is the set_label_coords(x, y) method. This function accepts two floating-point arguments, x and y, which collaboratively define the desired new coordinate for the label’s center point. It is absolutely essential to internalize that these coordinates are not mapped onto the data space (i.e., they are not plotting your actual data values), but rather they are scaled relative to the axis extent itself. This distinction is critical for effective manipulation, as the coordinates remain consistent regardless of the underlying data range or scale.

The set_label_coords method relies on a specialized, normalized coordinate system where the relevant axis extent always runs from 0 to 1. This normalization simplifies the process, ensuring that 0 represents one boundary edge and 1 represents the opposite edge. However, the interpretation of the x and y arguments flips depending on whether you are targeting the X-axis label or the Y-axis label, which is often a source of confusion for new users. Mastery of this dual interpretation is key to successful implementation.

• For the X-axis label, the coordinate system defines the position of the label relative to the horizontal extent of the X-axis. The x value controls the horizontal position (where 0 is the far left of the axis and 1 is the far right). Crucially, the y value controls the vertical offset, determining how far above or below the X-axis line the label will be placed. Negative y values move the label downward, which is the standard practice for clearance.
• For the Y-axis label, the coordinate system defines the position of the label relative to the vertical extent of the Y-axis. The y value controls the vertical position (0 being the bottom extent and 1 being the top extent). In contrast, the x value controls the horizontal offset, dictating how far to the left or right of the Y-axis line the label will be placed. Negative x values move the label further to the left, which is typically used for enhanced readability.

A powerful application of this system involves using values that fall outside the typical 0 to 1 range. Using negative numbers (e.g., -0.1) or numbers greater than 1 allows the label to be placed significantly outside the immediate plot area. This capability is frequently necessary to provide substantial clearance, preventing collisions with long tick labels, secondary axes, or annotations that reside near the plotting margins.

The Normalized Axis Coordinate System

To effectively utilize set_label_coords, one must develop an intuitive understanding of the normalized axis coordinate system employed by Matplotlib. This system is a deliberate design choice intended to simplify the placement process by treating the entire plotting area defined by the axis bounds as a unit square for reference, irrespective of the magnitude or range of the actual data being plotted. This abstraction ensures consistent results when resizing or scaling the figure.

Within this coordinate system, the boundaries are clearly defined:

• The point (0, 0) represents the bottom left corner of the plot area defined by the axis limits.
• The point (0.5, 0.5) represents the exact graphical center of the entire plotting area.
• The point (1, 1) represents the top right corner of the plot area defined by the axis limits.

When adjusting the position of the X-axis label, the primary challenge is vertical offset. Since the label is typically placed below the axis, the y coordinate determines how far vertically the label is pushed away from the axis line. A common and practical maneuver involves using a small negative value, such as -.1 or -.15. This negative value ensures the label is sufficiently pushed down, creating crucial separation from the X-axis tick marks and ensuring the text does not visually merge with the data presentation. Furthermore, adjusting the x coordinate (e.g., to 0.5 for center or 0.9 for the far right) dictates where along the horizontal span the label text is anchored.

Similarly, when repositioning the Y-axis label, the horizontal offset is controlled by the x coordinate. Long Y-axis tick labels (e.g., scientific notation or large currency numbers) often necessitate moving the Y-axis label further to the left to maintain aesthetic distance. Utilizing a small negative value for x (e.g., -.1) moves the label outward, away from the plot area. The y coordinate then determines where along the vertical span (from 0 to 1) the label is centered. This dual control grants the user the flexibility to place the label precisely where needed for optimal visual balance.

Example 1: Precision Adjustment for the X-Axis Label

This initial practical example demonstrates the creation of a standard scatter plot and focuses specifically on the precise adjustment of the X-axis label’s position. Our goal is to shift the label significantly both horizontally and vertically, moving it away from the default center position toward the bottom-right corner of the plot. This maneuver is often employed when the bottom-left corner is reserved for other elements, such as a source note or a logo.

In this demonstration, we utilize the command ax.xaxis.set_label_coords(.9, -.1). The first argument, .9, dictates the horizontal placement, moving the center of the label 90% of the way across the X-axis extent—effectively anchoring it near the far right side of the plot. The second argument, -.1, specifies the vertical offset. Because the value is negative, it pulls the label 10% below the standard X-axis line position, ensuring generous vertical clearance from the tick marks and any potential data points near the bottom boundary.

import matplotlib.pyplot as plt

#define data
x = [1, 2, 3, 4, 5, 6]
y = [4, 5, 8, 14, 24, 19]

#create scatterplot using subplots for axis control
fig, ax = plt.subplots()
ax.scatter(x, y)

#add standard axis labels
ax.set_ylabel('Y-Axis Label')
ax.set_xlabel('X-Axis Label')

#adjust position of x-axis label (90% across, 10% below axis)
ax.xaxis.set_label_coords(.9, -.1)

As clearly demonstrated in the resulting plot image, the X-axis label has been successfully offset from its typical centered position. This precise relocation provides enhanced visual separation between the label text and the numerical tick mark values, making the plot cleaner and easier to parse. This illustrates the direct and predictable effect of manipulating the normalized coordinate system.

Example 2: Repositioning the Y-Axis Label

This second example shifts focus to the critical customization of the Y-axis label placement. Adjusting the vertical axis label is crucial when the left margin of the plot is visually congested. Common causes of congestion include the presence of secondary axes, exceptionally long descriptive tick labels (e.g., using many decimal places or long strings), or when the plot is tightly constrained within a publication column that limits margin width. Manual repositioning ensures the label remains legible and distinct.

To achieve a non-standard placement, we employ the syntax ax.yaxis.set_label_coords(-.1, .1). Here, the first argument, -.1, governs the horizontal position. The negative value moves the label 10% further outside the plot area to the left, significantly increasing the gap between the label and the Y-axis tick marks. The second argument, .1, defines the vertical position, placing the label near the bottom of the Y-axis (specifically, 10% up from the bottom boundary). This moves the label away from the default vertical center, anchoring it to the lower quadrant of the axis.

import matplotlib.pyplot as plt

#define data
x = [1, 2, 3, 4, 5, 6]
y = [4, 5, 8, 14, 24, 19]

#create scatterplot
fig, ax = plt.subplots()
ax.scatter(x, y)

#add axis labels
ax.set_ylabel('Y-Axis Label')
ax.set_xlabel('X-Axis Label')

#adjust position of y-axis label (10% outside left, 10% up vertically)
ax.yaxis.set_label_coords(-.1, .1)

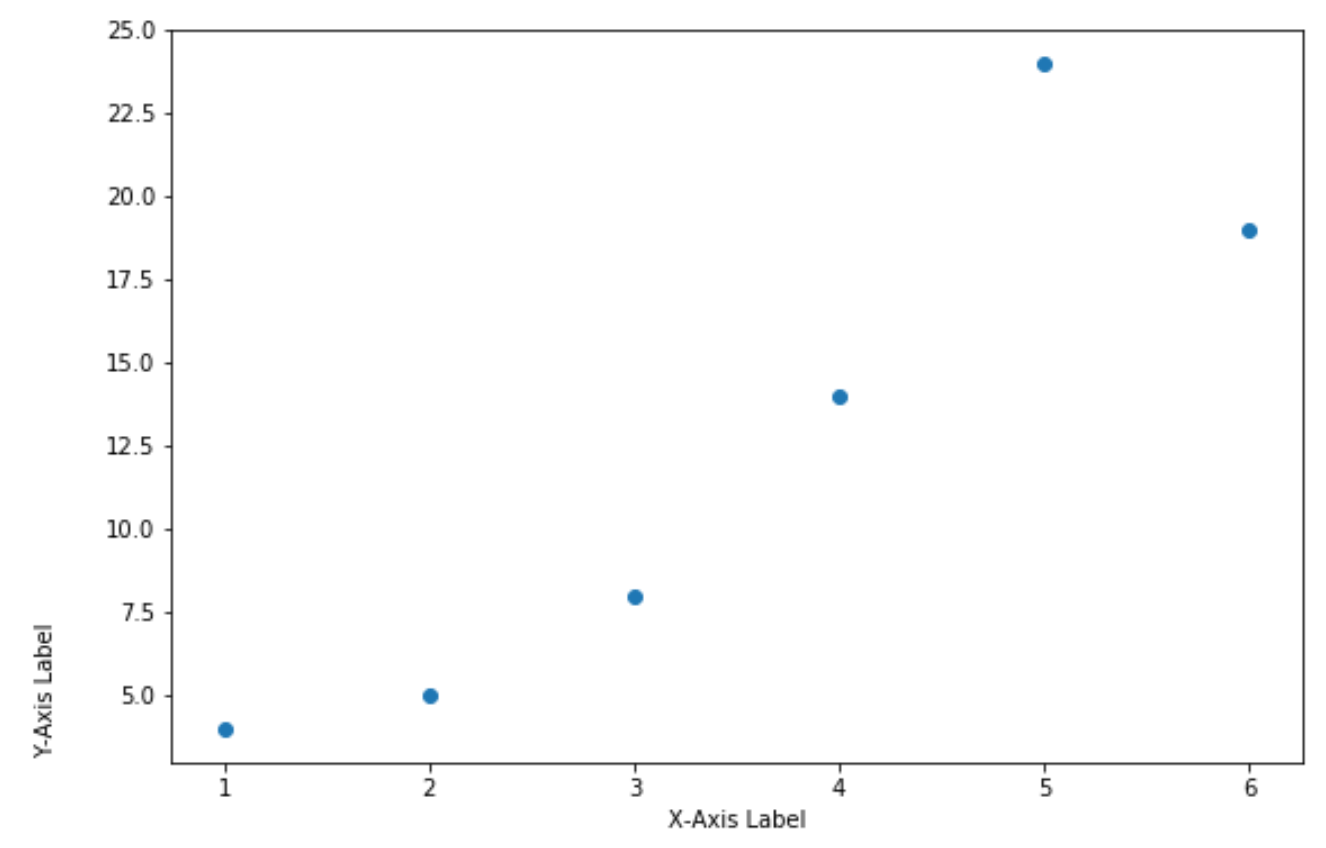

This result shows the Y-axis label relocated both horizontally (further left) and vertically (anchored low). By setting the vertical coordinate to .1, the label is no longer centrally aligned, which may be a necessary stylistic choice or a specific requirement for certain academic journal submissions or specialized plotting layouts where the top and middle portions of the margin must remain clear.

Example 3: Simultaneous Adjustment of Both Axes

In many professional data visualization contexts, especially when designing multi-panel figures (known as subplots) or figures destined for publication, it becomes necessary to adjust both axis labels concurrently to achieve a completely balanced and impeccably clean presentation. This final comprehensive example demonstrates the robust power of set_label_coords by applying distinct adjustments to both the X and Y axes within a single, cohesive plotting script, ensuring harmonious placement.

For the Y-axis, we replicate the adjustment from Example 2, using ax.yaxis.set_label_coords(-.1, .1). This places the Y label slightly outside the left boundary and toward the bottom of the axis span. For the X-axis, we reuse the adjustment from Example 1, applying ax.xaxis.set_label_coords(.9, -.1), which anchors the X label far to the right and below the axis line. This combination strategically positions both labels near the bottom-left corner of the figure’s margin area, ensuring they are outside the main visual focus but still clearly associated with their respective axes.

import matplotlib.pyplot as plt

#define data
x = [1, 2, 3, 4, 5, 6]
y = [4, 5, 8, 14, 24, 19]

#create scatterplot
fig, ax = plt.subplots()
ax.scatter(x, y)

#add axis labels
ax.set_ylabel('Y-Axis Label')
ax.set_xlabel('X-Axis Label')

#adjust position of both axis labels
ax.yaxis.set_label_coords(-.1, .1)
ax.xaxis.set_label_coords(.9, -.1)

The resulting figure vividly illustrates how independent and precise control over label placement facilitates highly customized visual layouts. This technique proves invaluable for integrating Matplotlib plots into complex documents, such as academic papers or technical reports, where strict margin specifications or spatial constraints must be rigorously respected to ensure the entire figure fits cleanly onto the page.

Conclusion and Best Practices

The ability to precisely manipulate axis label positions using the ax.xaxis.set_label_coords(x, y) method represents a powerful and essential component within the extensive Matplotlib customization toolkit. While the library’s default placement logic is often adequate for simple exploratory plots, mastering this technique is crucial for data scientists, analysts, and developers seeking to produce publication-quality graphics that effectively communicate complex information without visual clutter. It directly addresses common formatting challenges, including label overlap, tight margin constraints, and the necessity for aesthetic consistency across multiple figures.

To ensure successful and repeatable results when applying this technique, adhere to the following key takeaways and best practices:

1. Always remember that the coordinates supplied to set_label_coords are normalized. They are relative strictly to the axis extent (scaled from 0 to 1), not to the actual data values or the overall figure size. This normalization is a feature, as it ensures proportionality across different zoom levels and plot sizes.
2. Utilize negative values for the offset coordinate—that is, the dimension perpendicular to the axis line (y for X-axis, x for Y-axis). Negative values effectively push the label further away from the immediate plot area boundary, maximizing separation from tick labels and the data visualization itself.
3. Due to the complex interplay of font sizes, figure aspect ratios, DPI settings, and padding, the visual outcome of specific coordinate pairs can vary slightly between environments. Therefore, it is strongly recommended to test and iterate on coordinate pairs, especially when dealing with plots that have unusual aspect ratios or are intended for high-resolution output.

By integrating set_label_coords into your plotting workflow, you gain the ultimate level of control over the aesthetic presentation, ensuring that your data visualization is not only accurate but also visually impeccable.

Additional Resources

For further documentation, detailed examples, and exploration of advanced customization options within the Matplotlib library, developers should consult the official online documentation:

• Matplotlib Axis Container documentation for comprehensive information on axis manipulation and related object properties.
• Tutorials on handling text and annotations for detailed guidance on general text placement and advanced labeling techniques within figures.
