Learning to Control Line Thickness in ggplot2 for Effective Data Visualization

Understanding Line Thickness in Data Visualization

Line thickness, often referred to as line weight, constitutes a fundamental Aesthetics property within graphical representation. Its deliberate manipulation is critical in shaping how a viewer interprets a plot, directly influencing the clarity, emphasis, and overall narrative conveyed by the data. In the realm of advanced statistical graphics, particularly when generating visualizations using the highly acclaimed ggplot2 package within the R programming language environment, mastery over line weight is essential for achieving professional and impactful Data visualization outcomes. Effective control ensures that critical trends are immediately visible and appropriately weighted against secondary data features.

Within the ggplot2 framework, the visual dimension responsible for controlling the thickness of lines, borders, and various geometric elements is uniformly managed via the size argument. This argument provides users with precise, granular control necessary to fine-tune the visual weight of geometric objects. By adjusting this single parameter, practitioners can strategically highlight specific data trends, differentiate between multiple series plotted on the same axes, or simply improve the legibility of the graphic when displayed across different media, ranging from dense scientific papers to large-format presentation slides.

To manually specify the line thickness when utilizing functions such as geom_line()—the primary geometry for drawing continuous sequence data—a numerical value must be supplied to the size parameter. The default thickness provided by ggplot2 is typically set to 1. However, any positive decimal value, whether greater or less than the default, can be specified to either amplify or diminish the line’s visual prominence. This manual adjustment allows for highly customized graphical outputs tailored to the specific demands of the dataset and the communication objective.

The core methodology for implementing this manual adjustment is straightforward and is integrated directly into the layering structure of the plot construction. The following syntax snippet demonstrates the fundamental application of the size argument within a standard plot call, illustrating how a value of 1.5 would immediately increase the line’s visual weight beyond the default setting:

ggplot(df, aes(x = x, y = y)) +
  geom_line(size = 1.5)

This tutorial will offer a comprehensive, practical guide detailing how to leverage the versatile size aesthetic to achieve optimal line thickness and enhance the communicative power of your ggplot2 visualizations.

The Role of the size Argument in geom_line()

The robust architecture of ggplot2 is fundamentally rooted in the influential “grammar of graphics,” a structured approach where visualizations are systematically constructed through a series of conceptual layers. Within this framework, the geom_line() geometry holds the specific responsibility for drawing continuous lines that connect sequential data points, making it the preferred choice for rendering time series, trends, or any data where the order of observations is significant. Understanding how size interacts with this geometry is paramount to mastering line plots.

In the ggplot2 environment, data variables are translated into observable visual properties through the use of Aesthetics mappings. While the size aesthetic can be dynamically mapped to a variable—for instance, allowing the line thickness to reflect the magnitude of a third, quantitative data dimension—it is most commonly set manually. Manual control is employed when the primary goal is not data mapping but rather enhancing the overall visual appeal, improving the legibility, or directing the viewer’s attention to the primary geometric object on the plot. When set manually, the size parameter resides outside the primary aes() mapping call, applying a uniform thickness across the entire line segment.

By explicitly defining the size parameter within the geom_line() function, users effectively override the package’s default thickness setting of 1. The selection of an appropriate size value is not arbitrary; it depends heavily on several contextual factors. These factors include the ultimate output medium (e.g., whether the plot is destined for a high-resolution print medium, a standard screen display, or a mobile device) and the intrinsic density of the data being visualized. For plots featuring extremely dense time series or high-frequency fluctuations, a thinner line (e.g., 0.5 or 0.8) might be necessary to prevent overplotting. Conversely, for simple, single-series trend visualizations intended for immediate visual impact in a presentation, a notably thicker line (e.g., 2 or 3) is often preferred to ensure maximum visibility and immediate comprehension.

Practical Example: Establishing the Baseline Plot

To effectively demonstrate the practical application and visual impact of modifying the size argument, we will begin by establishing a crucial visual baseline. This initial step involves setting up a basic data structure and generating a standard line plot using the inherent default settings provided by ggplot2. This default plot serves as the essential point of comparison, allowing us to accurately gauge the effect of subsequent thickness adjustments.

The preparatory work requires loading the necessary visualization package and defining a simple, structured dataset. For this demonstration, we create a data frame named df, which contains sequential X coordinates and corresponding Y values representing a simple, illustrative trend. The subsequent code block loads the requisite library and then plots this data using the fundamental geom_line() call without any explicit aesthetic modifications.

# Load the ggplot2 visualization package
library(ggplot2)

# Create illustrative data frame
df <- data.frame(x=c(1, 2, 3, 4, 5, 6, 7),
                 y=c(6, 8, 12, 14, 11, 10, 15))

# Create the baseline line plot using default thickness (size = 1)
ggplot(df, aes(x = x, y = y)) +
  geom_line()

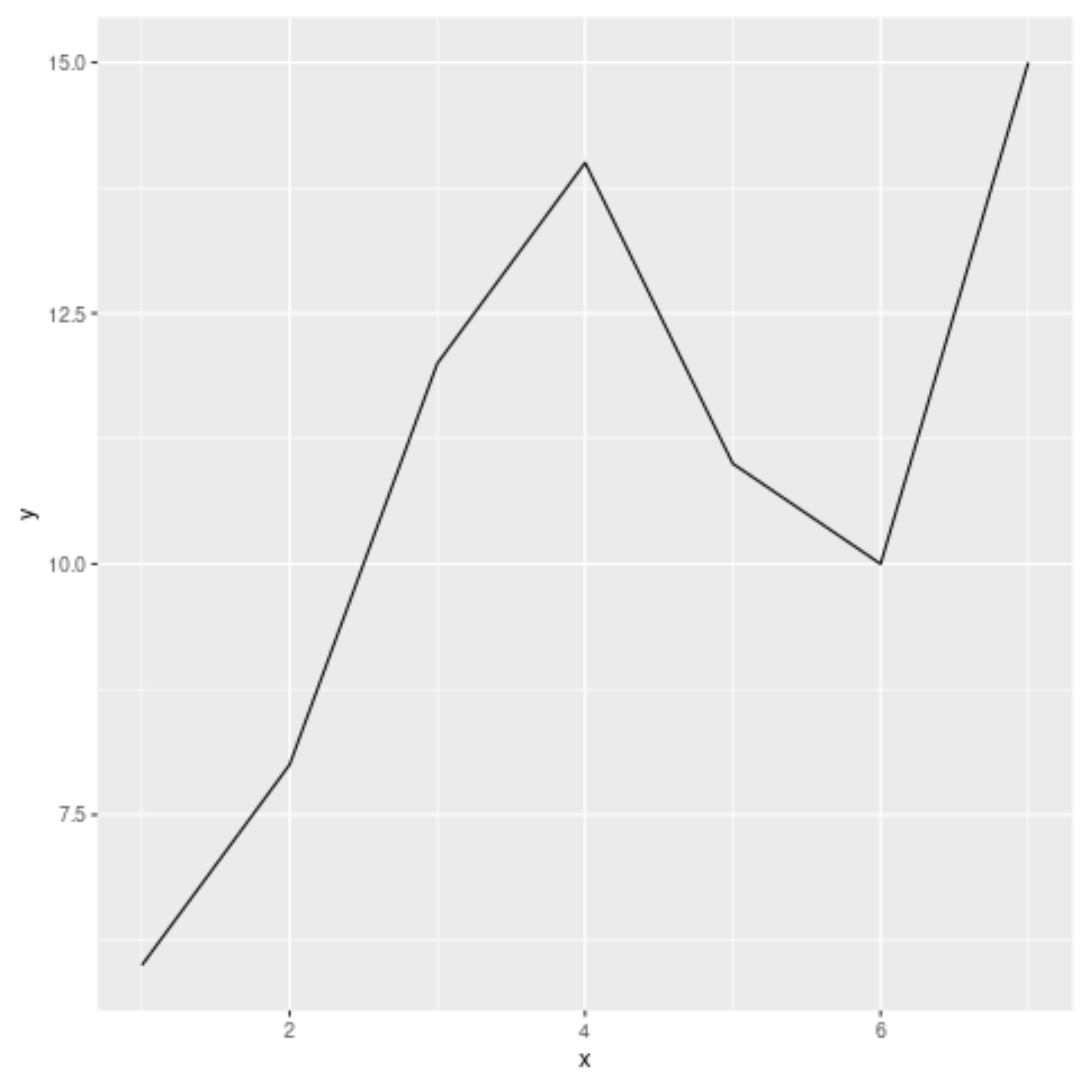

The resulting visualization below utilizes the default line thickness, typically set to a numerical value of 1. While this thickness is structurally adequate for displaying the underlying trend, it often lacks the necessary visual impact required for high-quality reports, compelling presentations, or outputs where the primary data series must immediately capture the viewer’s attention. This image serves as our reference point before implementing strategic aesthetic enhancements.

Implementing Enhanced Line Weight for Visual Impact

As observed in the baseline plot, the default line thickness (size = 1) is often subtle. To ensure the line receives greater prominence and immediate attention, we must strategically increase this numerical value. Augmenting the line thickness is a powerful technique in Data visualization used to emphasize the primary trend trajectory being displayed, drastically improving visibility, particularly in contexts where the plot might be viewed in a reduced size, such as a thumbnail or a small inset figure within a larger document.

To achieve this enhancement, we integrate the size argument directly into the geom_line() function call. Unlike aesthetic mappings that relate thickness to data, this manual adjustment is set as a scalar value that applies uniformly to the geometric object. In this specific demonstration, we will set size = 2, effectively doubling the default thickness and producing a much bolder, more assertive line. This modification dramatically changes the visual hierarchy of the plot, ensuring the trend line dominates the visual field.

library(ggplot2)

# Create line plot with enhanced thickness (size = 2)
ggplot(df, aes(x = x, y = y)) +
  geom_line(size = 2)

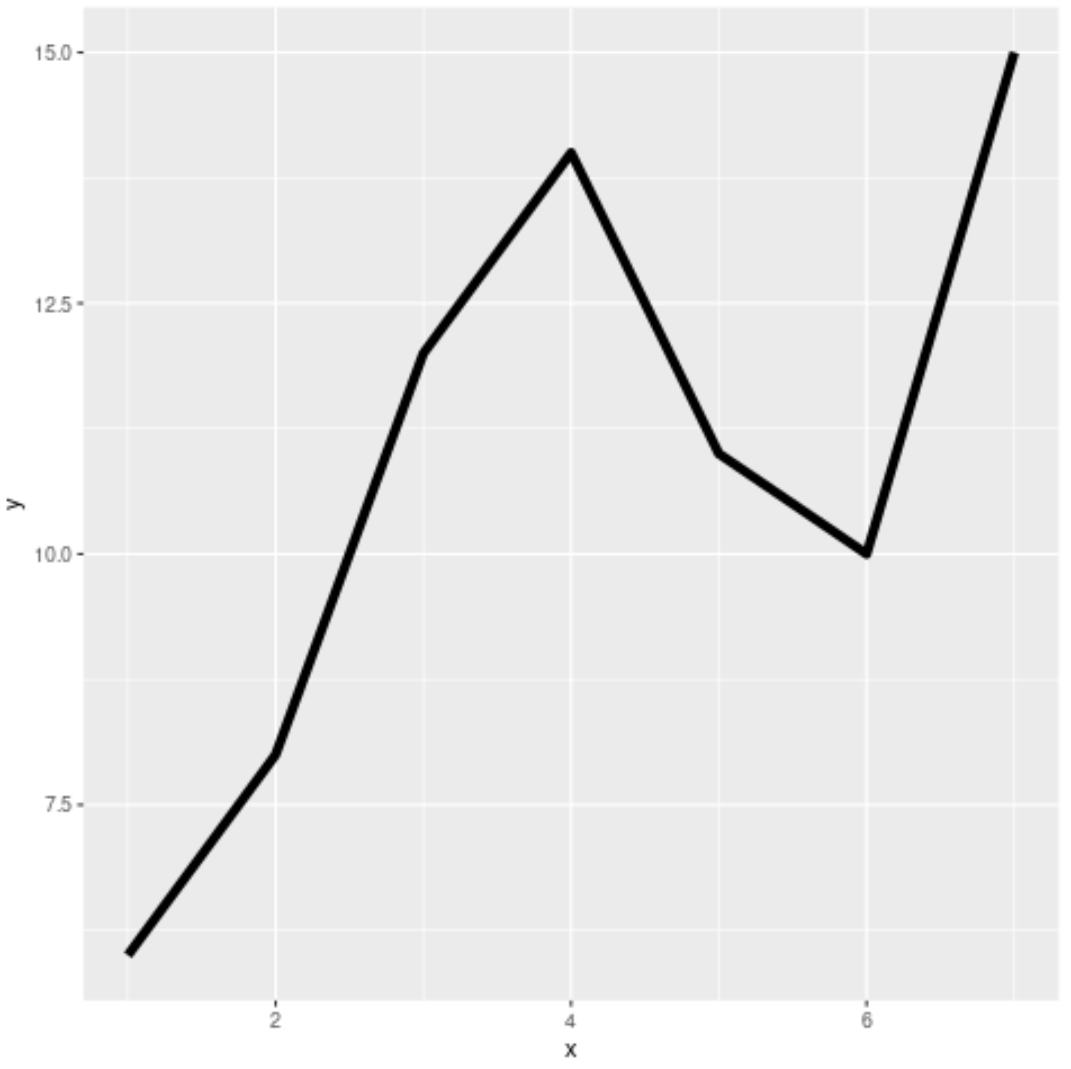

The resulting visualization immediately confirms the successful implementation of the enhanced line weight. The trend trajectory is now significantly easier to follow and possesses a strong visual presence. This straightforward adjustment underscores the flexibility and power of manually controlling Aesthetics within the ggplot2 system. By experimenting with a range of decimal values (e.g., 0.5 for a delicate line, 1.25 for a slight enhancement, or 3.0 for maximum impact), users can meticulously calibrate the visual weight to achieve the optimal balance between clarity and aesthetic appeal for their specific data context.

Comparative Analysis of Line Size Variations

When preparing graphics for publication or presentation, determining the optimal line thickness rarely involves a single, definitive value. Instead, it often benefits from a comparative evaluation where several size options are viewed side-by-side. This analytical approach ensures that the final chosen size value successfully reinforces the data narrative without inadvertently introducing visual clutter or distortion. To facilitate this crucial comparison, we can leverage external packages, such as gridExtra, which is specifically designed to arrange and display multiple independent plots efficiently within a single output grid.

The code below systematically generates four distinct line plots, each utilizing the identical underlying dataset but assigned a progressively different size value (1, 1.5, 2, and 3). Each plot is appropriately titled to clearly indicate the line weight used. These individual plot objects (plot1 through plot4) are then assembled vertically using the powerful grid.arrange() function, a core component of the gridExtra package. This comparative layout is invaluable for making informed aesthetic decisions tailored to the specific context of the visualization.

library(ggplot2)
library(gridExtra)

# Create data frame
df <- data.frame(x=c(1, 2, 3, 4, 5, 6, 7),
                 y=c(6, 8, 12, 14, 11, 10, 15))

# Create four line plots with varying sizes
plot1 <- ggplot(df, aes(x=x,y=y)) + geom_line() + ggtitle("Size = 1 (Default)")
plot2 <- ggplot(df, aes(x=x,y=y)) + geom_line(size=1.5) + ggtitle("Size = 1.5")
plot3 <- ggplot(df, aes(x=x,y=y)) + geom_line(size=2) + ggtitle("Size = 2")
plot4 <- ggplot(df, aes(x=x,y=y)) + geom_line(size=3) + ggtitle("Size = 3")

# Display all line plots stacked on top of each other
grid.arrange(plot1, plot2, plot3, plot4, ncol=1)

This resulting visual comparison provides conclusive evidence of the direct, linear relationship between the numerical value assigned to the size argument and the resultant line weight displayed on the plot. It serves as an excellent reference point for understanding the magnitude of change associated with specific increments, helping users to quickly zero in on the appropriate aesthetic setting for their intended output.

Best Practices for Line Thickness Selection

The visualizations confirm that increasing the value provided to the size argument directly within the geometry call results in a thicker line. However, the true skill in selecting the optimal thickness lies in balancing emphasis with data fidelity. Simply maximizing the thickness is often counterproductive, especially when dealing with complex datasets or multi-series plots.

When visualizing complex data that involves numerous overlapping series or highly variable trends, employing excessively thick lines can lead to a significant visual problem known as overplotting. Overplotting obscures critical intersection points, masks subtle variations, and generally degrades the clarity of the presentation. In such demanding scenarios, conservative size values, typically ranging between 0.5 and 1.2, are highly recommended to ensure maximal clarity and detail preservation.

Conversely, when the plot is deliberately simple, featuring only one or two distinct series, and is specifically intended for immediate communication—such as on a presentation slide intended for a large audience—increasing the size to a bolder value like 2 or 3 is entirely justified. A thicker line ensures the primary information stands out immediately, minimizing the cognitive load on the audience. It is a critical best practice to always test multiple size values, ideally utilizing a comparative visualization approach, such as the one demonstrated using the gridExtra package, to precisely determine the perfect aesthetic equilibrium for your specific Data visualization objectives.

Ultimately, mastering the manual control of the size Aesthetics is a fundamental and vital skill for any data professional committed to creating professional-grade, highly communicative graphics using the powerful tools available in ggplot2.
