Adjusting Bar Spacing in ggplot2: A Comprehensive Guide

The visualization of categorical data using ggplot2 is a fundamental skill for data scientists utilizing R. One critical aspect of creating effective and readable visualizations, particularly bar charts, is managing the spacing between the bars. Appropriate spacing, often referred to as the gap, prevents visual clutter and allows for clear distinction between categories. We can adjust this spacing using specific parameters within the primary geometry function, geom_bar(), depending on whether we are dealing with a simple frequency chart or a complex clustered visualization.

This article provides a comprehensive guide to controlling the gap widths in your bar plots using two essential methods. The first method focuses on adjusting the overall bar width in standard frequency plots. The second method delves into the dual-control mechanisms necessary for finely tuning the separation in clustered bar charts, ensuring that both inter-cluster and intra-cluster gaps are optimized for presentation. Mastering these techniques is vital for producing professional-grade data visualizations.

Understanding Bar Spacing in ggplot2

The core function for generating bar charts in ggplot2 is geom_bar(). This function automatically calculates bar heights based on counts (if no y-variable is specified) or plots specified values (if stat=’identity’ is used). The appearance and separation of these bars are controlled by key aesthetic parameters, primarily width and position. By default, ggplot2 sets the bar width to 0.9, which results in minimal spacing between adjacent bars.

The width parameter accepts values ranging from 0.0 to 1.0. This value represents the proportion of the total space allocated to that category that the bar itself will occupy. Consequently, a width closer to 1.0 means the bars are wider and closer together, maximizing the bar area. Conversely, decreasing the width toward 0.0 increases the margin between the bars, making them appear more spread out. Understanding this inverse relationship between bar width and gap size is crucial for effective visual design.

For simple bar charts, adjusting the width parameter within the geom_bar() function is usually sufficient to achieve the desired visual separation. However, when introducing a secondary categorical variable to create a clustered bar chart, an additional parameter, position_dodge(), becomes necessary. This separation of controls allows for precise formatting of complex visualizations where two distinct types of spacing—the space between clusters and the space between bars within a cluster—must be managed independently.

Method 1: Controlling Spacing in Simple Bar Charts

For standard bar charts, where we are often visualizing the frequency of a single categorical variable, the spacing is exclusively controlled by the width argument within geom_bar(). This method is straightforward and effective for improving the visual clarity of basic visualizations.

To reduce the bar width and increase the space between bars, simply specify a value less than the default 0.9. For instance, setting the width to 0.4 will significantly increase the visible gap between adjacent bars, enhancing readability, especially when dealing with many categories or long category labels.

The following syntax demonstrates how to apply a custom width value to the bars in your plot:

ggplot(df, aes(x=x_variable)) +
  geom_bar(width=.4)

Recall that the default width between bars is 0.9. If the width is set close to 1, the bars will appear very close together, perhaps even touching. If the width is set close to 0, the bars will be very narrow and significantly spread out. Choosing an optimal value often requires iterative testing to balance the bar’s presence with the negative space (the gaps) for maximum aesthetic appeal and data legibility.

Setting Up the Data Environment

To practically demonstrate both methods of spacing adjustment, we will utilize a sample dataset created in R. This data frame, named df, represents hypothetical athletic team data, recording team identity, player position, and points scored.

The structure of this data frame is essential because it allows us to first create a simple bar chart (counting team occurrences) and then a clustered bar chart (summing points by team and position), thereby illustrating both spacing methods effectively.

Below is the code used to generate and display the sample data frame in the R environment:

#create data frame
df <- data.frame(team=c('A', 'A', 'A', 'B', 'B', 'B', 'C', 'C'),
                 position=c('G', 'G', 'F', 'G', 'F', 'F', 'F', 'G'),
                 points=c(12, 22, 24, 23, 20, 15, 11, 30))

#view data frame
df

  team position points
1    A        G     12
2    A        G     22
3    A        F     24
4    B        G     23
5    B        F     20
6    B        F     15
7    C        F     11
8    C        G     30

Practical Demonstration: Simple Bar Chart Spacing Adjustment

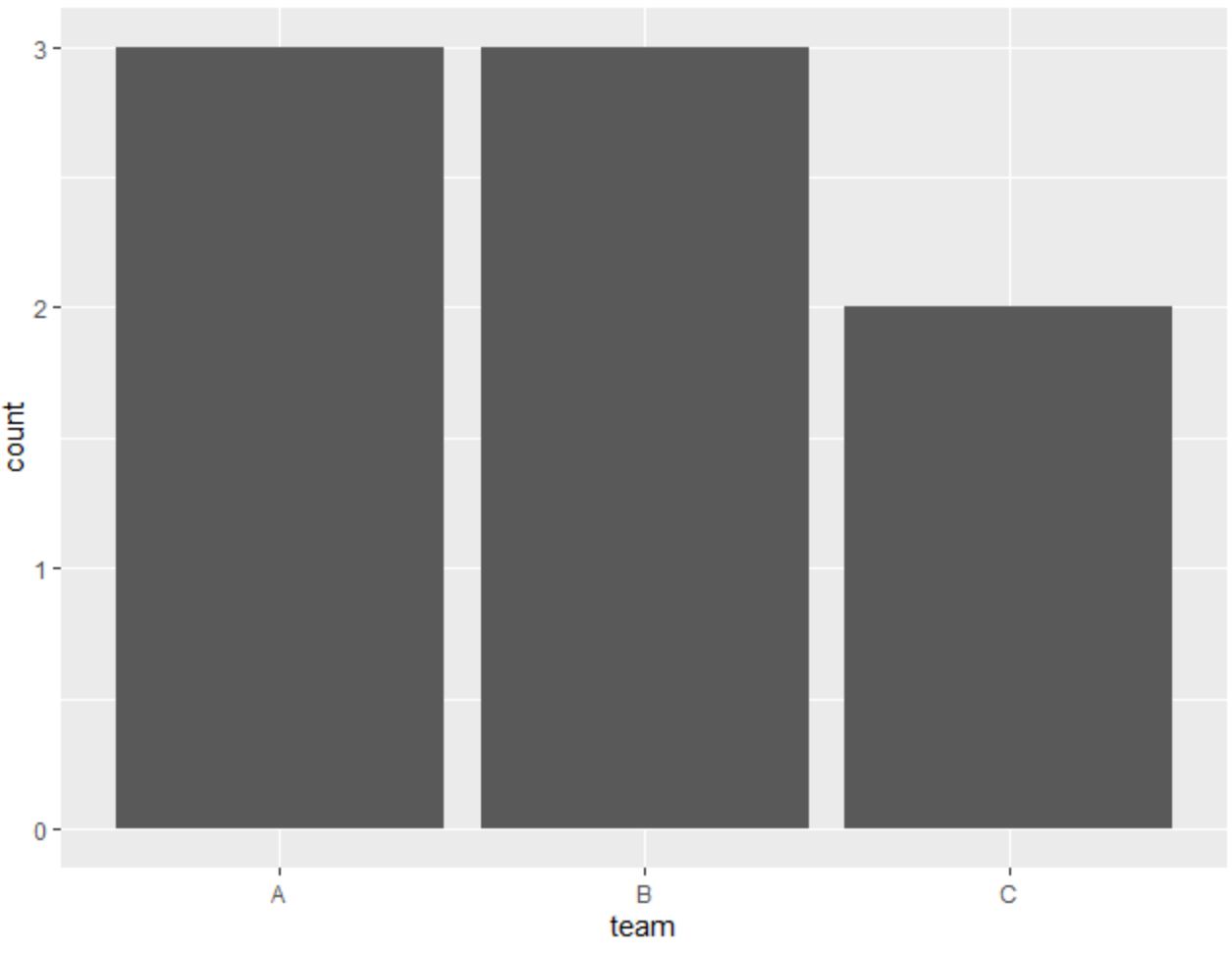

This first example demonstrates how the width parameter impacts a basic frequency bar chart. We begin by visualizing the occurrences of each team using the default spacing provided by geom_bar(), which is width=0.9.

First, we load the required ggplot2 library, and then we generate the plot using the default settings, mapping the team variable to the x-axis. Notice in the resulting image how close the bars appear due to the high default width value.

library(ggplot2)

#create bar plot with default spacing
ggplot(df, aes(x=team)) +
  geom_bar()

Next, we apply the spacing adjustment by explicitly setting the width argument to a smaller value, such as 0.4. This reduction in bar width effectively increases the empty space between the categorical groupings, creating a more defined and less visually crowded chart. This technique is especially useful for presentations where clear delineation between categories is paramount.

library(ggplot2)

#create bar plot with increased spacing
ggplot(df, aes(x=team)) +
  geom_bar(width=.4)

Method 2: Handling Spacing in Clustered Bar Charts

When visualizing two or more categorical variables simultaneously using a grouped or clustered bar chart, spacing becomes a two-dimensional problem. In this scenario, we must control both the spacing between the main clusters (e.g., between Team A and Team B) and the spacing between the individual bars within that cluster (e.g., between Guard and Forward within Team A).

The parameter width still controls the separation of the overall clusters. However, the spacing between the bars belonging to the same cluster is managed by the position_dodge() function, which is passed to the position argument of geom_bar(). The value provided to position_dodge() determines the amount of space allocated for dodging, or separating, the bars within the cluster.

It is important to note the relationship between these two parameters. If the width of the bar is 0.5, and the position_dodge() value is 0.7, the bars will overlap slightly, leading to a crowded appearance. For optimal separation, the value passed to position_dodge() should typically be equal to or slightly larger than the width value specified in geom_bar(). This ensures that the clustered bars do not touch or overlap.

The generalized syntax for managing clustered bar spacing involves specifying the width for inter-cluster spacing and using the position_dodge() function for intra-cluster spacing:

ggplot(df, aes(x=x_variable, y=y_variable, fill=fill_variable)) +
  geom_bar(width=.5, stat='identity', position=position_dodge(.7))

In the code above, the width value controls the spacing between clusters while the position_dodge() value controls the spacing between bars within the same cluster. Furthermore, since we are plotting raw data values (points) rather than counts, we must include stat=’identity’ to tell ggplot2 not to calculate frequencies but to use the y-variable directly.

Practical Demonstration: Clustered Bar Chart Spacing Adjustment

In this example, we create a clustered bar chart to visualize the total points scored, grouped by both team and position. We first generate the plot using default settings for comparison. The default setting for position dodging is typically equivalent to the default bar width (0.9), resulting in tightly packed clusters and minimal space between the clustered bars.

The following code creates the clustered bar chart with default spacing. Note the use of position=’dodge’, which is the shorthand equivalent of position=position_dodge(width=0.9):

library(ggplot2)

#create clustered bar plot with default spacing
ggplot(df, aes(x=team, y=points, fill=position)) +
  geom_bar(stat='identity', position='dodge')

To improve the clarity of this clustered chart, we will adjust both spacing controls. We decrease the overall bar width to 0.5 to increase the gap between the major clusters (Team A, Team B, Team C). Simultaneously, we use position_dodge(0.7) to specify the exact separation distance for the bars within each cluster (Guard and Forward).

By ensuring that the position_dodge() value (0.7) is larger than the bar width (0.5), we guarantee a distinct gap between the clustered bars, preventing them from touching and improving the visual grouping.

library(ggplot2)

#create clustered bar plot with increased spacing
ggplot(df, aes(x=team, y=points, fill=position)) +
  geom_bar(width=.5, stat='identity', position=position_dodge(.7))

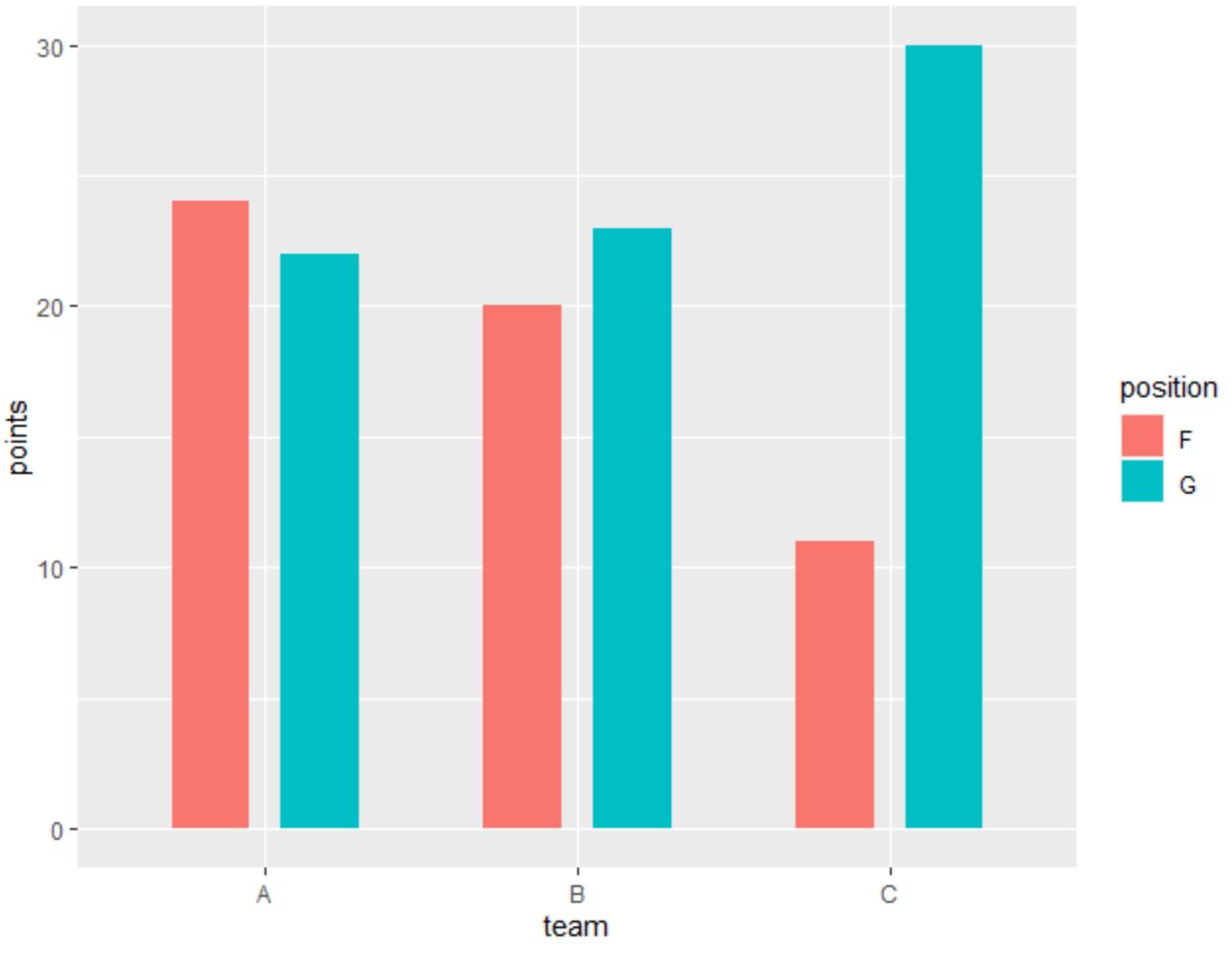

As demonstrated by the resulting image, decreasing the value for width successfully increased the spacing between the clusters (e.g., the gap between the bars of Team A and the bars of Team B). Concurrently, by setting position_dodge() to 0.7, we increased the spacing between bars within the same clusters (e.g., the gap between the Guard and Forward bars within Team A). This fine-grained control is essential for crafting publication-quality data visualizations. Data visualization experts recommend experimenting with these values to find the perfect balance between bar prominence and negative space for optimal reader comprehension.

Additional Resources for ggplot2 Customization

Customizing bar spacing is just one of many ways to enhance your visualizations in ggplot2. The flexibility of the package allows for extensive modification of aesthetics, scales, and themes.

To continue building your expertise in data visualization using R, consider exploring the following advanced topics and tutorials related to ggplot2:

• Controlling axis labels and breaks for clearer category identification.

• Using themes to apply consistent aesthetic styles across multiple plots.

• Implementing facets (facet_wrap() or facet_grid()) to display subsets of data efficiently.

• Adjusting color palettes, especially for clustered charts, to ensure accessibility and distinction between groups.

By mastering these customization techniques, you can ensure that your data visualizations are not only accurate but also highly effective at communicating complex information.
