Learning to Control Plot Size: A Pandas `figsize` Tutorial

Mastering Plot Dimensions with figsize in Pandas

Effective data visualization is not merely about presenting numerical data; it is a critical skill for conveying complex insights clearly and efficiently. A professionally designed plot significantly enhances readability and aesthetic appeal, ensuring that the underlying message is communicated without ambiguity. When working with the powerful Pandas library for data analysis, one of the most fundamental aspects of generating publication-quality figures is the ability to precisely control their dimensions.

Fortunately, Pandas seamlessly integrates with Matplotlib, leveraging its robust plotting backend. This integration provides a straightforward and highly effective mechanism for sizing visualizations: the figsize parameter. This essential parameter is available within the .plot() method and all its subsequent sub-methods, granting developers and analysts granular control over the width and height of the resulting figure output.

By consistently utilizing the figsize parameter, you move beyond default settings and actively define the exact size requirements of your plots. This capability ensures that visualizations are optimally suited for their intended display medium, whether that involves maximizing clarity on a high-resolution presentation screen, fitting perfectly within a constrained report column, or maintaining aesthetic consistency across a web application interface. Mastering this parameter is key to elevating standard plots into impactful visual narratives.

Understanding the Mechanics of the figsize Parameter

The figsize parameter operates by accepting a Python tuple consisting of two numerical values: (width, height). It is crucial to understand that these values define the dimensions of the entire figure canvas, with the unit of measurement being standard inches. The first element of the tuple, designated as width, dictates the horizontal extent of the figure, while the second element, height, determines its vertical extent.

For example, invoking figsize=(10, 5) instructs the plotting backend to generate a figure that measures 10 inches wide and 5 inches tall. This direct and intuitive mapping allows for easy specification of the precise size required for any visualization task. It is vital to remember that these dimensions encompass the entirety of the figure, including surrounding elements such as the main title, axis labels, legends, and any external padding, not just the central data-plotting area.

This mechanism provides the flexibility required to control the aspect ratio—the proportional relationship between the width and height—which is fundamental to avoiding distortion and optimizing the perception of trends within the data. Below is a representative code snippet demonstrating how the figsize parameter is typically incorporated into a Pandas DataFrame plotting call, specifically using the .plot.scatter() method:

df.plot.scatter(x='x', y='y', figsize=(8,4))

This simple addition transforms the visual output, offering granular control necessary to align the visualization’s presentation with specific design constraints or output requirements, ensuring professional quality from the outset.

Preparing the Sample Data for Visualization

To effectively illustrate the practical impact of adjusting the figsize parameter, we require a consistent and straightforward dataset. For this demonstration, we will establish a basic Pandas DataFrame. This data structure will comprise two simple columns, ‘x’ and ‘y’, populated with numerical entries perfectly suited for generating a clear scatter plot visualization.

The initial step involves importing the necessary Pandas library, which is the foundation for our data manipulation and plotting operations. Following the import, we proceed directly to the construction of our sample DataFrame. Utilizing a consistent dataset across all subsequent examples is critical, as it allows us to isolate and precisely observe the visual transformations that occur solely as a result of modifying the figsize parameter.

The code snippet provided below details the precise commands used to initialize our DataFrame. Additionally, it includes a command to display the initial rows of the data, offering a quick confirmation of the structure and content we will be visualizing throughout the following examples:

import pandas as pd

#create DatFrame
df = pd.DataFrame({'x': [1, 2, 3, 4, 5, 6, 7, 8, 9, 10],
                   'y': [5, 7, 7, 9, 10, 14, 13, 15, 19, 16]})

#view head of DataFrame
df.head()

        x	y
0	1	5
1	2	7
2	3	7
4	5	10

Example 1: Generating a Plot with Default Dimensions

When plotting data using Pandas and the underlying Matplotlib library, failing to explicitly define the figsize parameter results in the application of the library’s default figure size settings. While this default size can be influenced by specific configurations, it is commonly set to (6.4, 4.8) inches, establishing a standard aspect ratio that is often wider than it is tall.

Establishing a clear understanding of this default behavior is fundamentally important, as it provides the essential baseline against which all custom size adjustments should be compared. The following code executes a simple scatter plot using our previously defined DataFrame, intentionally omitting the figsize parameter to allow Matplotlib to apply its automatic dimensioning rules.

Examine the resulting visualization provided below. This figure represents the standard, uncustomized appearance derived from the default configuration. It serves as a crucial reference point before we delve into the custom sizing options that allow for precise control over the plot’s visual presentation.

#create scatter plot with default size
df.plot.scatter(x='x', y='y')

Example 2: Achieving a Horizontal Aspect Ratio

In numerous visualization contexts, particularly when analyzing data that unfolds over time or when dealing with categories that possess lengthy descriptive labels, a wider, more horizontal plot orientation is highly advantageous. This elongated format significantly improves the legibility of the x-axis, preventing the overcrowding of data points and labels. By setting the figure’s width to be substantially greater than its height, we effectively spread the visual elements across a greater horizontal space.

To successfully achieve this pronounced horizontal orientation, we must define the figsize tuple such that the first value (width) is demonstrably larger than the second value (height). For this specific example, we will employ a ratio where the width is exactly double the height, specifically using figsize=(8, 4), which will yield a distinctly horizontal plot.

The code below demonstrates the implementation of this custom sizing, and the resultant image clearly showcases the intended elongated aspect. Notice the shift in visual emphasis; this wider format generally makes it easier for the viewer to track trends, patterns, or distinctions that are primarily distributed along the horizontal axis.

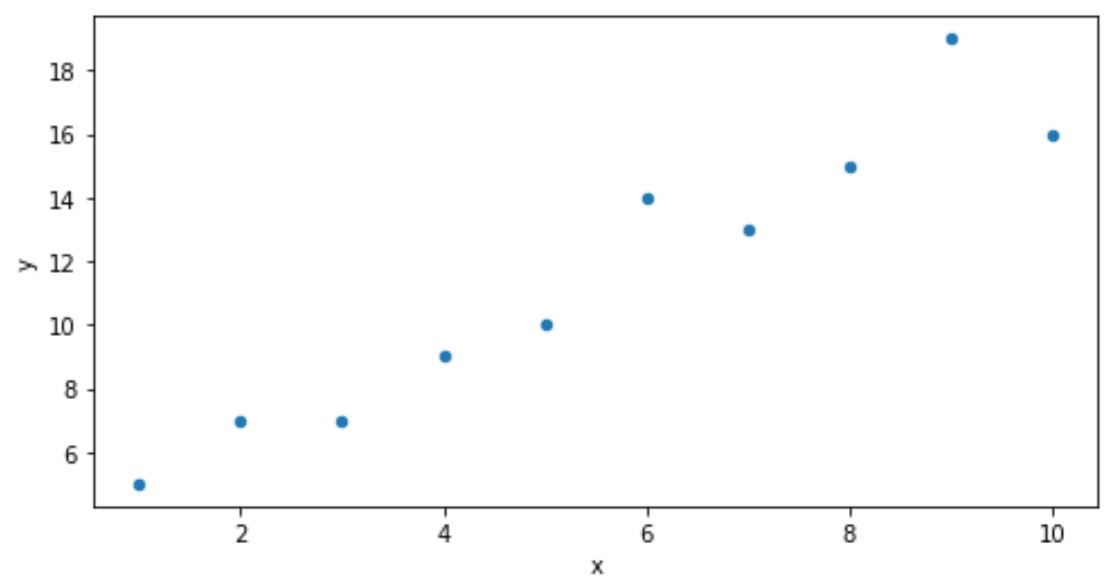

#create scatter plot with longer width than height
df.plot.scatter(x='x', y='y', figsize=(8,4))

As is evident from the visual output, the figure now possesses a significantly greater width relative to its height, successfully optimizing the available horizontal space for data representation and enhancing overall clarity.

Example 3: Constructing a Vertical Aspect Ratio

Conversely, a taller, more vertical figure is often the optimal choice for datasets where the natural variation or range of values extends predominantly along the y-axis. Use cases for this orientation include displaying probability distributions, visualizing data that benefits from ample vertical stacking (such as certain bar charts), or when the plot must be embedded within restrictive document formats, such as narrow column layouts common in academic papers or reports.

To achieve this specific vertical orientation, we must strategically adjust the figsize tuple such that the second value (height) is greater than the first value (width). For this demonstration, we will invert the dimensions from the previous example, setting the height to be double the width using figsize=(4, 8), which results in a pronounced vertical figure.

The following code snippet demonstrates this configuration, and the resulting image clearly illustrates the dramatically altered aspect ratio. This adjustment is particularly beneficial for improving the comparative clarity of vertical data points, ensuring that density and distributions along the y-axis are easily discernible by the viewer.

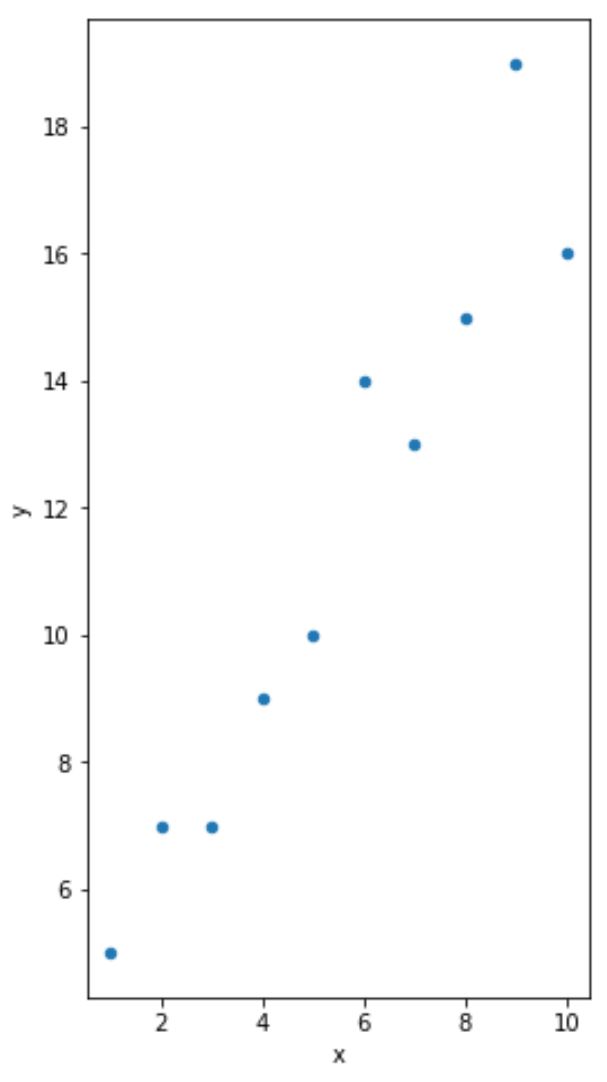

#create scatter plot with longer height than width
df.plot.scatter(x='x', y='y', figsize=(4,8))

The visual evidence confirms that the plot is now considerably taller than it is wide, confirming the successful optimization of the display for datasets that require or benefit from a distinct vertical presentation.

Conclusion: Optimizing Visual Communication with figsize

The figsize parameter, a core component of Pandas plotting functionality, represents a powerful yet straightforward mechanism for maintaining absolute control over the dimensions and aspect ratio of your data visualizations. By simply supplying a (width, height) tuple measured in inches, analysts can precisely tailor their plots to meet specific design standards, dramatically improve readability, and ensure that figures are optimally presented across diverse publication and display platforms.

Whether the goal is to produce a compact square visualization, an expansive horizontal view necessary for detailed time-series analysis, or a tall vertical display optimized for comparing distributions, the intrinsic flexibility offered by figsize is indispensable. This capability empowers users to create more impactful, aesthetically pleasing, and professional-looking charts that resonate with their intended audience. We strongly encourage consistent experimentation with different dimensions and ratios to discover the perfect visual fit for the unique characteristics of your specific data and presentation requirements.

Ultimately, the mastery of this fundamental plotting parameter is an essential stepping stone toward generating truly high-quality visualizations—the kind that effectively and convincingly communicate the critical insights embedded within complex datasets.

Additional Resources for Advanced Plot Customization

For data professionals aiming to further refine and enhance their Pandas and data visualization skills, the following tutorials offer guidance on supplementary common tasks and more advanced techniques used in conjunction with Matplotlib and Pandas:

• How to Add a Title to a Pandas Plot (Placeholder link)
• Changing Colors in Pandas Plots (Placeholder link)
• Customizing Axis Labels in Pandas (Placeholder link)

These resources are designed to help you delve deeper into customizing and refining all aspects of your plots, ensuring optimal clarity, visual appeal, and maximum data impact.
