Adjust the Figure Size of a Seaborn Plot

The Fundamental Challenge: Sizing Seaborn Visualizations

As an extension of the powerful Matplotlib library, Seaborn provides essential tools for creating sophisticated statistical graphics within Python environments. While Seaborn excels at generating aesthetically pleasing plots with minimal code, a frequent hurdle for users is accurately managing the final dimensions of the visualization, commonly referred to as the figure size.

Controlling the output dimensions is paramount for ensuring that visualizations are legible, appropriately sized for integration into reports, or formatted correctly for presentations. Unlike some plotting tools that offer a single, unified sizing parameter, Seaborn’s approach is intricately linked to the underlying Matplotlib structure, demanding that users recognize a key architectural difference: the distinction between axes-level plots and figure-level plots.

This fundamental divergence dictates the method required for resizing. For one category, we must configure global settings before the plot is drawn; for the other, dimensions are passed as specific arguments directly into the plotting function itself. Mastering this distinction is crucial for achieving consistent and predictable results when working with complex Seaborn workflows.

Distinguishing Between Axes-Level and Figure-Level Plots

To effectively manage the size of your visualizations, it is essential to understand how Seaborn functions are classified based on their interaction with the Matplotlib canvas. This architecture determines whether the function draws onto a single coordinate system or manages the entire plot structure.

The first category comprises axes-level plots. These functions, such as sns.scatterplot(), sns.boxplot(), or sns.histplot(), are designed to operate on a single subplot, or Matplotlib Axes object. When called, they return this axis object. Because they only modify the content within a predefined area, they rely on external or global configurations to define the size of the overall figure canvas upon which they draw.

Conversely, figure-level plots are complex functions designed to handle the entire figure lifecycle. Examples include sns.lmplot(), sns.catplot(), and sns.jointplot(). These functions manage the creation of the underlying figure, often automatically arranging multiple axes (subplots) and handling elements like legends across the entire structure. They return a specialized container object, typically a FacetGrid, rather than a single axis. Because they control the figure internally, sizing parameters must be supplied directly as arguments within the function call.

The following sections will detail the specific implementation techniques required for resizing based on these two classifications, ensuring you can tailor every visualization to your exact dimensional needs.

Method 1: Global Configuration for Axes-Level Plots using sns.set()

For axes-level plots, dimension control is achieved by temporarily setting the global runtime configuration parameters of Matplotlib. The most straightforward way to do this in Seaborn is by using the sns.set() function, specifically targeting the figure.figsize key within the rc parameter dictionary.

The rc parameter allows us to pass a dictionary of configuration settings that will modify the matplotlib.rcParams dictionary. The key figure.figsize expects a tuple representing the desired width and height of the figure, measured in inches (e.g., (8, 4) for 8 inches wide and 4 inches high). Critically, this function must be called before the axes-level plotting function is executed, as it defines the canvas dimensions for the visualization that follows.

This technique is particularly efficient when generating a sequence of plots that are all intended to share the same dimensions, as the settings persist until explicitly altered or the Python session is reset. The configuration snippet below demonstrates how to define a global figure size of 3 inches wide by 4 inches high:

sns.set(rc={"figure.figsize":(3, 4)}) #width=3, #height=4

Once sns.set() is executed, any subsequent call to an axes-level function, such as sns.scatterplot() or sns.lineplot(), will automatically inherit these figure size dimensions.

Practical Application: Resizing Axes-Level Plots (Scatterplot and Boxplot)

To solidify the understanding of Method 1, we will demonstrate the application of sns.set() using two common axes-level visualizations: the scatterplot and the boxplot. Both examples rely on the consistent Pandas DataFrame, df, established in the data preparation stage.

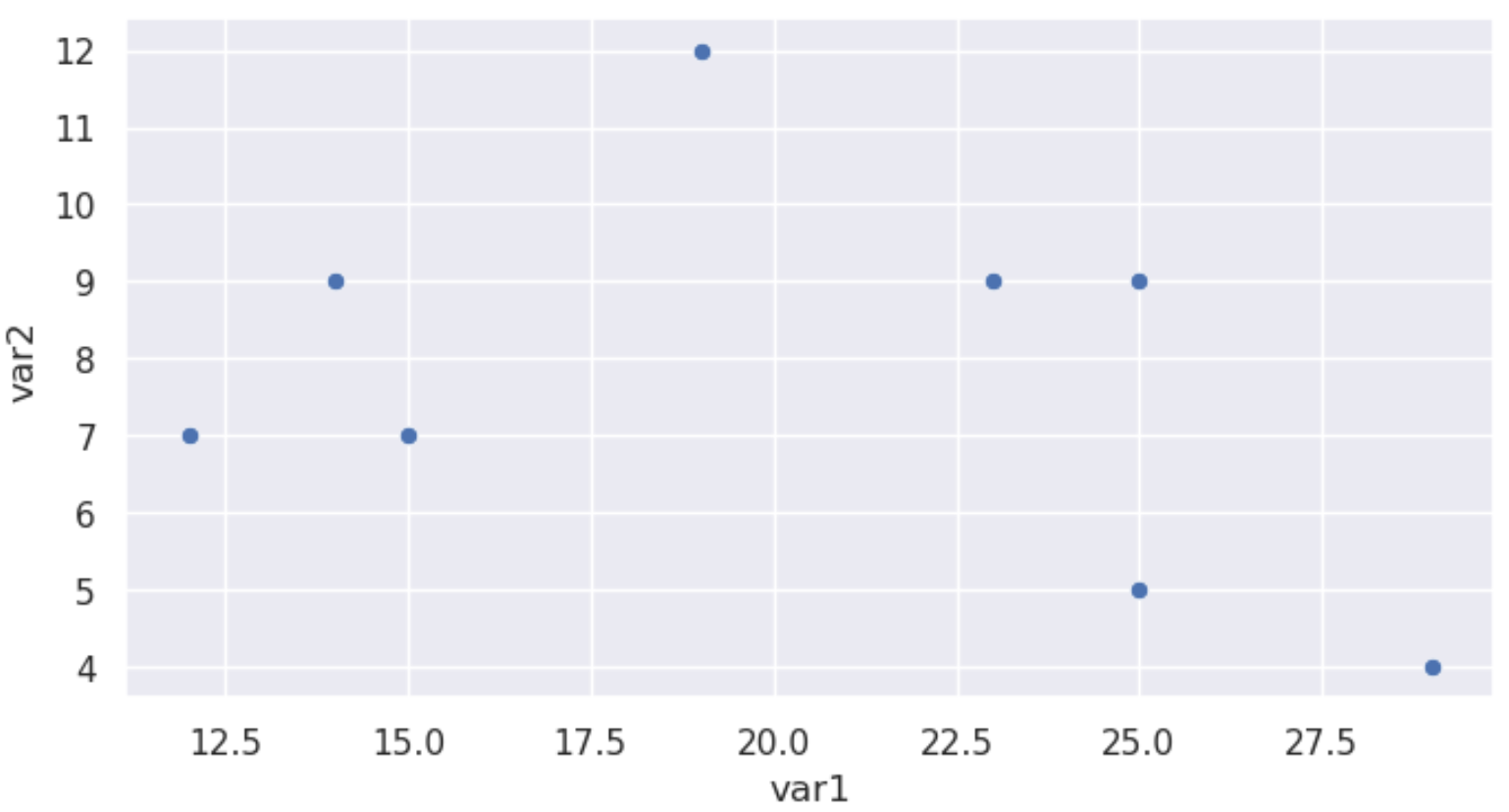

Example 4.1: Sizing a Scatterplot

In this example, we aim to create a wider visualization suitable for displaying data spread across the x-axis. We define the figure size as 8 inches wide and 4 inches high using sns.set() before calling the sns.scatterplot() function.

import pandas as pd
import seaborn as sns

#create data
df = pd.DataFrame({"var1": [25, 12, 15, 14, 19, 23, 25, 29],
                   "var2": [5, 7, 7, 9, 12, 9, 9, 4],
                   "var3": [11, 8, 10, 6, 6, 5, 9, 12]})

#define figure size (Width=8, Height=4)
sns.set(rc={"figure.figsize":(8, 4)}) #width=8, height=4

#display scatterplot (an axes-level plot)
sns.scatterplot(data=df, x="var1", y="var2")

By defining the global figure.figsize tuple as (8, 4), the subsequent sns.scatterplot() function draws its output onto a canvas that is exactly 8 inches wide and 4 inches tall. This methodology guarantees precise dimensional control over the final output image for any axes-level plot.

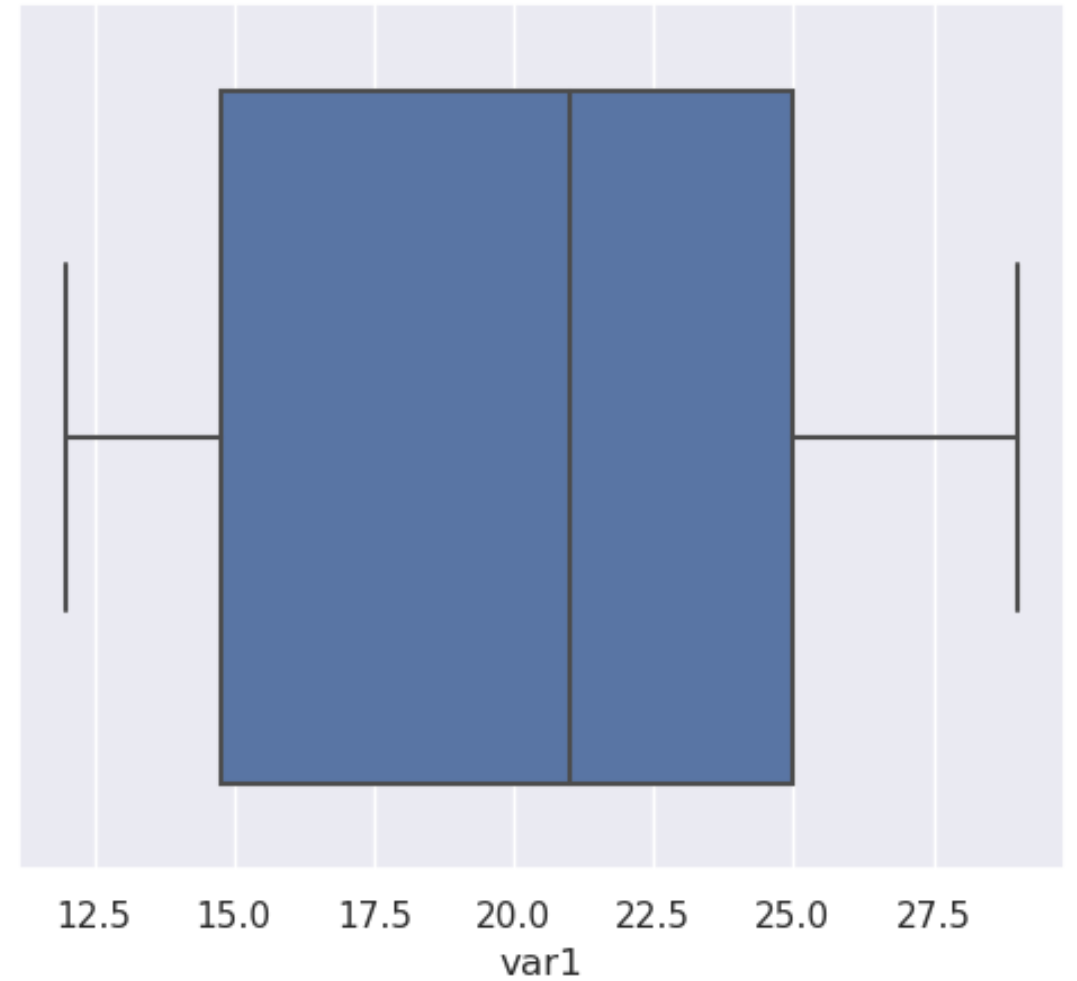

Example 4.2: Sizing a Boxplot

In contrast to the previous example, we can now adjust the dimensions for a boxplot to be taller than it is wide. The following snippet sets the global figure size to 6 inches wide and 5 inches high, demonstrating the flexibility of the sns.set() configuration for different axis-level visualizations.

#define figure size (Width=6, Height=5)
sns.set(rc={"figure.figsize":(6, 5)}) #width=6, height=5

#display boxplot
sns.boxplot(data=df["var1"])

This command instructs Matplotlib to create a 6×5 inch figure canvas. This single configuration ensures consistent sizing across all subsequent axes-level visualizations in that code block, including sns.kdeplot() or sns.violinplot(), until sns.set() is called again with new parameters.

Method 2: Direct Argument Control for Figure-Level Plots

Resizing figure-level plots necessitates a different approach, as these functions return a FacetGrid object, which manages its own underlying figure structure. Any global settings defined by sns.set() are typically overridden or ignored by these functions when determining the final output size.

Instead of relying on global settings, figure-level plotting functions accept two specific arguments to control the geometry:

• height: This argument specifies the height of each individual subplot (or facet) within the grid, measured in inches.

• aspect: This parameter defines the ratio of the width to the height for each subplot. For example, if height=5 and aspect=2, the resulting width of the subplot will be 10 inches (5 multiplied by 2).

By using height and aspect, users gain granular control over the dimensions of complex, multi-panel figures. These parameters must be passed directly into the function call itself, ensuring the dimensions are set precisely at the point of creation, overriding any persistent global environment settings.

The following generalized code snippet illustrates how these parameters are used within a figure-level function call:

sns.lmplot(data=df, x="var1", y="var2",
              height=6, aspect=1.5) #height=6, width=1.5 times larger than height

This technique is the authoritative way to size complex Seaborn visualizations that utilize faceting or joint distributions.

Practical Application: Resizing Figure-Level Plots (lmplot and jointplot)

To demonstrate direct argument control, we examine the sizing procedure for two prominent figure-level visualizations: sns.lmplot() and sns.jointplot().

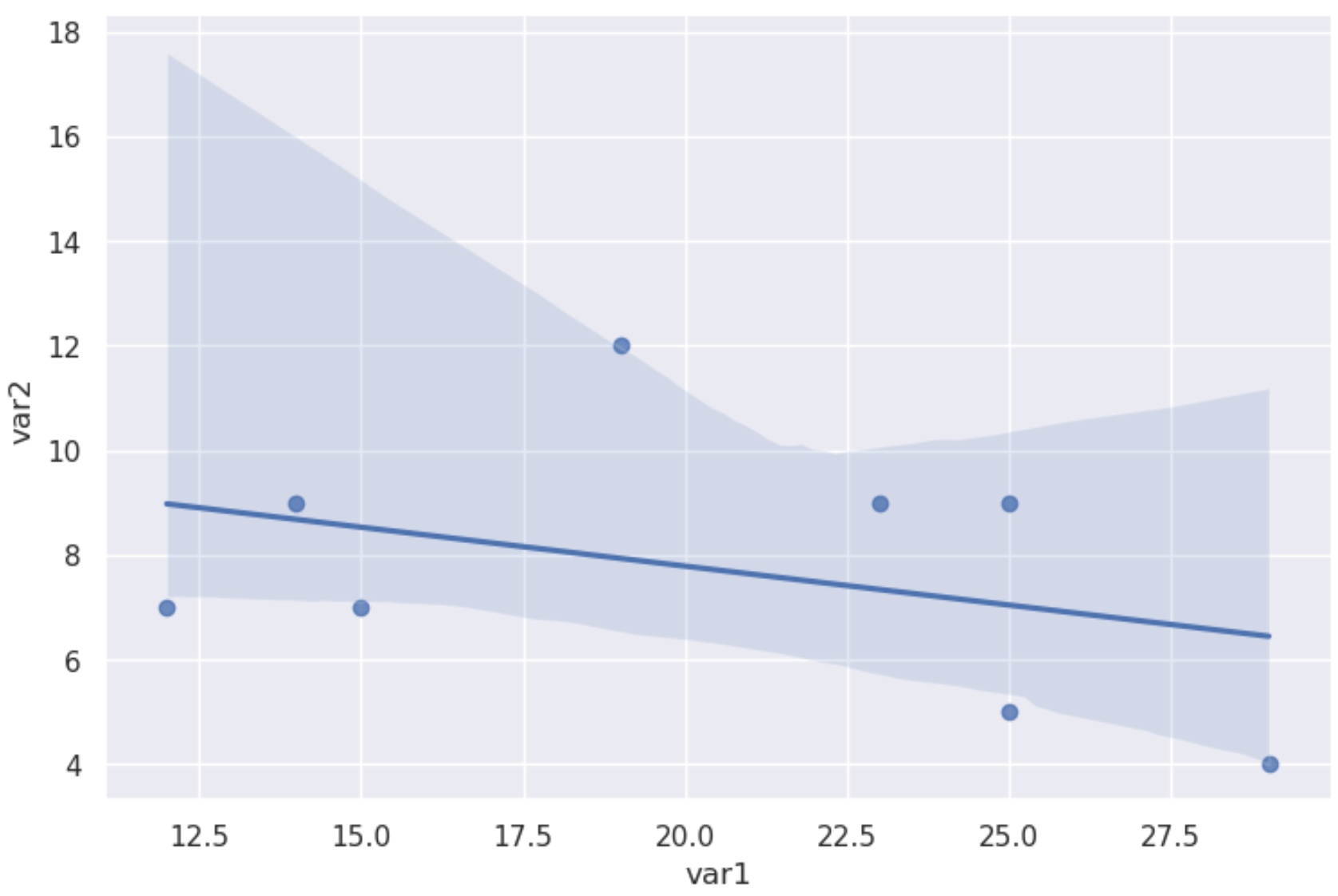

Example 6.1: Sizing an lmplot (Linear Regression Plot)

The sns.lmplot() function is commonly used for visualizing linear relationships, often across different categories using faceting. To create a figure that is significantly wider than it is tall—ideal for emphasizing horizontal trends—we must specify both the height and aspect parameters within the function call.

import pandas as pd
import seaborn as sns

#create data using Pandas
df = pd.DataFrame({"var1": [25, 12, 15, 14, 19, 23, 25, 29],
                   "var2": [5, 7, 7, 9, 12, 9, 9, 4],
                   "var3": [11, 8, 10, 6, 6, 5, 9, 12]})

#create lmplot (figure-level plot)
sns.lmplot(data=df, x="var1", y="var2",
              height=5, aspect=1.5) #height=5, width=1.5 times larger than height

Setting height=5 establishes the vertical dimension of the plot area as 5 inches. By defining aspect=1.5, the function calculates the width as 7.5 inches (5 * 1.5). This method ensures that the figure object produced by this figure-level plot respects the specified ratio, resulting in a visually balanced and correctly sized output.

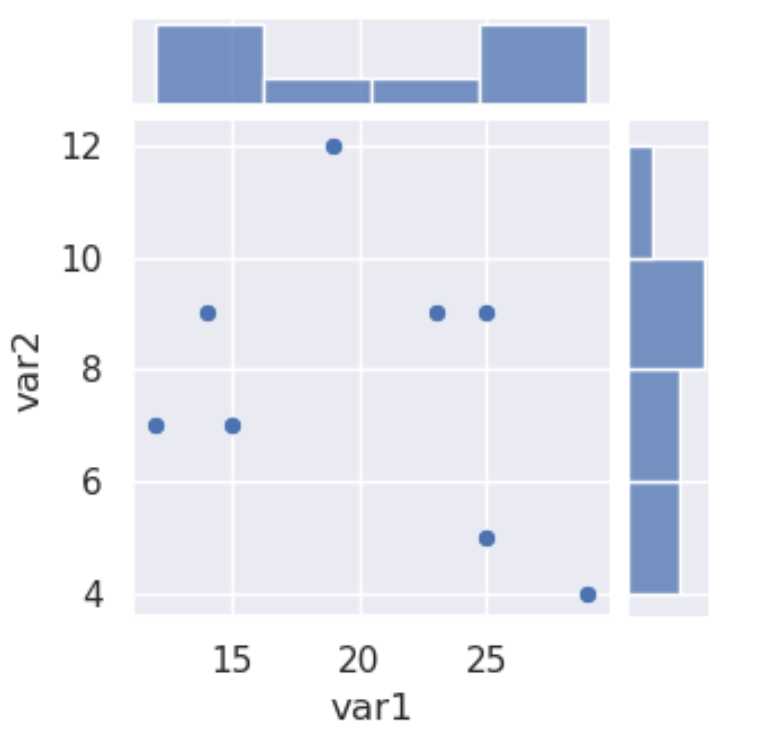

Example 6.2: Sizing a jointplot

The sns.jointplot() function displays bivariate relationships alongside marginal distributions. By design, jointplot is meant to be square, simplifying its dimension control. Since the width implicitly equals the height, only the height argument needs to be specified; the aspect ratio defaults to 1.0.

To produce a more compact visualization, we can specify a smaller height directly in the function call:

sns.jointplot(data=df, x="var1", y="var2", height=3.5)

This command creates a jointplot where both the width and the height of the main plotting area are 3.5 inches, making it perfectly suited for embedding in contexts where screen real estate is limited.

Data Management Prerequisites with Pandas

Regardless of whether you are utilizing an axes-level plot or a figure-level plot, the prerequisite for any Seaborn visualization is properly structured data. In all preceding examples, the Pandas library was used to create and manage the sample data in a DataFrame named df. This step is indispensable, as Seaborn is optimized to work with long-form data structures defined by Pandas.

A well-defined DataFrame ensures that variables are correctly mapped to the x and y axes, and that any grouping or categorical variables are handled appropriately by the plotting functions. The setup involves importing the necessary libraries and constructing the data structure:

import pandas as pd
import seaborn as sns

#create data
df = pd.DataFrame({"var1": [25, 12, 15, 14, 19, 23, 25, 29],
                   "var2": [5, 7, 7, 9, 12, 9, 9, 4],
                   "var3": [11, 8, 10, 6, 6, 5, 9, 12]})

The columns var1, var2, and var3 serve as the variables plotted in the scatterplots, boxplots, and regression lines. Ensuring the data is prepared correctly using a Pandas DataFrame is the foundational step before applying any of the figure sizing techniques discussed above.
