Adjust the Size of Heatmaps in Seaborn

Mastering Figure Dimensions for Effective Heatmaps

When transitioning from raw data tables to compelling statistical graphics, precise control over the visual output dimensions is not merely a preference—it is a necessity for creating effective data visualizations. This principle is particularly critical when dealing with complex structures such as a heatmap, which relies on color intensity across two spatial dimensions to effectively communicate data density and magnitude. If the generated figure is undersized, critical elements often fail: axis labels may overlap, crucial contextual text becomes illegible, and the subtle color gradients that define the data patterns can be lost or misrepresented, severely hindering interpretation.

The widely adopted Python library Seaborn is fundamentally designed as an abstraction layer built upon the robust foundation of Matplotlib. This architectural choice means that all underlying figure and axes management, including the crucial ability to control physical size and resolution, is inherited directly from Matplotlib functionality. Consequently, to adjust the physical dimensions of the resulting output image—whether for web display, print reports, or academic publications—data scientists must utilize standard Matplotlib methods for initializing the plotting environment.

Specifically, the core mechanism for dimension control involves utilizing the figsize argument within the plt.subplots() function. This powerful argument accepts a tuple that defines the precise width and height, measured in inches, of the figure object before any data visualization is rendered. By pre-defining these parameters, we establish a fixed canvas size, ensuring that when the Seaborn plotting function (like sns.heatmap()) is called, it draws onto a canvas tailored exactly to the required specifications. This methodology grants the user unparalleled precision over the output dimensions, guaranteeing that the final visualization is optimally scaled for its intended presentation context.

The Essential Role of `figsize` in Matplotlib Figure Creation

To gain explicit control over the spatial dimensions of a statistical plot, such as a heatmap generated by Seaborn, it is imperative to leverage the figsize parameter. This parameter is integral to the Matplotlib framework and serves as the primary mechanism for setting the physical size of the figure container. The input for figsize is consistently structured as a tuple of two floating-point numbers: (width, height), with both values strictly representing dimensions in inches. This setup is managed directly through the plt.subplots() function, which initializes the figure (the overall window) and the axes (the plotting area) simultaneously.

The standard procedural approach involves three distinct steps: first, importing the necessary libraries; second, defining the figure and axes objects using plt.subplots() and specifying the figsize; and third, instructing the Seaborn plotting function to utilize the newly created axes object. By passing the axes object (conventionally named ax) to the plotting function, we ensure that the visualization is drawn precisely within the boundaries defined by our figsize specification, overriding any default scaling mechanisms that might otherwise be applied.

The syntax below illustrates this fundamental configuration. We assign the desired physical dimensions, for instance, a width of 15 inches and a height of 5 inches, resulting in a distinctly landscape orientation. This specific example demonstrates the power of the figsize argument to instantly dictate the aspect ratio and overall scale of the visualization before any data is mapped to the colors or axes, providing immediate and tangible control over the final visual output.

# Initialize figure and axes, specifying size (15 inches wide, 5 inches tall)
fig, ax = plt.subplots(figsize=(15, 5))

# Generate the seaborn heatmap on the specified axes
sns.heatmap(df, ax=ax) # Note: Explicitly passing 'ax=ax' is best practice

In this preliminary demonstration, the significant difference between the width (15) and height (5) dictates a drastically wider canvas. This setup is highly effective for datasets where the x-axis contains many categories, requiring horizontal space to prevent label overlap. The following sections will apply this concept using a complete, real-world dataset to visualize how adjusting the tuple values within figsize directly impacts the visual storytelling capabilities of the heatmap.

Preparing Data for Heatmap Visualization: The Flights Dataset

To provide a robust and practical illustration of figure dimension control, we will utilize the well-known flights dataset, which is conveniently built into the Seaborn library. This dataset provides a time-series record of monthly airline passengers spanning from 1949 to 1960. For this data to be correctly visualized as a heatmap, where color intensity represents passenger volume, it must first be restructured from its default ‘long-form’ format into a ‘wide-form’ matrix. This transformation is essential: the matrix requires months to form the index (rows) and years to form the columns, ensuring a clear two-dimensional grid suitable for the visualization method.

The preparation process begins by importing the core libraries necessary for this operation: matplotlib.pyplot for the underlying plotting infrastructure, seaborn for the high-level statistical visualization tools, and crucially, Pandas for data manipulation and restructuring. Once the flights data is loaded, we employ the powerful pivot() function provided by the Pandas library. This function reshapes the data, designating ‘month’ as the new index, ‘year’ as the columns, and ‘passengers’ as the values populating the matrix cells. This resulting structure aligns perfectly with the input requirements of the sns.heatmap() function.

The resultant pivoted dataframe provides the exact matrix structure required. Each cell now contains the passenger count for a specific month and year combination, allowing the Matplotlib and Seaborn system to correctly map these counts to a visual color gradient. Understanding this data preparation step is fundamental, as the inherent aspect ratio of this matrix (12 months by 12 years) will inform our subsequent decisions regarding the optimal figsize settings.

import matplotlib.pyplot as plt
import seaborn as sns
import pandas as pd # Essential for data pivoting operations

# Load the built-in dataset and transform it using the pivot function
data = sns.load_dataset("flights")
data = data.pivot("month", "year", "passengers")

# Display the first few rows of the pivoted dataframe (matrix)
print(data.head())

year   1949  1950  1951  1952  1953  1954  1955  1956  1957  1958  1959  1960
month
Jan     112   115   145   171   196   204   242   284   315   340   360   417
Feb     118   126   150   180   196   188   233   277   301   318   342   391
Mar     132   141   178   193   236   235   267   317   356   362   406   419
Apr     129   135   163   181   235   227   269   313   348   348   396   461
May     121   125   172   183   229   234   270   318   355   363   420   472

Establishing a Baseline Aspect Ratio with Equal Dimensions

Before optimizing dimensions for specific presentation needs, it is valuable to establish a baseline visualization using a square aspect ratio. This is achieved by setting both elements of the figsize tuple—width and height—to identical values. For our demonstration, we choose 10 inches by 10 inches. The use of equal physical dimensions ensures that the figure does not introduce any artificial stretching or compression along either axis, offering the most neutral representation of the data structure. This square format often serves as the ideal starting point for initial data exploration and preliminary analysis.

In addition to defining the figure size, best practices often involve enhancing the visual clarity of the heatmap cells. We incorporate the linewidths argument within the sns.heatmap() call, setting a small value like .3. This parameter introduces subtle dividing lines between adjacent cells, which is crucial for improving visual separation, especially when dealing with plots containing fine-grained color changes or high cell density. Observing the resulting output confirms that the figure maintains a perfect 1:1 aspect ratio, providing a clear, unskewed view of passenger volume trends across the years and months.

The code below demonstrates the initialization of the square figure using the plt.subplots() function and the subsequent generation of the heatmap using the pivoted data we prepared previously. Note how the equal dimensions simplify the visual balance, making it easy to track patterns both horizontally (year progression) and vertically (monthly seasonality).

# Specify size: 10 inches wide by 10 inches high (Square Aspect Ratio)
fig, ax = plt.subplots(figsize=(10, 10))

# Create heatmap with defined cell separation (linewidths)
sns.heatmap(data, linewidths=.3, ax=ax)

The resulting square image provides a foundational understanding of the data distribution. We can see the general upward trend in passenger counts over the years and the strong seasonal patterns, but we are not yet optimizing the visualization for specific data characteristics. The next step is to manipulate the aspect ratio to better suit scenarios where the number of rows and columns are highly disparate.

Tailoring Figure Dimensions: Tall-Narrow and Wide-Short Views

While the square plot is an excellent baseline, real-world datasets rarely conform to a 1:1 matrix structure. In situations where the number of categories along the y-axis (rows) significantly outweighs the number of categories along the x-axis (columns), sticking to a square or wide plot can lead to undesirable vertical compression, making row labels difficult to distinguish. Customizing the figsize argument is the professional solution, allowing us to generate figures that optimize the visual space based on the data’s inherent shape, thereby maintaining optimal cell clarity and label readability.

To produce a figure that is significantly taller than it is wide—a tall-narrow view—we must decrease the first element of the figsize tuple (the width) while maintaining or increasing the second element (the height). This adjustment allocates greater vertical space, preventing rows from appearing squashed. This configuration is particularly beneficial when visualizing data with many time points (rows) and few variables (columns). For example, setting the width to 5 inches and the height to 10 inches dramatically shifts the aspect ratio, making the figure twice as tall as it is wide, thus emphasizing the vertical dimension of monthly progression.

# Specify size: 5 inches wide by 10 inches high (Tall-Narrow Aspect Ratio)
fig, ax = plt.subplots(figsize=(5, 10))

# Create heatmap
sns.heatmap(data, linewidths=.3, ax=ax)

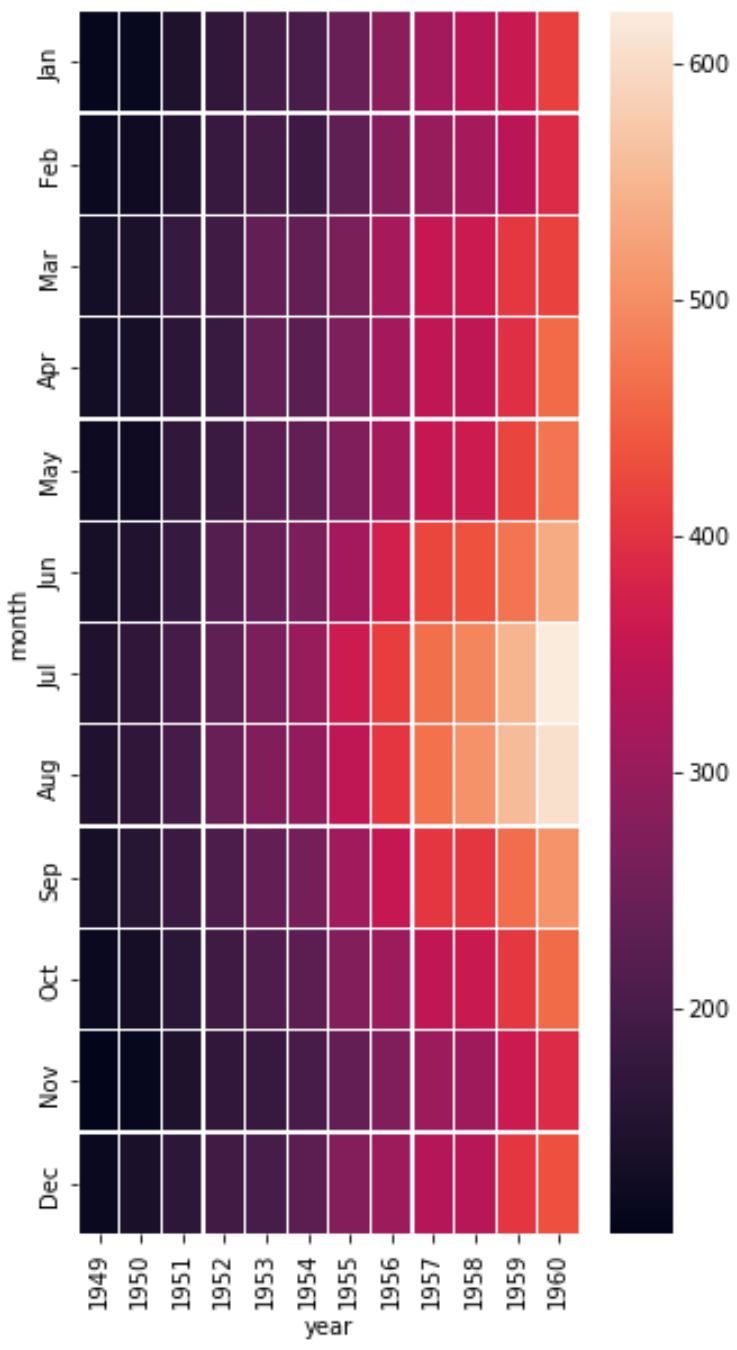

The resultant visualization clearly displays its vertical elongation, which effectively spreads out the monthly rows (Y-axis), making it easier for the viewer to trace seasonal cycles and compare monthly changes across the dataset. The physical dimensions are now explicitly tailored to the structure of the monthly data entries.

Conversely, a wide-short figure is necessary when the dataset features a large number of columns (X-axis categories) but a limited number of rows. This orientation prevents horizontal crowding, ensuring that column labels are readable and that individual cells are not distorted. To achieve this, we reverse the strategy: increase the width argument while decreasing the height argument within the figsize tuple. For instance, setting the width to 10 inches and the height to 5 inches creates a visually impactful, landscape plot that excels at showcasing long-term horizontal trends, such as multi-year changes.

This final configuration is highly efficient for temporal data, maximizing horizontal space to clearly delineate the yearly progression without excessive vertical sprawl. By precisely setting the dimensions, we ensure that the visualization is not only aesthetically pleasing but also functionally optimized for data interpretation.

# Specify size: 10 inches wide by 5 inches high (Wide-Short Aspect Ratio)
fig, ax = plt.subplots(figsize=(10, 5))

# Create heatmap
sns.heatmap(data, linewidths=.3, ax=ax)

Mastering the utility of the figsize argument within the plt.subplots() function is fundamental for generating professional, readable, and context-appropriate data visualizations in Python. By diligently modifying the width and height values, practitioners can fine-tune the physical dimensions of their statistical plots, ensuring optimal representation of underlying data structure and complexity for any viewing medium.
