Understanding K-Fold Cross-Validation: A Comprehensive Guide to Model Evaluation

Evaluating the performance of a statistical or machine learning model is a fundamental step in the data science pipeline. The primary goal is to quantify how accurately the predictions generated by the model align with the actual observed data points within the dataset. Reliable evaluation ensures that the model generalizes well to new, unseen data, which is essential for real-world application.

For regression tasks, the most frequently utilized metric for quantifying prediction error is the Mean Squared Error (MSE). MSE measures the average squared difference between the estimated values and the actual value, providing a clear measure of the quality of an estimator. It is formally calculated using the following equation:

MSE = (1/n)*Σ(y_i – f(x_i))²

In this formula:

• n: Represents the total number of observations in the dataset being evaluated.
• y_i: Is the true response value of the i^th observation.
• f(x_i): Denotes the predicted response value generated by the model for the i^th observation.

A lower MSE value indicates a higher degree of predictive accuracy, meaning the model’s predictions are closer to the actual observed outcomes.

The Limitations of Simple Train-Test Splits

Standard practice dictates a three-step procedure for calculating the MSE and assessing model generalization capability:

1. Data Partitioning: The initial dataset is rigorously split into two distinct subsets: a training set, used for model fitting, and a testing set (or validation set), reserved exclusively for evaluation.
2. Model Training: The predictive model is constructed and optimized solely using the data contained within the training set.
3. Performance Measurement: The trained model is applied to make predictions on the testing set, resulting in the calculation of the test MSE.

The resulting test MSE provides an estimate of how well the model is expected to perform on truly unseen data. However, relying on a single, fixed testing set introduces a significant weakness: variability. The final test MSE can fluctuate substantially based entirely on the specific, arbitrary selection of observations allocated to the training and testing partitions. If the test set happens to contain outliers or non-representative data points, the resulting error estimate will be unreliable or biased.

To mitigate this inherent instability and obtain a more robust estimate of model performance, we employ resampling methods. These techniques involve fitting the model multiple times, utilizing different subsets of the data for training and testing in each iteration. By averaging the results across all iterations, we smooth out the randomness introduced by a single split. This fundamental approach is known as cross-validation, and one of its most powerful and widely used specific implementations is k-fold cross-validation.

Implementing K-Fold Cross-Validation

The methodology of K-fold cross-validation is elegant and systematic, designed to ensure that every data point contributes equally to both the training and testing phases over the entire procedure. This method yields a robust and reliable performance score by minimizing the reliance on a single, potentially misleading data split. The process unfolds in a structured, sequential manner consisting of four primary steps:

1. Partitioning the Data: The entire dataset is first randomly partitioned into k distinct, non-overlapping subsets, often referred to as “folds.” It is crucial that these folds are of approximately equal size to ensure balanced representation across iterations.
2. Training and Validation Cycle: In the initial iteration, the first fold (Fold 1) is designated as the validation or holdout set. The remaining $k-1$ folds are combined to form the comprehensive training set. The model is then trained on this combined training data and evaluated solely on the holdout fold, producing the first estimate of the test MSE (MSE₁).
3. Iterative Rotation: This training and validation cycle is systematically repeated k times. In each subsequent iteration, a different fold is selected to serve as the holdout set, ensuring that every fold is used exactly once for validation. Consequently, the model is refitted from scratch k times, resulting in k different test MSE scores (MSE₁, MSE₂, …, MSE_k).
4. Aggregation of Results: The final, overall test MSE for the model is calculated as the simple arithmetic average of the k individual test MSE scores obtained from each iteration. This averaged score provides the final, unbiased performance estimate.

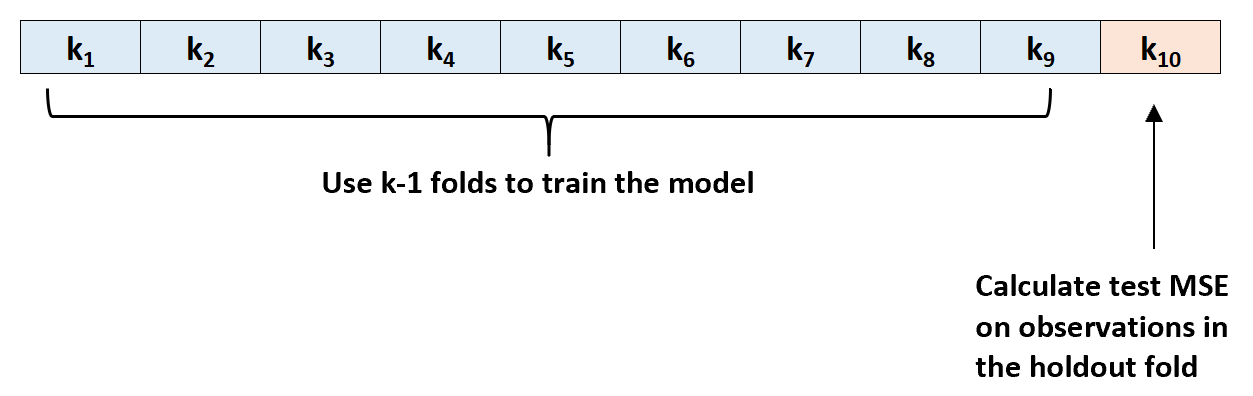

Visually, the division and iterative process can be represented as follows:

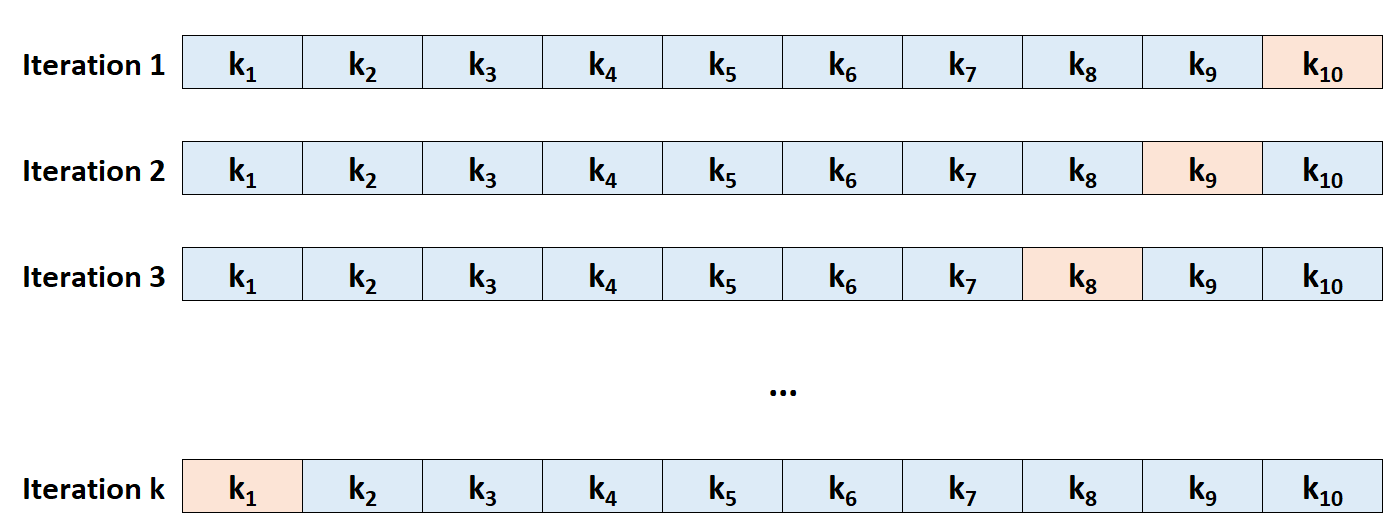

The repetition of the process ensures robust error estimation:

The final overall error calculation is given by:

Test MSE = (1/k)*ΣMSE_i

where:

• k: Represents the chosen Number of folds used in the partitioning.
• MSE_i: Is the Test MSE calculated on the i^th iteration (the holdout fold).

Selecting the Optimal Number of Folds (K)

The choice of the parameter k is critical in k-fold cross-validation, as it directly impacts the fundamental tension between bias-variance tradeoff in the estimated test error. When we utilize a larger number of folds (e.g., k=N, resulting in very small holdout sets), the bias of the test MSE tends to decrease because the training sets are nearly the size of the full dataset. Conversely, a larger k increases the variance because the training sets across different folds are highly overlapping, meaning the resulting MSE estimates are highly correlated and thus more unstable.

Conversely, selecting a small number of folds (e.g., k=2) leads to very large holdout sets and small training sets. This results in models that are trained on significantly less data than the full dataset, leading to an artificially high bias in the test MSE estimate. However, because the training sets are less overlapping, the variance between the resulting MSE scores is generally lower. Navigating this tradeoff is essential for deriving a truly reliable performance metric.

Based on decades of empirical evidence and standard statistical recommendations, practitioners typically restrict the choice of k to a range between 5 and 10. This range provides the most advantageous balance, ensuring that the bias is acceptably low while preventing excessive variance in the error estimation. This recommendation is solidified in foundational texts, such as An Introduction to Statistical Learning:

To summarize, there is a bias-variance trade-off associated with the choice of k in k-fold cross-validation.



Typically, given these considerations, one performs k-fold cross-validation using k = 5 or k = 10, as these values have been shown empirically to yield test error rate estimates that suffer neither from excessively high bias nor from very high variance.



-Page 184, An Introduction to Statistical Learning

Key Advantages of K-Fold Cross-Validation

The primary strength of k-fold cross-validation lies in its ability to produce a far more reliable and unbiased estimate of the true test error compared to a single train-test split. As previously discussed, a single split suffers from high dependence on the specific composition of the randomly selected testing set, leading to highly variable error estimates. K-fold mitigates this by iteratively shuffling the data and using every observation for validation exactly once, thereby leveraging the entire dataset for both training and performance measurement.

Furthermore, k-fold cross-validation offers significant computational efficiency, especially when compared to methods like Leave-One-Out Cross-Validation (LOOCV). While LOOCV requires fitting the model n times (where n is the total number of observations in the dataset), k-fold only requires k model fits. Given that k is typically 5 or 10, and n can be thousands or millions, the computational savings are massive.

For models that are computationally expensive to train—such as complex deep learning networks or iterative generalized additive models—k-fold cross-validation provides an excellent compromise. It achieves a test error estimate that is often very similar to the estimate provided by LOOCV but requires drastically less processing time. This efficiency makes k-fold the default choice for robust model evaluation in most practical machine learning scenarios.

Extensions and Specialized Cross-Validation Techniques

While standard k-fold cross-validation is highly effective, several specialized extensions have been developed to address specific challenges related to bias reduction, computational load, or data distribution characteristics. These advanced techniques build upon the core principles of iterative resampling:

• Repeated K-fold Cross-Validation: This method involves running the standard k-fold procedure multiple times (e.g., R times), with the data being randomly shuffled anew before each repetition. By averaging the test MSE over R sets of k folds, this approach significantly reduces the variance and instability associated with the initial random partitioning. Naturally, the trade-off is an increase in total computation time, requiring the model to be fitted $R times k$ times.
• Leave-One-Out Cross-Validation (LOOCV): LOOCV is technically a special case of k-fold cross-validation where the number of folds k is set equal to the total number of observations n in the dataset. This means that in each iteration, the model is trained on $n-1$ observations and validated on a single data point. While LOOCV offers minimal bias, its computational cost is often prohibitive for large datasets.
• Stratified K-Fold Cross-Validation: Standard k-fold assumes random partitioning, which can sometimes result in folds where the class balance (in classification problems) or target distribution (in regression) is skewed. Stratified k-fold ensures that each fold contains roughly the same proportion of observations from each target class or strata as the overall dataset. As noted by Kohavi, this stratification tends to yield a superior balance between bias and variance compared to ordinary k-fold.
• Nested Cross-Validation: Nested cross-validation involves an outer loop used for model evaluation and an inner loop used for model selection, particularly for hyperparameter tuning. The outer loop performs K-fold partitioning to assess the model’s performance on unseen data, while the inner loop performs a separate cross-validation process on the training subset to find the optimal hyperparameters for that specific fold. This prevents information leakage and provides an honest estimate of the generalization error.
