Understanding the Triangular Distribution: A Beginner’s Guide

Defining the Triangular Distribution and Its Parameters

The triangular distribution stands as a foundational model within the study of continuous probability distributions, finding essential utility across diverse fields from engineering and financial modeling to rigorous project management. Its nomenclature accurately reflects its structure: it is uniquely defined by a probability density function (PDF) that takes the distinct shape of a triangle. This model is particularly valued in scenarios where data is limited, yet expert knowledge regarding potential outcomes is readily available, allowing for robust modeling of uncertainty.

Unlike more complex models, such as the Normal or Gamma distributions, the triangular model requires the estimation of only three specific parameters. These parameters are typically derived through expert judgment, historical analogues, or qualitative assessments of boundary conditions. This reliance on minimal, intuitive input renders it an accessible and potent tool, especially when attempting to quantify uncertainty in high-stakes environments, such as during Monte Carlo simulations where defining input distributions is crucial.

To fully characterize any specific instantiation of the triangular distribution, we must rigorously establish three critical values that define its boundaries and peak likelihood:

• The minimum value (a): This represents the lowest possible outcome or the absolute worst-case scenario.
• The maximum value (b): This represents the highest possible outcome or the absolute best-case scenario.
• The peak value or mode (c): This parameter signifies the single most likely outcome within the defined range.

Visualizing Probability: Shape and Skewness

Visual comprehension of the triangular distribution offers immediate and profound insight into how probabilities are concentrated across the range of possible outcomes. Graphically, the horizontal axis spans the entire domain from the minimum boundary (a) to the maximum boundary (b). The apex, representing the highest concentration of probability, is located precisely at the mode (c). Crucially, the vertical scaling (the height) of this triangular shape is calculated so that the total area enclosed beneath the curve is exactly equal to one, a fundamental requirement for all valid continuous probability distributions.

This characteristic shape vividly illustrates the concentration of outcomes clustered around the peak value, c. The distribution can exhibit two key structural forms: symmetry and asymmetry. If the mode (c) happens to be positioned exactly halfway between the minimum (a) and the maximum (b), the resulting distribution is symmetric. In such a scenario, the mean, median, and mode are all equivalent.

However, in most practical, real-world applications, the most likely outcome is not centrally located. Instead, the distribution is often skewed toward one extreme—either left-skewed (if the mode is closer to the maximum) or right-skewed (if the mode is closer to the minimum). This innate flexibility in accommodating skewness, based solely on the expert estimation of the three core parameters, is a primary reason for the distribution’s wide adoption in modeling real-world variability where outcomes are rarely perfectly symmetrical.

Practical Applications in Risk and Project Management

The core utility of the triangular distribution lies in its powerful ability to model the behavior of random variables using nothing more than three expert-defined points. This makes it exceptionally popular in domains focused on quantifying risk and planning under uncertainty, such as financial forecasting, cost estimation, and, most famously, in project management methodologies like Program Evaluation and Review Technique (PERT).

Consider a standard business planning scenario where a manager must forecast the duration of a critical task or estimate future revenue. While comprehensive historical data might be sparse or non-existent, domain experts can reliably supply the three necessary inputs: the most pessimistic scenario (a), the most optimistic scenario (b), and their best professional guess (c). By using these simple inputs, the triangular distribution translates qualitative knowledge into a quantitative framework, allowing analysts to rigorously quantify the probability of meeting specific targets or facing potential shortfalls.

For instance, a retail analyst might estimate that the total quarterly sales for a new product line will fall within a specific range: a minimum of $100,000, a maximum of $300,000, and a most likely value of $250,000. This simple set of professional assumptions immediately defines the parameters of the distribution necessary for subsequent probabilistic analysis. This analysis could involve calculating the expected average sales (the mean) or determining the likelihood of sales falling below a critical break-even point, thereby informing critical resource allocation and risk mitigation strategies.

Core Mathematical Formulas: PDF and CDF

To transition from intuitive estimation to precise analytical calculation, a clear understanding of the mathematical properties of the triangular distribution is essential. These properties—specifically the Probability Density Function (PDF) and the Cumulative Distribution Function (CDF)—are the bedrock for calculating both the relative likelihood of specific values and the probability of achieving outcomes within defined ranges.

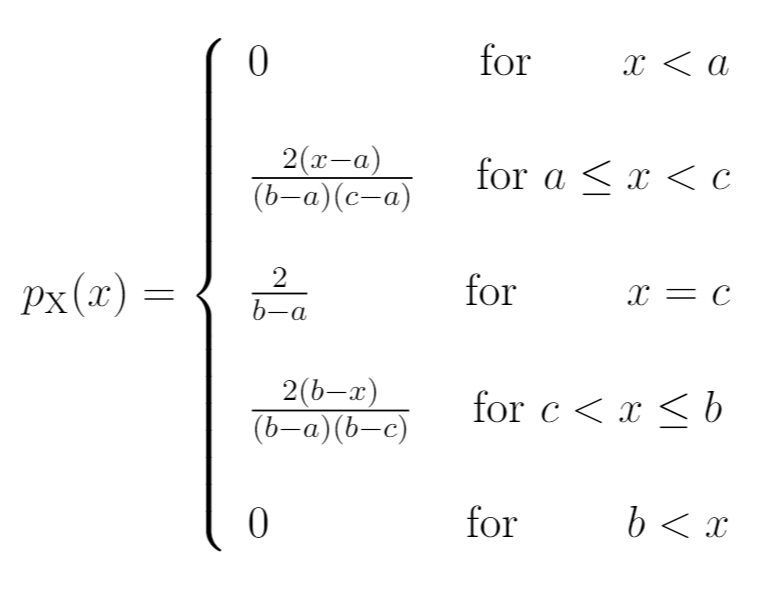

The Probability Density Function (PDF), denoted as f(x), dictates the relative likelihood that a continuous random variable will assume a specific value x. Due to the distribution’s structure, which consists of two linear segments meeting at the mode c, the PDF must be defined piecewise. One segment covers the rising slope (when x is between a and c), and the other covers the falling slope (when x is between c and b). This piecewise definition ensures the correct mathematical height and slope across the entire range, maintaining the unity of the total area.

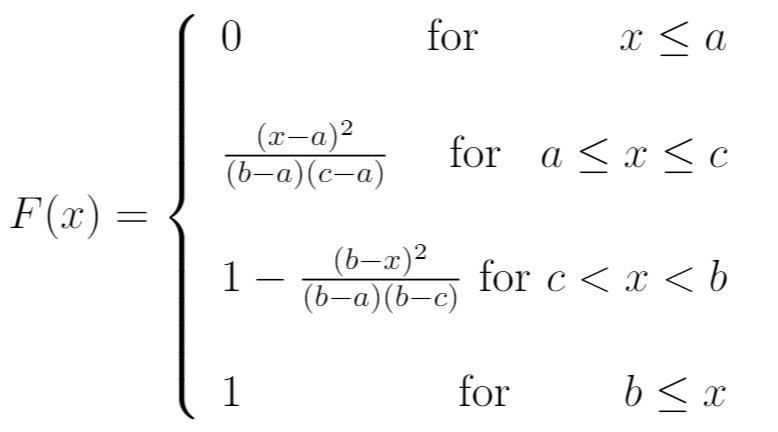

The Cumulative Distribution Function (CDF), represented by F(x), is arguably more crucial for practical risk assessment. The CDF calculates the total probability that the random variable X will be less than or equal to a specific value x. This function is fundamental when managers need to answer questions such as: “What is the probability of the project finishing early?” or “What is the likelihood of sales falling below our minimum acceptable threshold?” Like the PDF, the CDF is also defined piecewise, depending on which segment of the distribution the target value x falls into.

Summary Statistics: Mean and Mode

Beyond the fundamental functions (PDF and CDF), two derived summary statistics—the Mean and the Mode—are vital for interpreting the overall central tendency and expected outcomes of the distribution. These statistics provide succinct metrics that decision-makers can use to summarize the complex shape of the probability curve.

The Mean (Expected Value) represents the weighted average outcome if the underlying process were to be repeated an infinite number of times. It is the center of mass of the distribution. Unlike the mode, the mean is sensitive to the entire spread and any existing skewness, providing a more reliable long-term forecast than simply relying on the most likely value. For the triangular distribution, the calculation of the mean is remarkably simple, requiring only the three input parameters:

Mean = (a + b + c) / 3

The Mode (Peak Value) is simply the value c, which was supplied as an input parameter. It corresponds precisely to the highest point on the probability density function, confirming that c is the single most probable outcome among all possibilities. While the mode tells us what is most likely to happen, it does not account for the likelihood of outcomes in the tails of the distribution, which is why the mean often provides a different, and often more conservative, expected value.

Case Study: Applying the Distribution to Financial Forecasting

To demonstrate the practical application and computational utility of the triangular distribution, we return to a financial forecasting example. Assume a restaurant is estimating its total sales for the upcoming week, defining the following fixed parameters based on expert assessment:

• Minimum (a): $10,000
• Maximum (b): $30,000
• Mode (c): $25,000

The first analytical question management poses is a critical risk assessment: What is the probability that the restaurant makes less than $20,000 in total sales? This requires the use of the Cumulative Distribution Function (CDF).

We set the target value x = $20,000. Since this value falls between the minimum ($a=10,000$) and the mode ($c=25,000$), we must use the CDF formula specific to the ascending segment of the distribution. This formula, derived from integrating the PDF over the range from a to x, is given as:

P(X < x) = (x-a)2 / ((b-a)(c-a))

Substituting the known parameters into the equation allows us to calculate the specific probability:

• P(X < $20,000) = (20,000 – 10,000)² / ((30,000 – 10,000)(25,000 – 10,000))
• P(X < $20,000) = (10,000)² / ((20,000)(15,000))
• P(X < $20,000) = 100,000,000 / 300,000,000
• P(X < $20,000) = 0.3333

The resulting probability indicates that the restaurant faces a 0.3333, or approximately 33.3%, chance of generating less than $20,000 in total sales. This quantified measure of downside risk is invaluable for setting realistic budgets and developing contingency strategies.

Calculating Expected Financial Outcomes

The second essential question addresses the long-term strategic outlook: What is the mean expected sales for the restaurant based on these parameters? This involves calculating the expected value, or mean, which provides the best single estimate for long-term forecasting.

We utilize the straightforward formula for the mean of the triangular distribution, which aggregates the influence of all three parameters:

Mean = (a + b + c) / 3

By substituting the established parameters ($a=10,000, b=30,000, c=25,000$):

• Mean = ($10,000 + $30,000 + $25,000) / 3
• Mean = $65,000 / 3
• Mean = $21,667

The calculated mean expected sales is $21,667. A critical observation here is that this expected average is significantly lower than the most likely sales figure of $25,000. This disparity is a direct result of the distribution’s negative skew (the peak is closer to the maximum boundary), illustrating how the triangular model accounts for the asymmetry of potential outcomes. This provides decision-makers with a grounded, risk-adjusted value for planning purposes.
