Annotating Scatterplots: A Step-by-Step Guide Using Matplotlib

Annotating scatter plots is an essential technique in modern data visualization, enabling analysts to draw attention to critical data points, identify potential outliers, or highlight specific observations relevant to the underlying narrative. While a basic visualization effectively illustrates the relationship between two variables, annotations elevate the plot by providing necessary context, clarity, and narrative focus. This comprehensive guide will detail how to effectively augment your visualizations using the industry-standard Matplotlib library within the Python ecosystem. We will primarily focus on mastering the two critical functions available for adding text overlays: plt.text() and plt.annotate().

The most intuitive and direct method for placing static textual information on a plot utilizes the plt.text() function. This foundational function mandates three primary arguments: the specific x-coordinate, the corresponding y-coordinate, and the exact string of text destined for display. It proves invaluable when the analyst requires absolute precision in positioning a label, irrespective of whether that position aligns perfectly with an existing data point. Understanding the mechanics of plt.text() is crucial, as it forms the basis for all subsequent, more intricate annotation strategies we will explore.

The following syntax snippet demonstrates the fundamental application of plt.text(). We are explicitly specifying the coordinates (6, 9.5) where the annotation ‘my text’ must be rendered onto the figure canvas. This precise control over placement, using absolute coordinates relative to the data axes, is the defining feature of this function.

#add 'my text' at (x, y) coordinates = (6, 9.5)
plt.text(6, 9.5, 'my text')

The subsequent sections will systematically build upon this foundational knowledge, moving from creating a basic plot to demonstrating practical applications, culminating in the automated, systematic labeling of every data point using powerful looping techniques.

The Foundation: Creating a Basic Scatterplot

Before any text can be overlaid, it is necessary to establish the visual context: the base scatter plot itself. In the Python data science environment, the universally accepted library for generating such visualizations is Matplotlib, specifically accessed through its pyplot submodule, conventionally imported using the alias plt. This initial phase involves defining the datasets for both the horizontal (x) and vertical (y) axes, followed by invoking the plt.scatter() function to map these pairs of coordinates onto the canvas.

For instructional clarity, we utilize small, predefined arrays of synthetic data points. The intentionally simple nature of this data ensures that the reader’s focus remains squarely on the annotation methodology rather than complex data preparation or manipulation. The command plt.scatter(x, y) efficiently executes the heavy lifting, generating the core visualization that displays the five distinct points defined by our lists, thereby establishing the crucial layer upon which all annotations will subsequently be placed.

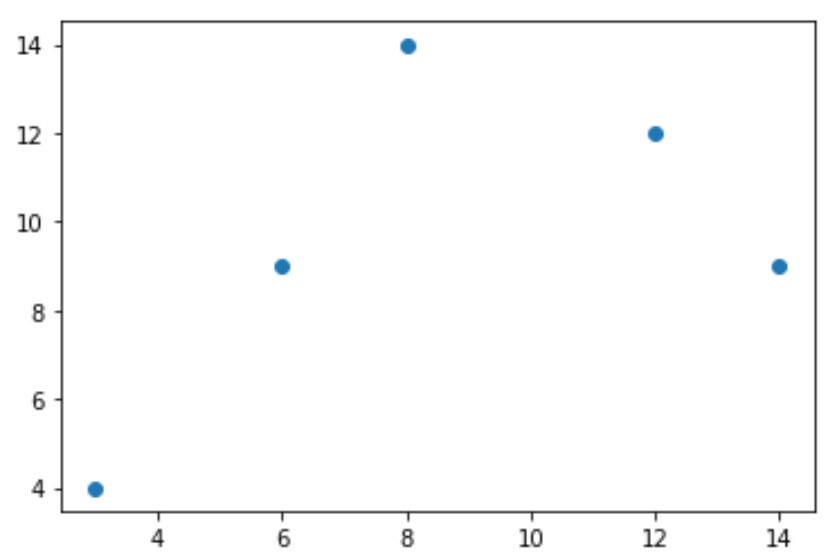

The code below outlines the minimal but necessary setup required for our tutorial. This framework will serve as the consistent starting point for every annotation example detailed throughout this guide. Note the inclusion of descriptive comments, which are essential for maintaining clean, readable, and highly maintainable code—a critical best practice in technical programming.

import matplotlib.pyplot as plt

#create data
x = [3, 6, 8, 12, 14]
y = [4, 9, 14, 12, 9]

#create scatterplot
plt.scatter(x, y)

Targeted Annotation of a Single Data Point

During the exploratory data analysis phase, it is frequently necessary to explicitly label just one data point—perhaps an extreme outlier, a record-breaking maximum value, or a critical result from a specific experiment. For these focused scenarios, the precise manual control afforded by the plt.text() function is perfectly suited. This function allows the user to place a descriptive label at a custom location, which is usually positioned slightly offset from the point’s exact coordinates to ensure optimal visibility and prevent overlap.

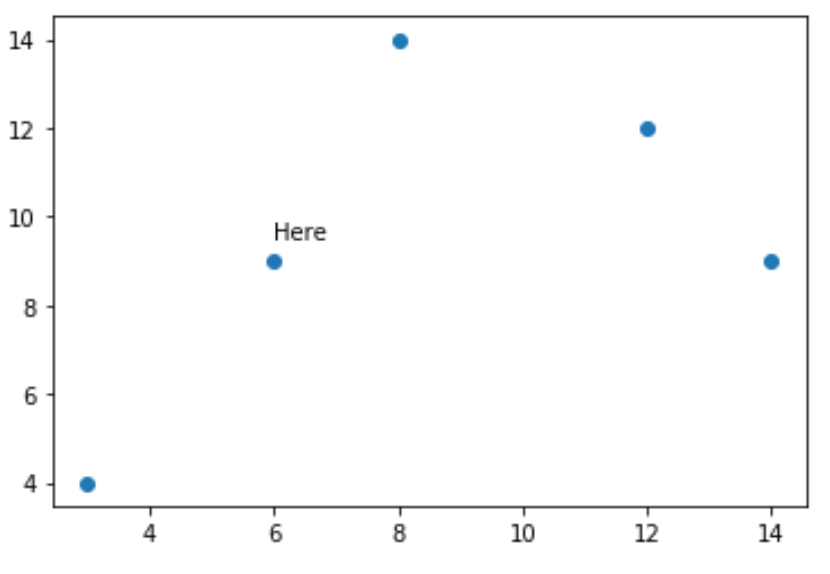

To successfully annotate a singular point, the first step is to accurately identify its coordinates. Based on our example dataset, we aim to label the point located at X=6 and Y=9. We invoke the plt.text() function, supplying the target coordinates and the descriptive label string ‘Here’. A crucial refinement is applied here: we intentionally set the Y-coordinate to 9.5 instead of 9.0. This minor vertical offset is implemented specifically to ensure that the annotation text does not visually conflict with or obscure the data marker itself, significantly enhancing the overall clarity and professional quality of the visualization.

This approach is exceptionally effective for delivering focused, impactful commentary on key observations. It requires minimal coding effort while granting the analyst surgical control over both the placement and the content of the annotation. The resulting code snippet below illustrates how to seamlessly integrate this single-point annotation into our established scatter plot framework, delivering a clear visual highlight on the selected data point.

import matplotlib.pyplot as plt

#create data
x = [3, 6, 8, 12, 14]
y = [4, 9, 14, 12, 9]

#create scatterplot
plt.scatter(x, y)

#add text 'Here' at (x, y) coordinates = (6, 9.5)
plt.text(6, 9.5, 'Here')

Manually Labeling a Subset of Key Points

Although plt.text() is optimized for single annotations, it can be efficiently leveraged through repeated calls to label a small, carefully selected subset of data points. This manual method remains highly appropriate when the total number of points requiring labels is limited, and crucially, when the specific text required for each label is unique and must be defined manually by the analyst. This technique continues to rely on absolute coordinate placement, meaning the position of the text is fixed rigidly on the plot canvas, unaffected by potential scaling or alterations to the axis limits.

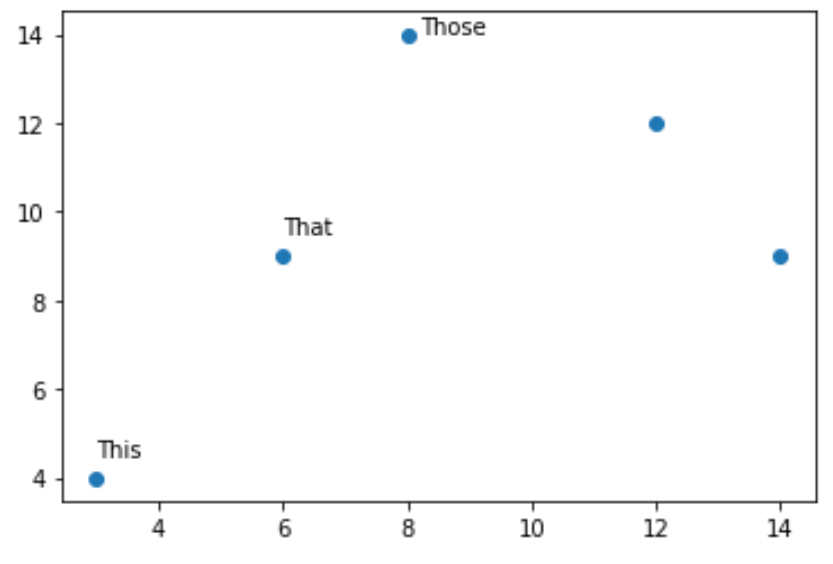

To apply annotations to multiple points, we execute plt.text() once for every desired label. In the provided example, we have selected three non-consecutive points—those corresponding to X=3, X=6, and X=8—to be labeled with the distinct strings: ‘This’, ‘That’, and ‘Those’. As with single annotations, the placement requires careful thought regarding the input coordinates to ensure optimal visual positioning. Minor adjustments to the x or y values are often necessary to strategically prevent the label text from overlapping with the data markers or neighboring textual elements.

This manual, iterative approach offers unparalleled flexibility regarding the content and precise visual placement of labels for a small, disparate group of data points. However, it is fundamentally non-scalable; attempting to label hundreds of points this way would be inefficient and error-prone. For such large-scale tasks, a programmatic, iterative solution becomes essential, which we detail comprehensively in the subsequent section. For labeling a handful of highly significant points, however, this manual technique provides the maximum simplicity and direct control over the final visual outcome.

import matplotlib.pyplot as plt

#create data
x = [3, 6, 8, 12, 14]
y = [4, 9, 14, 12, 9]

#create scatterplot
plt.scatter(x, y)

#add text to certain points
plt.text(3, 4.5, 'This')
plt.text(6, 9.5, 'That')
plt.text(8.2, 14, 'Those')

Automating Annotation for Entire Datasets

When the analytical objective shifts from merely highlighting a few isolated points to providing a label for every single data marker on the scatter plot, a purely manual approach quickly becomes inefficient, impractical, and highly susceptible to human error. This systematic labeling requirement mandates a programmatic solution, which is typically implemented using a robust looping structure within Python. For this advanced, systematic task, we transition our focus from the general purpose plt.text() to the specialized plt.annotate() function, which is explicitly designed for connecting text labels to specific data points.

To efficiently label all points, we first define a list of corresponding labels (named labs) that directly maps to the sequence of data coordinates in our x and y lists. We then implement a for loop in conjunction with the powerful enumerate() function. The enumerate() function is essential here because it allows us to iterate seamlessly through the list of labels (labs) while simultaneously tracking the current index (i). This index is crucial for correctly accessing the corresponding x and y coordinates from our original data lists.

Within the iterative loop, the command plt.annotate(txt, (x[i], y[i])) executes the primary task: placing the current label (txt) exactly at the coordinate pair defined by the current data point ((x[i], y[i])). This workflow guarantees that every marker on the plot receives its designated label automatically, regardless of the overall size of the dataset. This methodology is fundamental for handling large-scale visualizations and showcases the true power of automation available within the Matplotlib library.

import matplotlib.pyplot as plt

#create data
x = [3, 6, 8, 12, 14]
y = [4, 9, 14, 12, 9]
labs = ['A', 'B', 'C', 'D', 'E']

#create scatterplot
plt.scatter(x, y)

#use for loop to add annotations to each point in plot
for i, txt in enumerate(labs):
    plt.annotate(txt, (x[i], y[i]))

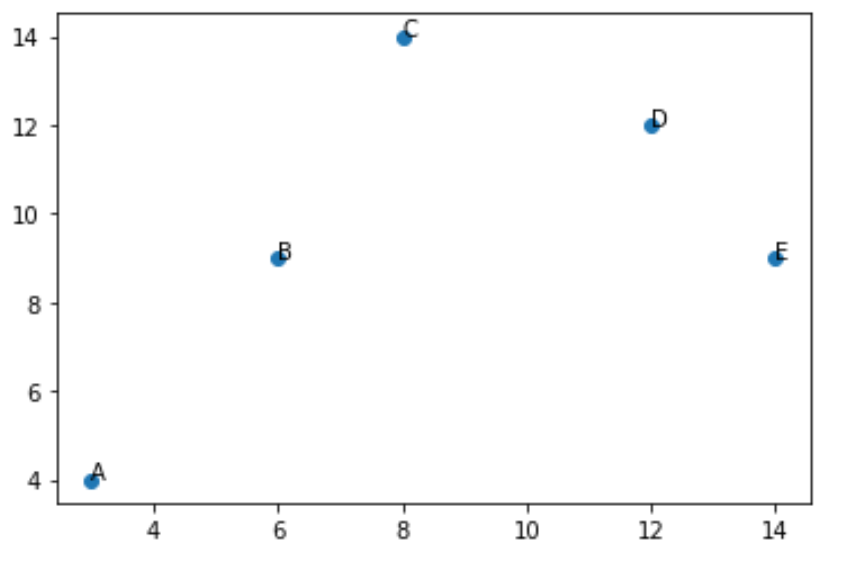

It is important to note that when plt.annotate() is used without additional parameters, as demonstrated above, the text annotation is placed by default directly over the top of the corresponding data point marker. Furthermore, Matplotlib applies a standard font size, typically size 10, which may not always be optimal for ensuring clear presentation. While the programmatic approach achieves complete labeling coverage, the resulting visual overlap between the text and the markers—clearly visible in the preceding image—often severely compromises the plot’s overall readability and aesthetic quality.

Fine-Tuning Annotations: Positioning and Styling

To produce visualizations that meet professional standards, it is nearly always essential to customize the default placement and styling attributes of the annotations. When employing the programmatic looping strategy with plt.annotate(), the two most crucial adjustments involve applying an offset to the text coordinates and explicitly modifying the default font size. Offsetting the coordinates shifts the textual label slightly away from the center of the marker, effectively eliminating the problematic issue of visual overlap and ensuring the label is easily distinguishable.

In the following refined code example, we implement this necessary offset by introducing a small constant value (0.25) to the x-coordinate during the annotation placement: x[i] + .25. This action repositions the label horizontally to the right of the associated data point. We simultaneously enhance clarity by explicitly increasing the font size through the optional argument fontsize=12. These seemingly minor customizations collectively result in a significant improvement in the clarity, readability, and overall aesthetic appeal of the final visualization, ensuring the labels are immediately accessible without obscuring the underlying data distribution.

The capacity to meticulously customize parameters such as position, size, color, and font style is the key differentiator between basic, default plots and high-quality, publication-ready figures. By diligently mastering these customization options available within Matplotlib, analysts can guarantee that their annotated scatter plots communicate their intended analytical message with maximum effectiveness and visual impact. The revised code below serves as a practical demonstration of integrating advanced customization within a systematic, automated looping structure.

import matplotlib.pyplot as plt

#create data
x = [3, 6, 8, 12, 14]
y = [4, 9, 14, 12, 9]
labs = ['A', 'B', 'C', 'D', 'E']

#create scatterplot
plt.scatter(x, y)

#use for loop to add annotations to each point in plot
for i, txt in enumerate(labs):
    plt.annotate(txt, (x[i]+.25, y[i]), fontsize=12)

Summary of Annotation Techniques

Developing effective annotation skills is fundamentally critical for generating data visualizations in Python that are not only informative but also highly compelling. Throughout this guide, we meticulously explored two distinct, powerful methodologies for adding descriptive text to scatter plots using Matplotlib. First, we mastered the targeted, manual placement technique utilizing plt.text() for highlighting specific, isolated points. Second, we implemented the systematic, programmatic approach, leveraging the enumerate function and plt.annotate() for efficiently labeling entire datasets. Crucially, we covered essential fine-tuning strategies, such as applying coordinate offsets and adjusting font sizes, which are necessary steps for maximizing both readability and the overall visual appeal of the final figures.

The techniques demonstrated here establish the cornerstone for implementing dynamic and intelligent labeling within Matplotlib visualizations. For analysts seeking to address more complex visualization needs, there are numerous advanced parameters within the plt.annotate() function to explore. These include utilizing the arrowprops argument to automatically draw connecting lines (arrows) between the annotation text and the target data point, as well as extensive options for customizing text color, background alignment, and rotation. Mastering the nuances of these two functions ensures that your data narratives are not merely presented, but clearly and powerfully communicated to your audience.

For users dedicated to expanding their expertise beyond basic annotation, the official Matplotlib documentation serves as an invaluable resource. It provides comprehensive details on sophisticated styling options, including adding background boxes, implementing shadows, and gaining precise control over the text rendering layers. These resources are essential for transforming standard data plots into complex, highly descriptive analytical figures suitable for academic publication or professional reporting.
