Understanding ANOVA and Regression: A Comparative Analysis for Data Modeling

In the vast landscape of applied statistics, the Analysis of Variance (ANOVA) and regression models stand out as two cornerstones for analyzing relationships within data. Both techniques are powerful tools utilized across scientific disciplines, from biology and psychology to economics and engineering, serving the fundamental purpose of modeling how changes in certain variables influence an outcome. However, while they share a common goal—data modeling—their methodological approach differs critically, driven primarily by the type of predictor variables involved. Understanding this distinction is paramount for selecting the correct statistical framework and ensuring the validity of subsequent research conclusions.

This article provides an in-depth comparison of ANOVA and regression analysis, illuminating their core similarities, highlighting their fundamental differences, and offering practical case studies to guide researchers in choosing the appropriate model for their specific data structure. We will explore how variable categorization dictates model choice and delve into advanced techniques, such as the use of dummy variables, which allow these models to handle complex, mixed data inputs.

Core Similarities and Key Differences in Modeling Structure

Despite their divergence in application, ANOVA and regression share a foundational requirement concerning the nature of the outcome variable, often referred to as the response or dependent variable. For both standard ANOVA and standard linear regression models, the response variable must be continuous. A continuous variable is one that can theoretically take on any value within a given range, such as height, temperature, time taken to complete a task, or monetary value. This underlying assumption of continuous outcomes ensures that the residuals (the differences between the observed and predicted values) can be appropriately modeled, often assuming a normal distribution, which is central to classical statistical inference.

The crucial point of separation, however, lies in how these methodologies handle the independent or predictor variables. ANOVA is intrinsically designed for situations where the predictors are categorical. These variables classify observations into distinct, non-overlapping groups or levels, such as treatment group A vs. group B, different levels of education (high school, college, graduate), or types of soil. ANOVA’s primary goal is to determine if the means of the continuous outcome variable differ significantly across these defined categories. Conversely, traditional regression analysis, particularly simple and multiple linear regression, is optimized for scenarios where the predictor variables are also continuous. It aims to quantify the magnitude and direction of the linear relationship between the predictor and the outcome.

While regression is inherently geared toward continuous predictors, it boasts significant flexibility. Regression models can seamlessly incorporate categorical variables, but this requires a necessary preprocessing step. The qualitative categories must be transformed into a series of numerical inputs using dummy variables (also known as indicator variables). This transformation allows the categorical information to be analyzed within the algebraic framework of regression, demonstrating that while their foundational applications differ, their mathematical underpinnings are closely related, often representing two sides of the General Linear Model (GLM).

The Mathematical Foundations of ANOVA

The strength of ANOVA lies in its ability to decompose the total variability observed in the continuous outcome variable. This technique partitions the total variation into two components: the variance attributable to the differences between the group means (the ‘between-group’ variation) and the variance attributable to random error or individual differences within each group (the ‘within-group’ variation). By comparing these two estimates of variance, ANOVA uses the F-ratio statistic to perform hypothesis testing.

Specifically, the null hypothesis in ANOVA posits that the population means of the continuous outcome are equal across all categorical levels. If the between-group variation is significantly larger than the within-group variation—suggesting that group membership explains a substantial portion of the total variance—the resulting F-ratio will be large enough to reject the null hypothesis, indicating statistical significance. The conclusion is not about prediction or quantifying a slope, but rather establishing whether the groups are truly distinct in terms of their average outcome.

Different forms of ANOVA exist depending on the study design. For instance, a one-way ANOVA involves one categorical predictor, while a two-way ANOVA analyzes the effect of two categorical predictors, including their potential interaction effects. The output of an ANOVA test directs the researcher not only to whether differences exist but also, through post-hoc tests, which specific pairs of group means are statistically different from one another, providing deep insight into the impact of the categorical groupings.

The Versatility of Regression Analysis

In contrast to ANOVA’s focus on group means, regression models concentrate on establishing a formal mathematical equation that describes the relationship between continuous predictors and the continuous outcome. Linear regression models aim to find the “line of best fit” through the data points, allowing researchers to quantify the exact change in the response variable associated with a one-unit change in the predictor variables.

The primary result of a regression analysis is the set of coefficients (or slopes), denoted as β values. These coefficients provide a powerful measure of effect size and direction. For example, a positive coefficient indicates that as the predictor variable increases, the outcome variable also tends to increase. This allows for prediction and estimation, enabling the researcher to forecast the outcome variable’s value given specific values of the predictors. Furthermore, the R-squared value inherent in regression provides an easily interpretable measure of how well the model fits the observed data, indicating the proportion of the variance in the outcome variable that is explained by the predictor variables.

The flexibility of regression is its defining characteristic. It easily transitions from simple linear regression (one continuous predictor) to multiple linear regression (several continuous predictors), enabling the modeling of complex, multivariate relationships. Moreover, by utilizing transformations such as logarithms or polynomials, regression can adapt to non-linear relationships, expanding its applicability far beyond the strict boundaries of mean comparison, making it a highly adaptable tool in the statistician’s arsenal.

Practical Applications: When to Choose Each Model

Selecting the correct statistical methodology is the first critical step toward sound data analysis. The choice between ANOVA and regression is not arbitrary; it is driven entirely by the research question and the measurement level of the variables involved. If the research goal is to compare the average effect of distinct, predefined groups on a measurable outcome, ANOVA is the superior choice. If, however, the goal is to predict the outcome based on a continuous scale or to quantify the rate of change in the outcome associated with changes in a continuous predictor, regression is required.

The following case studies illustrate these fundamental differences, providing clear examples of when each model type provides the most appropriate and powerful analysis for the given data structure.

Case Study 1: Analyzing Group Differences using ANOVA

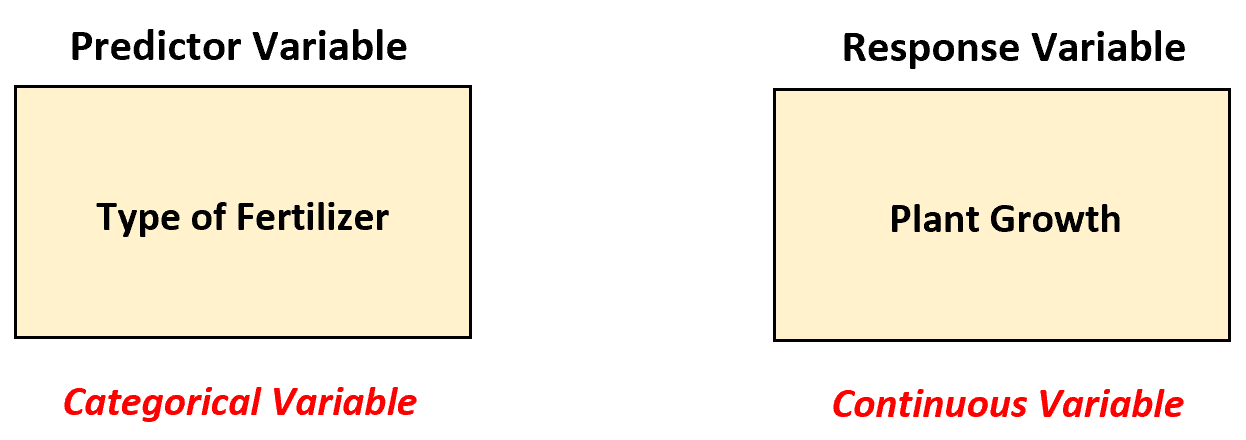

Imagine a controlled experiment where a biologist investigates whether four distinct fertilizer types (A, B, C, D) influence the average growth of a particular plant species. Plant growth, measured in inches over a one-month period, serves as the response variable. The biologist applies each fertilizer to 20 plants and meticulously records the final growth measurement for each specimen.

In this design, the response variable (plant growth) is clearly continuous. However, the variable of interest—fertilizer type—is a qualitative, categorical variable with four levels. Since the predictor is categorical and the goal is to compare the means of four independent groups, the appropriate methodology is a one-way ANOVA model. This model will test the null hypothesis that the mean plant growth is identical across all four fertilizer types (i.e., μA = μB = μC = μD).

The resulting ANOVA calculation yields an F-statistic. If this statistic is associated with a small p-value (typically less than 0.05), the biologist can confidently reject the null hypothesis and conclude that there is a statistical significance difference in mean growth attributable to at least one of the fertilizer types. The specific categories being compared are defined by the levels of the predictor variable:

• Fertilizer 1 (Type A)
• Fertilizer 2 (Type B)
• Fertilizer 3 (Type C)
• Fertilizer 4 (Type D)

The strength of the one-way ANOVA is its efficiency in testing multiple mean comparisons simultaneously while controlling the overall Type I error rate, providing a robust conclusion about the impact of the categorical grouping.

Case Study 2: Quantifying Relationships using Regression

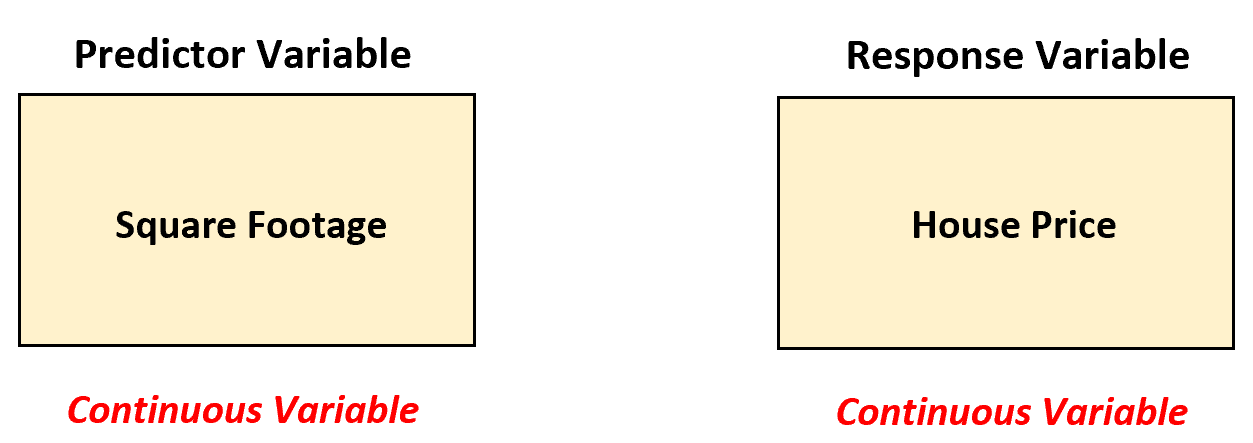

Consider a real estate analyst seeking to understand and predict the relationship between a house’s physical size and its final sale price. The analyst collects data on both the square footage (size) and the realized sale price for 200 recent transactions in a local market. In this scenario, both the response variable (house price) and the predictor variable (square footage) are measured on a continuous scale.

Since both variables are continuous and the objective is to quantify the linear association, the analyst must employ simple linear regression. This model provides an equation that directly links the predictor to the outcome:

House price = β₀ + β₁(square footage)

The coefficient β₁ is the central piece of information derived from this analysis. It represents the estimated average change in the house price associated with every one-unit increase (one additional square foot) in the living space. This quantification is far more detailed than a simple comparison of means; it provides a predictive framework. For example, if β₁ is estimated to be $150, the analyst can conclude that, on average, each additional square foot contributes $150 to the final sale price, allowing for precise market valuation and forecasting.

Integrating Complexity: Regression with Mixed Predictors

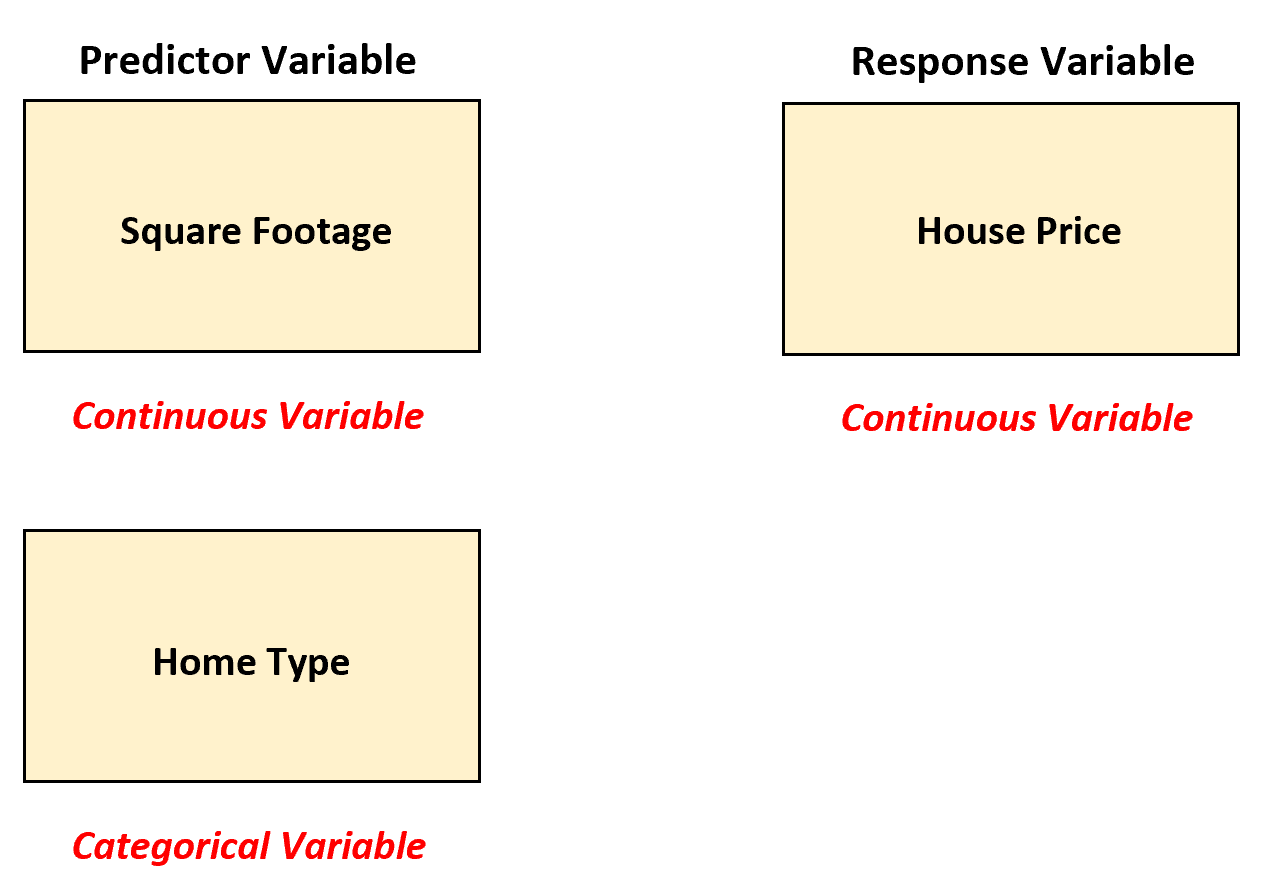

Real-world modeling often requires integrating multiple factors simultaneously, which frequently involves a mix of continuous and categorical data. Expanding on the previous case study, suppose the real estate analyst now wants to include the effect of “home type” (e.g., single-family, apartment, townhome) alongside “square footage” to predict house price. The model must now accommodate one continuous predictor and one categorical variable.

To analyze this complex relationship, the analyst must transition to a multiple linear regression framework. Crucially, the categorical variable “home type” must be numerically encoded using dummy variables. If there are three categories (single-family, apartment, townhome), two dummy variables are created, with one category designated as the reference group (e.g., townhome).

By selecting “townhome” as the baseline, the resulting multiple linear regression equation allows the model to estimate the effect of each type relative to the baseline, while simultaneously accounting for the continuous variable:

House price = β₀ + β₁(square footage) + β₂(single-family) + β₃(apartment)

The interpretation of the coefficients in this mixed model provides a comprehensive understanding of the factors influencing price:

• β₁: This coefficient estimates the average dollar change in house price associated with one additional square foot, holding the home type constant. This maintains the continuous predictor’s marginal effect.
• β₂: This estimates the average price difference between a single-family home and the reference category (townhome), assuming the square footage is identical. This quantifies the categorical effect.
• β₃: This estimates the average price difference between an apartment and the reference category (townhome), assuming the square footage is identical.

This integration showcases the power of regression models to handle nearly any combination of predictor types, provided the data is appropriately prepared through techniques like dummy variable encoding.

Implementing Dummy Variables in Software

While the concept of dummy variables is theoretical, their practical implementation is streamlined in modern statistical software packages. Most software, such as R, Python (using libraries like statsmodels or scikit-learn), or commercial programs like SPSS and SAS, automatically detect nominal or ordinal categorical variables and convert them into the necessary indicator variables internally when executing a regression command. However, explicit coding or understanding the reference category selection is often necessary for precise control over the model interpretation.

For researchers working with complex datasets, mastering the manual or automated creation of dummy variables is a crucial skill for leveraging the full potential of regression models when analyzing mixed data types.

Additional Resources for Statistical Modeling

For readers seeking a more comprehensive understanding of these fundamental statistical techniques, the following tutorials provide an in-depth introduction to each modeling approach, covering topics from theoretical assumptions to practical execution.

The following tutorials offer an in-depth introduction to ANOVA models, focusing on variance decomposition and post-hoc comparisons:

The following tutorials offer an in-depth introduction to linear regression models, focusing on coefficient interpretation, model fit, and assumption diagnostics:
