Learn How to Perform Box-Cox Transformation in Excel: A Step-by-Step Guide

The Box-Cox transformation is an essential technique in applied statistics, primarily utilized to stabilize variance and convert a dataset that violates distribution assumptions into one that more closely approximates a normal distribution. This methodological step is fundamental for ensuring the validity of parametric statistical models, such as linear regression, which rely heavily on the assumption of normally distributed residuals. Failing to perform this critical preprocessing step can lead to biased parameter estimates and unreliable statistical conclusions.

The core objective of applying the Box-Cox method is to systematically identify the optimal transformation parameter, universally denoted as lambda ($lambda$). This specific $lambda$ value is the one that maximizes the resulting dataset’s adherence to normality. The technique employs a standard piecewise function to handle both zero and non-zero values of $lambda$. Understanding this formula is crucial for implementing the process successfully, even within a spreadsheet environment like Excel.

The transformation formula is defined as:

• y($lambda$) = (y^$lambda$ – 1) / $lambda$   if $lambda$ $ne$ 0
• y($lambda$) = log(y)   if $lambda$ = 0

While specialized statistical software is often the preferred method for executing this procedure, Microsoft Excel possesses the robust optimization tools required to perform the complex search for the optimal $lambda$ manually, yet precisely. This comprehensive guide details a step-by-step methodology for finding the ideal transformation parameter and applying the resulting Box-Cox transformation entirely within an Excel worksheet, thereby translating a sophisticated statistical task into an accessible spreadsheet operation.

Step 1: Preparing the Dataset and Ensuring Positive Values

The foundational requirement for performing the Box-Cox transformation is the proper organization of the raw data within the Excel environment. For demonstrative purposes, we will utilize a sample dataset characterized by a clear non-normal distribution, making it an appropriate candidate for transformation prior to any subsequent statistical analysis. Careful preparation in this initial stage ensures that all following calculations are based on clean and correctly structured inputs.

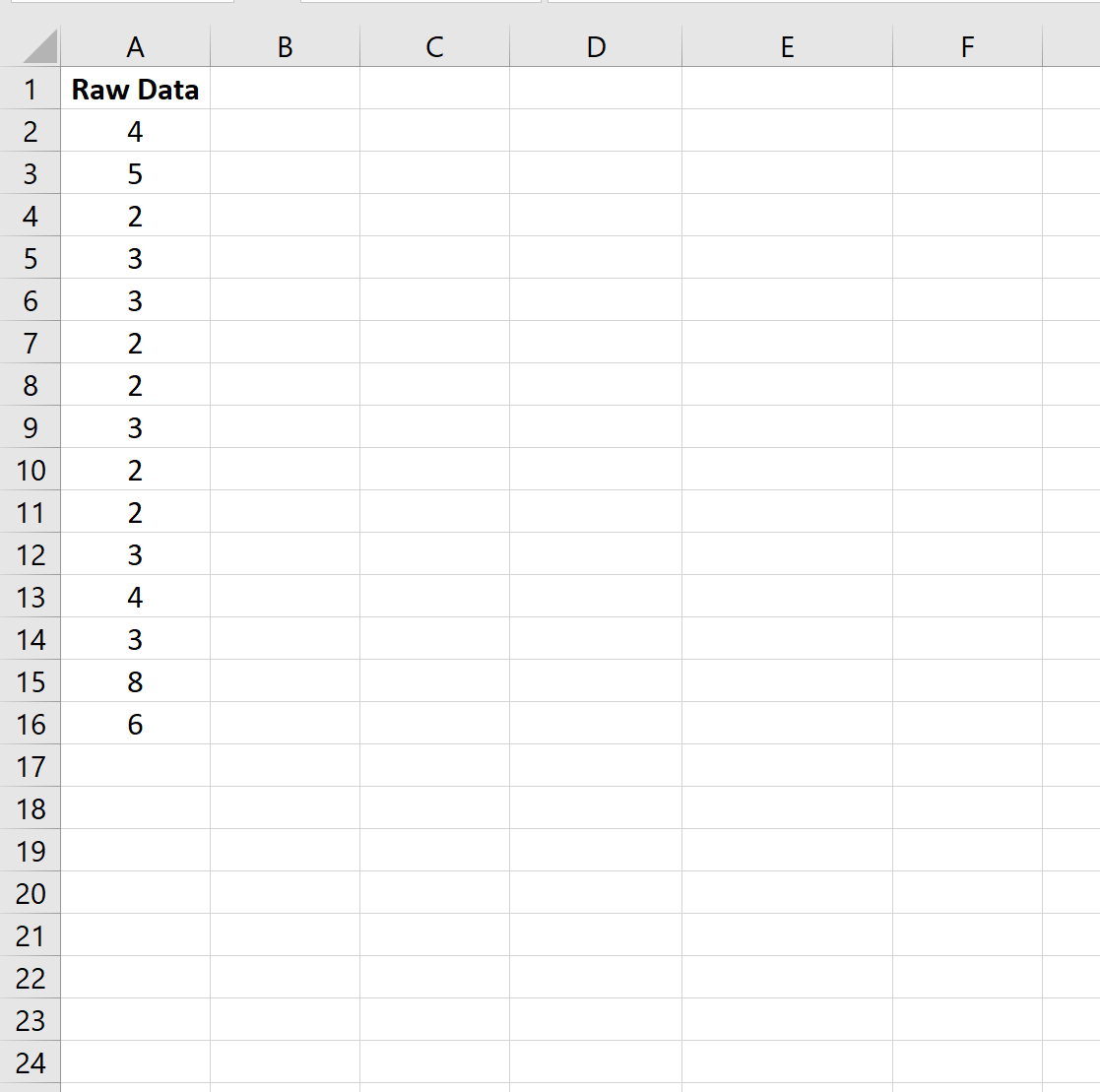

To begin, input the raw sample observations into a designated column within your worksheet. It is considered best practice to label this column clearly—for example, “Original Data”—to maintain organizational clarity and traceability throughout the multi-step process. The structure of the initial data is straightforward but essential, as all subsequent steps will reference this primary data structure.

A critical constraint of the standard Box-Cox formula must be addressed before proceeding: the transformation is mathematically undefined for input values of zero or negative numbers. Consequently, it is absolutely essential that the data intended for transformation consists exclusively of positive numbers. If your dataset happens to contain non-positive observations, a preliminary shifting operation must be executed. This procedure involves adding a constant value to every observation, ensuring all values become strictly positive, thus making the data compatible with the Box-Cox formula before moving to the next procedural step.

Step 2: Creating a Rank Index and Sorting the Data

To accurately gauge the effectiveness of the Box-Cox transformation, we must compare the resulting transformed data against the theoretical quantiles expected of a perfectly normal distribution. This methodology, which is integral to probability plotting, necessitates that the data be ordered and ranked. Therefore, the second step focuses on structuring the data in a way that facilitates the calculation of these theoretical normal quantiles.

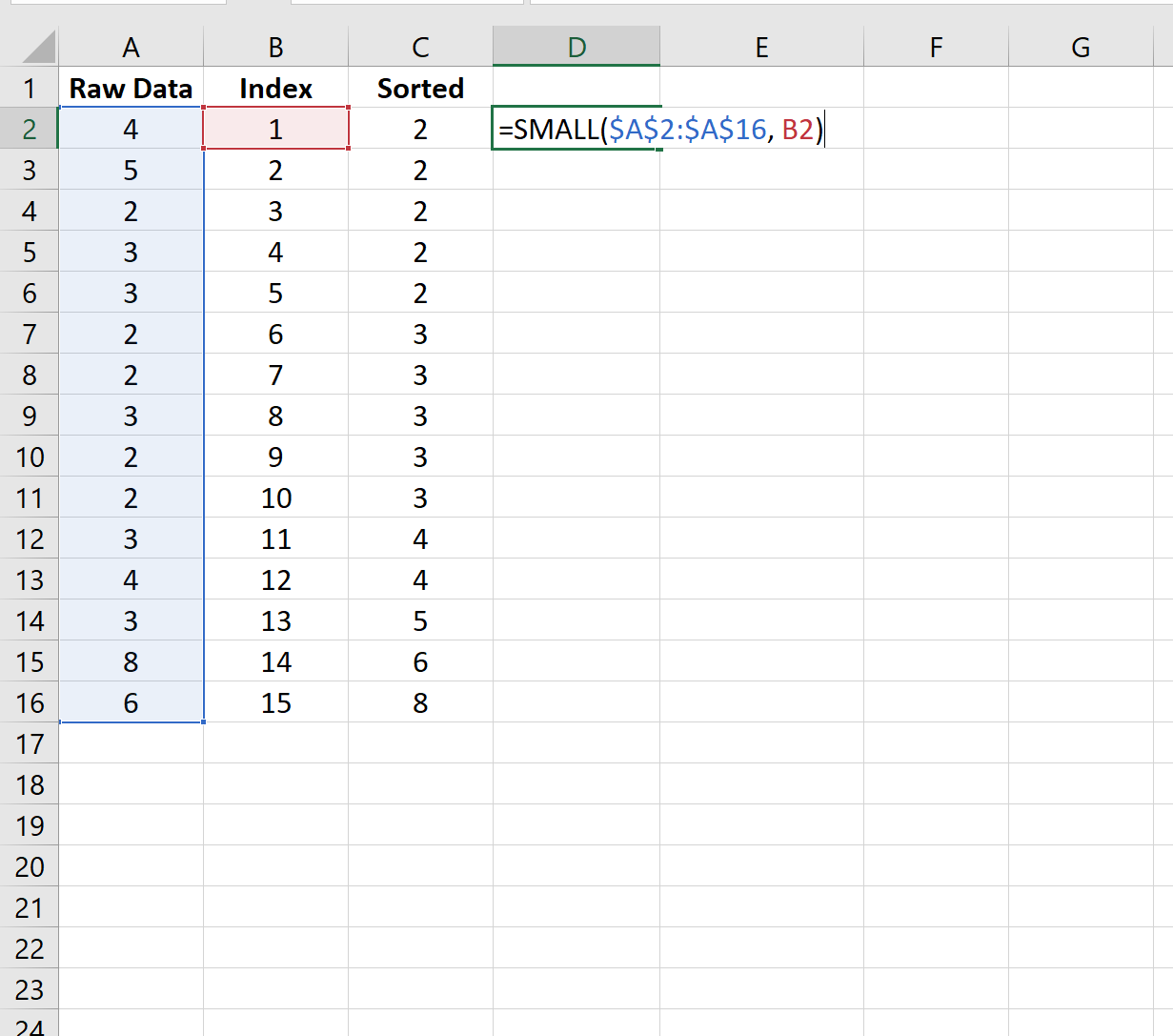

Initially, create a simple index column (i), running sequentially from 1 up to N, where N represents the total count of observations in your dataset. This index serves as the rank of each data point. Following the creation of the index, utilize Excel’s sorting functionality to arrange the original data from the smallest value to the largest. This sorted data should be placed immediately adjacent to the index column, ensuring a precise one-to-one correspondence between the rank and the magnitude of the observation.

The implementation of this sorted structure is pivotal because the rank index (i) will be directly incorporated into the calculation of the expected Z-Scores, or standard normal quantiles. These Z-Scores represent the exact values the data should ideally attain if it were drawn from a flawless standard normal distribution. By establishing this ranked structure, we create the necessary theoretical benchmark against which the transformed data’s degree of normality will be quantified.

Step 3: Establishing the Lambda Variable and Temporary Transformation

The central statistical principle of the Box-Cox procedure is based on an optimization routine: finding the $lambda$ value that yields the highest possible correlation with the theoretical standard normal quantiles. To initiate this complex search, we must first establish a calculation framework where the transformed data is functionally dependent on a single, easily adjustable $lambda$ input cell.

Designate a specific, clearly marked cell in your worksheet to hold the $lambda$ variable. Assign an initial, arbitrary value to this cell—for instance, 1.0. This cell is crucial, as it will serve as the primary input that Excel’s optimization tool, Goal Seek, will subsequently manipulate. The arbitrary initial value simply provides a necessary starting point for the calculation chain to function.

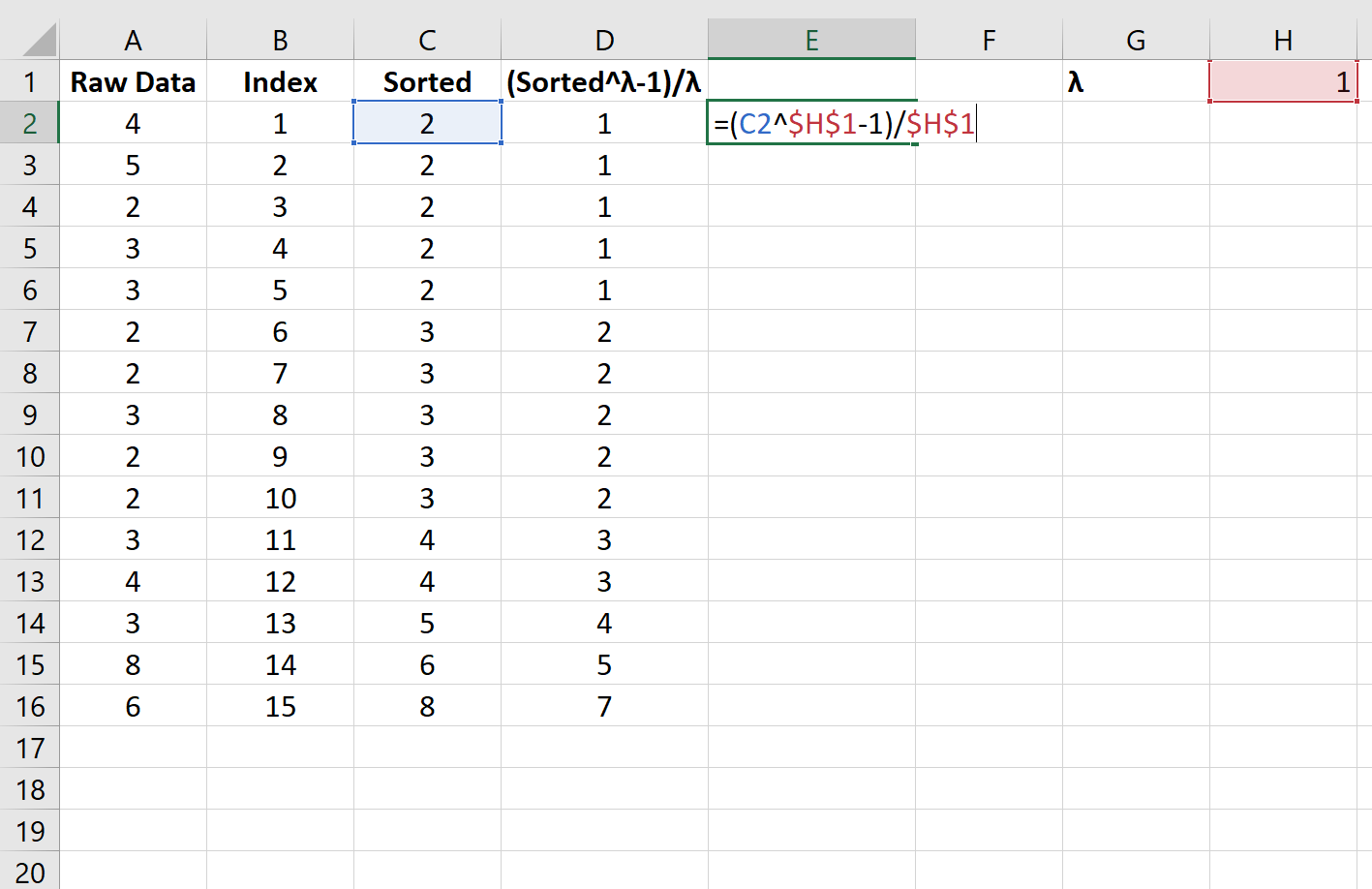

Next, apply the Box-Cox formula to the sorted data column (from Step 2), making sure to reference the temporary $lambda$ cell. It is paramount to use absolute cell references (e.g., $A$1) for the $lambda$ cell within the formula. This absolute referencing ensures that when the formula is copied down across all data points, every transformed value correctly calculates its dependence on that single $lambda$ input. Since we typically start with $lambda = 1$, the transformation simplifies temporarily to $y(1) = y – 1$, providing a baseline transformed dataset that is directly responsive to changes in the designated $lambda$ cell, thereby setting the stage for the iterative optimization phase.

Step 4: Calculating Standard Normal Quantiles and Correlation

The statistical measure of success for the Box-Cox transformation is determined by the degree of linearity observed when comparing the transformed data against the theoretical normal quantiles. This linear relationship is precisely quantified using the Pearson correlation coefficient ($r$). Maximizing this coefficient is synonymous with achieving the best possible approximation of a normal distribution.

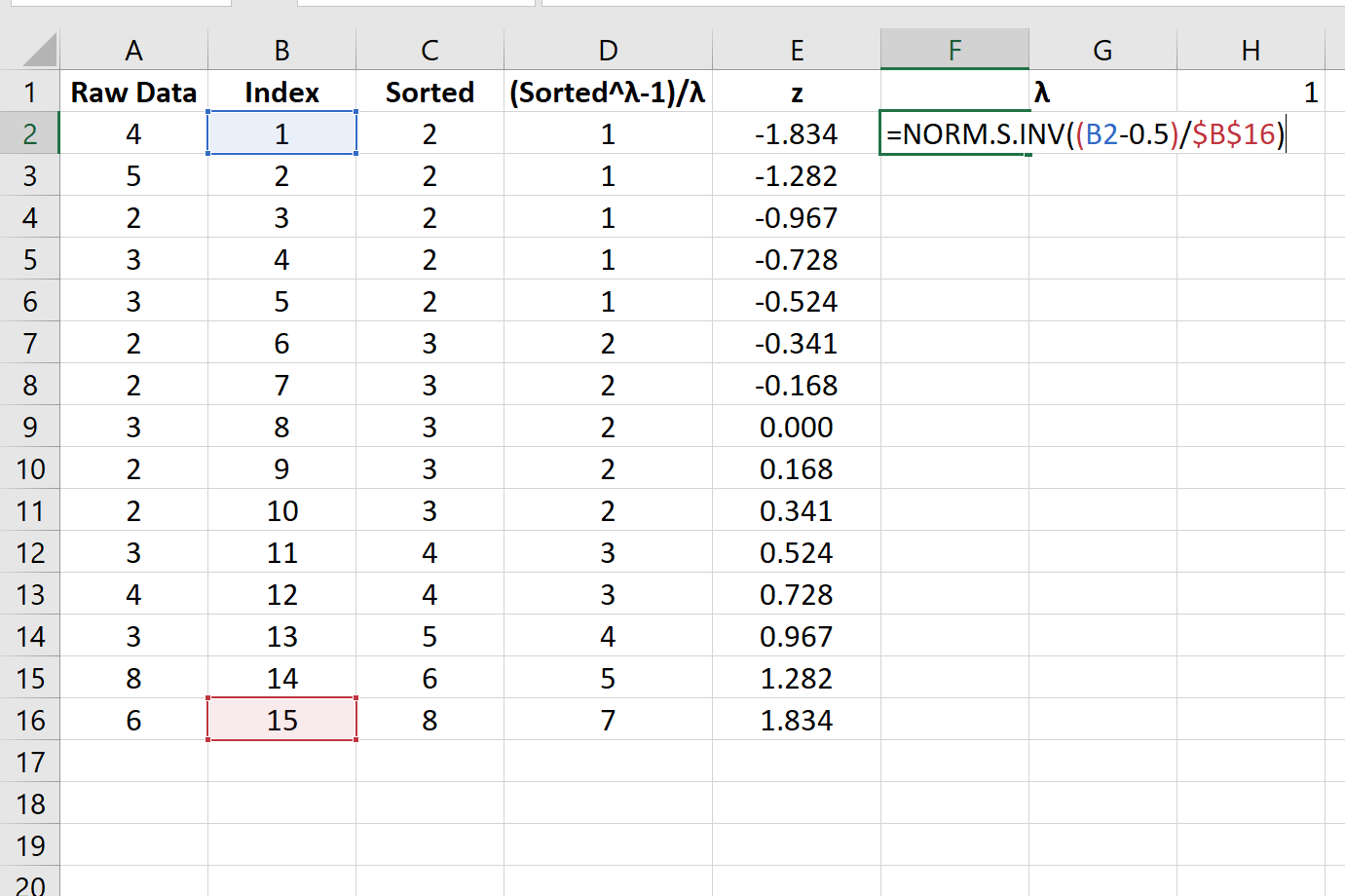

Our first task in this step is to calculate the expected normal quantiles, or Z-Scores, corresponding to each data point’s rank (i). While advanced statistical texts often detail manual probability plotting positions, Excel conveniently streamlines this calculation using the built-in `NORM.S.INV` function. This function takes the percentile rank (derived from the index i) and returns the equivalent Z-Score, which represents the standard normal deviate. Calculate these Z-Scores for every value in the index column, creating a reference column that embodies theoretical normality.

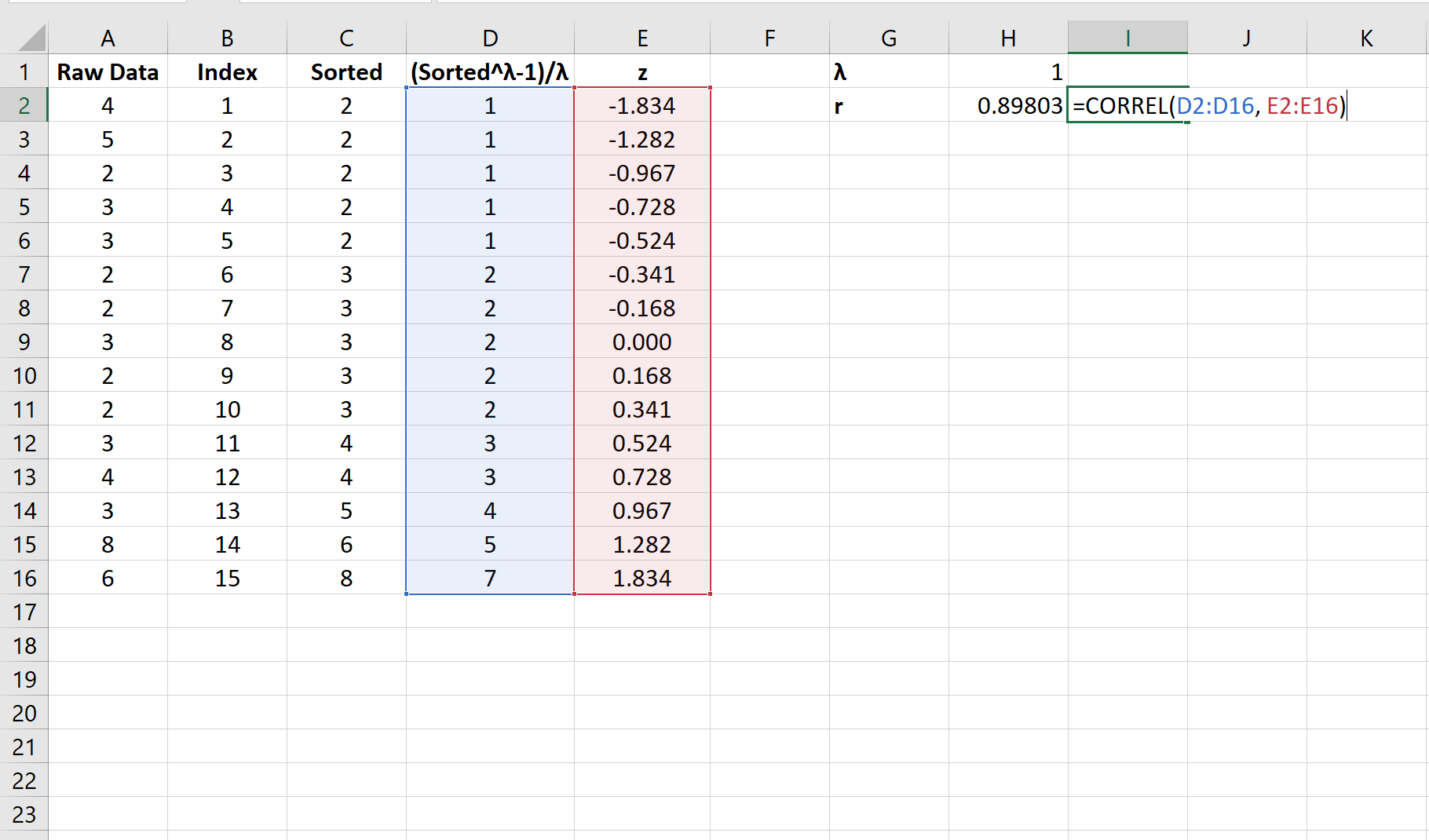

With both the temporary transformed data (from Step 3) and the theoretical Z-Scores now prepared, the next essential procedure is to quantify their linear association. This is accomplished using Excel’s `CORREL` function, comparing the entire transformed data column against the entire Z-Score column. The resulting correlation value ($r$) is the critical metric of interest. A value approaching positive 1.0 indicates a strong linear relationship, which serves as the statistical confirmation of successful normalization. This correlation cell is the target output that must be maximized to identify the optimal $lambda$ parameter.

Step 5: Using Goal Seek to Determine the Optimal Lambda

Manually testing various $lambda$ values to find the specific one that maximizes the correlation coefficient would be highly inefficient and prone to human error. Fortunately, Excel offers the ideal automation tool for this task: Goal Seek. Goal Seek functions as an optimization solver, designed to iteratively adjust a single input variable until a specified output variable reaches a defined target value.

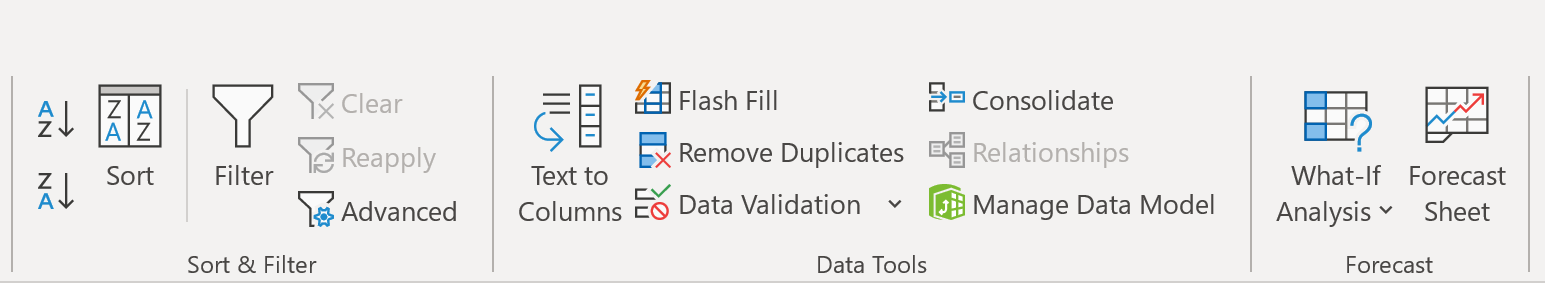

To launch this optimization process, navigate to the Data tab in the ribbon, locate the Forecast group, click What-If Analysis, and then select Goal Seek from the dropdown menu. This utility will take over the laborious task of managing the necessary adjustments to the $lambda$ parameter automatically.

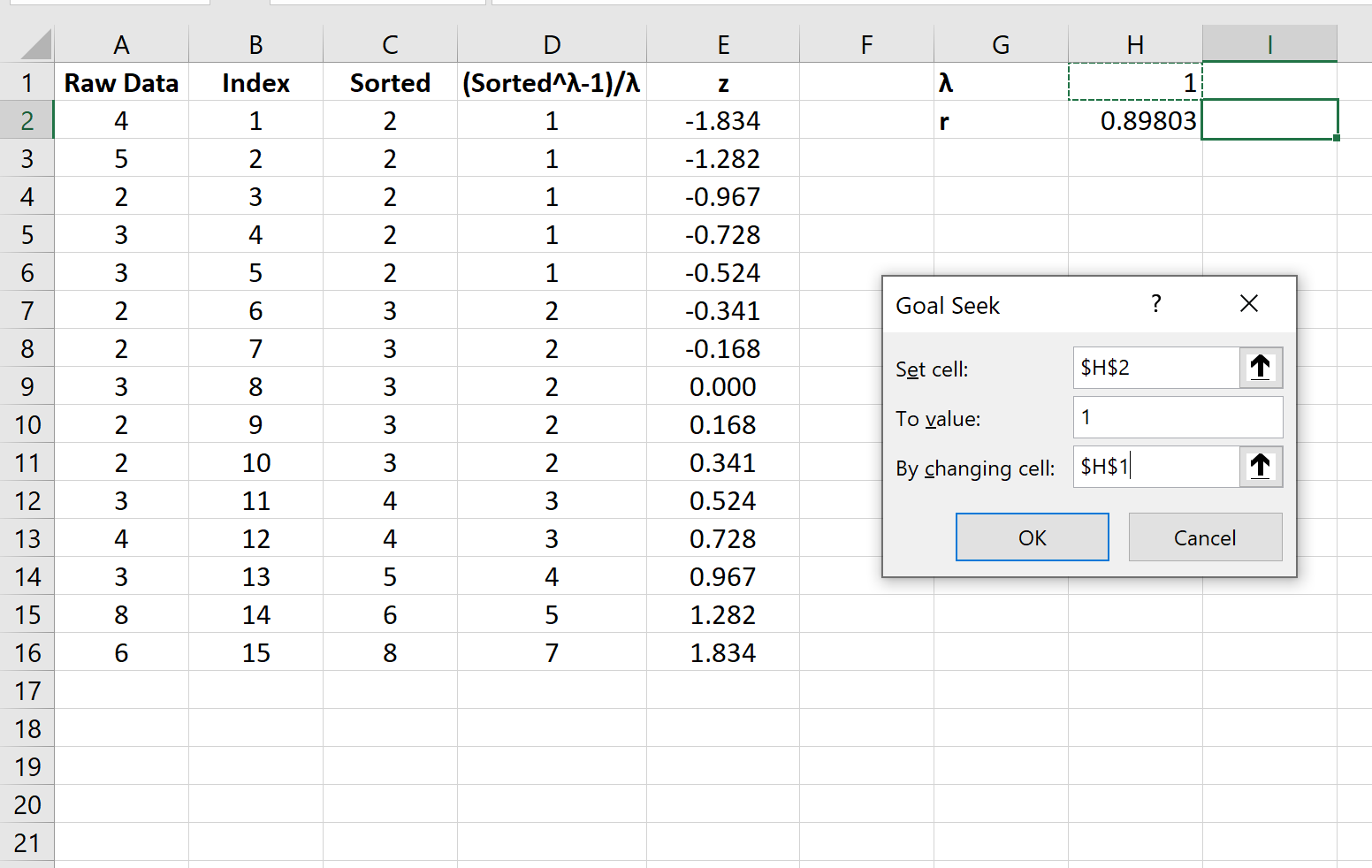

Within the Goal Seek dialogue box, it is necessary to configure the three essential components of the optimization problem:

1. Set cell: This specifies the output cell we wish to control. Select the cell containing the calculated correlation coefficient from Step 4.
2. To value: We aim for the strongest possible linear relationship, which translates to a perfect positive correlation. Therefore, enter the value 1 here.
3. By changing cell: This identifies the input variable Goal Seek is permitted to manipulate. Select the cell containing the arbitrary $lambda$ value established in Step 3.

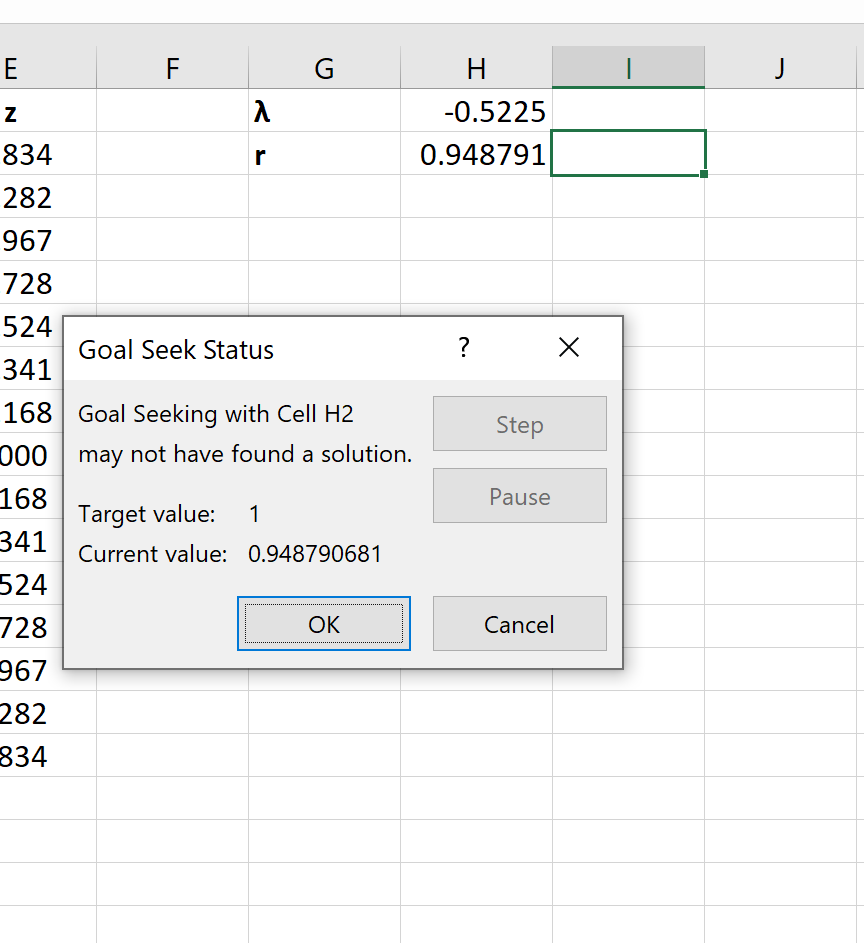

Upon clicking OK, Goal Seek executes its iterative routine, converging rapidly on the value of $lambda$ that yields the correlation closest to 1.0. This calculated value is the optimal Box-Cox transformation parameter for your specific dataset. For the data used in this practical example, the optimization successfully converges on an optimal $lambda$ of -0.5225.

Step 6: Finalizing the Transformed Data and Verification

With the optimal $lambda$ value now precisely identified through the Goal Seek optimization, the final procedural step is to apply this definitive parameter back to the original, unsorted dataset. This action generates the final Box-Cox transformed data column, which is now appropriately conditioned for use in subsequent statistical analysis, having satisfied the necessary normality assumption.

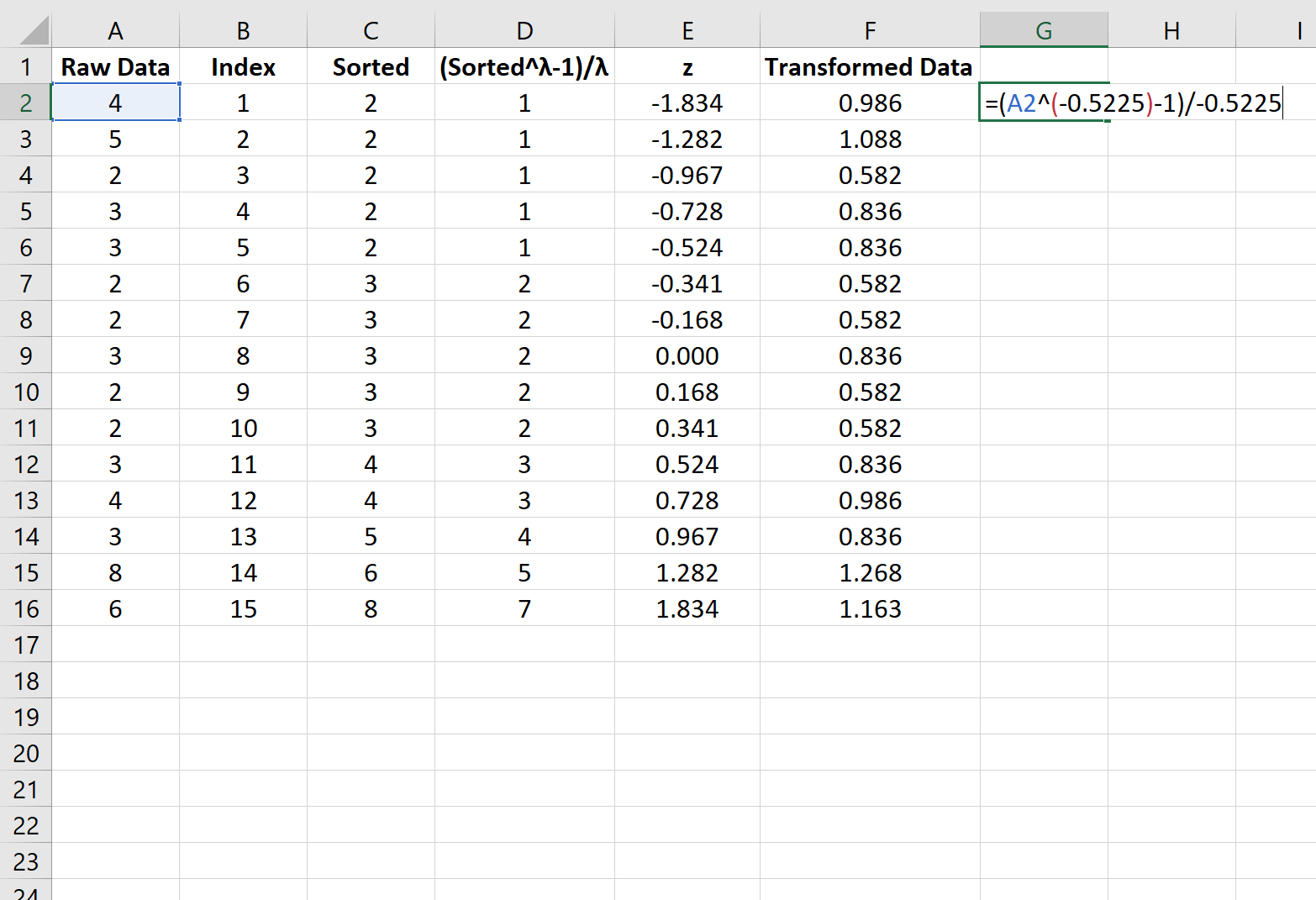

Create a new column labeled “Final Transformed Data.” Use the optimal value of $lambda = -0.5225$ (or the value returned by Goal Seek) within the Box-Cox formula, applying it cell-by-cell to the raw, original data column (from Step 1). It is essential to confirm that you are utilizing the correct version of the piecewise formula—in this case, since the optimal $lambda$ is non-zero, the formula $y(lambda) = (y^{lambda} – 1) / lambda$ is employed.

The resulting column represents the definitive, optimized dataset. The success of this entire complex procedure in Excel rests upon the careful setup of formula dependencies and the efficient optimization performed by Goal Seek, which accurately located the specific transformation parameter that yields the maximum statistical adherence to a standard normal distribution.

Verification Note: Although maximizing the correlation coefficient strongly suggests success, rigorous statistical practice mandates formal verification. It is highly recommended to conduct a dedicated normality test, such as the Shapiro-Wilk test or the Kolmogorov-Smirnov test, on the final transformed data. These tests provide an objective p-value that statistically confirms whether the transformation was successful in achieving the desired distribution, thereby validating the data for use in advanced parametric modeling.

Additional Resources for Statistical Depth

For individuals seeking a deeper understanding of the underlying mathematical principles of transformation techniques, assumption testing, and optimization algorithms, consulting authoritative statistical textbooks and official software documentation is highly recommended. These resources provide the necessary theoretical framework to complement this practical Excel application.
