Learning Guide: Understanding and Calculating Correlation Coefficients in Power BI

A correlation coefficient is a measure of the linear association between two variables.

It can take on a value between -1 and 1 where:

• -1 indicates a perfectly negative linear correlation between two variables
• 0 indicates no linear correlation between two variables
• 1 indicates a perfectly positive linear correlation between two variables

The easiest way to calculate a correlation coefficient between two columns in Power BI is to use the Quick Measure function.

The following example shows how to do so in practice.

Example: How to Calculate a Correlation Coefficient in Power BI

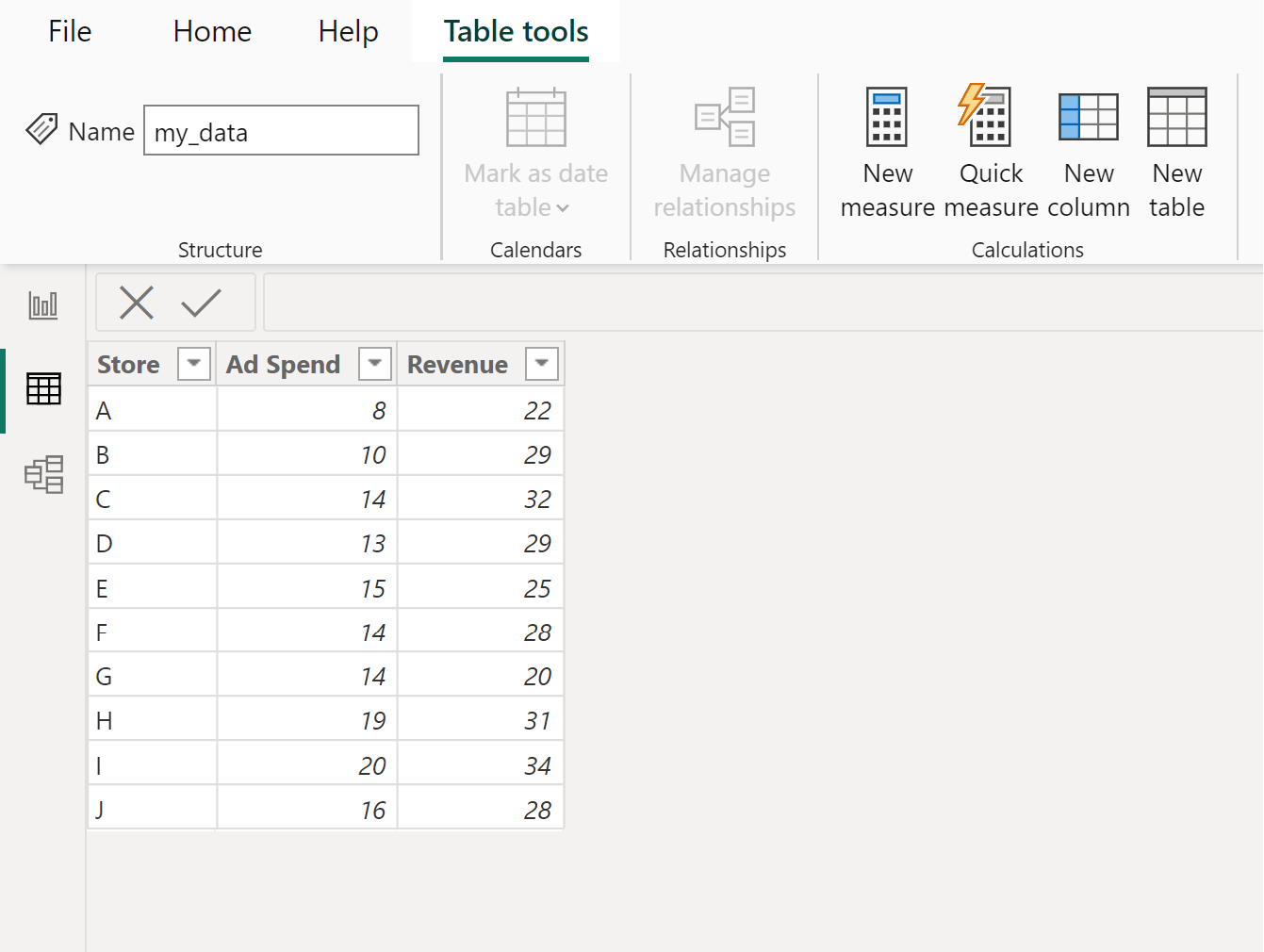

Suppose we have the following table named my_data in Power BI that contains information about total ad spend and total revenue for various grocery stores:

Suppose that we would like to calculate the correlation coefficient between Ad Spend and Revenue.

To do so, click the Table Tools tab and then click the Quick measure icon:

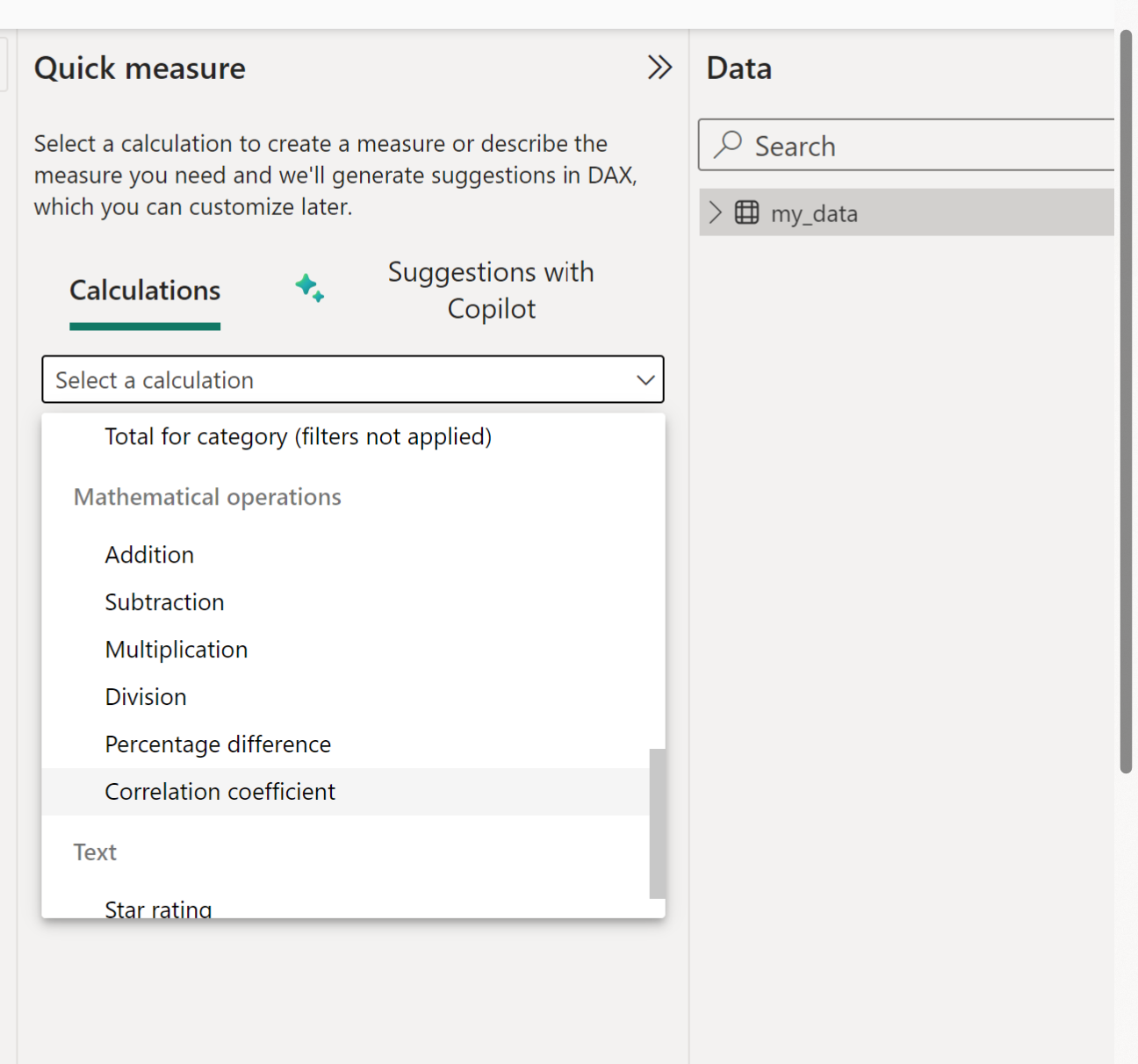

In the Quick measure panel that appears on the right side of the screen, click the dropdown arrow next to Select a calculation and then scroll down and click Correlation coefficient:

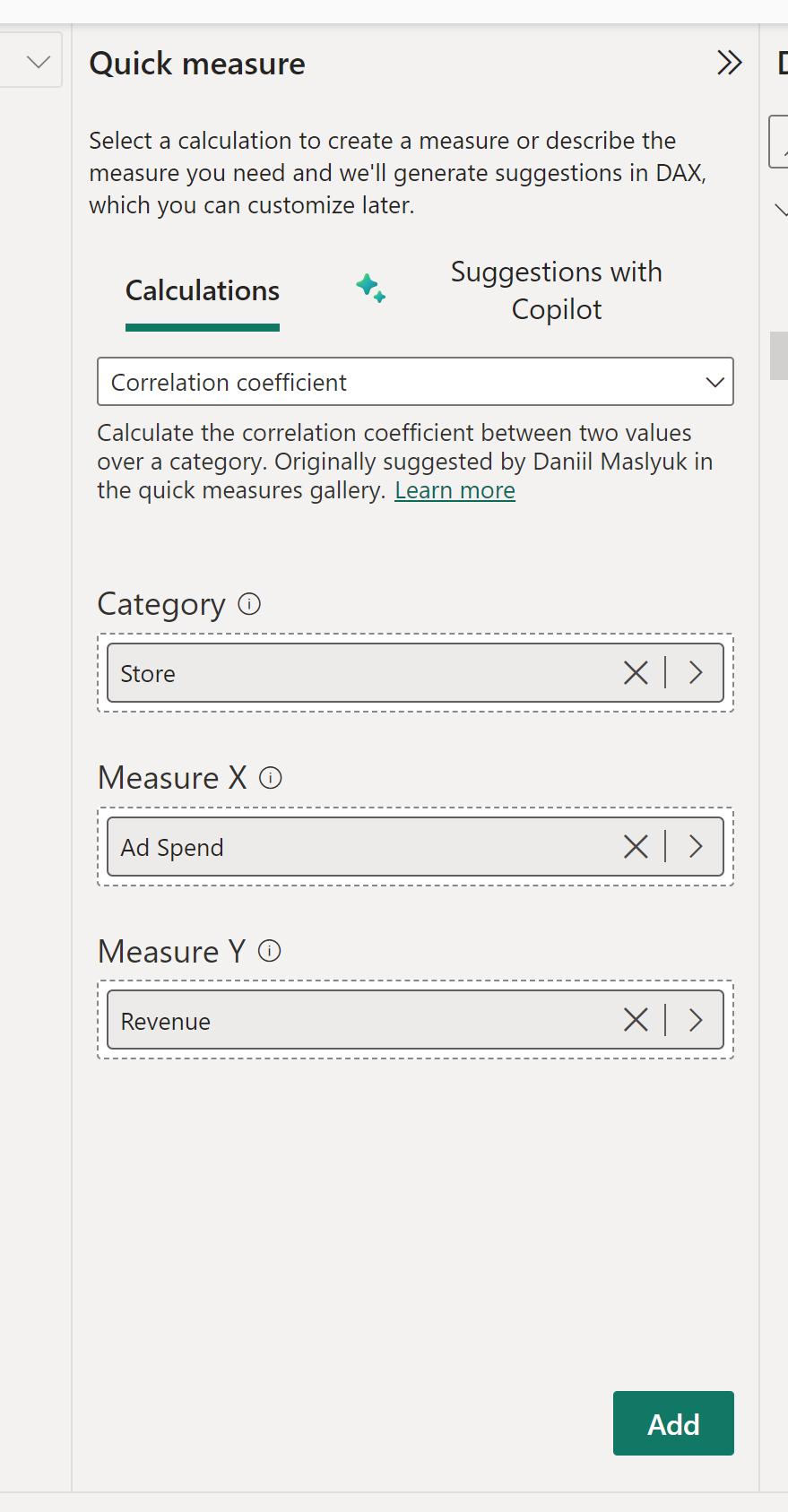

Next, choose Store for the Category, Ad Spend for the Measure X, and Revenue for the Measure Y.

Then click Add:

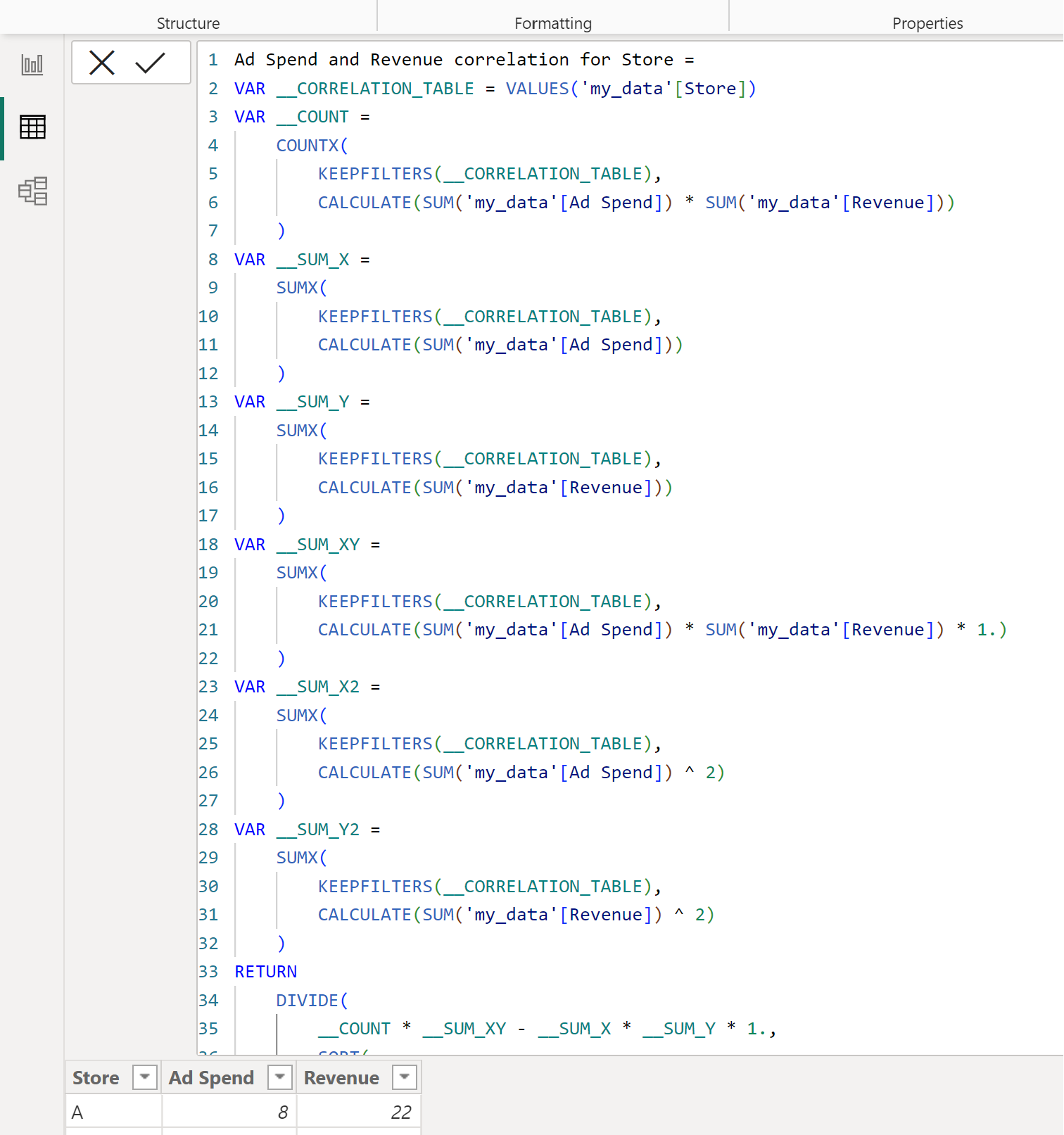

This will automatically generate the DAX code necessary to calculate the correlation coefficient between Ad Spend and Revenue:

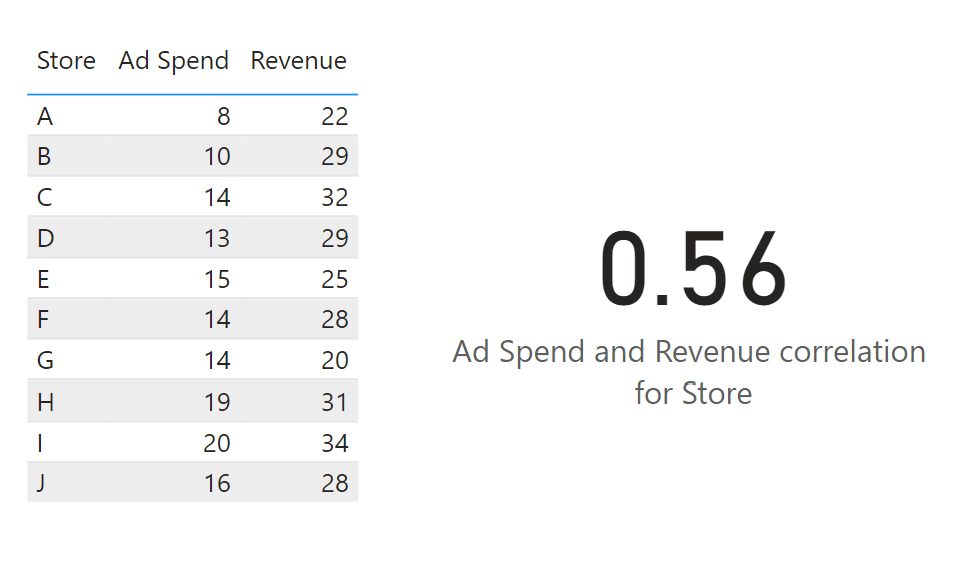

To view the correlation coefficient, you can switch to the Report View and add a card visualization that displays the correlation coefficient:

We can see that the correlation coefficient between Ad Spend and Revenue is 0.56.
