Calculate a Sigmoid Function in Python (With Examples)

Introduction to the Sigmoid Function

The Sigmoid function is a cornerstone concept in mathematics, statistics, and computational science, serving as a critical transformation tool, especially within the domains of machine learning and deep learning. Its foundational characteristic is its unique plot shape—a smooth, asymptotic “S” curve. This specific geometry allows the function to elegantly map any real-valued input, whether extremely positive or extremely negative, into a normalized output range that strictly falls between 0 and 1. This normalization capability makes the Sigmoid function indispensable for tasks requiring the estimation of probabilities or the scaling of input data.

While the term “sigmoid” encompasses several functions that produce this characteristic S-shape, the variant most commonly referenced and utilized in technical fields is the logistic function, often referred to simply as the logistic sigmoid. This function serves as the backbone for logistic regression models and was historically the default choice for introducing non-linearity into complex systems like early neural networks. Understanding its mathematical basis and efficient implementation in Python is a fundamental requirement for modern data scientists and developers.

The primary appeal of the logistic sigmoid lies in its ability to provide a probabilistic interpretation of input data. Inputs that are highly positive tend toward an output of 1, representing a high probability (or certainty), while highly negative inputs tend toward 0, representing a low probability. The smooth transition around the input value of zero (which maps precisely to 0.5) ensures that small changes in input lead to gradual, predictable changes in output, a crucial feature for gradient-based optimization algorithms used in training models.

The Mathematical Definition and Properties of Logistic Sigmoid

To fully appreciate the function’s utility, it is essential to review its formal mathematical definition. The logistic sigmoid function, denoted as F(x), is defined by the following equation:

F(x) = 1 / (1 + e^-x)

In this formula, x represents the input value—which can be any real number—and e is the mathematical constant representing the base of the natural logarithm, approximately equal to 2.71828. The structure of this equation ensures that the denominator is always greater than or equal to 1 (since e^-x is always positive), guaranteeing that the output F(x) remains bounded between 0 and 1. This strict bounding is mathematically robust, preventing the resulting values from leading to computational instability in complex calculations.

A key property derived from this formula is non-linearity. If the sigmoid function were linear, complex data relationships could only be modeled by simple straight lines. By introducing the exponential term, the function allows the system (like a neural network) to learn intricate, non-linear relationships within the data, dramatically increasing its modeling power. Furthermore, the derivative of the sigmoid function is easily calculated and expressed in terms of the function itself (F'(x) = F(x) * (1 – F(x))), which makes it exceptionally convenient for use in backpropagation, the core mechanism by which neural networks are trained.

The calculation of the term e^-x is where computational precision becomes paramount. When x is a very large negative number, -x is a large positive number, causing e^-x to result in an extremely large value, potentially leading to an overflow error if implemented using standard floating-point arithmetic. Conversely, if x is a very large positive number, e^-x approaches zero, which is numerically stable but still requires careful handling. For these reasons, relying on optimized scientific libraries is the industry standard for implementing the sigmoid function in practical programming environments.

The Preferred Python Implementation Using SciPy

While one could certainly implement the sigmoid formula using Python’s built-in math module (e.g., 1 / (1 + math.exp(-x))), this approach is highly discouraged for professional data processing tasks. Manual implementation is prone to numerical instability when handling extreme input values and lacks the necessary optimization for processing large arrays of data efficiently. The definitive, numerically stable, and high-performance method for calculating the logistic sigmoid function in the Python ecosystem involves utilizing the expit function, which is housed within the special module of the SciPy library.

The expit function is essentially the vectorized implementation of the logistic sigmoid tailored for scientific computing. Its design intrinsically accounts for the potential issues arising from floating-point arithmetic when inputs are large, ensuring accuracy and stability across the entire input range. Furthermore, because expit is built upon highly optimized C/Fortran routines, it processes large NumPy arrays significantly faster than Python loops or list comprehensions, making it essential for high-throughput computations required in machine learning model training.

To begin using this optimized function, you must first ensure that both the SciPy and NumPy libraries are installed in your environment. The basic syntax for importing and utilizing this function is remarkably clean and straightforward, requiring only a specific import statement followed by the function call, as demonstrated in the following code block:

from scipy.special import expit

#calculate sigmoid function for x = 2.5
expit(2.5)

This streamlined approach emphasizes the Python community’s preference for leveraging established, tested libraries for core mathematical operations, allowing practitioners to focus on model development rather than low-level numerical precision issues.

Practical Application: Calculating Sigmoid for Single and Multiple Inputs

The utility of the expit function is best illustrated through practical examples, starting with the simplest case: calculating the Sigmoid output for a single input value. Data analysts often need to quickly transform a specific score or weighted sum into a probability estimate. In this first scenario, we will calculate the function’s output for an input x = 2.5 and confirm the result’s consistency with the manual mathematical derivation.

The following snippet showcases the direct application of expit to the single floating-point value 2.5:

from scipy.special import expit

#calculate sigmoid function for x = 2.5
expit(2.5)

0.9241418199787566

The resulting output, approximately 0.924, confirms that a positive input value (2.5) is mapped to a value approaching 1, which aligns perfectly with the function’s nature. This result can be interpreted as a high probability (92.4%) in a classification context. To solidify the understanding of the underlying mathematics, we can quickly verify this result by substituting x = 2.5 into the logistic formula and using the known value of e:

• F(x) = 1 / (1 + e^-x)
• F(x) = 1 / (1 + e^-2.5)
• F(x) = 1 / (1 + 0.08208)
• F(x) = 1 / (1.08208)
• F(x) ≈ 0.924

Moving beyond single data points, the real power of scipy.special.expit is revealed when dealing with large datasets, such as the output vectors from a hidden layer in a neural network. Since the function is vectorized, it can accept an array or list of inputs and return an array of corresponding Sigmoid outputs in a single, highly optimized operation. This capability is essential for performance in modern data processing workflows, avoiding the significant overhead associated with explicit looping constructs in Python.

Consider a scenario where we need to transform a list of five raw scores simultaneously. The following code demonstrates how efficiently expit handles this array calculation:

from scipy.special import expit

#define list of values
values = [-2, -1, 0, 1, 2]

#calculate sigmoid function for each value in list
expit(values)

array([0.11920292, 0.26894142, 0.5, 0.73105858, 0.88079708])

The output is a NumPy array containing the calculated probabilities. Observing the results, we confirm the core properties: the input 0 maps exactly to 0.5; negative inputs yield outputs below 0.5; and positive inputs yield outputs above 0.5. This vectorized operation significantly streamlines the data transformation pipeline, making it a standard practice in computational mathematics.

Visualizing the Characteristic S-Curve with Matplotlib

A crucial step in understanding any mathematical function is visualizing its behavior. Plotting the Sigmoid function across a broad range of input values provides immediate insight into its non-linear transformation capabilities and how it smoothly transitions between its asymptotic limits of 0 and 1. Achieving this visualization in Python requires the coordinated effort of three primary libraries: SciPy for the calculation, NumPy for generating the input data, and Matplotlib for rendering the graphic.

First, we use the numpy.linspace function to generate a sequence of evenly spaced points, typically ranging from a negative value (e.g., -10) to a positive value (e.g., 10). This array of input values, conventionally labeled x, serves as the domain over which we wish to plot the function. Next, the vectorized expit function is applied to this entire x array, instantaneously generating the corresponding output values, labeled y.

Once the input (x) and output (y) data points are generated, the Matplotlib library handles the plotting process. We utilize the matplotlib.pyplot.plot() function to draw the curve, followed by commands to label the axes and display the final plot, ensuring clarity and interpretability.

import matplotlib.pyplot as plt
from scipy.special import expit
import numpy as np

#define range of x-values from -10 to 10 with 100 points
x = np.linspace(-10, 10, 100)

#calculate sigmoid function for each x-value
y = expit(x)

#create plot with labels
plt.plot(x, y)
plt.xlabel('x')
plt.ylabel('F(x)')

#display plot
plt.show()

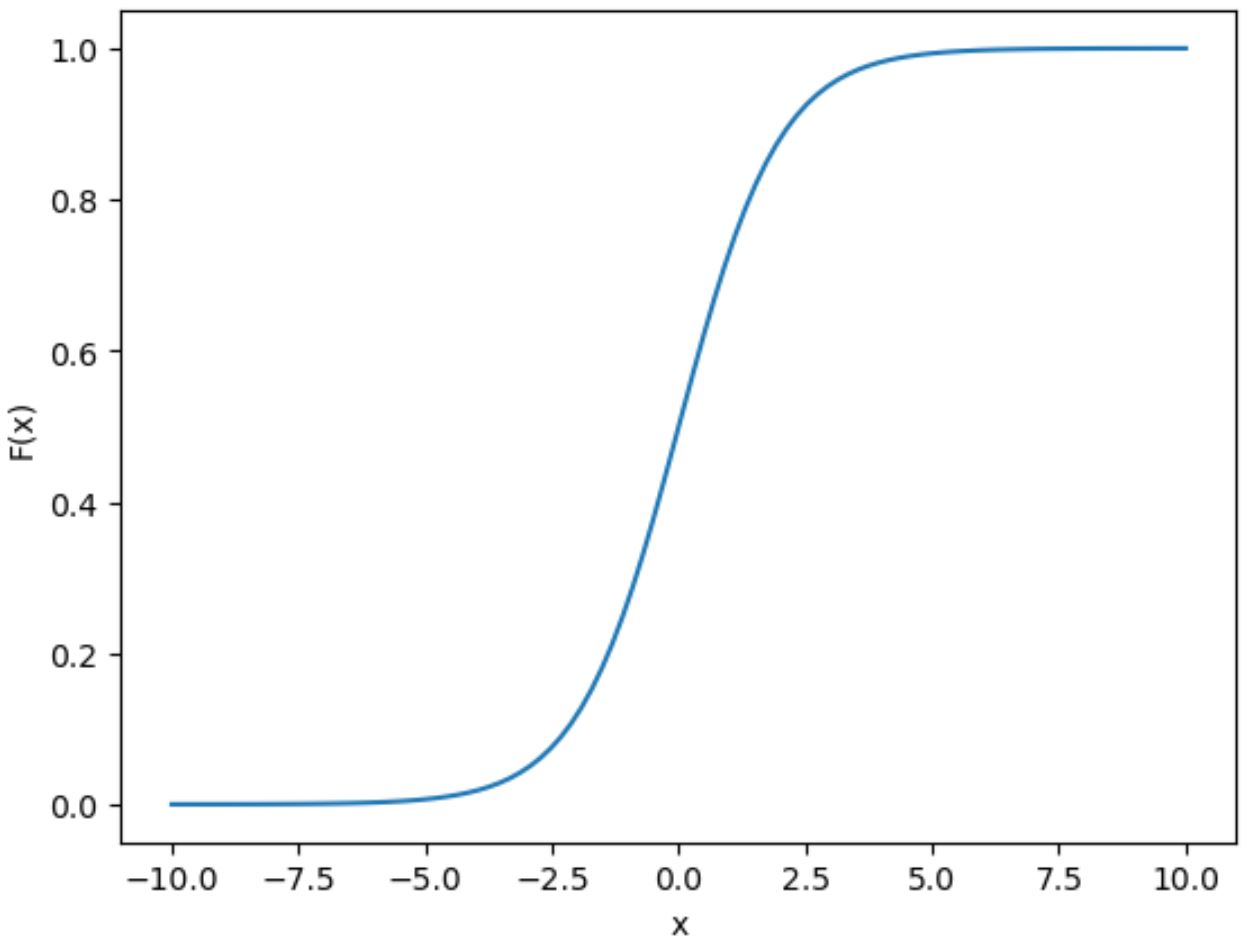

The resultant image visually encapsulates the function’s transformation properties, confirming that inputs below approximately -5 yield outputs very close to 0, inputs above +5 yield outputs very close to 1, and the sharpest change occurs near the origin, demonstrating the non-linear behavior that is so valuable in classification tasks.

The Critical Role of Sigmoid in Machine Learning

Mastery of the Sigmoid function’s calculation is fundamental because of its essential role in applied machine learning, particularly within the structure of neural networks. Historically, the Sigmoid function was the most popular choice for introducing non-linearity into hidden layers, but its persistent importance today is primarily centered on its use as an output layer function for binary classification problems.

When used as an activation function, the Sigmoid transforms the weighted sum of inputs from the preceding layer into an output signal. In the context of the output layer for a binary classifier, the network’s raw score (logit) is passed through the Sigmoid function, which squashes the score into a range between 0 and 1. This output can then be directly interpreted as the predicted probability that the input instance belongs to the positive class. For example, a Sigmoid output of 0.90 means the model predicts a 90% chance of the input belonging to Class 1.

However, it is important to note the recognized limitations of the Sigmoid function, especially when used in the hidden layers of very deep neural networks. Its primary drawback is the “vanishing gradient problem.” Because the slopes (derivatives) of the function are very close to zero for inputs far from the origin (x < -5 or x > 5), the gradients passed back during the backpropagation process become extremely small. This phenomenon slows down or completely halts the learning process for the initial layers of a deep network.

Due to these gradient issues, modern deep learning architectures often favor alternatives like the ReLU (Rectified Linear Unit) function for hidden layers. Nevertheless, the Sigmoid function remains indispensable for the output layer of binary classifiers because of its perfect alignment with probability estimation. Furthermore, its conceptual foundation is crucial for understanding more advanced concepts like Softmax, which extends the probabilistic interpretation to multi-class classification problems. Therefore, proficiency in calculating and interpreting the Sigmoid function in Python is a prerequisite skill for any aspiring machine learning engineer.
