Learning How to Calculate Tolerance Intervals in Excel: A Step-by-Step Guide

Defining the Tolerance Interval and Its Purpose

A tolerance interval represents a statistically derived range from sample data designed to capture a specific, high proportion of the entire population of measurements or observations. This concept is fundamentally different from a standard confidence interval. While a confidence interval focuses on estimating a population parameter, such as the true mean, the tolerance interval aims to estimate the spread or range of individual values within the population itself.

The application of this specialized statistical analysis is vital across critical sectors like quality control, engineering design, and high-precision manufacturing. In these fields, stakeholders require absolute assurance that a substantial percentage—often 95%, 99%, or even 99.73%—of all future products or measurements will consistently fall within predetermined acceptable limits. The calculation of this robust interval necessitates the specification of two distinct parameters: the desired coverage proportion (P) for the population and the specified confidence level (C or $1-alpha$) required for the calculation itself.

In practice, the tolerance interval establishes a dual boundary. For instance, computing a 95%/99% tolerance interval means we are 95% confident that at least 99% of all potential population observations will be situated between the calculated lower and upper bounds. This powerful duality—the requirement for both comprehensive coverage (P) and a quantifiable certainty or confidence level (C)—is the distinguishing characteristic that separates tolerance intervals from simpler range estimations, such as prediction intervals, which only estimate where a single future observation might fall.

The Mathematical Formula for Two-Sided Tolerance Intervals

To accurately determine the boundaries of a two-sided tolerance interval, particularly when assuming a normal distribution, statisticians utilize a specific formula. This formula masterfully integrates fundamental sample statistics with critical values drawn from key distributions, including the standard normal (Z) and the Chi-Square distribution. This sophisticated approach is necessary because it accounts for two forms of uncertainty simultaneously: the inherent variability observed within the collected sample and the statistical uncertainty associated with estimating broad population characteristics based on limited data.

The standard formula used to calculate the lower and upper limits of a two-sided tolerance interval for data assumed to be normally distributed is presented below. This equation generates the crucial tolerance factor (T) which is added to and subtracted from the sample mean:

Tolerance Interval Limits: x̄ ± z_(1-p)/2√(n-1)(1+1/n)/X²_{1-α, n-1}

A thorough understanding of each variable within this complex formula is absolutely essential for its correct and successful implementation, particularly when translating the calculation into a spreadsheet environment like Excel:

• x̄: This term denotes the sample mean, which is simply the arithmetic average calculated from all observed data points in the collected sample.
• z: This represents the Z critical value. It is directly linked to the desired population proportion (P) we aim to contain and is derived from the inverse cumulative distribution function of the standard normal distribution.
• p: This is the specified proportion of the population that the interval must cover (e.g., 0.99 for 99% coverage).
• n: This signifies the total sample size, reflecting the count of individual observations included in the dataset used for the calculation.
• X²: This crucial term is the Chi-Square critical value. It is calculated using a significance level of $1-alpha$ (where $C = 1-alpha$) and $n-1$ degrees of freedom (df), ensuring the final interval rigorously satisfies the required confidence level.

The term encapsulated under the square root acts as an adjustment factor applied to the sample standard deviation. It effectively creates the tolerance factor (T), ensuring the calculation robustly accounts for the inherent uncertainty and variability when using a limited sample to guarantee coverage for the entire population.

Step-by-Step Implementation in Microsoft Excel

We can now transition to a practical, step-by-step example demonstrating how to efficiently implement this statistical methodology using the powerful built-in functions available in Microsoft Excel. This approach offers significant advantages, allowing for the creation of a dynamic spreadsheet model where input parameters can be easily adjusted, leading to immediate recalculation of the results.

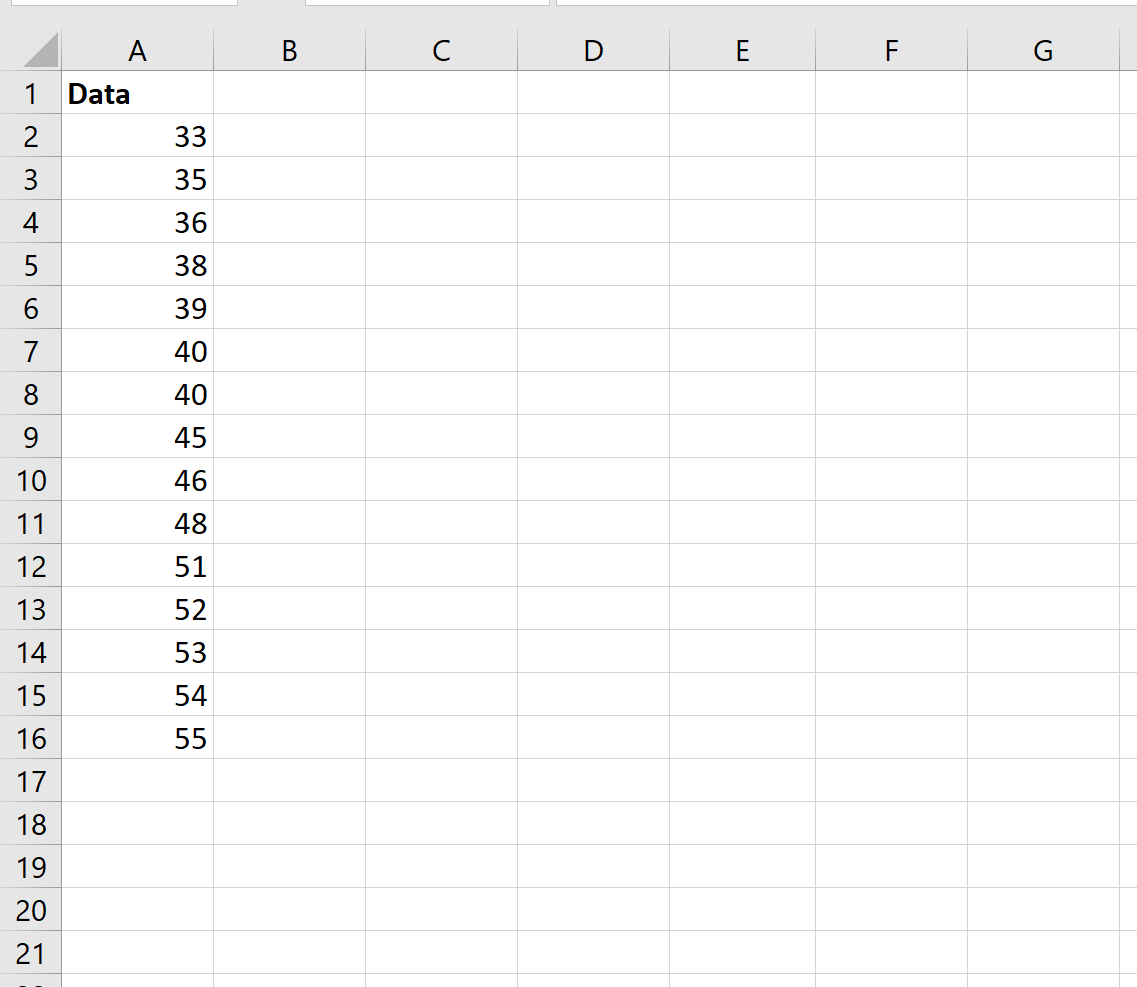

For this example, let us assume we have collected a dataset representing measurements from a specific production run, as illustrated below. Our goal is to derive a tolerance interval that contains 99% of the population values (P = 0.99) with a 95% level of confidence level (C = 0.95).

The initial phase requires organizing the known input variables and calculating the necessary descriptive sample statistics. These preliminary calculations establish the foundational characteristics of the observed data, which are indispensable for the subsequent complex formulas. We must calculate four key elements using standard Excel functions:

1. Calculate the Sample Mean (x̄) by applying the AVERAGE function across the entire data range.
2. Determine the Sample Standard Deviation (s), ensuring the use of the STDEV.S function, which calculates the standard deviation for a sample, not the population.
3. Establish the Sample Size (n) by using the COUNT function to determine the total number of observations.
4. Explicitly define the two critical parameters: the Proportion (P) and the Confidence Level (C), expressing them as decimal values (e.g., 0.99 and 0.95, respectively).

These initial results form the absolute bedrock of the tolerance interval computation, guaranteeing that the final interval accurately reflects the specific variability and scale of the observed sample data.

Utilizing Excel Functions to Determine Critical Values

The next indispensable step involves calculating the statistical critical values—the Z and Chi-Square factors—which are mandatory inputs for the primary tolerance interval formula. Excel streamlines this process significantly by providing dedicated inverse distribution functions that retrieve these values based on the required probability and the associated degrees of freedom (df).

For determining the Z-critical value (z_(1-p)/2), which dictates the coverage proportion (P):

• We must first calculate the cumulative probability corresponding to the point that excludes the specified proportion P from the tails. The required cumulative probability for a two-sided test is $1 – (1-P)/2$.
• The appropriate function in Excel is NORM.S.INV. If we require P = 0.99 coverage, the input probability for the function would be $1 – (1-0.99)/2 = 0.995$. This function returns the specific Z critical value needed.

For calculating the Chi-Square critical value (X²_{1-α, n-1}), which is tied to the confidence level (C):

• Since the formula specifically requires the critical value associated with the right-tail probability ($1-alpha$), and given that $C = 0.95$, the significance level $alpha$ is 0.05.
• The required degrees of freedom (df) are calculated as $n-1$, where $n$ is the sample size.
• The function CHISQ.INV.RT must be employed. We input the significance level (0.05) and the degrees of freedom. This function is absolutely vital as it ensures the entire calculation is correctly anchored to the chosen level of confidence, thereby guaranteeing the statistical promise of the interval.

Leveraging these powerful inverse distribution functions eliminates the tedious and error-prone process of manually consulting statistical tables, guaranteeing both precision and efficiency in the calculation of critical statistical factors.

Deriving the Lower and Upper Limits

Once all prerequisite statistics—the mean, standard deviation, sample size, Z critical value, and the Chi-Square critical value—have been calculated and referenced in designated Excel cells, the final stage involves assembling them into the complete formula. This calculates the tolerance factor (T), which represents the margin of error added to and subtracted from the sample mean (x̄) to define the interval boundaries.

The visual structure of the calculation within Excel, demonstrating how the intermediate statistical calculations link directly to the final result, is critical for verification and transparency:

Constructing the core calculation for the tolerance factor (T) requires extreme care in Excel to strictly adhere to the algebraic order of operations, especially regarding the square root and division functions. The formula for T, derived from the master equation, can be expressed functionally in Excel cells, ensuring that the standard deviation is correctly scaled by the tolerance multiplier:

T = Z critical * (STDEV.S / SQRT(CHISQ.INV.RT(1-C, n-1))) * SQRT((n-1) * (1 + 1/n))

By strictly following the standard algebraic arrangement, we first compute the complex standard deviation multiplier term (the square root component divided by the Chi-Square term), and subsequently multiply this result by the Z critical value. Utilizing the sample data provided in the previous step (99% coverage, 95% confidence), the interval limits are calculated simply:

• The resulting Lower Limit is computed as: x̄ – T
• The resulting Upper Limit is computed as: x̄ + T

Based on the inputs and intermediate values shown in our practical example, the computed two-sided tolerance interval is determined to be [15.102, 73.565]. It is essential to remember that this result is highly sensitive; small changes in the underlying sample data or adjustments to the chosen confidence and proportion levels will significantly alter the calculated bounds.

Interpreting the Results and Practical Applications

The calculated interval of [15.102, 73.565] is not merely a number range; it provides a definitive and actionable statistical statement regarding the entire population’s characteristics. The interpretation must rigorously reflect the dual requirements used in its calculation: We are 95% confident that at least 99% of all possible population values, from which this sample was drawn, will fall within the range defined by 15.102 and 73.565.

This precise interpretation holds immense value for decision-making, particularly in high-stakes regulatory or manufacturing environments. For instance, if the data represented the critical dimension or tensile strength of a component, and the lower specification limit (LSL) mandated by regulation was 12.0, the fact that the tolerance interval’s lower bound (15.102) is statistically guaranteed to be greater than the LSL offers powerful statistical assurance. This guarantees that virtually all future manufactured parts will meet or exceed the minimum strength requirement, far exceeding the certainty offered by a simple confidence interval for the mean.

It is generally observed that the tolerance interval is significantly wider than both a confidence interval (which estimates the location of the mean) and a prediction interval (which estimates a single future point). This increased width is a direct reflection of the dual uncertainty inherent in the calculation—the need to ensure high confidence and guarantee high population coverage. Crucially, as the required confidence level (C) or the proportion (P) increases, the interval must necessarily widen to maintain the stringent statistical guarantee promised by the interval.

A primary advantage of implementing this calculation within Excel is the ease of conducting sensitivity analysis. By linking the formulas to input cells, users can instantly observe how manipulating the confidence level or the proportion of the population to be covered affects the lower and upper limits. This dynamic capability allows engineers and statisticians to quickly assess the practical trade-offs required between statistical precision and operational certainty.

Additional Resources and Advanced Considerations

While Microsoft Excel offers robust tools for direct calculation, supplementary resources can greatly assist in deepening understanding, verifying complex results, and exploring alternative methodologies. For professionals needing immediate results without constructing the entire detailed spreadsheet model, specialized online statistical tools are readily available.

Note: You can automatically calculate a tolerance interval for a given sample by using this online . These calculators frequently automate the complex lookups of the Z and Chi-Square critical value, making them excellent resources for validating spreadsheet results.

To maximize the practical application of tolerance intervals, further exploration into related statistical concepts is highly recommended:

• A detailed study of the Chi-Square critical value and its fundamental role in accurately estimating population variance.
• A thorough comparison of tolerance intervals versus prediction intervals and confidence intervals, highlighting their respective applications.
• Exploration of advanced statistical methods used for calculating tolerance intervals when the underlying data distribution is known to be non-normal (as the method detailed here strictly assumes normality).

Mastering both the precise calculation and the nuanced interpretation of the tolerance interval remains an essential skill for rigorous quality assurance, statistical process control, and advanced data management.
