Learning Guide: Calculating Exponential Moving Averages (EMA) in R for Time Series Analysis

In the expansive domain of time series analysis, quantitative analysts consistently employ smoothing techniques to effectively filter out short-term market noise and reveal underlying, long-term trends. The most straightforward and widely recognized technique for this purpose is the moving average (MA), which establishes a baseline by calculating the mean value across a specified window of preceding data points. While the simple MA is highly effective for basic data smoothing and serves as a crucial foundational concept, it possesses a significant limitation: it assigns uniform weighting to every observation within that window, treating the oldest data point with the same importance as the most recent one, regardless of its relevance to the current period.

This inherent uniformity in weighting often results in a noticeable lag, meaning the standard MA is slow to react when the underlying data set exhibits sudden volatility or a rapid directional shift. In environments like financial markets or dynamic inventory tracking, where responsiveness is paramount, this delay can compromise the accuracy of forecasting and signal detection. Consequently, a more refined and responsive model is necessary to ensure that the smoothing mechanism accurately captures the immediate shifts in momentum. Addressing this critical need leads directly to the development and widespread adoption of the exponential moving average (EMA), a robust solution designed to overcome the sluggishness of its simpler predecessor.

The exponential moving average stands apart due to its sophisticated weighting scheme, which fundamentally alters how past observations influence the current calculation. Instead of equal weights, the EMA applies exponentially decreasing weights to data points as they age, ensuring that the most current data exerts a significantly greater impact on the resulting average. This characteristic allows the EMA to track current trends—whether in stock prices, sales figures, or sensor readings—far more quickly and reliably. This tutorial specifically details the essential methodology for implementing and calculating this powerful metric within the statistical capabilities of the R programming environment.

Key Advantages of Exponential Weighting for Trend Detection

The principal strength of the EMA, when compared to the Simple Moving Average (SMA), is its amplified sensitivity to recent data. Because newer observations are disproportionately weighted, the EMA rapidly registers and reflects price reversals or shifts in market momentum, making it an invaluable tool for analysts who depend on timely signals. For those in finance, this rapid responsiveness is vital, as it provides a clearer, less delayed indication of trend direction and potential turning points. This methodology is formally classified as a form of exponential smoothing, a broader family of techniques designed to forecast time series data based on weighted past observations.

The responsiveness of the EMA is mathematically governed by a crucial parameter: the smoothing constant, conventionally represented by the Greek letter alpha ($alpha$). This constant dictates the rate at which the weights decay over time. A higher value for alpha implies that a greater proportion of the weight is placed on the most recent data point, which, in turn, produces a more volatile EMA line that closely mirrors the original data series. Conversely, a lower alpha value results in a smoother, less reactive line, as immediate fluctuations are downplayed. In practical implementation within R, the choice of the period parameter (N, the look-back window) often implicitly defines this smoothing constant, linking the desired calculation period directly to the resulting degree of smoothness.

For data professionals handling noisy, real-world data—ranging from highly volatile stock prices to intermittent sensor readings or fluctuating sales volumes—the EMA offers an optimal balance. It successfully performs the necessary function of filtering out distracting short-term noise while simultaneously guaranteeing that the derived trend line remains highly reflective of the most up-to-date information available. This dual capability confirms the exponential moving average as an indispensable mechanism for both accurate forecasting and effective signal detection across various dynamic analytical environments.

Initial Setup: Preparing the R Environment and Sample Data

To successfully calculate the exponential moving average, the first prerequisite is establishing a functional session within the R programming environment and preparing a properly structured data set for analysis. For demonstration purposes, we will employ a basic data frame that mimics a typical time series analysis structure, containing sequential periods indexed chronologically alongside corresponding sales figures. This setup ensures that the subsequent calculations can be clearly illustrated and easily verified.

The process begins by defining the sample data frame, which will encompass ten distinct periods and their associated sales values. This step is fundamental to providing the necessary input structure for the EMA calculation later in this guide. We utilize the native R function data.frame() to construct this foundational structure, ensuring the data is organized with clear column headers, ‘period’ and ‘sales’, ready for numerical processing. The code below shows the creation and immediate inspection of this initial data structure.

#create data frame for demonstration
df <- data.frame(period=1:10,
                 sales=c(25, 20, 14, 16, 27, 20, 12, 15, 14, 19))

#view the structured data frame
df

   period sales
1       1    25
2       2    20
3       3    14
4       4    16
5       5    27
6       6    20
7       7    12
8       8    15
9       9    14
10     10    19

With the sample data frame successfully created, the next essential step involves identifying and utilizing the specialized R packages designed for advanced time series computation. While R’s ecosystem offers multiple options for calculating moving averages, we have selected the versatile pracma package for this demonstration. The pracma package is highly valued in the R community for its comprehensive suite of practical mathematical functions, including robust implementations of various moving average types, making it an excellent choice for efficient EMA computation.

Implementing EMA Calculation Using the pracma Package

The pracma package provides the necessary functions to efficiently compute the exponentially weighted moving average, saving users the effort of manual formula implementation. Specifically, we will leverage the powerful movavg() function, which is engineered to compute several different types of moving average calculations based on user-defined parameters. Before calling this function, the package must first be loaded into the active R session using the standard library() command, ensuring all necessary functions are available for execution.

Understanding the syntax and parameters of the movavg() function is paramount for accurate calculation. Precise configuration of these arguments ensures that the correct type of average and the appropriate look-back period are applied to the input data. The general structure of the function call requires three main components, clearly defined as follows:

movavg(x, n, type=c(“s”, “t”, “w”, “m”, “e”, “r”))

• x: This argument mandates the input time series data, which must be provided as a numeric vector. In our specific sales data example, this corresponds directly to the df$sales column.

• n: This parameter specifies the number of previous periods, often referred to as the look-back window, which determines how many data points are incorporated into the calculation of the current average value.

• type: This critical parameter determines the specific algorithm used to compute the average. To obtain the desired exponential moving average, this parameter must be explicitly set to “e” (representing the exponential weighted moving average).

For a practical demonstration, we will calculate the exponentially weighted moving average using a look-back window of four periods (N=4). The execution involves loading the pracma package, applying movavg() to the sales data with the correct parameters, and then storing the resulting EMA values in a newly created column within our data frame, named df$EWM_4day. The resulting output clearly shows the new smoothed metric alongside the original raw data.

library(pracma)

#create new column to hold 4-day exponentially weighted moving average
df$EWM_4day <- movavg(df$sales, n=4, type='e')

#view DataFrame with the new EMA column
df

        period	sales	4dayEWM
0	1	25	25.000000
1	2	20	23.000000
2	3	14	19.400000
3	4	16	18.040000
4	5	27	21.624000
5	6	20	20.974400
7	7	12	17.384640
8	8	15	16.430784
9	9	14	15.458470
10	10	19	16.875082

Interpreting and Validating the Exponential Moving Average Results

The resulting data frame, which now includes the calculated 4-day exponential moving average, allows for immediate analysis of the smoothing effect relative to the original sales figures. A key point of interpretation concerns the initialization of the EMA values. Because the EMA calculation depends on a look-back window (N=4 in this case), the initial periods often lack sufficient preceding data points. The pracma package handles this by typically setting the first few EMA values to the initial observation or employing a specialized initialization formula until the full window is satisfied. This is why the first EMA value is exactly 25.0, matching the first sales figure.

As we move past the initialization phase, subsequent EMA values begin to fully incorporate the exponential weighting scheme. One can clearly observe how the EMA line successfully dampens the significant fluctuations present in the raw sales data. For example, when the sales figures experience a sharp upward movement from 16 (Period 4) to 27 (Period 5), the EMA reacts responsively, climbing from 18.04 to 21.624. This rapid adjustment is a direct consequence of the heavy weight allocated to the most recent, high observation, demonstrating the EMA’s superior ability to capture immediate directional changes compared to a simple moving average.

This inherent smoothing capability is vital for analysts attempting to identify the underlying momentum without the distraction of transient volatility. The exponential moving average provides a filtered perspective, offering clear signals about whether the general trend in the observed series is ascending, descending, or consolidating. Interpretation of the EMA is fundamentally comparative; it involves tracking the EMA’s trajectory relative to the raw data series itself, often serving as a primary indicator for strategic decisions in quantitative analysis.

Visualizing the EMA Trend with ggplot2

While numerical tables provide precision, visualization offers the most intuitive method for understanding the dynamic relationship between the raw data and the calculated smoothed metric. To achieve this enhanced insight, we utilize the powerful ggplot2 library in R, which allows us to effectively plot the original sales data overlaid with the 4-day EMA. This visual comparison immediately clarifies the smoothing effect achieved through the application of exponential smoothing.

Plotting multiple time series effectively using R’s visualization tools requires the data to be structured in a ‘long’ format, which aligns with the aesthetic mapping requirements of ggplot2. Therefore, a crucial preparatory step is utilizing a data transformation function, such as melt() (typically sourced from the reshape2 package), to convert the current ‘wide’ data frame (which has separate columns for sales and EMA) into a ‘narrow’ format suitable for line plotting. This restructuring ensures that the ‘period’ remains the identifier while ‘value’ and ‘series’ columns contain the data points and their respective labels.

The following code block outlines the necessary steps: loading the required libraries, reshaping the data, and finally using ggplot() in conjunction with geom_line() to generate the comparative visualization. The inclusion of aes(colour = series) is essential for automatically assigning distinct colors to the two different time series, ensuring both the raw data and the EMA are clearly identified and differentiated on the final graph, providing maximum clarity for trend analysis.

library(ggplot2)
library(reshape2)

#melt data into 'long' format for easy plotting
df <- melt(df ,  id.vars = 'period', variable.name = 'series')

#plot sales vs. 4-day exponentially weighted moving average
ggplot(df, aes(period, value)) +
  geom_line(aes(colour = series))

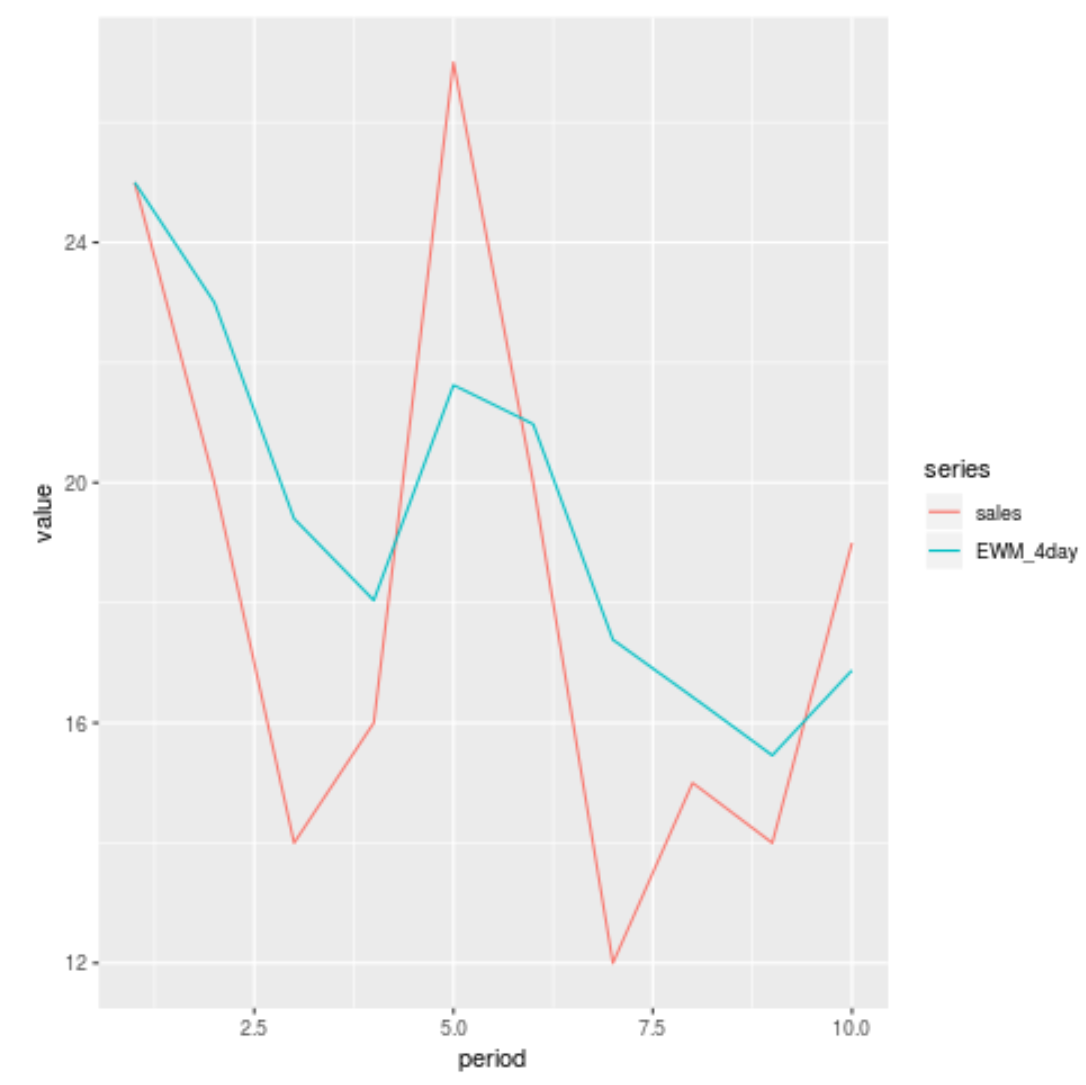

The image below represents the output generated by the preceding R code, providing visual confirmation of the expected behavior of the smoothing technique. By overlaying the two time series, the graph offers immediate and unambiguous clarity regarding the dynamic relationship between the raw data and the derived smoothed metric.

As clearly depicted in the visualization, the red line traces the path of the highly volatile raw sales data observed across each period. In sharp contrast, the blue line represents the calculated exponential moving average. It is visually evident that the blue line successfully adheres to the general trajectory of the sales figures while effectively eliminating the sharp, instantaneous spikes and troughs. This demonstrates how the EMA provides a stabilized, filtered indication of the underlying trend and momentum, making it significantly easier for analysts to gauge market direction.

Conclusion: Harnessing EMA for Advanced Time Series Insights

The successful implementation of the exponential moving average in R, facilitated by the pracma package, represents a fundamental and highly effective technique in modern time series analysis. By strategically assigning greater weight to the most recent observations, the EMA delivers a responsive smoothing methodology that generally outperforms the simple moving average, especially in scenarios where timely and accurate trend identification is critical. The seamless integration of R’s computational power with robust visualization libraries, such as ggplot2, ensures that analyzing and interpreting these sophisticated metrics is both efficient and highly accessible to all data practitioners.

Achieving mastery over key functions like movavg() and thoroughly understanding its configuration parameters—particularly the crucial ‘type’ argument that defines the calculation method—is essential for anyone engaged in serious quantitative analysis within R. This powerful method maintains wide applicability across an extensive range of disciplines, spanning economic forecasting, financial trading analysis, engineering process control, and environmental monitoring. In any field where the goal is to extract a stable, current trend signal from inherently noisy data, the EMA remains the preferred and indispensable tool.
