Learning Autocorrelation Analysis in R: A Step-by-Step Guide

The analysis of sequential data, particularly in fields ranging from economics to climate science, relies heavily on understanding internal dependencies. A cornerstone concept in this domain is Autocorrelation, a fundamental statistical measure used extensively in time series analysis. This concept quantifies the inherent similarity, or correlation, between observations of a variable separated by a defined time interval, often termed a “lag.” Essentially, autocorrelation reveals how strongly a series is correlated with its own past values across successive time periods.

This critical statistical relationship is also widely known as “serial correlation” or “lagged correlation.” It provides deep insight into the dependency structure of the data, allowing analysts to determine if a variable’s current value is significantly influenced by its historical trajectory. Recognizing and quantifying this dependency structure is absolutely vital for developing robust and accurate forecasting models, such as those based on the ARIMA framework.

When a series exhibits high autocorrelation, it signals strong persistence—meaning that recent past values serve as excellent predictors of immediate future values. Conversely, a series with low or near-zero autocorrelation suggests that the observations behave randomly relative to each other, a scenario that significantly complicates short-term predictive modeling efforts.

Defining Autocorrelation and the Concept of Lag

The robust calculation of autocorrelation is entirely predicated upon the concept of lag. A lag is defined as the number of time steps that separate two specific observations within the sequential data set. For example, when calculating the autocorrelation at Lag 1, we are measuring the linear relationship between an observation recorded at time t and the observation that immediately preceded it at time t-1.

The resulting autocorrelation coefficient is standardized and always falls within the range of -1 and +1. A coefficient approaching +1 indicates a powerful positive relationship: if the series increases in one period, it is highly likely to increase in the subsequent period at that specified lag. Conversely, a value approaching -1 signifies a strong negative relationship, where an increase in one period statistically suggests a decrease in the next. Crucially, a value near zero implies that the observations are independent of each other across that particular lag.

By systematically analyzing the autocorrelation coefficients across a sequence of multiple lags, analysts can effectively identify underlying temporal patterns embedded within the data, such as seasonal cycles, long-term trends, or repeating structural breaks. This diagnostic analysis is indispensable for selecting and validating the most appropriate statistical models for the specific time series being studied.

Preparing Your Time Series Data in R

To successfully perform autocorrelation analysis within the R programming environment, the input data must be correctly structured. While the data does not strictly need to be formalized as an R ts (time series) object for the basic calculation using the core functions, it is essential that the observations are correctly ordered sequentially according to time. Any disruption in this temporal order will invalidate the autocorrelation calculation.

Let us consider a practical example involving a simple dataset tracking the value of a certain metric over 15 discrete time periods. We initiate and define this data structure directly within the R session using a standard numeric vector, ensuring the values are listed chronologically:

#define data
x <- c(22, 24, 25, 25, 28, 29, 34, 37, 40, 44, 51, 48, 47, 50, 51)

This vector x now contains our sequential observations and is fully prepared for statistical scrutiny. The immediate next step involves leveraging the powerful, built-in statistical functions provided by R to compute the correlation structure inherent in this data.

Calculating Autocorrelation Numerically Using the acf() Function

The primary and default function for calculating the autocorrelation coefficients in R is acf(). This function is part of the base R stats package and is designed to efficiently compute coefficients for virtually every possible lag, up to a maximum limit determined by the length of the input series. Although acf() is a base function, it is often complemented by specialized routines found in external packages, such as the tseries library, for more advanced time series operations.

To calculate the autocorrelations and specifically request the numerical output rather than the default graphical plot, we must set the argument pl=FALSE within the function call. If any external packages are required for subsequent steps, they must be explicitly loaded into the R session first. We demonstrate the calculation below:

library(tseries)

#calculate autocorrelations
acf(x, pl=FALSE)

     0      1      2      3      4      5      6      7      8      9     10
 1.000  0.832  0.656  0.491  0.279  0.031 -0.165 -0.304 -0.401 -0.458 -0.450
    11
-0.369

Interpreting the Numerical Output of acf()

The numerical output generated by the acf() function provides a comprehensive list of coefficients, each corresponding to a specific lag distance. Interpreting these values correctly is crucial for diagnosing the underlying temporal dynamics and modeling the data effectively.

The interpretation begins with the initial lags:

• The autocorrelation at lag 0 is, by definition, always exactly 1.000. This merely confirms the perfect correlation of the series with itself at the same time point.
• The coefficient at lag 1, which is 0.832 in this example, indicates a remarkably strong positive correlation between an observation and the value immediately preceding it. This high value suggests a substantial degree of persistence, implying that the series tends to maintain its level or direction over short periods.
• Moving to lag 2, the autocorrelation is 0.656. This demonstrates a moderately strong positive relationship linking an observation to the value two periods prior, showing that the influence of the past is still considerable even after two steps.
• At lag 3, the coefficient has dropped to 0.491. This illustrates the typical pattern of dependence decay: the strength of the linear relationship gradually diminishes as the time separation (lag) increases.

As is evident here, the coefficients generally taper off as the lag increases. This pattern is characteristic of many real-world autocorrelation functions, reflecting that observations are usually highly dependent on their recent history but less so on data points from the distant past. Furthermore, we maintain explicit control over the range of lags calculated or displayed by utilizing the lag.max argument within the acf() function:

#calculate autocorrelations up to lag=5
acf(x, lag.max=5, pl=FALSE)

Autocorrelations of series 'x', by lag

    0     1     2     3     4     5
1.000 0.832 0.656 0.491 0.279 0.031

Visualizing Time Dependence: The ACF Plot (Correlogram)

While the numerical output is essential for precise analysis, a visual representation of the autocorrelation function, commonly referred to as the Autocorrelation Function (ACF) plot or correlogram, is arguably the most vital diagnostic tool in time series analysis. This plot provides an immediate, intuitive summary of the dependency structure, which is crucial for identifying underlying patterns and guiding model selection. The ACF plot displays the calculated autocorrelation coefficients on the vertical (y) axis against the corresponding lag number on the horizontal (x) axis.

To generate this standard plot in R, we simply execute the acf() function call without the pl=FALSE argument. The function’s default behavior is to render the graphical output immediately:

#plot autocorrelation function
acf(x)

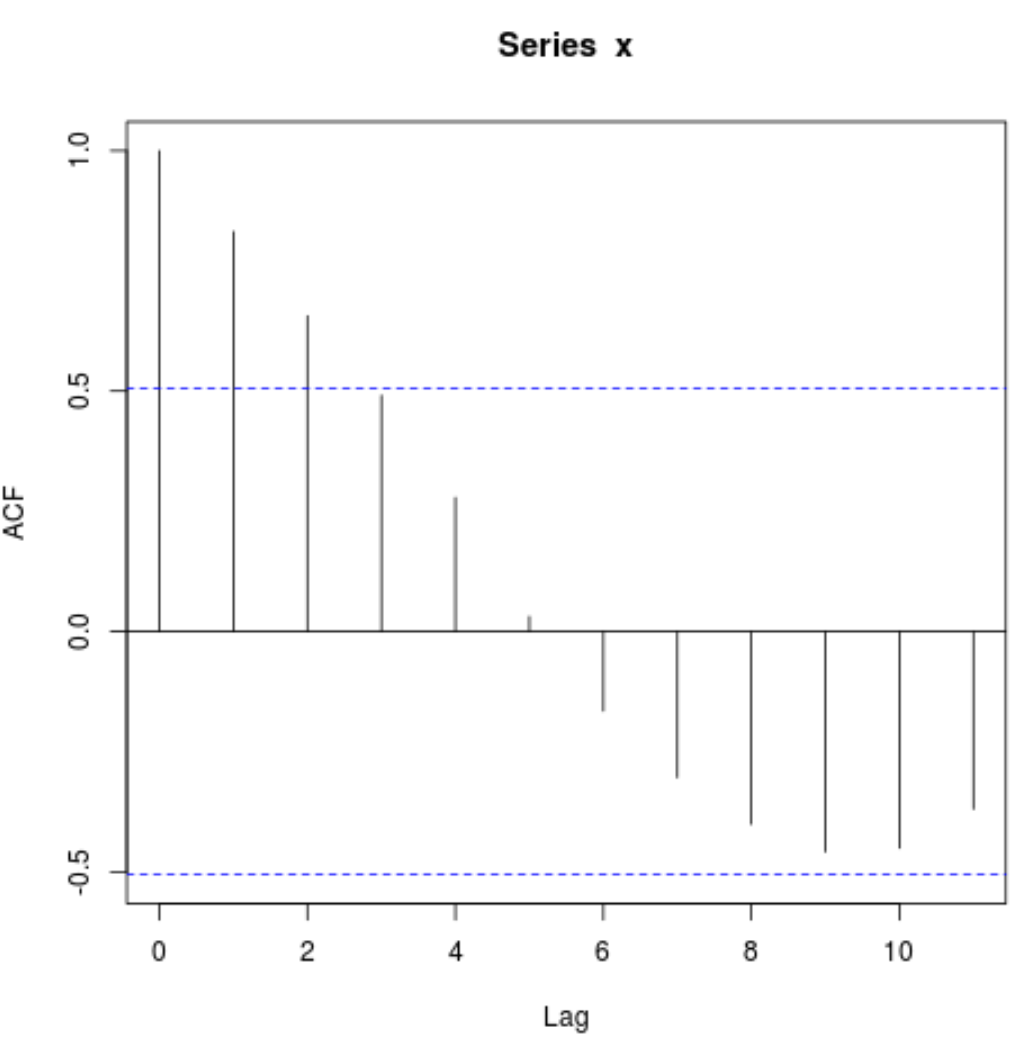

The resulting visualization consists of vertical bars representing the correlation coefficient at each lag. Critically, the plot also features horizontal dashed blue lines. These lines delineate the statistical significance boundaries, typically calculated based on a 95% confidence interval (CI). Any vertical bar that extends beyond these blue boundaries signifies that the autocorrelation at that specific lag is statistically significant and unlikely to be zero, thus confirming a genuine temporal dependence at that interval.

Advanced Customization of the ACF Plot for Clarity

For purposes of formal reporting, publication, or enhanced internal clarity, it is frequently necessary to customize the aesthetic appearance of the ACF plot. The acf() function is highly flexible, accepting many graphical parameters common to the base R plotting system. One of the most straightforward and effective customizations is adding a descriptive title to the plot using the main argument.

By incorporating a custom title, the correlogram becomes instantly more informative, which is especially useful when comparing the autocorrelation of different data series or comparing the ACF of the raw data versus the ACF of the model residuals. This attention to detail significantly improves the communication of the analytical findings.

#plot autocorrelation function with custom title
acf(x, main='Autocorrelation by Lag')

Additional arguments, such as lag.max (to specify the maximum number of lags to display) or parameters controlling line types, colors, and axis labels, offer analysts complete control over the visual presentation, ensuring the resulting graph meets precise documentation standards.
