Calculate Commissions in Excel (With Example)

In the highly competitive landscape of modern sales management, the accurate and timely calculation of sales commissions is not merely an accounting task—it is a critical driver of employee motivation and performance. Businesses rely on performance-based pay models, often implemented through a tiered commission structure, to incentivize personnel to reach progressively higher sales goals. While the logic—sell more, earn a higher rate—is straightforward, translating this complex structure into a functional spreadsheet requires specialized techniques. Standard exact-match formulas in applications like Excel are inadequate for handling non-discrete sales figures that fall within defined monetary brackets, necessitating the utilization of advanced lookup capabilities.

This comprehensive guide is designed to transform the way you manage sales compensation. We will demonstrate the power of the VLOOKUP function in Excel, specifically its approximate match feature, to quickly and accurately determine the appropriate commission rate based on an employee’s total sales figures. By mastering this method, you can ensure fair compensation and maintain strong operational incentives without relying on tedious manual calculations or complex nested IF statements.

Understanding Tiered Commission Structures

A tiered commission structure is fundamentally designed to reward sustained, high-volume performance by increasing the commission percentage as sales targets are surpassed. This graduated system motivates sales staff not just to meet the minimum, but to push into the next performance bracket. To successfully automate this dynamic calculation within Excel, the initial and most vital step is establishing a meticulously structured data table that serves as the primary reference point.

This lookup table must precisely map sales thresholds—the minimum amount required—to the corresponding commission percentage. It’s essential to view this table not as a list of specific numbers, but as a series of lower bounds that define the starting point of each performance tier. For our practical example, we will adopt a standard annual commission schedule where the minimum sales volume dictates the applicable compensation rate.

Setting Up the Commission Lookup Table in Excel

The efficiency of the approximate match lookup hinges entirely on the organization of the source data table. This table must feature the minimum sales threshold in the first column, establishing the starting line for each tier. Crucially, for the VLOOKUP function to operate correctly using the approximate match setting, the values in this first column (Sales Minimum) must be sorted in ascending order—from the lowest possible sales figure to the highest. Failure to adhere to this sorting requirement will inevitably lead to calculation errors.

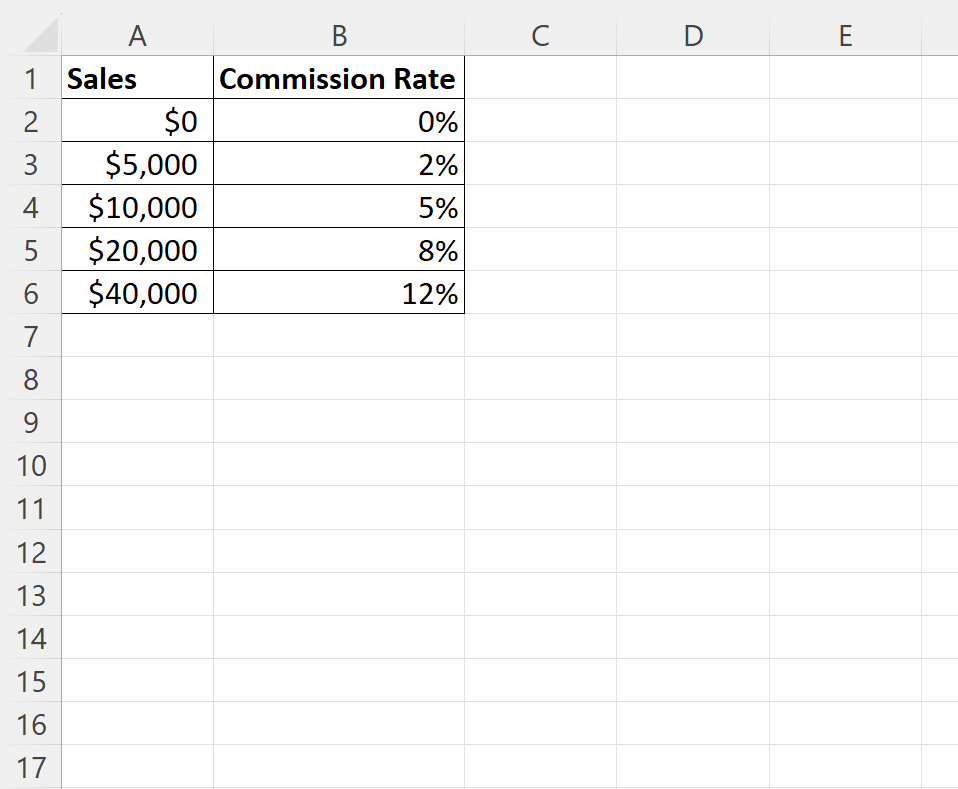

The following image illustrates the standard, correctly formatted lookup table we will reference throughout our calculation examples:

Each row in this structure represents a progressive threshold. If an employee’s total sales reach or exceed the minimum value specified in Column A, they qualify for the commission percentage listed in Column B, until they hit the next higher threshold. Below is a detailed interpretation of how these commission tiers function:

• For sales achieved between $0 and $4,999.99, the employee receives a base commission of 0%.
• Sales volumes starting at $5,000 and extending up to $9,999.99 qualify for a 2% commission rate.
• If sales range from $10,000 up to $19,999.99, the employee successfully earns a significantly higher 5% commission.
• Achieving sales between $20,000 and $39,999.99 triggers a premium 8% commission rate.
• Any employee whose sales performance exceeds the $40,000 benchmark is rewarded with the maximum commission rate of 12%.

This meticulous setup ensures that the lookup process accurately selects the rate associated with the lowest bound of the successful sales range, providing the foundation for reliable payroll processing.

Implementing VLOOKUP for Approximate Match

To dynamically retrieve the correct commission rate for any given sales total, we must employ the VLOOKUP function. Unlike standard lookups that require an exact match, commission calculation deals with ranges, making the approximate match feature indispensable. The crucial step here is setting the optional fourth argument of the function, known as range_lookup, to TRUE. This setting instructs Excel to find the closest match that is less than or equal to the lookup value, perfectly fitting our tiered structure.

Let us establish a practical scenario: an employee has generated total sales of $11,000 for the fiscal year. We will place this sales total into a designated input cell, specifically E1. Immediately below this, in cell E2, we will input the formula designed to retrieve the corresponding commission rate from our defined table array. This setup allows for instant rate calculation simply by changing the sales figure in E1.

The formula entered into cell E2 to perform this approximate match lookup is as follows:

=VLOOKUP(E1, $A$2:$B$6, 2, TRUE)

This powerful single line of code instructs Excel to search for the value contained in E1 ($11,000) within the lookup table defined by the absolute references $A$2:$B$6. Because the final argument is set to TRUE (enabling approximate match), Excel efficiently scans the first column, identifies the largest threshold that $11,000 meets or exceeds, and subsequently returns the corresponding commission rate from the second column (2).

Analyzing Dynamic Commission Rate Lookups

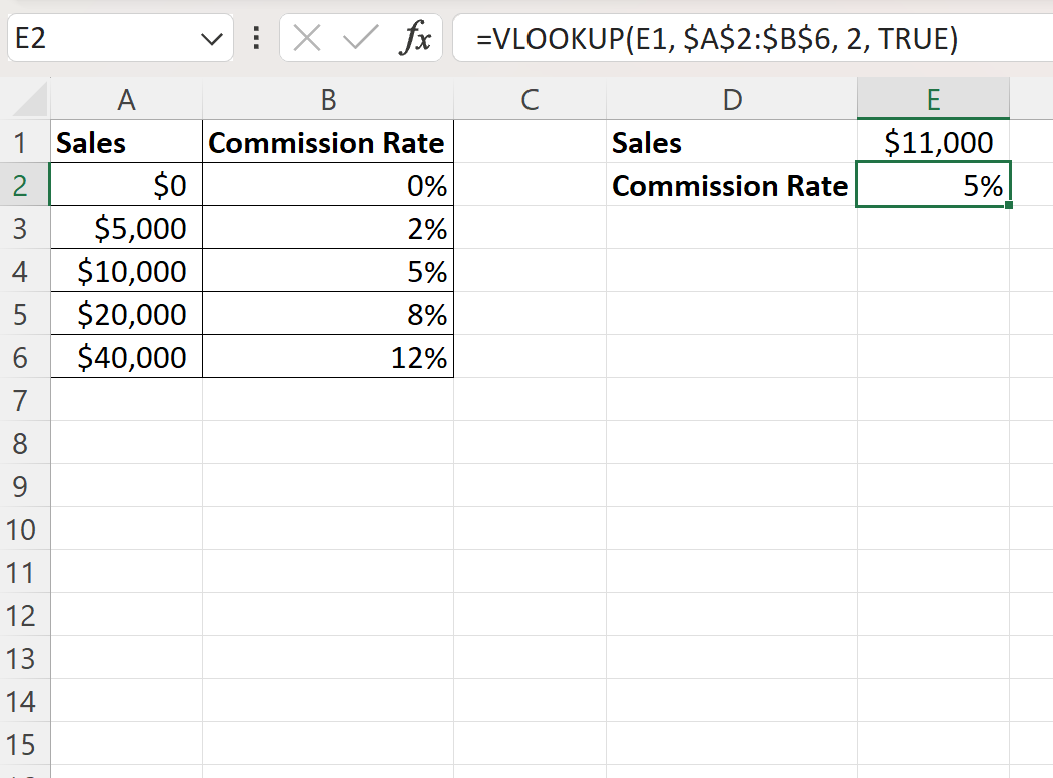

Observing the formula in action confirms its precision. The initial screenshot below demonstrates the result when the sales amount is set to $11,000:

As expected, the formula returns a commission rate of 5%. This outcome is accurate because $11,000 exceeds the $10,000 minimum threshold but remains below the next highest threshold of $20,000. When VLOOKUP performs its approximate search, it finds $10,000 as the highest value in the lookup column that is less than or equal to $11,000, thus linking the sales figure to the 5% rate.

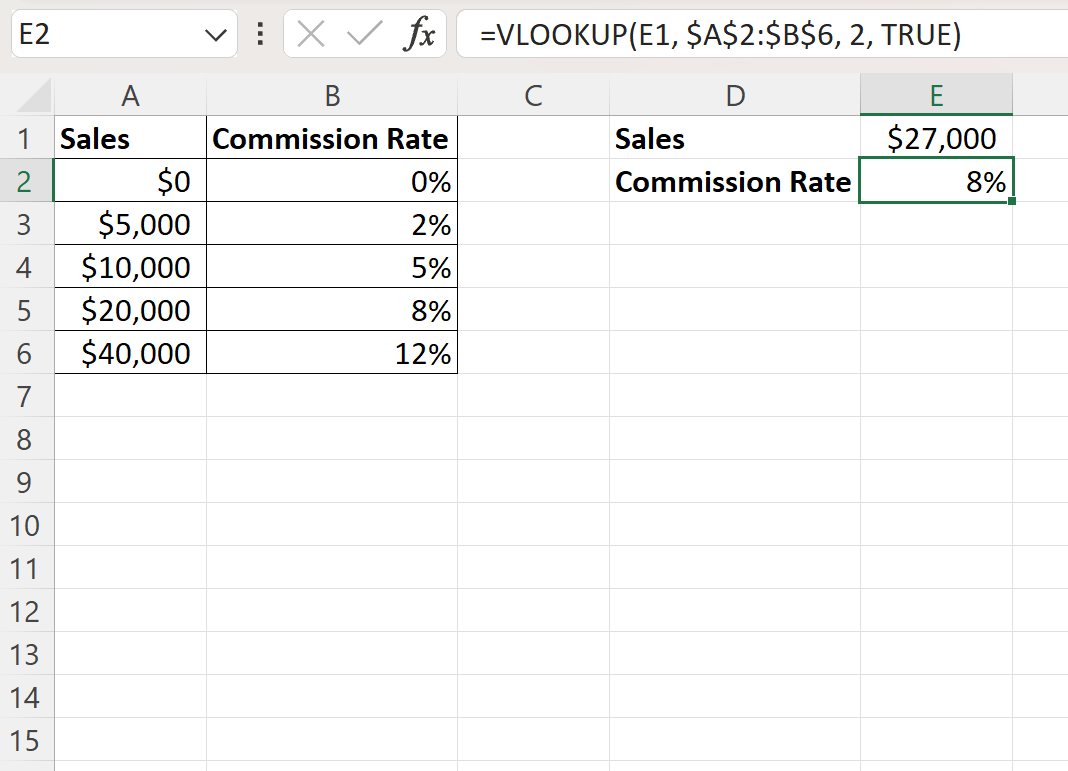

Next, consider the scalability and dynamic nature of this solution. Suppose we update the sales performance in cell E1 to a significantly higher figure, such as $27,000. The formula automatically recalculates the rate, illustrating the tremendous time savings afforded by automating tiered commission management.

In this second scenario, the formula correctly identifies and returns a commission rate of 8%. This result is correct because $27,000 falls neatly within the sales range corresponding to the $20,000 minimum but does not yet reach the $40,000 threshold. Understanding exactly how the approximate match identifies the correct bracket is crucial for ensuring the integrity and transparency of the entire commission payment system.

Deep Dive: The Mechanics of Approximate Matching (TRUE)

The robustness of using VLOOKUP for tiered compensation relies entirely on the functionality provided by the optional fourth argument, range_lookup, when it is set to TRUE. This setting triggers an approximate match search, which is fundamentally different from an exact match (FALSE). An exact match would be impractical here, as it would require an employee’s sales figure to precisely hit $5,000, $10,000, $20,000, or $40,000—a rare occurrence in real-world sales data.

To fully appreciate the function, let us review the basic syntax and the role of each component in the context of tiered commissions:

VLOOKUP (lookup_value, table_array, col_index_num, [range_lookup])

• lookup_value: This is the figure Excel is searching for, represented by the employee’s total sales (e.g., $11,000).
• table_array: This defines the comprehensive data set containing both the minimum thresholds and the corresponding rates (our commission table, $A$2:$B$6).
• col_index_num: This dictates which column within the table_array holds the result we wish to extract. Since the commission rate is in the second column, we use the index 2.
• range_lookup: Setting this to TRUE (or omitting it) activates the approximate match. Excel systematically scans the lookup column to locate the largest value that is still less than or equal to the lookup_value.

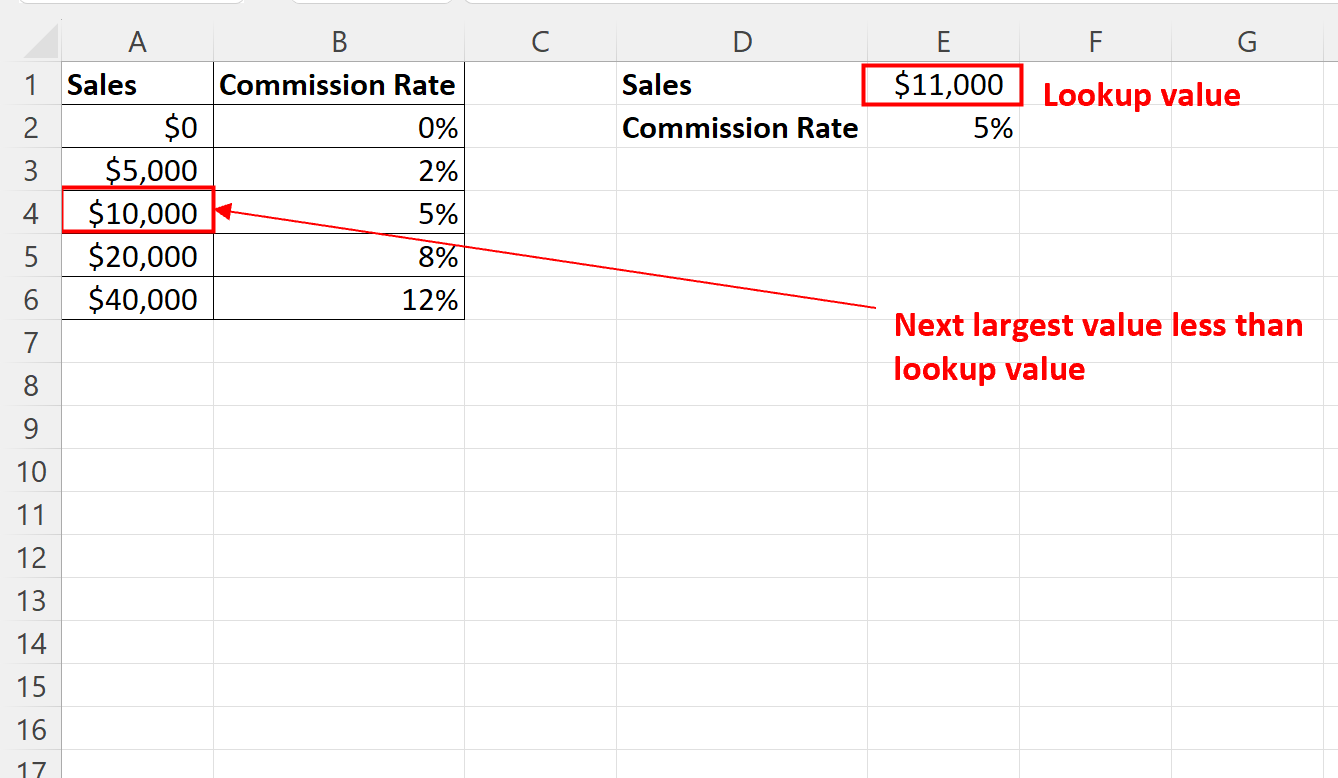

For instance, when we looked up $11,000, the approximate match mechanism bypassed the need for this exact number to exist in the table. Instead, it correctly identified $10,000 as the highest preceding threshold and returned the associated 5% commission rate, effectively placing the employee into the correct performance tier.

A crucial warning must be reiterated: the success and accuracy of this approximate match lookup depend entirely on the initial setup of your commission table. The values in the lookup column (Sales Minimums) absolutely must be sorted in ascending order, without exception. If the first column in your lookup range is unsorted, the VLOOKUP function will return unpredictable and potentially erroneous results, which could have serious consequences for commission payments and financial reporting.

Conclusion: Automating Compensation with Precision

Implementing the VLOOKUP function combined with the approximate match setting (TRUE) offers an incredibly robust and highly efficient method for calculating tiered sales commissions within Excel. By diligently setting up your commission thresholds in an ascending, sorted table, you can fully automate the process of matching dynamic sales figures to the appropriate compensation rates. This automation significantly reduces the reliance on complex formulas and eliminates the high risk associated with manual calculation errors, thereby ensuring consistent, fair, and transparent compensation for your sales team.
