Learning Cook’s Distance: Identifying Influential Data Points in Regression Analysis with SAS

Introduction: The Importance of Influential Observations

In the rigorous domain of quantitative modeling, especially within regression analysis, a statistician’s responsibility extends far beyond merely fitting a model to available data. A critical, non-negotiable phase involves conducting thorough diagnostics designed to assess the overall stability and reliability of the estimated parameters. Central to this diagnostic process is the systematic identification of influential observations. An observation is formally defined as influential if its exclusion or modification would produce a substantial shift in the estimates of the model’s regression coefficients. The failure to detect and appropriately manage such high-impact data points can lead to models that are statistically brittle, yielding biased results, flawed inferences, and ultimately, poor recommendations derived from the statistical output.

To systematically detect these points of disproportionate influence, practitioners rely on sophisticated statistical tools. The most universally recognized and trusted measure for this purpose is Cook’s distance. Introduced by statistician Dennis Cook in 1977, this metric provides a single, easily interpretable numerical value that quantifies the total effect of deleting a specific observation on the entire set of fitted values and parameter estimates of the regression model. A large or substantial Cook’s distance value serves as an immediate red flag, decisively signaling that the corresponding observation exerts an undue and potentially damaging influence over the structural definition of the model.

This comprehensive guide is meticulously structured to provide you with a deep theoretical understanding of Cook’s distance, detailing its fundamental mathematical derivation. Most importantly, it delivers a precise, practical, and step-by-step walkthrough on how to accurately calculate and interpret this vital diagnostic within the powerful statistical software environment of SAS. By the conclusion of this article, you will possess the requisite knowledge and skills to reliably identify, investigate, and manage potentially problematic data points, thereby significantly enhancing the validity, accuracy, and robustness of your statistical regression analyses.

Deconstructing the Cook’s Distance Formula

The mathematical foundation of Cook’s distance is elegantly structured to simultaneously capture two essential characteristics of an influential point: how poorly the current model predicts the observation, and how unusual the observation’s predictor values are compared to the rest of the dataset. Effectively, the formula synthesizes crucial information derived from both the residual of an observation and its leverage. The standard formula for Cook’s distance (D_i) for the i^th observation in a regression analysis is formally defined as:

D_i = (r_i² / p*MSE) * (h_ii / (1-h_ii)²)

To fully grasp the comprehensive nature of this influence diagnostic, it is imperative to analyze the precise role each component plays in determining the overall measure of influence:

• r_i: This term denotes the i^th residual, which quantifies the vertical deviation between the observed response value (y_i) and the response value predicted by the model (ŷ_i). A large residual signifies that the model provides a poor fit for that specific data point.
• p: This variable signifies the number of parameters or coefficients included in the regression model, which must always include the intercept term. It operates as a critical scaling factor, adjusting the influence measure based on the inherent complexity of the fitted model.
• MSE: Representing the Mean Squared Error, this value is the unbiased estimator for the error variance (σ²). It reflects the average magnitude of the squared errors across all observations, thereby providing a measure of the overall goodness-of-fit for the entire model.
• h_ii: This is the i^th leverage value, which assesses how far the observation’s independent variable values are situated from the average of the independent variables in the dataset. Points exhibiting high leverage are outliers in the predictor space, possessing the inherent potential to heavily influence the slope and orientation of the regression line.

In essence, Cook’s distance measures the aggregate change that occurs across all fitted values when the i^th observation is temporarily removed from the estimation process. It correctly recognizes that an observation must exhibit both a large residual (indicating a poor vertical fit) and high leverage (indicating an unusual horizontal position in the predictor space) simultaneously to be deemed truly influential. An observation that is merely an outlier in the response direction (large residual, but low leverage) or merely an outlier in the predictor space (high leverage, but small residual) is significantly less likely to distort the core model parameters than one that successfully combines both characteristics.

Establishing Thresholds for Interpretation

The primary goal of calculating Cook’s distance is to flag observations that exert a disproportionate and potentially destabilizing influence on the final regression model estimates. By definition, the higher the Cook’s distance value associated with a specific observation, the greater its influence is deemed to be. These high-value points demand immediate and rigorous investigation, as their undetected presence may be masking the true underlying relationships or significantly distorting the fitted parameters and resulting conclusions.

Since the concept of “influence” is inherently relative to the dataset size and the specific complexity of the model being utilized, determining an absolute cutoff for what constitutes a “large” Cook’s distance often relies on established rules of thumb rather than a single, fixed statistical standard. The most frequently cited guideline, particularly applicable in larger datasets, suggests that any observation with a Cook’s distance exceeding the value of 4/n (where n represents the total sample size) should be considered highly influential and warrants meticulous review. For datasets characterized by a smaller number of observations, a more conservative and stringent threshold, such as a value greater than 1, is sometimes employed as a general indicator of extreme influence.

It is fundamentally important for analysts to treat these thresholds as flexible guidelines, rather than rigid, unyielding laws. The correct interpretation must always integrate the specific context of the research, rely on deep domain knowledge, and incorporate a holistic view of the distribution of all Cook’s distance values across the dataset. Influential observations are not inherently “bad” data; they might genuinely represent rare phenomena that hold unique insights vital to the research objective. Conversely, they could be simple artifacts resulting from data entry errors, measurement inaccuracies, or true statistical outliers that must be appropriately remedied before the model can be finalized. The key imperative is thorough investigation, not automatic or careless deletion.

Practical Application: Calculating Cook’s Distance in SAS

To solidify our theoretical understanding, we now transition to a practical, step-by-step demonstration of how to efficiently generate Cook’s distance values for every observation within a regression framework using SAS. This detailed example will cover the necessary sequence: data creation, model fitting using simple linear regression, and the crucial extraction of the diagnostic statistics into a new dataset.

We commence by defining a small illustrative dataset named my_data, which contains a single independent predictor variable, x, and a dependent response variable, y. This structured dataset serves as the essential foundation for our subsequent regression analysis and influence diagnostics procedures.

/*create dataset*/
data my_data;
    input x y;
    datalines;
8 41
12 42
12 39
13 37
14 35
16 39
17 45
22 46
24 39
26 49
29 55
30 57
;
run;

/*view dataset*/
proc print data=my_data;

The initial DATA step is utilized to construct the dataset, explicitly defining the variables x and y and incorporating the raw data values via the DATALINES statement. The subsequent PROC PRINT step is included to output the created dataset, thereby allowing for a necessary visual verification of the data structure and content before proceeding with the complex calculations required for regression diagnostics.

To execute the simple linear regression and simultaneously compute Cook’s distance, we rely on the industry-standard PROC REG procedure in SAS. This highly versatile procedure is specifically designed for general linear model fitting and offers robust, built-in capabilities for calculating the wide array of diagnostic statistics essential for comprehensive model validation.

Within the PROC REG structure, the use of the OUTPUT statement is mandatory for saving diagnostic statistics back into a permanent SAS dataset. We specify out=cooksData to create a new dataset that merges the original variables with the newly calculated diagnostics. Crucially, the COOKD option is employed: COOKD=cookd instructs SAS to calculate the Cook’s distance for each individual observation and store these resultant values in a new variable, conveniently named cookd, within our output dataset.

/*fit simple linear regression model and calculate Cook's distance for each obs*/
proc reg data=my_data;
    model y=x;
    output out=cooksData cookd=cookd;
run;

/*print Cook's distance values for each observation*/
proc print data=cooksData;

Interpreting the Numerical and Visual Diagnostics

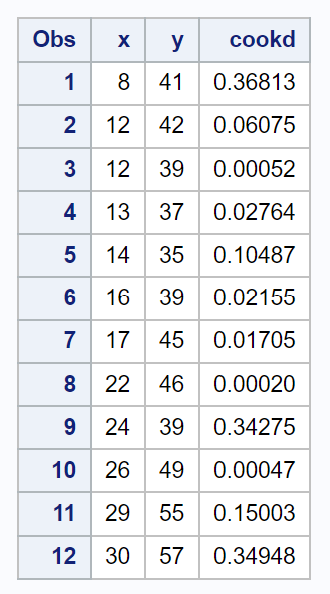

Following the successful execution of the SAS code block, the final table generated by the PROC PRINT procedure will display the original data alongside the freshly calculated Cook’s distance for every single observation. This resultant table serves as the primary numerical tool for the direct, quantitative evaluation of each data point’s specific influence on the fitted model.

By systematically examining this output, we can precisely assess the influence of each observation: for instance, the first observation exhibits a Cook’s distance of 0.36813; the second is 0.06075; the third registers at a near-negligible 0.00052, and so forth. While these numerical values offer precision, their interpretation is substantially enhanced by visual aids, which provide immediate context and facilitate crucial pattern recognition.

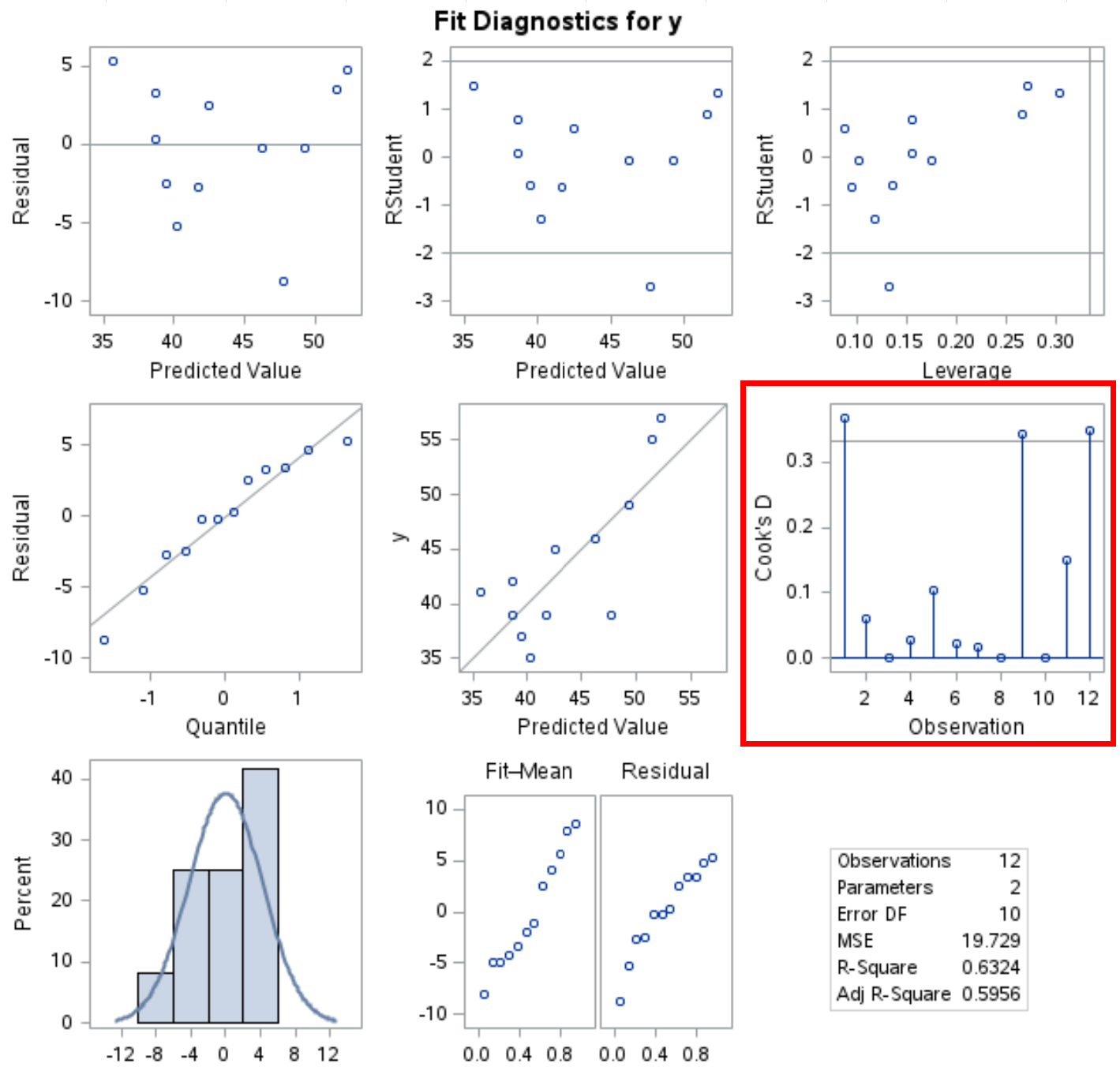

For this reason, the PROC REG procedure is designed to automatically generate a comprehensive suite of diagnostic plots, including a specialized chart specifically dedicated to Cook’s distance. This plot is essential for rapidly identifying observations that distinctly exceed predefined thresholds of influence without requiring the analyst to manually scan every numerical entry in the table.

Within this crucial diagnostic visualization, the x-axis enumerates the observation number, while the y-axis charts the calculated Cook’s distance. A key feature included by SAS is the horizontal cutoff line, typically positioned at the critical value derived from the rule of thumb, 4/n. Given that our example dataset contains n = 12 observations, this threshold is automatically set at approximately 0.33 (4/12). Visually inspecting the plot reveals that three specific observations possess Cook’s distance values that distinctly rise above this 0.33 cutoff line. This immediate visual evidence unequivocally marks these three points as potentially highly influential observations within the overall regression model, thus mandating immediate and thorough follow-up investigation.

The identification of such influential points should never, under any circumstances, lead to their automatic removal. Rather, it serves as an indispensable prompt for deeper data forensic work. Necessary actions may involve meticulously verifying the original data source for potential transcription errors, determining if these points represent genuinely unique cases that require specialized modeling (e.g., segmented regression), or considering the implementation of more robust regression methodologies that are inherently less sensitive to the presence of outliers. Failure to appropriately address these points risks generating a model that generalizes poorly or yields fundamentally misleading analytical insights.

Conclusion: Ensuring Model Robustness

Cook’s distance remains an indispensable diagnostic instrument in the toolkit of any serious statistical analyst engaged in regression analysis. It provides a quantitatively sound and easily interpretable measure of the impact each individual observation exerts on the integrity and stability of the fitted model. Through the systematic calculation and informed interpretation of these values, analysts gain the capacity to precisely pinpoint influential observations that, if left unchecked, could severely skew the model’s coefficients and impair its predictive accuracy.

As clearly demonstrated in the SAS practical example, the PROC REG procedure, when combined with the targeted use of the OUTPUT statement and the COOKD option, dramatically streamlines the entire process of computing and visualizing influence diagnostics. The resulting numerical output and the automated diagnostic plots provide clear, actionable insights into which data points demand special scrutiny.

It is vital to reiterate that while practical heuristics, such as the 4/n rule, are highly valuable for initial screening and triage, they must always be applied judiciously. Interpretation must factor in the unique characteristics of the dataset, the sample size, and the precise context of the research question. The overriding objective in employing Cook’s distance is the construction of a statistically robust and reliable regression model that accurately reflects the underlying data-generating processes and relationships, leading to trustworthy conclusions.
