A Step-by-Step Guide to Calculating Cook’s Distance in SPSS for Regression Analysis

Understanding Cook’s Distance and Its Importance in Diagnostics

In the crucial domain of regression analysis, a critical step in diagnosing model integrity is the identification of data points that exert disproportionate influence on the estimated coefficients. The primary metric for this task is Cook’s distance (often symbolized as D_i), a powerful statistic specifically designed to locate these highly influential observations. It is essential to understand that an influential point is far more problematic than a simple outlier; it is a data entry whose removal would dramatically alter the resulting slope and intercept values, thereby fundamentally changing the interpretation of the entire regression relationship. Ignoring these points can lead to statistically unstable models that lack generalizability and produce misleading predictive outcomes.

The calculation of Cook’s distance quantifies the cumulative effect that the exclusion of a single (i^th) observation has on the predicted response values (fitted values) across the entire dataset. If omitting one data point causes a measurable and substantial shift in the overall model parameters, that observation is flagged as highly influential. This measure ensures that researchers can assess the robustness and reliability of their analysis, confirming that the derived statistical conclusions are not precariously dependent on the presence of one or two anomalous data entries. Utilizing this metric is fundamental for rigorous regression diagnostics, providing a clear, quantitative basis for investigation.

Before diving into the practical steps within SPSS, a brief review of the theoretical underpinnings is crucial. The formula for Cook’s distance elegantly integrates two separate, yet related, diagnostic measures: the standardized residual (which gauges the vertical distance from the point to the fitted line) and the leverage (which measures the point’s distance from the center of the predictor variables). A high D_i value typically results when an observation possesses both a large error (high residual) and a unique position (high leverage), meaning it is both poorly predicted and strategically positioned to pull the regression line toward itself. Grasping this combined nature is key to accurate interpretation.

Interpreting the Cook’s Distance Formula

The mathematical definition of Cook’s distance synthesizes several critical components derived directly from the standard regression output, yielding a single composite score of overall influence. The formula is logically structured to combine measures of vertical error and horizontal position:

Di = (ri2 / p*MSE) * (hii / (1-hii)2)

To ensure a precise interpretation of the distance value calculated by SPSS, we must understand the precise contribution of each variable included in this equation:

• r_i: This represents the i^th residual, calculated as the difference between the observed response value and the value predicted by the regression model. A large residual suggests that the model performs poorly for this specific data point.
• p: This denotes the number of coefficients estimated in the model, including the intercept. It functions primarily as a scaling factor, adjusting the influence measure relative to the complexity of the model.
• MSE: The Mean Squared Error measures the average squared deviation of the errors, normalizing the residual component within the formula.
• h_ii: This is the i^th leverage value. Leverage quantifies how far an observation’s predictor variables are from the average of the predictors in the entire dataset. High leverage indicates the point is uniquely positioned, giving it significant weight in determining the regression line’s orientation.

The core insight derived from this formula structure is that influence (D_i) grows exponentially as either the squared residual (r_i²) or the leverage (h_ii) increases. The most powerful influential points are those that exhibit both a large prediction error and a high-leverage position. In essence, Cook’s distance provides a single, easily comparable metric that translates these complex geometric and statistical concepts into a quantifiable score reflecting the impact of deleting that specific data point on the overall model structure.

Setting Up the Linear Regression Analysis in SPSS

To practically illustrate the calculation of Cook’s distance, we will utilize a common scenario: analyzing retail data. Imagine a small dataset containing tracking variables for total advertisement spending (Ad_Spend) and the corresponding total sales (Sales) across 12 distinct retail stores. Our immediate objective is twofold: first, to fit a simple linear regression model where Sales is predicted by Ad Spend, and second, to systematically identify any potential influential observations lurking within this small sample of n = 12 observations.

The data must first be correctly arranged within the SPSS Data View window. A proper structure includes a unique identifier for each store, the expenditure variable (Ad_Spend), and the outcome variable (Sales). This necessary preparatory step confirms that the data is loaded accurately and is prepared for any diagnostic procedure, including the influence analysis we are about to conduct.

Once the data preparation is complete, we must initiate the linear regression analysis, which is the precursor to calculating the diagnostic statistics. Navigate to the main menu bar, select the Analyze tab, hover over Regression, and finally click on Linear. This action summons the primary regression dialogue box, the interface where we specify our variables and instruct the software to generate specific diagnostic outputs, including Cook’s D values.

Generating Cook’s Distance Values in SPSS

With the Linear Regression dialogue box now open, the variables must be correctly assigned based on their role in the model. Move the Sales variable into the Dependent panel, as this is the response variable we aim to predict. Subsequently, transfer the Ad_Spend variable into the Independent(s) panel, confirming its role as the single predictor in our simple regression model.

The crucial step for obtaining the influence statistics involves clicking the Save button, which is located on the right side of the main dialogue box. Inside the “Linear Regression: Save” submenu, locate the section labeled “Distances.” Here, you must check the box specifically designated for Cook’s. This command instructs the statistical software not only to run the standard regression calculations but also to compute the Cook’s distance for every single observation in the dataset and save these results as a brand-new variable appended to the data file.

After selecting the option, click Continue in the Save submenu, and then click OK in the main Linear Regression dialogue box. SPSS will immediately execute the analysis and produce the standard output tables. However, the most vital result for diagnostic purposes appears back in the Data View window: a new variable, typically labeled COO_1, will have been generated. This variable contains the newly calculated Cook’s distance value for each observation (Store ID), representing the direct outcome of the influence calculation process.

Evaluating Influential Observations

Once the Cook’s distance values are appended to the dataset, the subsequent essential step is to establish a clear threshold for what constitutes substantial influence. Although statistical literature offers various recommendations and there is no singular critical value agreed upon universally, the most widely adopted rule of thumb for identifying potentially highly influential observations is to flag any observation whose Cook’s D value surpasses the quotient of 4 divided by the total number of observations (4/n). This practical threshold serves as an efficient cutoff for initial data screening, indicating that observations above this benchmark require immediate and thorough investigation.

In the context of our retail store example, the sample size (n) is 12. Applying this rule of thumb yields the following critical threshold: 4 / 12 = 0.333. Consequently, any store observation exhibiting a Cook’s distance value greater than 0.333 is deemed highly influential on the simple linear regression model predicting Sales from Ad Spend. Researchers should then review the new COO_1 variable in the SPSS Data View to precisely identify which observations exceed this calculated cutoff value.

A detailed inspection of the generated values often reveals observations hovering near or just above this calculated threshold. These data points, with their elevated D_i scores, provide a strong signal that removing them would cause a noticeable and significant alteration in the estimated regression coefficients (both the intercept and the slope). While the 4/n rule is an excellent starting point for diagnostics, analysts occasionally employ more stringent criteria, such as a threshold of 1.0, or compare D_i to an F-distribution. Nonetheless, for routine diagnostic practice, the 4/n rule effectively marks the observations demanding further visual inspection and manual data verification.

Visualizing Influence Using Scatter Plots

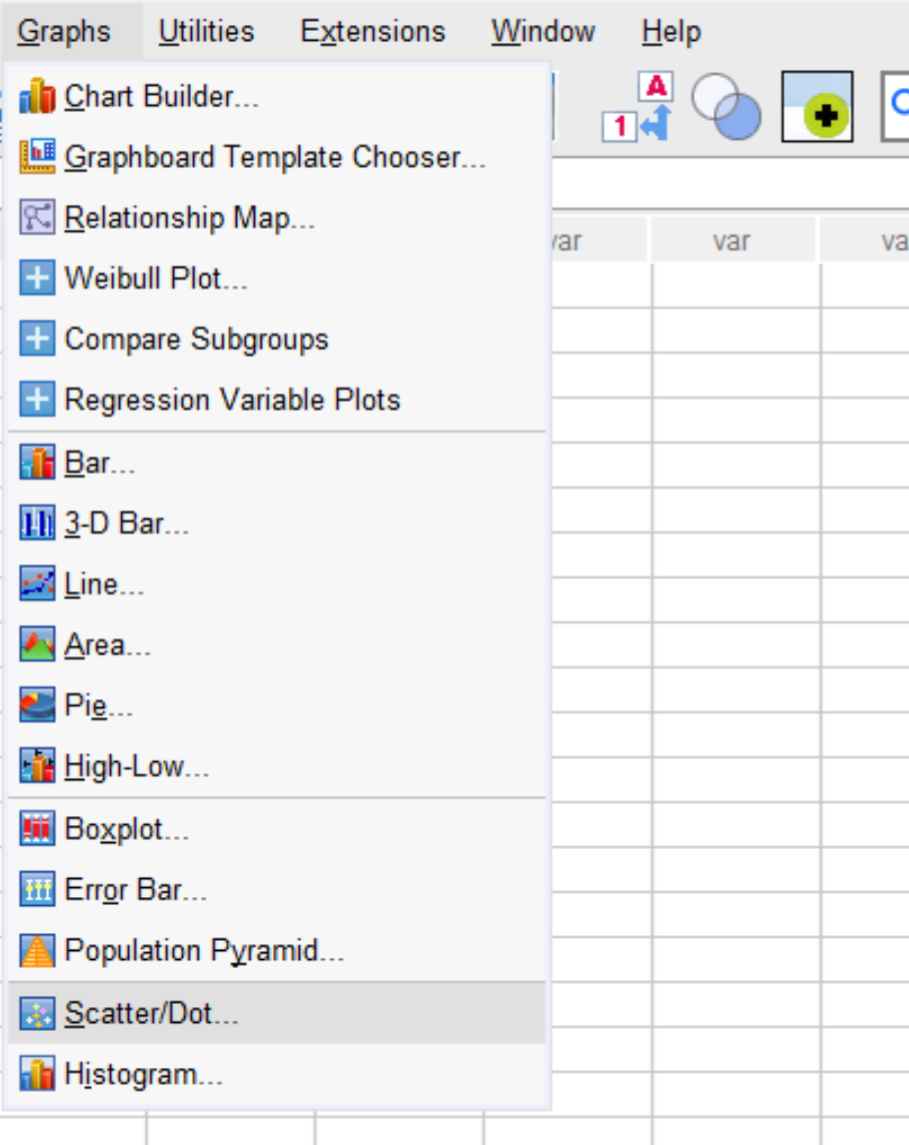

While numerical inspection of the Data View is necessary, visualizing the Cook’s distance for every observation offers an immediate, intuitive, and clear assessment of how influence is distributed throughout the sample. To generate the necessary diagnostic scatterplot in SPSS, navigate to the Chart tab on the main menu bar, and then select Scatter/Dot from the available menu options.

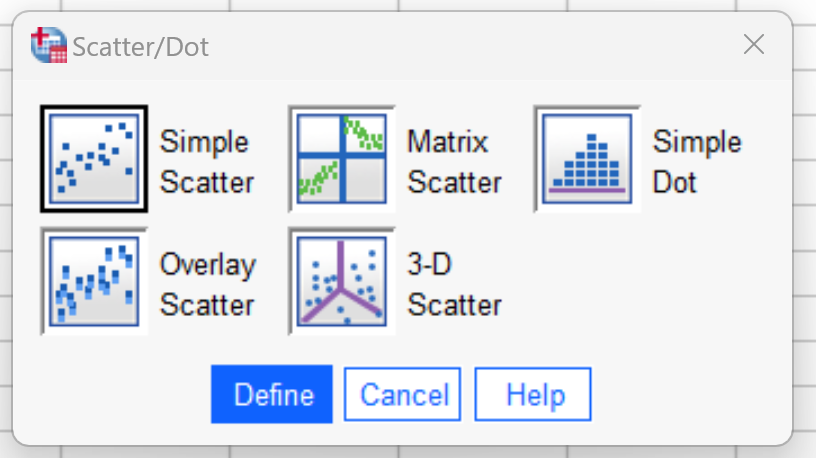

In the subsequent dialogue box, select the Simple Scatter option, as this format is ideal for plotting a single variable (Cook’s D) against a sequential identifier or observation index (Store_ID). Click Define to proceed to the variable assignment screen.

Within the Scatterplot Definition window, assign the Store_ID variable to the X Axis, providing a clear sequential reference for each data point. Critically, the newly created influence measure, COO_1 (Cook’s Distance), must be assigned to the Y Axis. This configuration produces a plot that maps the calculated level of influence directly against the corresponding observation index. Finally, click OK to generate the visual output.

The resulting scatterplot provides a powerful visual aid, displaying the Cook’s distance for all 12 stores. By plotting D_i against the observation ID, researchers can instantly spot data points that spike significantly above the rest, particularly those exceeding the calculated 0.333 threshold. This graphical method is highly effective for rapidly diagnosing the most influential observations and appreciating the magnitude of their impact relative to the rest of the sample data.

Strategic Handling of Influential Data Points

It is fundamentally important to recognize that the core objective of calculating Cook’s distance is merely to identify potentially highly influential observations; it is not an automatic mandate for deletion. A high D_i value acts as an investigation flag, signaling the need for careful scrutiny, not immediate condemnation of the data point. The decision regarding the appropriate treatment of such points demands a careful blend of statistical reasoning and domain-specific knowledge. The mandatory first action after identification must always be rigorous verification of the data.

Researchers must check exhaustively whether the influential observation resulted from a simple typographical error, a measurement mistake, or another easily rectified anomaly. If a data entry error is definitively confirmed, the observation must be corrected, and the entire regression model must be re-run with the corrected input. If the observed value is confirmed to be legitimate but represents an extremely rare occurrence or a condition not expected to generalize (e.g., a store operating under unique experimental conditions), the analyst must then make a strategic decision regarding the next course of action.

The strategic remedial actions for a legitimate influential observation are varied and depend on context. Options include outright deletion (only if its removal stabilizes the model and its exclusion is scientifically justified), applying transformations to variables (such as log transformations, which reduce the impact of extreme values), or shifting to more robust regression techniques that inherently exhibit less sensitivity to the presence of outliers and influential points. Conversely, if the observation is highly influential but represents a valid and critical piece of information about the population being studied, the analyst may choose to retain it in the model. If retained, the instability caused by its presence must be clearly and transparently reported alongside the model coefficients. The overarching goal is always to produce a model that is both statistically sound, robust, and an accurate reflection of the true underlying data generating process.
