Calculate Cumulative Sums in R (With Examples)

Calculating a cumulative sum, often referred to as a running total, is an essential operation in contemporary data analysis. This technique is indispensable for tracking performance trends, monitoring financial growth, and analyzing sequential data over specific periods. For practitioners utilizing the statistical programming language R, the process is streamlined by an exceedingly efficient native tool: the cumsum() function, which is readily accessible within the core capabilities of Base R.

This guide serves as a detailed resource for data analysts and scientists aiming to achieve mastery in both the calculation and effective visualization of cumulative metrics. We will thoroughly investigate the operational mechanics of the robust cumsum() function, illustrate its application through a realistic business case study involving sales data, and provide comprehensive instructions on producing insightful visual representations using both the standard plotting functions of Base R and the advanced graphical power of the ggplot2 package.

The Core Concept of Cumulative Summation

Fundamentally, a cumulative sum is mathematically defined as the sequence derived from the partial sums of an initial sequence of numbers. Practically speaking, it represents a running total: every new entry in the resultant sequence incorporates the value of the current observation added to the sum of all preceding observations. This mechanism is crucial for transforming discrete data points into a continuous measure of accumulation, thereby enabling deeper insights into aggregation patterns and tracking the progression of performance metrics over time.

Consider a scenario involving tracking daily sales figures. While the daily figure itself is informative, the cumulative sum reveals the total revenue generated from the start date up to that specific day. This provides immediate, contextualized insight into overall progress, allowing stakeholders to compare actual performance against predefined targets or budgets. Crucially, unlike simple static aggregation (such as calculating the final grand total), the cumulative sum preserves the essential temporal or sequential ordering of the data, which is vital for time-series analysis.

The utility of cumulative summation extends across a wide array of quantitative disciplines. In finance, it is utilized for tracking investment returns; in engineering, it may monitor the progressive accumulation of stress or fatigue; and within the sphere of business intelligence, it is essential for analyzing metrics such as inventory inflow, outflow, and the attainment of sales quotas. Consequently, achieving proficiency with the cumsum() function in R is an indispensable competency for any data professional routinely engaging with sequential or time-dependent data structures.

Implementing cumsum() in Base R for Efficient Calculation

The native cumsum() function, housed within Base R, is designed for maximum simplicity and efficiency. Its syntax is minimal, requiring only a single numeric argument, typically an R vector containing the sequential data points. Upon execution, cumsum() returns a resulting vector of identical length, where each corresponding element holds the calculated running total. This built-in approach elegantly bypasses the need for manual iteration or explicit looping constructs, significantly accelerating data preparation workflows.

To solidify this understanding, we will apply cumsum() to a practical business scenario: analyzing quarterly sales data spanning a 15-quarter period. The fundamental objective is to derive the total accumulated sales following the conclusion of each quarter. This cumulative metric will be instrumental in charting the company’s historical growth trajectory and evaluating long-term performance trends.

The following R script outlines the entire process. First, we initialize the raw sales figures within a structured R data frame. Subsequently, the cumsum() function is applied directly to the sales column, generating a new, derived variable named cum_sales. The final output demonstrates how the running total is calculated and stored alongside the original data points.

#create dataset
data <- data.frame(quarter=1:15,
                   sales=c(1, 2, 2, 5, 4, 7, 5, 7, 6, 8, 5, 9, 11, 12, 4))

#create new column in dataset that contains cumulative sales
data$cum_sales <- cumsum(data$sales)

#view dataset
data

   quarter sales cum_sales
1        1     1         1
2        2     2         3
3        3     2         5
4        4     5        10
5        5     4        14
6        6     7        21
7        7     5        26
8        8     7        33
9        9     6        39
10      10     8        47
11      11     5        52
12      12     9        61
13      13    11        72
14      14    12        84
15      15     4        88

Interpretation and Critical Data Preparation Steps

Analyzing the generated output confirms the successful application of the cumsum() function. We observe two key columns: the original sales column, which maintains the discrete value for each individual quarter, and the cum_sales column, which dynamically aggregates these values to present the running total at every step. This side-by-side comparison is essential for understanding the transition from raw data to derived cumulative metrics.

To accurately interpret the results, we can examine any row in the dataset. For instance, inspecting Quarter 5 reveals an individual sales contribution of 4 units. Yet, the corresponding cumulative sales figure is 14. This metric is a result of the function summing all preceding and current sales values (1 + 2 + 2 + 5 + 4 = 14). The power of the cumsum() function lies in its ability to automate this sequential summation instantly across the entire dataset, regardless of its length.

A critical consideration before executing any cumulative calculation is the integrity of the data order. In time-series analysis, the input vector must be correctly ordered chronologically. Should the data sequence be incorrect, the resulting cumulative sum will be technically accurate based on the misordered input, but the analytical conclusions drawn will be fundamentally misleading in a real-world context. Therefore, analysts must diligently verify and enforce the correct sequencing of rows within their data frame prior to applying cumulative functions.

Exploratory Visualization with Base R Plotting

Although tabular data provides necessary precision, the most effective method for understanding the velocity and magnitude of accumulation is through visual representation. For cumulative data, the line chart is universally recognized as the standard visualization type, as it explicitly reveals the trend and slope of growth over a sequential dimension, such as time.

Leveraging the core plotting functions available in Base R, we can swiftly produce a rudimentary yet highly effective line plot using the versatile plot() function. This capability is paramount during the exploratory data analysis (EDA) phase, where rapid visualization is preferred. To execute this, we simply map the cum_sales variable (our derived cumulative metric) onto the y-axis, setting the quarter number (the sequential index) on the x-axis.

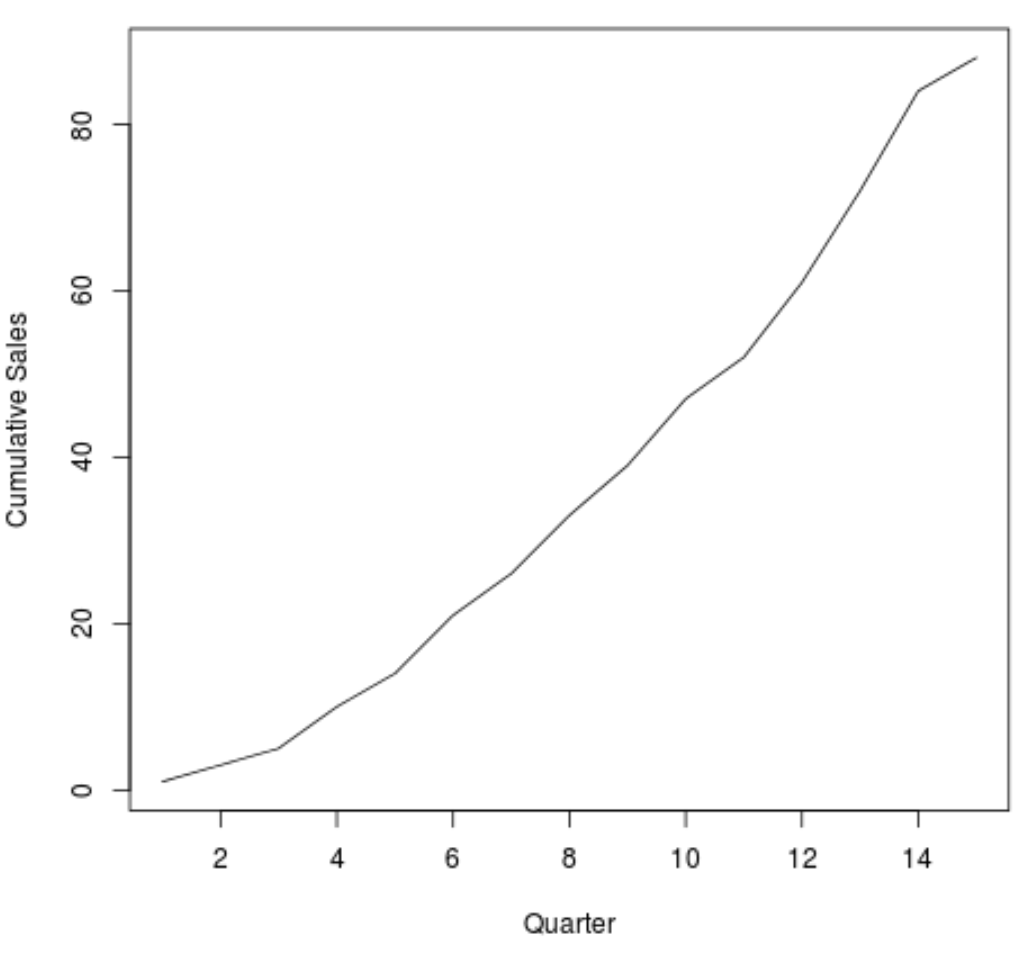

plot(data$cum_sales, type='l', xlab='Quarter', ylab='Cumulative Sales')

The resulting plot delivers an immediate and intuitive visual summary of the company’s growth trajectory. The distinctive, consistently upward slope characteristic of this graph confirms that the total accumulated sales are increasing quarter over quarter. This visualization technique is standard for conveying the progression of any running total.

Achieving Publication Quality with ggplot2

When the goal shifts from rapid exploratory analysis to generating high-quality, professional visualizations suitable for reports or publications, the ggplot2 package is the industry standard within the R environment. This powerful library is built upon the foundational principles of the Grammar of Graphics, enabling analysts to construct complex charts modularly, adding layers for data, aesthetics, geometry, and styling.

To replicate our cumulative sales line chart using ggplot2, the workflow involves three distinct steps: first, loading the required library; second, initializing the plot with the data and defining the aesthetic mappings (using aes() to map quarter and cum_sales); and third, adding the geometric layer using geom_line(). We conclude by employing the labs() function to ensure clear, descriptive, and professionally formatted axis titles.

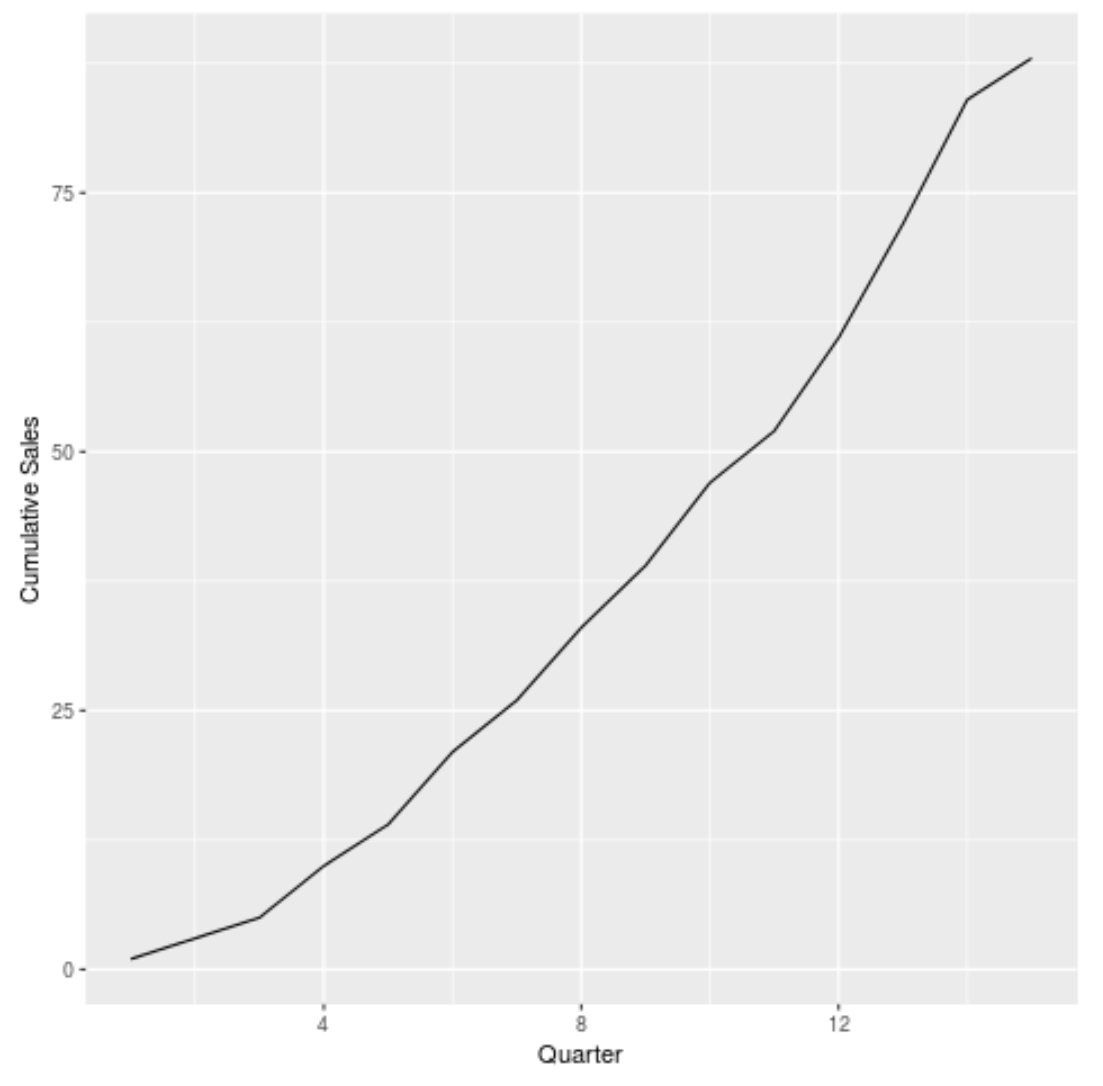

library(ggplot2)

ggplot(data, aes(x=quarter, y=cum_sales)) +
  geom_line() +
  labs(x='Quarter', y='Cumulative Sales')

A significant advantage of choosing ggplot2 is the extraordinary flexibility it offers for enhancing visual depth. Analysts can easily append supplementary layers, such as statistical smoothing functions (e.g., geom_smooth()), points marking individual data observations (geom_point()), or sophisticated conditional formatting rules, all of which substantially increase the analytical value derived from the final visualization.

Diverse Applications of Cumulative Analysis in R

While our primary example focused on tracking sales, the analytical power of the cumsum() function transcends simple business monitoring. Its utility is foundational across numerous complex quantitative fields, making it a versatile tool for data scientists seeking to model aggregation and temporal dependency accurately. Exploring these varied use cases illuminates the profound analytical depth offered by cumulative analysis in R.

A particularly critical application resides in Financial Modeling and Budget Tracking. When a financial period (such as a fiscal year) has a set budget, applying the cumulative sum to monthly expenditures immediately clarifies the budget burn rate. This running total provides management with real-time insight into whether spending aligns with projections, is accelerating unsustainably, or is lagging, thus enabling timely intervention and comprehensive financial governance.

Furthermore, Inventory Management and Supply Chain Logistics rely heavily on cumulative analysis. By calculating the cumulative demand and supply metrics, organizations gain a transparent view of stock level dynamics over time. For instance, comparing the cumulative quantity of products shipped against the cumulative quantity produced can effectively pinpoint operational bottlenecks, periods of surplus inventory, or deficits, directly influencing strategic decisions concerning production scheduling and procurement.

In the realm of Statistical Analysis and Signal Processing, cumulative sums serve as a fundamental building block. They are routinely employed in the calculation of Empirical Cumulative Distribution Functions (ECDFs), which are essential for nonparametric statistical testing. Moreover, cumulative transformations are integral to various signal processing algorithms used to stabilize the variance of time series data and reveal underlying long-term patterns obscured by short-term noise.

Conclusion and Resources for Further R Mastery

The cumsum() function represents one of the most elegant and efficient tools available in R for calculating running totals. Its direct application transforms raw, sequential data points into powerful cumulative metrics, providing a comprehensive view of progression over time. When integrated with advanced visualization libraries such as ggplot2, analysts are equipped to move beyond simple data reporting and deliver actionable, data-driven insights regarding temporal trends and performance accumulation.

To summarize the workflow detailed in this expert guide, the following core objectives were achieved:

1. We established a clear definition of the cumulative sum, understanding it as a running total derived from a sequential data input.

2. We demonstrated the implementation of the native cumsum() function within Base R, successfully generating a new cumulative column within a structured data frame.

3. We discussed essential data preparation steps, focusing on the critical requirement for chronological data ordering to ensure analytical validity.

4. We provided comparative examples for visualizing the resulting cumulative curve, utilizing both the foundational plot() function from Base R and the highly customizable ggplot2 package.
