Calculating Interquartile Range (IQR) with SPSS: A Step-by-Step Guide

Defining the Interquartile Range (IQR) and Its Role in Data Analysis

The interquartile range (IQR) stands as a foundational concept in statistics, serving as a critical measure for quantifying the variability, or spread, within a dataset. Unlike the total range which spans from minimum to maximum, the IQR focuses exclusively on the central 50% of the data distribution. This targeted approach provides a statistically robust measure of dispersion, rendering it far less susceptible to distortion by extreme outliers compared to traditional methods like the full range or the standard deviation. Calculating the IQR is paramount when analyzing data that exhibits significant skewness or contains unusual values, as it offers a clean, unbiased perspective on how core observations are clustered.

The practical calculation of the IQR hinges on the precise identification of data quartiles. Quartiles are points that divide a dataset into four segments, each containing 25% of the observations. The IQR is formally defined as the absolute difference between the third quartile (Q3) and the first quartile (Q1). Specifically, Q1 represents the 25th percentile—the value below which 25% of observations reside. Conversely, Q3 marks the 75th percentile, meaning 75% of observations fall below this value. By isolating the segment between Q1 and Q3, analysts concentrate solely on the core distribution of values, effectively ignoring the extreme tails.

In contemporary quantitative research, determining the IQR is often an essential first step, particularly before generating visualizations such as the box plot. Box plots graphically illustrate the distribution shape, central tendency, and variability of a data set, relying heavily on accurate quartile identification. While calculating these measures manually can be arduous, especially with large datasets, specialized statistical software like SPSS dramatically simplifies the process. The most efficient methodology within SPSS involves leveraging the powerful built-in functionality found under Analyze > Descriptive Statistics > Explore, which is specifically engineered to deliver detailed statistical summaries, including the necessary quartile values.

The Statistical Superiority of IQR: Robustness Against Outliers

The standard range, calculated simply as the difference between the maximum and minimum observed values, provides only a superficial and often misleading assessment of data spread. Its primary weakness lies in its extreme sensitivity to a single, unusually high or low value—an outlier. If a dataset contains just one observation far removed from the rest, the range will falsely inflate the perceived spread, obscuring the reality that the majority of data points may be tightly packed. This inherent volatility highlights the significant utility of the IQR as a statistically superior and far more stable measure of dispersion.

The IQR is classified as a robust statistic because its computation is not reliant on extreme values or the arithmetic mean. Instead, it is anchored by the median (the 50th percentile) and the surrounding quartiles (Q1 and Q3). By definition, Q1 and Q3 define a boundary that automatically excludes the lowest 25% and the highest 25% of the observations. Consequently, the resulting measure of spread is based exclusively on the central half of the data. This resilience makes the IQR invaluable when dealing with real-world data, which is rarely perfectly normal, symmetrical, or free of influential outliers.

Furthermore, the IQR is indispensable for establishing clear data boundaries for formal outlier detection. Standard statistical convention dictates that observations falling outside the range defined by 1.5 times the IQR added to Q3, or 1.5 times the IQR subtracted from Q1, are tentatively flagged as potential outliers. Therefore, the ability to calculate the IQR quickly and accurately within SPSS is not merely an exercise in description; it is a vital prerequisite for data cleaning, quality control, and preparation prior to conducting rigorous inferential statistical testing.

Preparing Your Data for IQR Calculation in SPSS

To effectively demonstrate the calculation of the interquartile range, we will utilize a practical example involving a sample dataset within the Descriptive Statistics module of SPSS. For illustrative purposes, we imagine a scenario where we are analyzing student academic performance, focusing on a single continuous variable titled “Exam_Score,” which records the final numerical scores received by students in a course.

Before commencing the analysis, it is essential that the data is correctly structured within the SPSS Data View interface. Each row must represent a unique student observation, and the scores must be meticulously recorded in the designated column. Ensuring the correct variable is identified and structured appropriately is a critical preliminary step. The following visual representation illustrates the typical appearance of our sample data within the SPSS environment, confirming the readiness of the variable for quartile calculation:

Our specific analytical objective is to derive the interquartile range for the variable Exam_Score. The outcome of this calculation will provide meaningful insight into the consistency of performance across the student cohort, specifically focusing on the dispersion of scores achieved by the middle 50% of students while consciously excluding the most extreme top and bottom performers. Having the data loaded correctly and the analytical goal clearly defined sets the stage for the precise sequential steps required within the SPSS interface.

Step-by-Step Guide: Calculating Quartiles Using the SPSS Explore Function

The most streamlined and accurate methodology available within SPSS for obtaining the necessary quartile values is by executing the Explore procedure. This function is purpose-built to deliver comprehensive descriptive summaries, including the crucial 25th and 75th percentiles, in conjunction with other important statistics and graphical outputs like histograms and box plots.

To initiate this powerful procedure, users must navigate through the main menu bar of SPSS by following a precise sequence of commands:

1. Click on the Analyze tab located in the main menu.
2. Hover over Descriptive Statistics in the dropdown menu.
3. Select the Explore option.

This action will immediately launch the core dialog box required to configure the analysis parameters.

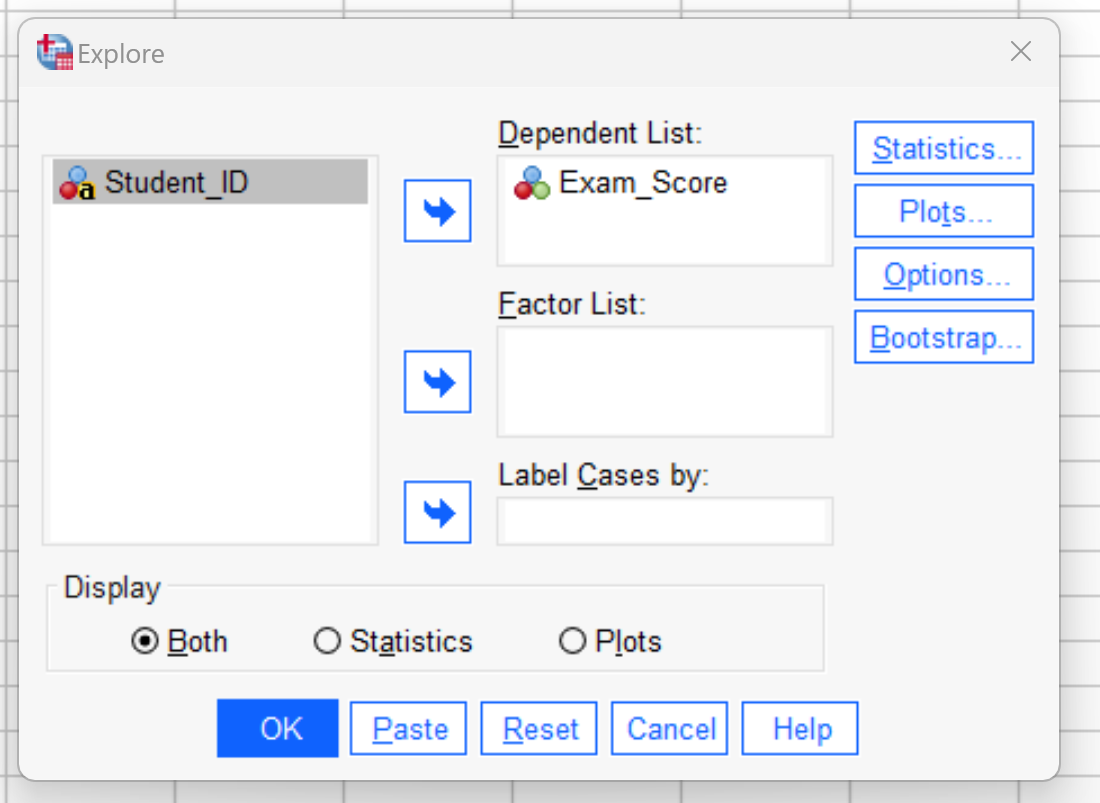

Once the Explore dialog window is visible, the next critical step is to designate the variable for which the IQR must be computed. Locate the Exam_Score variable within the variable list displayed on the left side of the window. Select this variable and move it into the Dependent List panel on the right. The Dependent List panel explicitly identifies the variable whose distribution properties—including its quartiles—we intend to explore and summarize.

A crucial configuration step follows: we must explicitly instruct SPSS to compute and display the specific percentile values, as these are sometimes omitted from the default output of the Explore function. Click the Statistics button situated on the right side of the dialog box. This action opens a dedicated sub-window featuring various summary measure options. Within this new window, ensure the checkbox adjacent to Percentiles is definitively marked. Activating this option guarantees that SPSS will generate the comprehensive Percentiles table in the final output, which is absolutely necessary for accurately reading the values of Q1 and Q3.

After confirming the selection of the Percentiles option, click Continue to exit the sub-window and return to the main Explore dialog box. The final step is to execute the analysis by clicking the OK button. SPSS will then process the request, generating a detailed output in the separate Viewer window containing all requested descriptive statistics, crucially including the percentile information needed for the interquartile range calculation.

Extracting and Interpreting Q1, Q3, and the Final IQR Value

Following the successful execution of the Explore command, the SPSS Viewer window will present a series of tables and charts detailing the distribution characteristics of the Exam_Score variable. For the purpose of calculating the IQR, our immediate attention must be focused on the table explicitly labeled Percentiles. This table contains the specific observational values corresponding to key percentage points across the data distribution, often calculated using sophisticated methods like the Weighted Average or Tukey’s Hinges, depending on the software configuration.

By meticulously reviewing the generated Percentiles table, we can extract the precise scores linked to the first and third quartiles. Recall that the first quartile (Q1) is synonymous with the 25th percentile, and the third quartile (Q3) corresponds to the 75th percentile. Analyzing the output derived from our sample data reveals the following essential values:

• The value associated with the 25th percentile (Q1) is identified as 86. This signifies that 25% of the students achieved an exam score of 86 or lower.
• The value associated with the 75th percentile (Q3) is identified as 96. This means that 75% of the students scored 96 or below, or conversely, only 25% of the students scored higher than 96.

With Q1 and Q3 successfully extracted directly from the SPSS output, the final calculation of the interquartile range becomes a straightforward arithmetic subtraction. The IQR fundamentally measures the width of the interval that encompasses the central half of the dataset. The formal computation confirms the spread of the middle 50% of the exam scores:

• IQR = Third Quartile (Q3) – First Quartile (Q1)
• IQR = 96 – 86
• IQR = 10

Consequently, the interquartile range for these exam scores is precisely 10 points. This calculated measure provides robust evidence that the performance of the middle 50% of the student cohort spans a relatively narrow range of 10 points. This value aligns perfectly with the implicit calculation performed by SPSS and delivers a clear, stable metric of typical variation in academic performance for this specific distribution.

Conclusion: Leveraging the IQR for Deeper Data Insights

The ability to accurately calculate the interquartile range in SPSS using the Explore function is a cornerstone skill in descriptive data analysis. The IQR provides a potent, non-parametric alternative to the standard deviation when evaluating data dispersion, offering particular value in scenarios where data distribution is non-normal or highly susceptible to the influence of extreme values. By harnessing the built-in percentile calculations within SPSS, researchers gain the efficiency needed to swiftly obtain this critical measure without the need for manual data sorting or reliance on complex external formula application.

For our sample data, the resulting IQR value of 10 points confirms a relatively tight clustering among the central performers. This inherent stability suggests that, when excluding the top and bottom quartiles, the majority of students successfully achieved scores within a narrow, consistent range. Such a finding is highly instrumental in subsequent analytical phases, whether comparing score consistency across diverse academic groups or investigating potential factors contributing to performance variance.

Ultimately, the foundational understanding of how to extract and interpret quartiles is transferable across a broad spectrum of statistical tasks within SPSS. These skills are essential for constructing sophisticated custom box plots, applying various non-parametric tests, and generally ensuring data integrity. This comprehensive step-by-step guide guarantees that researchers can accurately and efficiently determine complex statistical properties like data dispersion using the powerful, accessible tools provided by SPSS.
