Calculating Margin of Error with Excel: A Tutorial for Statistical Analysis

Understanding Statistical Estimation and Uncertainty

In the vast domain of statistics, researchers and analysts constantly confront the necessity of estimating characteristics of a massive group, known as the population, by examining only a smaller, manageable segment, referred to as a sample. This inferential process is highly efficient, allowing us to draw meaningful conclusions without exhaustive measurement, but it inherently introduces a degree of uncertainty. For instance, if the goal is to determine the average height of 1,000 employees in a corporation, measuring every single individual is time-consuming and often impractical. Instead, we carefully select a representative subset of 50 employees and calculate their average height.

The average height calculated from our small sample is known as the point estimate. While this statistic provides the best single guess for the true population average, we cannot assume it is perfectly accurate. This inaccuracy stems from the inherent variability introduced because the sample is merely a snapshot of the much larger and more complex population. To scientifically quantify this unavoidable error and provide a reliable range for our estimate, statisticians rely on the powerful concept of the Confidence Interval (CI).

A Confidence Interval is formally defined as a range of values that is highly likely to contain the true population parameter, based on a specified level of assurance, typically 95% or 99%. Returning to our height example, if the calculated sample mean height is 67 inches, a resulting 95% confidence interval might be [65 inches, 69 inches]. This interpretation means we are 95% confident that the true average height of the entire population falls somewhere within this 4-inch spread. This critical range is constructed using two indispensable statistical components.

Deconstructing the Confidence Interval

Every accurately calculated confidence interval relies on the combination of two fundamental elements that work synergistically to define the estimated range for the population parameter. Understanding these components is essential for interpreting statistical output:

• Point Estimate: This is the central value and the single best guess derived directly from the observed sample data. This is typically the sample mean (x̄) when dealing with continuous data, or the sample proportion (p̂) when dealing with categorical data.
• Margin of Error (MOE): This is the critical value that quantifies the inherent uncertainty and sampling error associated with the point estimate. It essentially dictates how far above and below the point estimate the true population parameter is likely to fall, thereby defining the total width of the confidence interval.

The relationship between these core statistical components is straightforward and additive, defining the upper and lower boundaries of the estimated range:

Confidence Interval = point estimate +/- Margin of Error

Achieving a smaller Margin of Error is always desirable, as it indicates greater precision in our estimate. Precision is usually enhanced by collecting larger sample sizes or by accepting a slightly lower confidence level. Conversely, a larger MOE suggests a higher degree of inherent uncertainty, often resulting from high variability within the data or the necessity of choosing a higher confidence level (e.g., aiming for 99% certainty versus 95%). The specific mathematical approach used to calculate this error term must be tailored depending on whether the analyst is studying means or proportions.

Core Formulas for Margin of Error Calculation

The specific formula employed to calculate the Margin of Error is determined entirely by the nature of the parameter being estimated—that is, whether we are estimating a population mean (which involves continuous, measurable data) or a population proportion (which involves categorical, percentage-based data). Mastery of the appropriate inputs for each formula is critical for successful and accurate statistical analysis within Microsoft Excel.

Margin of Error for a Population Mean

When constructing a confidence interval for a population mean (μ), which applies to data like average incomes, temperatures, or physical measurements, and assuming the population standard deviation (σ) is known, the required formula simplifies to:

Margin of error: Z * σ / √n

The variables comprising this fundamental equation are:

• Z: The critical Z-score, which corresponds precisely to the chosen confidence level (e.g., 95%).
• σ: The known population standard deviation.
• n: The total sample size.

Margin of Error for a Population Proportion

When calculating a confidence interval specifically for a population proportion (P), which involves rates, percentages, or binomial outcomes (e.g., success/failure rates, voter support levels), the variability must be estimated using the observed sample proportion (p̂). The specific formula required for this calculation is:

Margin of error: Z * √(p*(1-p)) / n)

The variables necessary for calculating the MOE for a proportion are:

• Z: The critical Z-score determined by the chosen confidence level.
• p: The calculated sample proportion (p̂).
• n: The total sample size.

It is paramount to select the correct Z-score value, as it is directly dictated by the desired confidence level (e.g., 90%, 95%, or 99%). The following standard reference table provides the critical Z-scores that are most frequently applied in these types of statistical calculations:

Example 1: Calculating MOE for a Population Mean in Excel

This detailed example illustrates the step-by-step application of the Mean formula (Z * σ / √n) utilizing the powerful calculation capabilities embedded within Microsoft Excel. Imagine we are conducting an agricultural study to investigate the mean height of a genetically modified plant species. Through previous large-scale studies, we confidently know that the population standard deviation, σ, is 2 inches. We proceed to collect a random sample of 100 plants (n=100), finding that the resulting sample mean height is 14 inches. Our primary statistical objective is to accurately determine the 95% confidence interval for the true mean height of this entire plant species.

Since we are calculating the confidence interval for a population mean and the population standard deviation is known, we must employ the formula: Z * σ / √n. Based on the standard reference table, the critical Z-score required for a 95% confidence level is 1.96. We systematically input all the known values (Z=1.96, σ=2, n=100) directly into an Excel worksheet. The image provided below demonstrates the necessary setup and the precise calculation needed to derive the margin of error based on these specific parameters:

Upon successfully executing the calculation in Excel, the resulting Margin of Error is precisely found to be 0.392 inches. We then use this calculated MOE to construct the final confidence interval by adding and subtracting it from our initial sample mean (14 inches). This crucial final step of defining the interval boundaries is clearly visualized in the subsequent image:

Consequently, the 95% confidence interval for the true mean height of the plant species is calculated as 14 +/- 0.392, which yields the definitive range of [13.608, 14.392] inches. This result allows us to conclude with high confidence that the true average height of the entire population of plants falls squarely within these established bounds.

Example 2: Calculating MOE for a Population Proportion in Excel

Our second comprehensive example shifts focus to calculating the Margin of Error for a proportion, a technique commonly employed in political polling, market research, and quality control assessments. Consider a scenario where we aim to estimate the city-wide percentage of residents who support a specific political candidate. A simple random sample consisting of 200 residents (n=200) is conducted, and the results show that 120 of these individuals express support for the candidate. This yields a sample proportion (p̂) of 120/200, which is equivalent to 0.6 or 60%. Our objective is to calculate a 99% confidence interval for the true, underlying percentage of support across the entire city population.

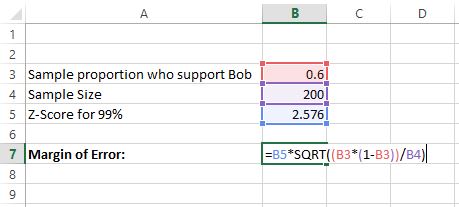

Since this analysis deals explicitly with percentages and rates, we must utilize the proportion formula: Z * √(p*(1-p)) / n). Given the requirement for a stringent 99% confidence level, the critical Z-score required is 2.576. We meticulously input the necessary variables (Z=2.576, p=0.6, n=200) into Excel. The following image clearly demonstrates the essential steps required to first calculate the standard error of the proportion and subsequently determine the MOE using the appropriate statistical functions:

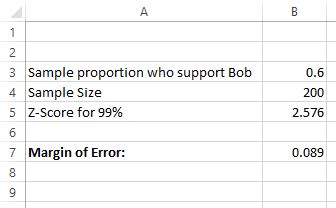

The calculation reveals that the resulting Margin of Error is exactly 0.089, which translates to 8.9 percentage points. This critical error value is then paired with the original point estimate (0.6, or 60%) to accurately define the final confidence interval, as demonstrated in the visual below:

As a result, the 99% confidence interval for the true percentage of individuals supporting the candidate is calculated as 0.6 +/- 0.089. This translates to the final, highly reliable range of [0.511, 0.689]. We can confidently assert, with 99% certainty, that the candidate’s true support level within the city population lies between 51.1% and 68.9%.

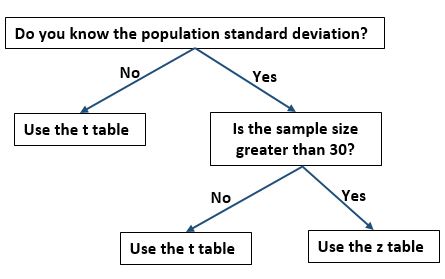

Advanced Considerations: Z-Scores vs. T-Scores

A frequent and crucial decision point when calculating the margin of error for a population mean involves selecting the correct critical value: should one use a Z-score (derived from the Standard Normal Distribution) or a T-score (derived from the Student’s T-Distribution)? This choice hinges entirely upon the knowledge of the population standard deviation (σ) and the overall size of the sample (n).

In general, if the population standard deviation (σ) is known, or if the sample size (n) is sufficiently large (conventionally defined as n > 30), the Z-score is the appropriate critical value to use. However, a different approach is necessary when the population standard deviation is unknown and must be estimated using the sample standard deviation (s). If the population standard deviation is unknown AND the sample size is small (n ≤ 30), then the T-score must be used, as it accounts for the additional uncertainty introduced by having to estimate the population variability. The following diagram provides a clear, actionable decision tree to guide the selection of the correct critical value for mean calculations:

Fortunately, if traditional reference tables for critical values are unavailable or inconvenient, Microsoft Excel offers robust, built-in functions that calculate the necessary Z-scores or T-scores based solely on the specified confidence level and the degrees of freedom. These advanced functions automate the process, ensuring the precise critical value is used for every MOE calculation.

Using Excel Functions to Determine Critical Values

Excel allows data analysts to quickly and accurately calculate the necessary critical values for any chosen confidence level, completely bypassing the need for manual table lookup. Here are the precise commands required for determining both Z-scores and T-scores:

To find the critical Z-Score for a two-tailed confidence interval, you should utilize the NORM.INV function:

To find Z-Score: =NORM.INV(probability, 0, 1)

For example, to find the critical Z-Score associated with a 95% confidence level, the input probability must be 0.975 (calculated as 1 – (alpha/2)). You would enter the following command, which correctly returns the value 1.96:

=NORM.INV(.975, 0, 1)

To find the critical T-Score, which uniquely requires the degrees of freedom (n-1) as an input, use the T.INV function (Note: this function automatically assumes a two-tailed distribution, which is standard when calculating confidence intervals):

To find t-Score: =T.INV(probability, degrees of freedom)

For example, to find the t-Score associated with a 90% confidence level and 12 degrees of freedom, you would enter the following command, which results in the value 1.78:

=T.INV(.95, 12)
