Learning to Calculate Normal Distribution Probabilities Using Excel’s NORM.DIST Function

Calculating probability for a random variable that follows a normally distributed pattern is arguably the single most fundamental operation in applied statistics. While many students rely on specialized graphing calculators, such as the TI-83 or TI-84, which provide a dedicated NormalCDF function, Microsoft Excel offers equally robust and far more accessible methods. This comprehensive guide details how to leverage Excel’s powerful NORM.DIST() function to efficiently replicate the results of the NormalCDF calculation directly within a spreadsheet environment, enabling powerful statistical analysis without proprietary tools.

Understanding the Calculator Baseline: The normalcdf Function

The normalcdf function, standard on virtually all statistical graphing calculators, is specifically engineered to determine the area beneath the normal distribution curve. This calculated area is mathematically equivalent to the probability that a chosen random variable (X) will occur within a specified interval or range. Understanding how this calculation works provides the foundational logic for translating the process into Excel.

To execute its calculation, the normalcdf function requires four distinct parameters. These inputs define both the boundaries of the interval being measured and the specific characteristics of the population distribution itself:

normalcdf(lower, upper, μ, σ)

The variables used in the calculator function correspond directly to standard statistical notation and requirements:

• lower = Defines the lower bound, or the minimum value, of the probability range being evaluated.
• upper = Defines the upper bound, or the maximum value, of the probability range being evaluated.
• μ = Represents the population mean (mu), which is the central tendency of the distribution.
• σ = Represents the population standard deviation (sigma), which measures the dispersion or spread of the data.

For instance, if we are analyzing a process where the random variable is normally distributed with a population mean of 50 and a population standard deviation of 4, the exact probability of observing a value between 48 and 52 is calculated as follows:

normalcdf(48, 52, 50, 4) = 0.3829

Transitioning to Excel: Introducing NORM.DIST() for Cumulative Probability

To successfully execute these complex cumulative probability calculations within Microsoft Excel, we utilize the primary statistical function for normal distributions: NORM.DIST(). This versatile function allows users to calculate two different values: either the Probability Density Function (PDF), which gives the height of the curve at a specific point, or the Cumulative Distribution Function (CDF), which provides the cumulative area up to that point.

The key conceptual difference between normalcdf and NORM.DIST() is the starting point of the calculation. While normalcdf calculates the area between two user-defined points (lower and upper), NORM.DIST() fundamentally calculates the area starting from negative infinity (the far left tail of the distribution) and ending at the specified value (x). Consequently, replicating a bounded range calculation (P(a < X < b)) requires a simple algebraic manipulation: subtracting the cumulative probability of the lower bound from the cumulative probability of the upper bound.

The necessary syntax and arguments for the Excel function are structured as follows:

NORM.DIST(x, μ, σ, cumulative)

The arguments are rigorously defined to ensure accurate results:

• x = The specific data value or observation point for which the cumulative area is being calculated.
• μ = The population mean of the distribution.
• σ = The population standard deviation (the measure of variability).
• cumulative = A Boolean (logical) argument. To calculate the CDF (the area under the curve), which is essential for determining range probabilities, this argument must be set to TRUE. Setting it to FALSE calculates the PDF.

The following examples demonstrate the three fundamental methods required to successfully utilize this function for all standard normal distribution probability calculations.

Example 1: Calculating Probability Between Two Values

Let us revisit our initial scenario: a random variable that is normally distributed with a mean (μ) of 50 and a standard deviation (σ) of 4. Our objective is to find the probability that the variable falls between the values of 48 and 52, effectively replicating the normalcdf(48, 52, 50, 4) result.

Since NORM.DIST() always calculates the cumulative area from the far left, finding the area between two points requires calculating the cumulative area up to the upper bound (52) and then subtracting the cumulative area up to the lower bound (48). Mathematically, this is expressed as: P(48 < X < 52) = P(X < 52) – P(X < 48). This subtraction isolates the area segment between the two specified points.

The resulting Excel formula, which requires setting the cumulative argument to TRUE in both components of the subtraction, is shown below:

=NORM.DIST(52, 50, 4, TRUE) - NORM.DIST(48, 50, 4, TRUE)

Executing this formula yields the value 0.3829, precisely matching the result obtained from the dedicated normalcdf calculator function. The visual guide below confirms the input structure within the spreadsheet interface:

Example 2: Calculating Probability Less Than One Value

Continuing with the established distribution parameters (μ=50, σ=4), we now seek to determine the probability that a randomly selected variable will take on a value less than or equal to 48. This corresponds to finding the area in the left tail of the distribution up to the value 48.

This specific calculation represents the most straightforward application of the Cumulative Distribution Function (CDF) mode of NORM.DIST(). Because the function is inherently designed to calculate the area starting from negative infinity and accumulating up to the specified point (x), we only need to input the desired limit (48) directly.

The simple and direct formula for calculating P(X < 48) is:

=NORM.DIST(48, 50, 4, TRUE)

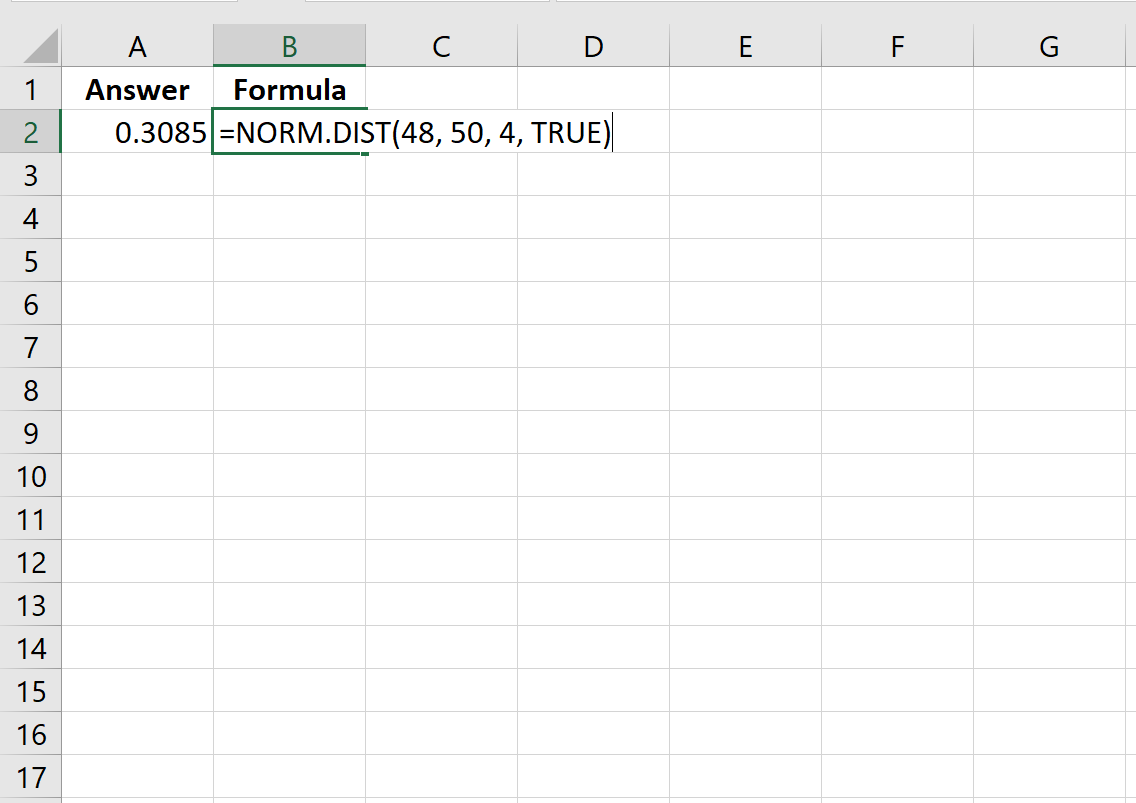

Upon execution, the resulting cumulative probability is calculated as 0.3085. The image provided below illustrates the proper entry of this formula into a cell within Microsoft Excel:

Example 3: Calculating Probability Greater Than One Value

The final core scenario involves determining the probability that the random variable (still defined by μ=50, σ=4) is greater than a specific value, such as 55. This calculation targets the area in the right tail of the distribution, P(X > 55).

To solve this using the cumulative nature of NORM.DIST(), we must apply the complement rule. This statistical principle states that since the total area under any probability density curve must equal 1 (representing 100% probability), the area to the right of a value (X > x) is equal to 1 minus the area to the left of that value (X 55) = 1 – P(X < 55).

We first calculate the cumulative area up to 55 using NORM.DIST(55, 50, 4, TRUE), and then subtract that result from 1. This leaves us with the desired probability corresponding to the right tail:

=1 - NORM.DIST(55, 50, 4, TRUE)

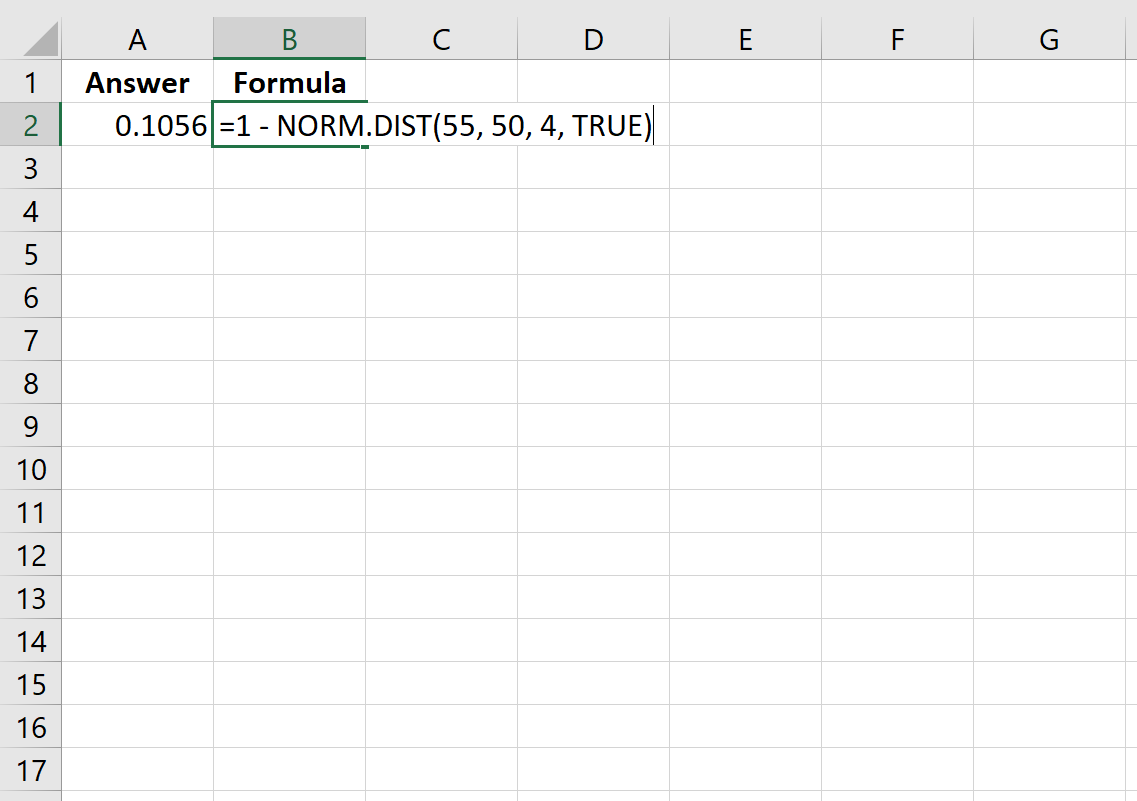

The visual representation of this calculation, demonstrating the use of the complement rule within the formula bar, is provided in the screenshot below:

The calculated probability that the random variable exceeds 55 is determined to be 0.1056. This method is essential for finding upper-tail probabilities in any continuous distribution.

Conclusion and Further Resources for Statistical Analysis

Excel’s NORM.DIST() function proves to be an exceptionally flexible and powerful utility for performing statistical calculations traditionally associated with advanced graphing calculators. By thoroughly understanding the mechanism of the cumulative argument (setting it to TRUE) and mastering the application of the subtraction rule for bounded ranges, users can accurately and efficiently determine the probability for any desired interval within a normal distribution. This ensures that accurate statistical modeling is achievable using widely available spreadsheet software.

For those engaged in deeper statistical analysis, it is worth noting the complementary function: NORM.INV(). This function performs the inverse calculation, allowing you to find the specific data value (or z-score) that corresponds to a known cumulative probability. Utilizing both NORM.DIST() and NORM.INV() provides a complete toolkit for probability-based analysis of normally distributed data sets.
