Calculate Percentile Rank for Grouped Data

The Challenge of Analyzing Grouped Data

The process of statistical analysis often necessitates dealing with expansive datasets, which, for practical purposes, are frequently summarized and presented as grouped data rather than exhaustive lists of individual observations. While grouping scores into specific class intervals streamlines presentation, it introduces a significant analytical challenge: the precise value of each individual score within those intervals is lost. This loss of raw detail complicates the calculation of accurate statistical measures, demanding specialized methodologies.

When working with grouped distributions, we cannot simply count observations to find exact quantiles. Instead, we must rely on methods that estimate the required values based on the known frequencies and class boundaries. This estimation is critical for measures of location, such as the median, quartiles, and most importantly for this discussion, the percentile rank. Without a reliable estimation technique, the utility of summarized data for descriptive statistics would be severely limited.

To overcome this inherent limitation, statisticians utilize the principle of linear interpolation. This method provides a mathematically sound framework for estimating where a specific percentile value must lie within a given interval, assuming that the observations within that class are uniformly distributed. Understanding this interpolation process is foundational for accurately interpreting summary statistics derived from any standard frequency distribution table.

The Role of Linear Interpolation in Quantile Estimation

A percentile rank defines the score below which a specific percentage of observations fall within a distribution. For example, calculating the 64th percentile means locating the score that is greater than or equal to 64% of all data points. When data is presented in intervals, we must assume a linear progression of scores across the width of the critical class to precisely locate this point.

The core principle of linear interpolation applied to grouped data is to determine how far into the identified class interval one must travel to accumulate the required number of observations needed to reach the target percentile position. This calculation is proportional: the distance traveled into the class (relative to the class width) is proportional to the number of observations needed (relative to the frequency of that class).

This sophisticated methodology ensures that even when dealing with aggregated data common in fields like educational testing, finance, and demographics, we can produce robust and reliable estimates for key distributional metrics. The formula detailed below transforms the class boundaries and frequencies into a specific, quantifiable score corresponding to the desired percentile.

Deconstructing the Percentile Rank Formula

To precisely determine the percentile rank (P) for observations organized into class intervals, a specialized interpolation formula is applied. This formula integrates the class statistics with the required percentile position to pinpoint the exact score.

Percentile Rank = L + (RN/100 – M) / F * C

A clear understanding of each component is essential for accurate application. Each variable plays a distinct role in localizing the percentile value within the distribution:

• L: The Lower Bound of the specific class interval that contains the target percentile. This serves as the baseline starting score for the interpolation.
• R: The requested percentile rank (expressed as a whole number, e.g., 64).
• N: The Total Frequency, representing the sum of all observations in the dataset.
• M: The Cumulative Frequency of all scores leading up to, but strictly excluding, the critical class interval. This value quantifies the number of observations that fall below the starting point L.
• F: The specific Frequency of the critical class interval itself.
• C: The Class Width, which is the range or size of the class interval.

In essence, the central part of the formula, (RN/100 – M), calculates the exact number of additional observations needed from within the critical class (F) to reach the required percentile position (RN/100). This required count is then scaled by the class width (C) to yield the incremental score added to the lower bound (L).

Applying the Formula: Sample Dataset and Initial Setup

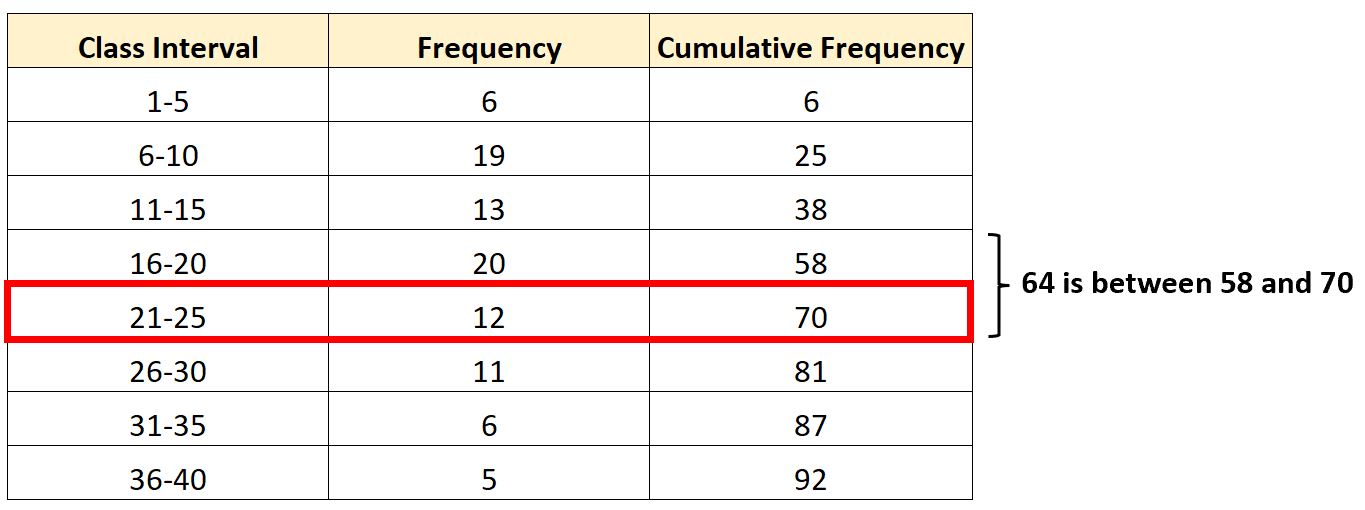

To demonstrate the practical utility of this formula, we will utilize a representative hypothetical dataset structured as a frequency distribution table. This table organizes scores into various class intervals along with the corresponding frequency of observations within each interval:

The initial step in preparation for any quantile calculation involving grouped data is to augment the distribution table by calculating the cumulative frequency for every interval. The cumulative frequency is paramount because it allows us to quickly assess the running total of observations, which is necessary for accurately identifying where the target percentile value resides within the distribution.

Our specific objective for this example is to determine the score corresponding to the 64th percentile of the entire distribution. This means we are searching for the score value that separates the bottom 64% of the dataset from the top 36%.

Identifying the Critical Class Interval

The most pivotal step in the calculation process is accurately identifying the class interval that contains the desired percentile value. This is achieved by first determining the specific position of the 64th percentile relative to the Total Frequency (N).

1. Calculate the Total Frequency (N): By summing the frequencies of all classes, we determine the total number of observations. From the table, the final cumulative frequency confirms that N = 92.

2. Calculate the Position (P): The position of the desired percentile (R) is calculated using the relationship: Position = (R * N) / 100. For the 64th percentile: Position = (64 * 92) / 100 = 5888 / 100 = 58.88.

3. Locate the Critical Interval: This result indicates that the 64th percentile score is located at the 58.88th observation in the ordered dataset. We use the updated cumulative frequency column to find which class interval encompasses this position.

As shown in the updated table above, the cumulative frequency reaches 58 just before the 21-25 class interval begins. Since our target position (58.88) exceeds 58 but is less than the next cumulative frequency (70), the required percentile value must necessarily fall within the 21-25 interval. This class is now designated as our critical percentile class, and all subsequent variable extraction will revolve around its properties.

Systematic Extraction of Key Variables

Once the critical interval (21-25) has been pinpointed, the next step involves systematically extracting the values for all six variables (L, R, N, M, F, C) required by the interpolation formula. These values are derived directly from the characteristics of the distribution table, particularly the critical class and the cumulative data preceding it.

• L: Lower Bound

  The value of L is the lower limit of our critical interval (21-25). This is the starting score from which the interpolation begins.

  Value of L: 21.

• R: Target Percentile Rank

  The variable R is the percentile we are explicitly attempting to locate.

  Value of R: 64.

• N: Total Frequency

  The variable N is the grand total of all observations, confirmed by the last entry in the cumulative frequency column.

  Value of N: 92.

• M: Cumulative Frequency Before

  The value of M represents the total count of scores strictly below the lower bound (L=21). We look at the cumulative frequency of the class immediately preceding the 21-25 interval.

  Value of M: 58.

• F: Frequency of the Critical Interval

  The variable F is the number of observations contained solely within the 21-25 critical class.

  Value of F: 12.

• C: Class Width

  The Class Width (C) is the size or range of the interval. It is calculated by finding the difference between the lower limits of two successive classes (e.g., 21 and 16) or, as derived in this example, the difference between the upper and lower limits of the class itself (25 – 21).

  Value of C: 4.

Executing the Final Calculation Steps

With all six variables quantified (L=21, R=64, N=92, M=58, F=12, C=4), we are now prepared to substitute these figures into the linear interpolation formula to solve for the 64th percentile rank. This involves following the standard order of algebraic operations precisely.

The goal is to determine the incremental distance into the class that must be covered to reach the 58.88th position, and then add this score increment to the lower bound (L).

• Percentile Rank = L + (RN/100 – M) / F * C

We proceed step-by-step through the calculation:

1. Substitute Initial Values: 64th Percentile Rank = 21 + ((64 * 92) / 100 – 58) / 12 * 4

2. Calculate the Position (RN/100): This term has already been identified as the required position (P): (64 * 92) / 100 = 58.88.

3. Determine Observations Needed (Numerator): Subtract the cumulative frequency (M) from the required position: 58.88 – 58 = 0.88. This means we need 0.88 observations from within the critical class.

4. Calculate the Fractional Position: Divide the needed observations (0.88) by the total frequency of the class (F=12): 0.88 / 12 ≈ 0.07333. This ratio defines the proportionate distance into the class we must travel.

5. Calculate the Score Increment: Multiply the fractional position by the Class Width (C=4): 0.07333 * 4 ≈ 0.29332. This is the actual score added to the lower bound.

6. Determine the Final Percentile Score: Add the calculated score increment to the lower bound (L=21): 64th Percentile Rank = 21 + 0.29332.

The final calculation reveals that the 64th percentile for this grouped distribution is 21.293 (rounded to three decimal places). This result confirms that 64% of the scores in the entire dataset are estimated to be at or below the value of 21.293.

Conclusion: Interpretation and Broader Applications

The successful calculation of the percentile rank for grouped data using linear interpolation represents a vital capability in advanced statistical analysis. While summarizing large datasets into class intervals sacrifices individual data points, this robust technique ensures that meaningful estimates of distributional spread and location can still be derived. The interpolation formula effectively bridges the gap between raw data precision and the convenience of summary statistics.

Furthermore, mastery of this specific formula provides the foundation for calculating all other quantile measures—including quartiles, deciles, and the median—when working with frequency distributions. Since these measures are simply specific percentile ranks (e.g., the median is the 50th percentile, the first quartile is the 25th percentile), the methodology remains universally applicable across various statistical contexts.

The resulting percentile value (21.293) is a powerful descriptive statistic, allowing for direct comparison and interpretation against other key metrics derived from the frequency distribution. This ensures that summarized data can still yield deep and actionable insights into the underlying population or sample characteristics.
