Learn to Calculate and Plot Cumulative Distribution Functions (CDFs) in R

Understanding the Cumulative Distribution Function (CDF) in Statistical Analysis

The Cumulative Distribution Function (CDF) represents a cornerstone concept in statistical theory and practical data analysis. It serves as a comprehensive mathematical tool that provides a complete description of the probability distribution for a real-valued random variable, typically denoted as X. Fundamentally, the CDF, often symbolized as F(x), calculates the probability that the random variable X will assume a value that is less than or equal to a specific input value, x.

Unlike other measures, such as the Probability Density Function (PDF) for continuous variables or the Probability Mass Function (PMF) for discrete variables—which describe probability at a single point or within a small interval—the CDF offers a cumulative perspective. This means it integrates or sums all probabilities up to a given point. This cumulative aggregation is powerful because it guarantees the function is non-decreasing and spans a range from 0 to 1, regardless of the underlying distribution’s shape. This property makes the CDF indispensable for various statistical tasks, including calculating quantiles, performing goodness-of-fit tests, and comparing observed data distributions against theoretical models.

For practitioners working in the R programming language, the ability to calculate and visualize the CDF is essential for exploratory data analysis and model validation. R provides specialized, highly optimized built-in functions that streamline the process of moving from raw data points to a clear, visual representation of the underlying probability structure. Visualizing the CDF often offers the most intuitive and immediate understanding of where the data clusters and how it is spread across its range.

Core Syntax for Empirical CDF Calculation in R

When analyzing observed data—a finite sample drawn from a potentially unknown population—we cannot usually calculate the true theoretical CDF. Instead, we rely on the Empirical CDF (ECDF), which serves as the best available estimator of the population’s true underlying CDF. The ECDF effectively maps the observed data points to their corresponding cumulative probabilities within the sample. In R, calculating and manipulating this function is remarkably straightforward.

R provides the dedicated function ecdf() for this purpose. When applied to a vector of numerical observations, this function returns a function object, not just a numerical result. This function object encapsulates the step-wise definition of the ECDF. Once this function object is created, it can be passed directly to the standard plot() command, which intelligently recognizes the object type and produces the characteristic step-function plot.

The standard workflow involves two concise lines of code that efficiently transform raw data into a plotted distribution curve. This efficiency is one of the reasons R remains the preferred environment for statistical computing. The following basic syntax demonstrates how to calculate the ECDF, store it as a function object named p, and then generate the visualization:

#calculate empirical CDF of data
p = ecdf(data)

#plot CDF
plot(p)

The resulting graphical output is a step function, which is the defining visual characteristic of the ECDF derived from discrete sample points. Each jump in the function corresponds exactly to an observed data point. Subsequent examples will illustrate how to apply this syntax to real-world data simulations and how to interpret the resulting visualizations accurately.

Example 1: Generating and Plotting the ECDF of Simulated Raw Data

In many statistical scenarios, particularly in simulation studies or when dealing with initial observational data, the precise theoretical distribution of the data is unknown. The ECDF is therefore crucial, as it provides a non-parametric, unbiased estimate of the true population CDF based solely on the sample evidence. To illustrate this process, we can use R’s powerful simulation capabilities, specifically the rnorm() function, to generate a realistic sample dataset.

In the example below, we generate 100 random observations drawn from a standard normal distribution (mean=0, standard deviation=1). We then apply the ecdf() function to this sample. The resulting plot serves as an excellent diagnostic instrument. By carefully analyzing the curve’s shape—particularly where it is steep or flat—we can quickly infer properties about the data, such as its location, central tendency, and dispersion. A steeply rising section implies a high concentration of data points (high local density), whereas a flatter segment indicates that the data is sparser in that range.

To ensure the resulting plot is clear and professional, it is best practice to include meaningful labels for the axes and a descriptive title. The following code executes the calculation and plotting of the ECDF for our simulated dataset, incorporating these essential graphical enhancements for clarity:

#create some data (100 random normal values)
data = rnorm(100)

#calculate empirical CDF of data
p = ecdf(data)

#plot CDF with custom labels
plot(p, xlab='x', ylab='CDF', main='CDF of Data')

Interpreting the Empirical CDF Plot

Effective interpretation of the ECDF plot requires a clear understanding of what the two axes represent and how the step-function curve relates to the data distribution. The graph provides a direct and quantifiable visual summary of the cumulative probability, where the vertical axis always ranges strictly from 0 to 1, representing 0% to 100% cumulative probability.

The horizontal axis (the x-axis) displays the observed raw data values. These values correspond to the variable ‘x’ in the theoretical CDF definition, F(x). The vertical axis (the y-axis) displays the corresponding ECDF value. For any specific value on the x-axis, the height of the curve at that point directly indicates the proportion of observations within the dataset that are less than or equal to that x-value. For example, if the ECDF curve achieves a height of 0.5 (the 50th percentile) precisely at x=0, it signifies that half (50%) of the total data points in the sample have a value of 0 or less.

Because the ECDF is derived from a finite, discrete sample, it is inherently a non-decreasing step function. The sudden vertical jumps in the function occur exactly at the locations of the unique observed data points. A critical concept in statistics is that as the sample size (N) increases, the ECDF exhibits a tendency to converge, almost surely, to the true underlying theoretical CDF of the population. This convergence property ensures that the ECDF becomes an increasingly reliable and accurate estimator as more data is collected, making it a foundational tool for statistical inference and visualization.

Example 2: Plotting Precise Theoretical CDFs in R

While the ECDF is indispensable for analyzing raw sample data, R also offers a highly efficient set of functions for visualizing known, theoretical probability distributions. When the population distribution is assumed or known (e.g., Normal, Binomial, Exponential), we can plot the exact theoretical CDF curve instead of relying on a sample-based estimate. These theoretical distribution functions are conveniently prefixed with the letter ‘p’ in R (e.g., pnorm for the normal distribution, pbinom for the binomial distribution, pexp for the exponential distribution, etc.).

For plotting these smooth, continuous theoretical CDFs, the standard plot() function is less suitable than the powerful curve() function. The curve() function is specifically designed to plot a mathematical expression or function over a designated range of x-values. This allows us to generate a perfectly smooth curve that represents the theoretical probability distribution, contrasting sharply with the stepped appearance of the ECDF.

In this second example, we plot the exact CDF for the standard normal distribution, which is characterized by a mean of 0 and a standard deviation of 1. We specify the range of the plot using the from and to arguments, typically extending to three standard deviations from the mean to capture the vast majority of the probability mass:

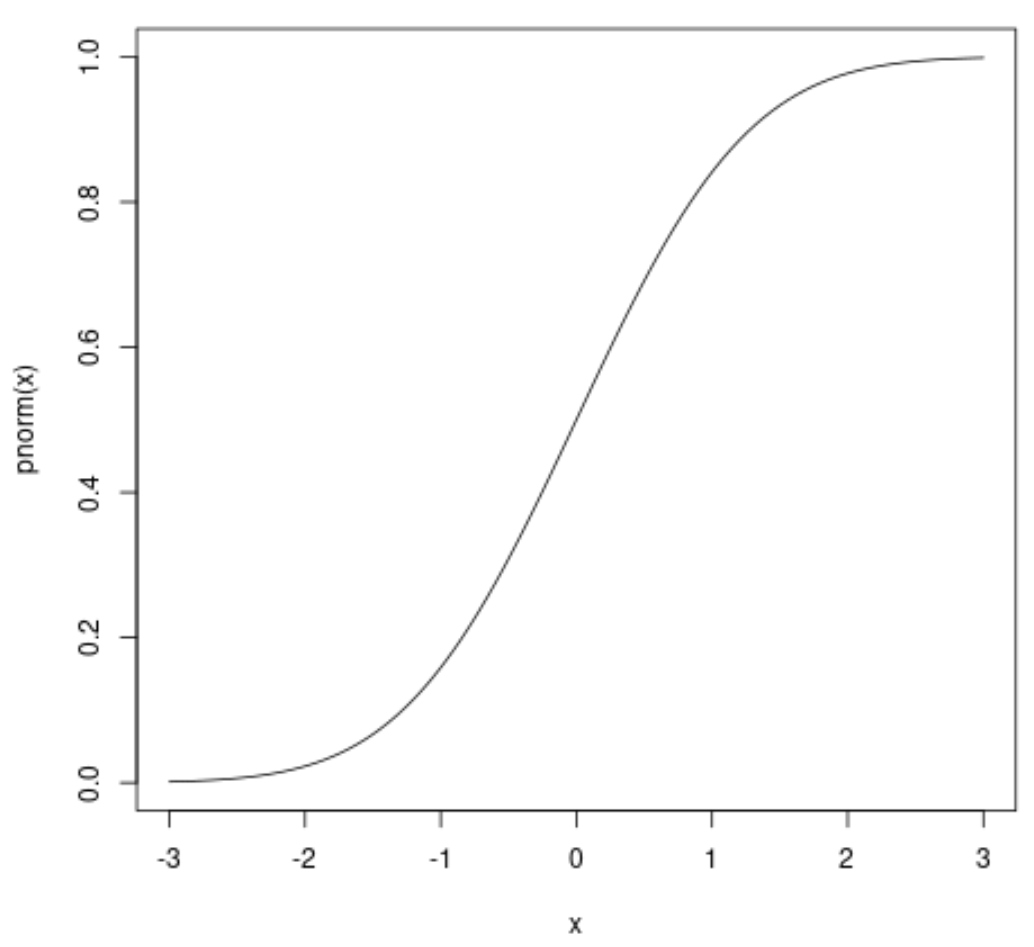

curve(pnorm, from = -3, to = 3)

The output of this code is the classic, smooth S-shaped sigmoid curve, which is typical for continuous probability distributions like the normal distribution. Observing this plot confirms a fundamental statistical rule: virtually all probability mass (specifically, 99.7%) of a normal distribution is contained within three standard deviations of its mean, which is clearly visible as the curve approaches 0 and 1 at the boundaries.

Advanced Visualization using the ggplot2 Package

While R’s base graphics package (using plot() or curve()) is highly functional for quick statistical visualization, professional data analysts frequently turn to the ggplot2 package. This package is based on the “grammar of graphics,” offering enhanced control over aesthetics, layering, and customization, resulting in publication-quality charts that are superior to the default R output.

Plotting theoretical CDFs using ggplot2 requires utilizing the stat_function() geometry, which is designed specifically to overlay a mathematical function onto an existing plot canvas. This method is highly flexible, allowing the user to specify the function (via the fun argument) and seamlessly integrate it with other graphical layers, such as titles, themes, and color palettes, without the need to manually pre-calculate the function values.

The necessary steps involve loading the library, initializing a plotting environment (usually by defining the required x-axis range in a data frame), and then adding the stat_function() layer. The following code demonstrates how to replicate the theoretical standard normal CDF plot using the advanced capabilities of ggplot2:

library(ggplot2)

ggplot(data.frame(x = c(-3, 3)), aes(x = x)) +
  stat_function(fun = pnorm)

This syntax first loads the necessary library. It then constructs a minimal data frame to define the required aesthetic mapping for the x-axis range (from -3 to 3). Finally, stat_function(fun = pnorm) is called to draw the standard normal CDF curve across this defined range. The result is a highly polished and customizable visualization that leverages the full power of the ggplot2 framework.

Conclusion: Mastering CDF Visualization in R

The ability to accurately calculate and visualize the Cumulative Distribution Function is a foundational skill set for anyone performing statistical computing within R. Whether dealing with raw sample data, where the ecdf() function provides a robust, non-parametric estimate, or analyzing known theoretical models, where the ‘p’ family of functions is used in conjunction with curve() or stat_function(), R offers efficient, reliable tools for every scenario.

Mastering these techniques allows data analysts to move beyond simple descriptive statistics and gain a deeper, more profound understanding of the underlying probability distributions governing their data. This enhanced visualization capability is critical for robust statistical inference, precise hypothesis testing, and effective comparison between different probability models.

Additional Resources for CDF Calculation and Visualization

• Official R Documentation for ecdf(): Consult the official documentation for detailed information regarding the parameters, computational efficiency, and advanced options available for calculating the Empirical CDF in R.

• Introduction to Probability Distributions in R: Explore the full range of distribution functions available, including discrete distributions like pbinom and ppois, and continuous distributions such as pt (t-distribution) and pexp (exponential distribution).

• Advanced Visualization Techniques: Learn how to maximize the aesthetic and informative power of your charts by learning to customize colors, legends, titles, and themes using the ggplot2 package to create professional-grade graphics.
